Model GE DDE8500SBMAA Dryer Electric – Common Parts & Diagrams

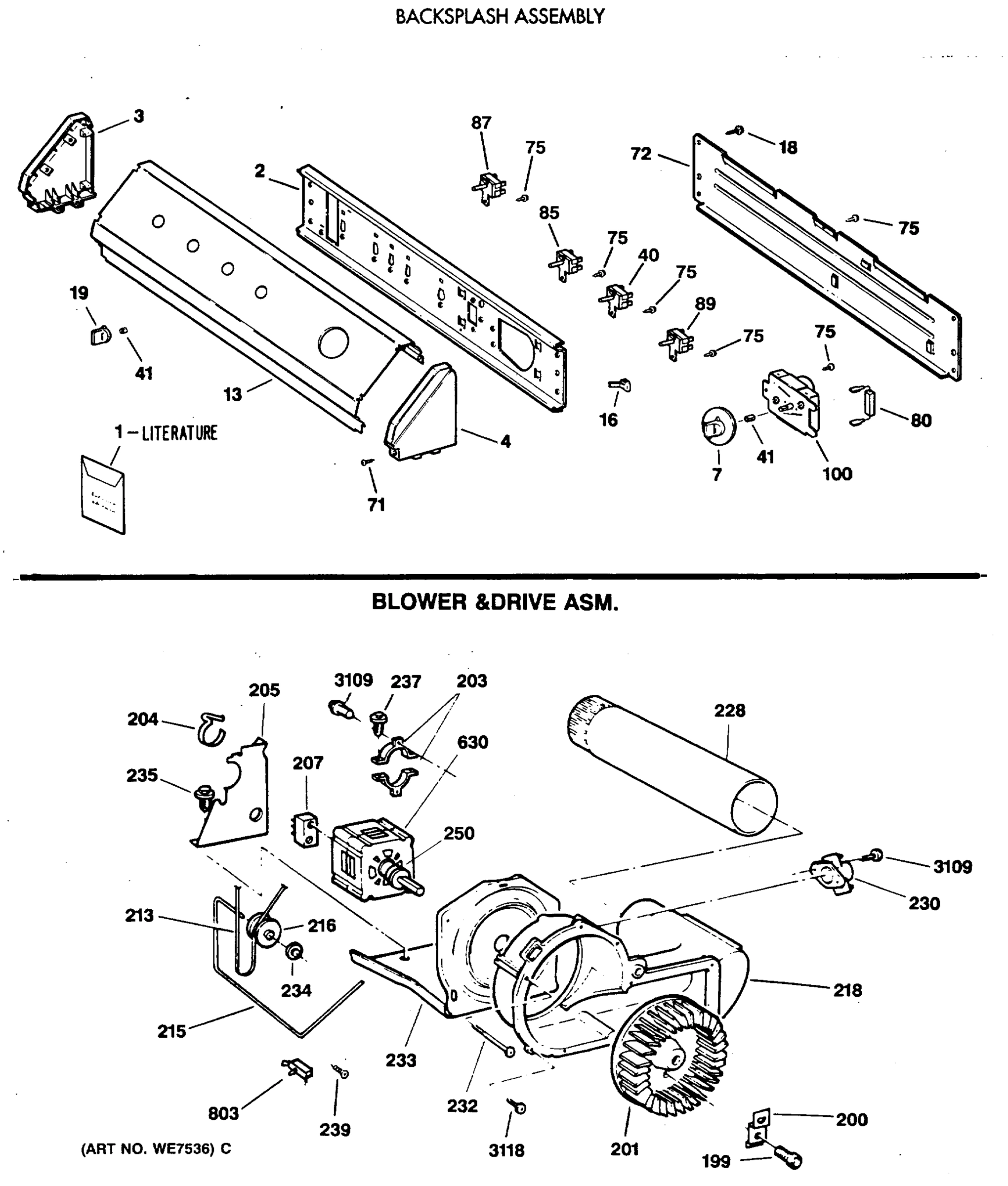

BACKSPLASH ASSEMBLY

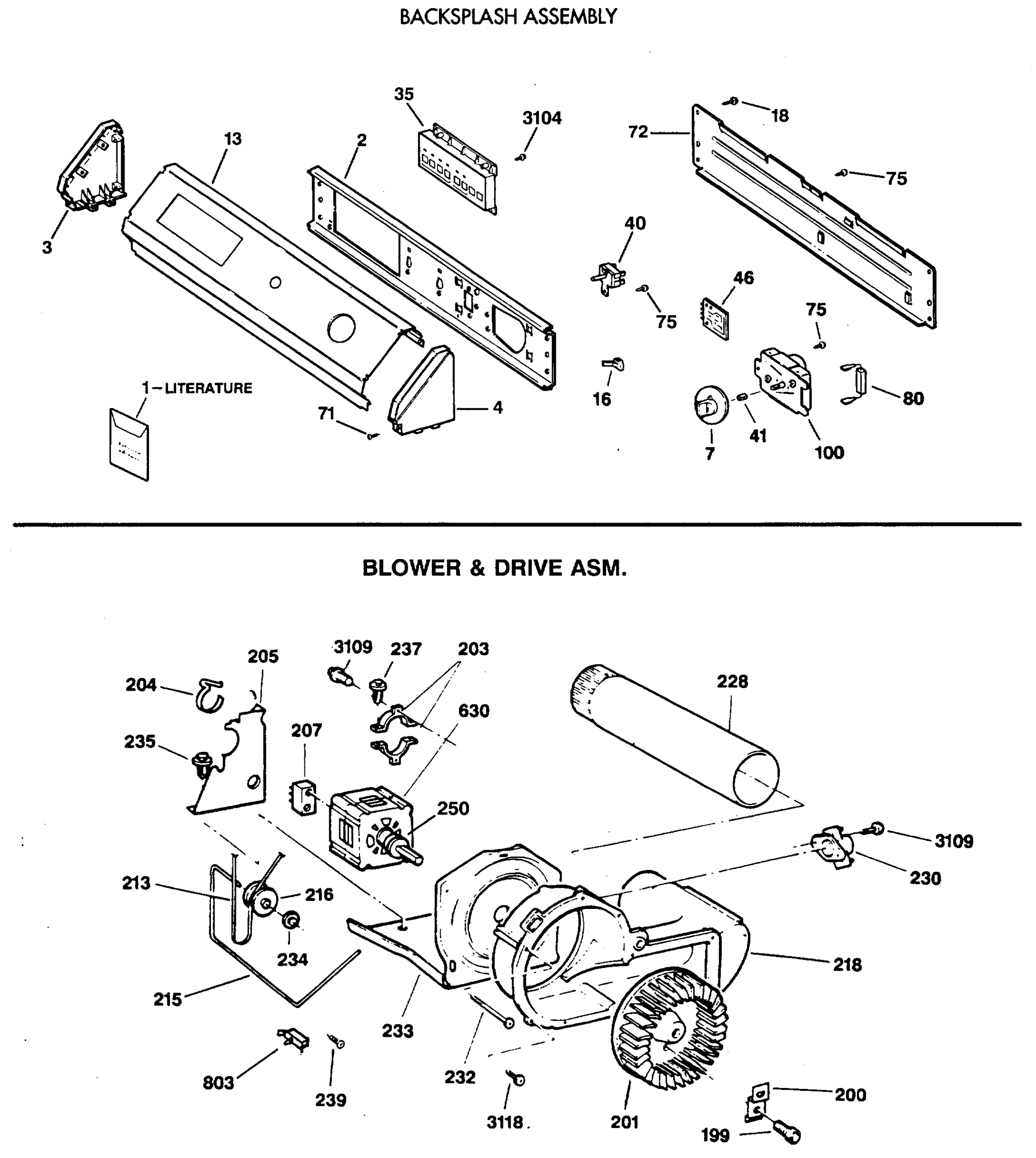

BACKSPLASH ASSEMBLY

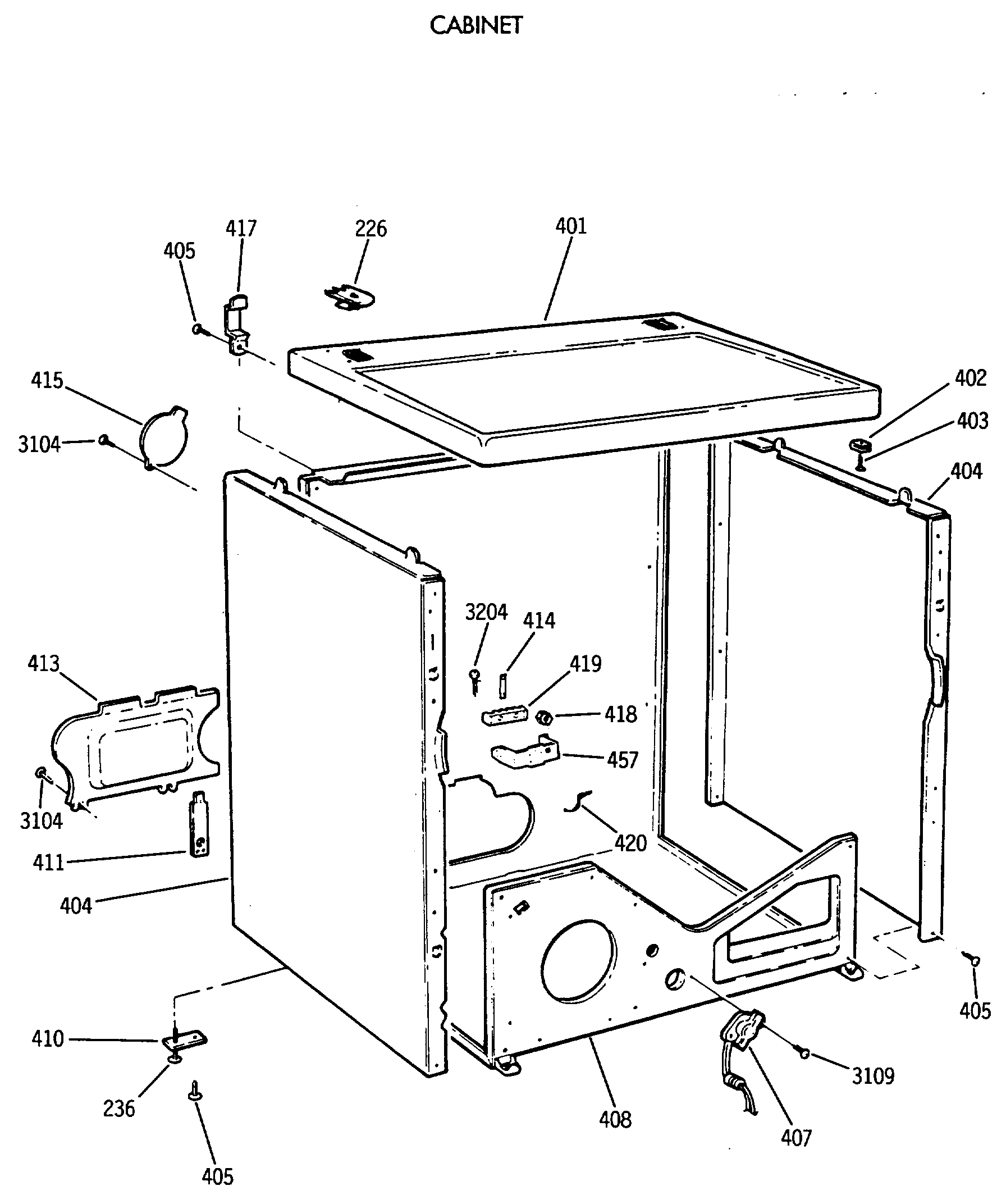

CABINET

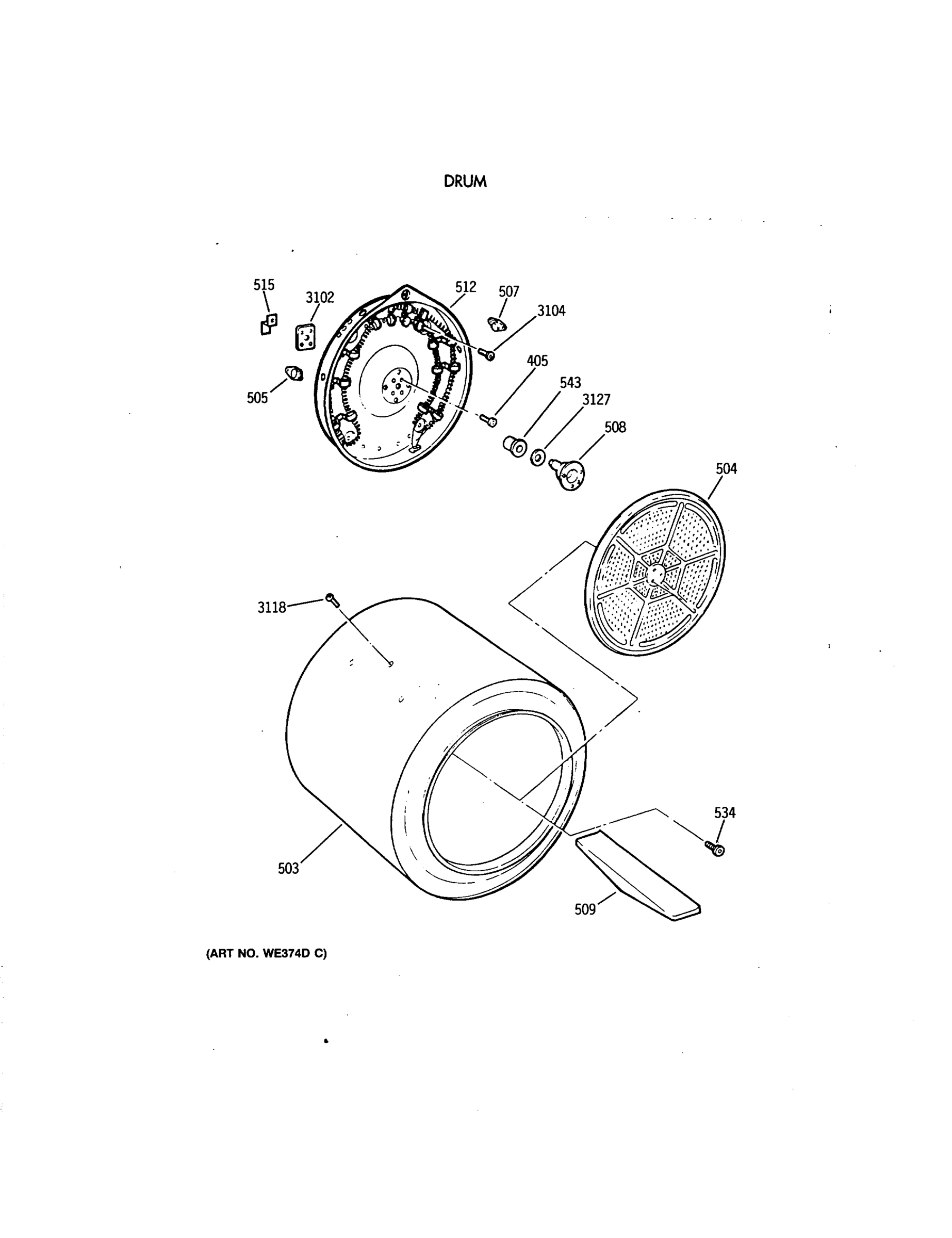

DRUM

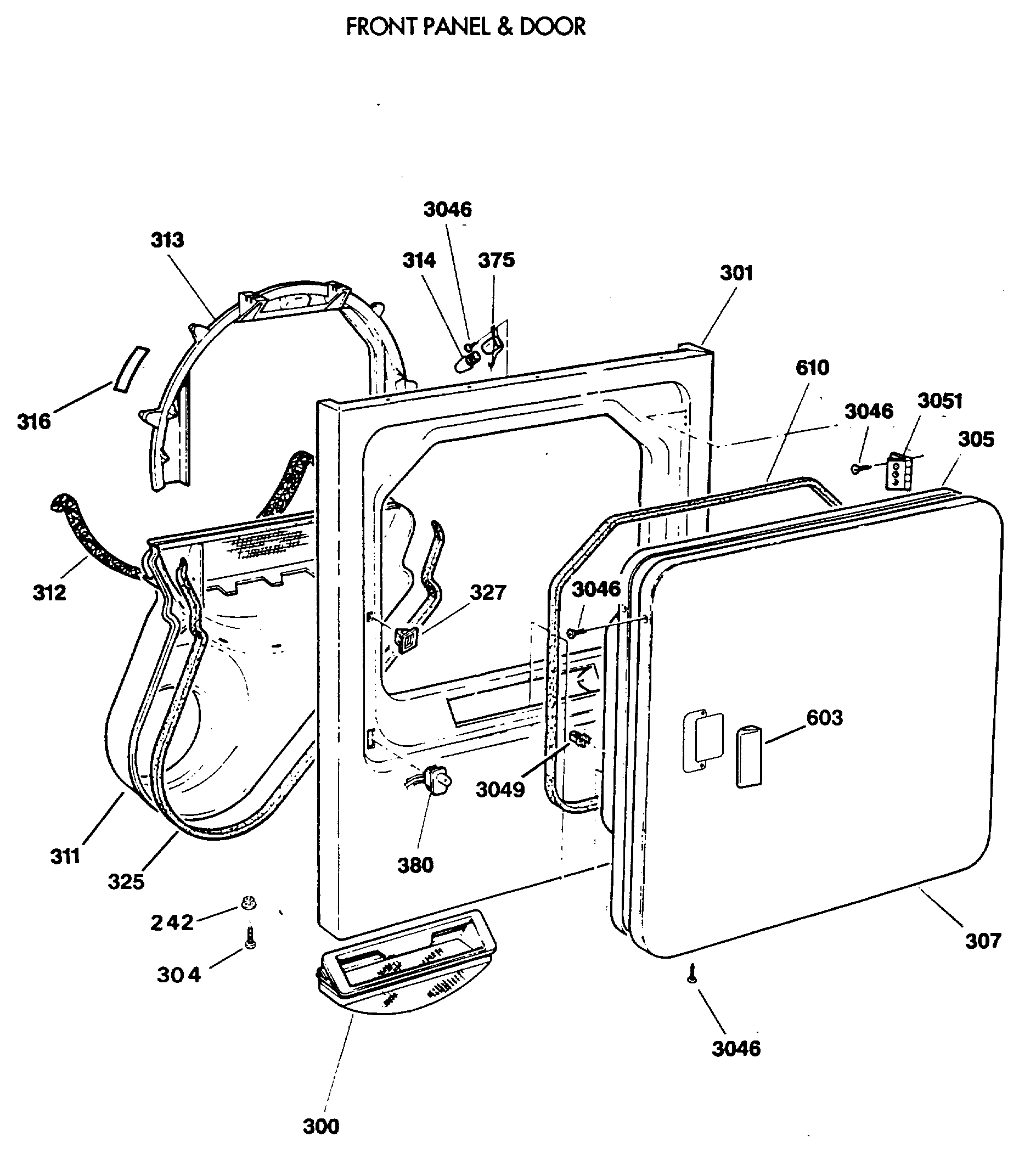

FRONT PANEL & DOOR
Common parts from model GE DDE8500SBMAA Dryer Electric
1
GEN 31-1733 GEN 31-1733 Contact Us For Availability
1
GEN 31-2784 GEN 31-2784 Contact Us For Availability
1
GEN 49-9798 GEN 49-9798 Contact Us For Availability
2
PLATE MOUNTING GEN WH46X0330 Contact Us For Availability
3
GEN WH42X2281 GEN WH42X2281 Contact Us For Availability
4
GEN WH42X2282 GEN WH42X2282 Contact Us For Availability
7
KNOB ASSY TIMER, AD GEN WE01X1205 Contact Us For Availability
13
GEN WE19M0866 GEN WE19M0866 Contact Us For Availability
16
GEN WH02X1151 GEN WH02X1151 Contact Us For Availability
18
GEN WH02X1152 GEN WH02X1152 Contact Us For Availability
40
GEN WE04X0798 GEN WE04X0798 Contact Us For Availability
41
GEN WE01X0980 GEN WE01X0980 Contact Us For Availability
71
GEN WH02X1157 GEN WH02X1157 Contact Us For Availability
72
GEN WH46X0311 GEN WH46X0311 Contact Us For Availability
80
GEN WE04M0154 GEN WE04M0154 Contact Us For Availability
85
GEN WE04X0779 GEN WE04X0779 Contact Us For Availability
87
GEN WE04X0783 GEN WE04X0783 Contact Us For Availability
100
GEN WD03X0692 GEN WD03X0692 Contact Us For Availability
100
GEN WE01M0364 GEN WE01M0364 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
218
GEN WE14M0078 GEN WE14M0078 Contact Us For Availability
226
GEN WH02X1154 GEN WH02X1154 Contact Us For Availability
228
GEN WE14M0054 GEN WE14M0054 Contact Us For Availability
230
GEN WE04M0156 GEN WE04M0156 Contact Us For Availability
233
GEN WE13M0025 GEN WE13M0025 Contact Us For Availability
234
GEN WE02M0096 GEN WE02M0096 Contact Us For Availability
235
GEN WE02M0155 GEN WE02M0155 Contact Us For Availability
239
GEN WE02M0167 GEN WE02M0167 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
300
GEN WE18M0018 GEN WE18M0018 Contact Us For Availability
301
GEN WE20M0264 GEN WE20M0264 Contact Us For Availability
307
GEN WE10M0091 GEN WE10M0091 Contact Us For Availability
311
GEN WE14M0072 GEN WE14M0072 Contact Us For Availability
312
GEN WE09M0010 GEN WE09M0010 Contact Us For Availability
313
GEN WE03M0019 GEN WE03M0019 Contact Us For Availability
314
GEN WE01M0323 GEN WE01M0323 Contact Us For Availability
316
GEN WE01M0333 GEN WE01M0333 Contact Us For Availability
375
GEN WE05M0004 GEN WE05M0004 Contact Us For Availability
401
GEN WE20M0272 GEN WE20M0272 Contact Us For Availability
402
GEN WE02M0162 GEN WE02M0162 Contact Us For Availability
404
SIDE PANEL AD GEN WE20M0261 Contact Us For Availability
408
GEN WE20M0262 GEN WE20M0262 Contact Us For Availability
410
GEN WE01M0378 GEN WE01M0378 Contact Us For Availability
411
GEN WE01M0341 GEN WE01M0341 Contact Us For Availability
413
GEN WE01M0366 GEN WE01M0366 Contact Us For Availability
414
GEN WE01X0339 GEN WE01X0339 Contact Us For Availability
415
GEN WE01M0365 GEN WE01M0365 Contact Us For Availability
417
GEN WE01M0308 GEN WE01M0308 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
GEN WE20M0238 GEN WE20M0238 Contact Us For Availability
457
GEN WE01M0340 GEN WE01M0340 Contact Us For Availability
503
GEN WE21M0011 GEN WE21M0011 Contact Us For Availability
504
GEN WE14M0057 GEN WE14M0057 Contact Us For Availability
509
GEN WE14M0064 GEN WE14M0064 Contact Us For Availability
603
HANDLE AD GEN WE01X1201 Contact Us For Availability
610
GEN WE09M0013 GEN WE09M0013 Contact Us For Availability
3046
GEN WR02X8697 GEN WR02X8697 Contact Us For Availability
3118
GEN WH02M0342 GEN WH02M0342 Contact Us For Availability
× ![]()
