Model GE DBXR463EG6WW Dryer Electric – Common Parts & Diagrams
BACKSPLASH, BLOWER & MOTOR ASSEMBLY
FRONT PANEL & DOOR

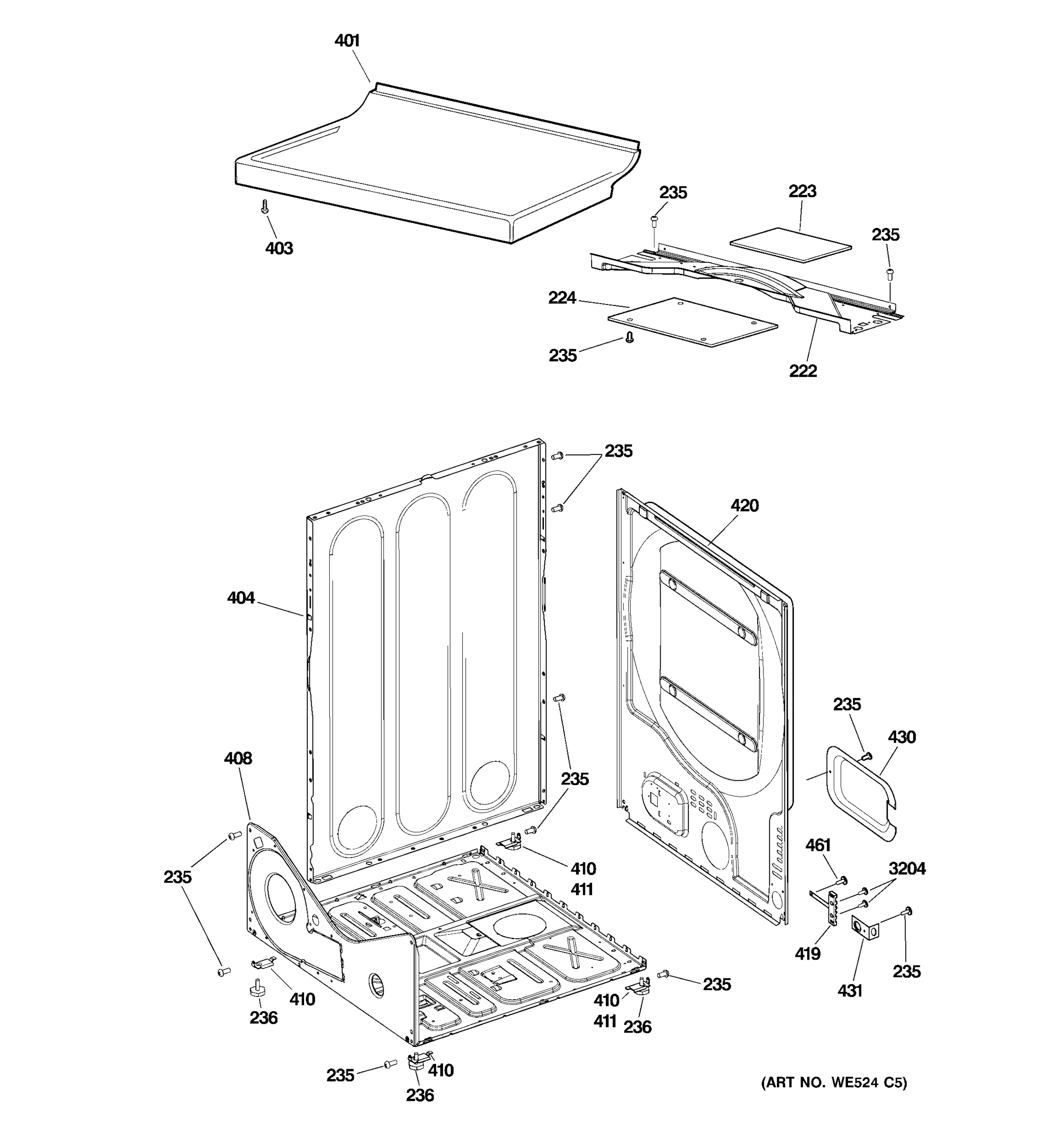

CABINET

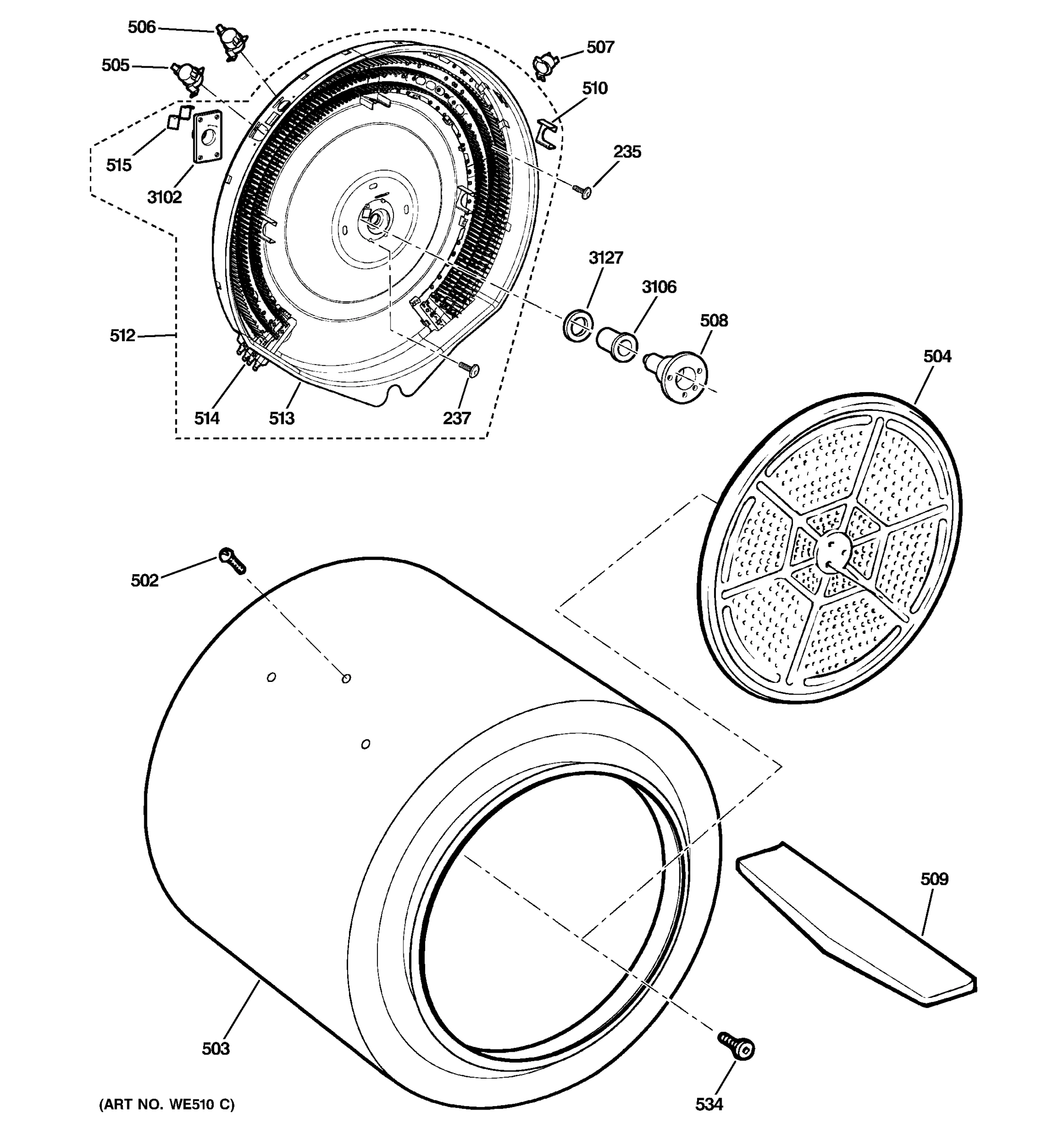

DRUM
Common parts from model GE DBXR463EG6WW Dryer Electric
12
BUZZER GEN WE4M318 Contact Us For Availability
13
BACK. ASM GEN WE19M1490 Contact Us For Availability
72
PANEL BACK GEN WE19M1481 Contact Us For Availability
75
SCREW GEN WE2M173 Contact Us For Availability
205
MOTOR SUPPORT GEN WE13M39 Contact Us For Availability
218
BLOWER HOUSING GEN WE14M93 Contact Us For Availability
230
THERMOSTAT OUTLET GEN WE4M216 Contact Us For Availability
232
SCREW GEN WE2M202 Contact Us For Availability
234
CAP NUT GEN WE2M96 Contact Us For Availability
313
TOP BEARING GEN WE3M26 Contact Us For Availability
375
SOCKET ASM GEN WE5M48 Contact Us For Availability
403
SCREW #8 GEN WE2M160 Contact Us For Availability
404
PANEL SIDE WH GEN WE20M393 Contact Us For Availability
410
BRACKET LEVELLING LEG GEN WE1M772 Contact Us For Availability
411
BRACKET & LEVEL LEG ASM GEN WE1M773 Contact Us For Availability
419
TERM BLK & GRND STRAP GEN WE4M325 Contact Us For Availability
502
SCREW # 10 GEN WE2M174 Contact Us For Availability
505
THERMOSTAT SAFETY LEFT GEN WE4M160 Contact Us For Availability
506
THERMOSTAT BIAS CTR INLT GEN WE4M181 Contact Us For Availability
507
THERMOSTAT HI-LIMIT GEN WE4M137 Contact Us For Availability
509
BAFFLE GEN WE14M75 Contact Us For Availability
534
SCREW #10 GEN WE2M163 Contact Us For Availability
631
CONNECTOR MOTOR GEN WE1M650 Contact Us For Availability
3046
SCREW #8 GEN WE2M196 Contact Us For Availability
3102
BEARING RETAINER GEN WE1M300 Contact Us For Availability
3127
O RING GEN WE1M461 Contact Us For Availability
× ![]()
