Model CAWS833RQ1 – Common Parts & Diagrams
01 - TOP AND CABINET PARTS
02 - CONTROLS AND REAR PANEL PARTS

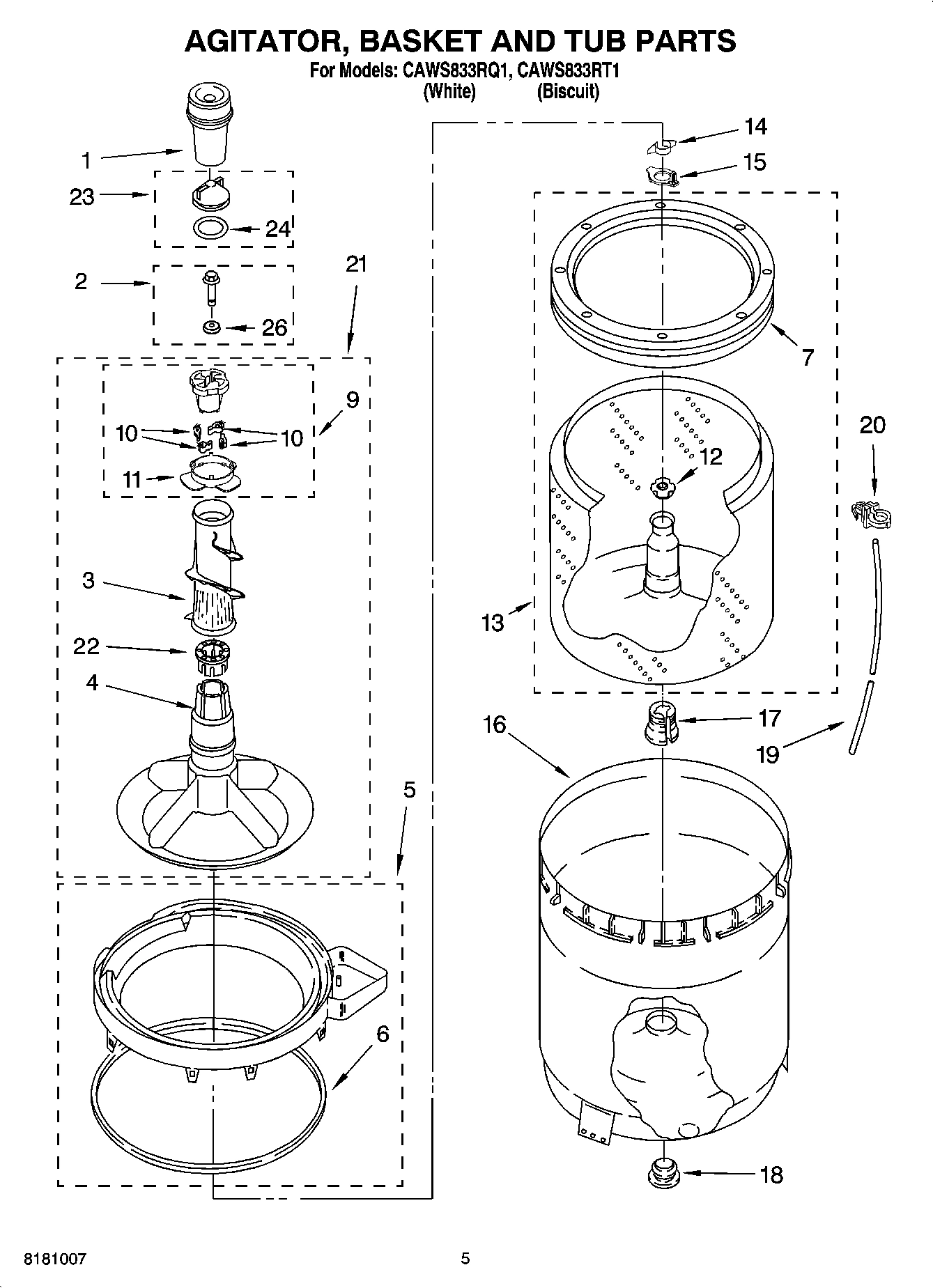

03 - AGITATOR, BASKET AND TUB PARTS

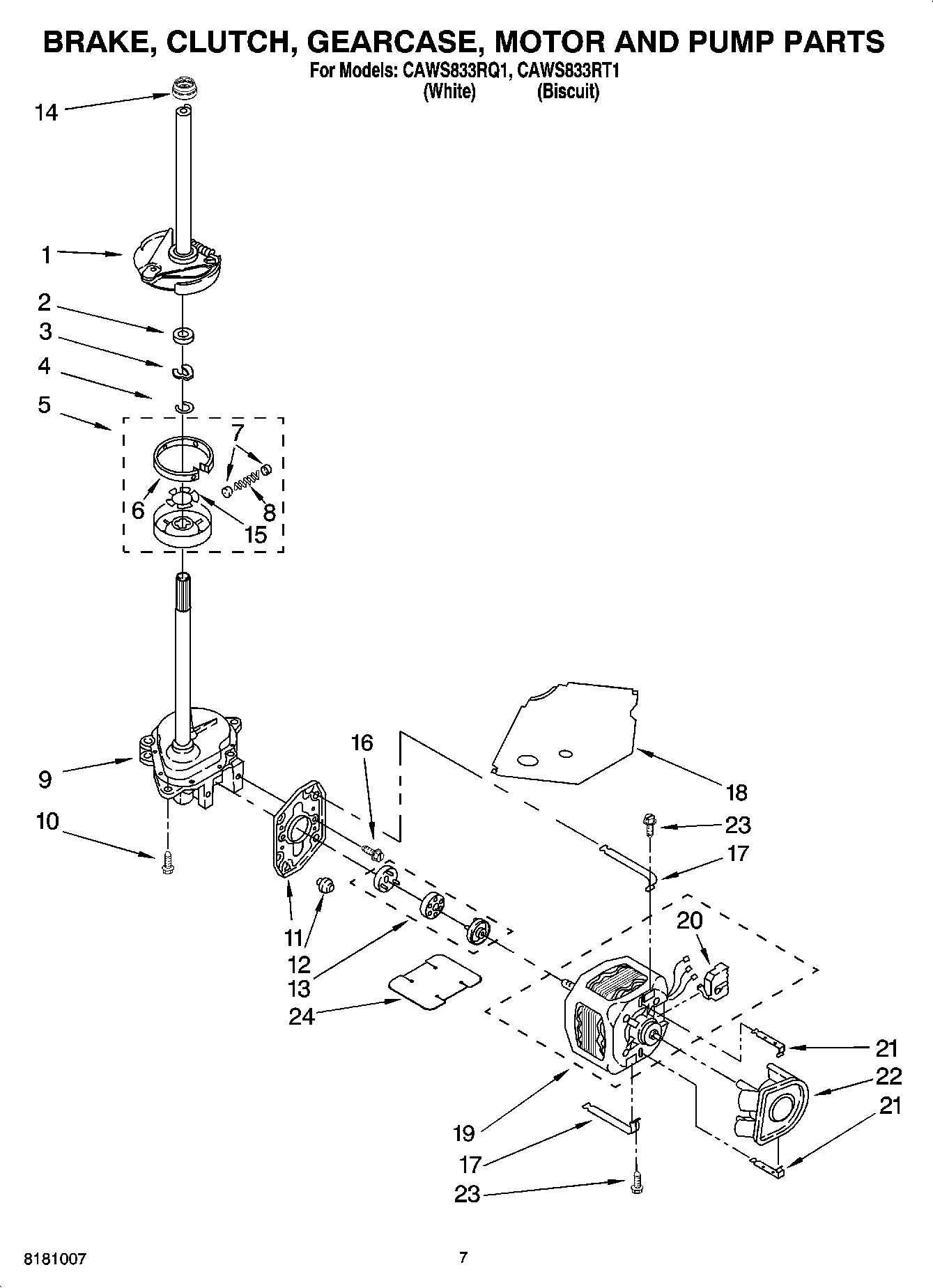

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

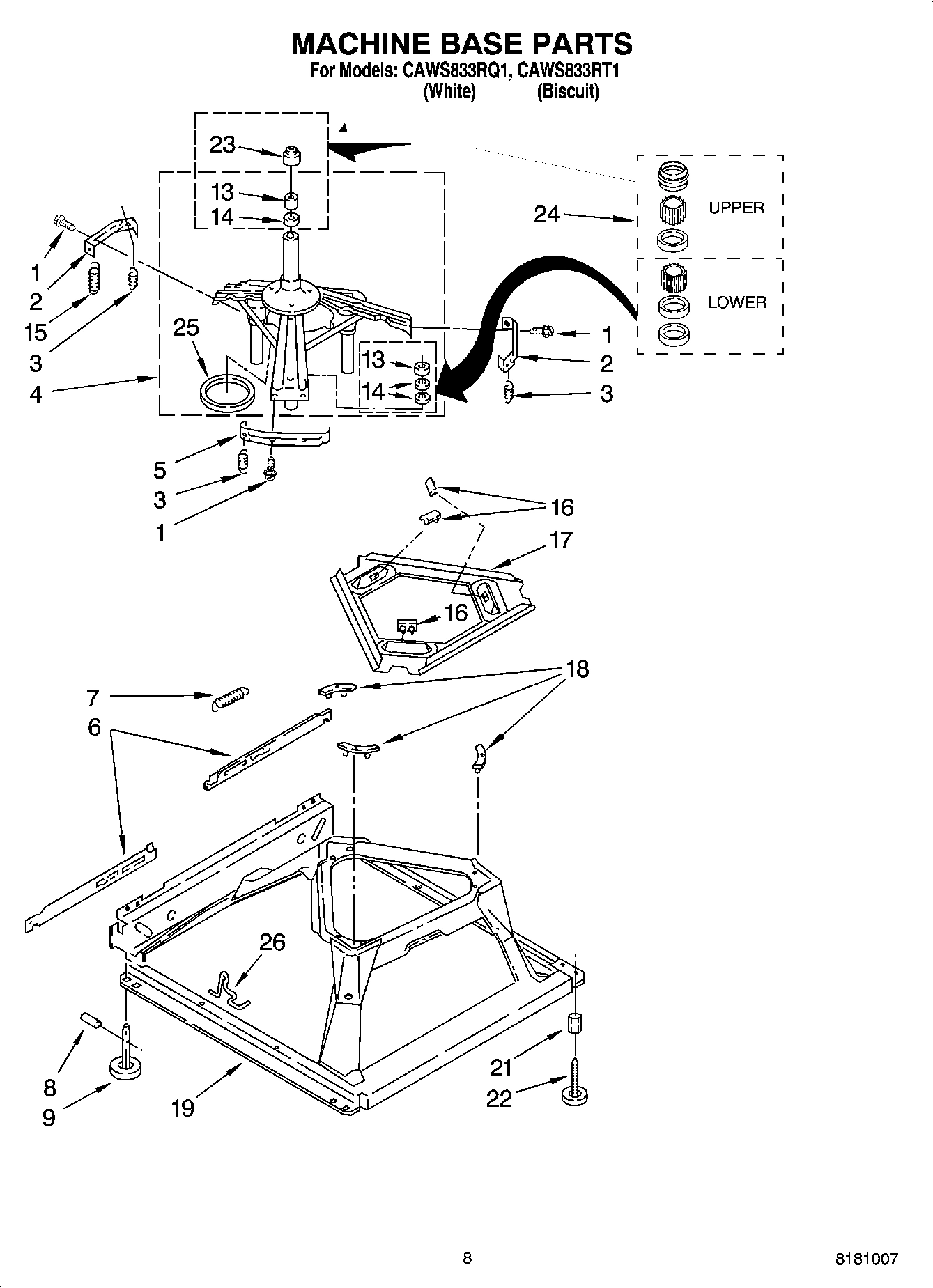

05 - MACHINE BASE PARTS
06 - WIRING HARNESS PARTS

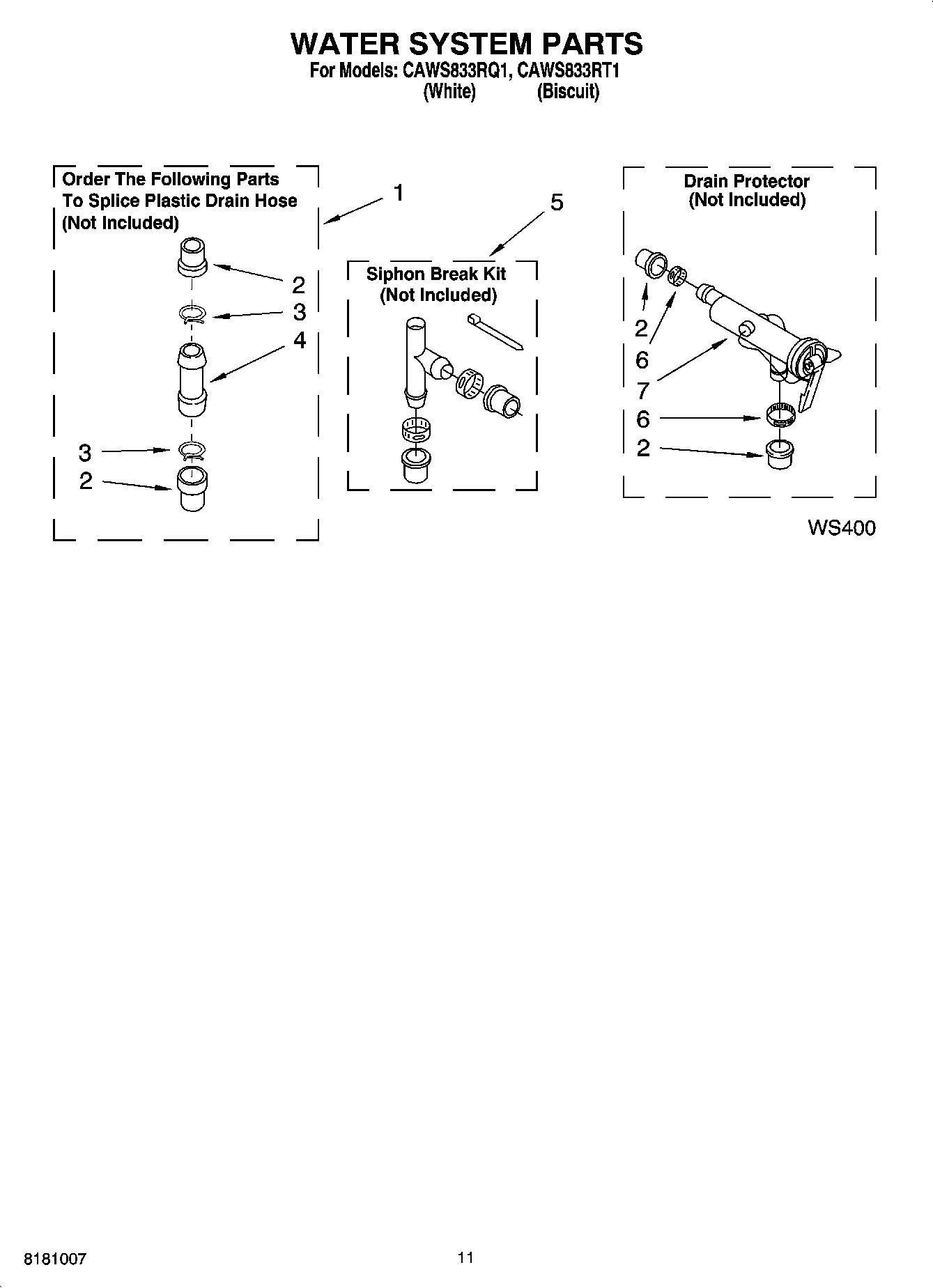

07 - WATER SYSTEM PARTS

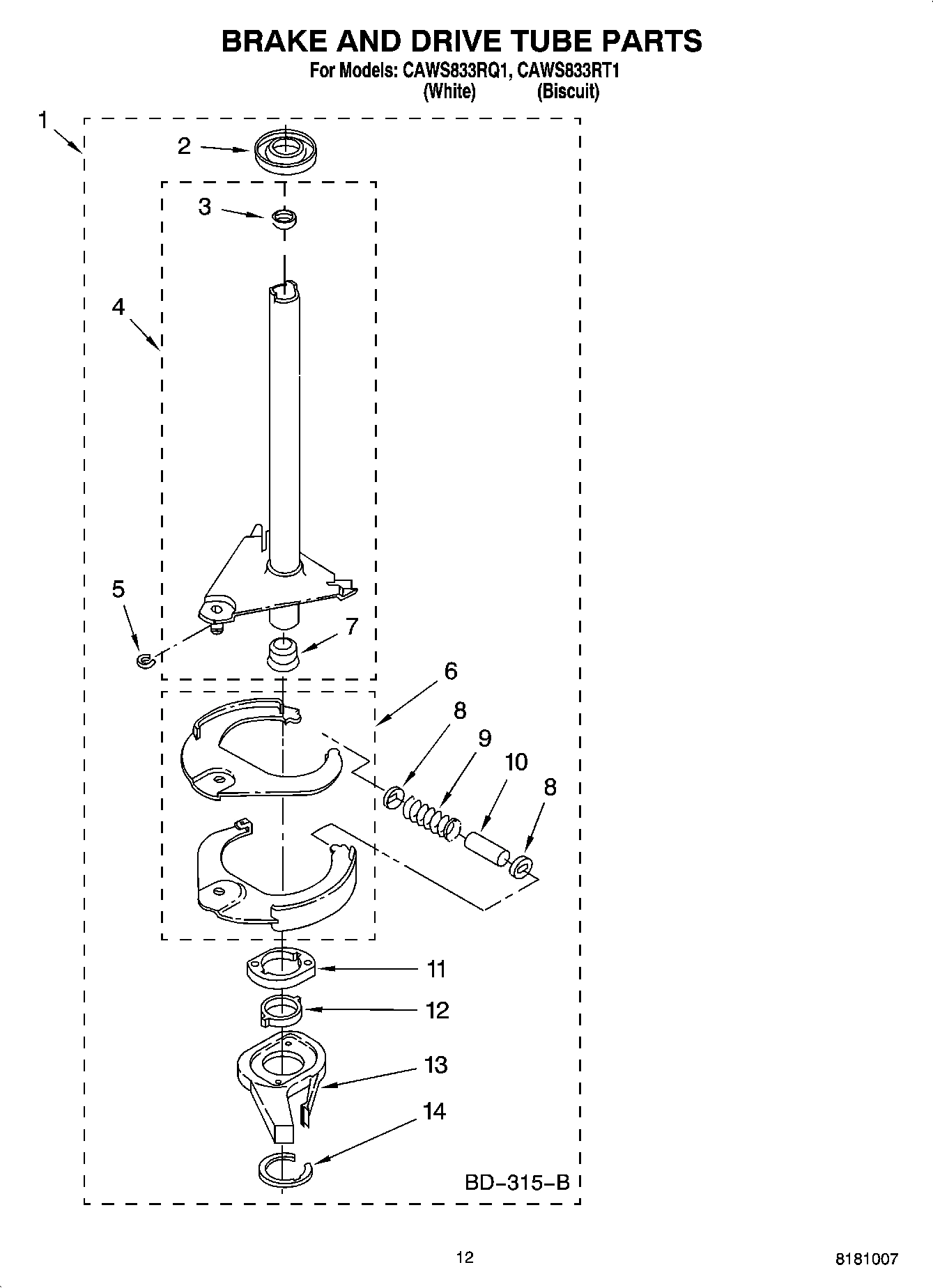

08 - BRAKE AND DRIVE TUBE PARTS

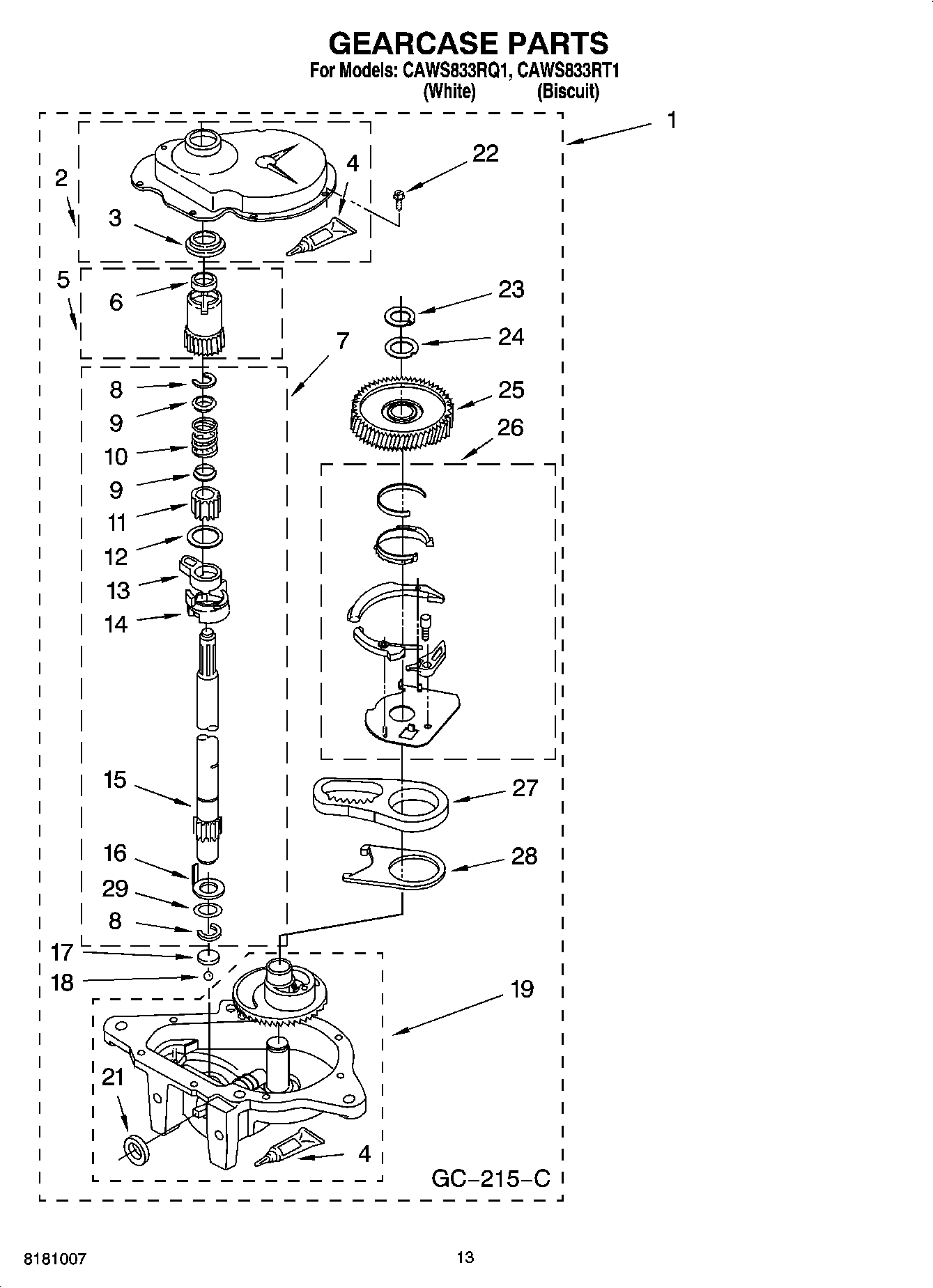

09 - GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)
