Model Whirlpool CA2762XSW0 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 384254 Contact Us For Availability

1

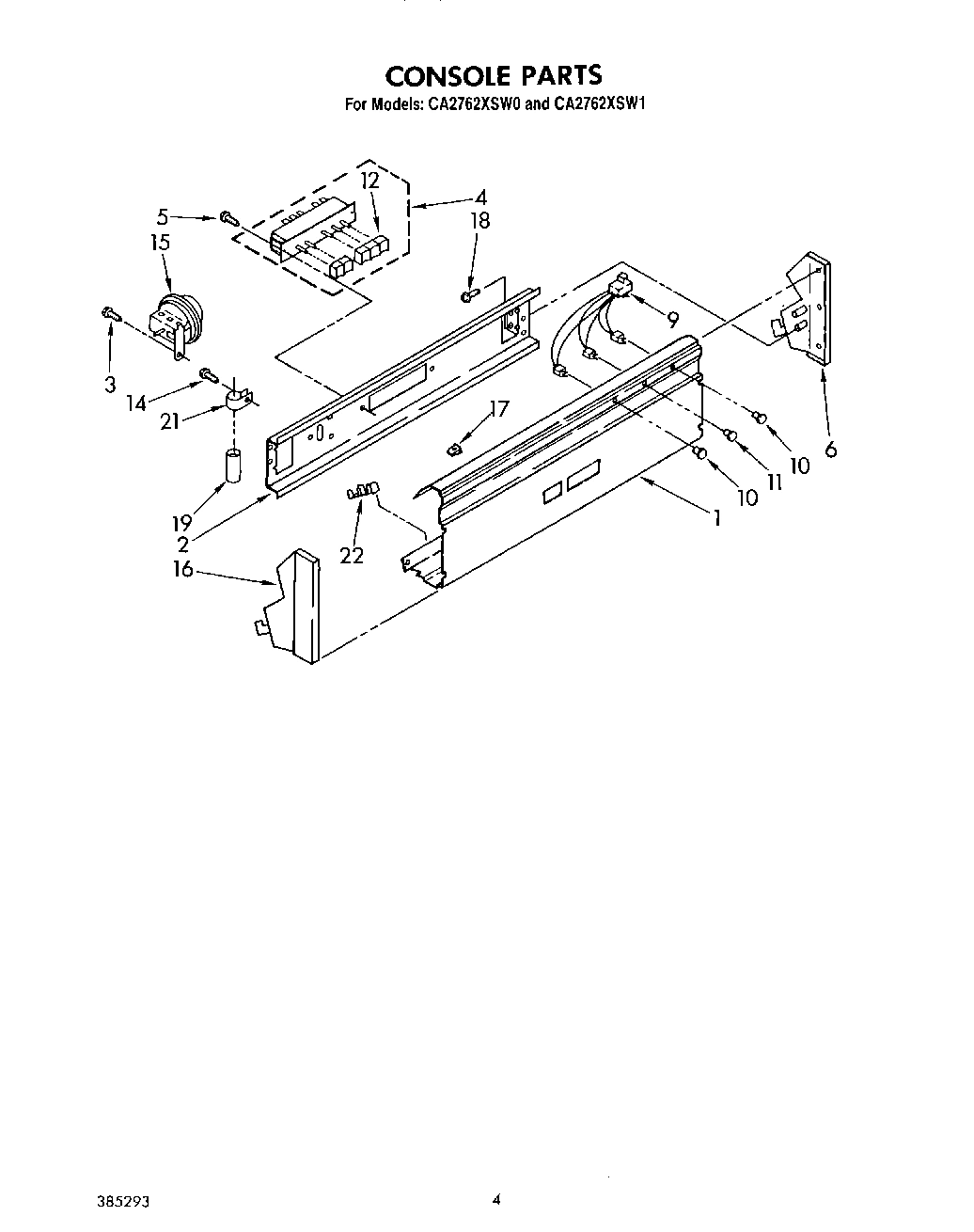

Panel, Console WPL 3347633 Contact Us For Availability

1

Harness, Console WPL 3348409 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $30.05

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Bracket, Control WPL 3347632 Contact Us For Availability

2

Plug, Terminal (15 Way) Uses Terminal 94614) WPL 96894 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $9.59

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Plug, Terminal (6 Way) Uses Terminal 94614) WPL 352457 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

Switch, Cycle Selector (Includes Illus. No. 1 WPL 3348294 Contact Us For Availability

4

Cap, Terminal 12 Way (Uses Terminal 94613 WPL 94697 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

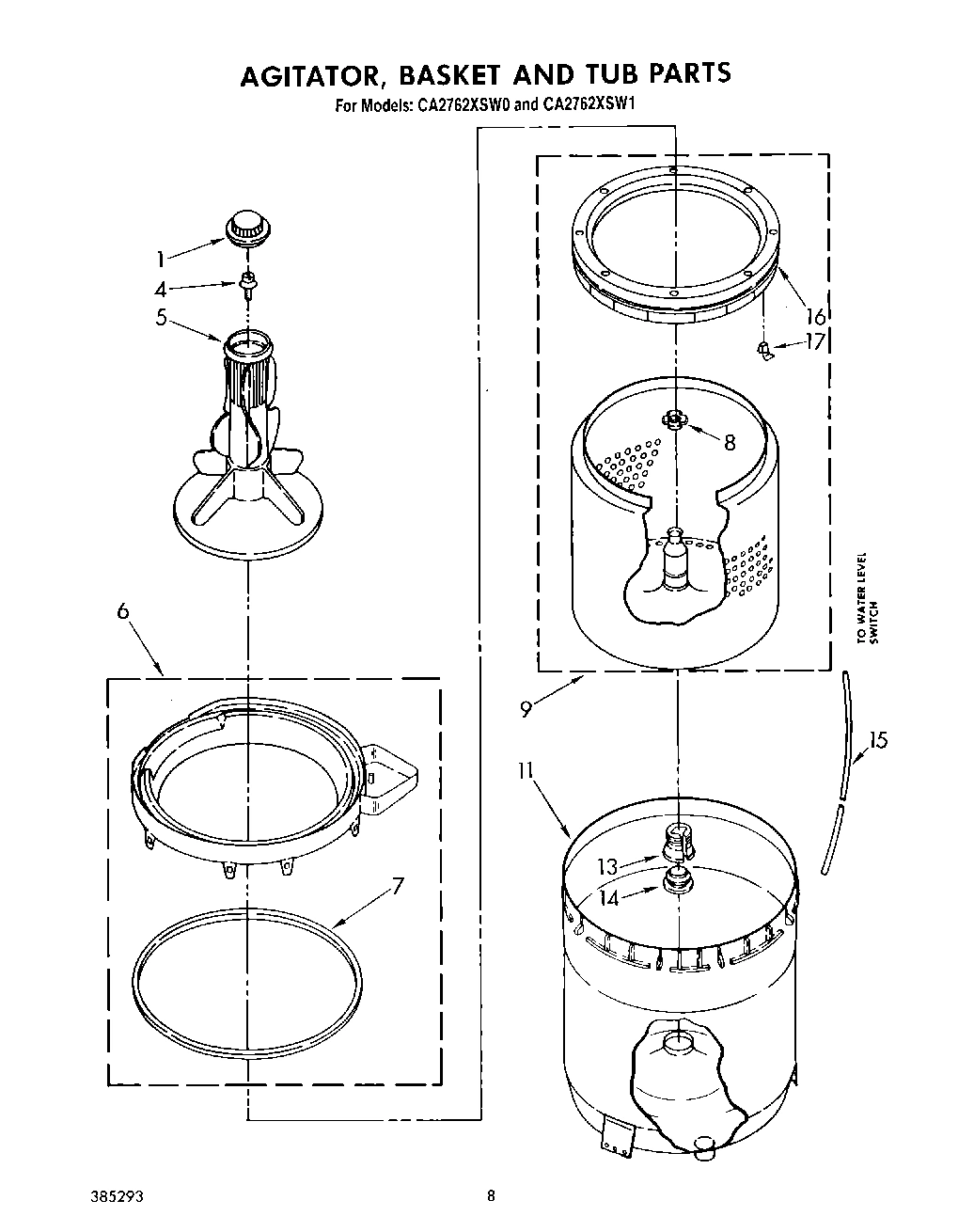

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $108.05

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Harness and Pressure Switch Hose WPL 3348408 Contact Us For Availability

6

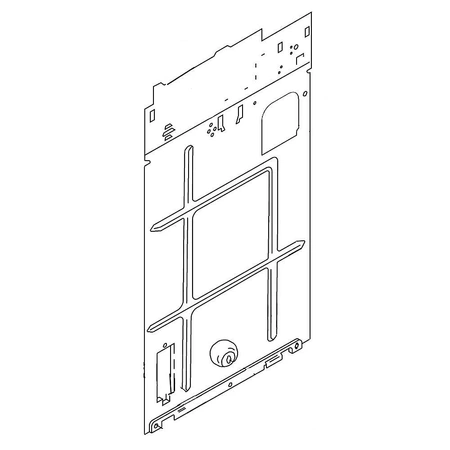

285929 Whirlpool Rear Panel Backorder WPL 285929 $153.28

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Tub Ring WPL 387966 Contact Us For Availability

6

End Cap (R.H.) WPL 3347705 Contact Us For Availability

6

Plug, Terminal WPL 94696 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $3.33

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

8

353424 Whirlpool Connector Backorder WPL 353424 $10.76

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

9

Basket WPL 3347764 Contact Us For Availability

9

Lights, Indicator (Use W/Model CA2762XSW0) WPL 3348250 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $6.13

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

WP359231 Whirlpool Shield In Stock WPL WP359231 $4.52

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

WP3348110 Whirlpool Light Lens In Stock WPL WP3348110 $4.52

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

Tub WPL 63125 Contact Us For Availability

Clip, Harness WPL 62749 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP3955668 Whirlpool Timer In Stock WPL WP3955668 $212.50

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Pushbutton (5) WPL 3348587 Contact Us For Availability

Protector, Harness WPL 63523 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Motor, Timer WPL 388290 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.52

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Clutch, Timer WPL 385571 Contact Us For Availability

Cord, Power WPL 3348564 Contact Us For Availability

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord To Rear Panel WPL 62733 Contact Us For Availability

Switch, Water Level WPL 3348542 Contact Us For Availability

Shaft, Agitator WPL 389231 Contact Us For Availability

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.33

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) WPL 63789 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3347825 Whirlpool Plate Backorder WPL 3347825 $2.40

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.58

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Nut, Push-In (2) WPL 689559 Contact Us For Availability

Balance Ring WPL 387868 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Screw, Set WPL 98654 Contact Us For Availability

Screw, End Cap To Bracket (4) WPL 355326 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $146.58

19

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

19

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Gear, Main Drive WPL 62528 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

BUMPER WPL 356908 Contact Us For Availability

23

Ring, Retaining WPL 95082 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

32

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

36

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

37

Clip, Harness WPL 387551 Contact Us For Availability

38

Clip, Harness WPL 62732 Contact Us For Availability

39

285930 Whirlpool Plate Backorder WPL 285930 $28.09

40

Bracket, Top Lock WPL 3347824 Contact Us For Availability

41

WP90406 Whirlpool Nut Backorder WPL WP90406 $3.51

42

Plug, Hole WPL 387371 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

54

Wire, Ground WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

56

Retainer, Wire WPL 357247 Contact Us For Availability

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

61

Edge Protector WPL 303294 Contact Us For Availability

67

Harness, Timer (Includes Illus. 68 & 69) WPL 3348410 Contact Us For Availability

68

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

69

Cap, Terminal (15 Way) WPL 384474 Contact Us For Availability
