Model GE ATS90AWN General Electric Model ATS90AWN – Common Parts & Diagrams

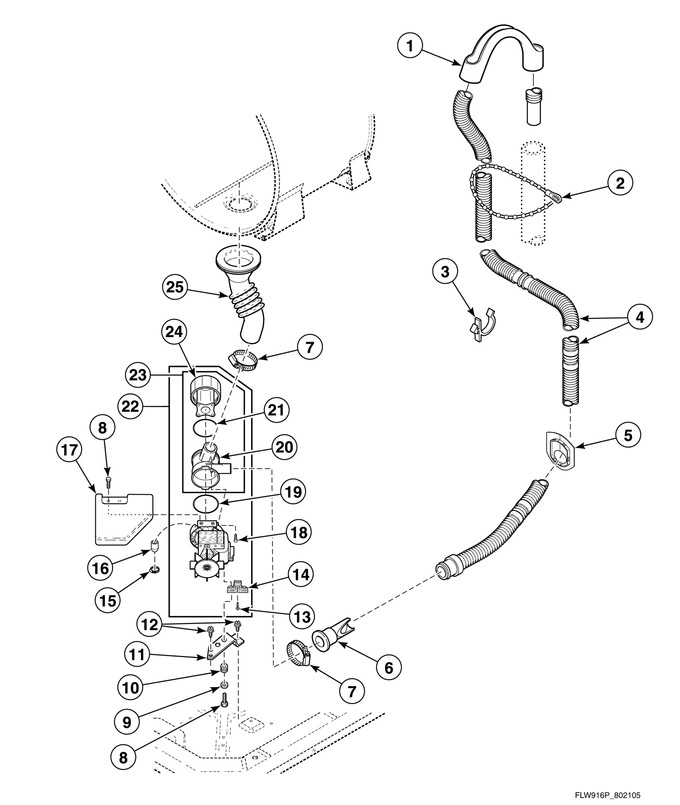

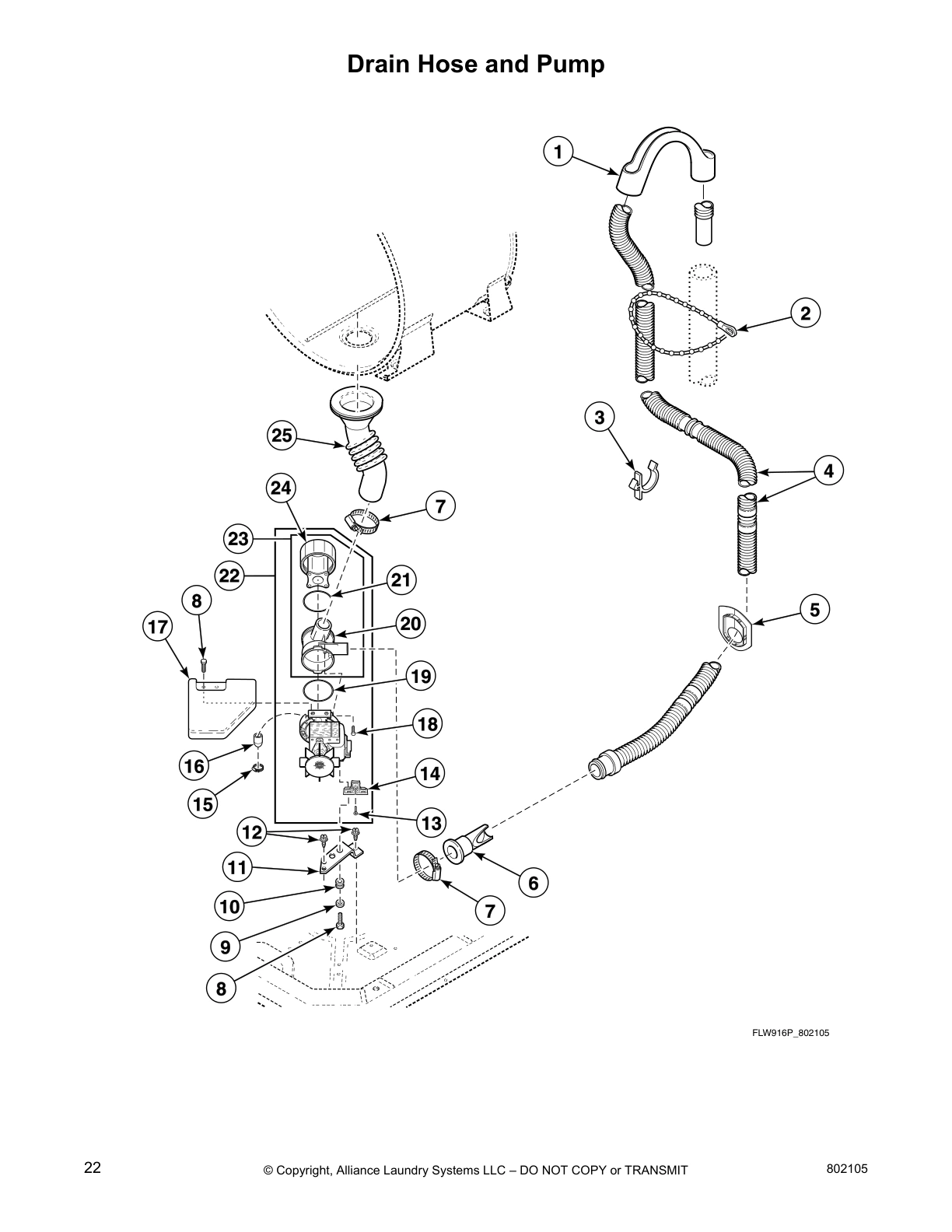

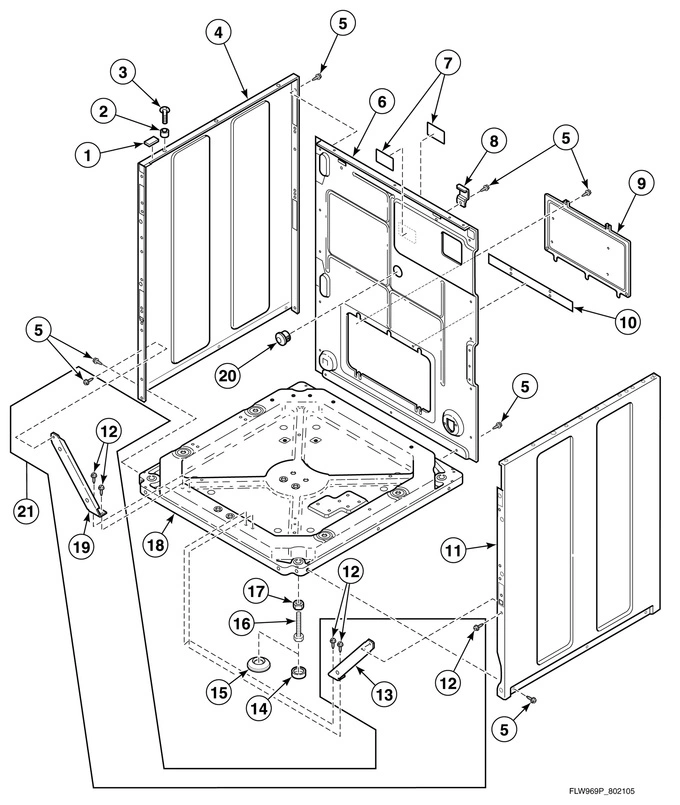

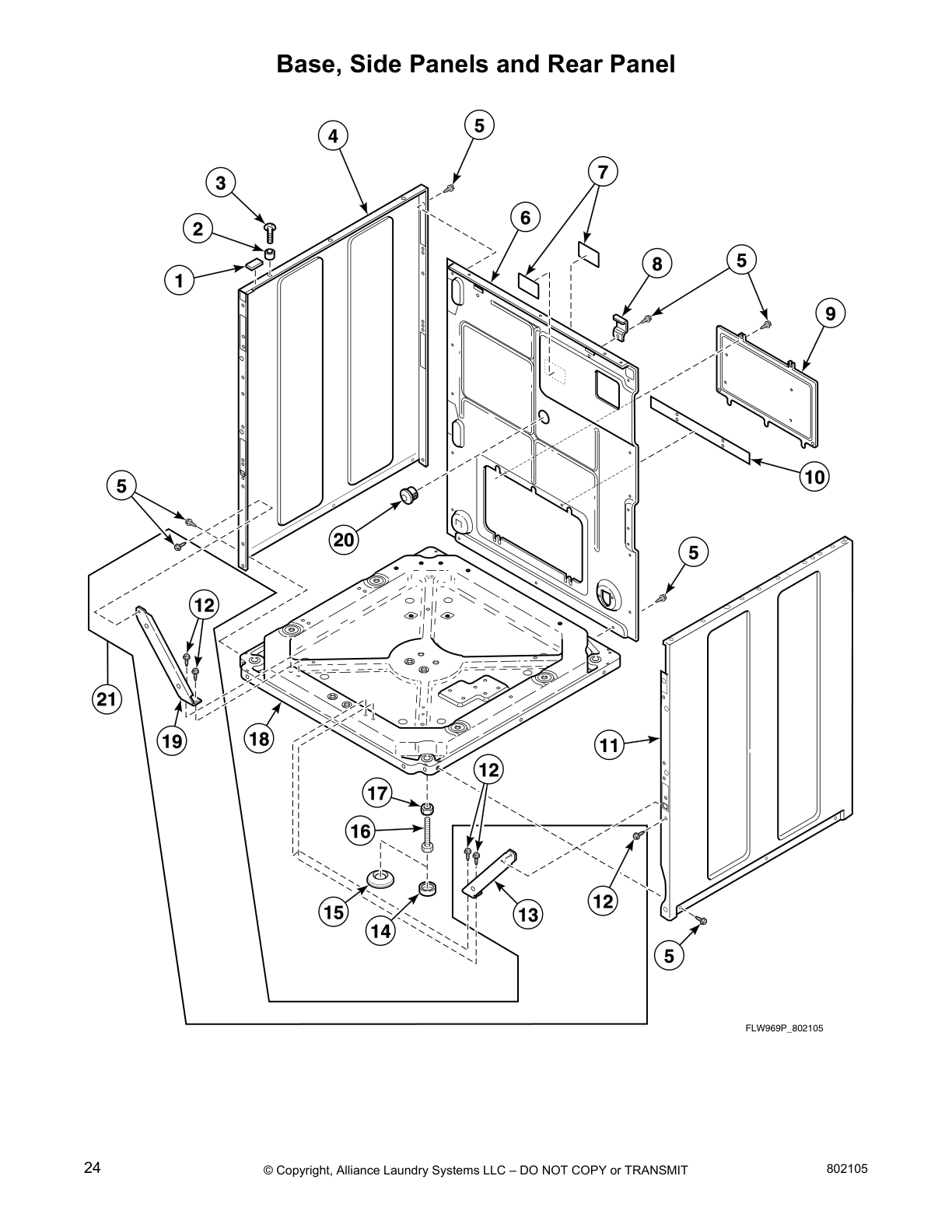

Base, Side Panels and Rear Panel

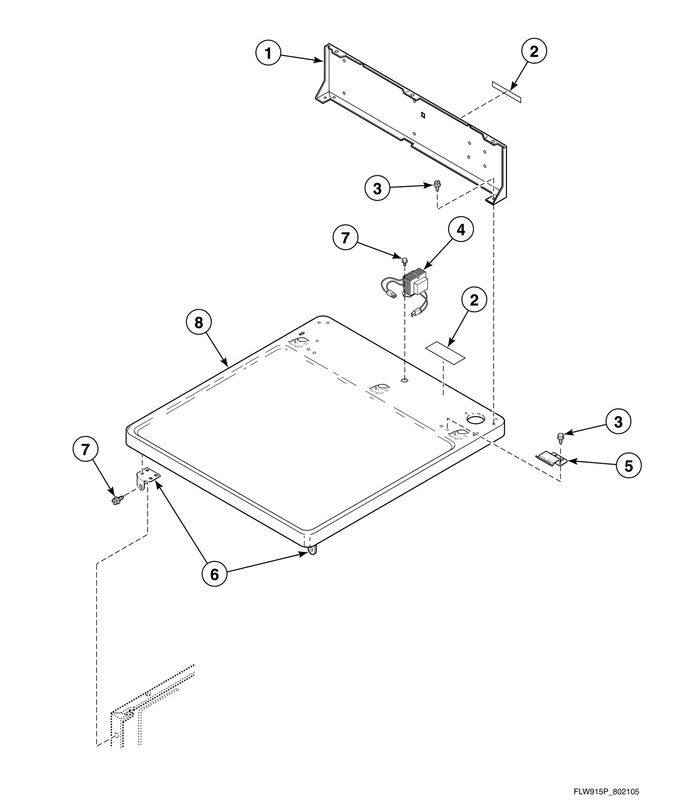

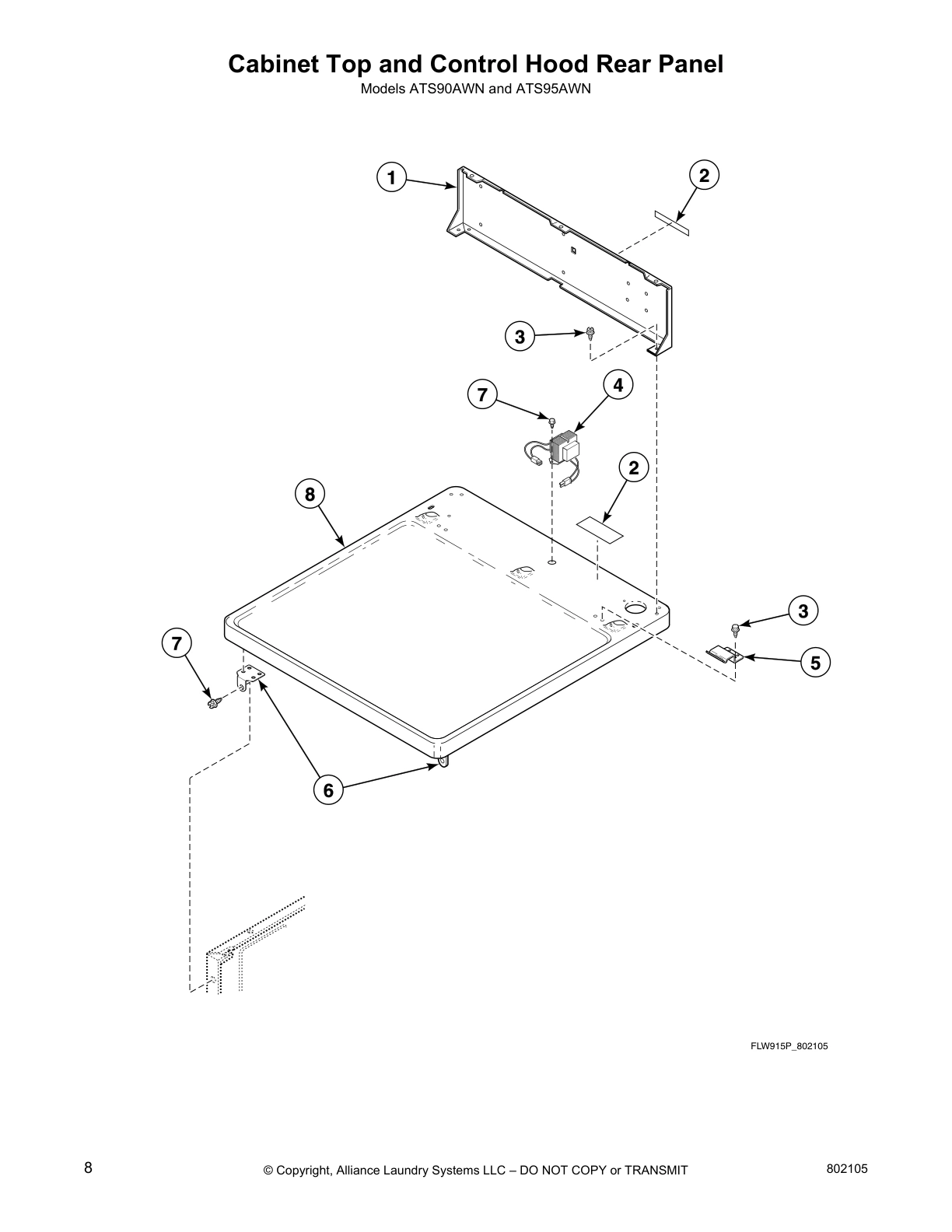

Cabinet Top and Control Hood Rear Panel

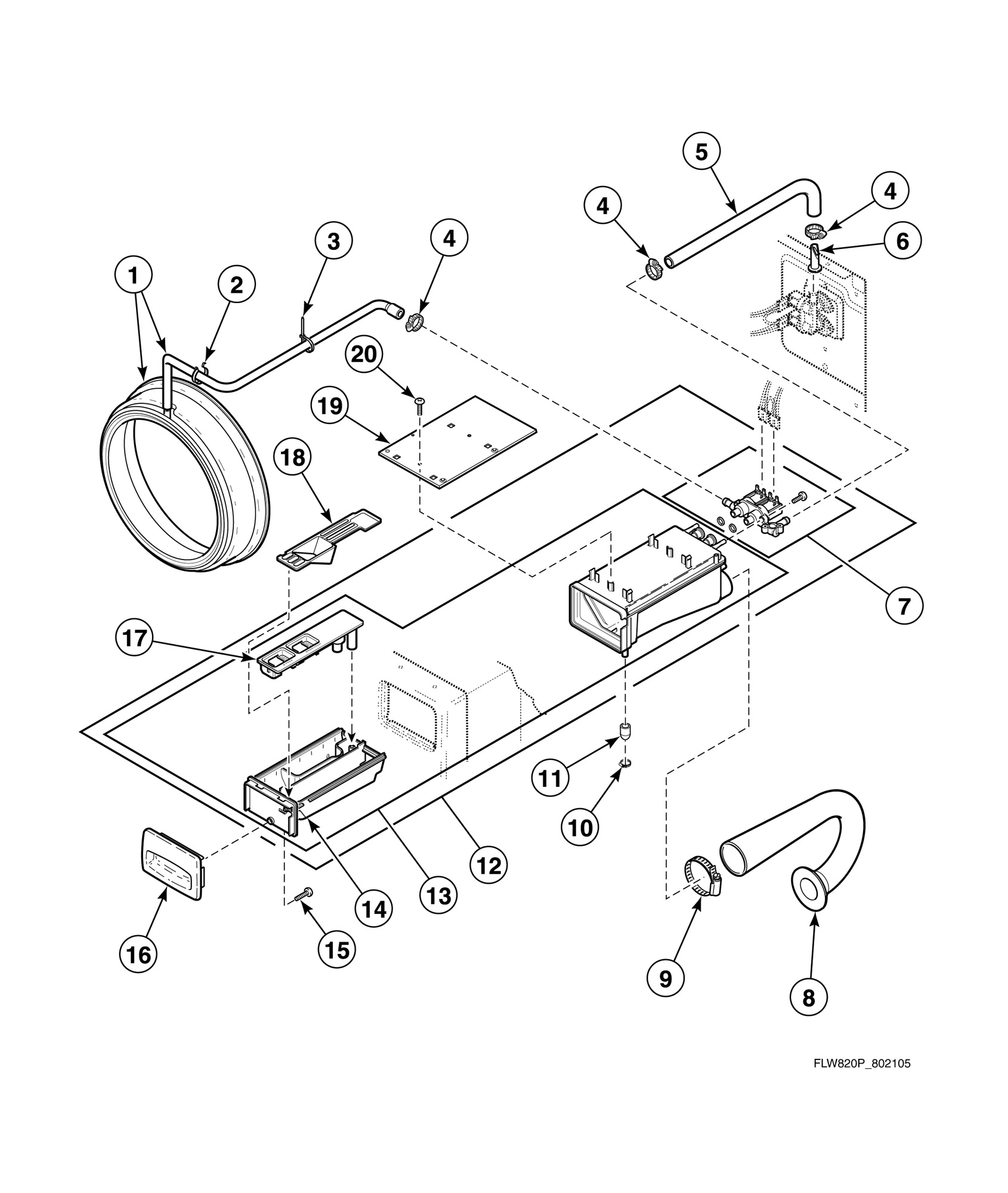

Dispenser Assembly

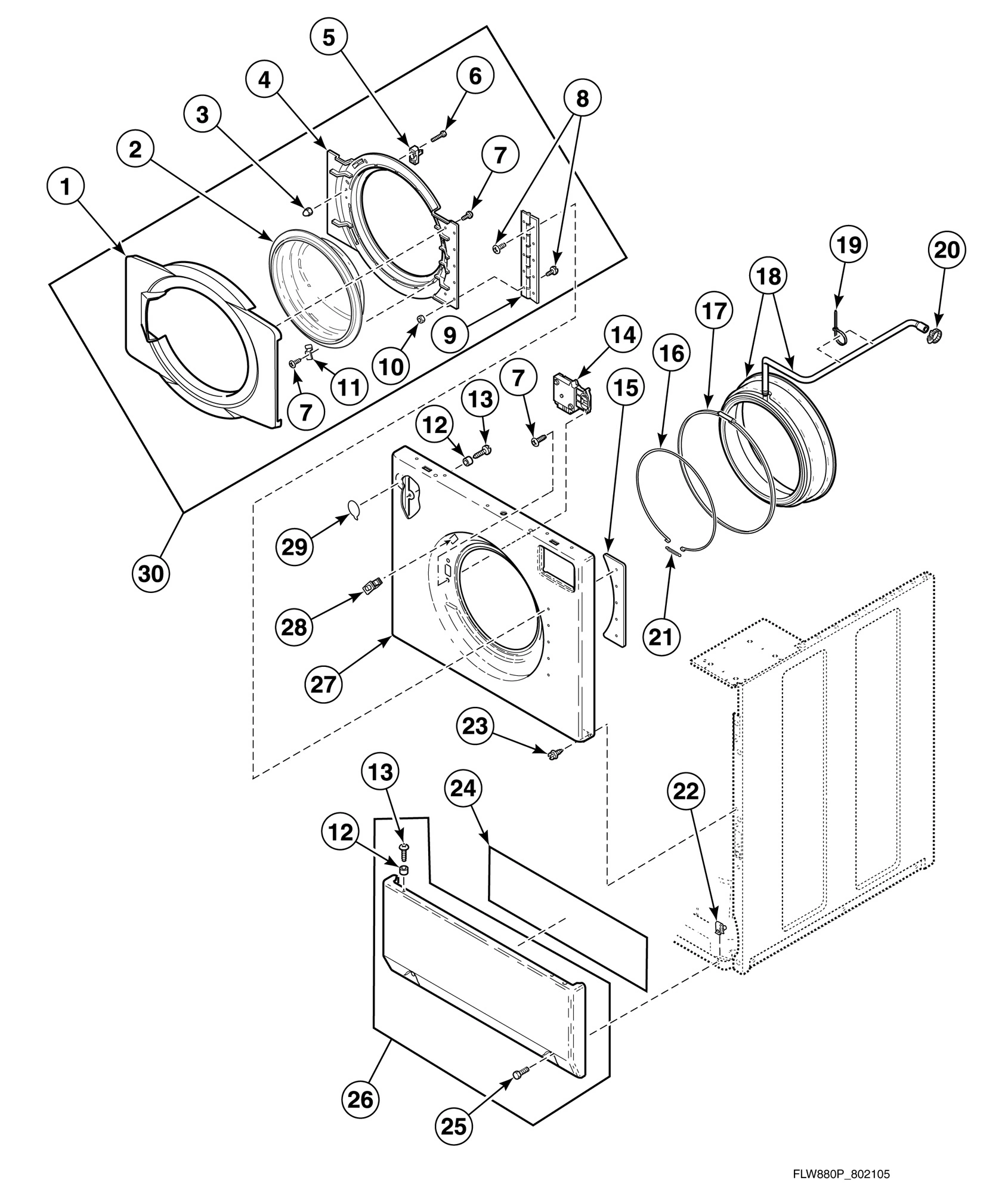

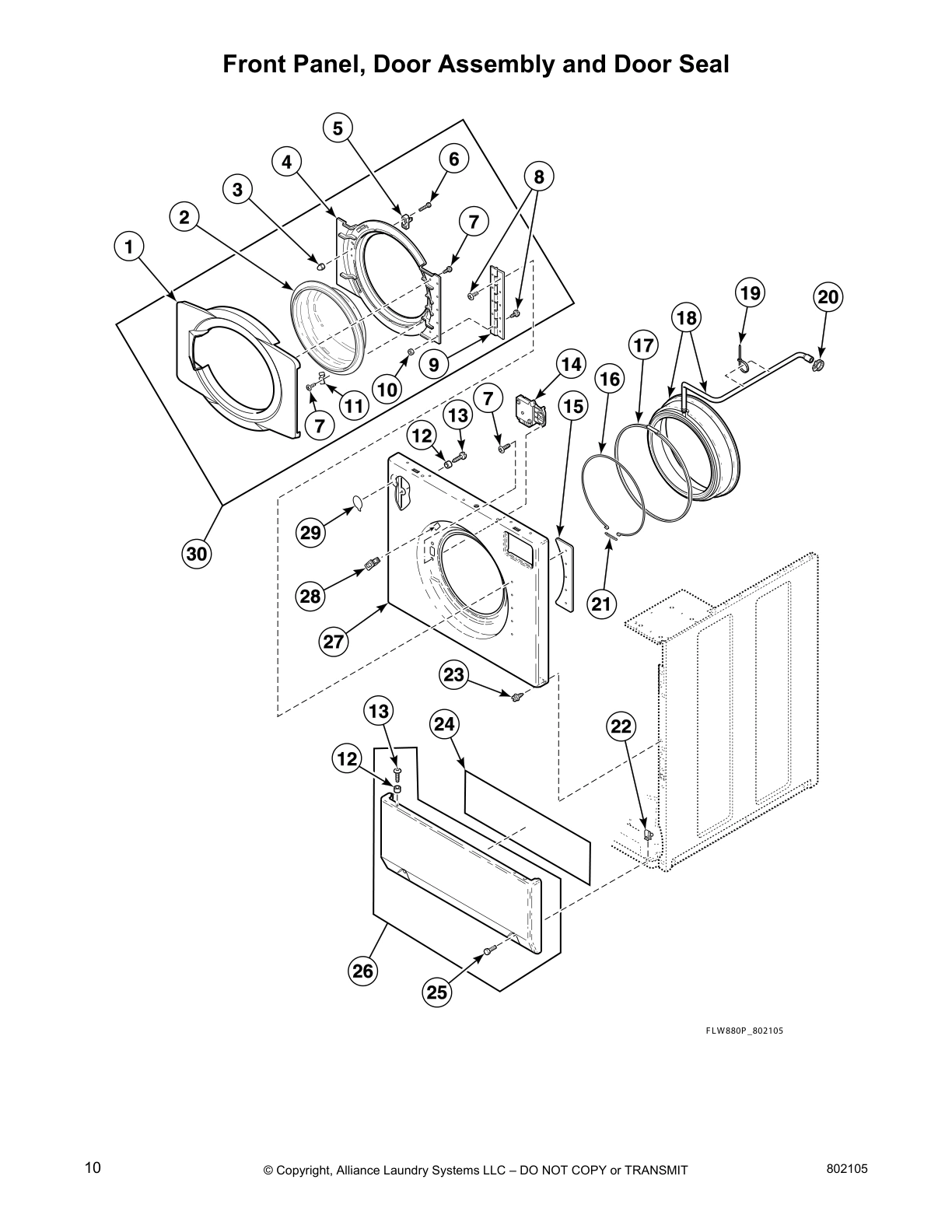

Front Panel, Door Assembly and Door Seal

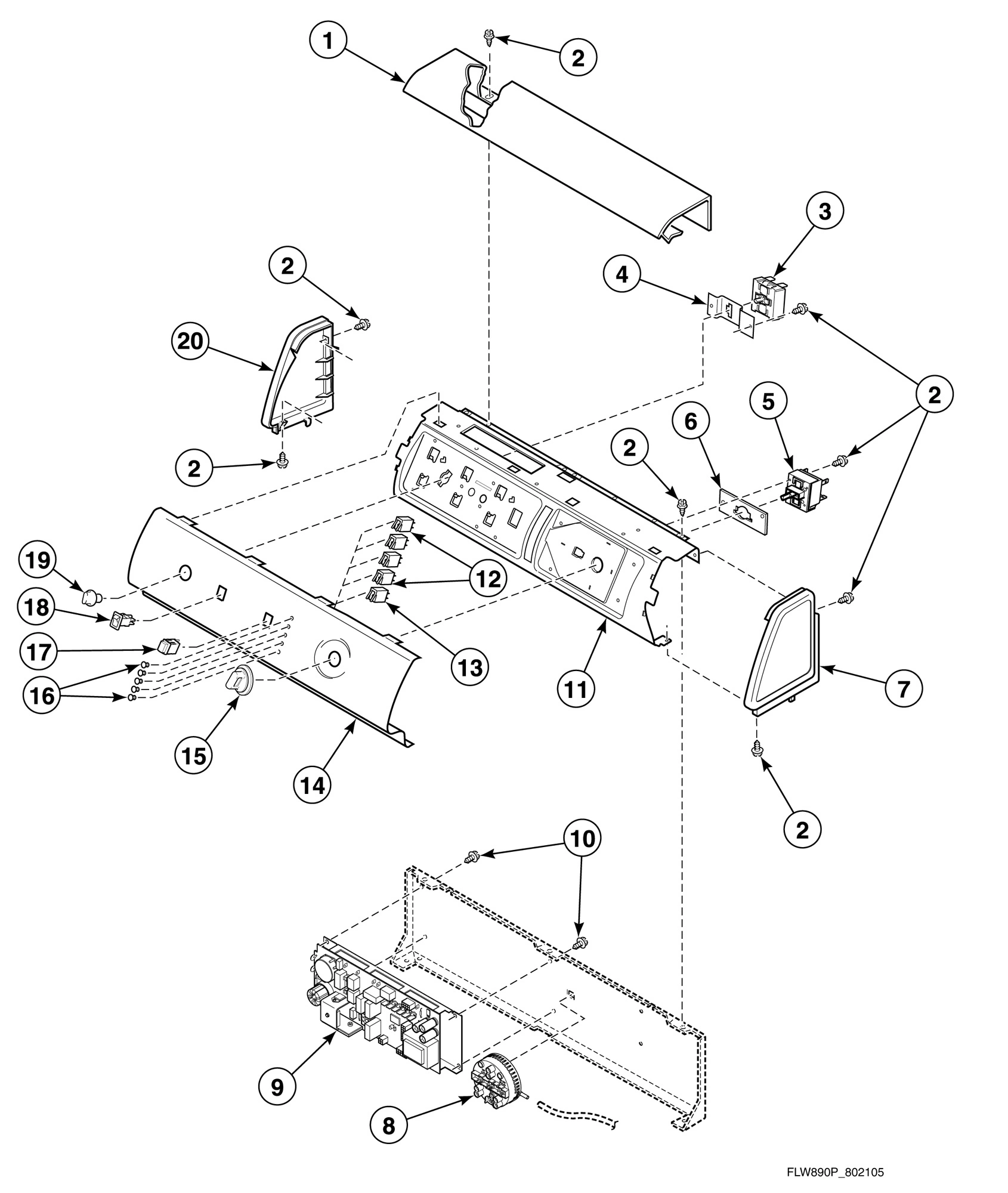

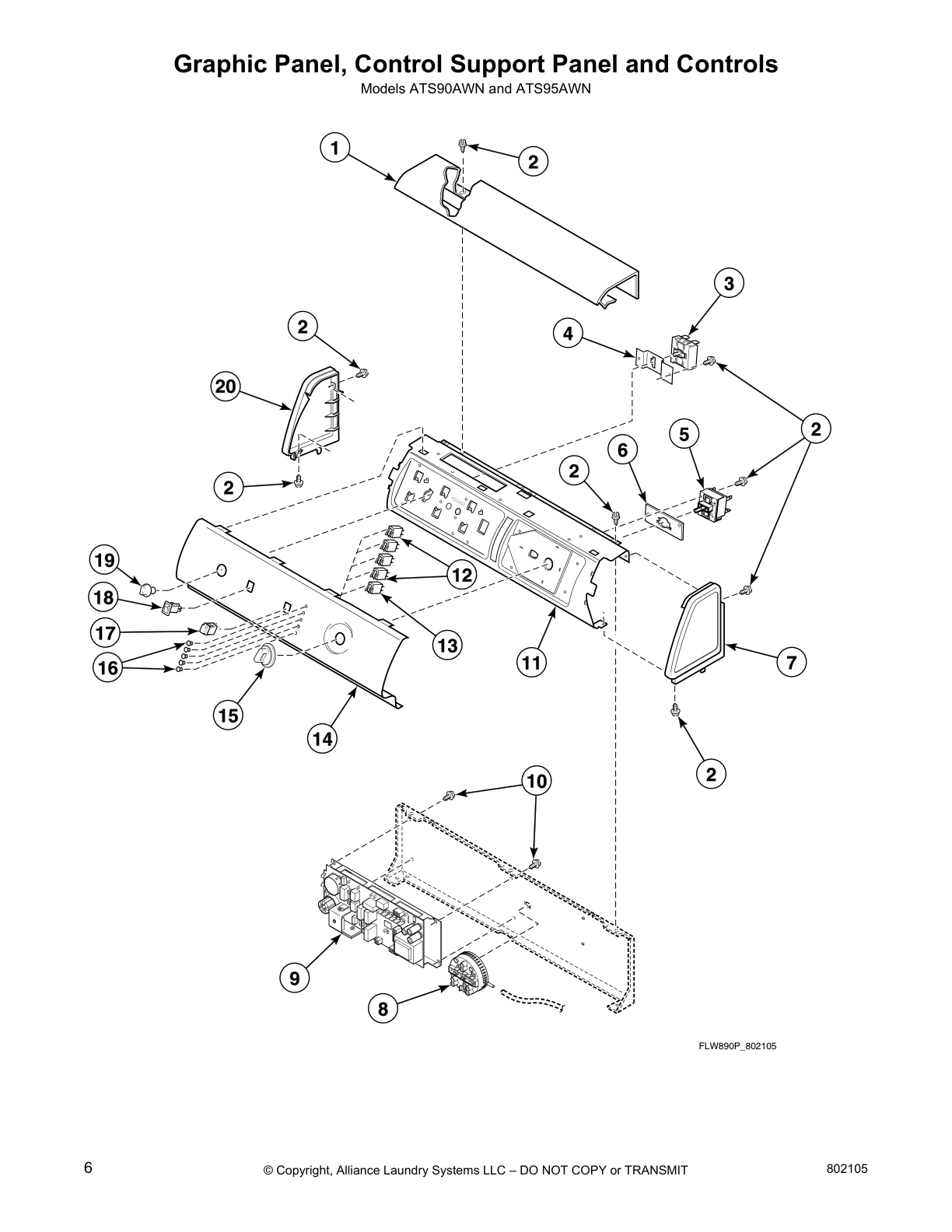

Graphic Panel, Control Support Panel and Controls

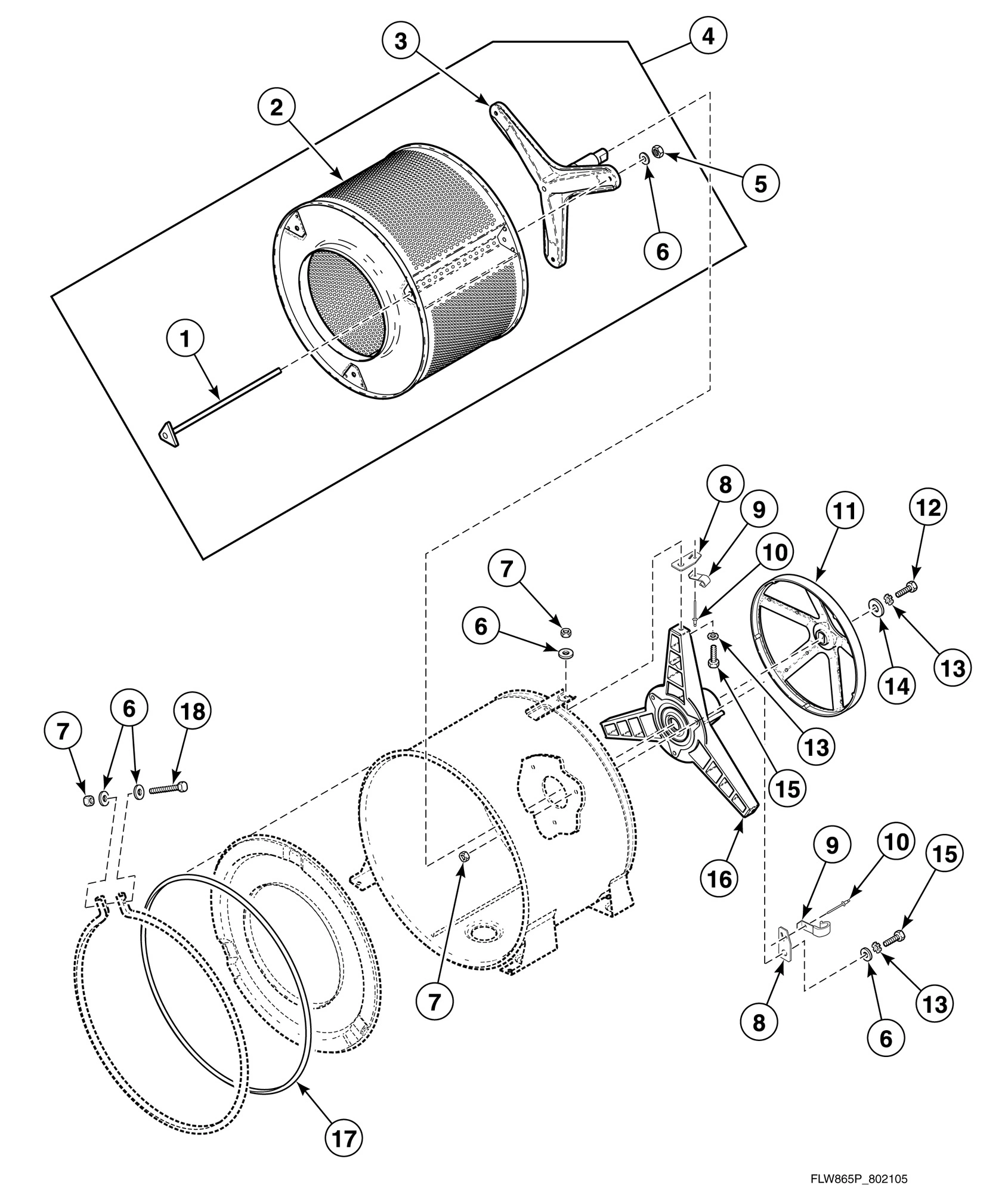

Inner Basket, Trunnion, Bearing Housing and Pulley

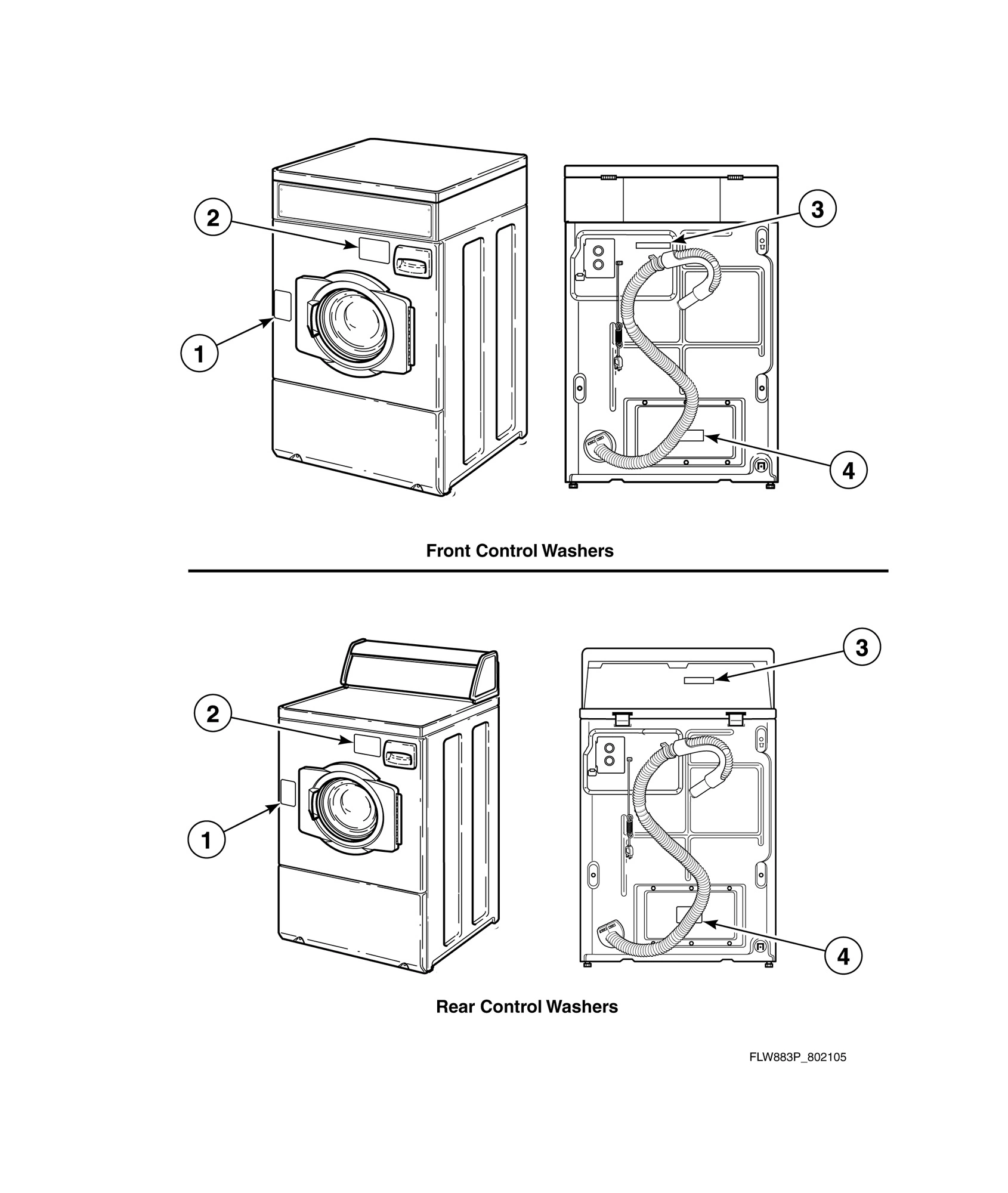

Labels

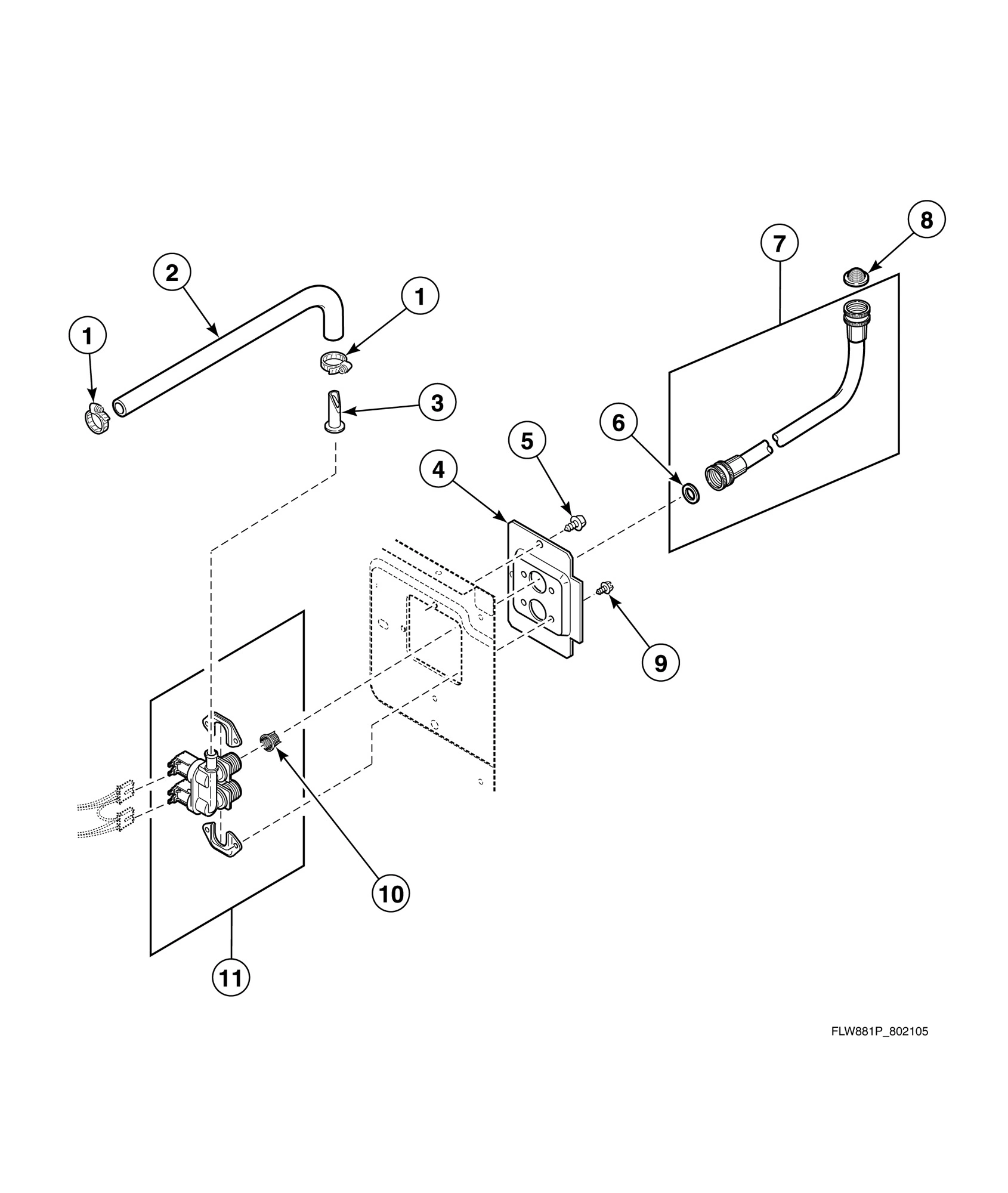

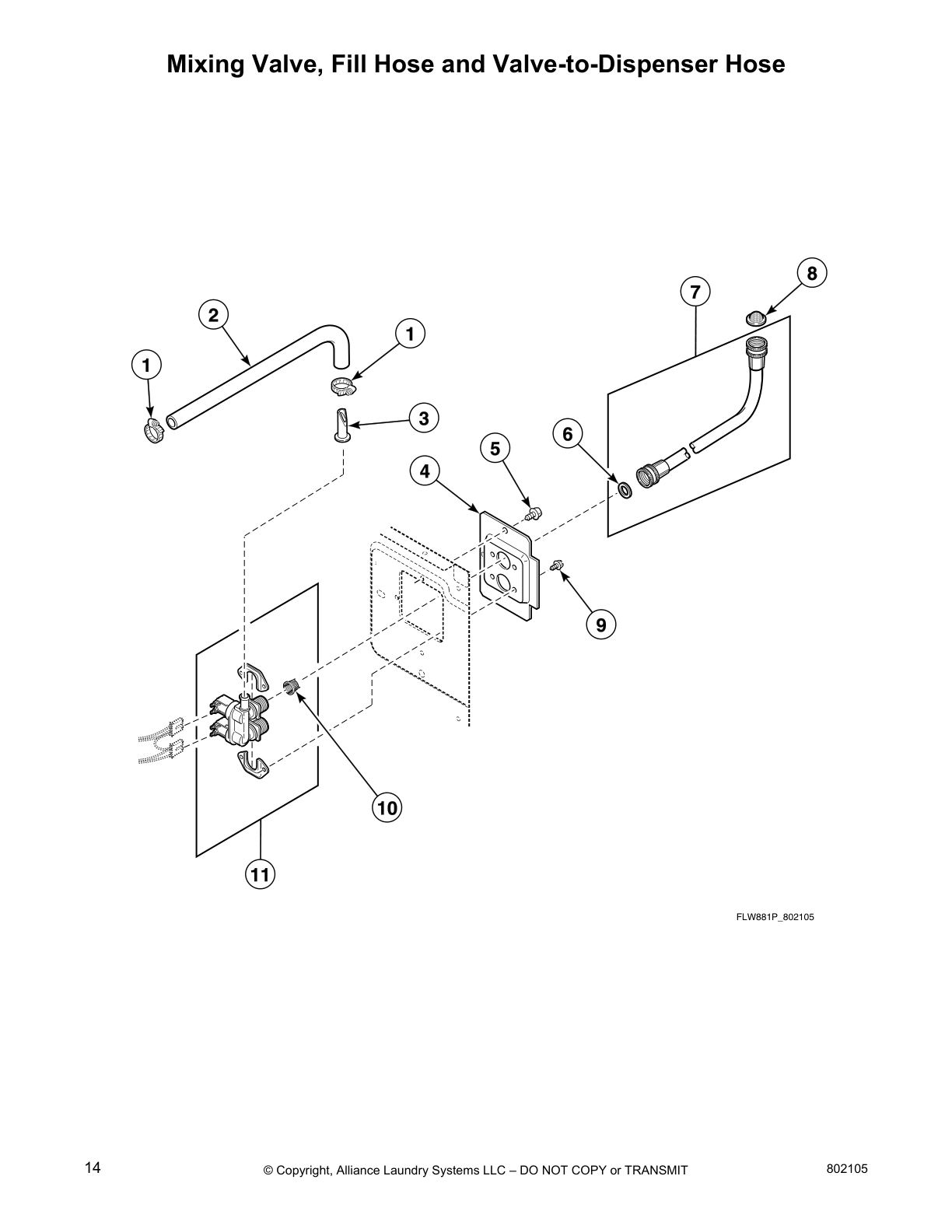

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

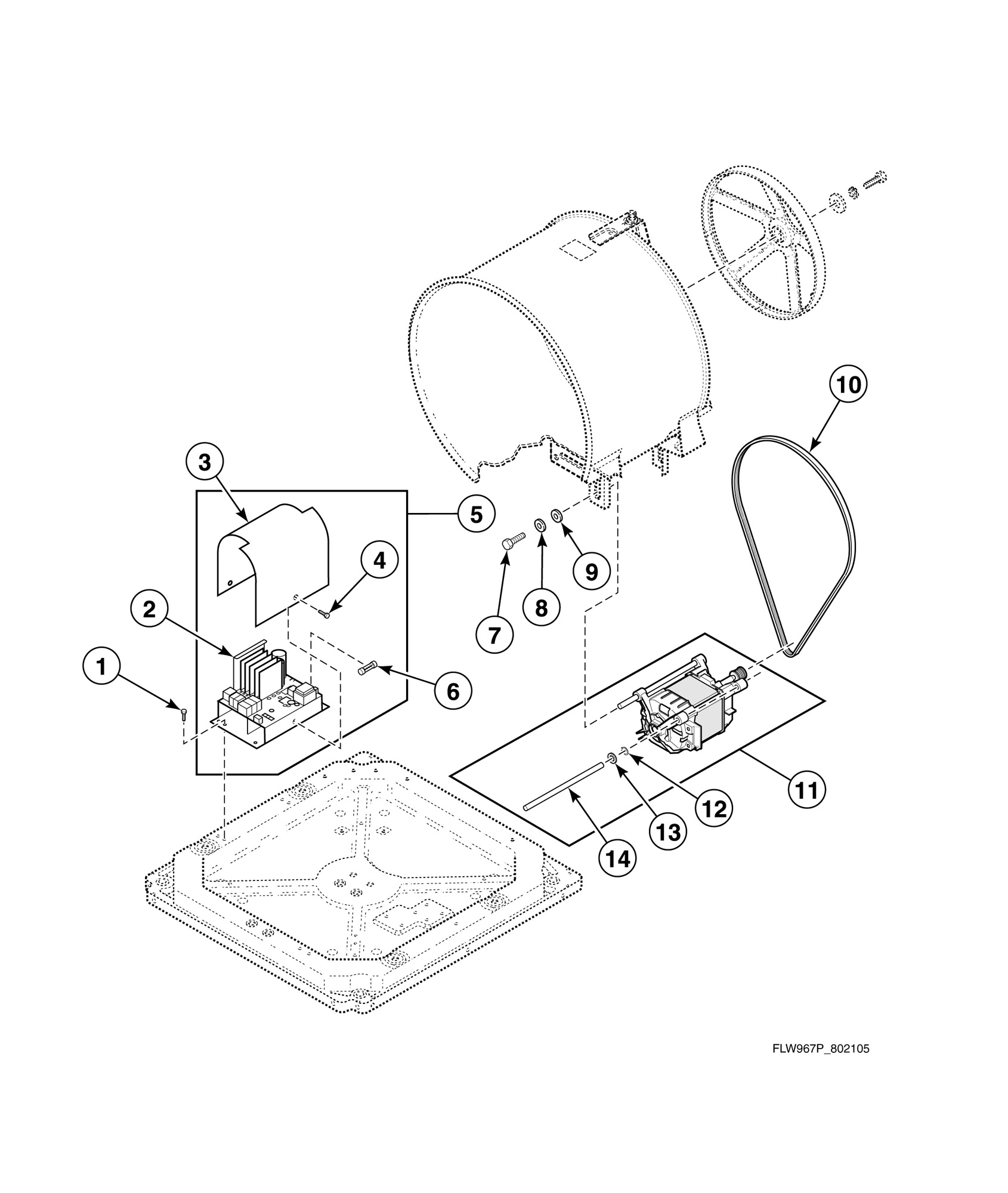

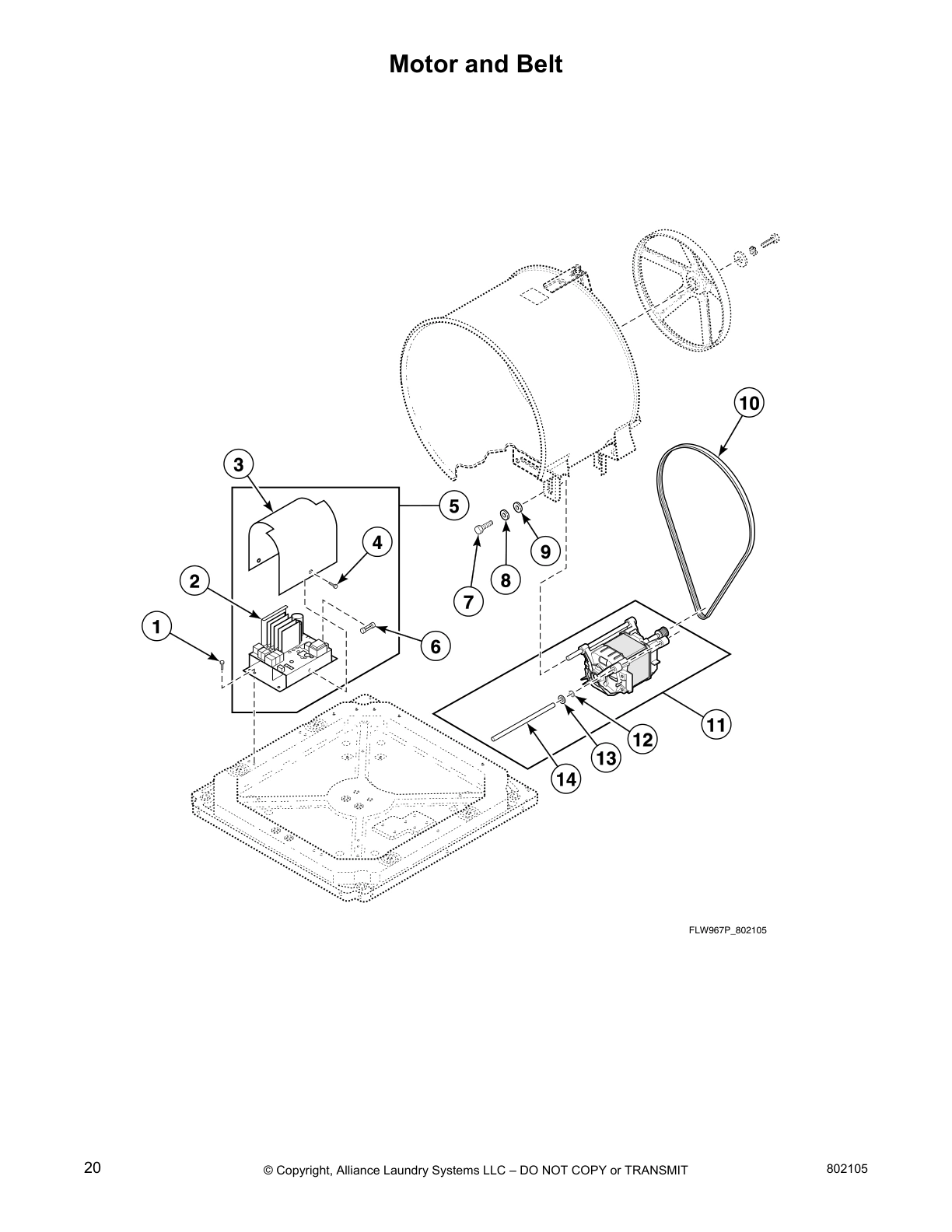

Motor and Belt

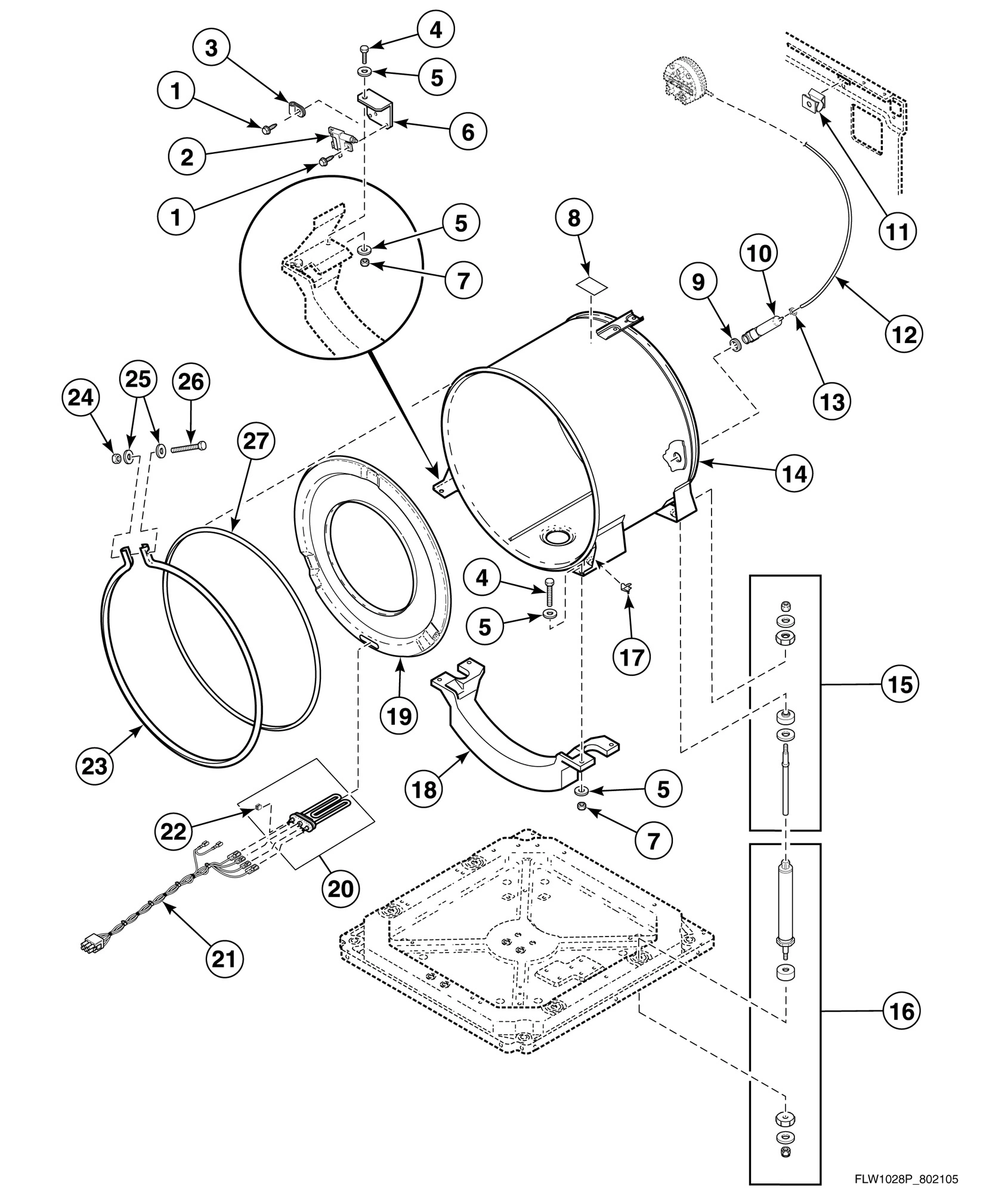

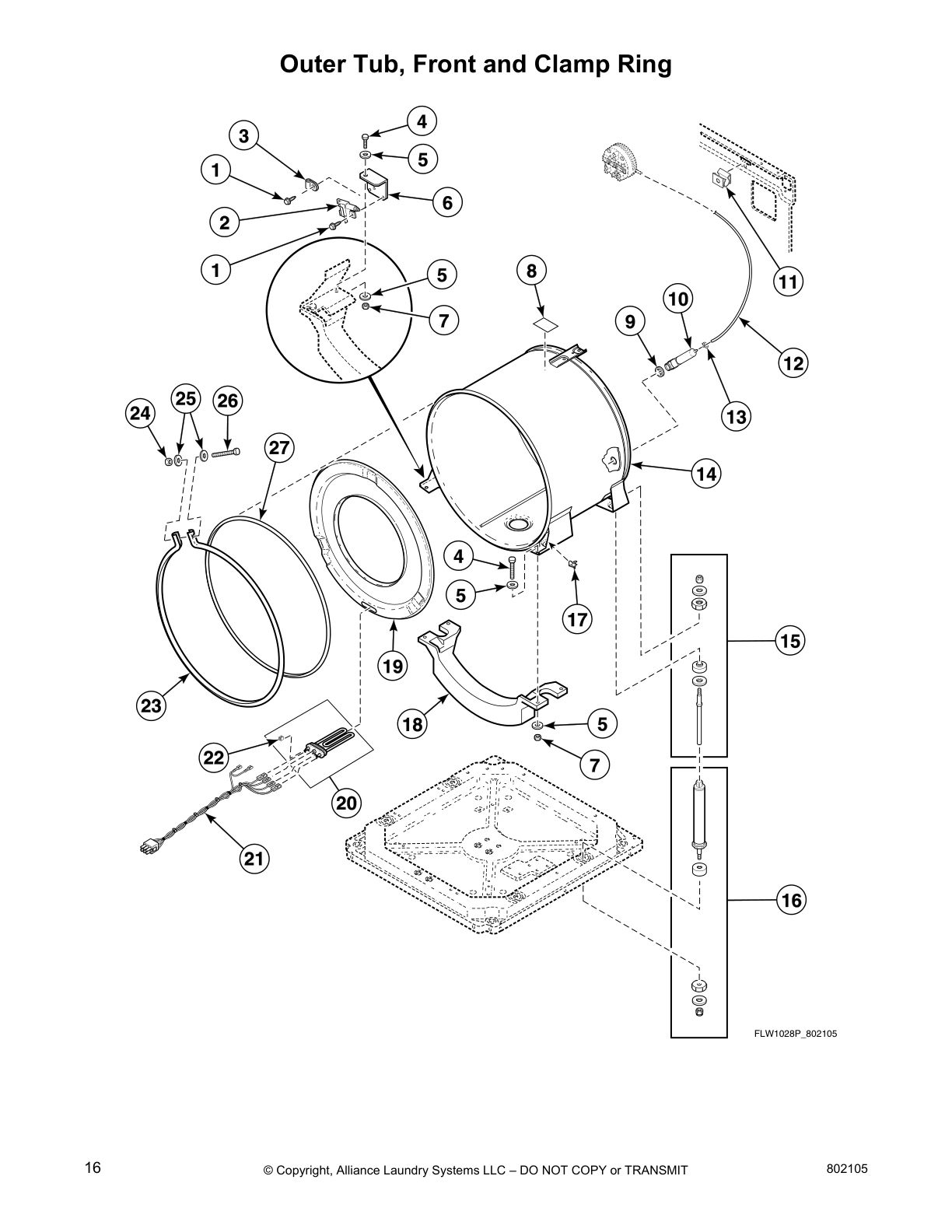

Outer Tub, Front and Clamp Ring

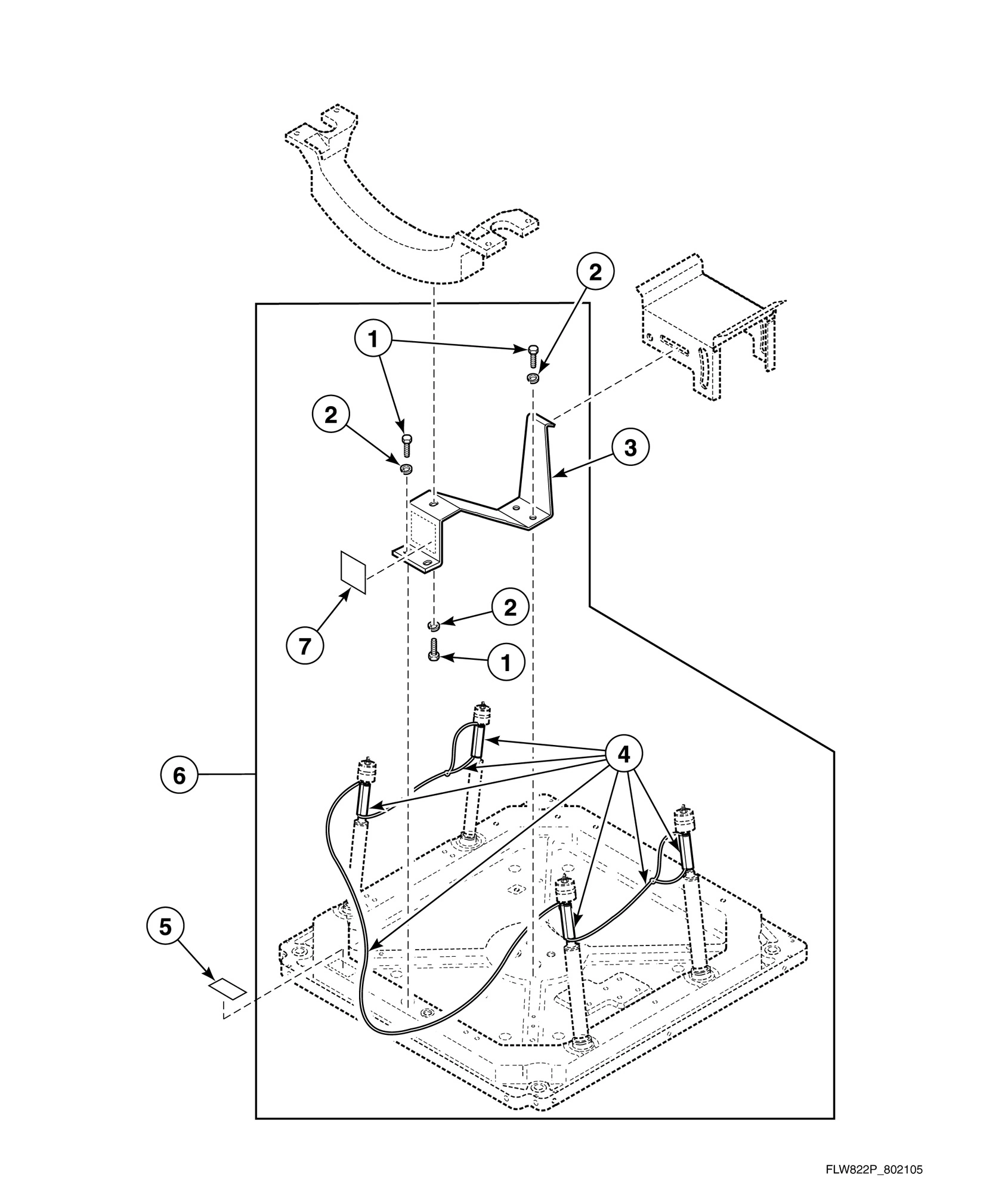

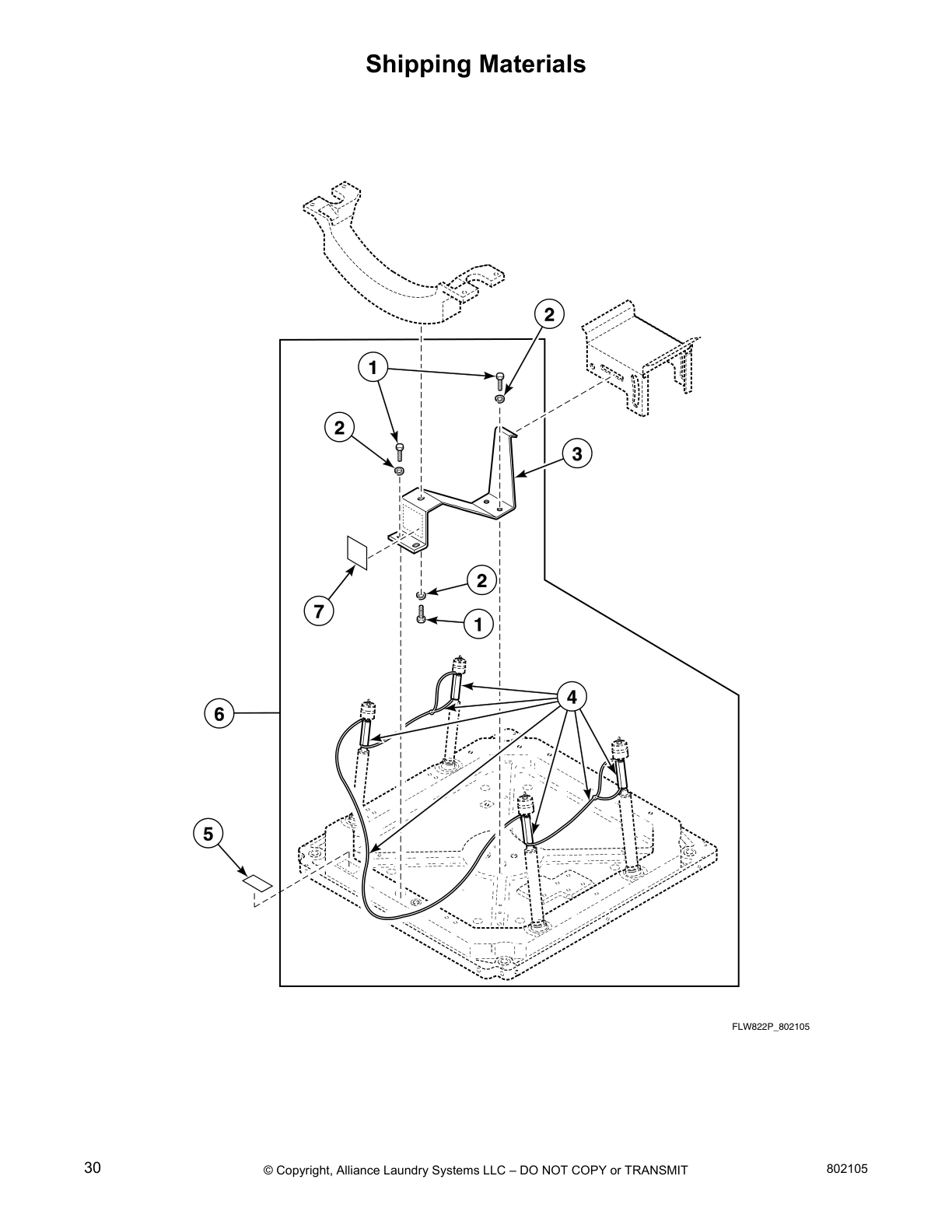

Shipping Materials

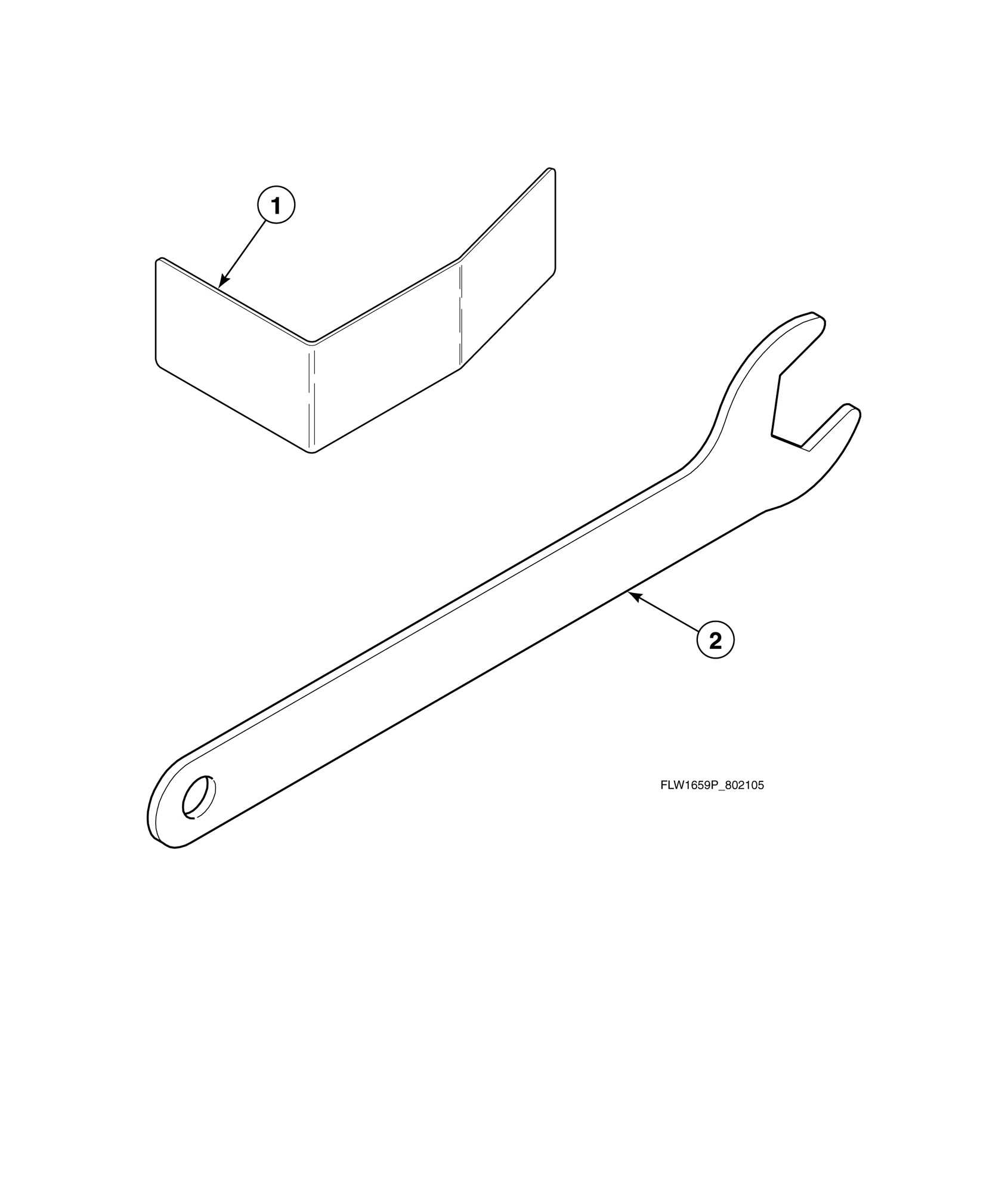

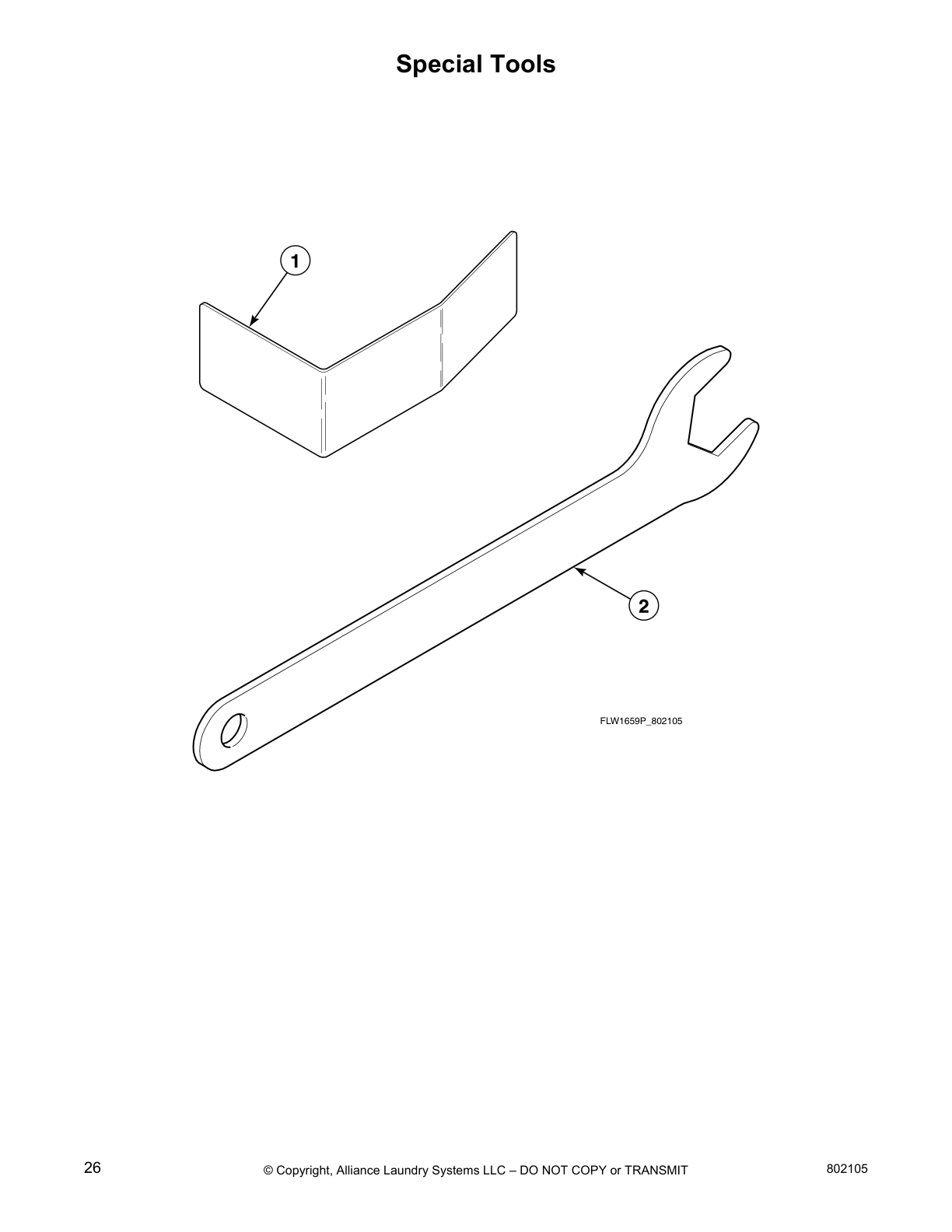

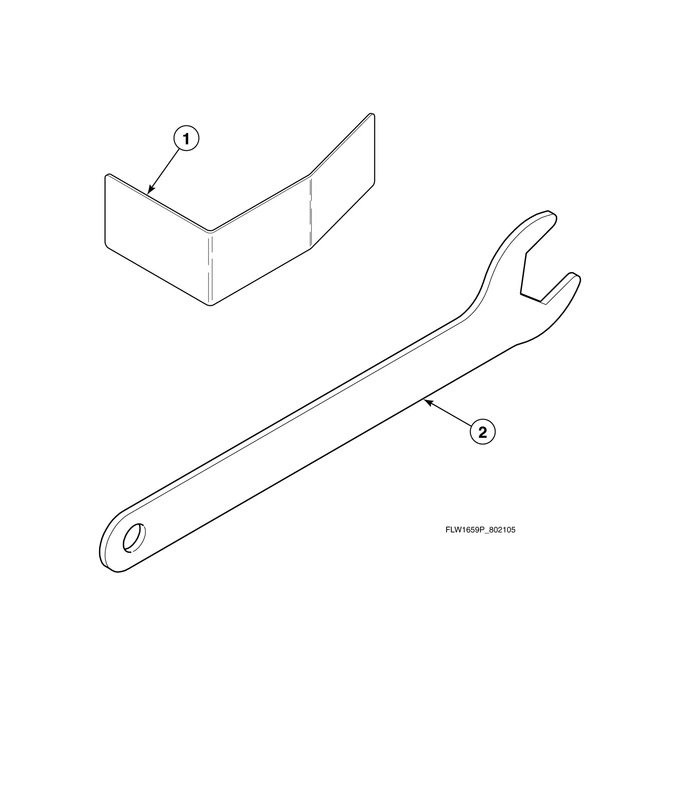

Special Tools

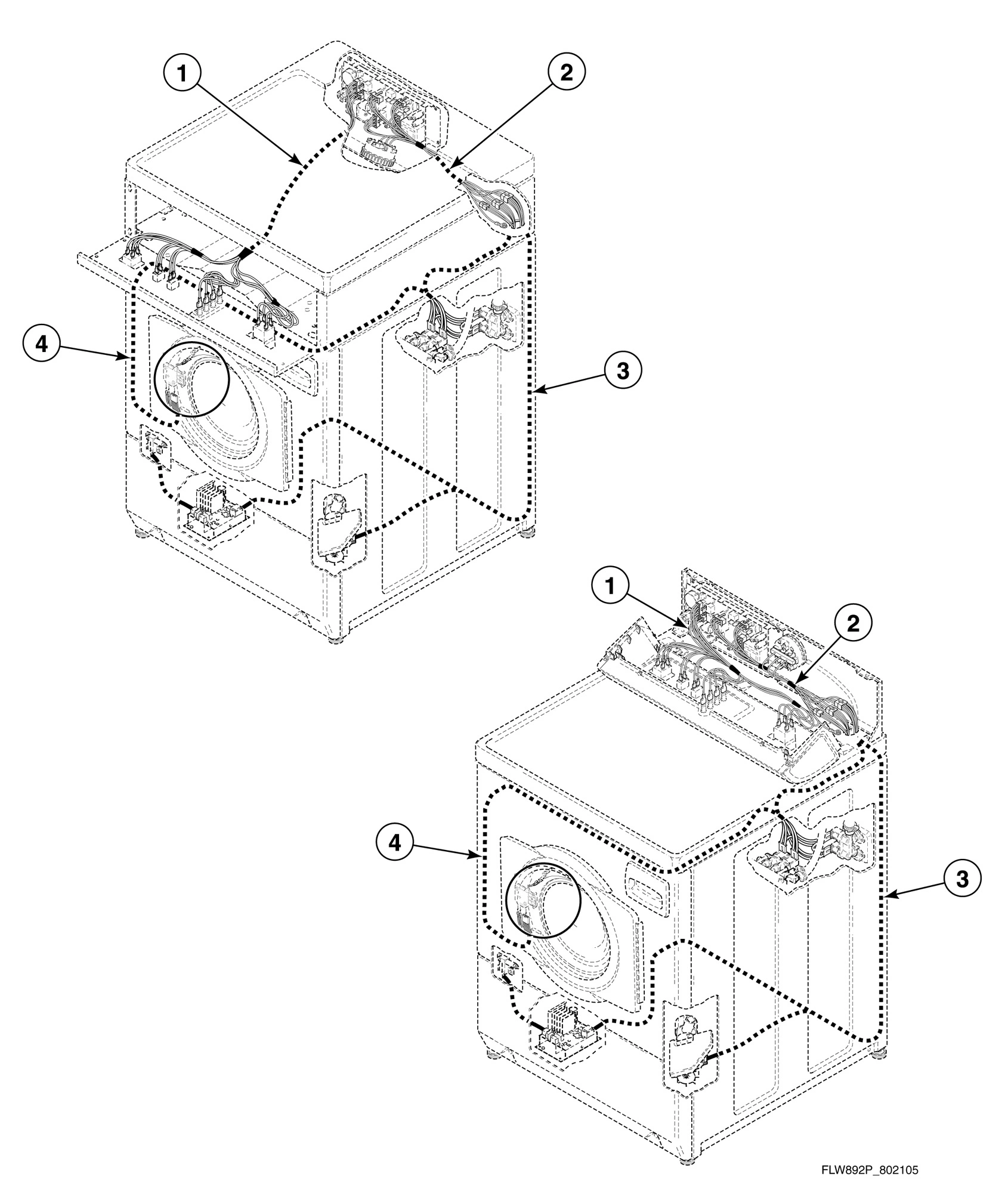

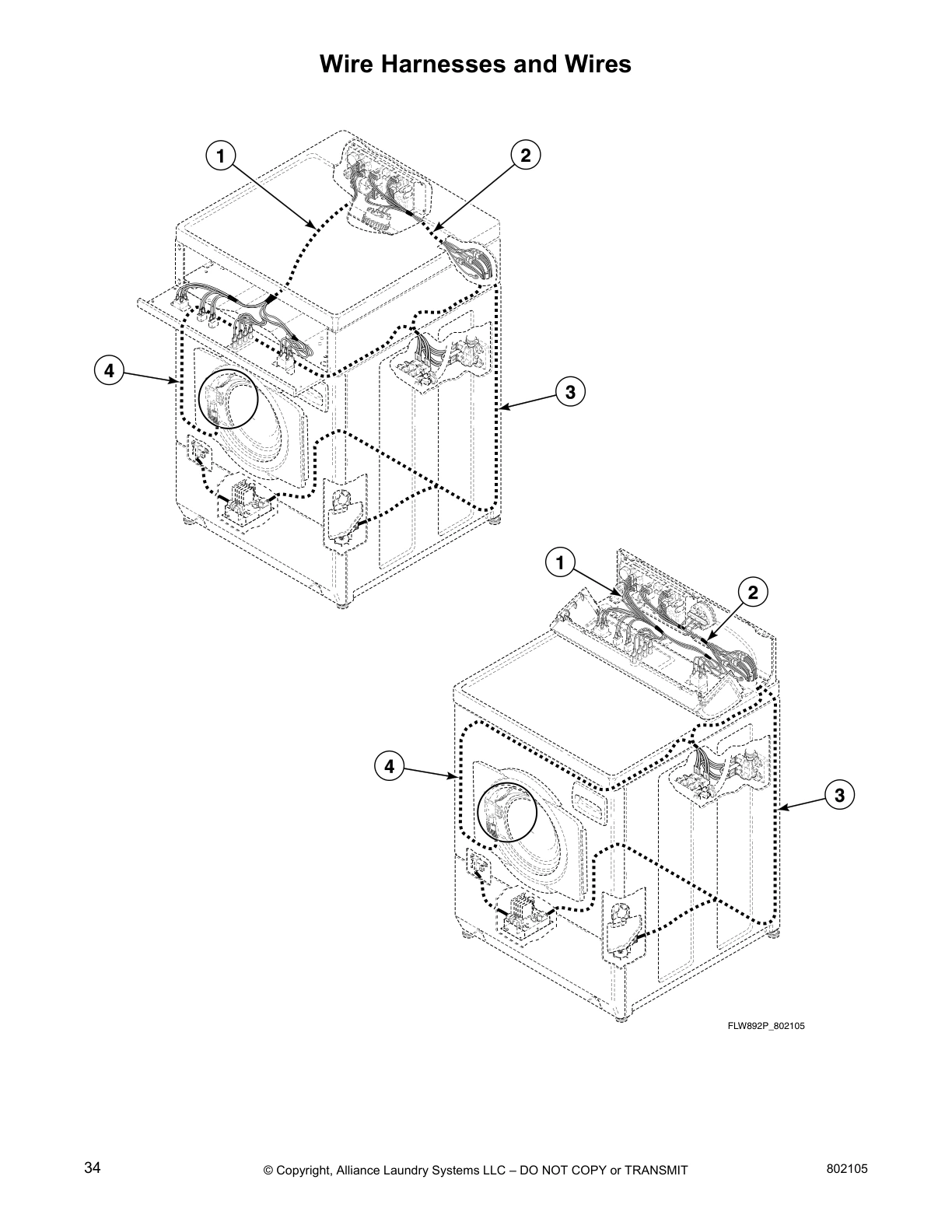

Wire Harnesses and Wires

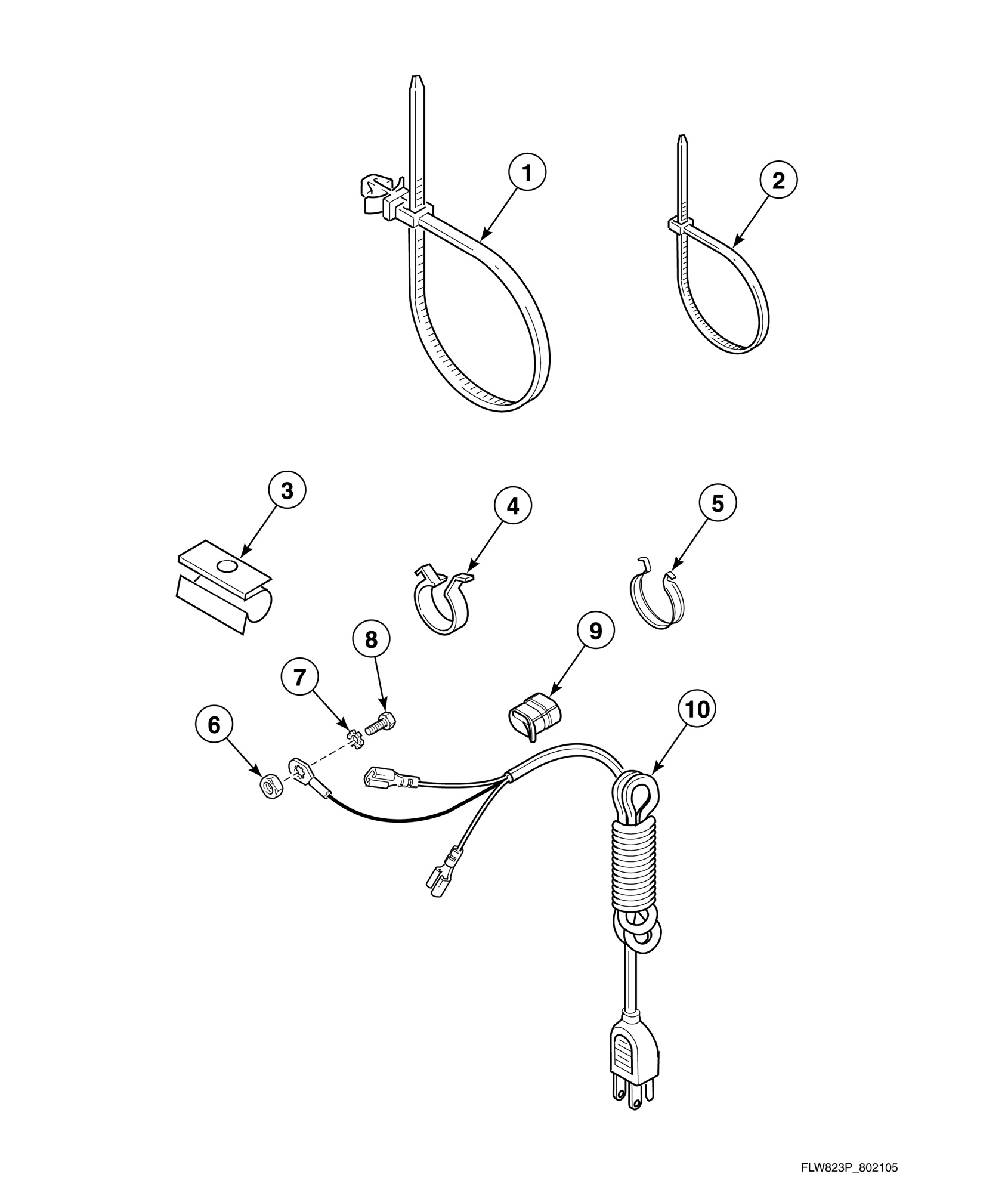

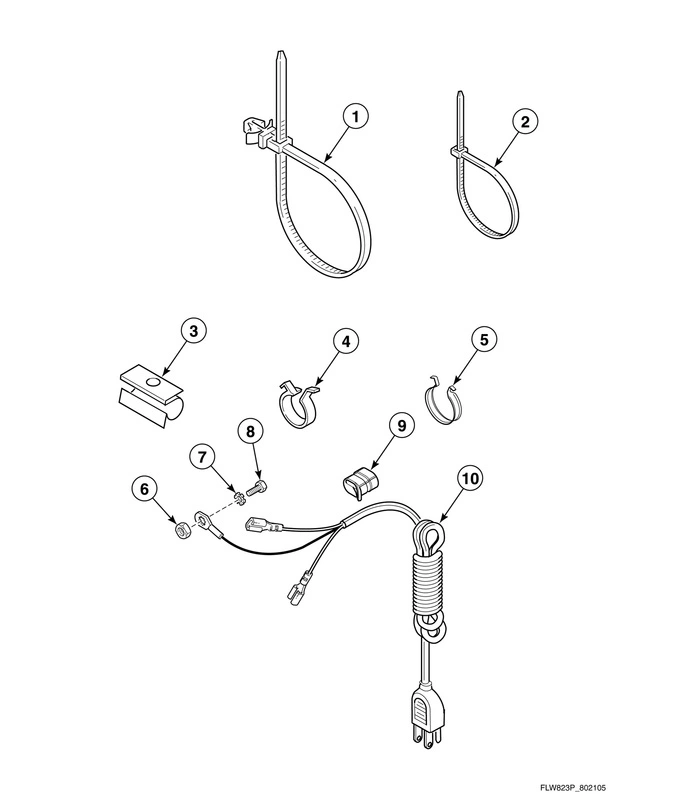

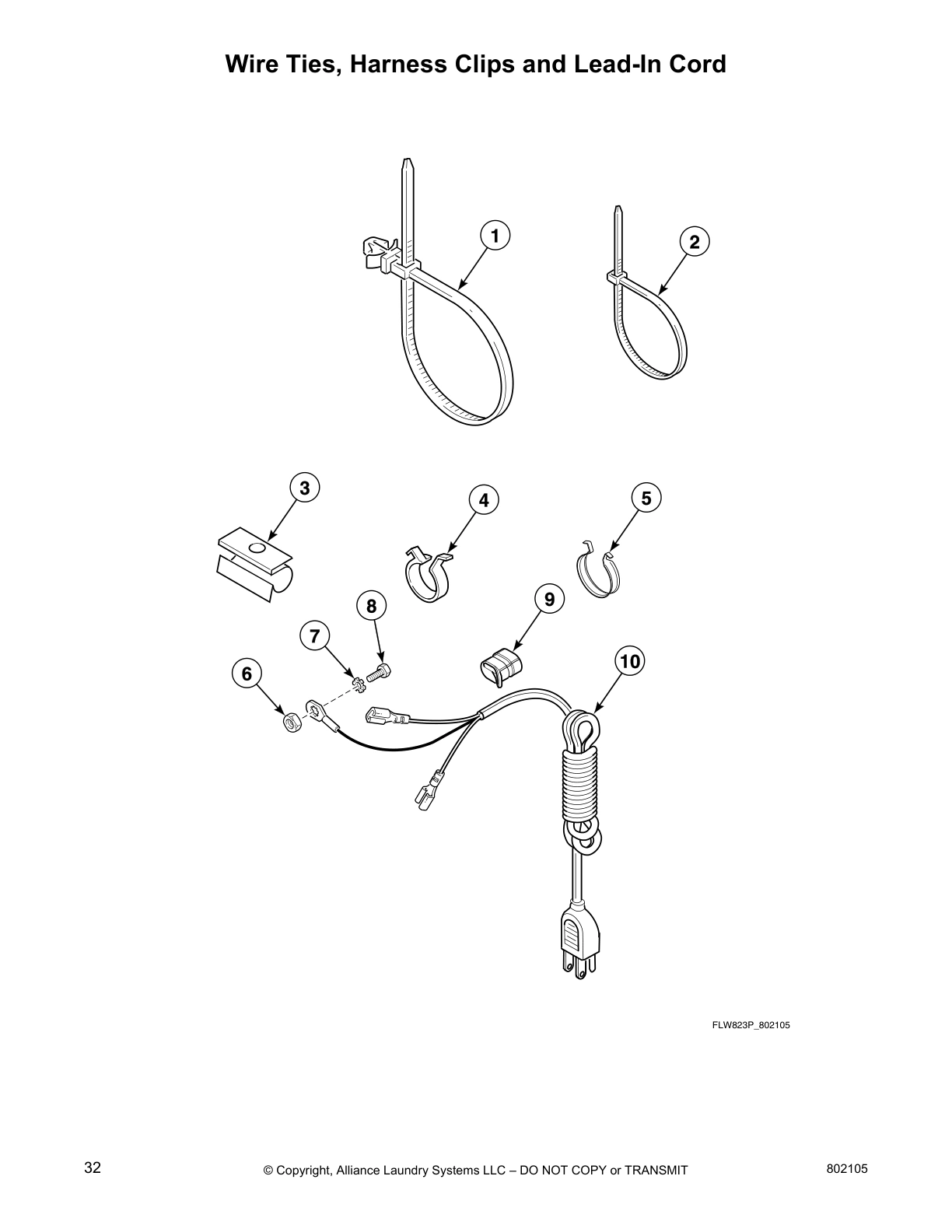

Wire Ties, Harness Clips and Lead-In Cord
Common parts from model GE ATS90AWN General Electric Model ATS90AWN
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Hood Back Panel GEN 801060 Contact Us For Availability
1
Hose Clamp GEN 800803 Contact Us For Availability
1
Top Cover GEN D505808W Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Door Locked Label GEN 685947 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Hood Harness Assembly GEN 801347P Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Door Glass GEN 800343P Contact Us For Availability
2
Inner Basket Assembly (Comment: Includes (3) GEN 803007P Contact Us For Availability
2
Oversudsing Label GEN 802074 Contact Us For Availability
2
Inverter Control Assembly GEN 803254P Contact Us For Availability
2
Out-of-Balance Switch Assembly GEN 801006 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use to adjust leveling legs) GEN 392P4 Contact Us For Availability
2
Control Harness Assembly GEN 801324P Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Nut GEN 801994 Contact Us For Availability
3
Temperature Switch GEN 687542 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Wire Clamp GEN 800811 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Shipping Bracket GEN 802890 Contact Us For Availability
3
Motor Harness Assembly GEN 801063P Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, Includes co GEN 800004WP Contact Us For Availability
4
Transformer GEN 210018P Contact Us For Availability
4
Inner Door Bezel GEN 801903 Contact Us For Availability
4
Temperature Switch Bracket GEN 800669 Contact Us For Availability
4
Inner Basket Assembly (Comment: Includes item GEN 800429P Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Screw GEN 800461 Contact Us For Availability
4
Shipping Cord and Brace Assembly GEN 800364P Contact Us For Availability
4
Base Harness Assembly GEN 800590P Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
5
Hold-Down Clip GEN 35358 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Locking Catch GEN 685430 Contact Us For Availability
5
Cycle Switch GEN 801240 Contact Us For Availability
5
Nut GEN 685844 Contact Us For Availability
5
Warning Label GEN D500049 Contact Us For Availability
5
Inverter Assembly Kit (Comment: Includes item GEN 801526P Contact Us For Availability
5
Washer GEN M400081 Contact Us For Availability
6
Rear Panel GEN 800010P Contact Us For Availability
6
Bracket GEN D510146 Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Cycle Switch Bracket GEN 801390 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Fuse (Comment: Use for inverter control) GEN 801755 Contact Us For Availability
6
Switch Mounting Bracket GEN 800663 Contact Us For Availability
6
Shipping Materials Kit (Comment: Includes ite GEN 728P3 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Screw Label (Comment: Left hand thread) GEN 685928 Contact Us For Availability
7
Valve Kit GEN 685766P Contact Us For Availability
7
Screw GEN 800548 Contact Us For Availability
7
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
7
Fill Hose (Comment: 8 feet) GEN 20617 Contact Us For Availability
7
Fill Hose (Comment: 10 feet) GEN 20618 Contact Us For Availability
7
Water Hose (Comment: 4 feet, Includes items 6 GEN F200116 Contact Us For Availability
7
Screw GEN M400057 Contact Us For Availability
7
Nut GEN 800452 Contact Us For Availability
7
Shipping Bracket Label GEN 686901 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Top Hinge GEN D510136 Contact Us For Availability
8
Top Panel Kit GEN D510029WP Contact Us For Availability
8
Dispenser-to-Tub Hose GEN 800331 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Pressure Switch GEN 800468P Contact Us For Availability
8
Screw GEN 685837 Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
8
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
8
Washer GEN 02834 Contact Us For Availability
9
Rear Access Panel GEN 800011 Contact Us For Availability
9
Screw GEN D501086 Contact Us For Availability
9
Hose Clamp GEN 685725 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Control Assembly GEN 802523P Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Washer GEN M400080 Contact Us For Availability
9
Grommet GEN 29175 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
Motor Access Hole Edging GEN 801702 Contact Us For Availability
10
Hose Clamp GEN F200206 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Mixing Valve Screen GEN 802926 Contact Us For Availability
10
Drive Belt GEN 800319P Contact Us For Availability
10
Pressure Bulb GEN 30907 Contact Us For Availability
10
Lead-In Cord GEN 34458 Contact Us For Availability
11
Side Panel Kit (Comment: Right, Includes 8010 GEN 800005WP Contact Us For Availability
11
Cap GEN 801746 Contact Us For Availability
11
Control Support Panel GEN 801388 Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Mixing Valve GEN 802220P Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
12
Screw GEN 31645 Contact Us For Availability
12
Dispenser (Comment: Includes items 7, 13, 14 GEN 685756P Contact Us For Availability
12
Indicator Light (Comment: Green) GEN 801356 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Retaining Ring GEN 23748 Contact Us For Availability
12
Tubing GEN 29214 Contact Us For Availability
13
Cabinet Brace (Comment: Right) GEN 801492 Contact Us For Availability
13
Dispenser Assembly (Comment: Includes items 1 GEN 801476P Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Washer GEN 52549 Contact Us For Availability
13
Hose Clamp GEN 39282 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Dispenser Drawer GEN 685757P Contact Us For Availability
14
Graphic Panel GEN 802000W Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Motor Mount Rod GEN 801062 Contact Us For Availability
14
Outer Tub Assembly GEN 801081P Contact Us For Availability
15
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
15
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
15
Timer Knob Assembly GEN D512117W Contact Us For Availability
15
Tub Shock Absorber Kit (Comment: Upper) GEN 800622P Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Dispenser Drawer Front GEN 685715WP Contact Us For Availability
16
Wire Clamp Ring GEN 800438 Contact Us For Availability
16
Indicator Light Lens GEN 801435 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Base Shock Absorber Kit (Comment: Lower) GEN 800623P Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Insert GEN 685716 Contact Us For Availability
17
Door Seal Clamp (Comment: Seal to outer tub f GEN 685743P Contact Us For Availability
17
Push-to-Start Switch GEN 801434W Contact Us For Availability
17
Grounding Clip GEN 00161 Contact Us For Availability
18
Base Assembly GEN 802245 Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Bla GEN 800232P Contact Us For Availability
18
Door Seal and Hose Assembly Kit (Comment: Gra GEN 801784P Contact Us For Availability
18
Detergent Cover GEN 800899 Contact Us For Availability
18
Rocker Switch (Comment: Extra rinse) GEN 38424W Contact Us For Availability
18
Ballast Weight GEN 800205 Contact Us For Availability
19
Cabinet Brace (Comment: Left) GEN 801491 Contact Us For Availability
19
Dispenser Plate GEN 801024 Contact Us For Availability
19
Knob Assembly GEN 36701W Contact Us For Availability
19
Tub Front Assembly GEN 800430 Contact Us For Availability
20
Hole Plug GEN M412154 Contact Us For Availability
20
Screw GEN 801001 Contact Us For Availability
20
End Panel (Comment: Left) GEN D504009WP Contact Us For Availability
21
Brace Kit (Comment: Includes items 12, 13 and GEN 918P3 Contact Us For Availability
21
Extension Spring GEN 800346 Contact Us For Availability
22
Nut GEN 36020 Contact Us For Availability
22
NOT ON YOUR MODEL GEN - Contact Us For Availability
23
Clamp Ring GEN 800312 Contact Us For Availability
24
Access Panel Damper GEN 685368 Contact Us For Availability
24
Nut GEN F430218 Contact Us For Availability
25
Screw GEN 801045 Contact Us For Availability
25
Washer GEN 800457 Contact Us For Availability
26
Access Panel Assembly GEN D514250WP Contact Us For Availability
26
Screw GEN 800462 Contact Us For Availability
27
Front Panel GEN 800336WP Contact Us For Availability
27
Tub Front Seal GEN 800432P Contact Us For Availability
28
Door Switch GEN 800211 Contact Us For Availability
29
Sticker GEN 201495 Contact Us For Availability
30
Door Assembly (Comment: Includes items 1-11) GEN 801928WP Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
