Model Speed Queen ADG41FSS111TN01 Dryer – Common Parts & Diagrams

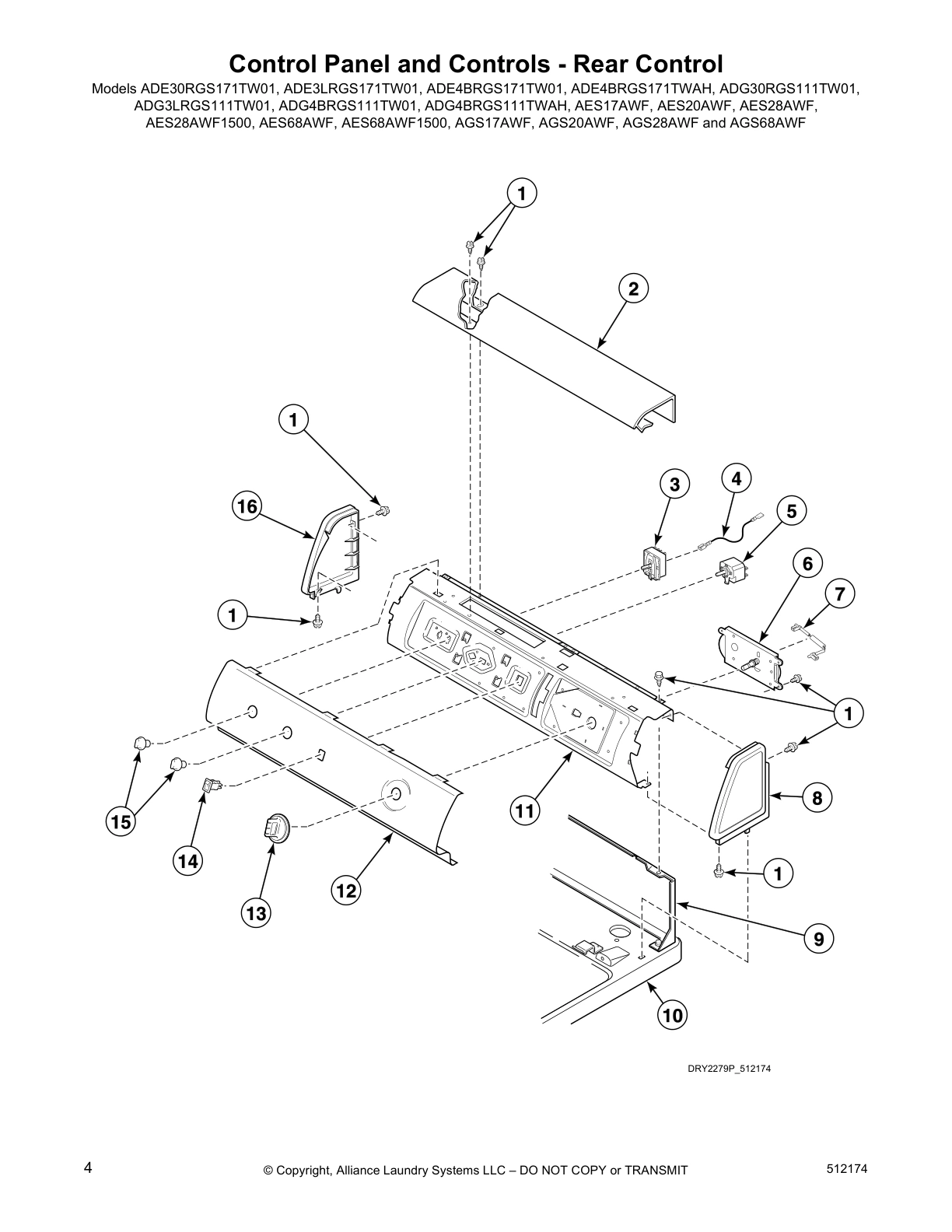

Control Panel and Controls - Rear Control

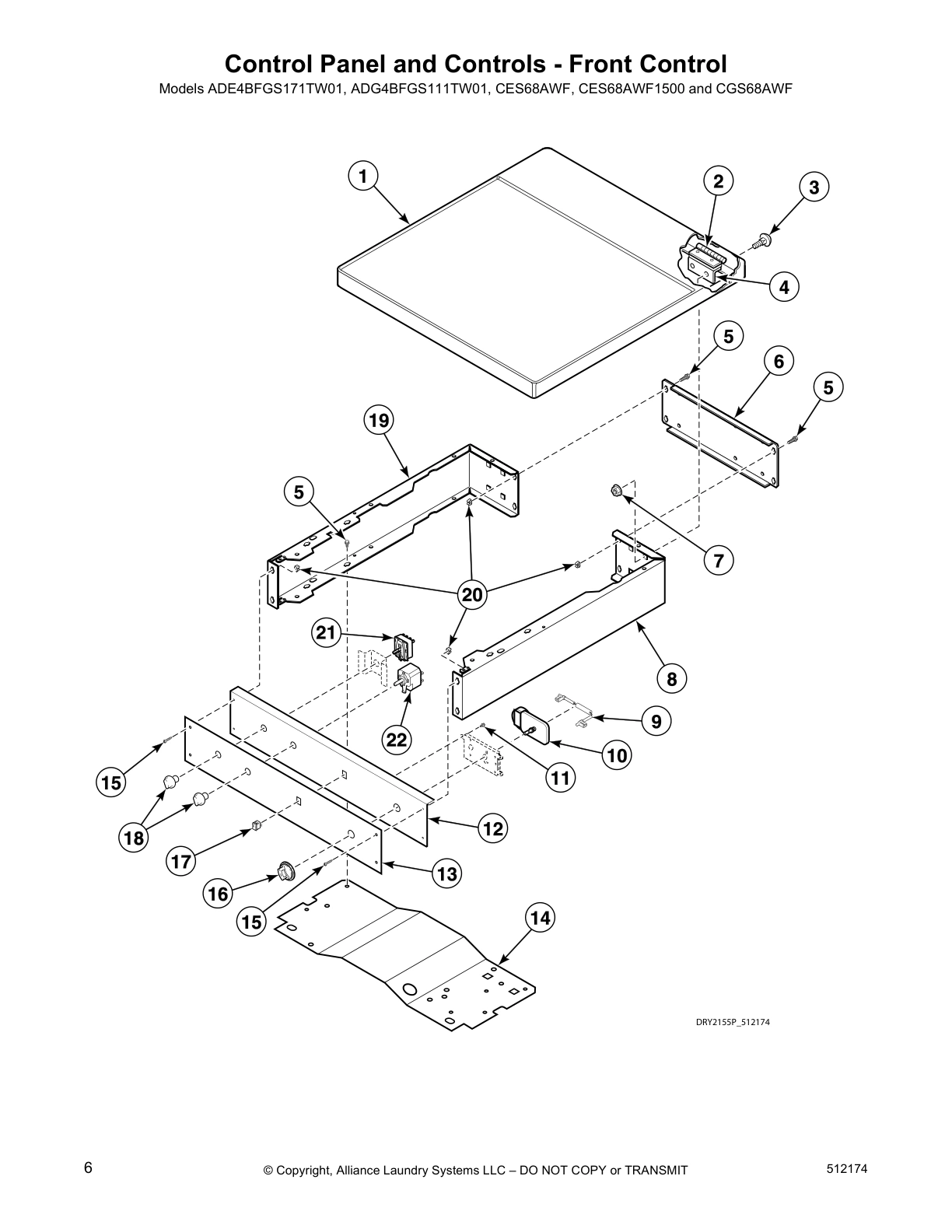

Control Panel and Controls - Front Control

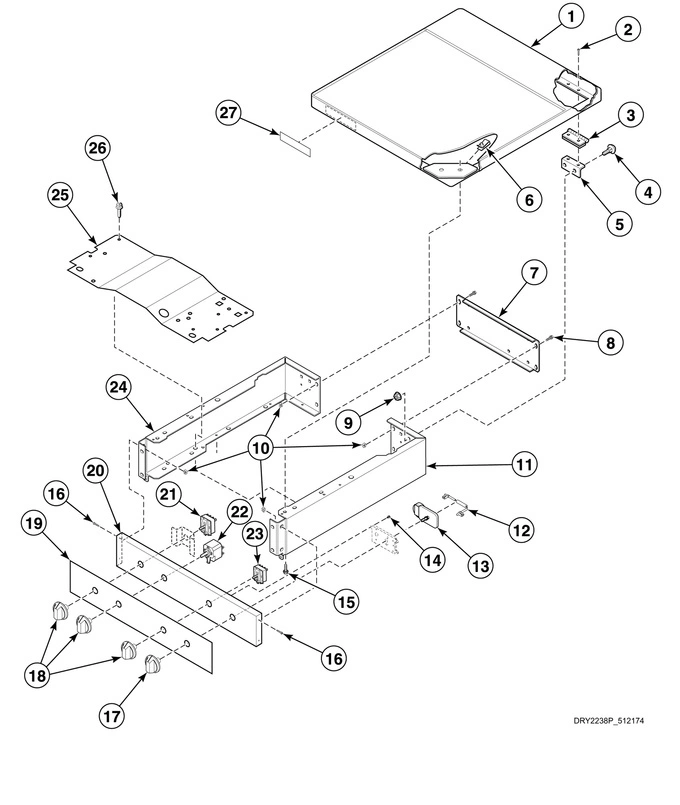

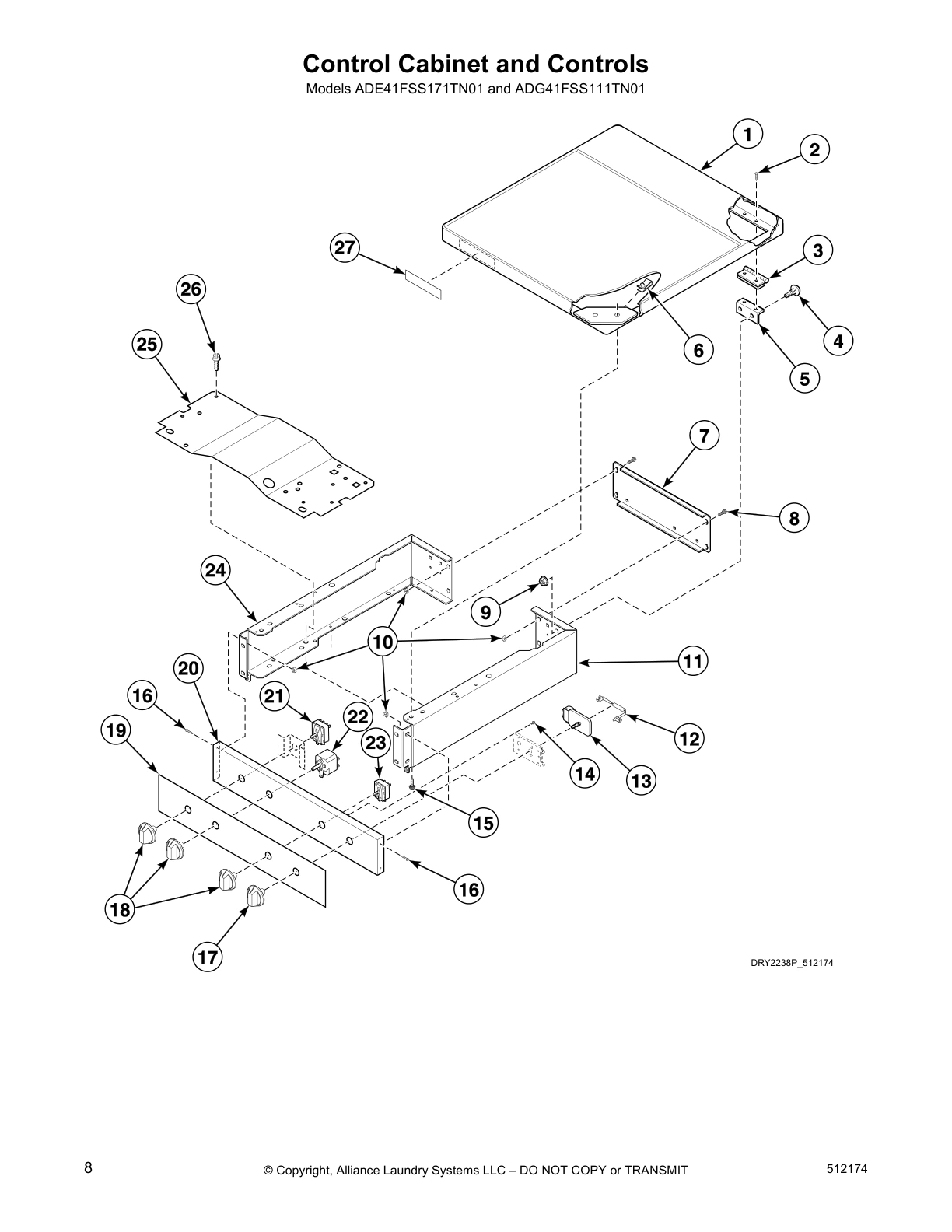

Control Cabinet and Controls

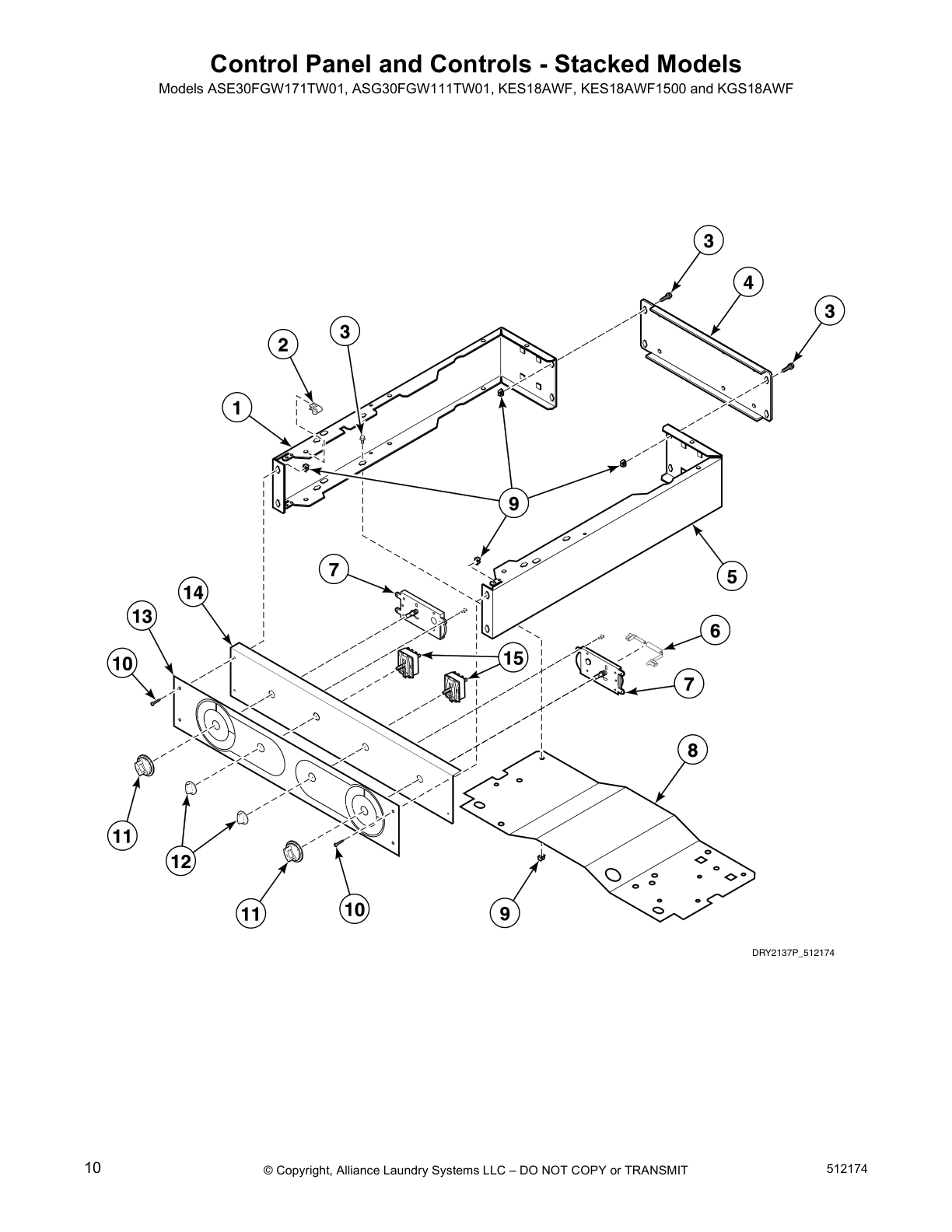

Control Panel and Controls - Stacked Models

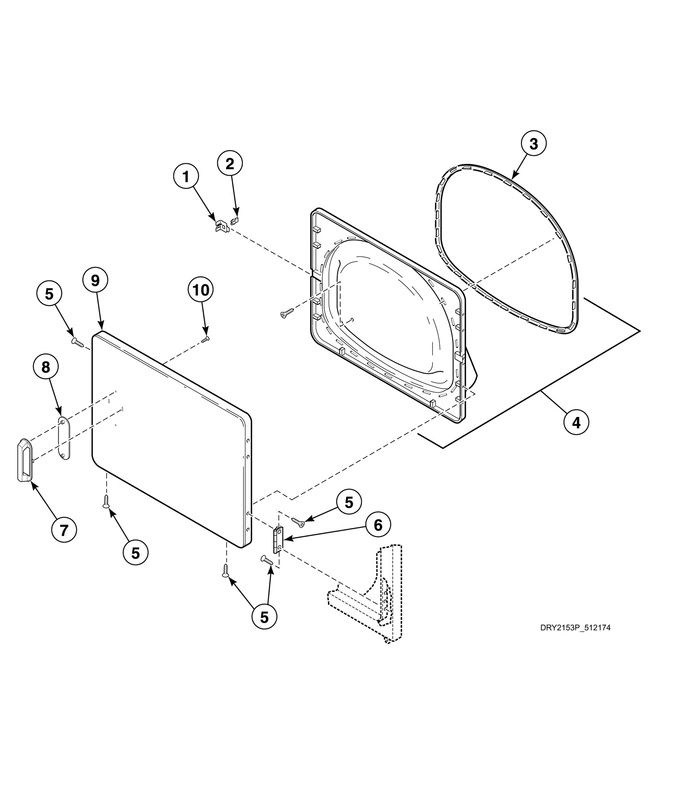

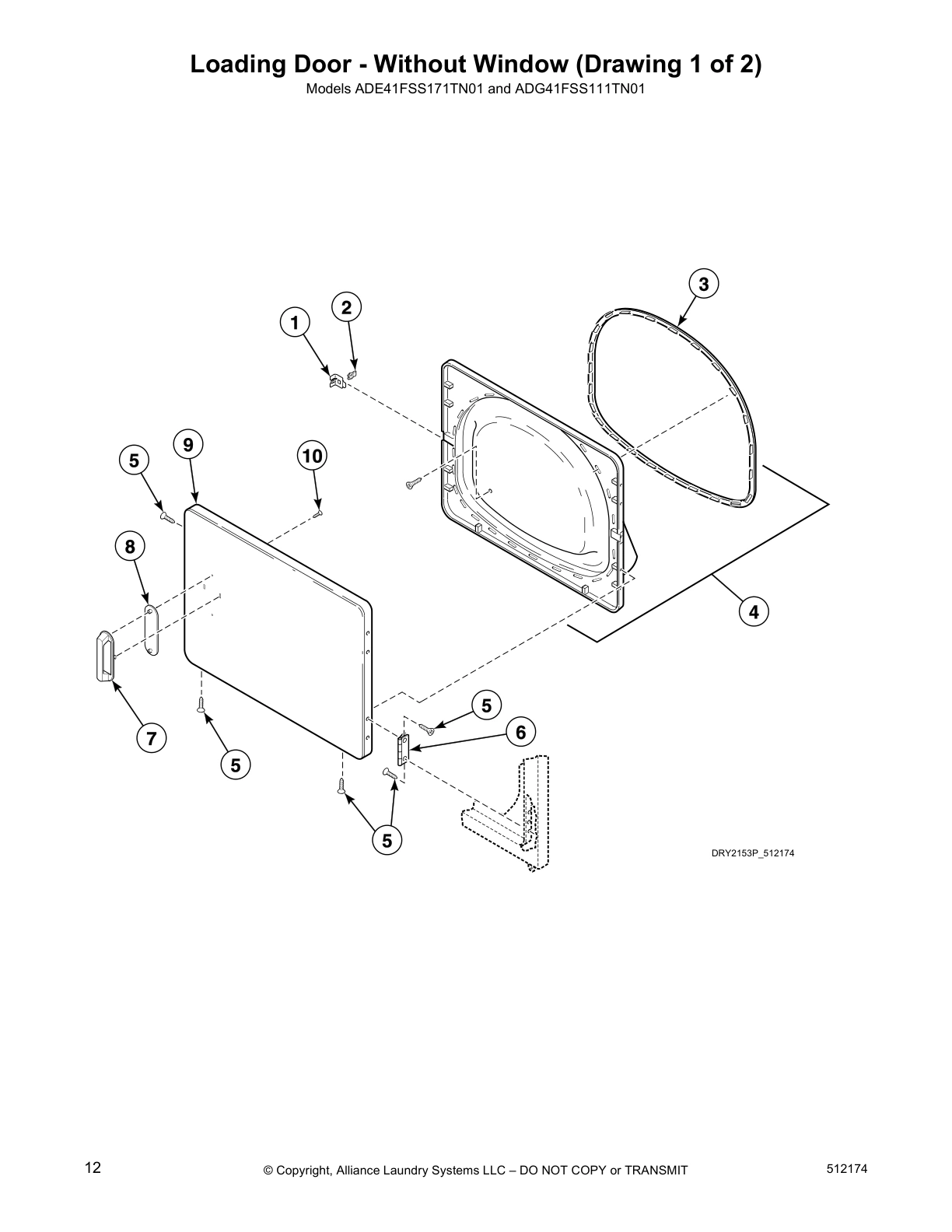

Loading Door - Without Window (Drawing 1 of 2)

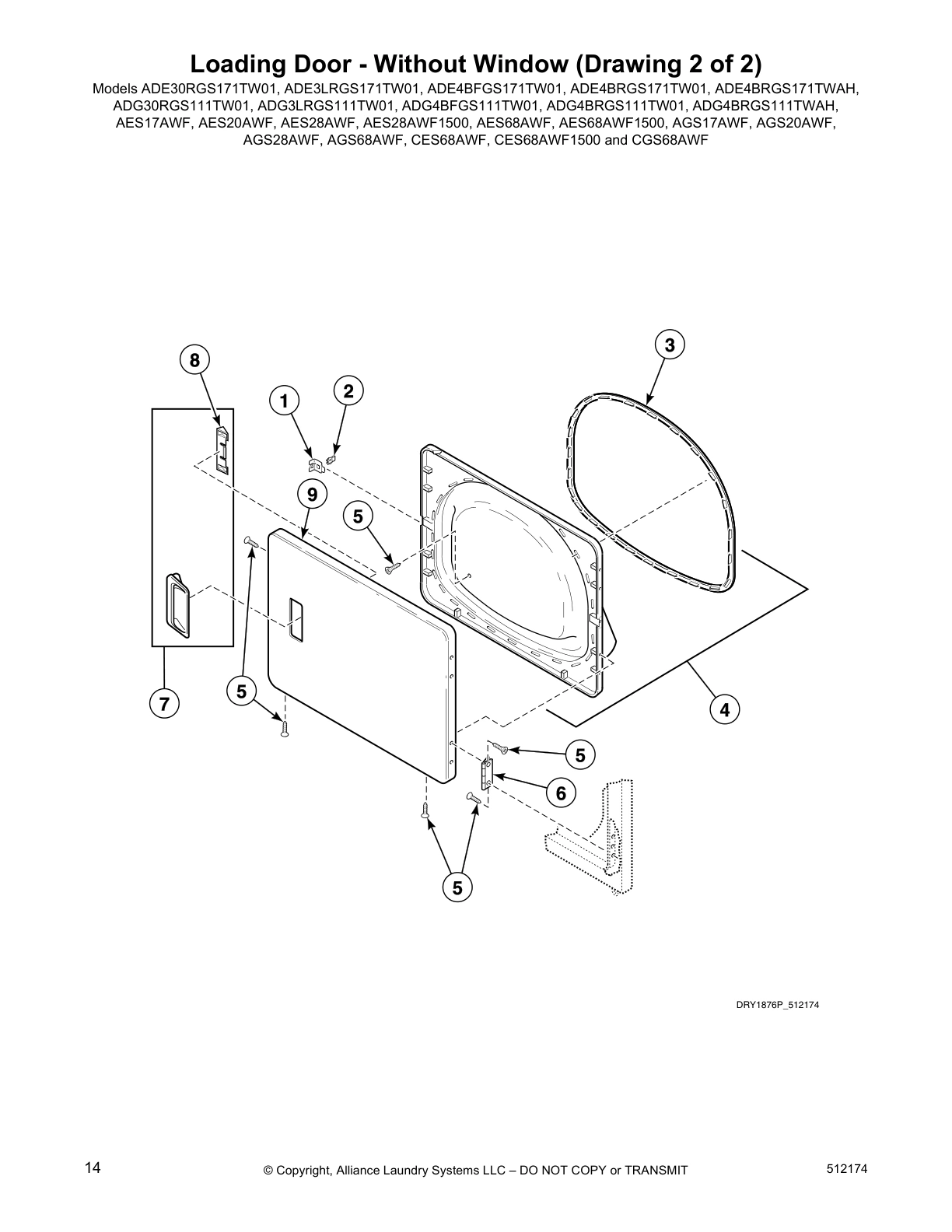

Loading Door - Without Window (Drawing 2 of 2)

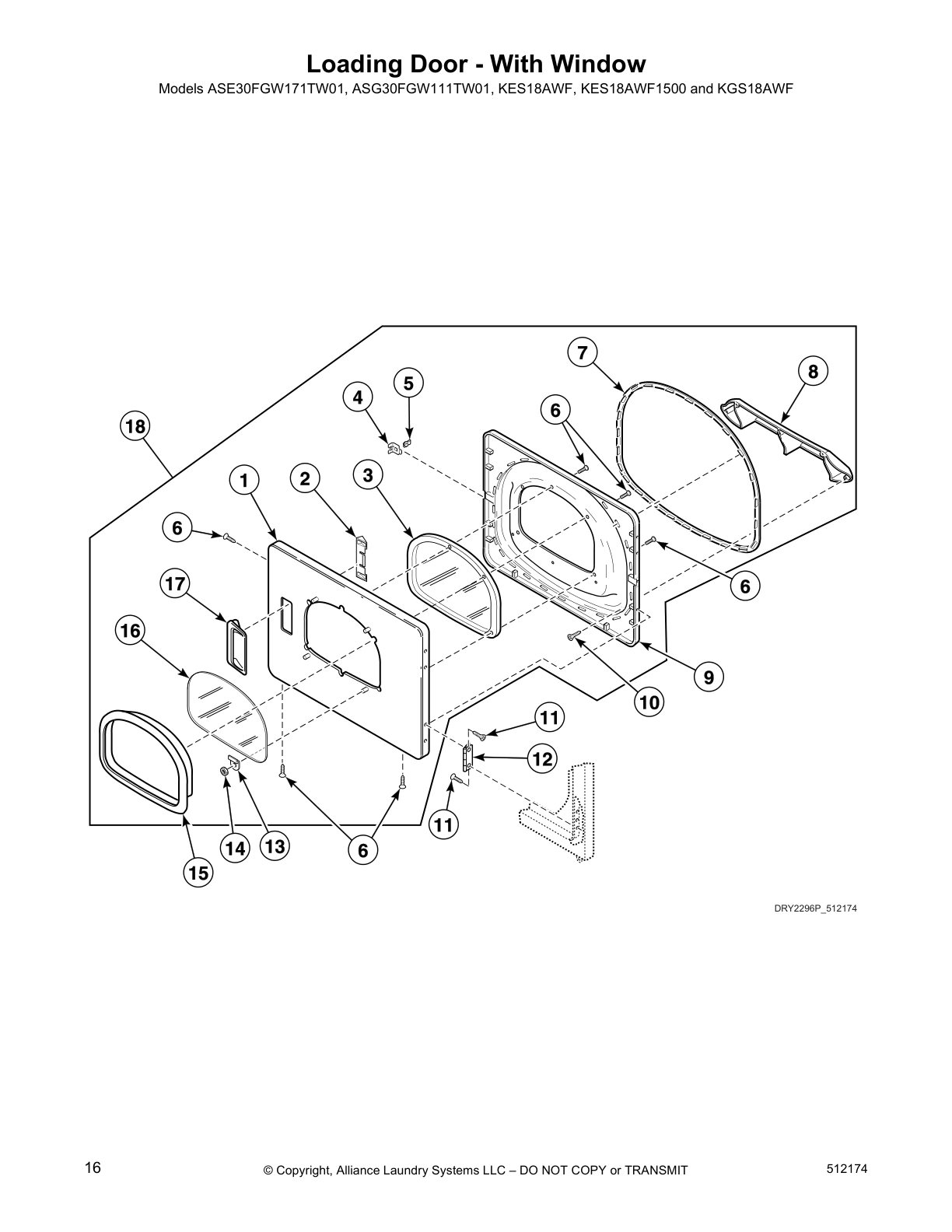

Loading Door - With Window

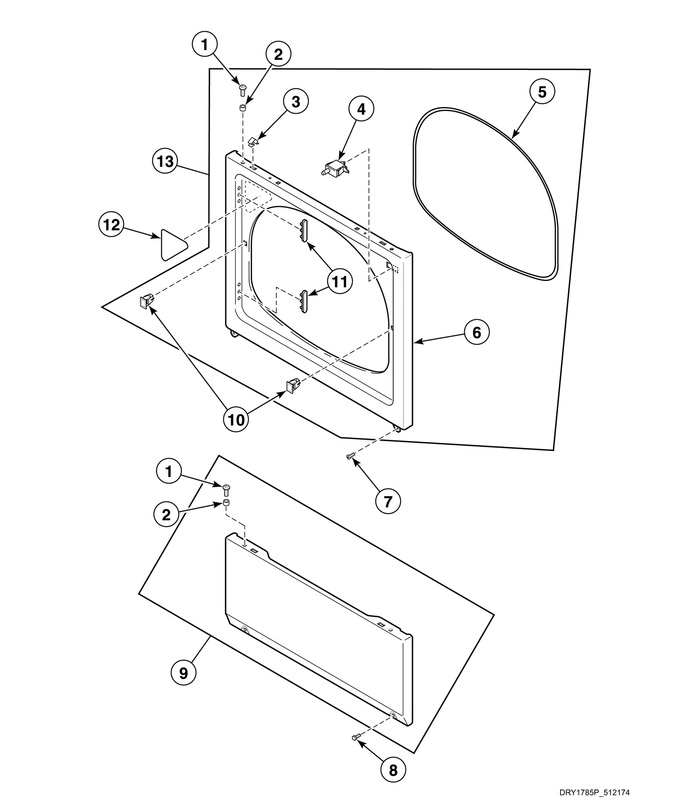

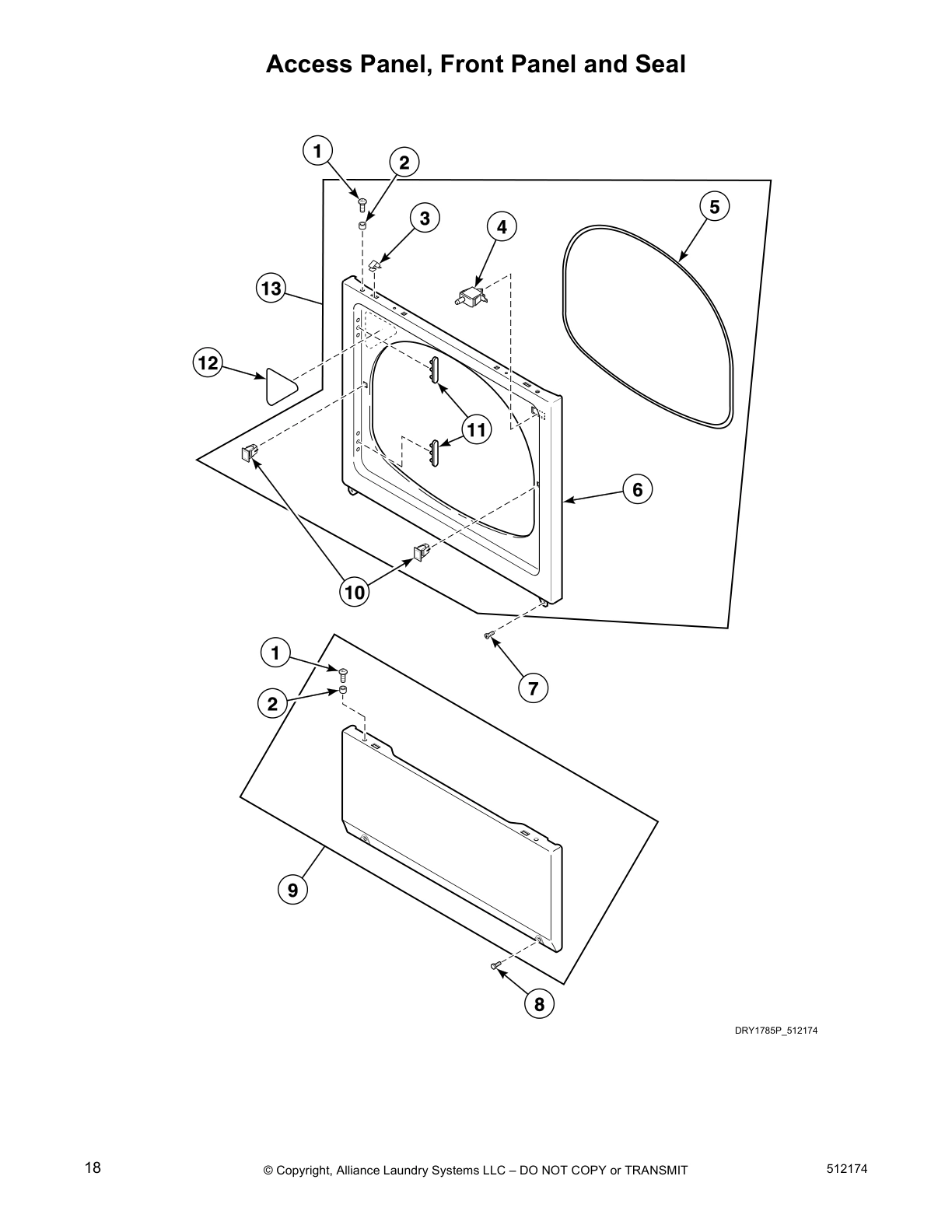

Access Panel, Front Panel and Seal

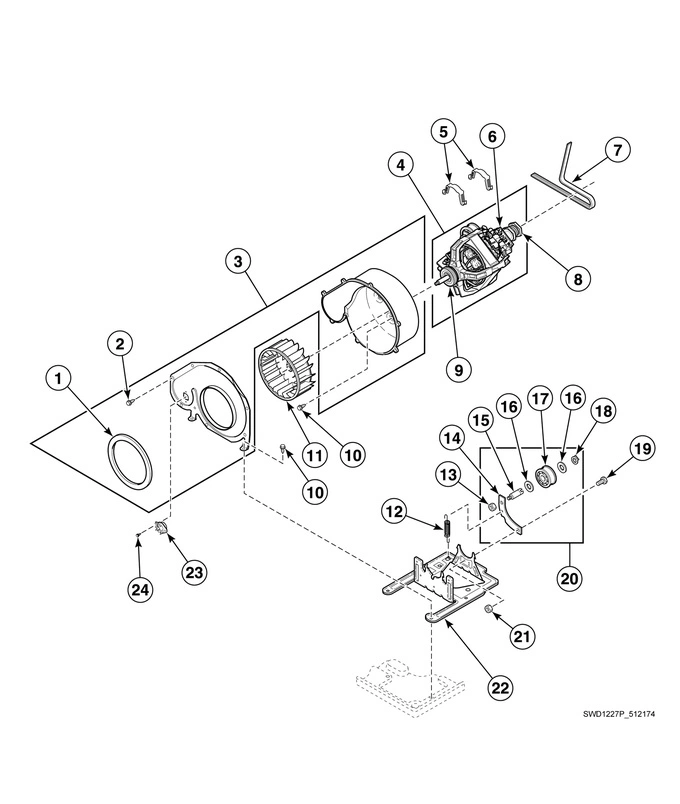

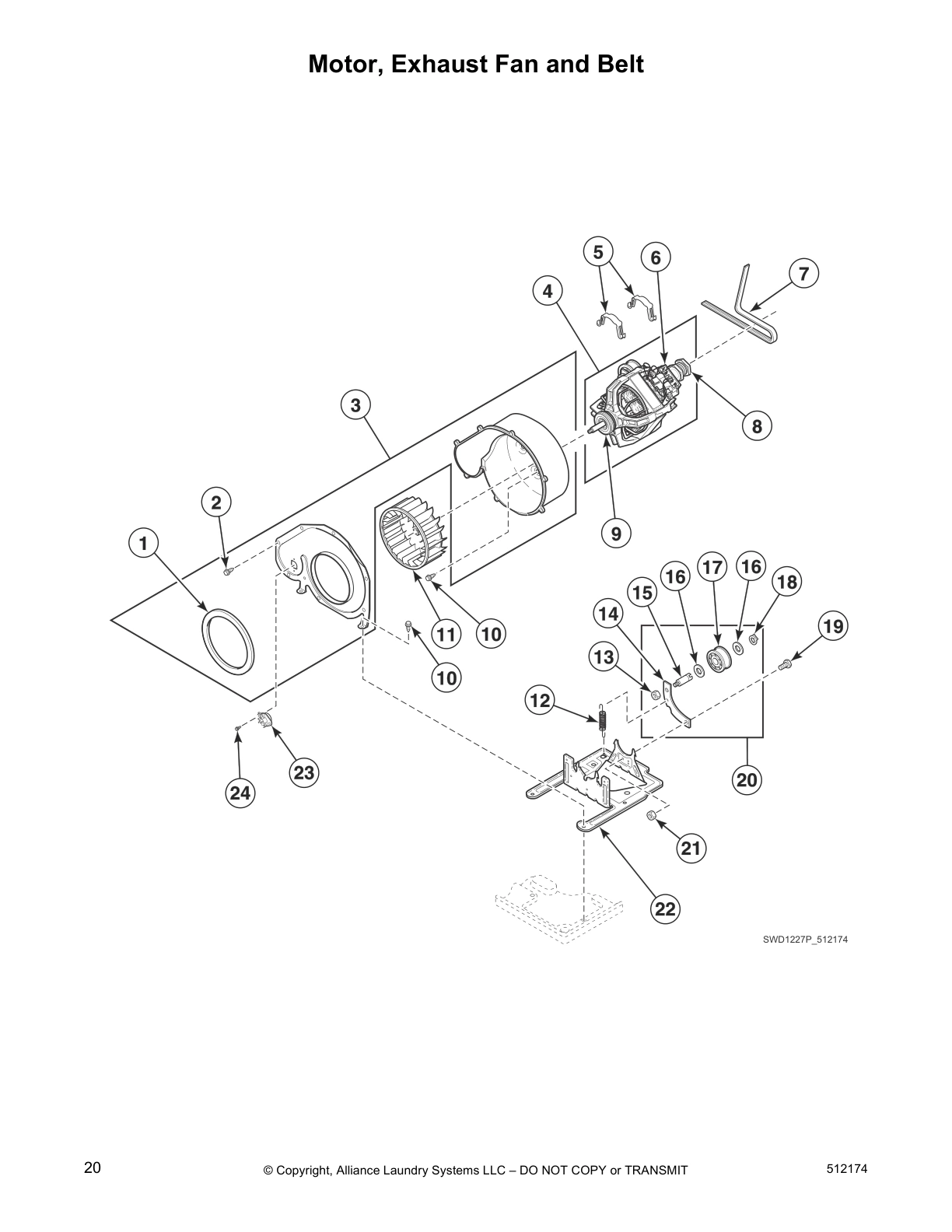

Motor, Exhaust Fan and Belt

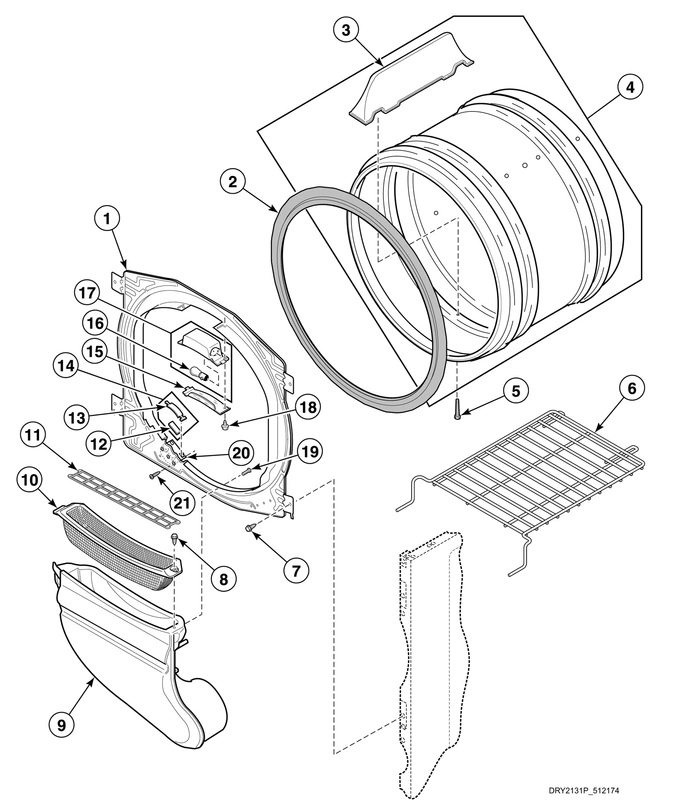

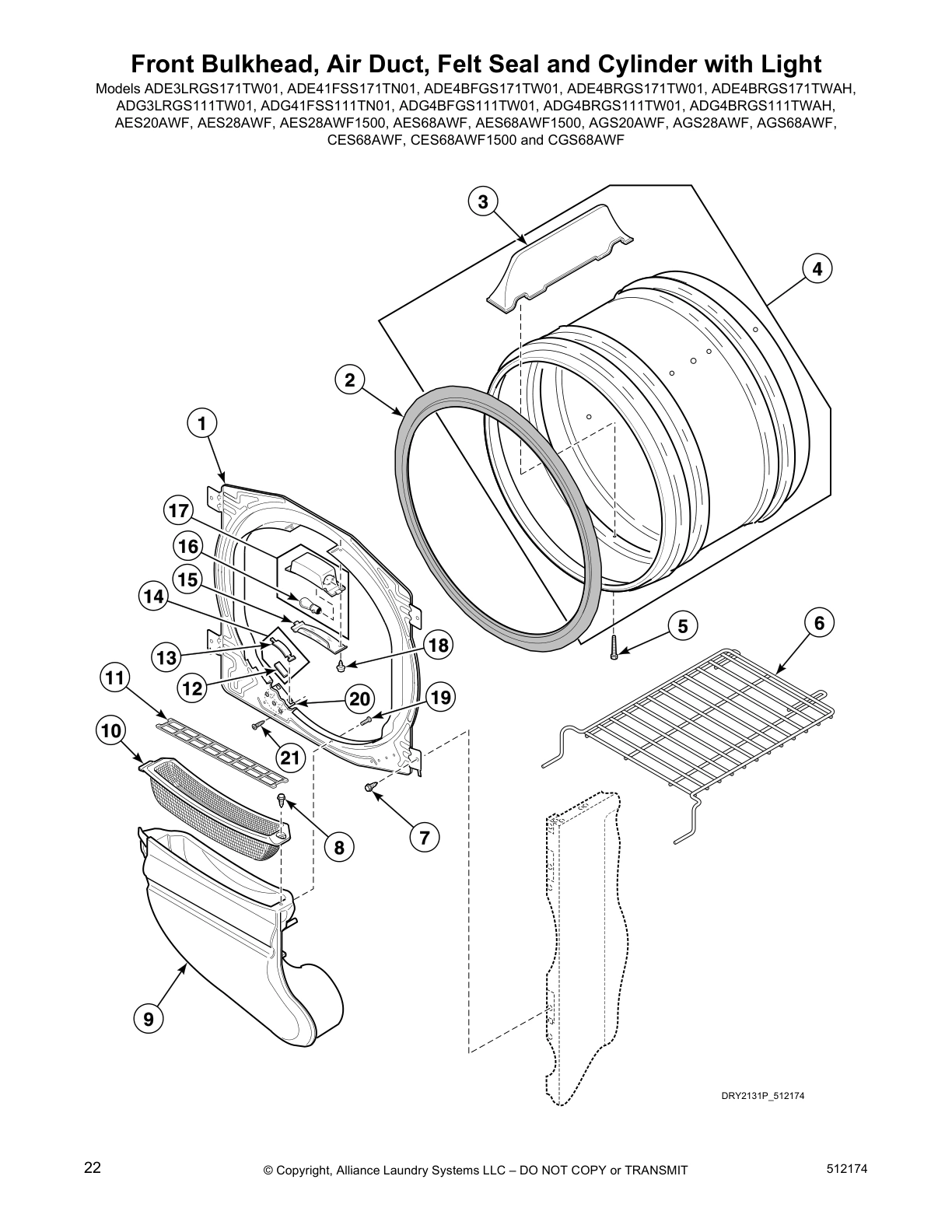

Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light

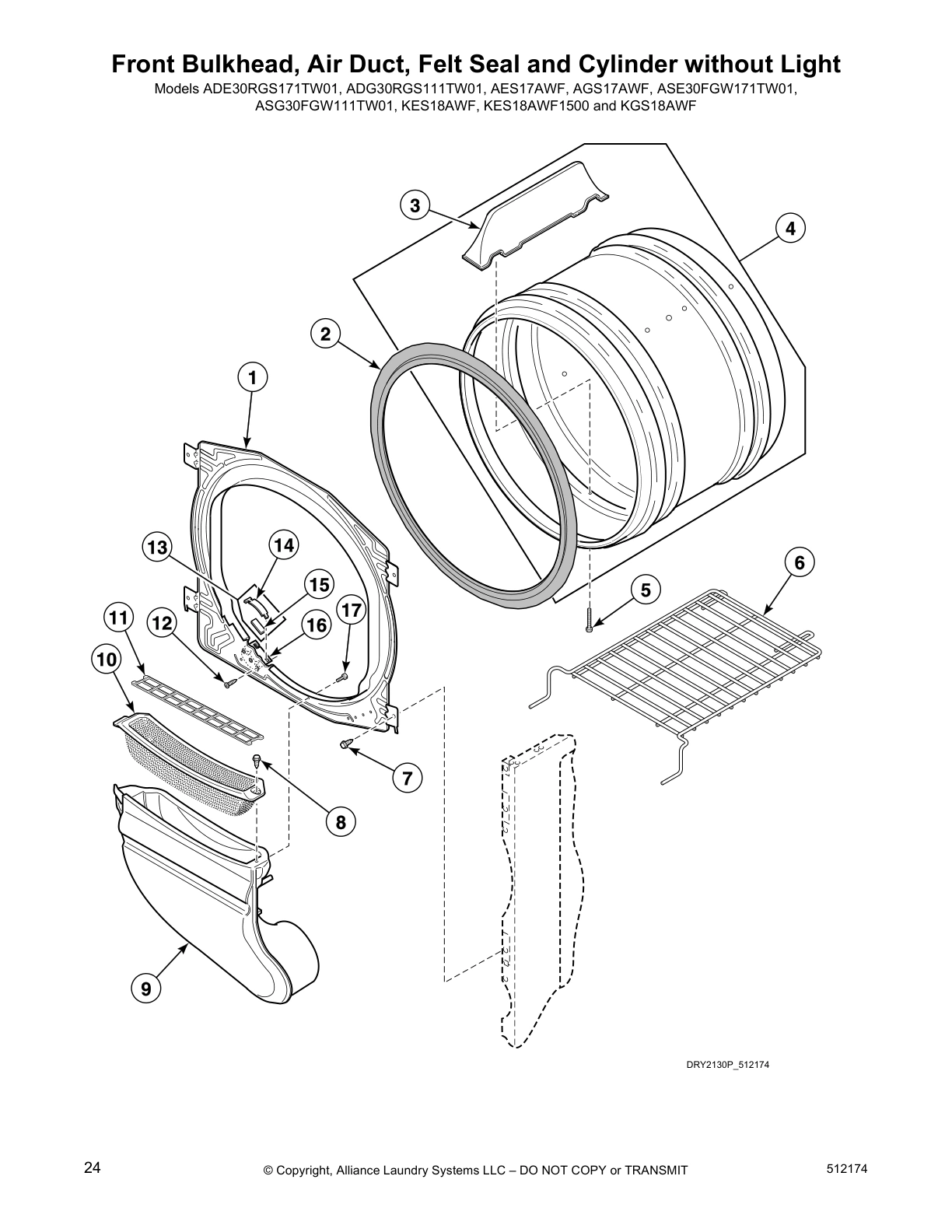

Front Bulkhead, Air Duct, Felt Seal and Cylinder without Light

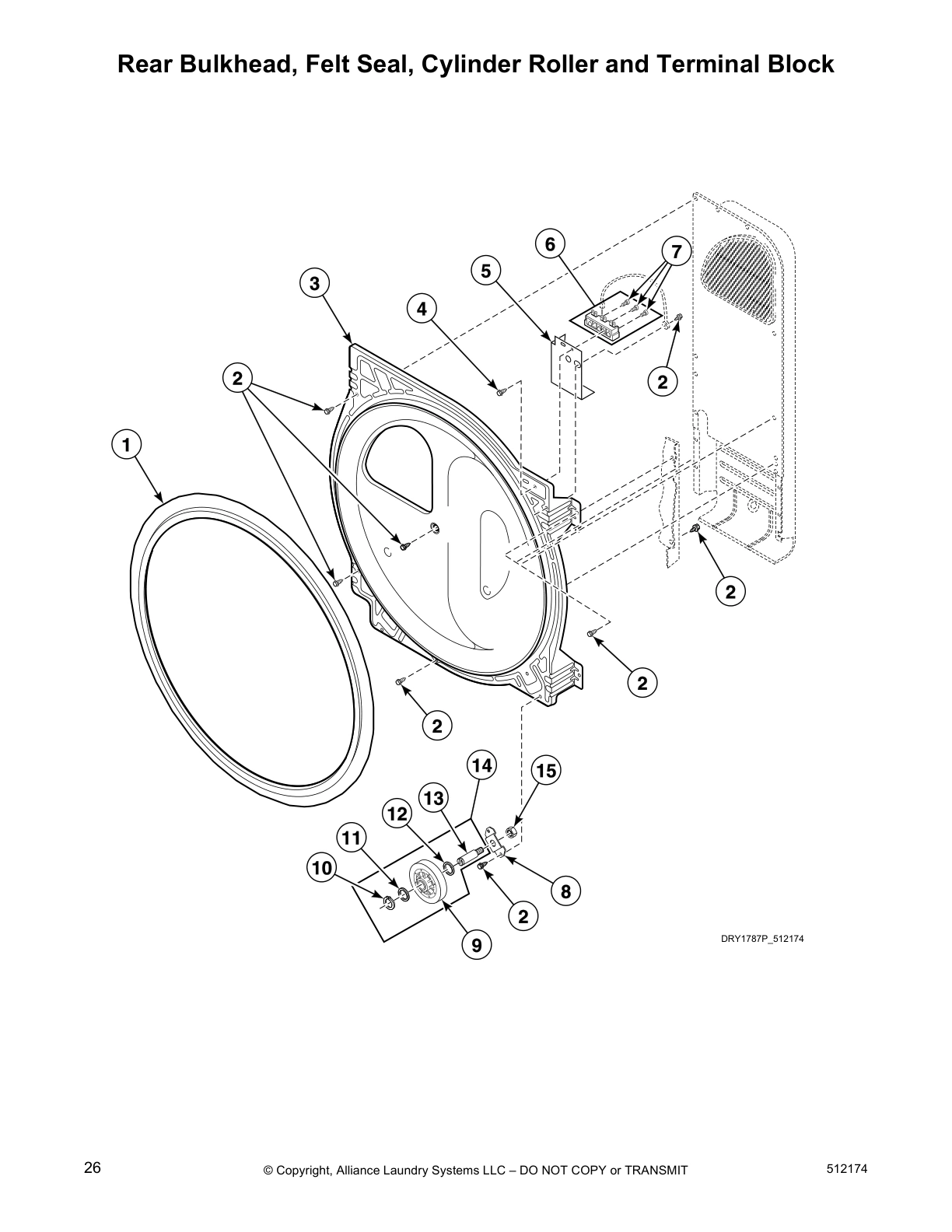

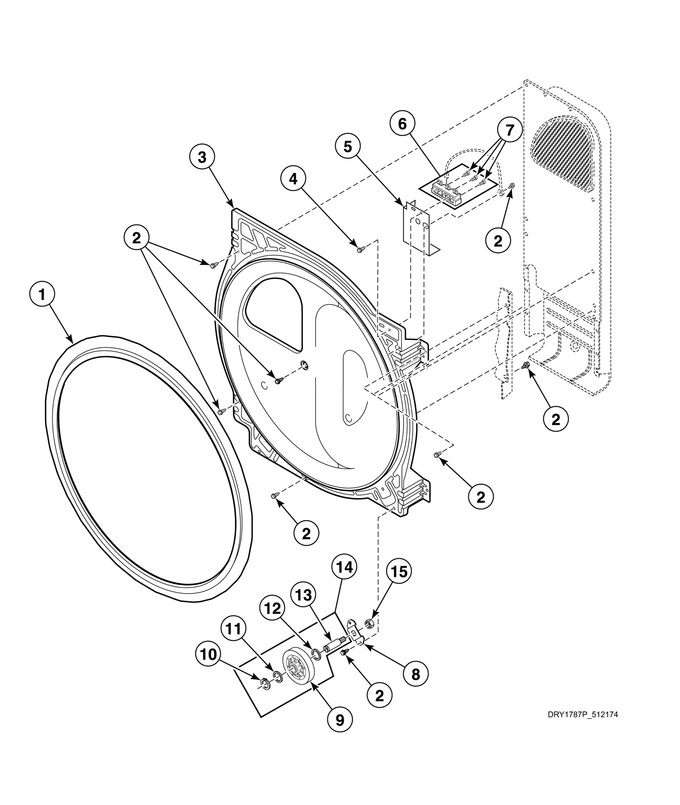

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

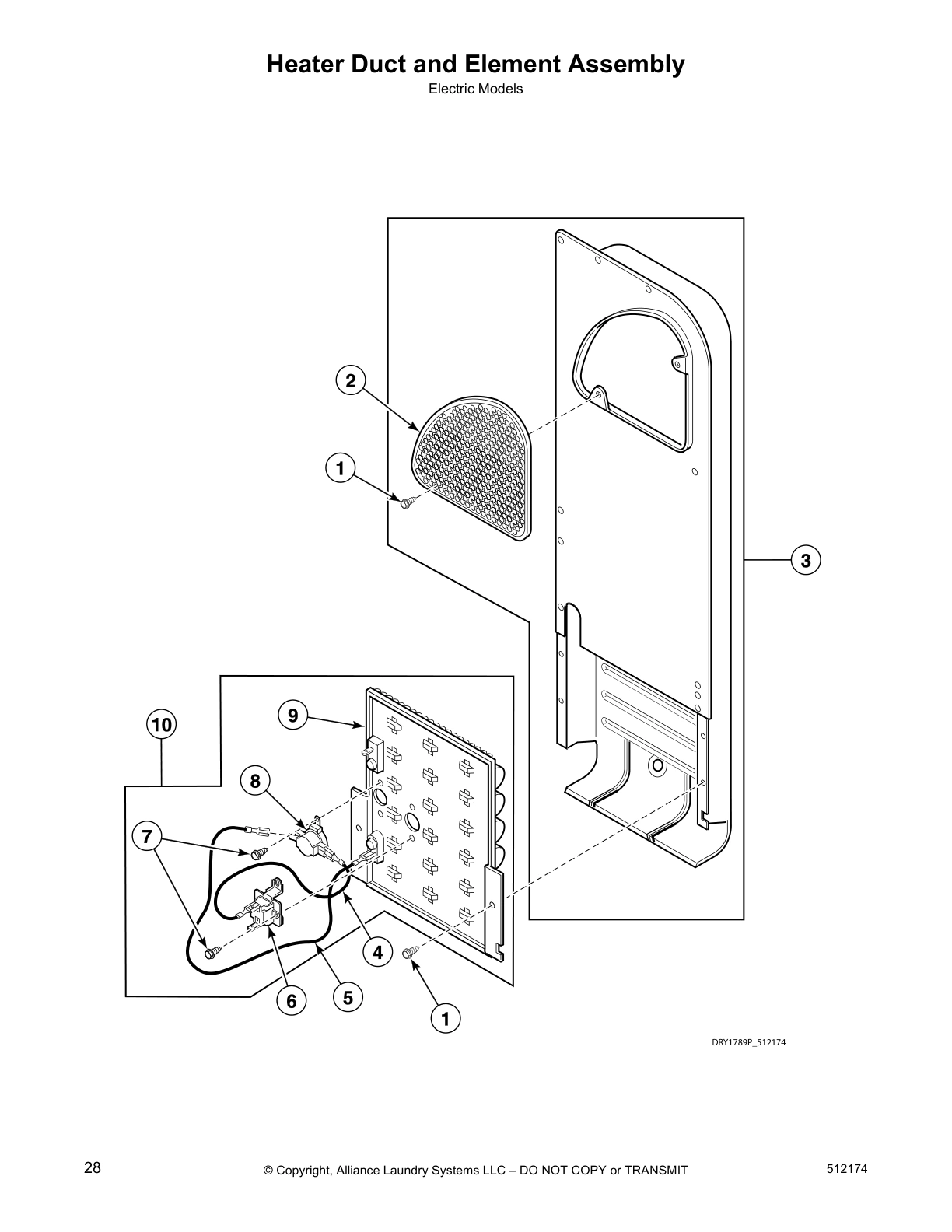

Heater Duct and Element Assembly

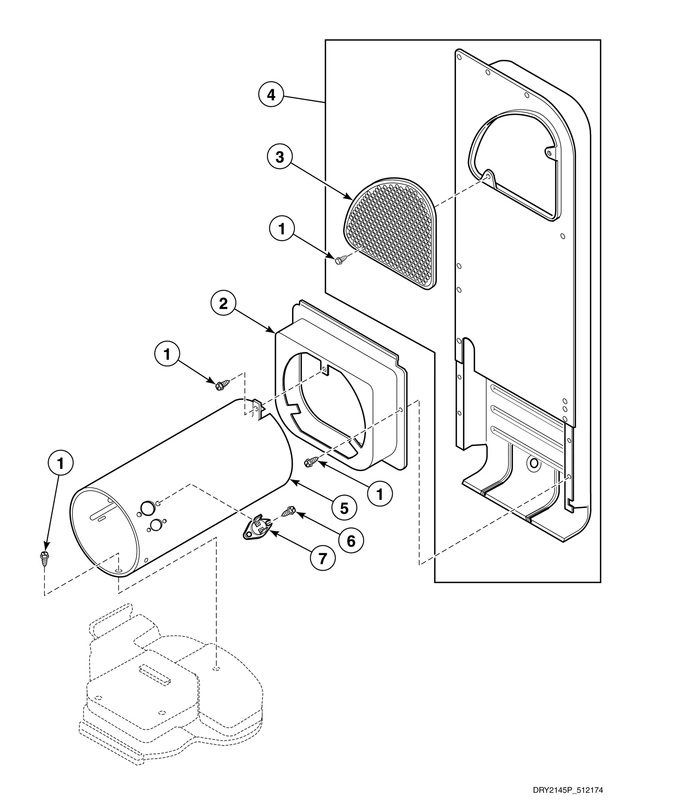

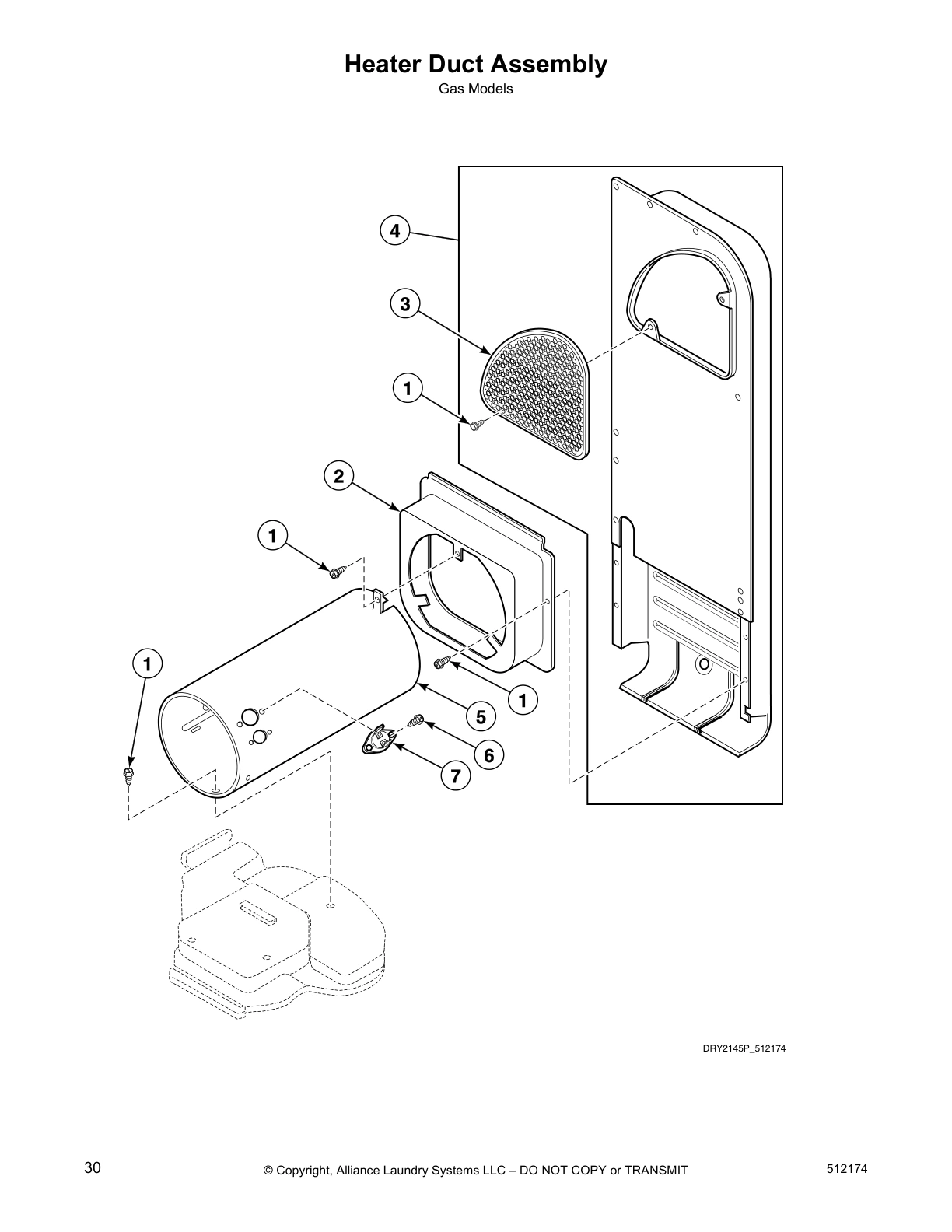

Heater Duct Assembly

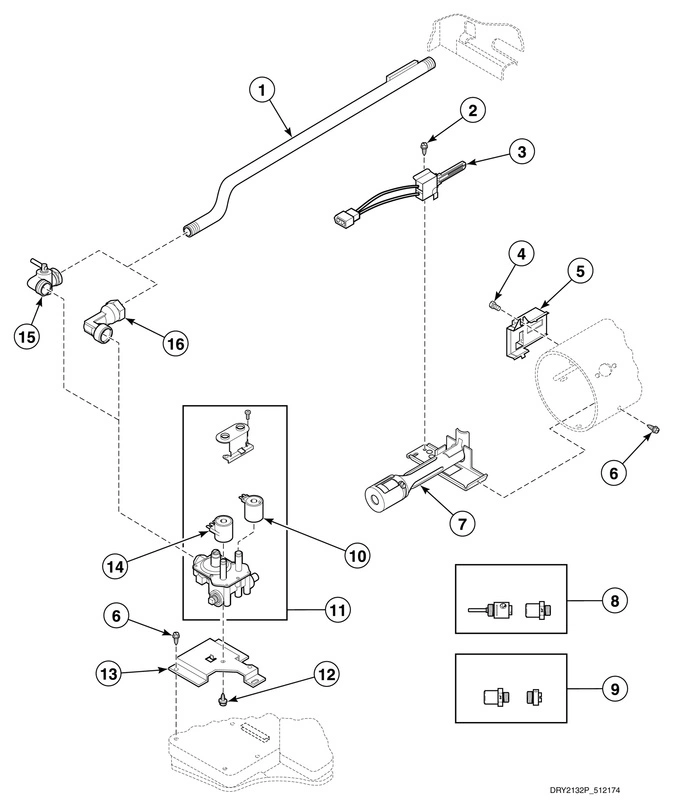

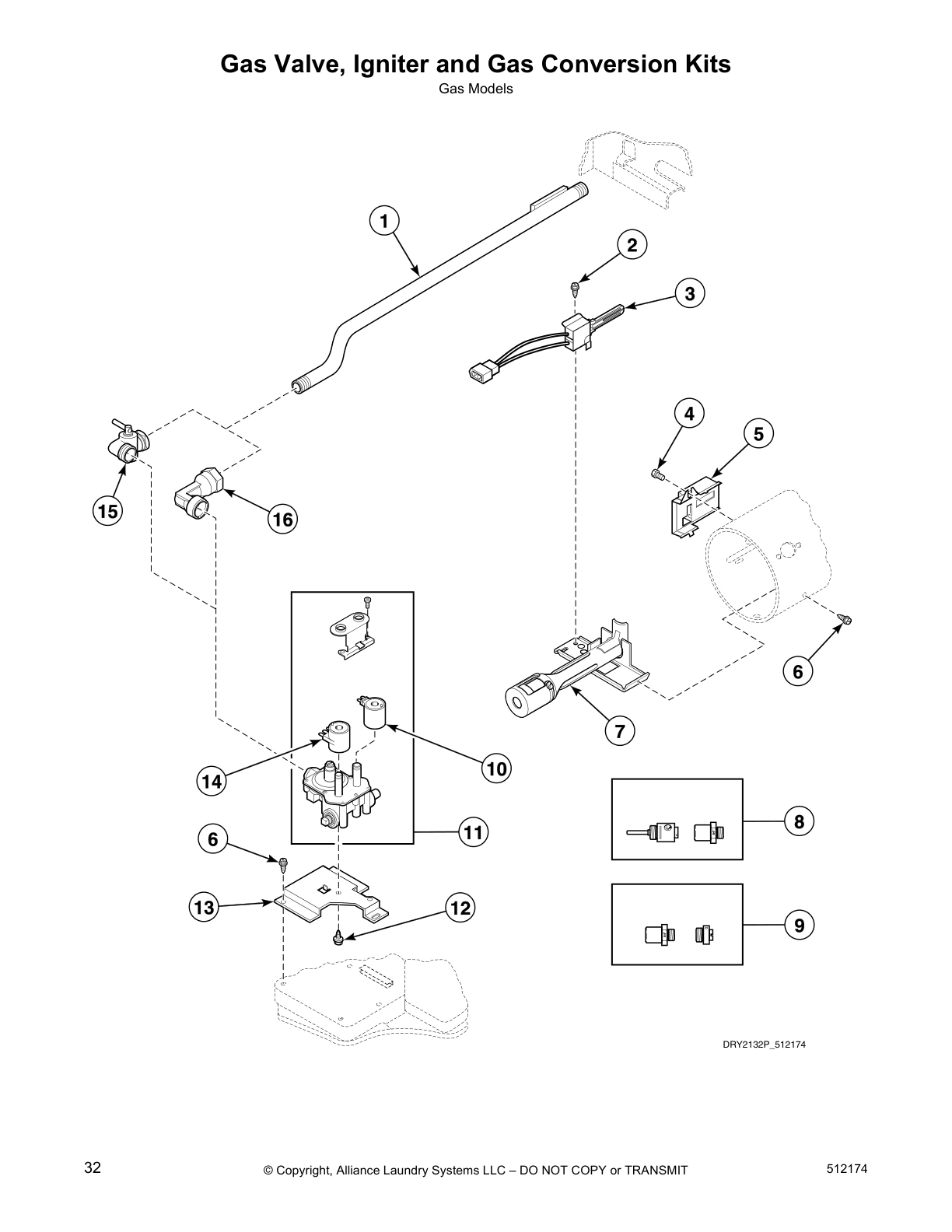

Gas Valve, Igniter and Gas Conversion Kits

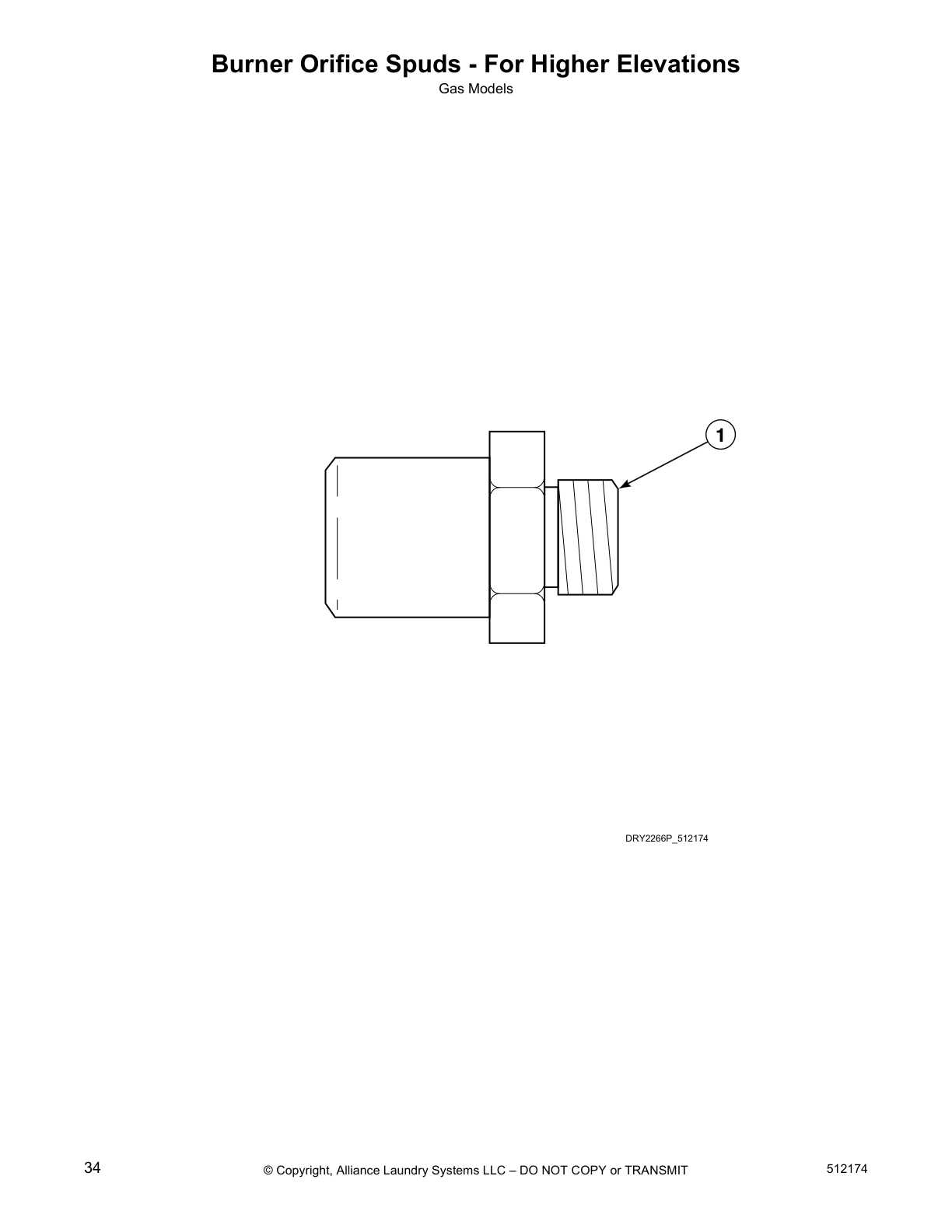

Burner Orifice Spuds - For Higher Elevations

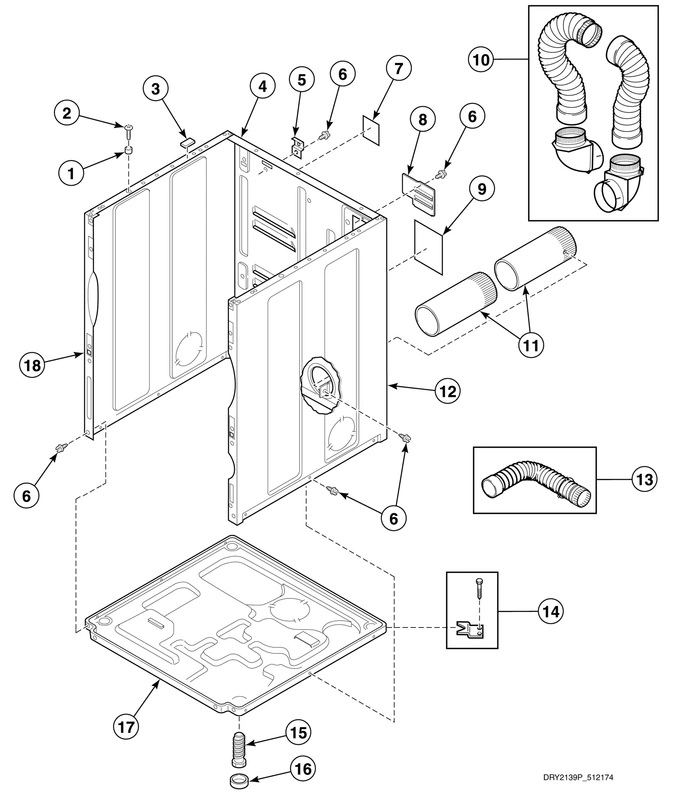

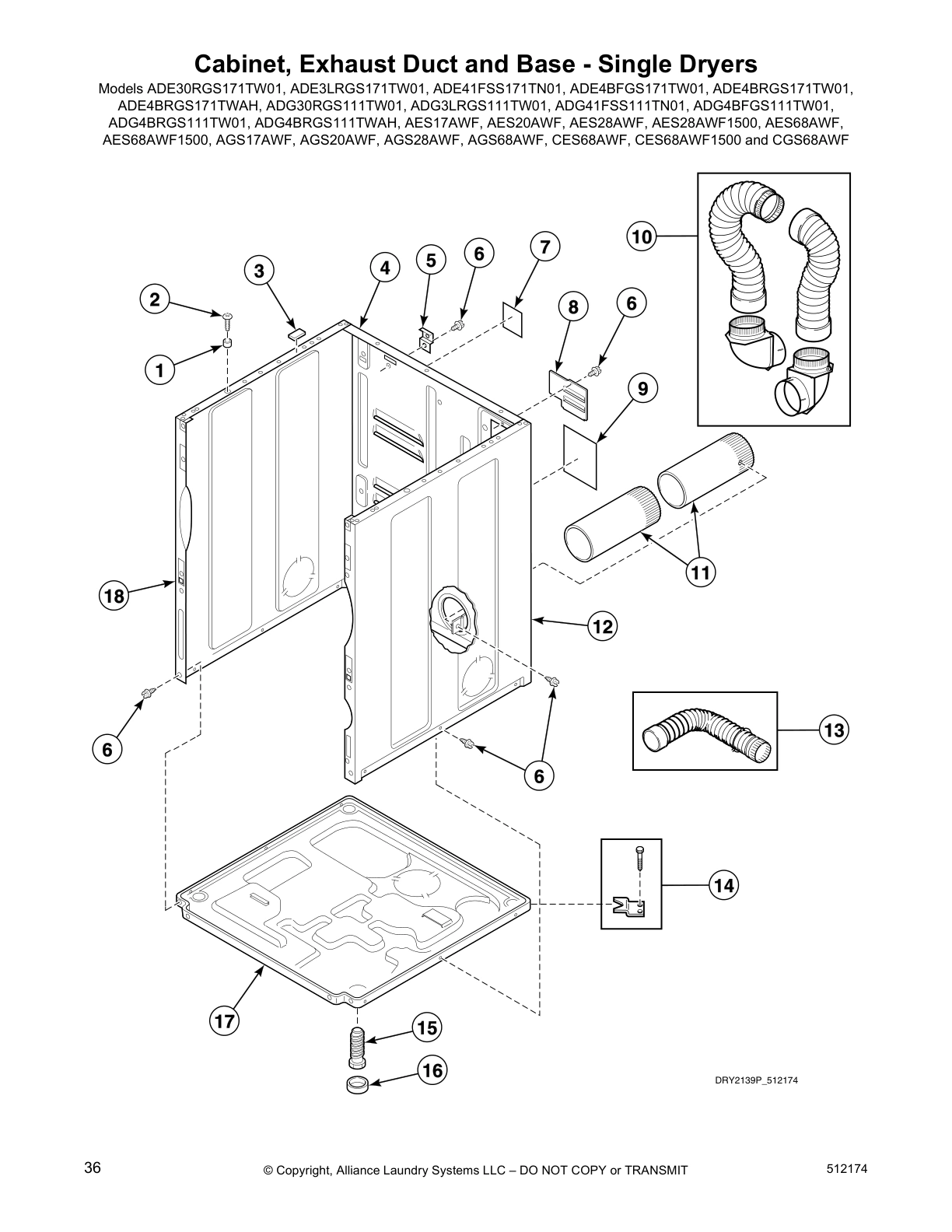

Cabinet, Exhaust Duct and Base - Single Dryers

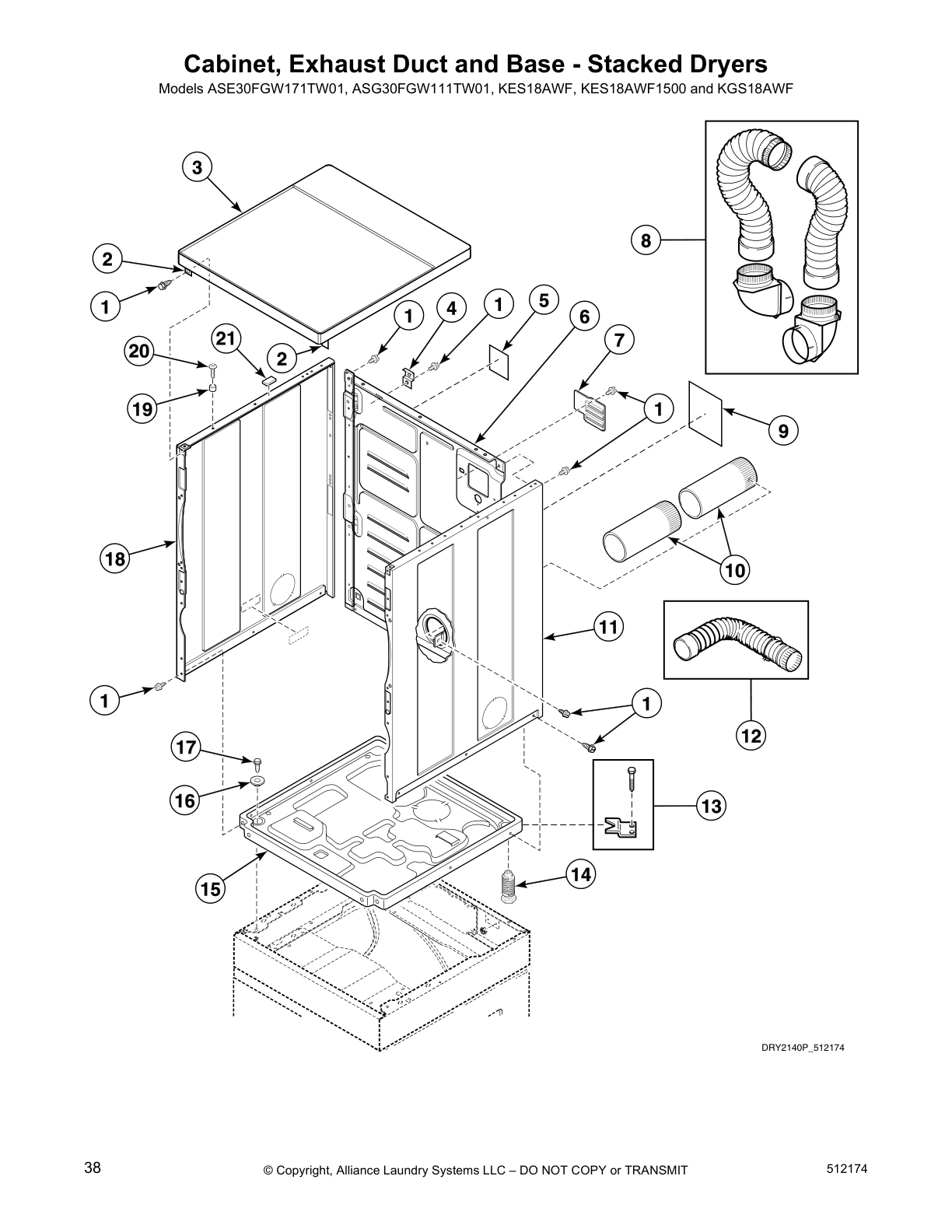

Cabinet, Exhaust Duct and Base - Stacked Dryers

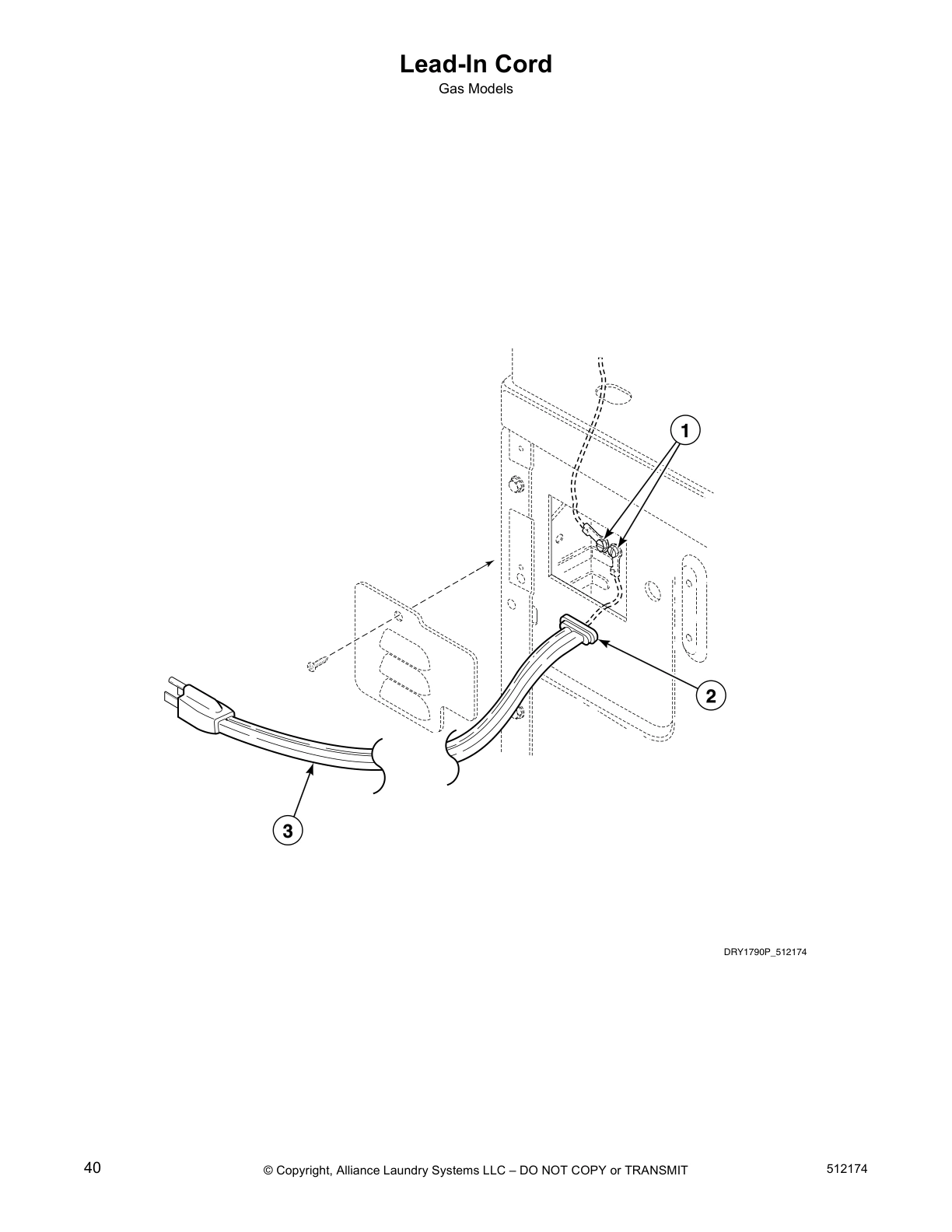

Lead-In Cord

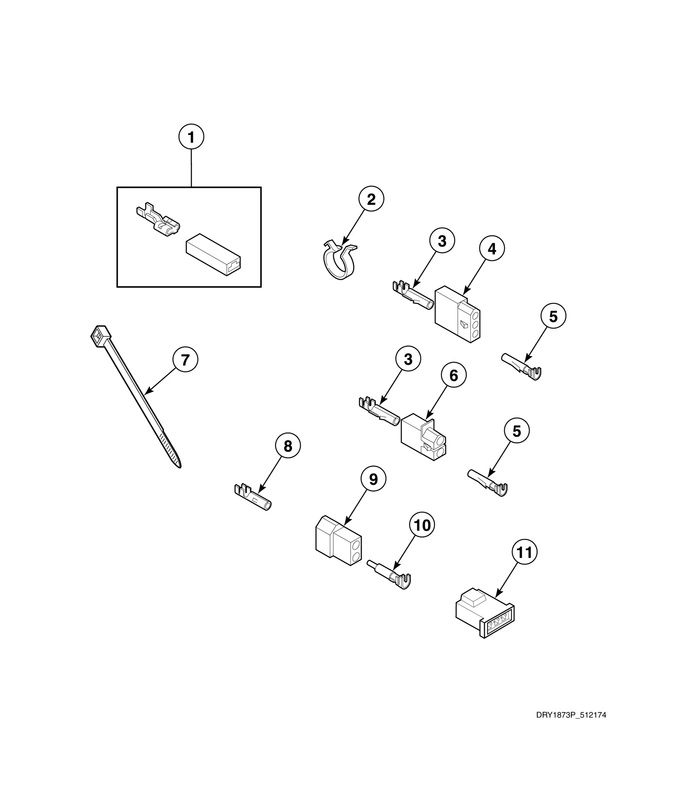

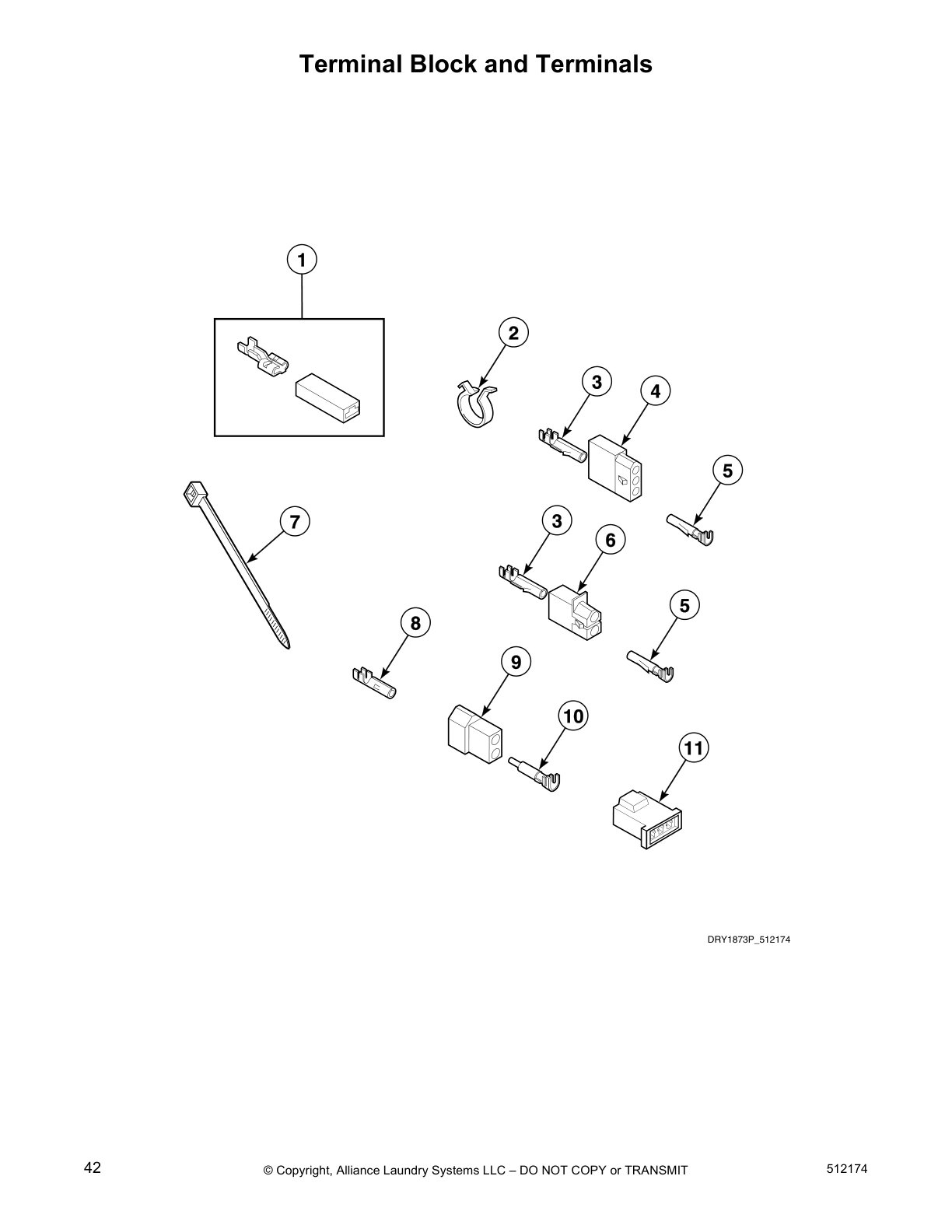

Terminal Block and Terminals

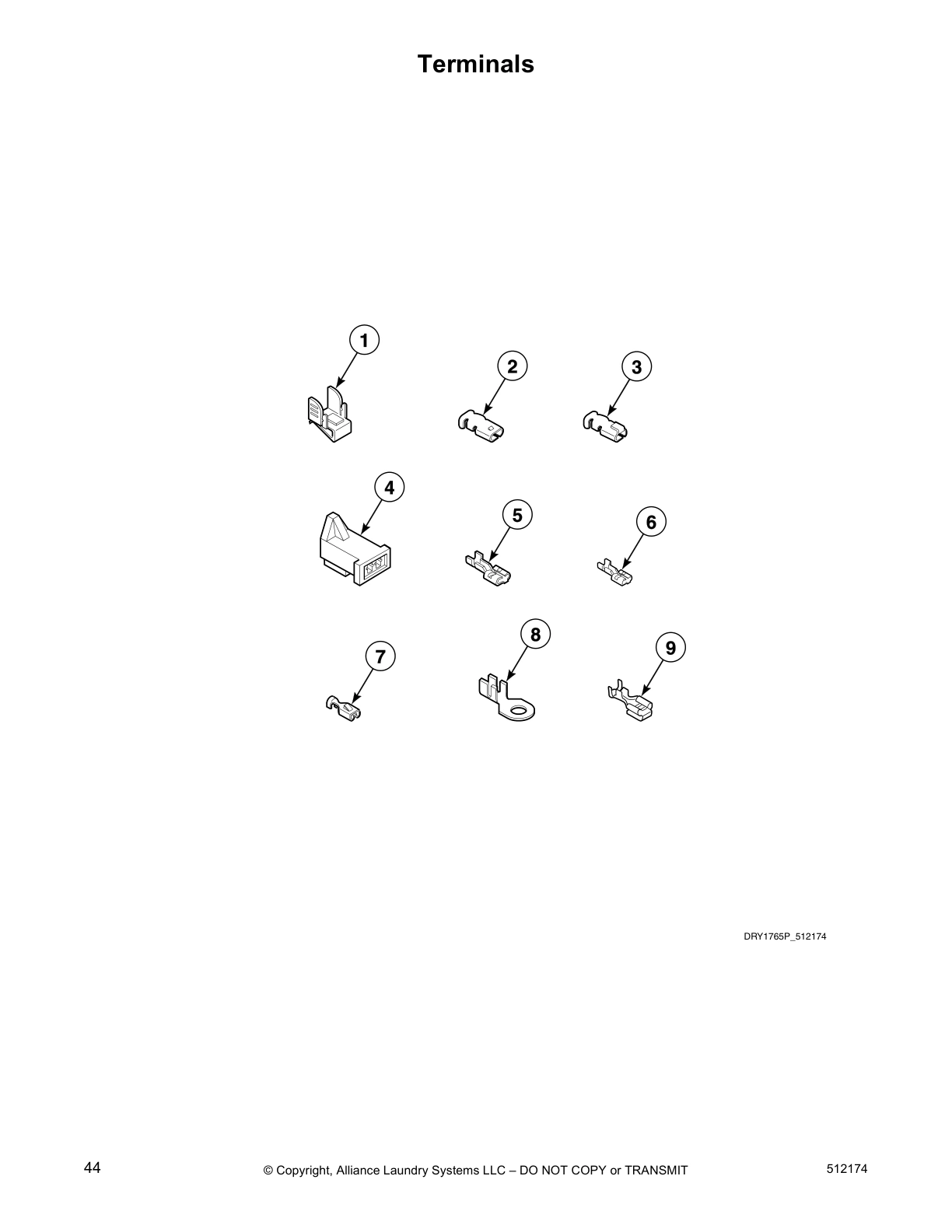

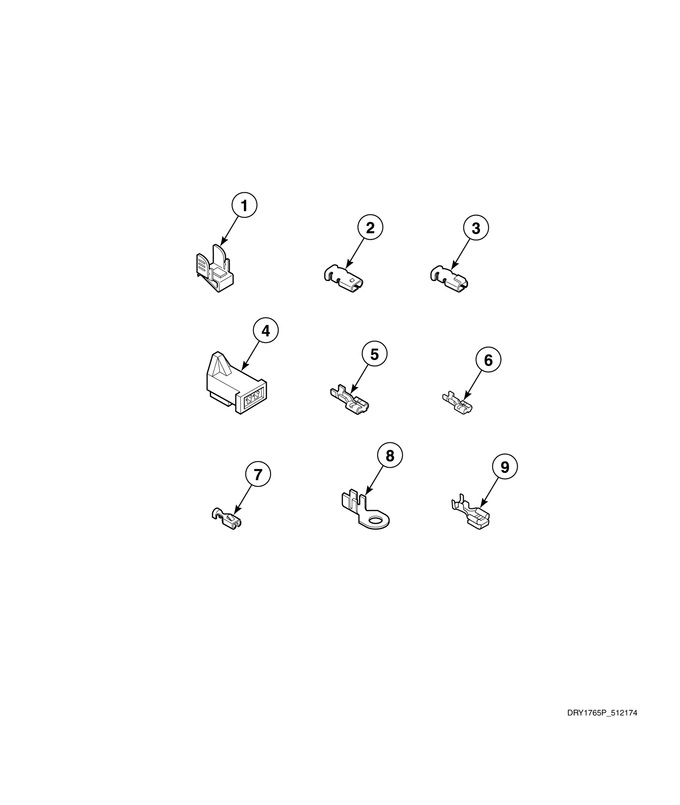

Terminals

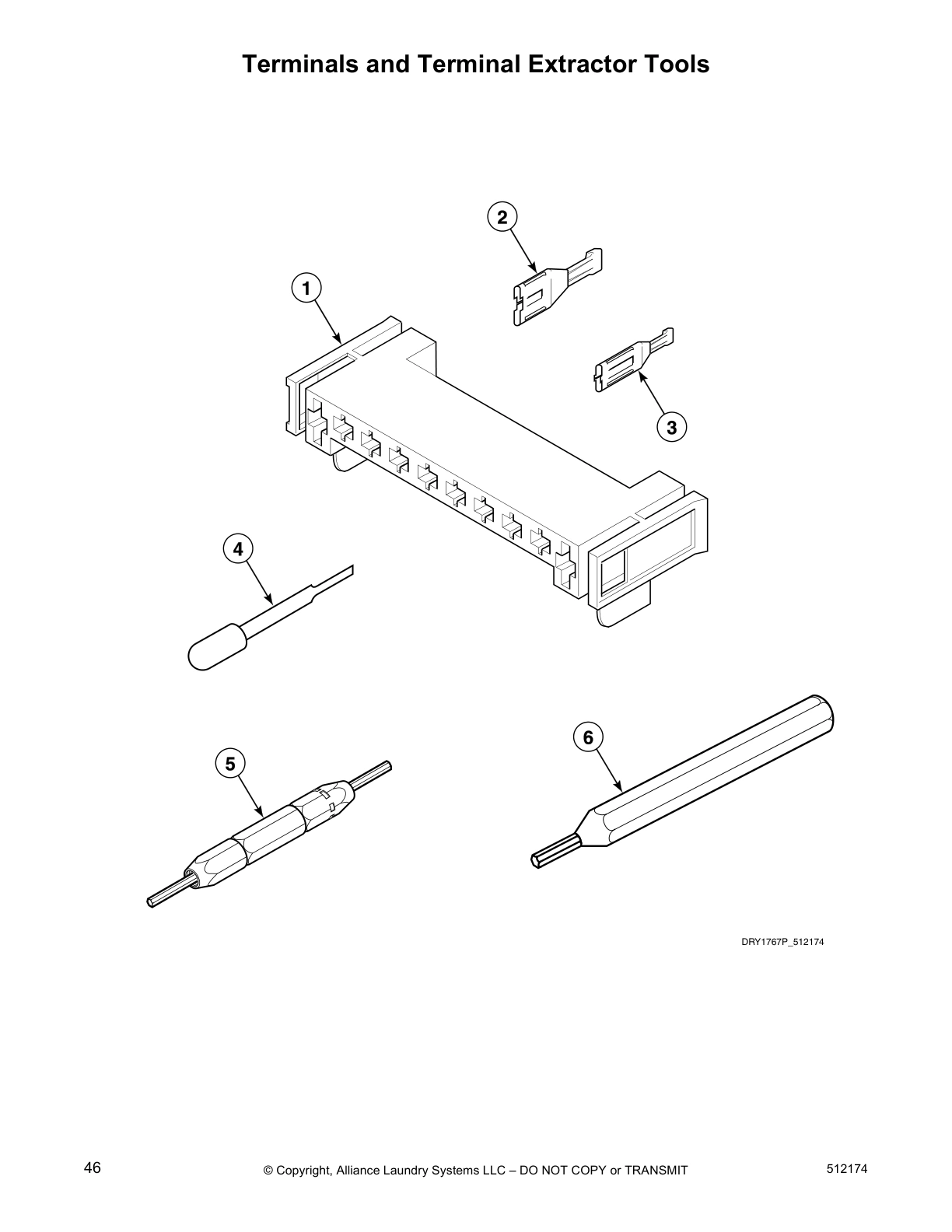

Terminals and Terminal Extractor Tools

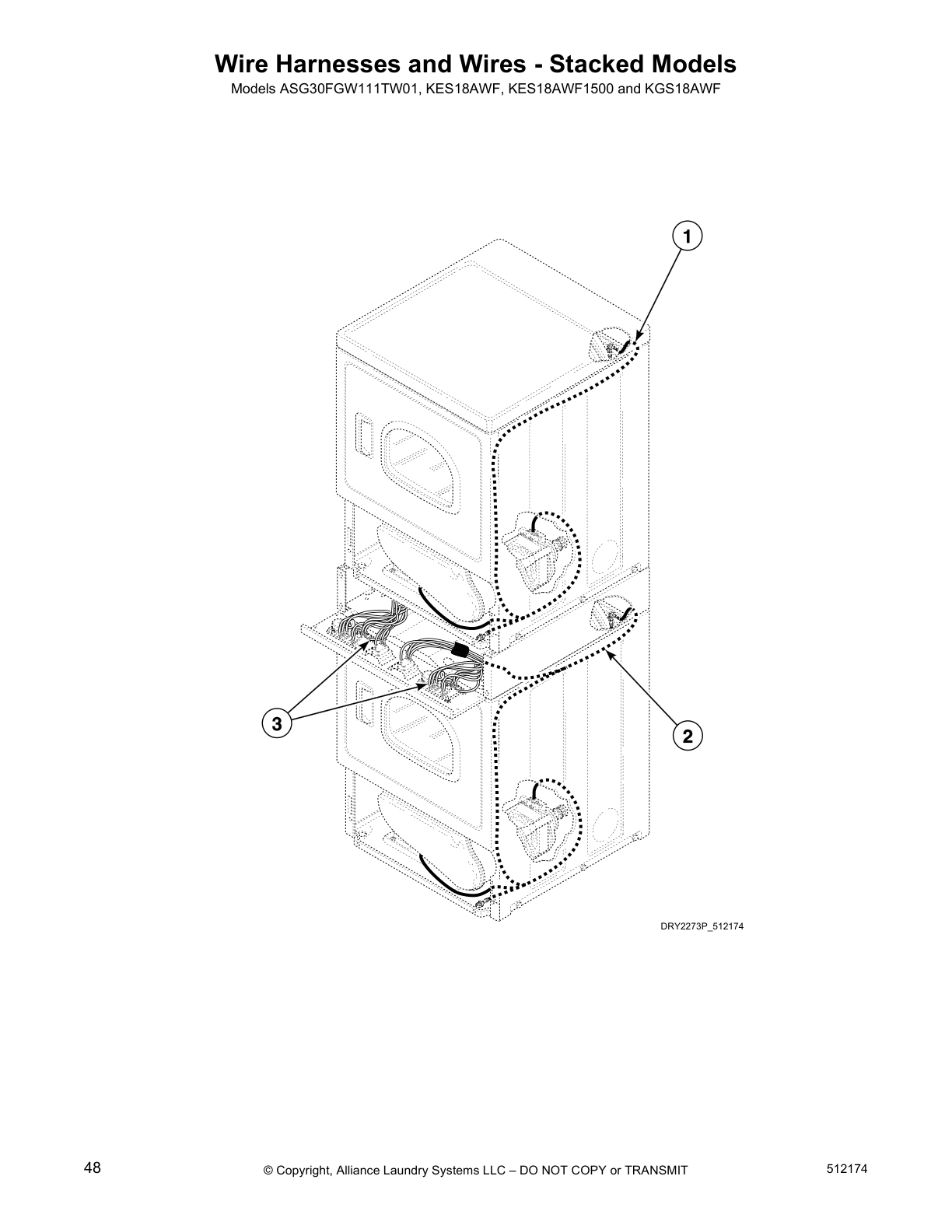

Wire Harnesses and Wires - Stacked Models
Wire Harnesses and Wires - Stacked Models
Through Serial No. 1303025314
Wire Harnesses and Wires - Stacked Models

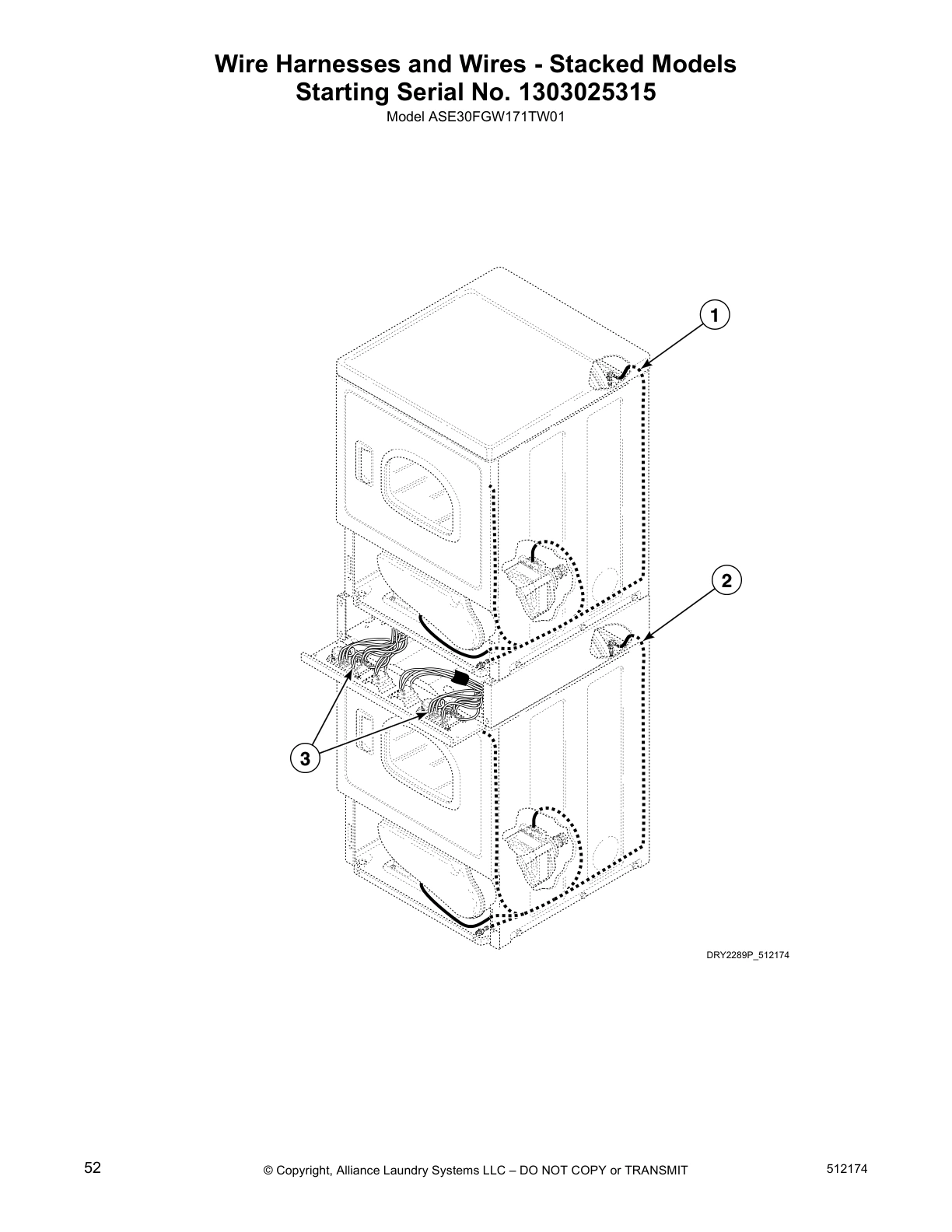

Starting Serial No. 1303025315

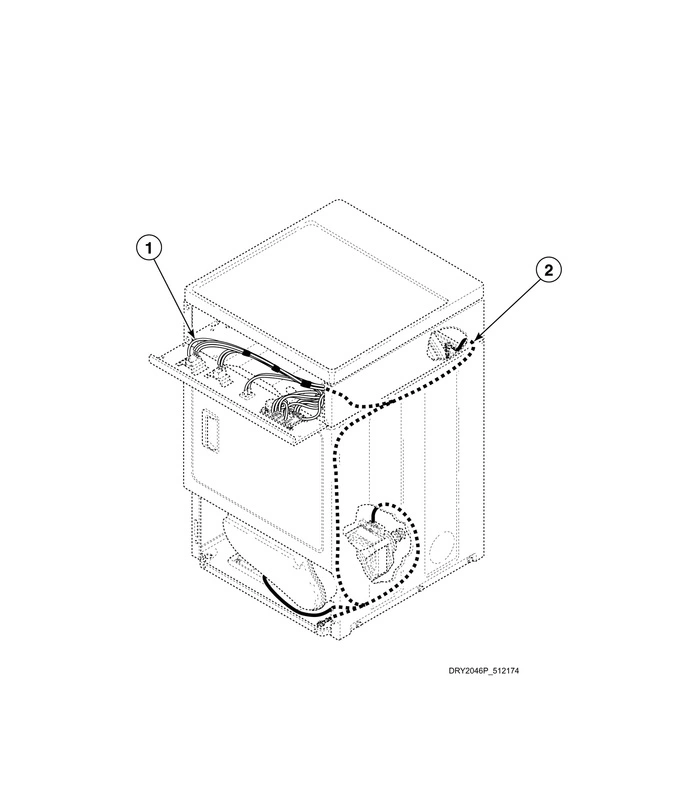

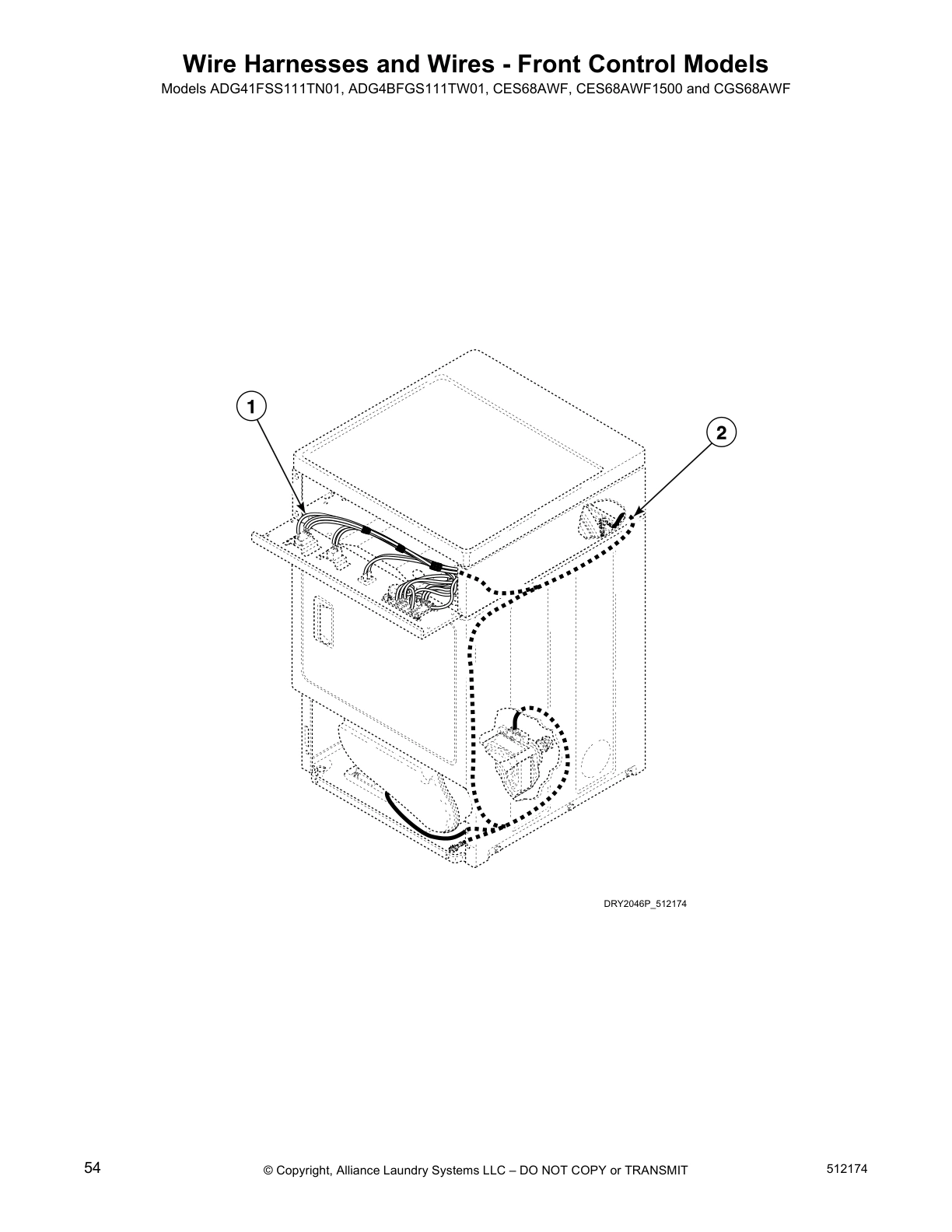

Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Front Control Models

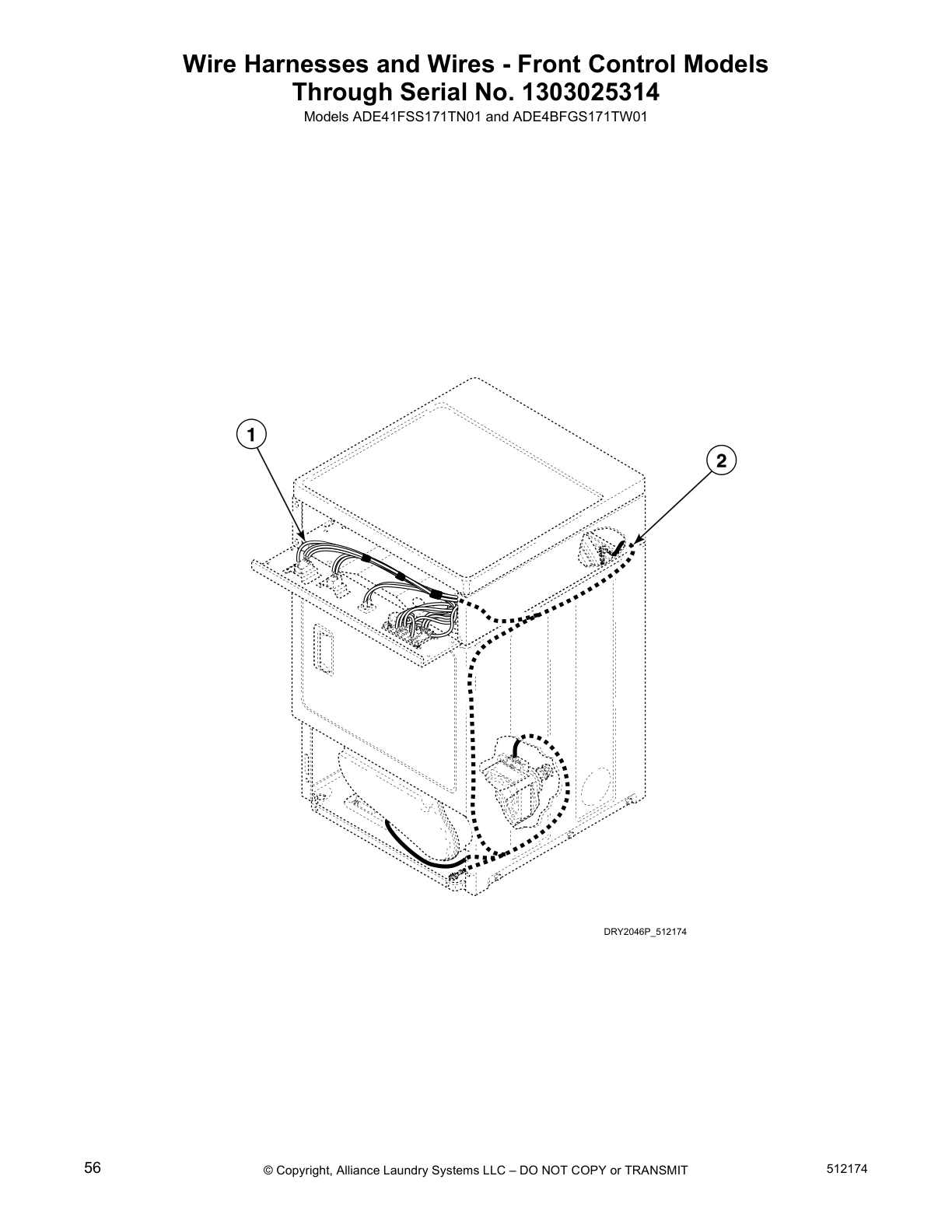

Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models

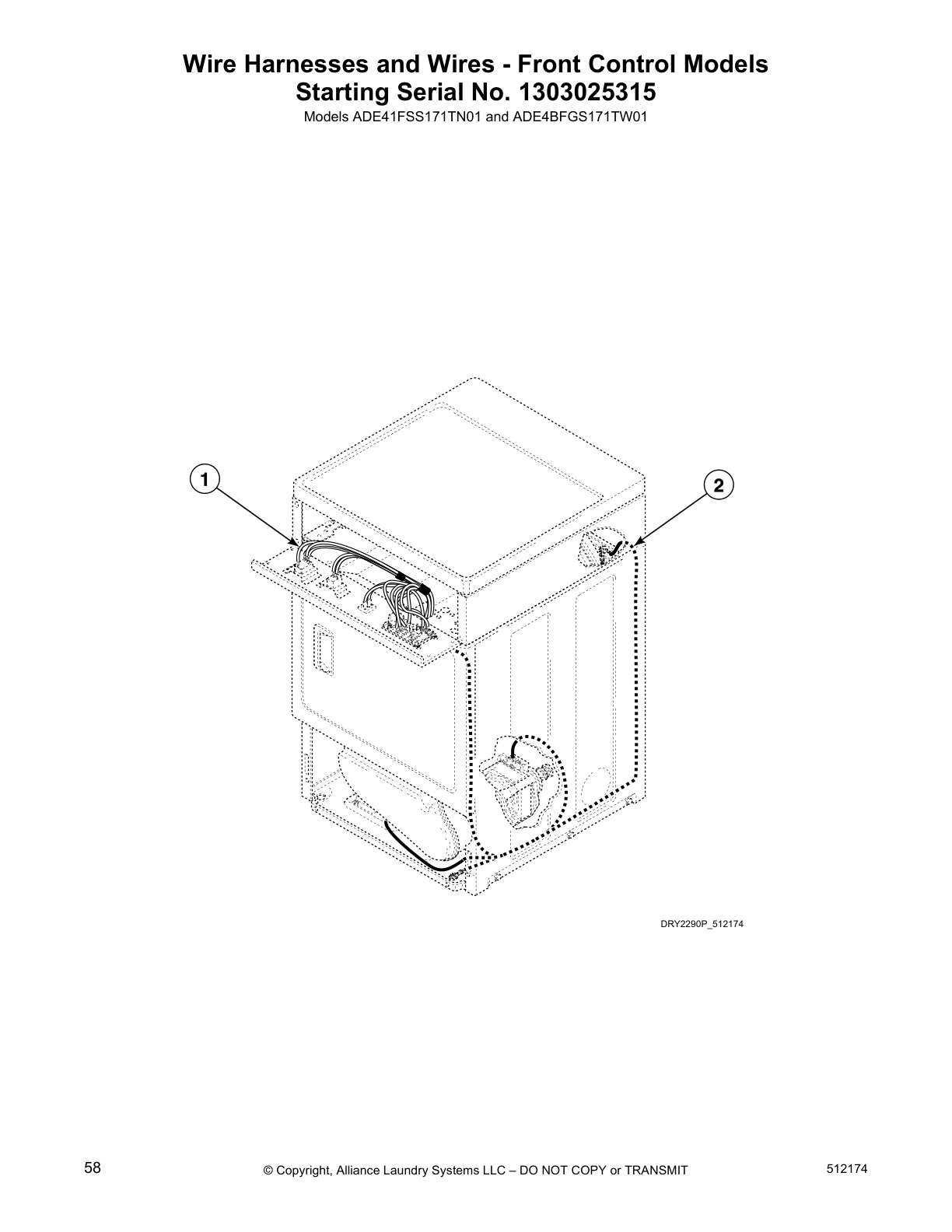

Starting Serial No. 1303025315

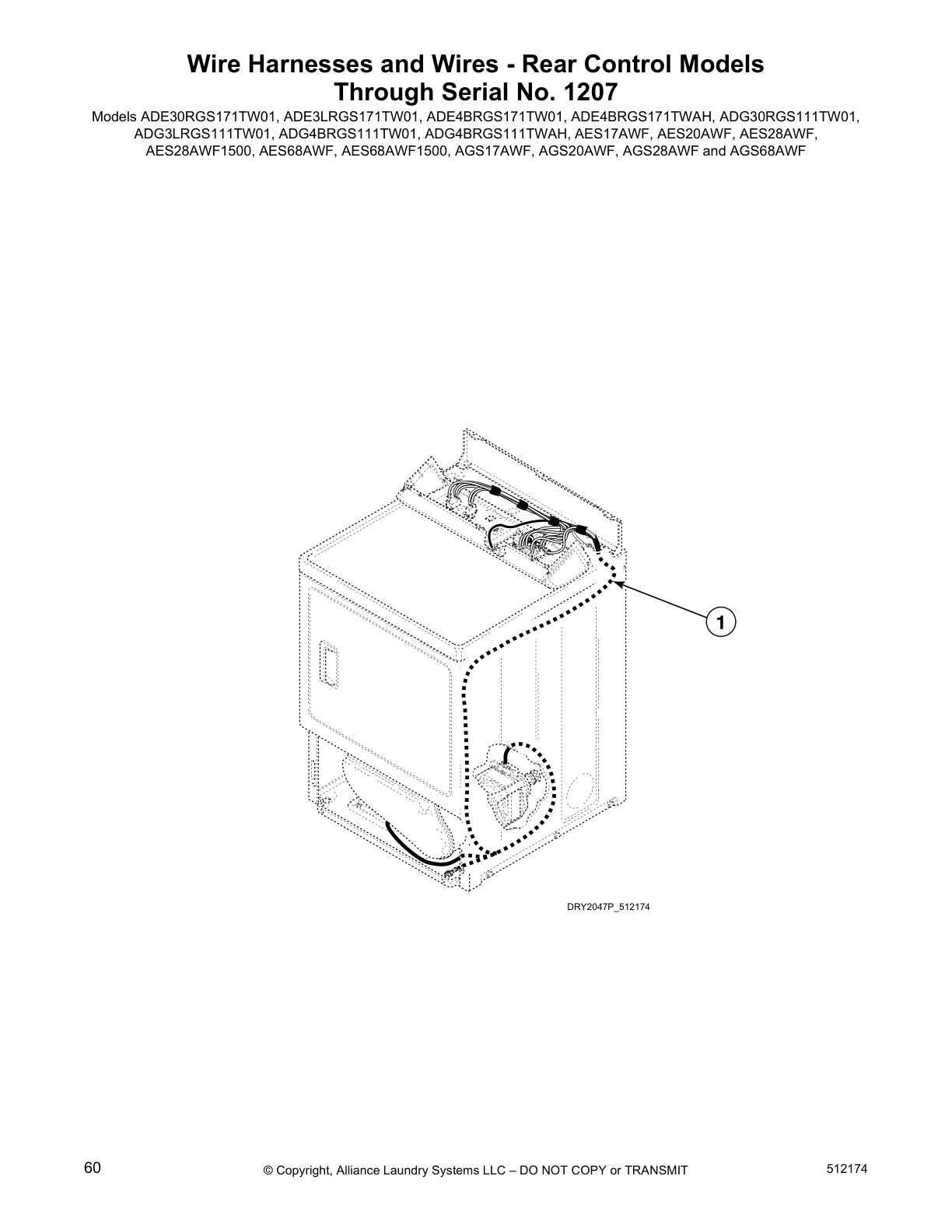

Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207

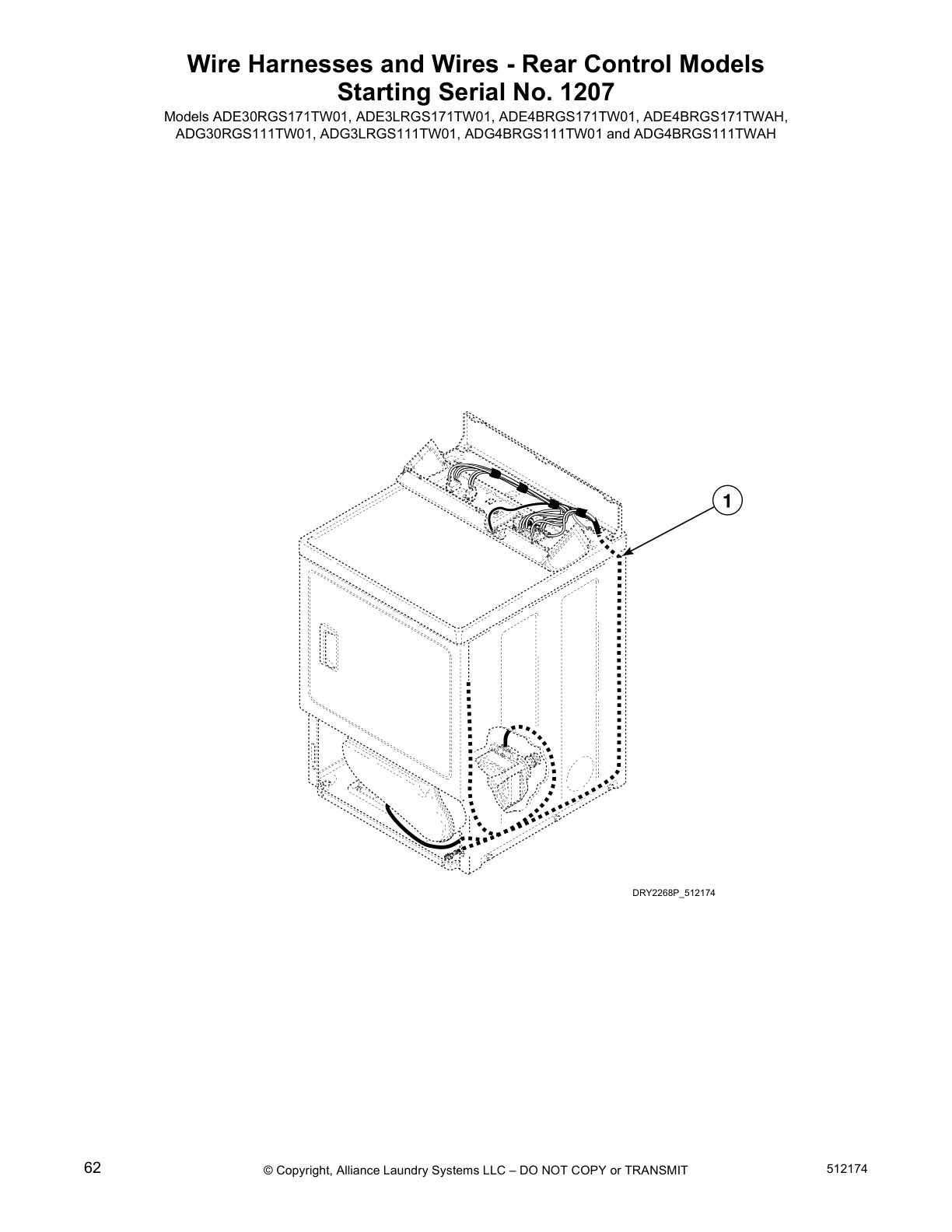

Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Terminal Block And Terminals
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Cabinet And Controls
Terminal Block And Terminals
Loading Door - Without Window (drawing 1 Of 2)
Control Cabinet And Controls
Terminals
Burner Orifice Spuds - For Higher Elevations (gas Models)
Cabinet, Exhaust Duct And Base - Single Dryers
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Motor, Exhaust Fan And Belt
Loading Door - Without Window (drawing 1 Of 2)
Control Cabinet And Controls
Motor, Exhaust Fan And Belt
Loading Door - Without Window (drawing 1 Of 2)
Access Panel, Front Panel And Seal
Heater Duct Assembly (gas Models)
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Cabinet And Controls
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Motor, Exhaust Fan And Belt
Heater Duct Assembly (gas Models)
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Access Panel, Front Panel And Seal
Burner Orifice Spuds - For Higher Elevations (gas Models)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Terminal Block And Terminals
Control Cabinet And Controls
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Heater Duct Assembly (gas Models)
Motor, Exhaust Fan And Belt
Heater Duct Assembly (gas Models)
Loading Door - Without Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Heater Duct Assembly (gas Models)
Motor, Exhaust Fan And Belt
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Loading Door - Without Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Motor, Exhaust Fan And Belt
Loading Door - Without Window (drawing 1 Of 2)
Motor, Exhaust Fan And Belt
Access Panel, Front Panel And Seal
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Cabinet And Controls
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Motor, Exhaust Fan And Belt
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Heater Duct Assembly (gas Models)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base - Single Dryers
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Wire Harnesses And Wires - Front Control Models
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Access Panel, Front Panel And Seal
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Control Cabinet And Controls
Control Cabinet And Controls
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Cabinet, Exhaust Duct And Base - Single Dryers
Loading Door - Without Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Models)
Control Cabinet And Controls
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Cabinet And Controls
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Gas Valve, Igniter And Gas Conversion Kits (gas Models)

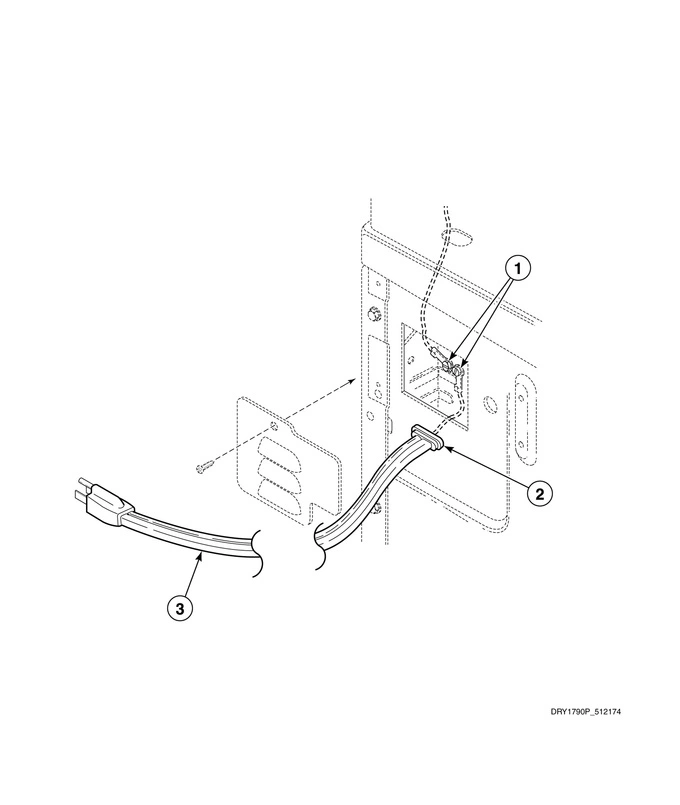

Lead-in Cord (gas Models)
Motor, Exhaust Fan And Belt
Common parts from model Speed Queen ADG41FSS111TN01 Dryer
1
Front Bulkhead Assembly SPQ 512476 Contact Us For Availability
7
Door Handle SPQ 803095 Contact Us For Availability
7
Cylinder Roller Bracket SPQ 505246 Contact Us For Availability
13
Timer SPQ 511149P Contact Us For Availability
14
Idler Lever SPQ 510133 Contact Us For Availability
22
Motor and Pulley Assembly SPQ 510060 Contact Us For Availability
× ![]()
