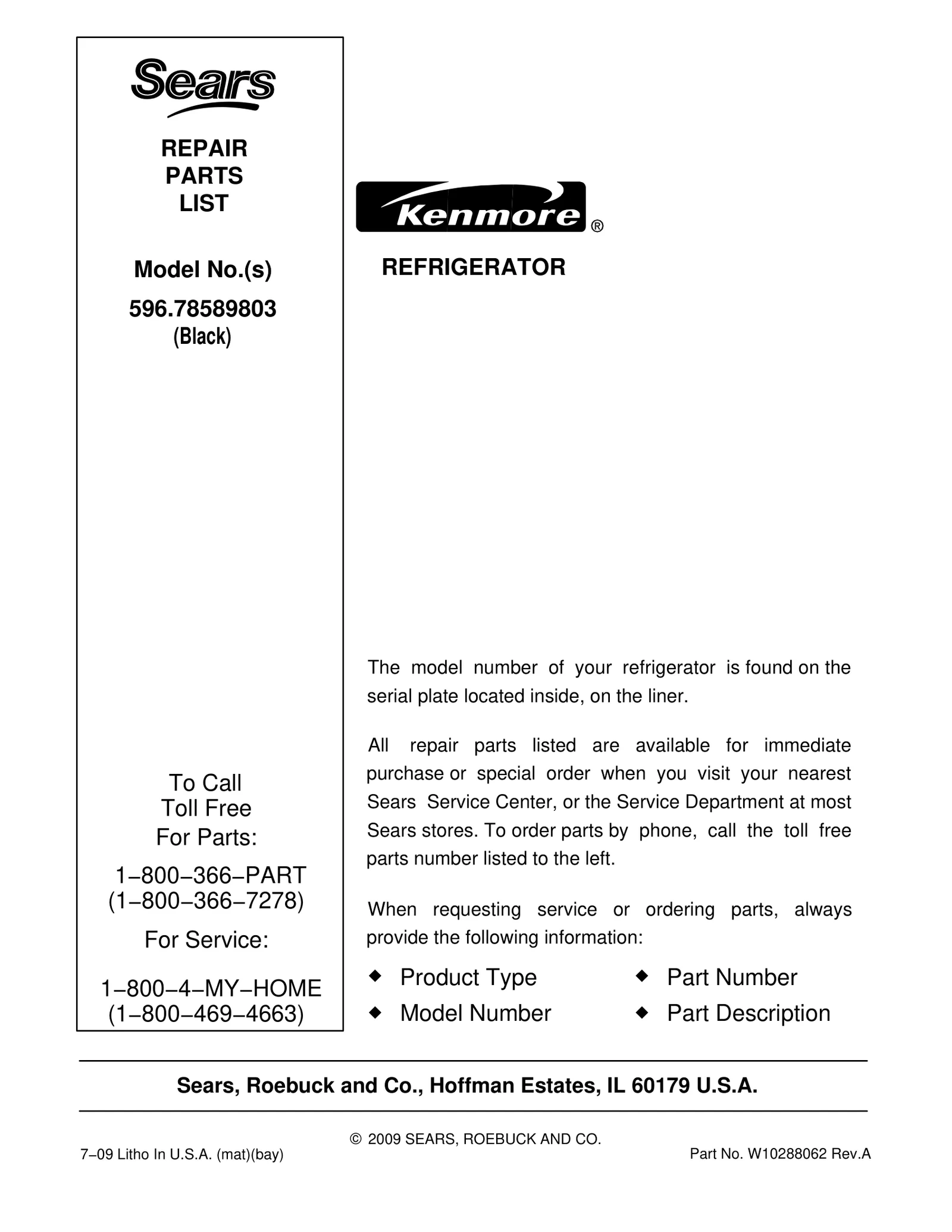

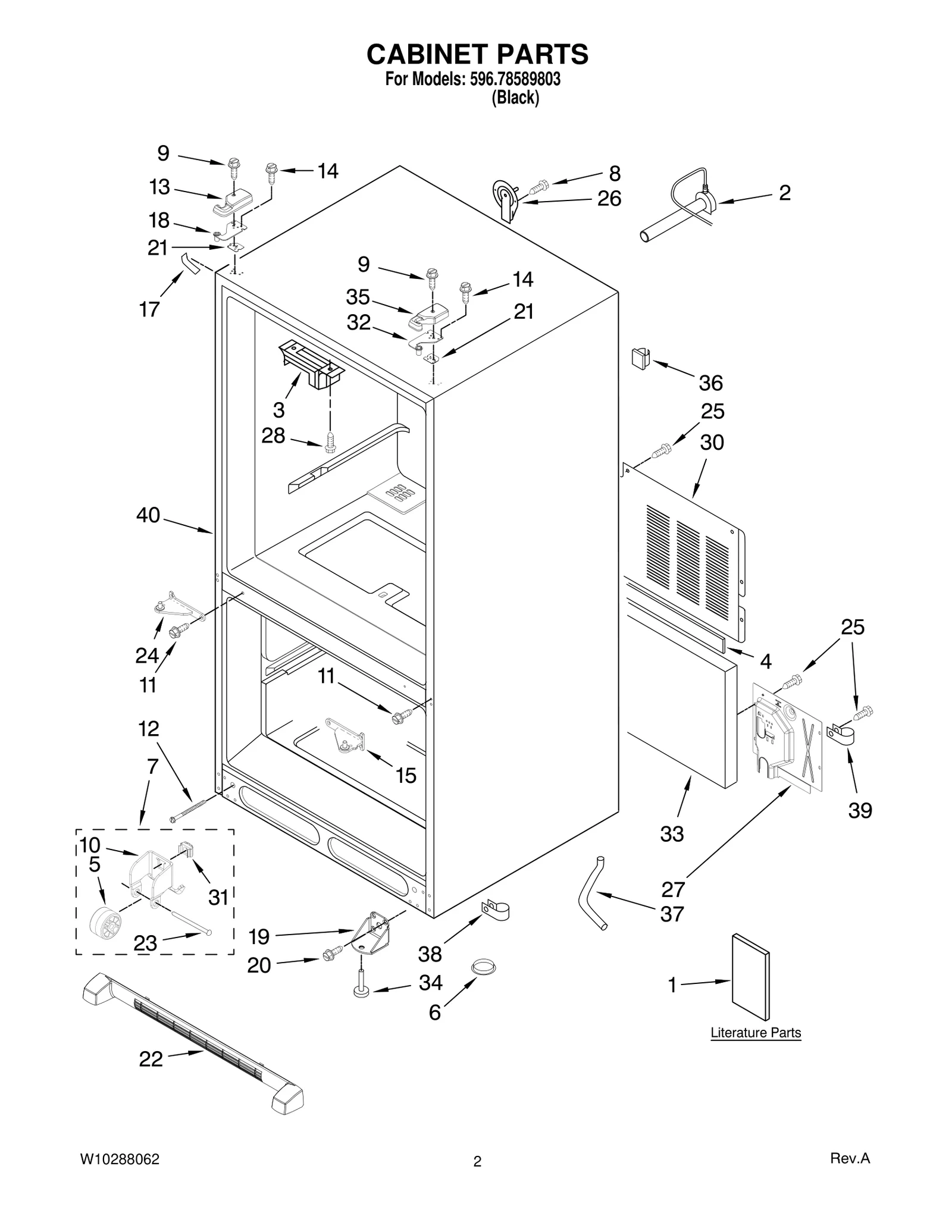

Model Whirlpool 596.78589803 Refrigerator – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

1

Glass, Pantry WPL 12204817 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

2

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $46.57

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $35.01

2

Door, Right — Black WPL 12978075BQ Contact Us For Availability

2

Shelf, Glide Out (4) WPL 12654605 Contact Us For Availability

2

Handle — Black WPL W10169583 Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $32.06

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $59.06

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

3

Basepan WPL 12457109 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $136.60

4

SUPPORT Backorder WPL W11812285 $21.92

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

5

67006901 Whirlpool Refrigerator Screw In Stock WPL 67006901 $2.51

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $47.65

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

Board, Control WPL W10207861 Contact Us For Availability

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $33.71

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

Roller Assy. (4) WPL 12580304 Contact Us For Availability

7

Harness, Evap Heater WPL W10171661 Contact Us For Availability

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $115.29

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $169.74

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

Door Handle — Black WPL W10169572 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $33.27

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $58.10

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $76.44

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $63.24

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP67006104 Whirlpool Refrigerator Tray Backorder WPL WP67006104 $54.13

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Nameplate WPL 2323099 Contact Us For Availability

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $62.30

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $30.01

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $42.90

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $34.88

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

Rack, Bottle WPL 10448903V Contact Us For Availability

Backorder WPL W11750607 $20.37

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $139.09

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.39

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $35.21

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $120.58

W10918168 Whirlpool Refrigerator Door Hinge In Stock WPL W10918168 $30.73

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

Clip, Evap Motor WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $18.78

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.06

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $30.96

Shroud WPL 12575309 Contact Us For Availability

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Bin, Housing WPL W10130196 Contact Us For Availability

Pan, Crisper (2) WPL 12724130 Contact Us For Availability

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $47.98

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $162.03

Bin, Tilt Out WPL W10130191 Contact Us For Availability

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $31.18

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $79.37

Trim, Crisper WPL W10231509 Contact Us For Availability

Bin, Strainer WPL W10130187 Contact Us For Availability

Tube, Discharge WPL W10183708 Contact Us For Availability

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $32.70

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $148.89

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Divider, Bin WPL W10159645 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $37.73

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $133.07

Clip, Evaporator WPL 10623002 Contact Us For Availability

22

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $193.61

22

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

22

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $31.35

23

Dam — Left Side WPL 12225601 Contact Us For Availability

23

Dam — Right Side WPL 12225701 Contact Us For Availability

24

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $52.14

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $66.52

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $30.40

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

Harness, MC Includes Cord WPL 13060202 Contact Us For Availability

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

28

WP67003795 Whirlpool Refrigerator Temperature In Stock WPL WP67003795 $3.70

29

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $101.47

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $32.74

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.86

30

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

31

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

31

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $29.77

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $115.82

32

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

32

Basket, Freezer WPL W10150039 Contact Us For Availability

32

Screw (4) WPL 12992101 Contact Us For Availability

33

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $32.06

34

WPW10348246 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10348246 $152.65

34

Board, HV Control WPL 12782036SP Contact Us For Availability

35

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $30.16

35

Spacer, HV Box WPL 12889501SP Contact Us For Availability

36

Box, HV WPL 12889401SP Contact Us For Availability

37

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

37

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.04

37

Screw (2) WPL 12990304SP Contact Us For Availability

38

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $32.06

38

Harness, HV WPL 13001301SP Contact Us For Availability

39

Shelf, Stationary (2) WPL 12654707 Contact Us For Availability

40

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $30.85

40

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.17

41

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Block, Cord Following Parts Not Illustrated a WPL 12933001 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

OPT-5

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

OPT-6

Enamel, Black WPL 799340 Contact Us For Availability

OPT-7

Enamel, White WPL 799344 Contact Us For Availability

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-9

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-13

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-16

Cleaner, WPL 20000008 Contact Us For Availability

OPT-17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-18

Cement, WPL 542639 Contact Us For Availability

OPT-19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-20

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-22

Torx Key WPL 1117510 Contact Us For Availability
