Model Maytag 4GNTW4400YQ2 WASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CABINET PARTS

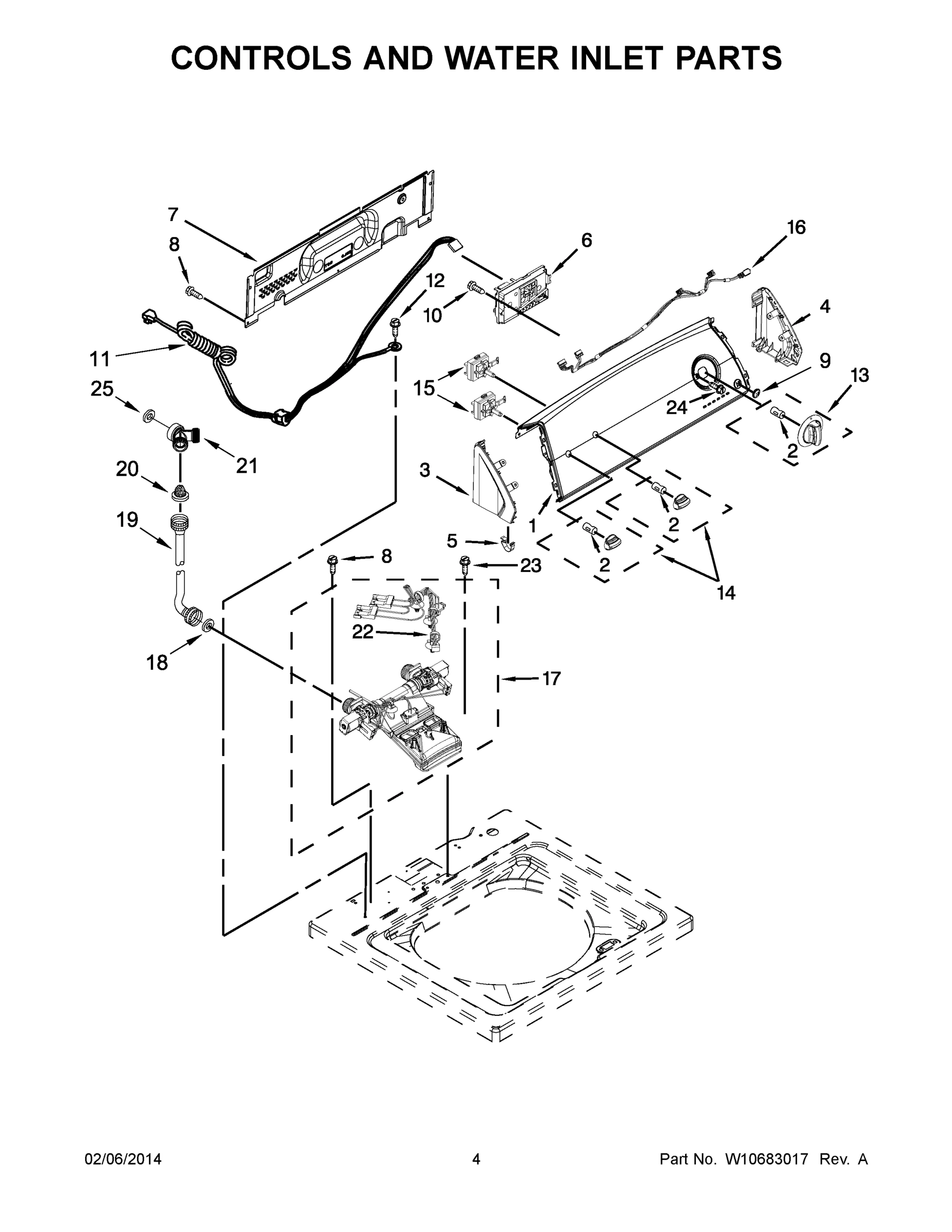

03 - CONTROLS AND WATER INLET PARTS

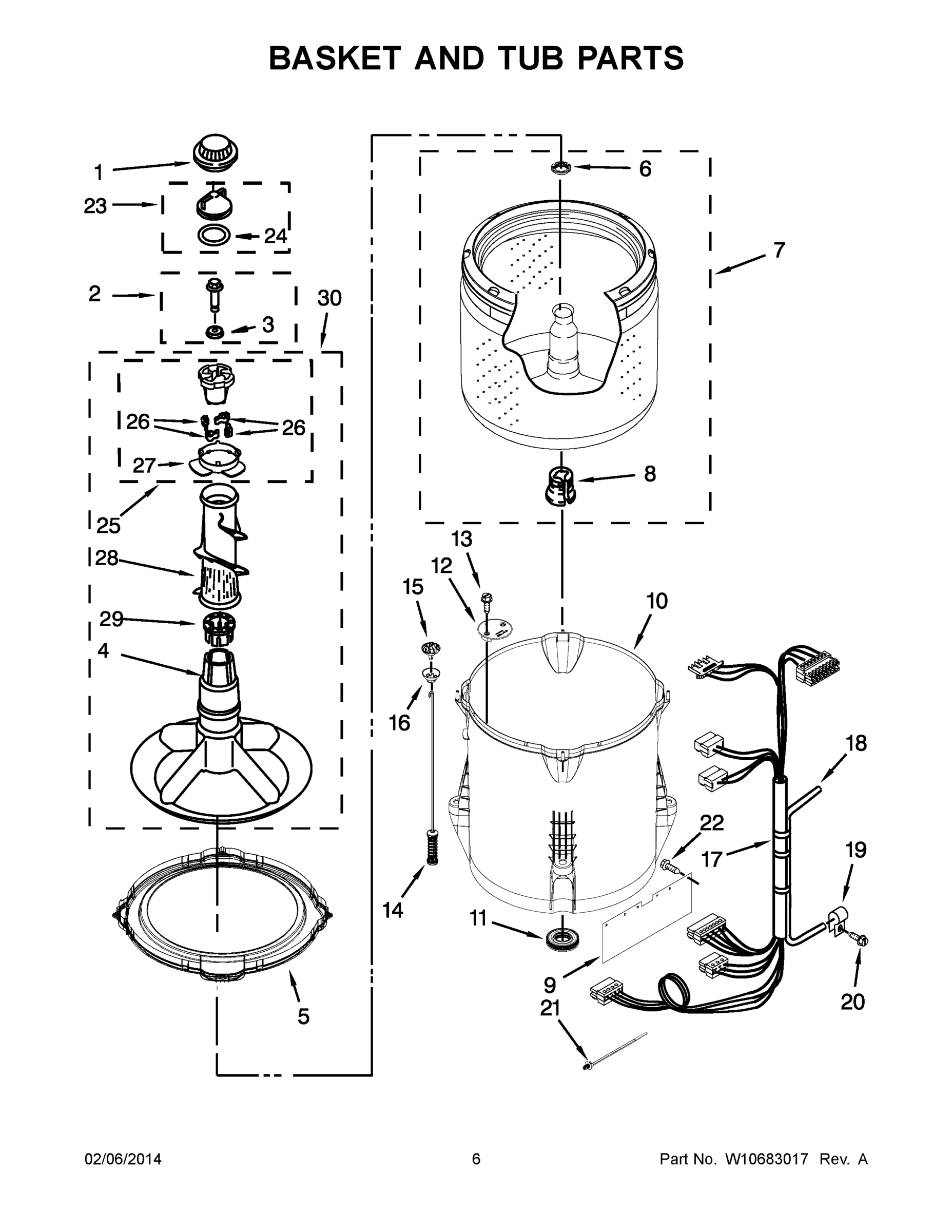

04 - BASKET AND TUB PARTS

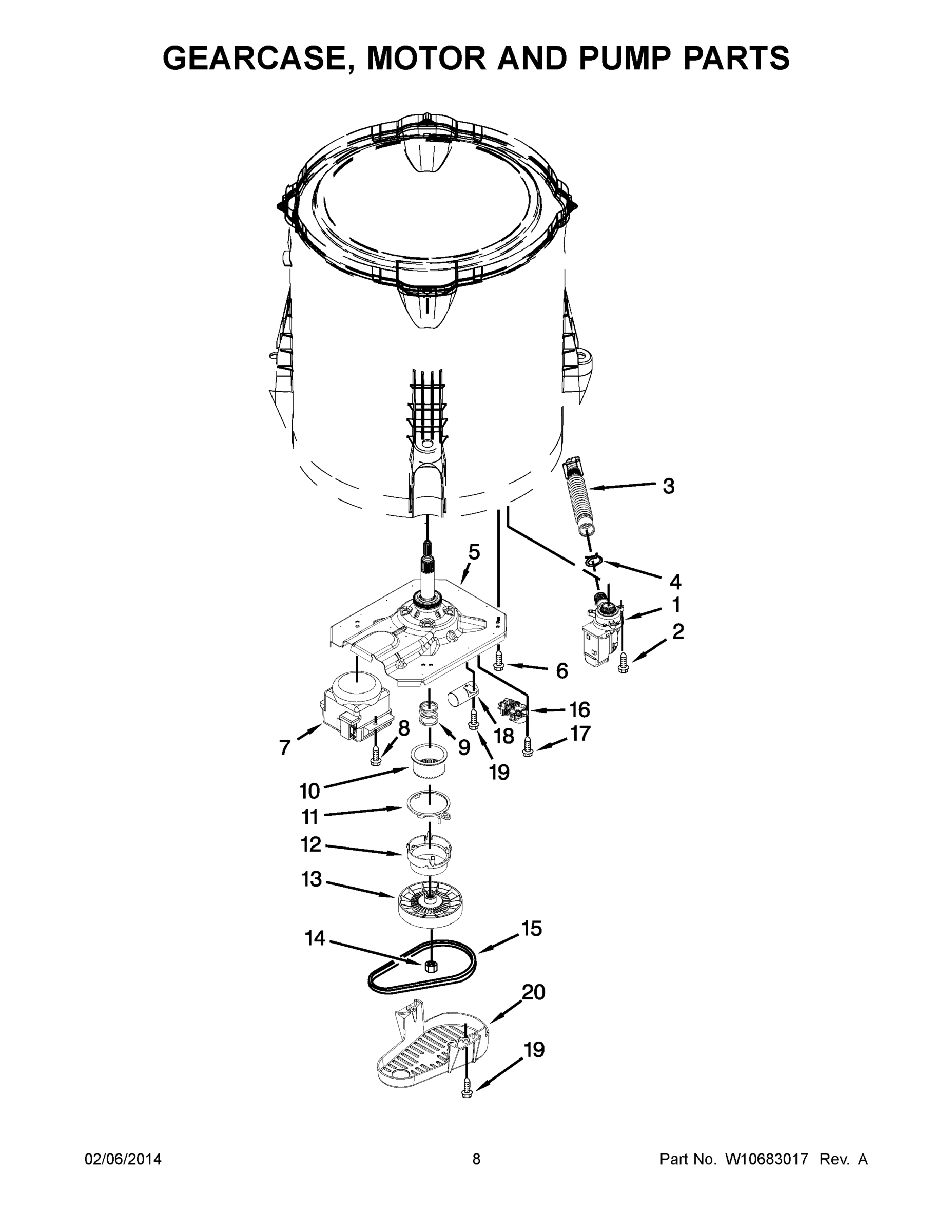

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GNTW4400YQ2 WASHER
1
MAY W10589598 MAY W10589598 Contact Us For Availability
1
MAY W10589601 MAY W10589601 Contact Us For Availability
1
MAY W10620479 MAY W10620479 Contact Us For Availability
1
MAY W10449048 MAY W10449048 Contact Us For Availability
1
MAY 3355758 MAY 3355758 Contact Us For Availability
1
MAY W10297344 MAY W10297344 Contact Us For Availability
2
TOP (WHITE) MAY W10251299 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID AND BUMPER ASSEMBLY (WHITE) MAY W10251302 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10251358 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10444123 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10251355 Contact Us For Availability
4
MAY 3951632 MAY 3951632 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10215107 MAY W10215107 Contact Us For Availability
5
MAY W10473144 MAY W10473144 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10591693 MAY W10591693 Contact Us For Availability
6
MAY 21366 MAY 21366 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10461159 MAY W10461159 Contact Us For Availability
7
MAY W10358261 MAY W10358261 Contact Us For Availability
7
MAY W10416659 MAY W10416659 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
MAY 389140 MAY 389140 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10251309 MAY W10251309 Contact Us For Availability
9
MAY W10339098 MAY W10339098 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10006382 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
MAY W10422755 MAY W10422755 Contact Us For Availability
11
MAY W10006371 MAY W10006371 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10215093 MAY W10215093 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10317457 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
13
MAY W10536113 MAY W10536113 Contact Us For Availability
14
LOCK, LID MAY W10294102 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10317458 Contact Us For Availability
14
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10257088 Contact Us For Availability
14
MAY W10604214 MAY W10604214 Contact Us For Availability
15
MAY W10285512 MAY W10285512 Contact Us For Availability
15
BALL, SUSPENSION (SET OF4 - INCLUDES SUSPENSI MAY W10560146 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10537670 MAY W10537670 Contact Us For Availability
16
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
16
MAY W10249623 MAY W10249623 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10486030 MAY W10486030 Contact Us For Availability
17
MAY W10504119 MAY W10504119 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
18
MAY W10431037 MAY W10431037 Contact Us For Availability
18
MAY W10456704 MAY W10456704 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10194210 MAY W10194210 Contact Us For Availability
19
MAY W10194211 MAY W10194211 Contact Us For Availability
19
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY 353362 MAY 353362 Contact Us For Availability
20
SCREW MAY 8533943 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY 356138 MAY 356138 Contact Us For Availability
21
MAY W10269488 MAY W10269488 Contact Us For Availability
21
MAY W10298887 MAY W10298887 Contact Us For Availability
22
MAY W10397994 MAY W10397994 Contact Us For Availability
22
MAY W10423127 MAY W10423127 Contact Us For Availability
22
MAY W10429200 MAY W10429200 Contact Us For Availability
23
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
23
MAY 3354733 MAY 3354733 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
SCREW MAY 3400818 Contact Us For Availability
24
MAY W10072840 MAY W10072840 Contact Us For Availability
25
MAY W10215139 MAY W10215139 Contact Us For Availability
25
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
25
CAM, DRIVEN MAY 3951650 Contact Us For Availability
26
Dog, Agitator Clutch MAY 3366877 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
27
BEARING, CAM MAY 3952374 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
28
MOVER, CLOTHES MAY 3363003 Contact Us For Availability
29
Spacer, Thrust MAY 3951608 Contact Us For Availability
30
MAY 3951744 MAY 3951744 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTER (TYPE B) MAY W10475423 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSE MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
