Model Whirlpool 3XARG498WP00 REFRIGERATOR – Common Parts & Diagrams
12 - ICEMAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER

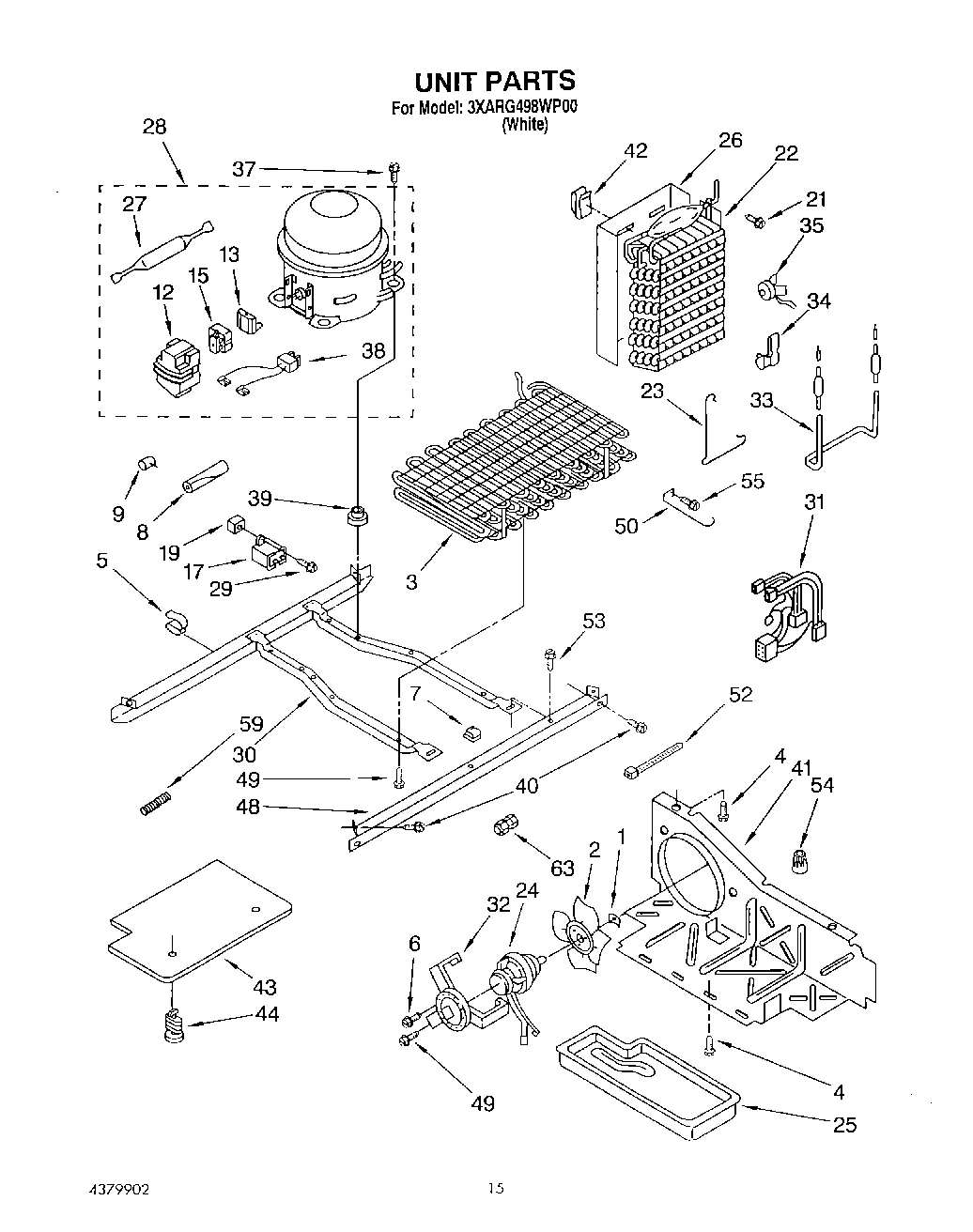

09 - UNIT

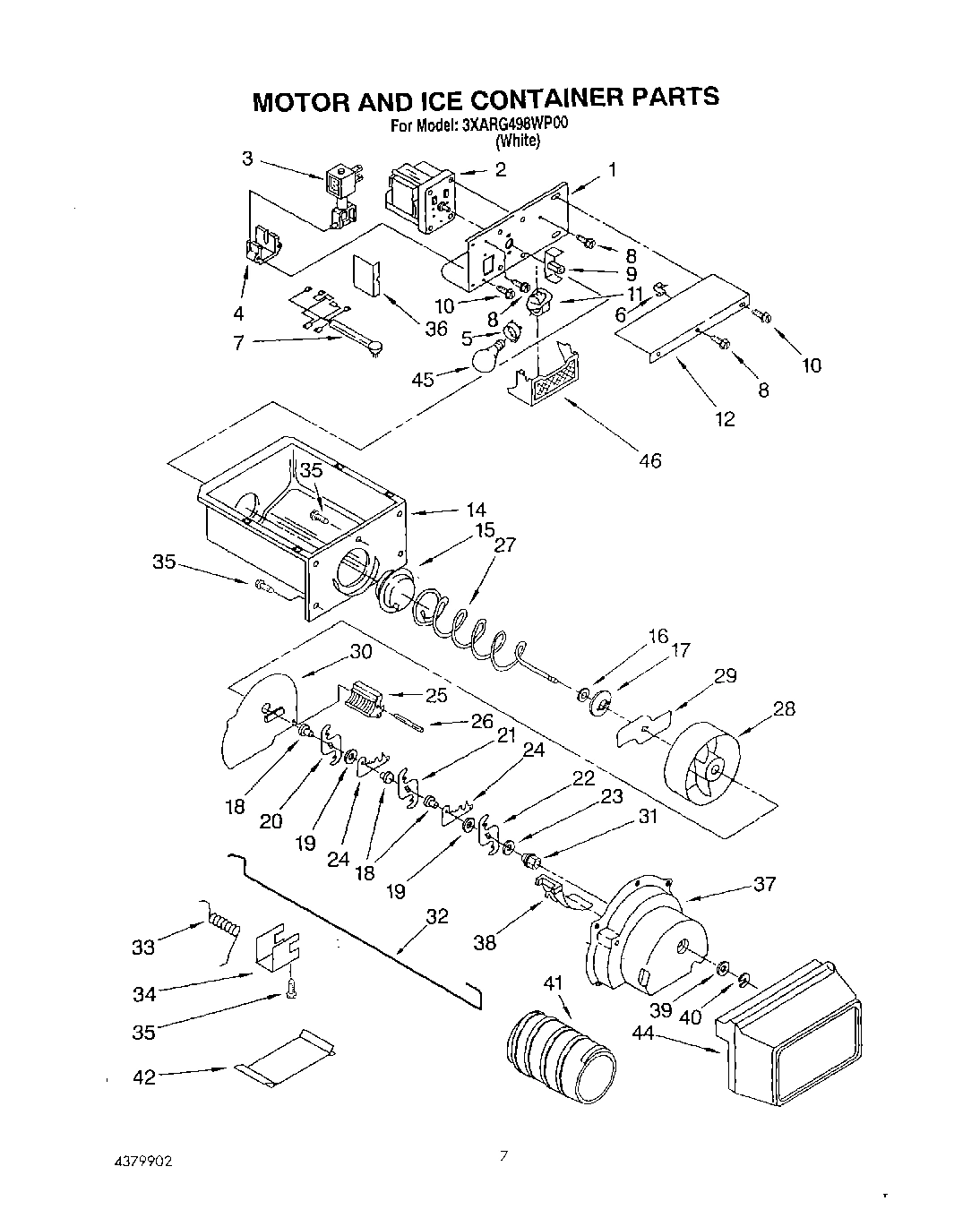

05 - MOTOR AND ICE CONTAINER

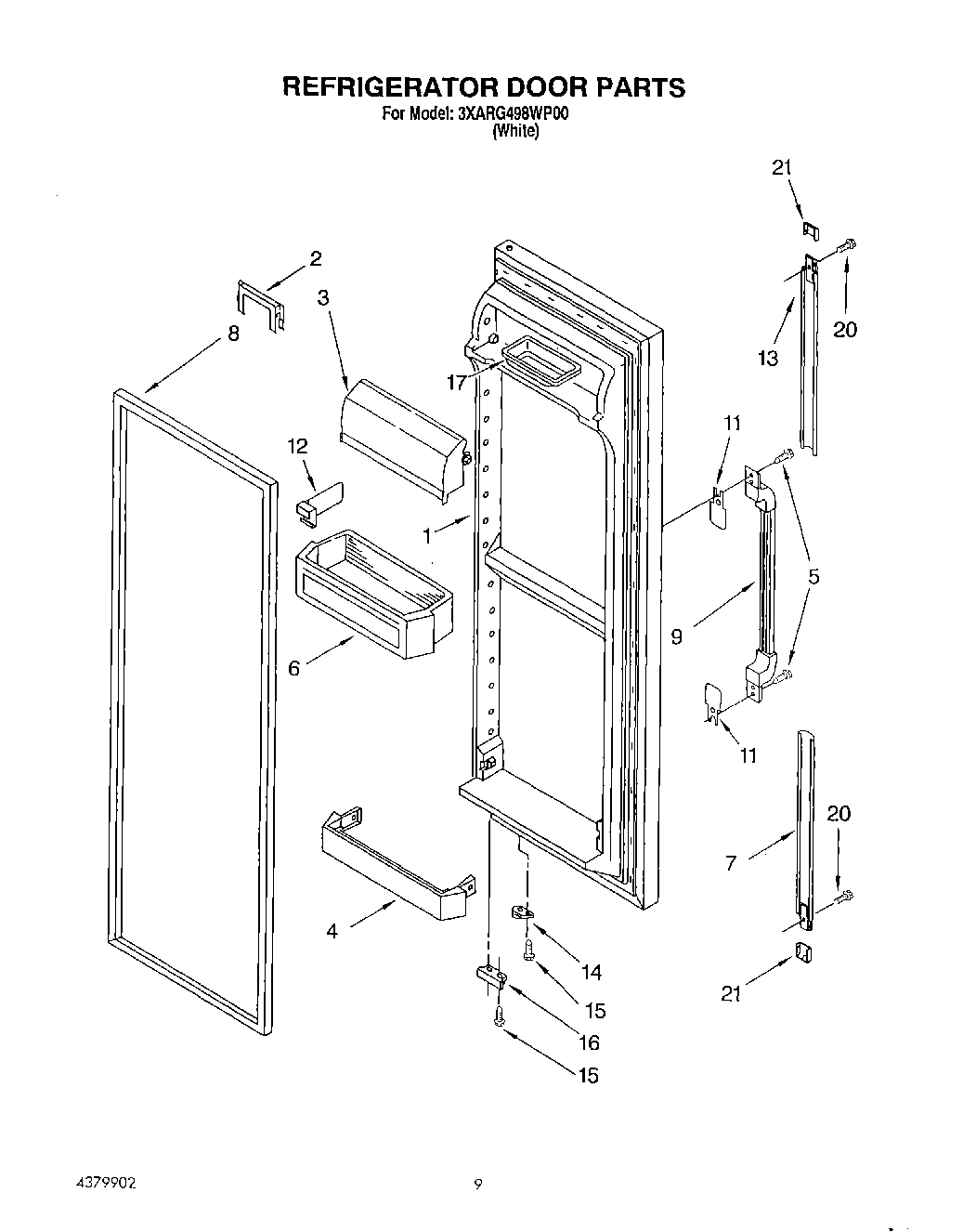

06 - REFRIGERATOR DOOR

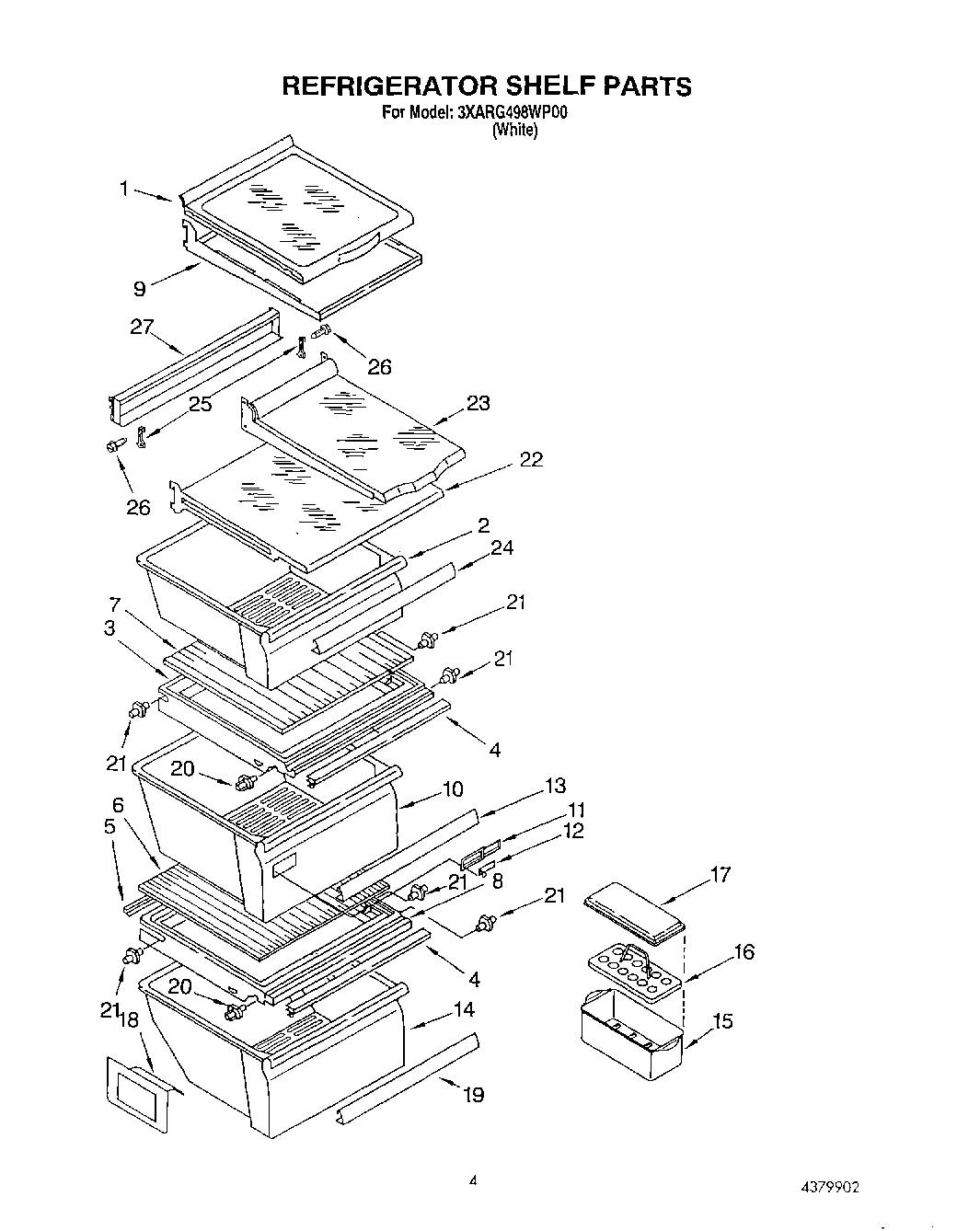

03 - REFRIGERATOR SHELF

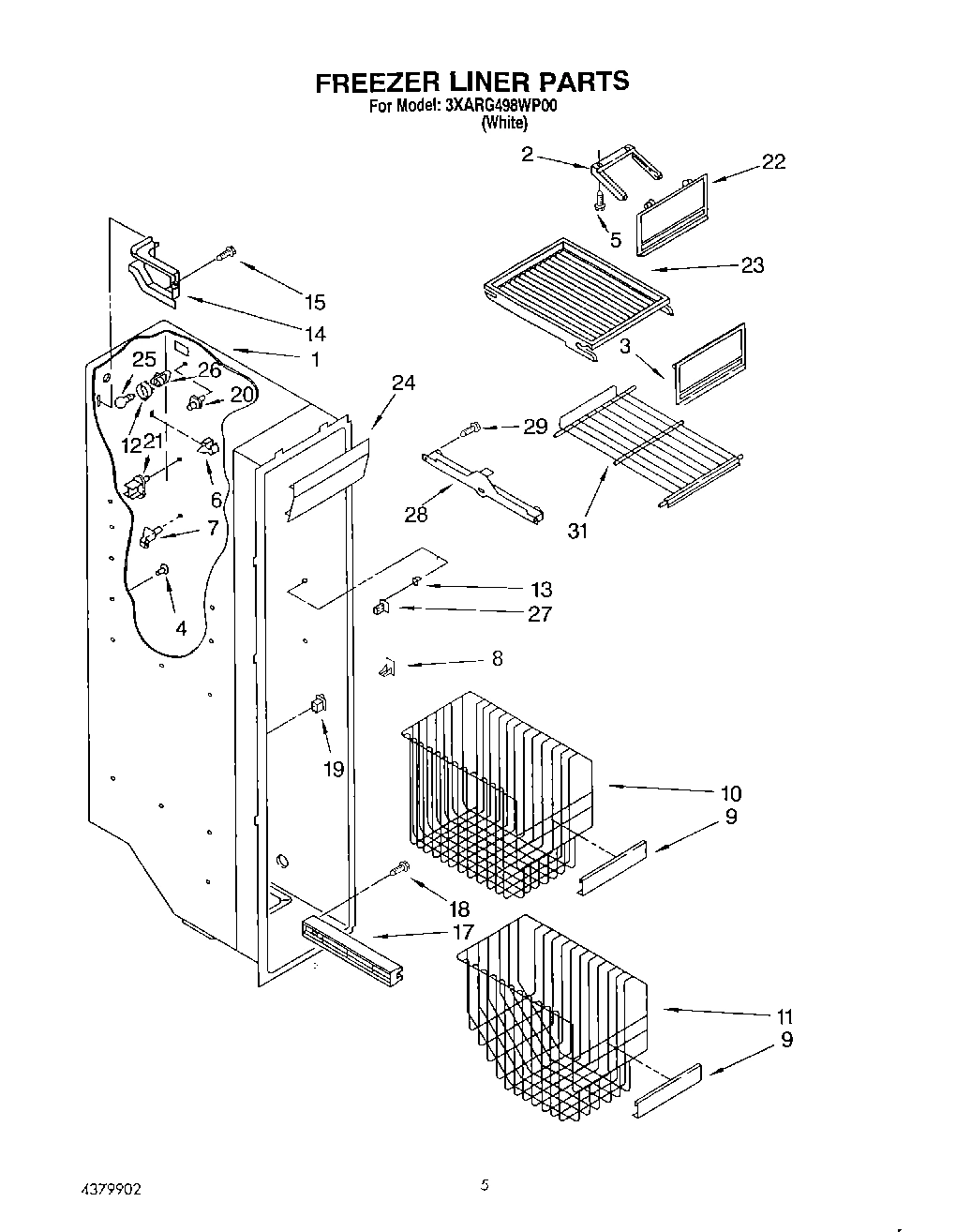

04 - FREEZER LINER

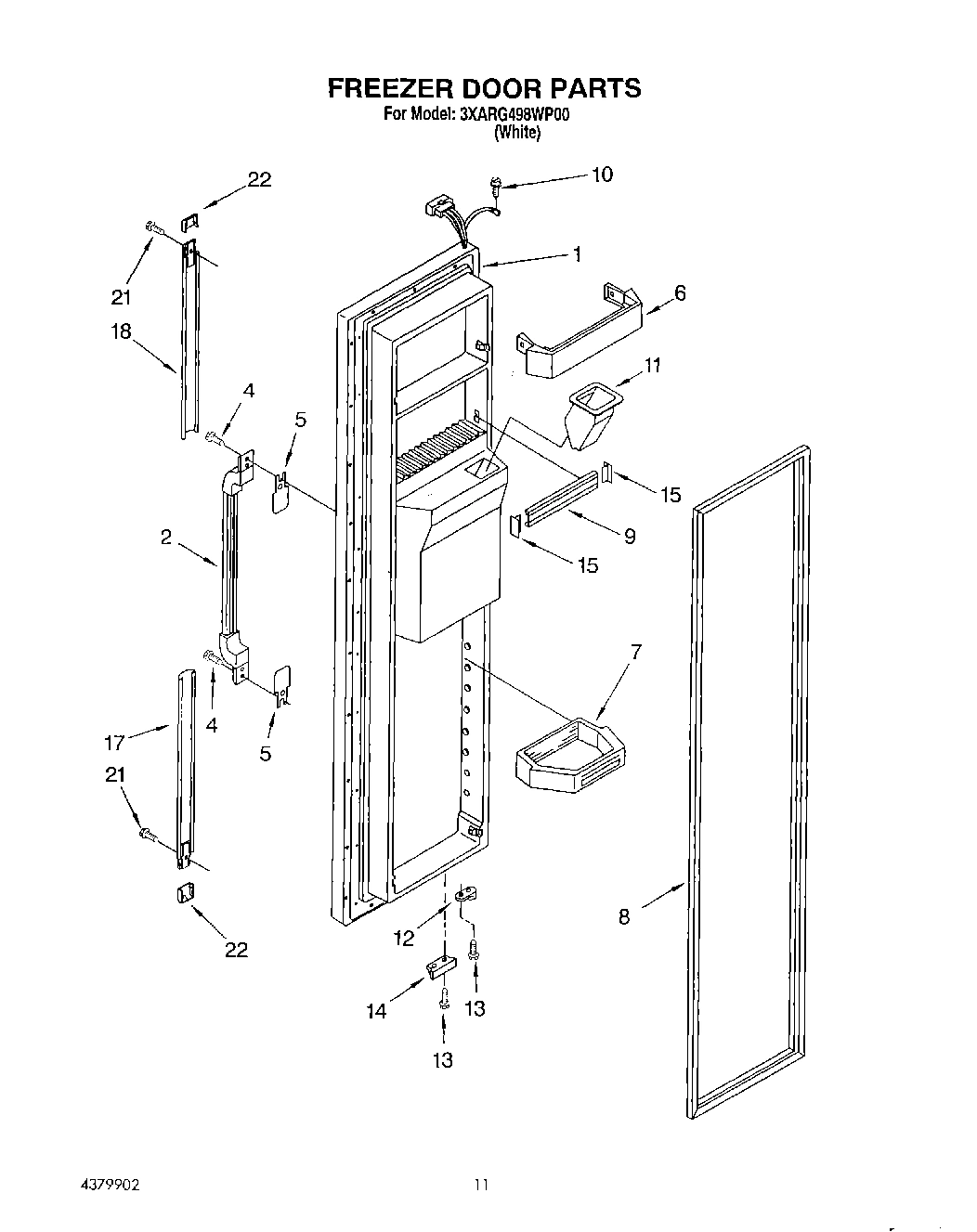

07 - FREEZER DOOR

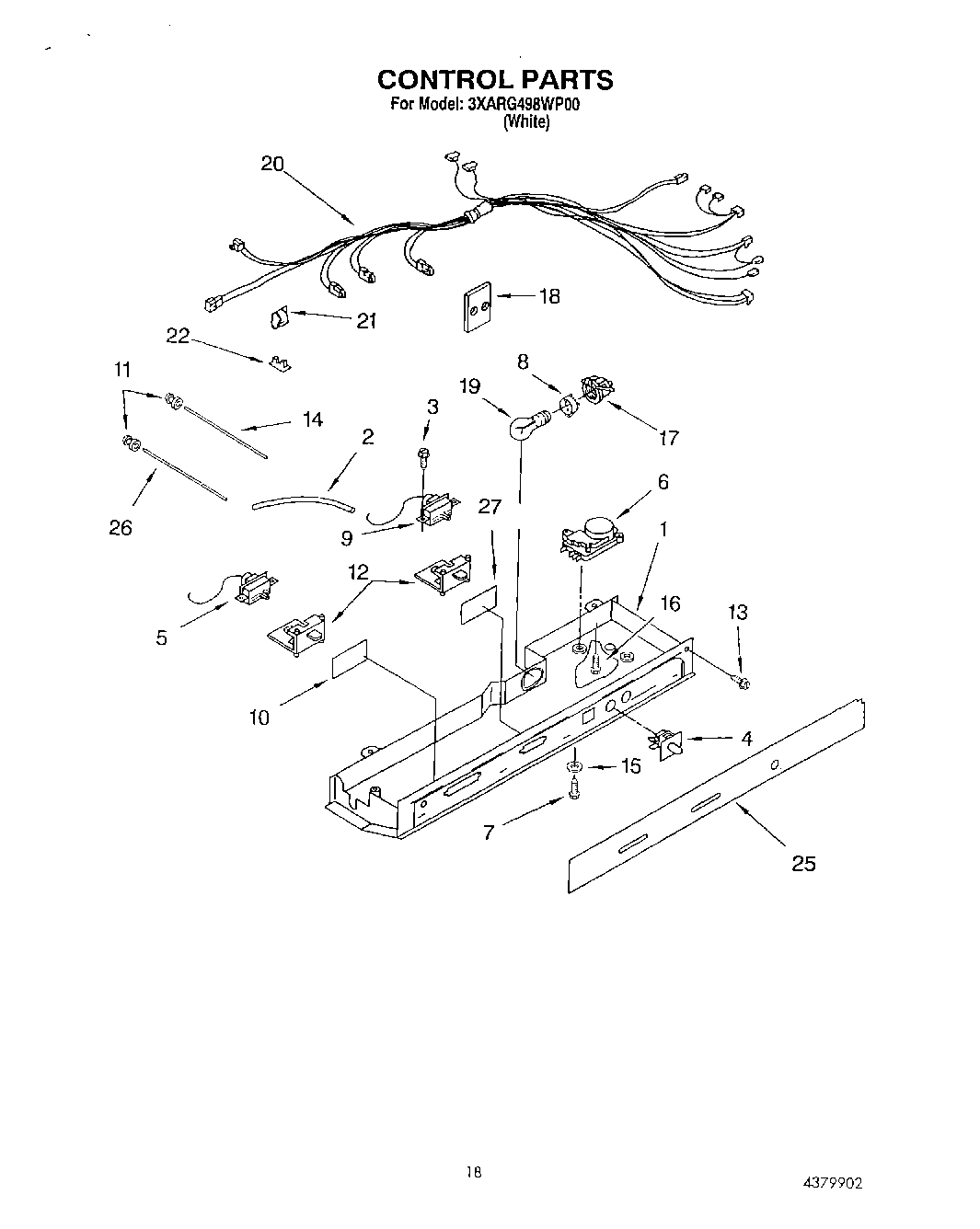

11 - CONTROL

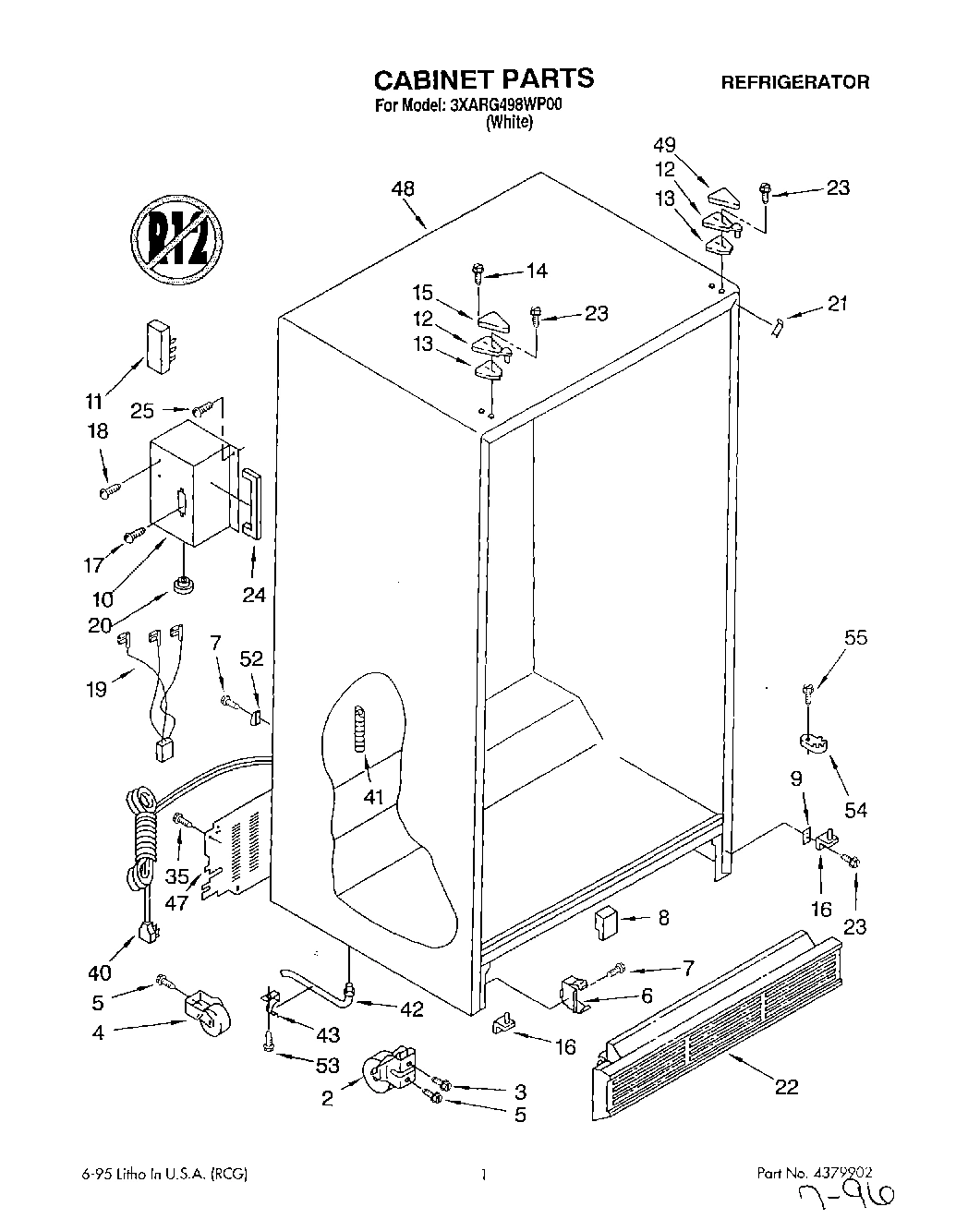

01 - CABINET

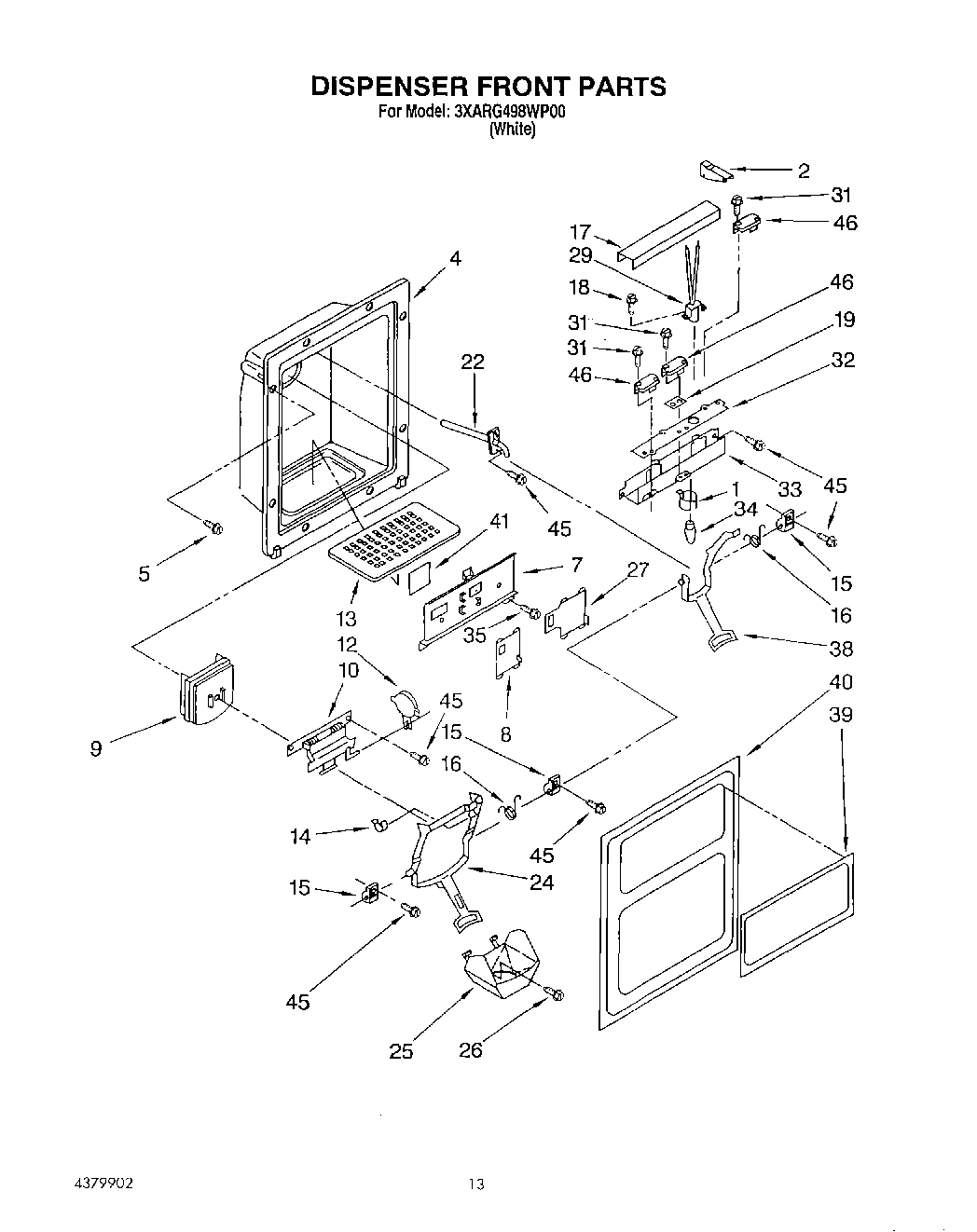

08 - DISPENSER FRONT
10 - AIR FLOW
Common parts from model Whirlpool 3XARG498WP00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) WPL 2177319 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12826A2 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2175057 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center WPL 2179366 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Cover, Switch WPL 2174960 Contact Us For Availability
3
Door, Ice Compartment WPL 2174343 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12827A9 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
5
Gasket, Cover (Rear) WPL 2174483 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Trim, Basket WPL 2171770 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom WPL 2174282 Contact Us For Availability
17
Butter, Tray WPL 1125936 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Extension, Top WPL 2174279 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Control Box Harness WPL 2161465 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Cover, End Cap WPL 2174006 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 2155486 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2177149 Contact Us For Availability
39
Plaque, Front Cover WPL 2175023 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2175131 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
47
Cover, Unit WPL 2171942 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12824A8 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
