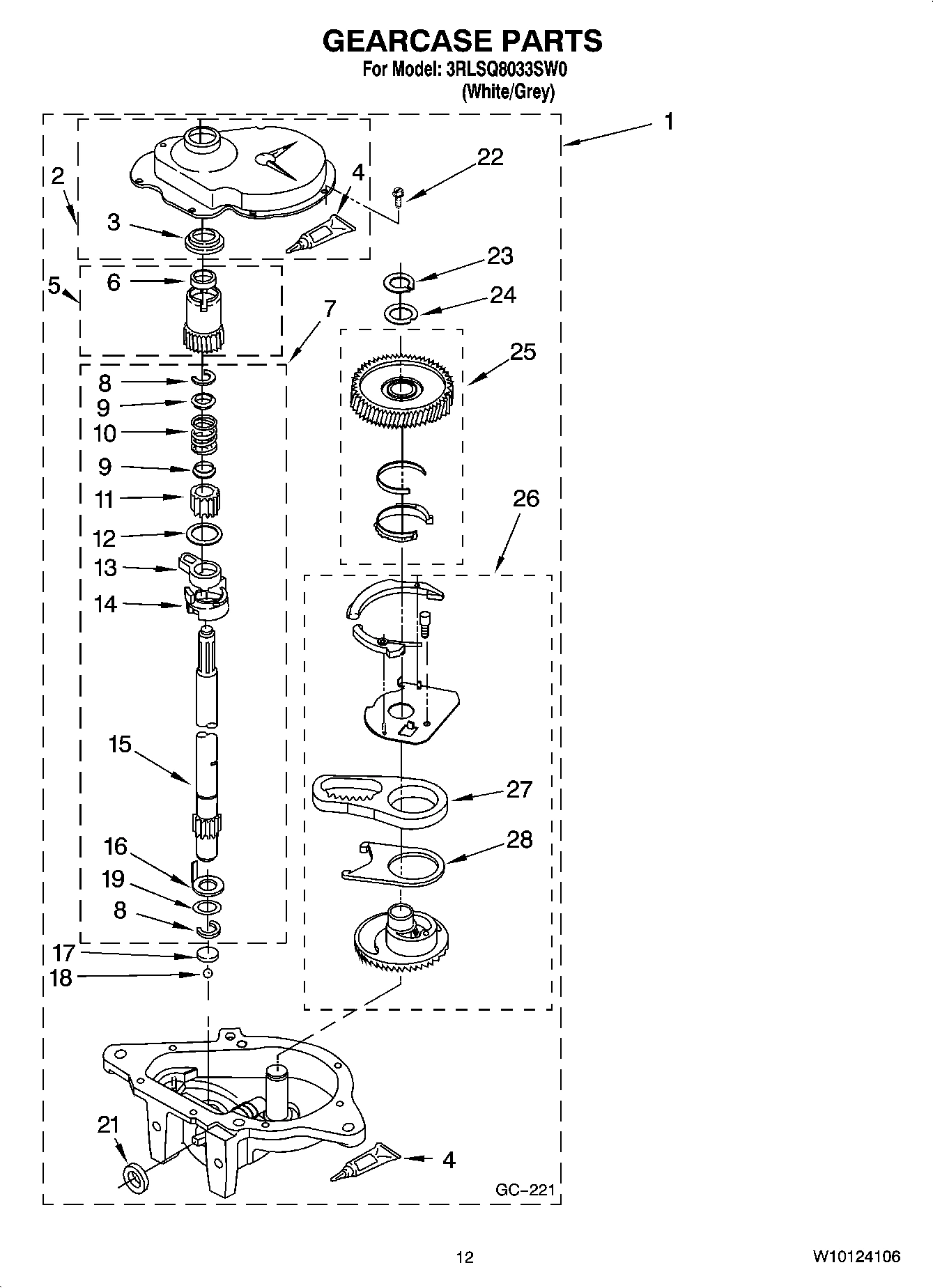

Model Whirlpool 3RLSQ8033SW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

1

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

1

WPW10117003 Whirlpool Drive Basket Backorder WPL WPW10117003 $169.49

1

Retainer, Harness WPL 3349557 Contact Us For Availability

1

Screw, Bracket Mounting (10-32 x 5/8) WPL W10080750 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

4

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

4

Tube, Basket Drive WPL W10117001 Contact Us For Availability

4

Support & Brake, Tub WPL W10117005 Contact Us For Availability

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

WPW10116968 Whirlpool Clutch Backorder WPL WPW10116968 $54.06

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

6

W10118761 Whirlpool Lining Backorder WPL W10118761 $36.56

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

Spring, Brake WPL 387806 Contact Us For Availability

9

Gearcase (Complete) (Refer To Page 12 For Fur WPL W10116916 Contact Us For Availability

9

Foot, Rear (2) WPL W10083250 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Screw, Gearcase To Base (3) WPL W10080600 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Block, Disconnect WPL 3347243 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

Protector WPL 63523 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Connector, 2-Way WPL 717252 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Following Parts Not Illustrated WPL ARI140278A Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

Clip, Harness WPL 3352944 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

Absorber, Sound (Cabinet) WPL 3976348 Contact Us For Availability

Block, Disconnect (12-Way) WPL 3390423 Contact Us For Availability

SCREW WPL W10080610 Contact Us For Availability

Base Assembly (Includes Items 6, 7, 8, 9, 15 WPL W10116943 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Receptacle, 6 Way WPL 3347730 Contact Us For Availability

Nut, Lock (2) (3/8-16) WPL W10080250 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $151.58

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Dispenser, Bleach WPL 8566266 Contact Us For Availability

Motor, Main Drive WPL 3950297 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

BLOCK, CONNECTOR (RED WPL 3354926 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

24

8316060 Whirlpool Shield Backorder WPL 8316060 $26.21

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

25

Screw, 10-16 x 5/16 WPL W10080260 Contact Us For Availability

26

WP482156 Whirlpool Refrigerator Capacitor In Stock WPL WP482156 $38.92

26

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $37.24

27

Clamp, Capacitor WPL W10083210 Contact Us For Availability

28

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

29

Sensor, Inline WPL 3352282 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

43

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

44

Knob, Timer WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

Knob, Control WPL 8544937 Contact Us For Availability
