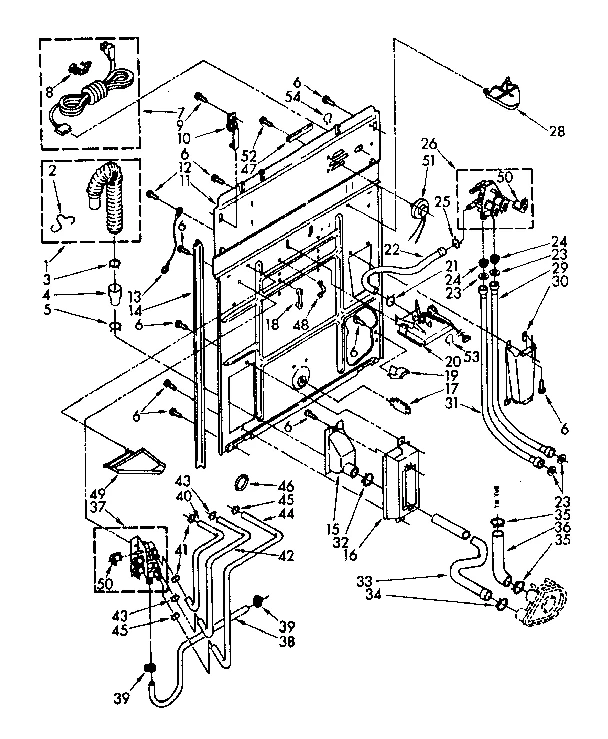

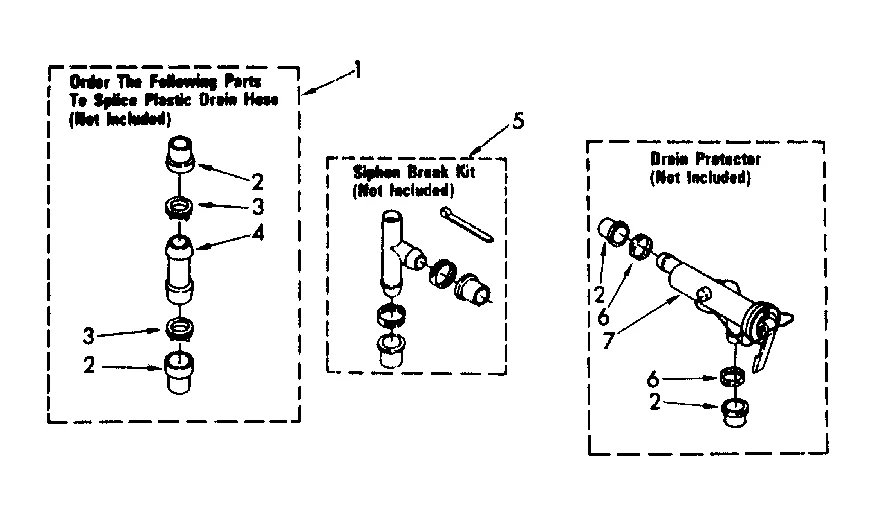

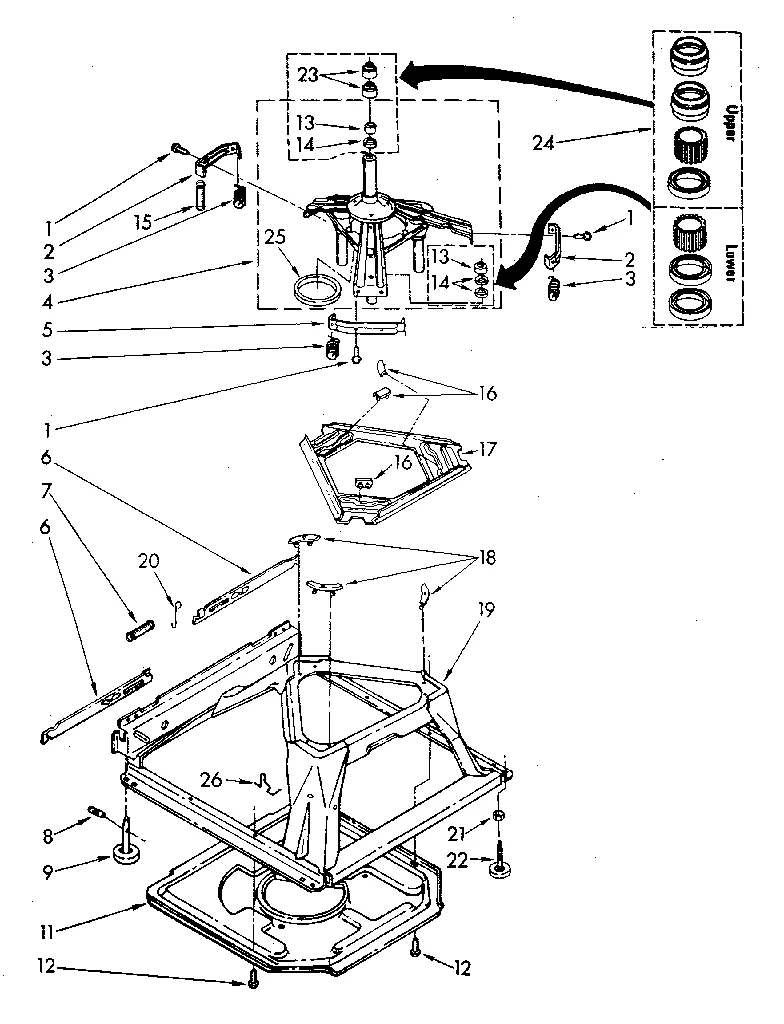

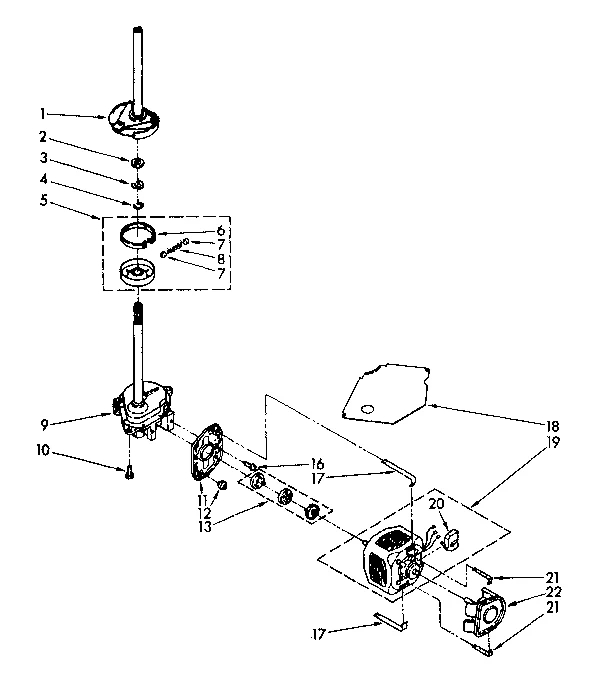

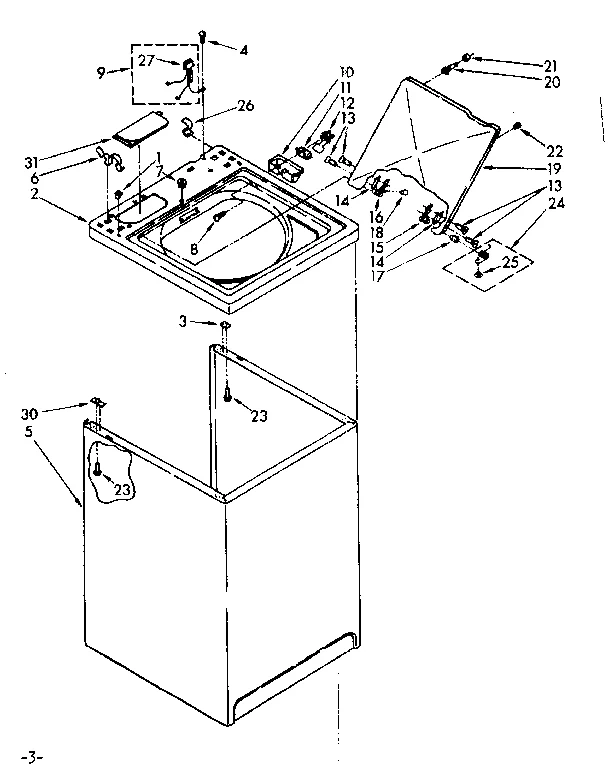

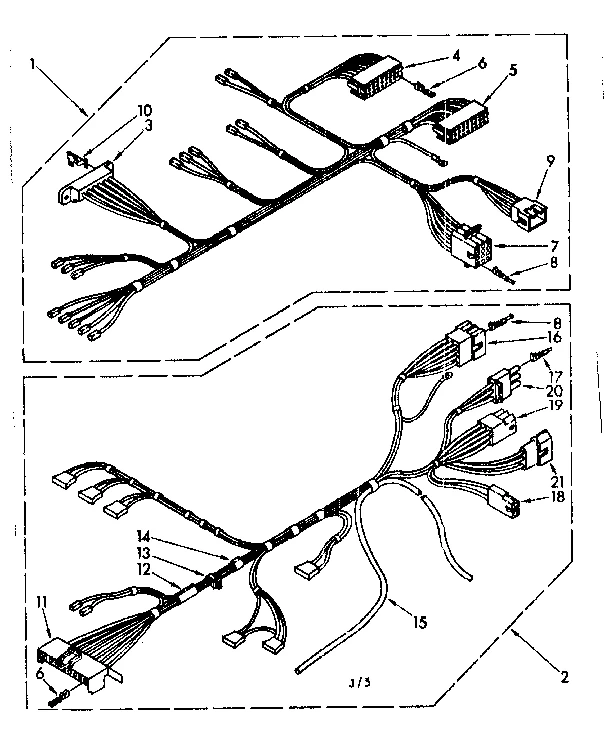

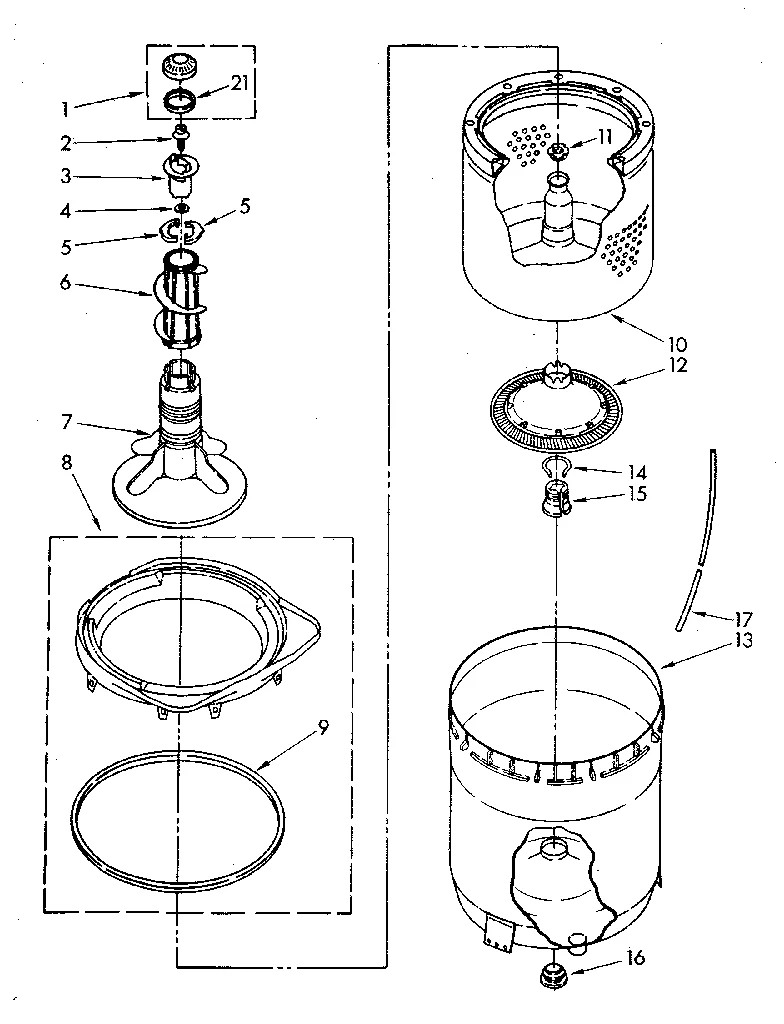

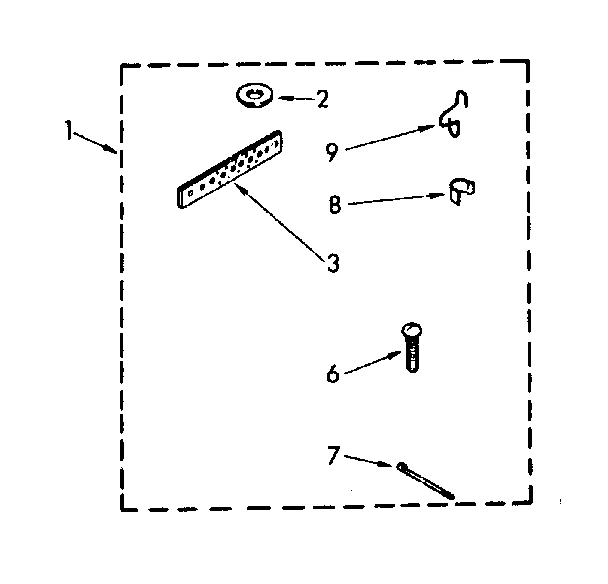

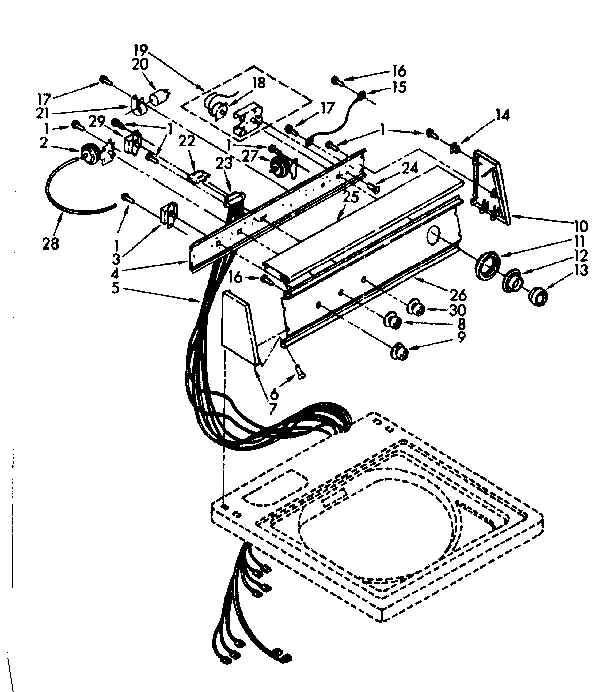

Model Whirlpool 110.82692700 System 21 Electric Washer (Kenmore 11082692700) – Common Parts &amp; Diagrams

1

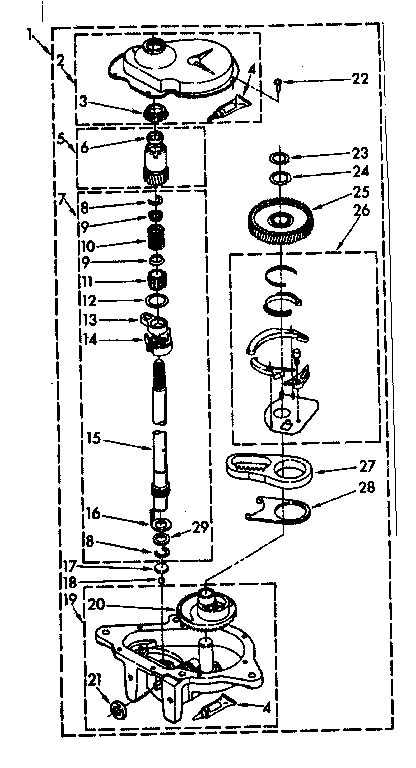

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

Washer Agitator Cap WPL 358348 Contact Us For Availability

1

Replacement Part WPL 387976 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Washer Dispenser Hose WPL 64169 Contact Us For Availability

2

(338471) (ALT.) WPL N/P Contact Us For Availability

2

Wire Harness WPL 388950 Contact Us For Availability

2

Washer Water-Level Pressure Switch WPL 388814 Contact Us For Availability

2A

Top W P WPL 64182 Contact Us For Availability

2B

Top Al P WPL 64183 Contact Us For Availability

2C

Top To P WPL 64184 Contact Us For Availability

2D

Top Pl P WPL 64185 Contact Us For Availability

2E

Top Ng P WPL 64186 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

Cam WPL 63262 Contact Us For Availability

3

Washer Temperature Switch WPL 388291 Contact Us For Availability

3

Ground Strap WPL 22965 Contact Us For Availability

4

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $46.54

4

Appliance O-Ring WPL 357574 Contact Us For Availability

4

Washer Detergent Dispenser Hose WPL 64168 Contact Us For Availability

4

Support WPL 63815 Contact Us For Availability

4

Block (White) WPL 352090 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

5

Bracket WPL 64065 Contact Us For Availability

5

Washer Agitator Dog WPL 358692 Contact Us For Availability

5

Clutch WPL 388849 Contact Us For Availability

5A

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Cabnt Al WPL 63425 Contact Us For Availability

5C

Cabnt To WPL 63426 Contact Us For Availability

5D

Cabnt Pl WPL 63427 Contact Us For Availability

5E

Natural Gas Cabinet WPL 63428 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Terminal WPL 352088 Contact Us For Availability

6

Agitator Auger WPL 358690 Contact Us For Availability

6

Screw WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

98460 Whirlpool Nut Backorder WPL 98460 $9.59

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

7

Insert WPL 64147 Contact Us For Availability

7

Power Cord WPL 3347005 Contact Us For Availability

7

Agitator WPL 64004 Contact Us For Availability

7

Plug WPL 94696 Contact Us For Availability

7

End Cap WPL 388203 Contact Us For Availability

8

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

Washer Tub Ring WPL 388201 Contact Us For Availability

8

Relief WPL 62733 Contact Us For Availability

8

Retaining Ring WPL 90369 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

8

Washer Control Knob WPL 388026 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

9

Harness WPL 388193 Contact Us For Availability

9

Connector WPL 357694 Contact Us For Availability

9

Retainer WPL 357247 Contact Us For Availability

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Hinge Panel WPL 387402 Contact Us For Availability

Washer Fabric Softener Dispenser Hose WPL 64170 Contact Us For Availability

Spring WPL 62676 Contact Us For Availability

Terminal WPL 340795 Contact Us For Availability

End Cap WPL 388209 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Rear Panel WPL 387960 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $14.59

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Actuator WPL 357347 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

Dial WPL 387996 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $132.68

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $16.80

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Ground Wire WPL 364089 Contact Us For Availability

Clip WPL 62749 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

Protector WPL 63525 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

Ground Wire WPL 388853 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Bracket WPL 64218 Contact Us For Availability

Washer WPL 62618 Contact Us For Availability

Cap WPL 94697 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle WPL 717252 Contact Us For Availability

Motor WPL 63493 Contact Us For Availability

Pin WPL 63162 Contact Us For Availability

Gear Case WPL 389229 Contact Us For Availability

Base WPL 388007 Contact Us For Availability

Connector WPL 3347631 Contact Us For Availability

Timer WPL 388296 Contact Us For Availability

19A

Lid (White) WPL 63076 Contact Us For Availability

19B

Lid (Almond) WPL 63077 Contact Us For Availability

19C

Lid WPL 385440 Contact Us For Availability

19D

Lid (Platinum) WPL 385441 Contact Us For Availability

19E

Lid WPL 63080 Contact Us For Availability

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

Washer Thermistor WPL 61855 Contact Us For Availability

Gear WPL 62528 Contact Us For Availability

Strike WPL 357141 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

Washer Terminal Connector WPL 353424 Contact Us For Availability

Nut WPL 124829 Contact Us For Availability

SEAL, AGITATOR CAP WPL 357912 Contact Us For Availability

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Washer Tub Fill Nozzle Hose WPL 387863 Contact Us For Availability

Control WPL 388246 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Ring WPL 95082 Contact Us For Availability

Connector WPL 388260 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

Washer Kit WPL 285292 Contact Us For Availability

24A

Spring WPL 53749 Contact Us For Availability

24B

Spring WPL 53748 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Plug WPL 54690 Contact Us For Availability

Control Panel WPL 388215 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Inlet Valve WPL 64163 Contact Us For Availability

Control Panel WPL 388229 Contact Us For Availability

27

Plug WPL 62888 Contact Us For Availability

27

Water-Level Switch WPL 388663 Contact Us For Availability

28

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

28

Shield Valve WPL 388904 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $17.42

29

Cycle Switch WPL 388292 Contact Us For Availability

30

Bracket WPL 64219 Contact Us For Availability

30

Spacer WPL 388252 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

31

Hose Cover WPL 64172 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

33

Washer Pump Drain Hose WPL 3348664 Contact Us For Availability

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

37

Washer Inlet Valve WPL 64164 Contact Us For Availability

38

Dispenser Hose WPL 64171 Contact Us For Availability

40

Dispenser Hose WPL 64165 Contact Us For Availability

42

Dispenser Hose WPL 64166 Contact Us For Availability

44

Dispenser Hose WPL 64167 Contact Us For Availability

46

O-Ring WPL 387999 Contact Us For Availability

47

Protector WPL 303294 Contact Us For Availability

48

Retainer WPL 64162 Contact Us For Availability

49

Shield Valve WPL 64173 Contact Us For Availability

50

Valve Coil WPL 389252 Contact Us For Availability

51

Speaker WPL 387973 Contact Us For Availability

52

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

53

Clip WPL 387551 Contact Us For Availability

54

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability
