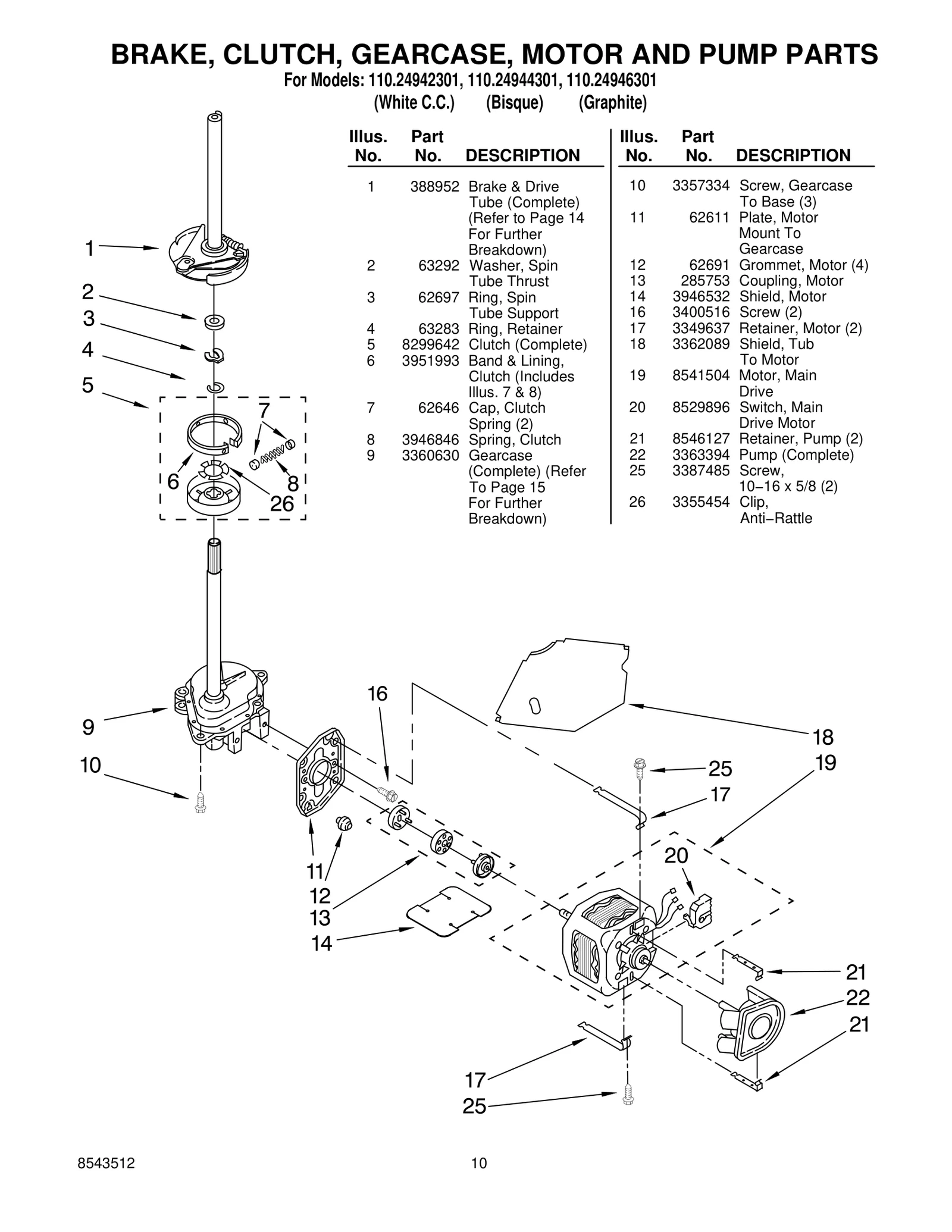

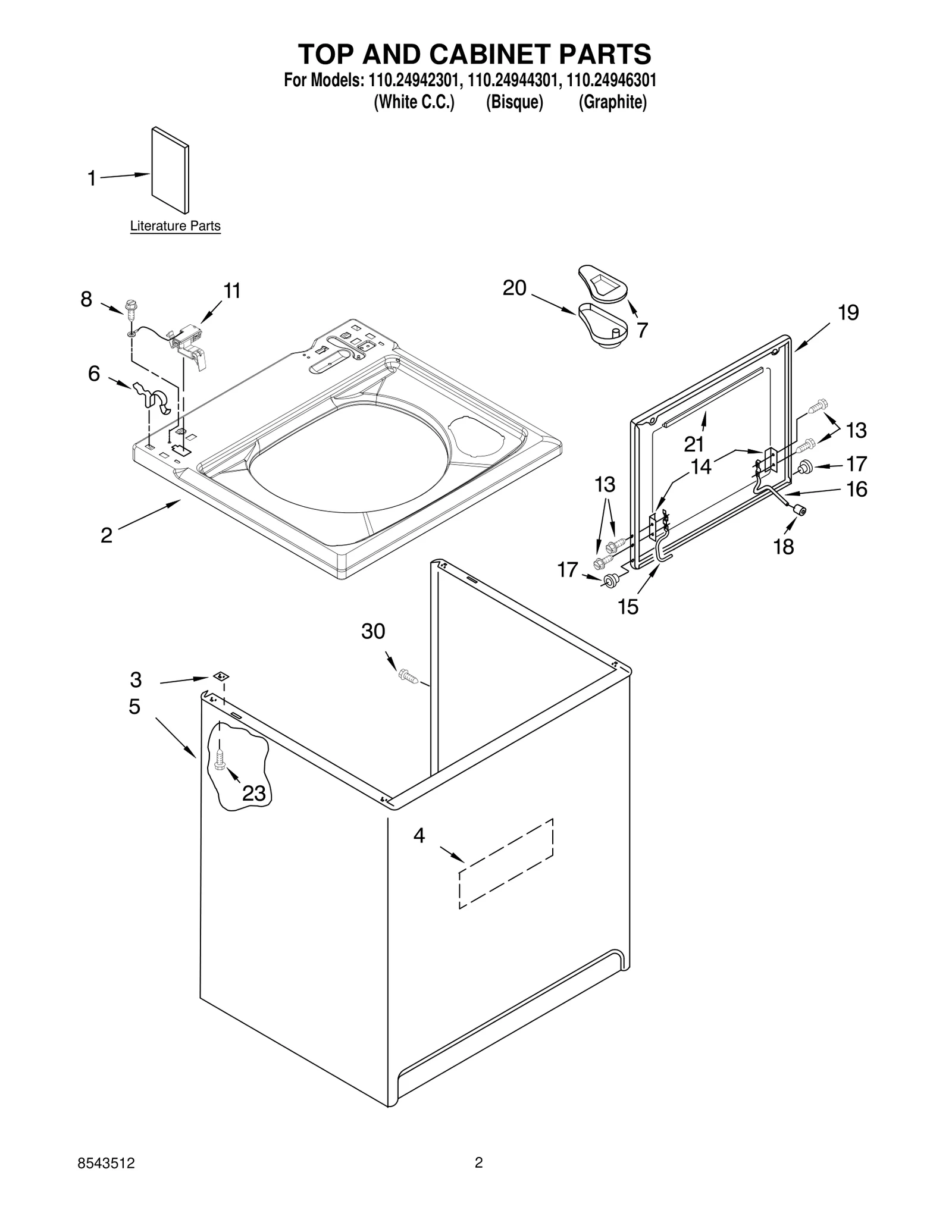

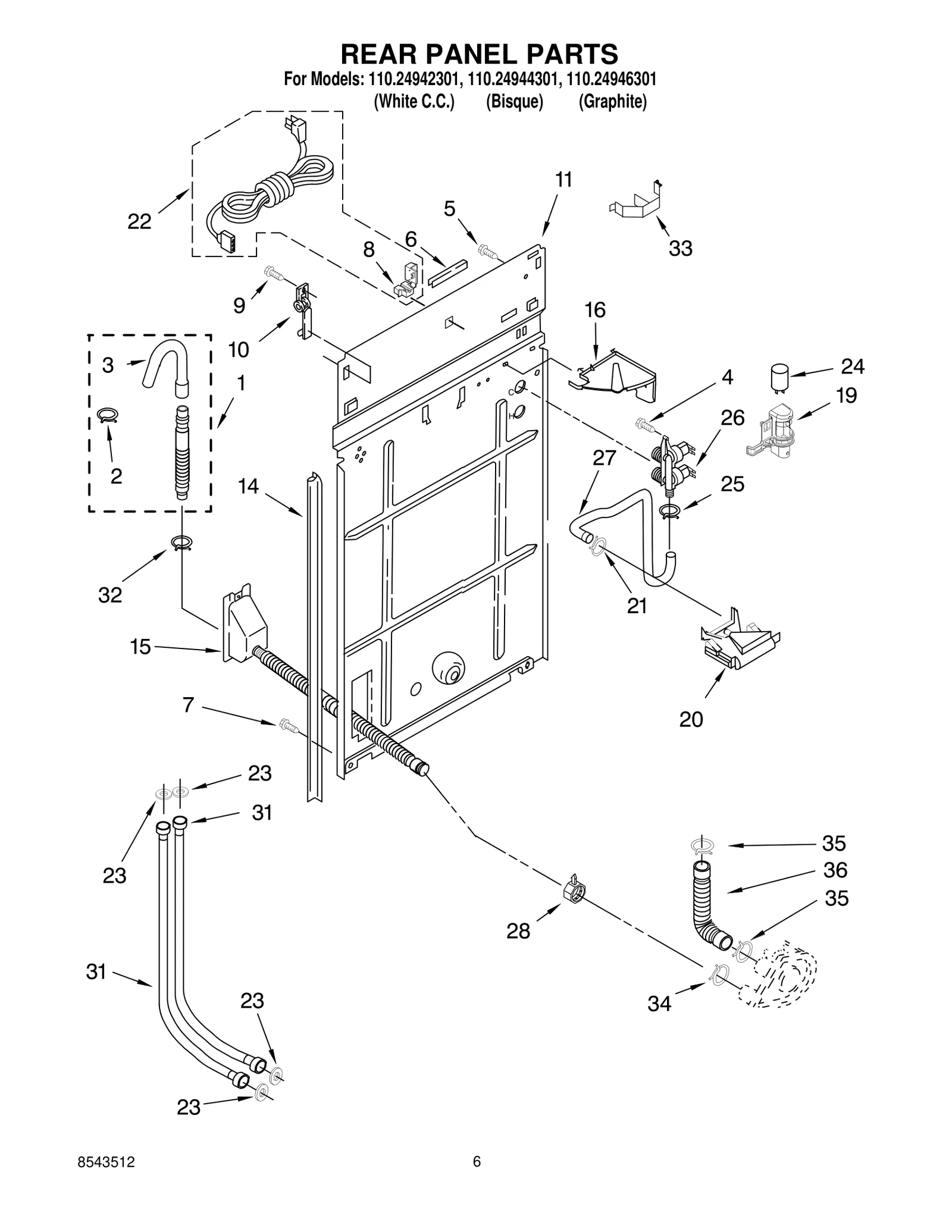

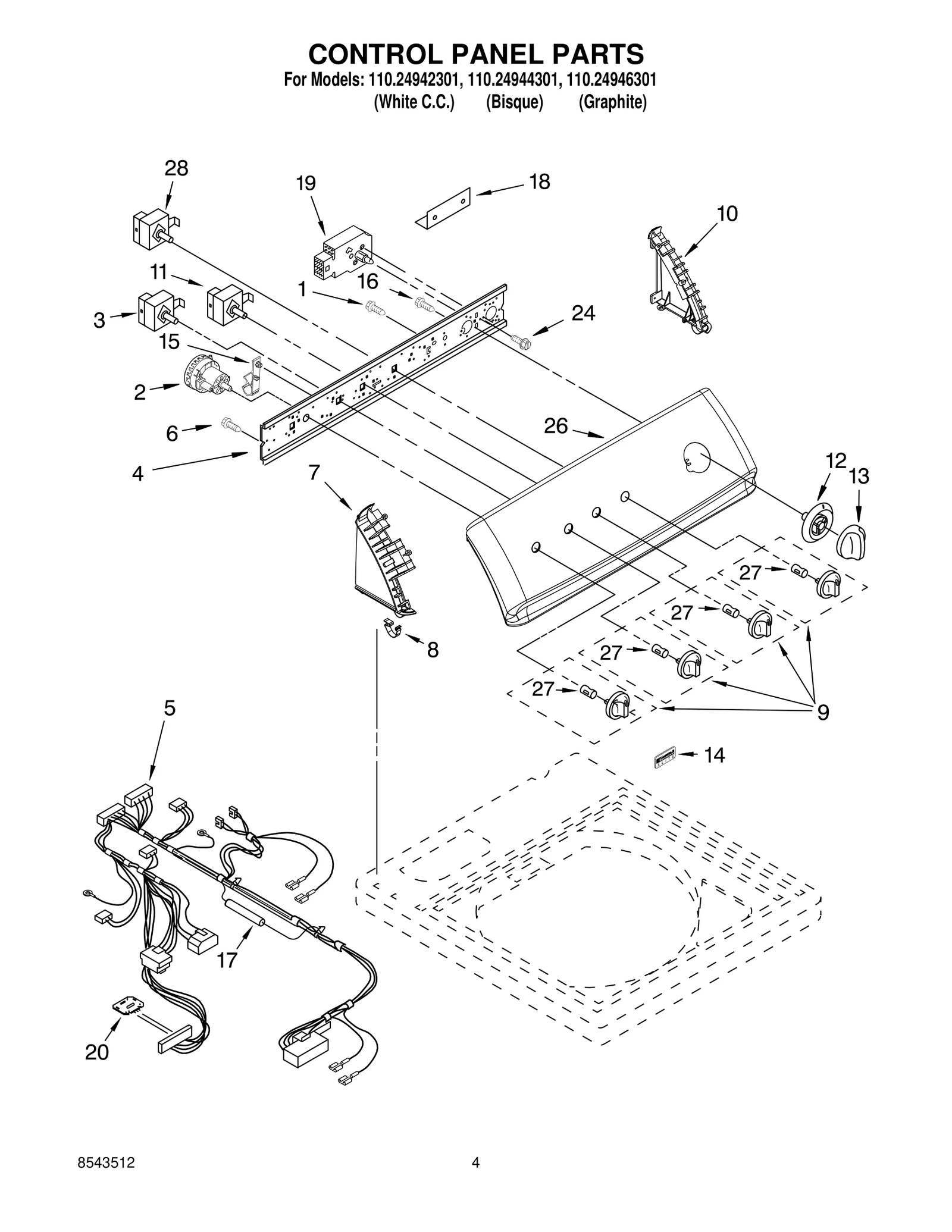

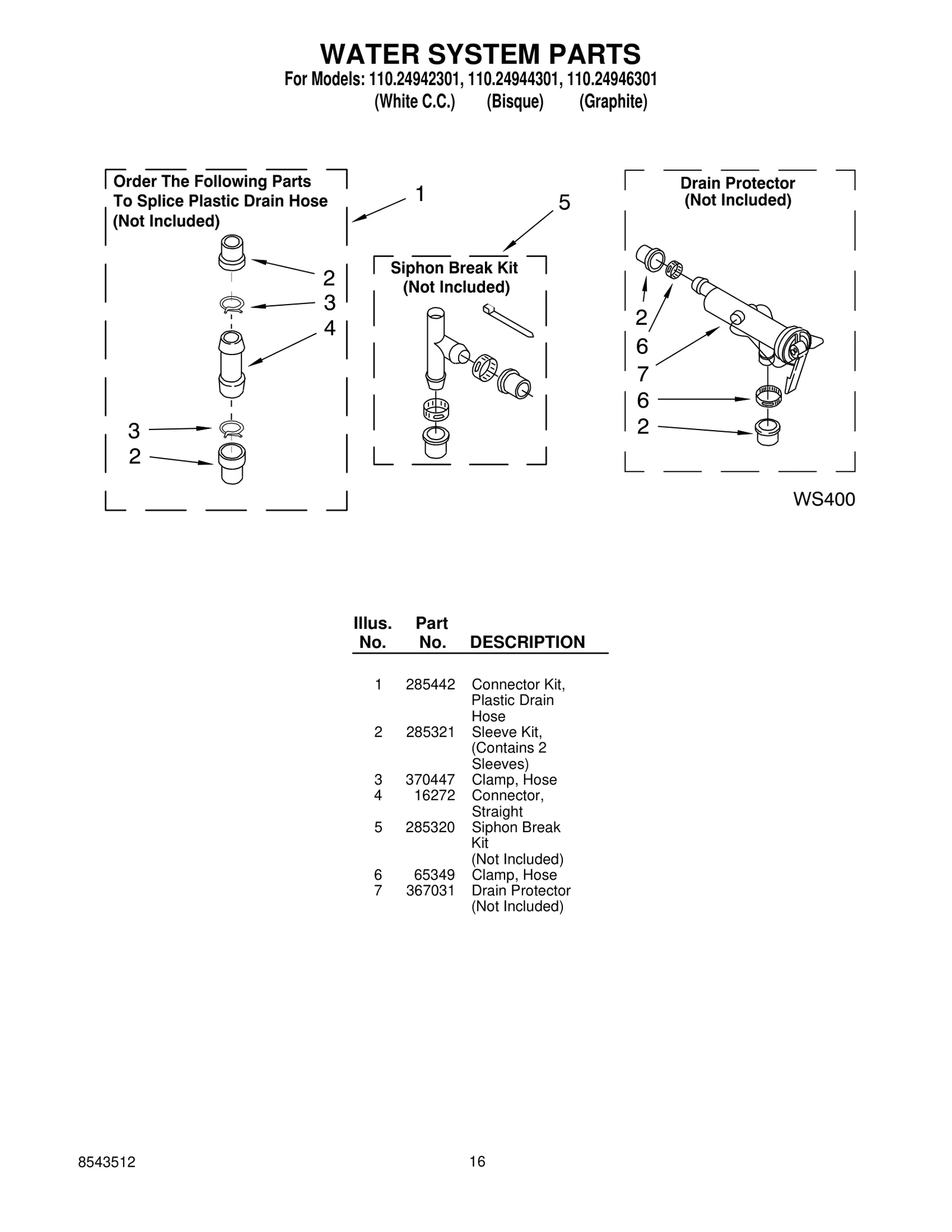

Model Whirlpool 110.24946301 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $2.51

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

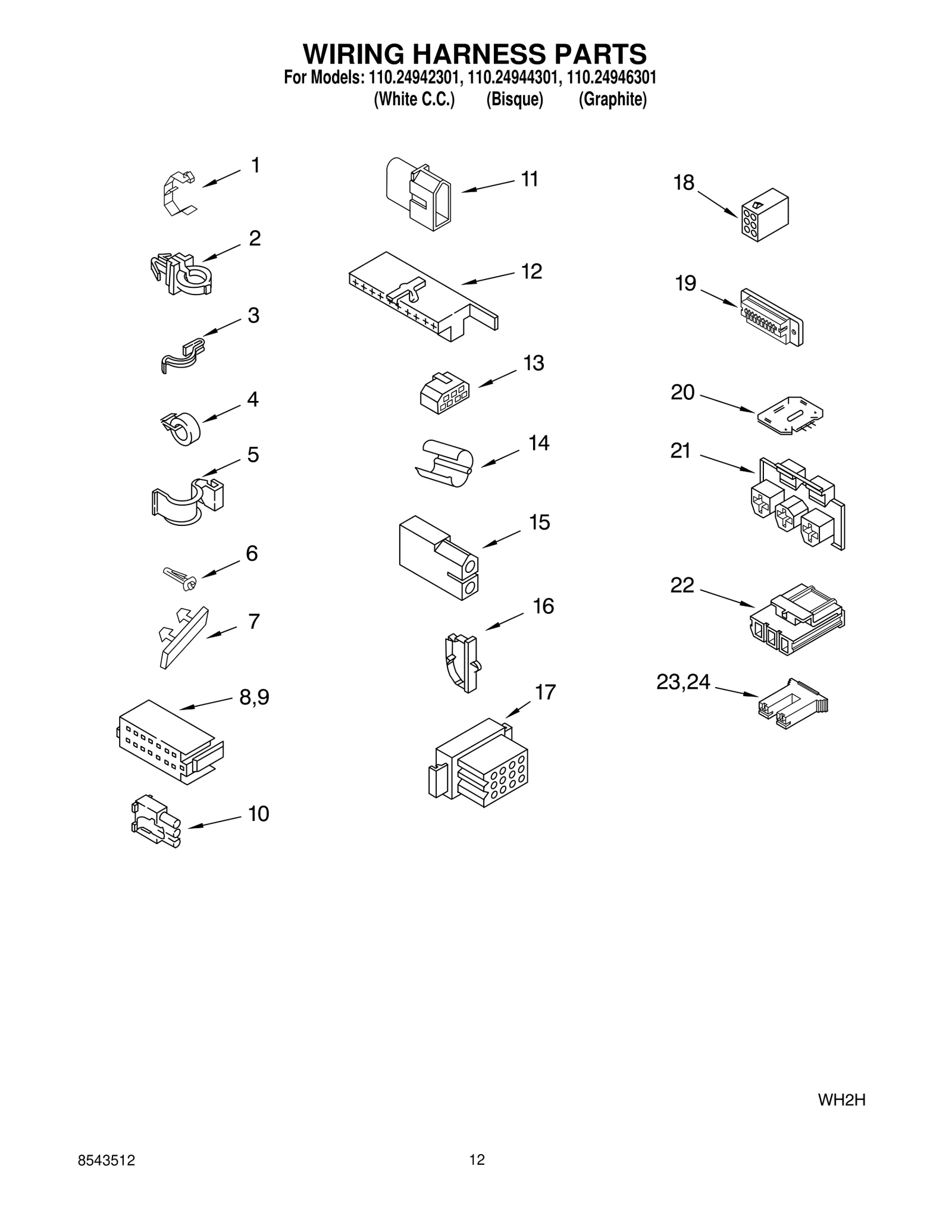

1

Clip, Harness WPL 3349557 Contact Us For Availability

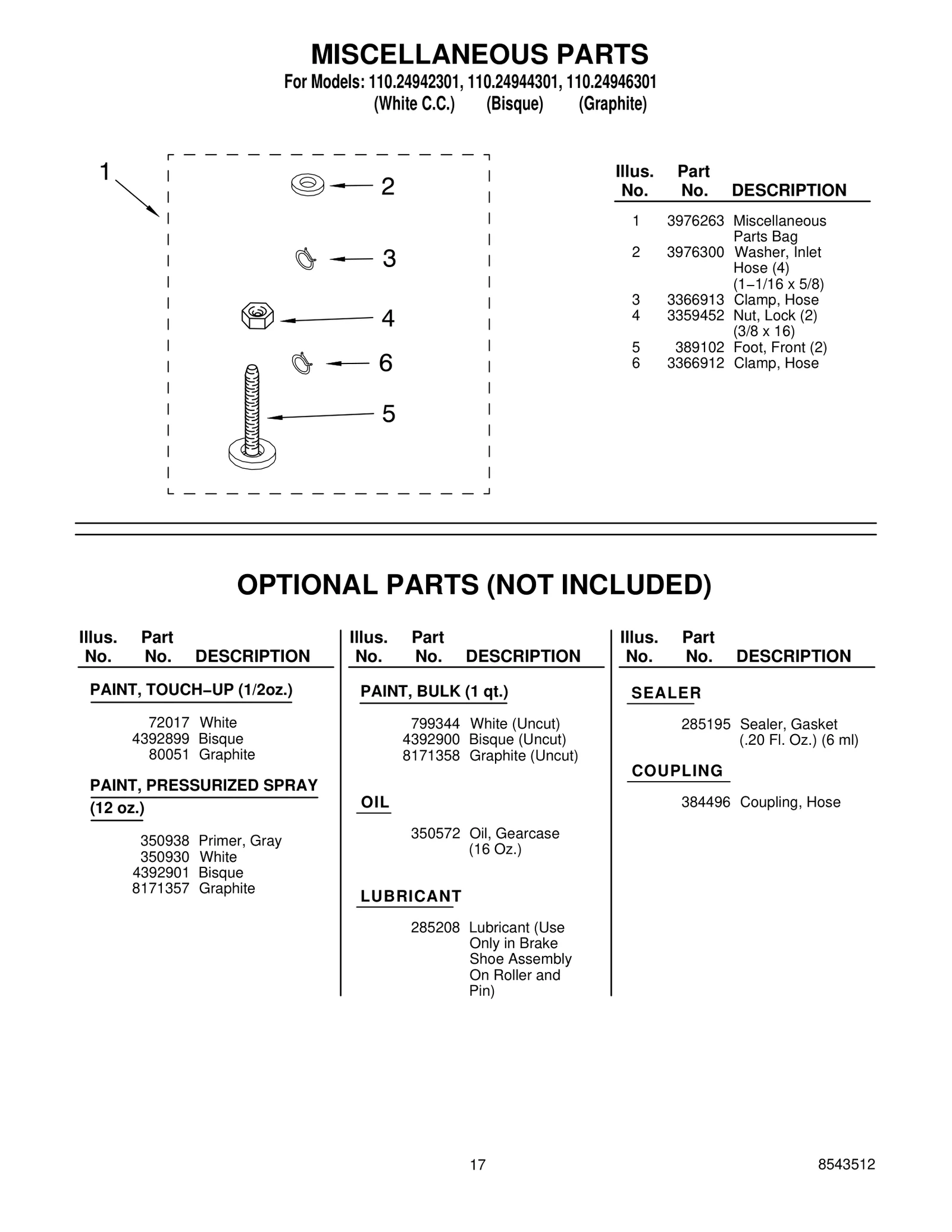

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

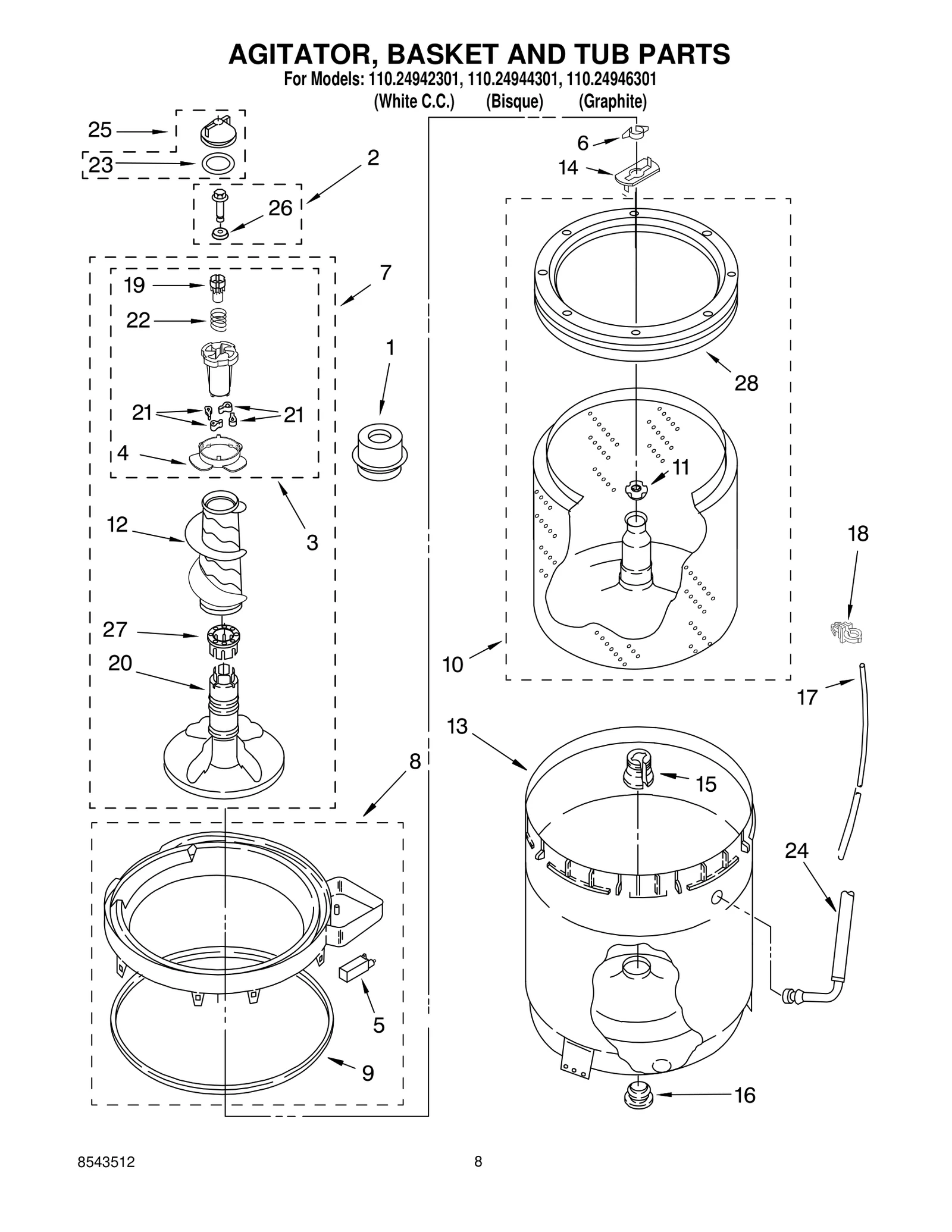

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

3

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP8537434 Whirlpool Agitator Cam Backorder WPL WP8537434 $50.80

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8299642 Whirlpool Clutch In Stock WPL WP8299642 $68.96

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

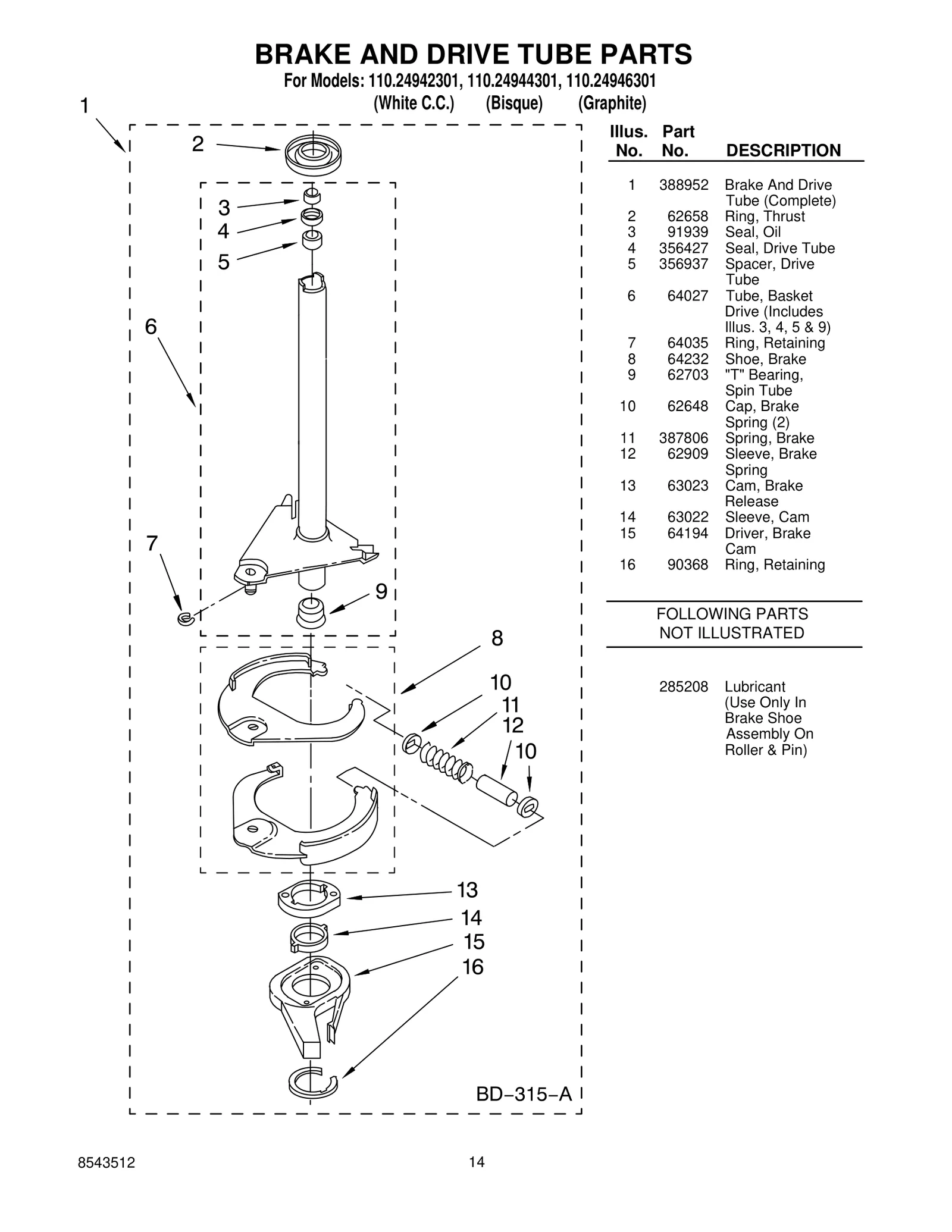

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

6

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

6

W10817888 Whirlpool Lining In Stock WPL W10817888 $49.15

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

6

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

6

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

6

Graphite PAINT, PRESSURIZED SPRAY WPL 80051 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

White (Uncut) WPL 799344 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Lubricant (Use Only in Brake Shoe Assembly On WPL 285208 Contact Us For Availability

6

Bisque (Uncut) WPL 4392900 Contact Us For Availability

6

Graphite (Uncut) OIL WPL 8171358 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $8.69

8

Timer, Block Disconnect WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10816321 Whirlpool Knob Backorder WPL W10816321 $35.59

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Knob, Control — Bisque WPL 8541469 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Hinge, Console (2) WPL 387402 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $19.84

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $102.72

Dial And Guard Timer — White WPL 8541465 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Tub WPL 8283125 Contact Us For Availability

Knob, Timer — White WPL 8541457 Contact Us For Availability

Knob, Timer — Black WPL 8541459 Contact Us For Availability

Block, Disconnect WPL 3347243 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Protector WPL 63523 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $30.38

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

Connector WPL 717252 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Shield, Suds WPL 8539874 Contact Us For Availability

For Models: 110.24942301, 110.24944301, 110.2 WPL N/S Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Block, Disconnect WPL 3390423 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

Receptacle WPL 3347730 Contact Us For Availability

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $3.70

WP8541110 Whirlpool Timer In Stock WPL WP8541110 $149.39

Motor, Main Drive WPL 8541504 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

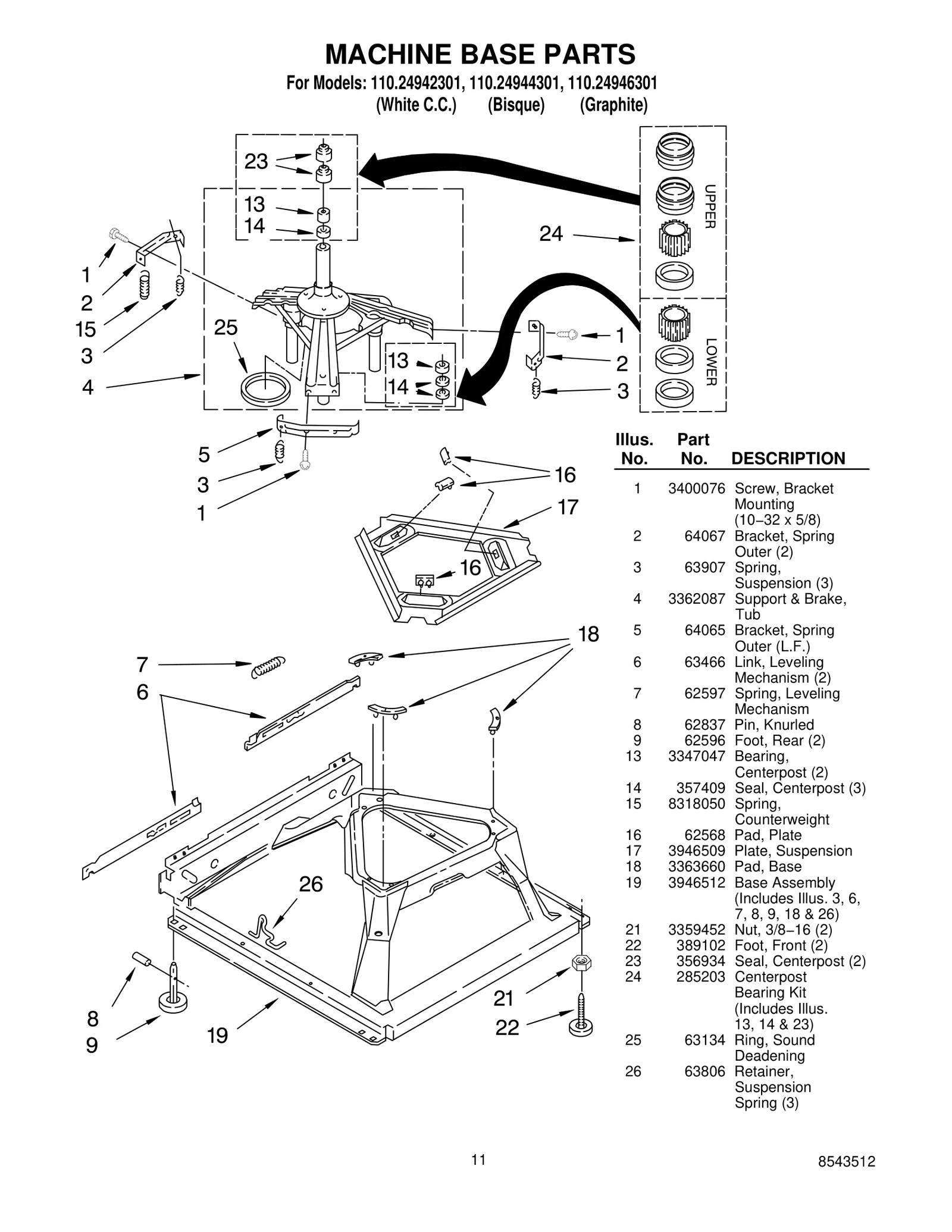

Base Assembly (Includes Illus. 3, 6, 7, 8, 9, WPL 3946512 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Dispenser, Bleach (Timed) WPL 8519517 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Seal, Lid — Gray WPL 8054939 Contact Us For Availability

Seal, Lid — Black WPL 8283532 Contact Us For Availability

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

22

Connector (T.P.A) WPL 3360056 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Block, Connector WPL 3354925 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

Hose, Bleach WPL 3948705 Contact Us For Availability

Block, Connector WPL 3354926 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Clip, Anti−Rattle WPL 3355454 Contact Us For Availability

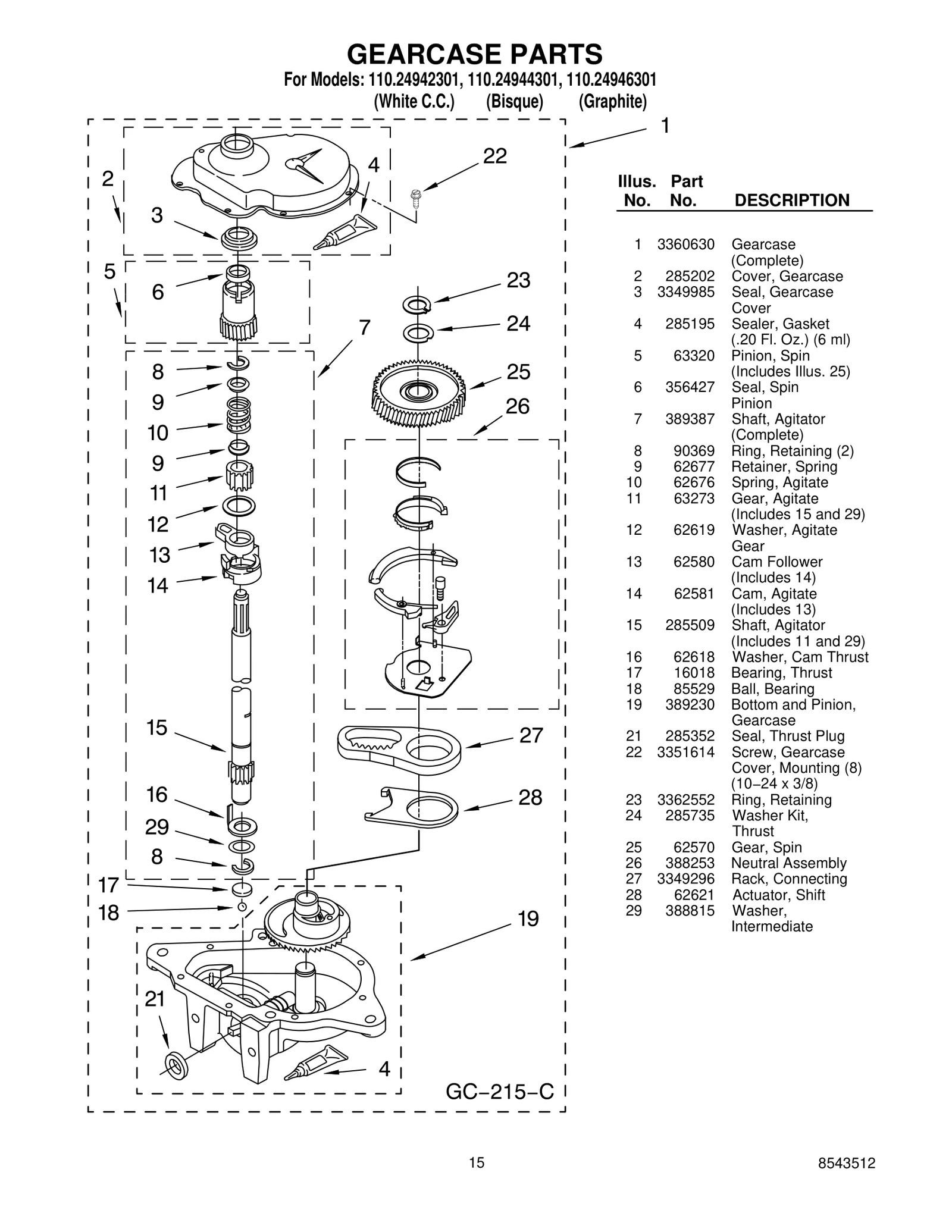

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

27

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $9.70

27

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.88

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3954573 Whirlpool Cycle Switch Backorder WPL WP3954573 $109.35

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51
