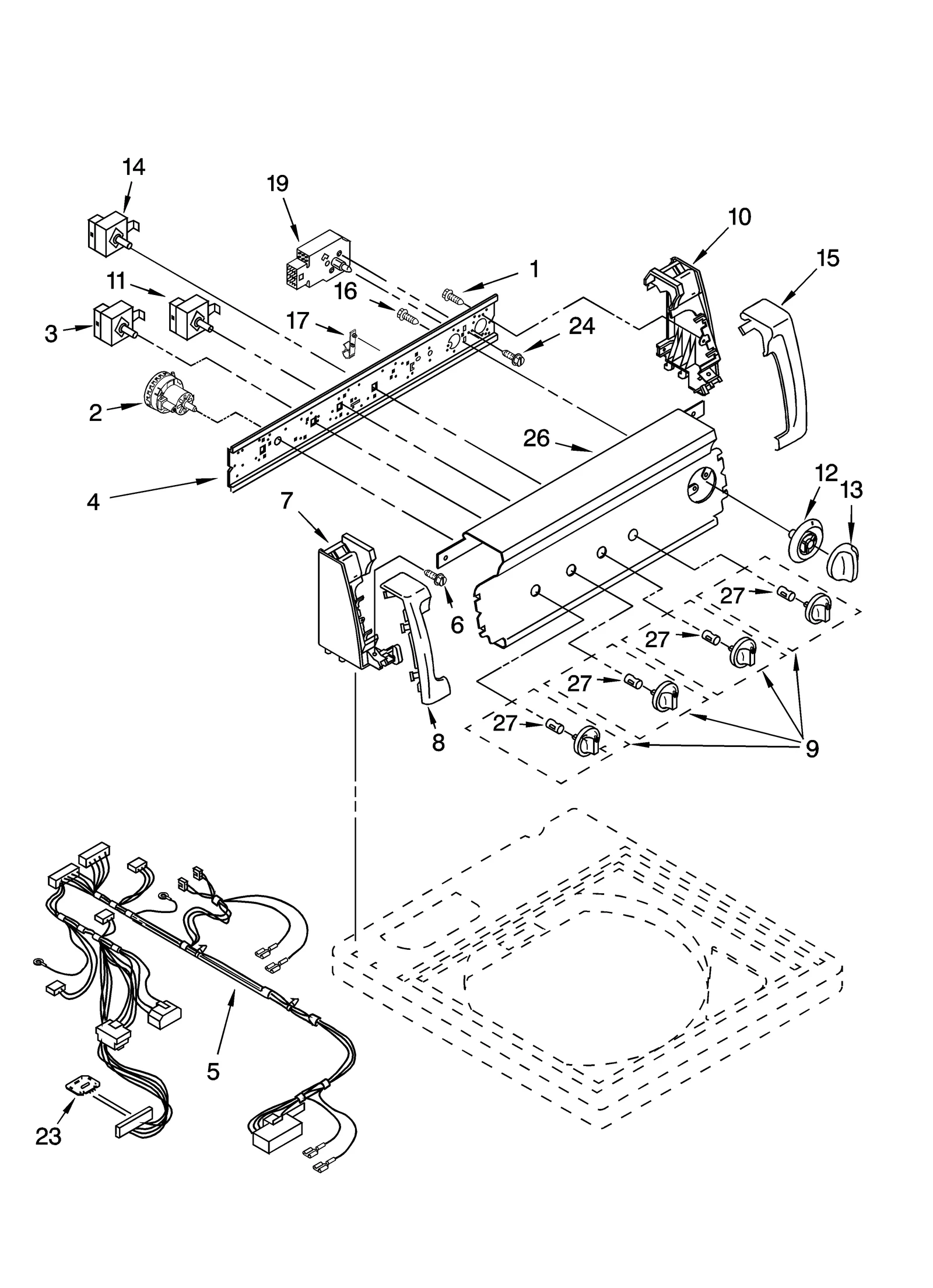

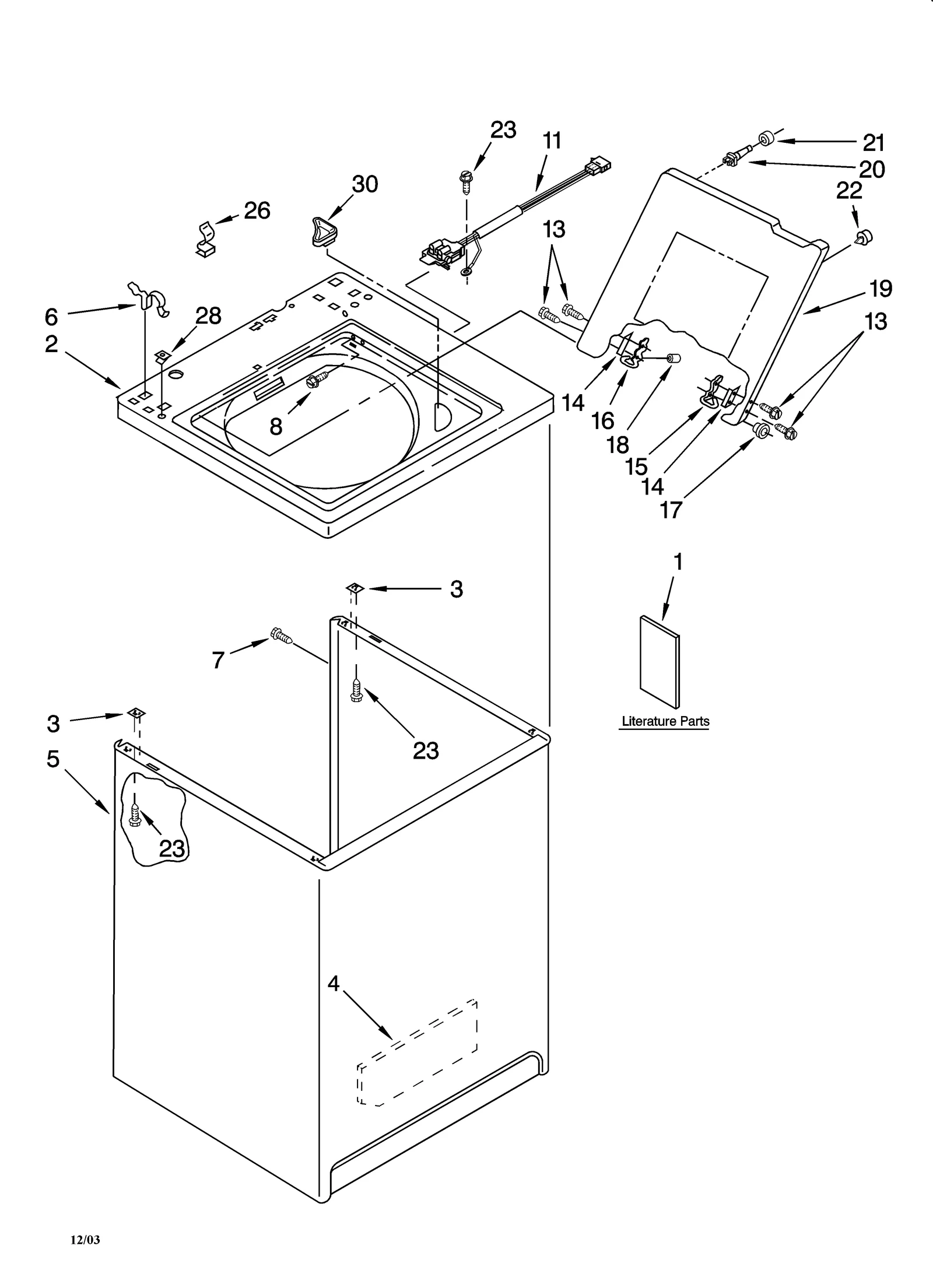

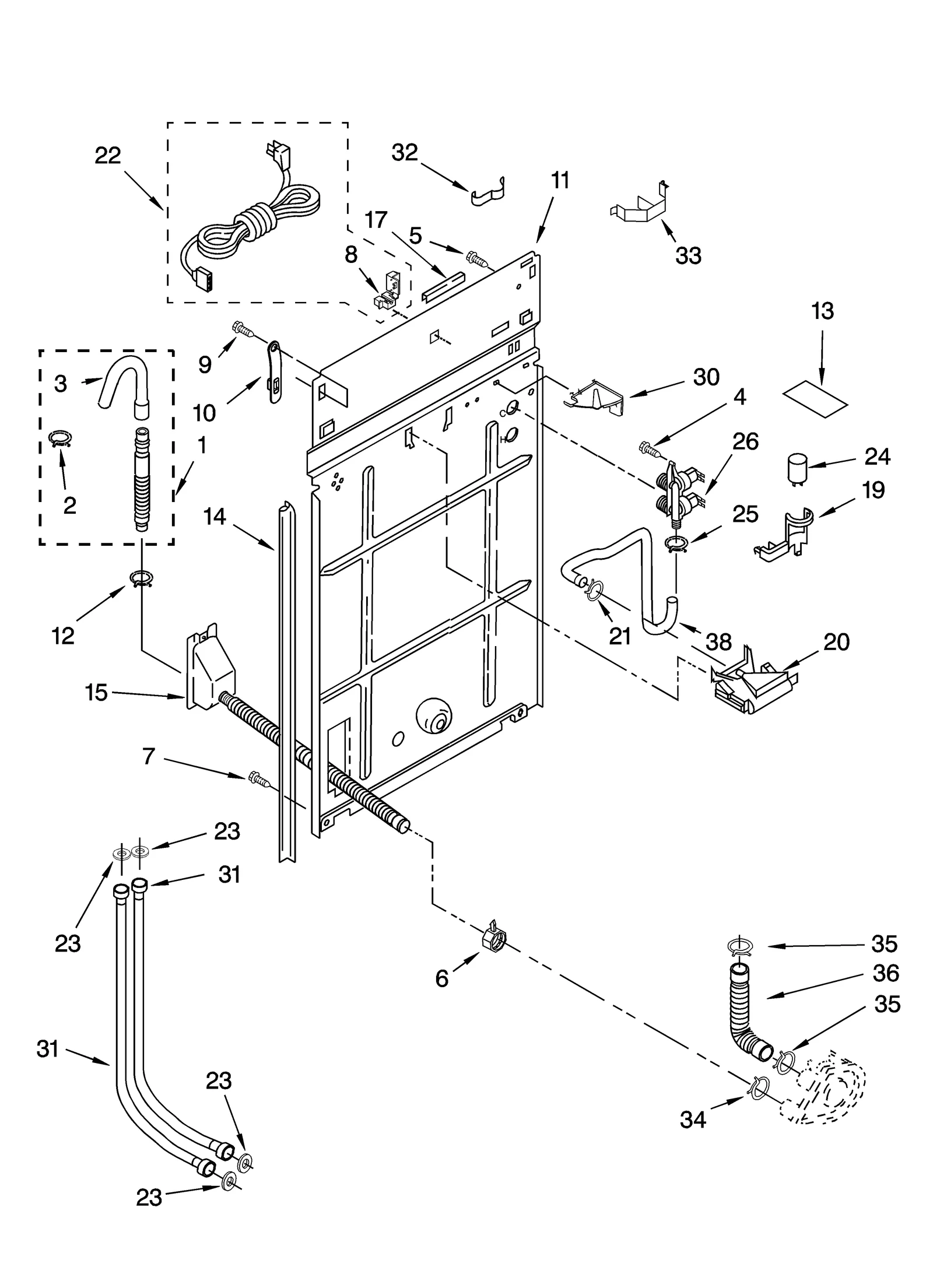

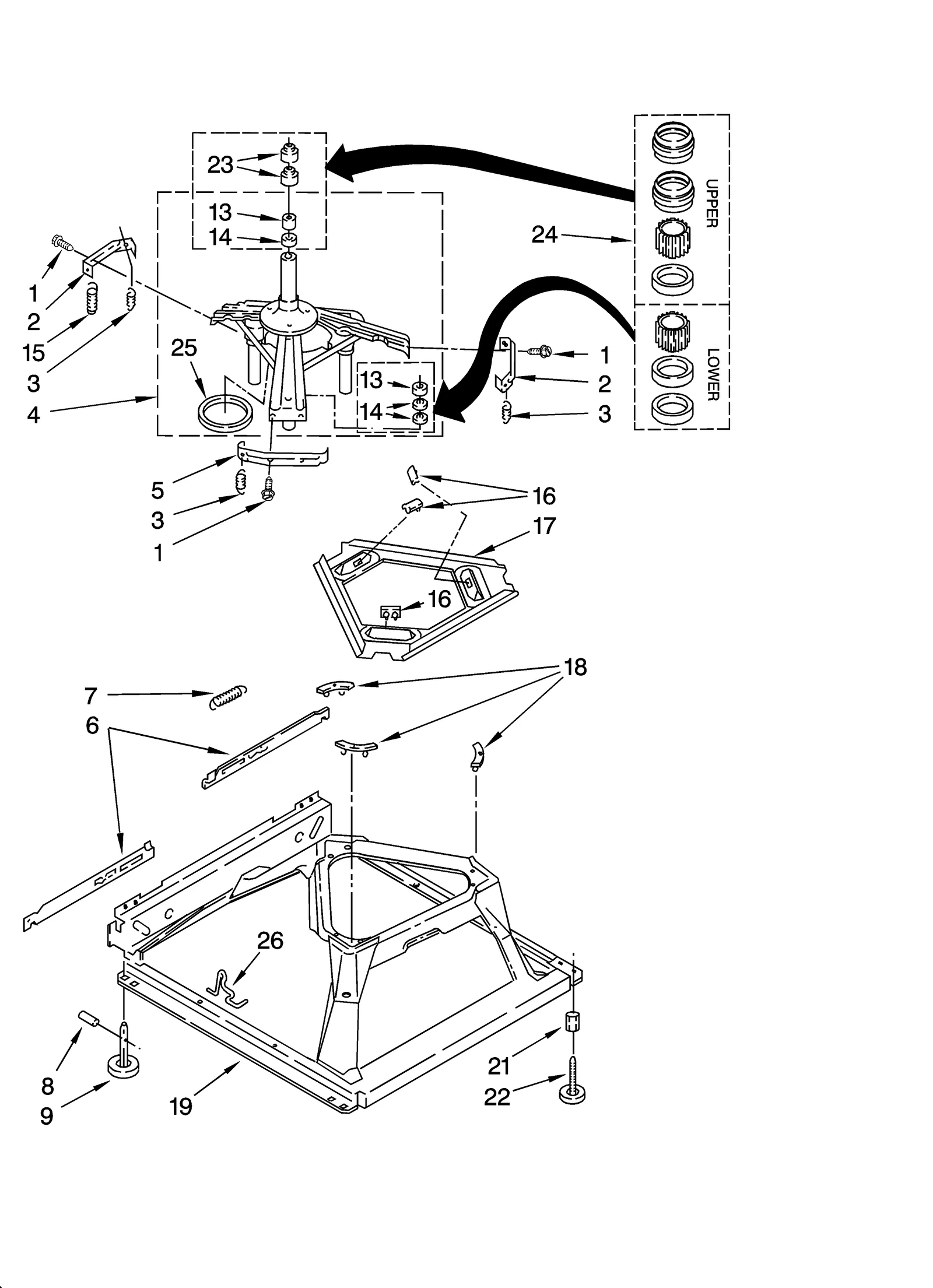

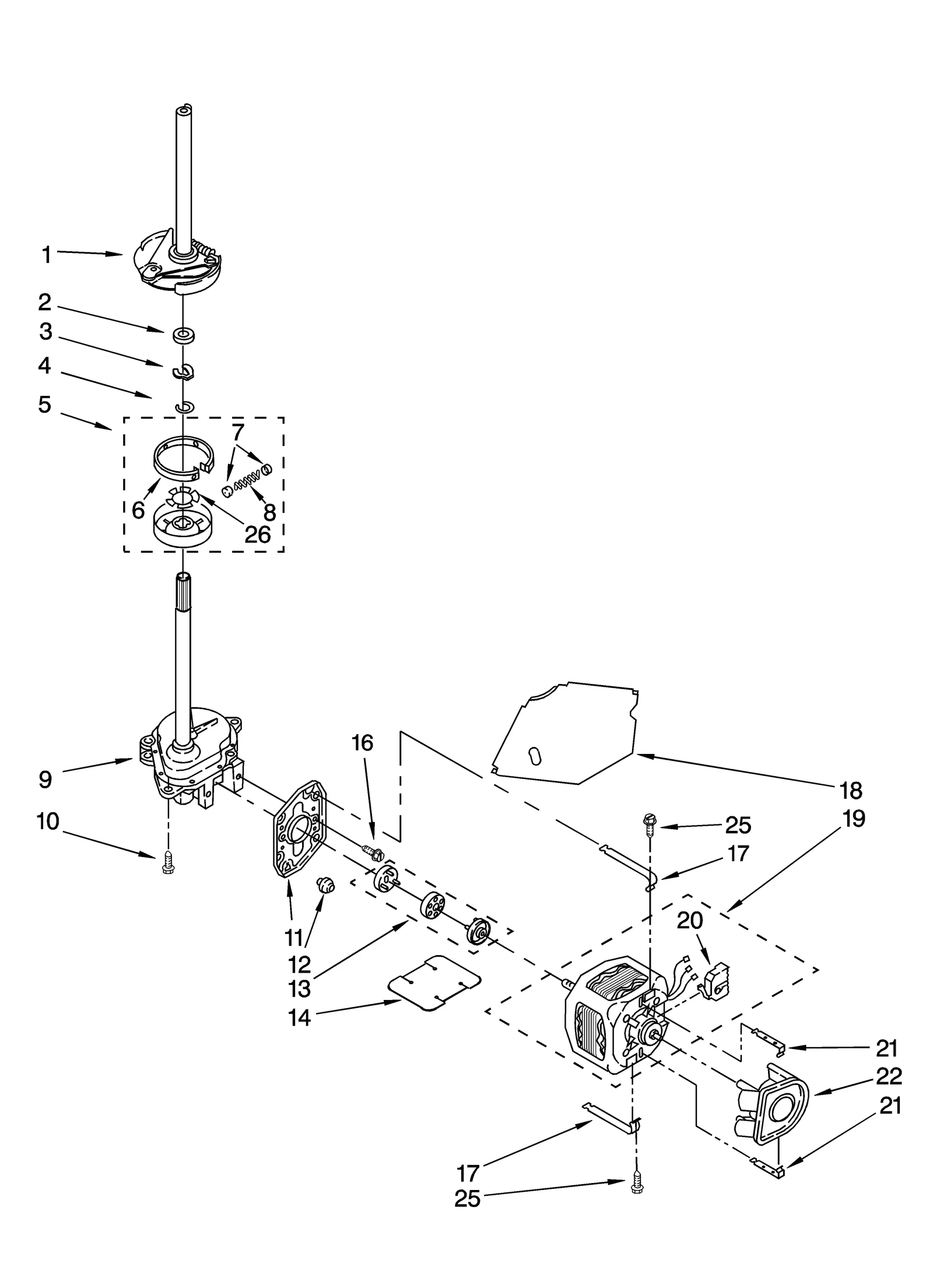

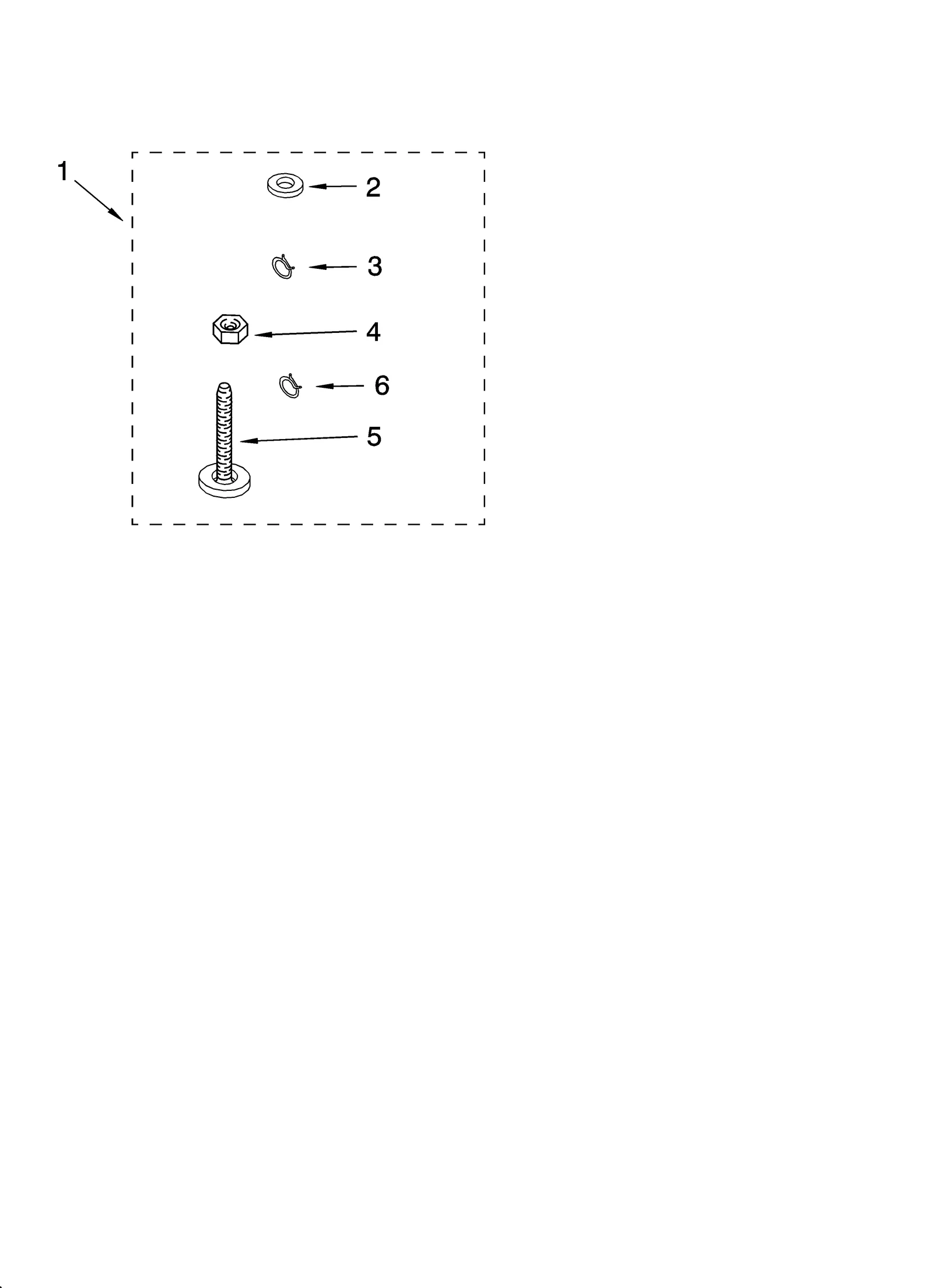

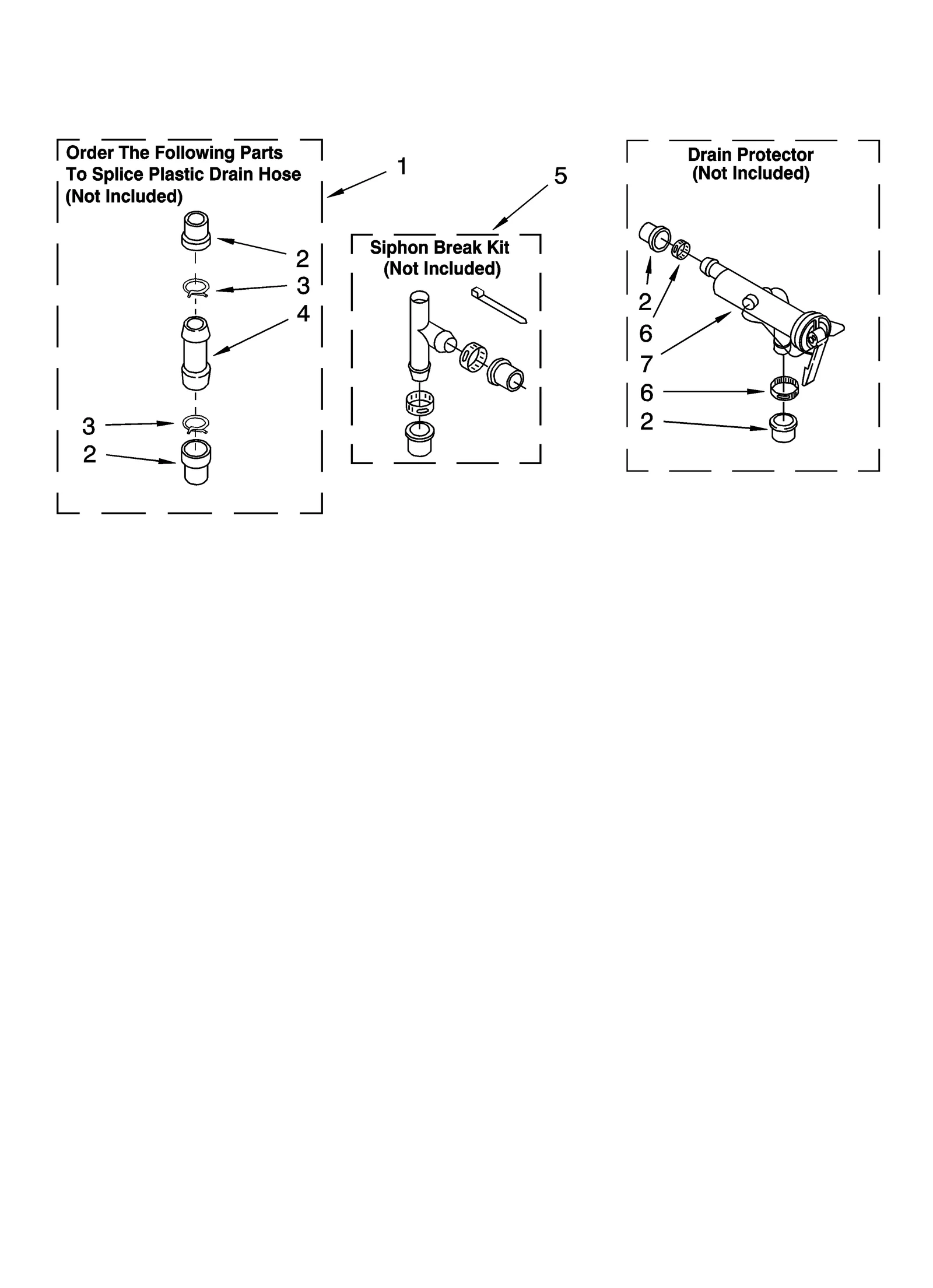

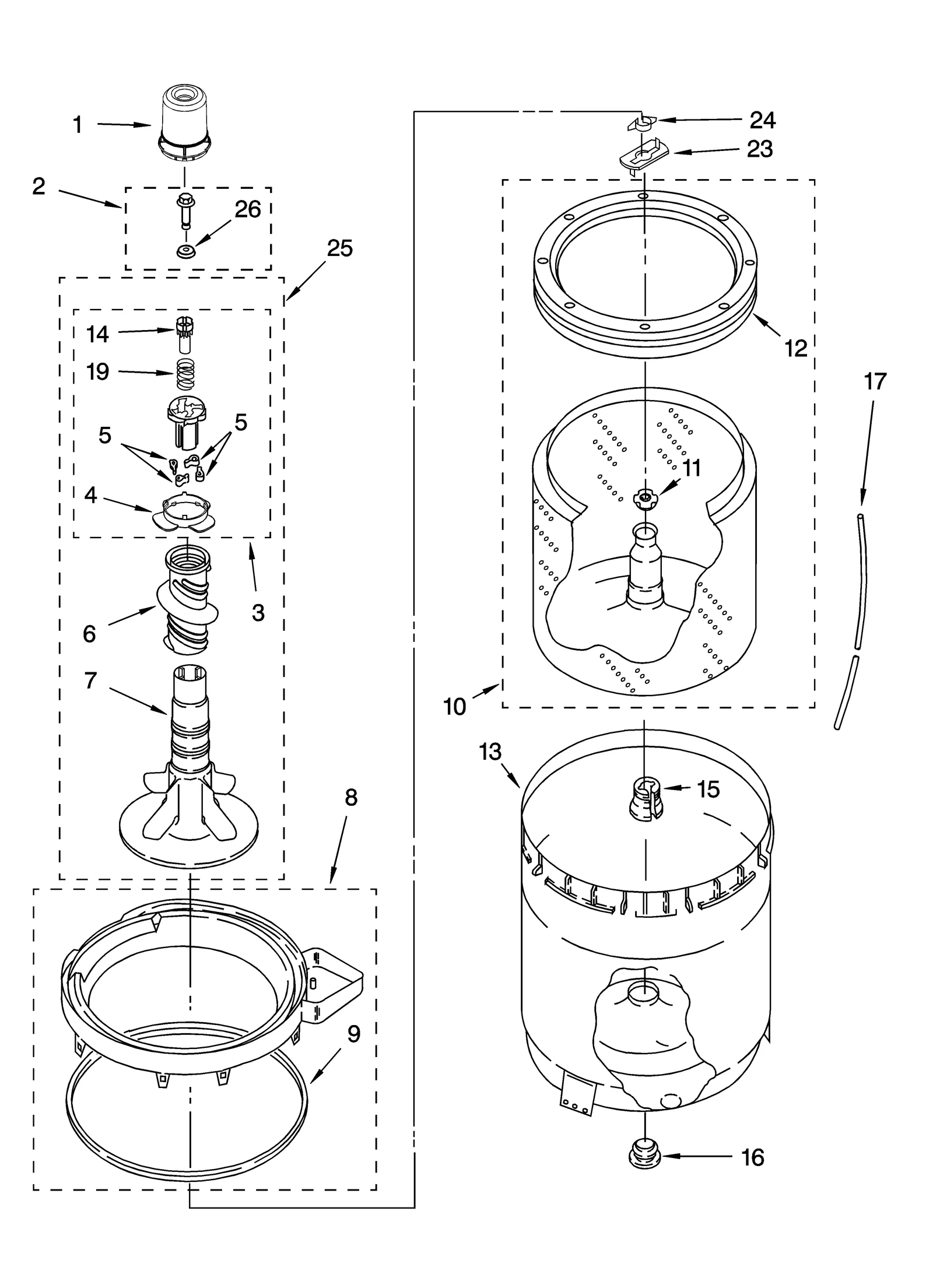

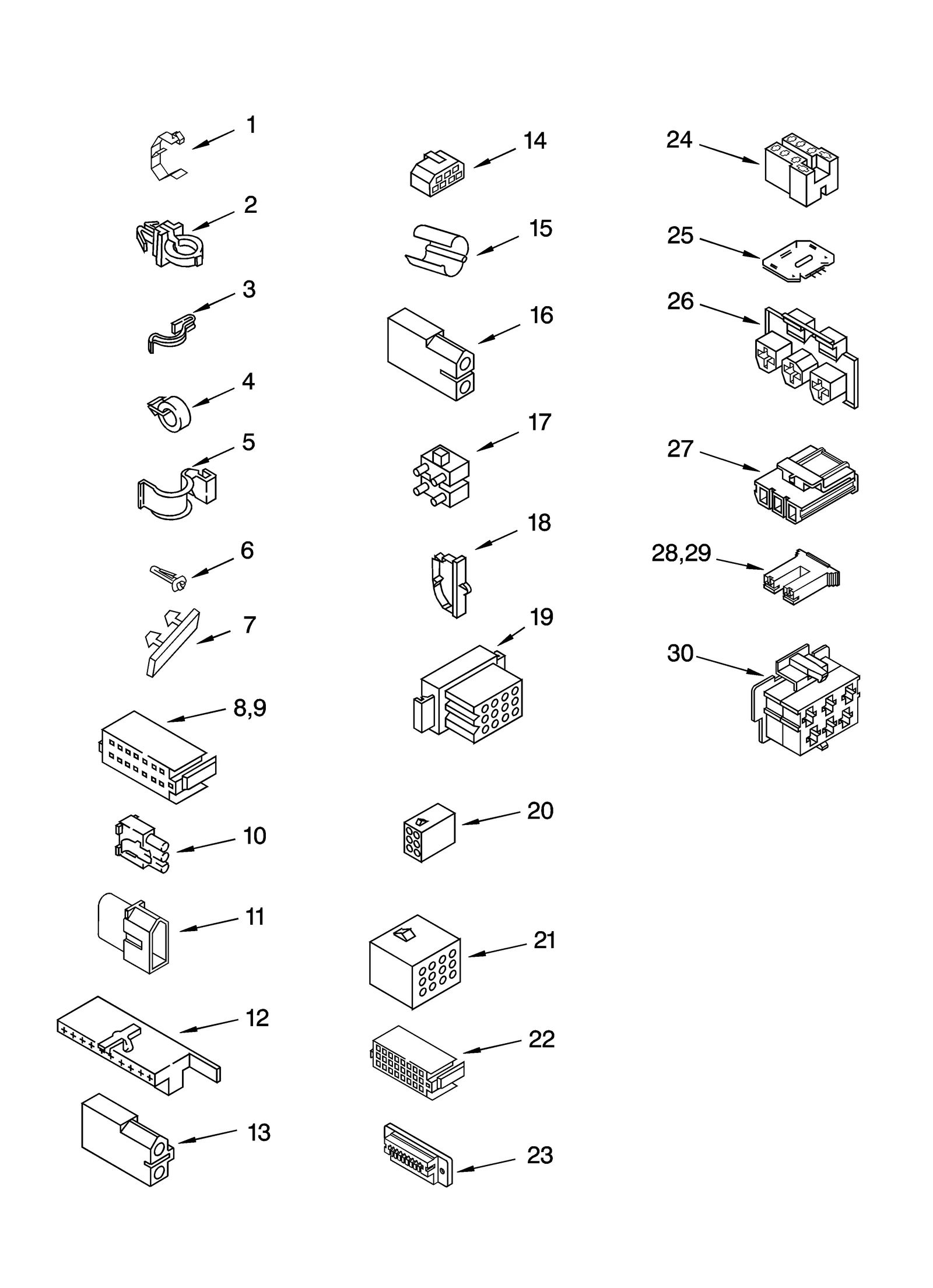

Model Whirlpool 110.24922202 Washer (Kenmore 11024922202) – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $2.51

1

WP8528278 Whirlpool Washer Fabric Softener Di In Stock WPL WP8528278 $6.41

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Installation Instructions WPL LIT8537142 Contact Us For Availability

1A

Laundry Guide WPL LIT8537146 Contact Us For Availability

1B

Owner's Manual WPL LIT8537143 Contact Us For Availability

1C

Wiring Diagram WPL LIT8539980 Contact Us For Availability

1D

Energy Guide WPL LIT8528458 Contact Us For Availability

1E

Parts List WPL LIT8543418 Contact Us For Availability

1F

(338471) (ALT.) WPL N/P Contact Us For Availability

1G

Repair Manual WPL LIT4314044 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Washer Top Panel (White) WPL 3949958 Contact Us For Availability

2A

Top WPL 3954464 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP8537433 Whirlpool Agitator Cam In Stock WPL WP8537433 $36.67

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support WPL 3362087 Contact Us For Availability

4

Sound Absorber WPL 3349654 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

Bracket WPL 64065 Contact Us For Availability

5A

Washer Cabinet WPL 3954357 Contact Us For Availability

6

Washer Drain Hose Support Clip WPL 3976395 No Longer Available

6

W11480892 Whirlpool Washer Agitator Auger In Stock WPL W11480892 $38.52

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Harness Clip WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP3947517 Whirlpool Agitator Backorder WPL WP3947517 $83.15

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Block (White) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

Washer Control Knob (Gray and White) WPL 3402576 Contact Us For Availability

9A

Dryer Timer Knob (White) WPL 3402575 Contact Us For Availability

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

11

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $19.82

11

Washer Terminal Connector WPL 353424 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Washer Timer Dial WPL 3949432 Contact Us For Availability

12A

Washer Timer Dial (Bisque) WPL 3949431 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $132.68

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Washer Timer Knob (Gray and White) WPL 3948416 Contact Us For Availability

Connector WPL 3348075 Contact Us For Availability

13A

Washer Control Knob WPL 3948415 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $3.70

Washer Cycle Selector Switch WPL 3953144 Contact Us For Availability

Connector WPL 3347243 Contact Us For Availability

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $30.38

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Receptacle WPL 717252 Contact Us For Availability

17

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

17

Connector WPL 387566 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

Harness Clip WPL 3352944 Contact Us For Availability

WP3955337 Whirlpool Timer Backorder WPL WP3955337 $198.42

WP8529935 Whirlpool Drive Motor In Stock WPL WP8529935 $250.47

Connector WPL 3390423 Contact Us For Availability

Base WPL 3946512 Contact Us For Availability

Lid (White) WPL 8526145 Contact Us For Availability

19A

Lid WPL 8526147 Contact Us For Availability

20

Washer Motor Switch WPL 8529896 Contact Us For Availability

20

Connector WPL 3347730 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Connector WPL 3369366 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Connector WPL 3349494 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

24

Housing WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8538246 Whirlpool Agitator In Stock WPL WP8538246 $229.50

25

Washer Water Temperature Control Board WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

27

Connector WPL 3360056 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

28

Washer Cold Water Inlet Valve Wire Connector WPL 3354925 Contact Us For Availability

29

Connector WPL 3354926 Contact Us For Availability

30

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.20

30

Shield WPL 8539874 Contact Us For Availability

30

Connector WPL 3948615 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

Paint (White) WPL 799344 Contact Us For Availability
