Model Whirlpool 110.20952991 Washer (Kenmore 11020952991) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

1

285975 Whirlpool Dispenser Assembly Backorder WPL 285975 $45.80

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Replacement Part WPL 3976252 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

1B

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

2

285321 Whirlpool Sleeve Backorder WPL 285321 $29.77

2

W10244343 Whirlpool Agitator Cam Backorder WPL W10244343 $34.18

2

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $40.89

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

285825 Whirlpool Washer Agitator Cam Kit In Stock WPL 285825 $36.67

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

Washer Water Temperature Switch WPL 661615 Contact Us For Availability

4

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $46.54

4

WP8055141 Whirlpool Bearing Assembly Backorder WPL WP8055141 $3.70

5

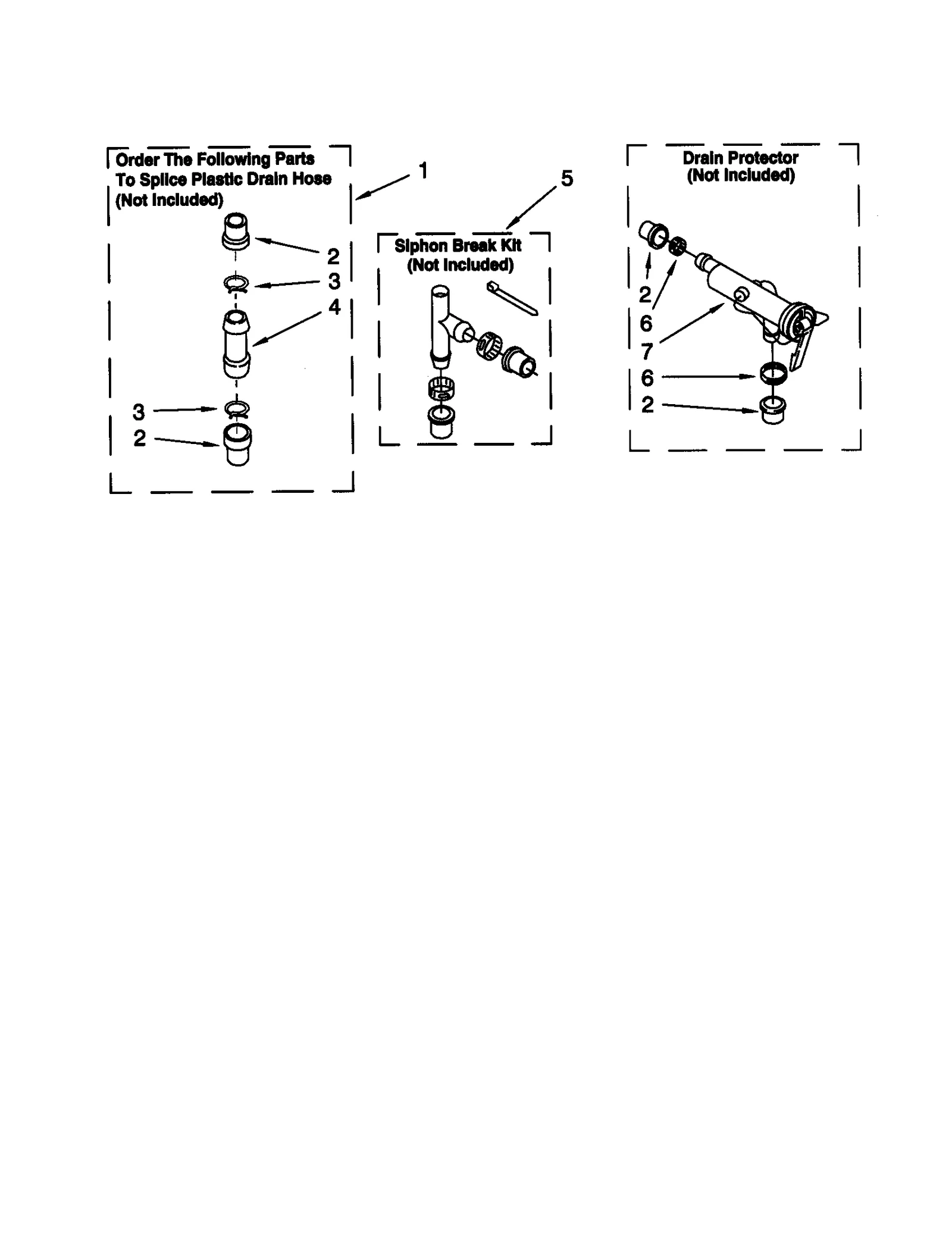

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8299642 Whirlpool Clutch In Stock WPL WP8299642 $68.96

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket WPL 64065 Contact Us For Availability

5

Shield Valve WPL 8280536 Contact Us For Availability

5

Wire Harness WPL 3954042 Contact Us For Availability

6

W10817888 Whirlpool Lining In Stock WPL W10817888 $49.15

6

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

285838 Whirlpool Agitator Backorder WPL 285838 $144.98

7

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

7

Washer Drain Protector WPL 367031 Contact Us For Availability

7A

End Cap WPL 3949283 Contact Us For Availability

7B

End Cap WPL 3949281 Contact Us For Availability

8

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $85.31

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Relief Stirrer WPL 3952821 Contact Us For Availability

8

Replacement Part WPL 3359454 Contact Us For Availability

8A

Trim WPL 3953668 Contact Us For Availability

8B

Trim WPL 3951014 Contact Us For Availability

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

9

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

9

Washer Control Knob WPL 3402572 Contact Us For Availability

9A

WP3402573 Whirlpool Appliance Knob Backorder WPL WP3402573 $42.58

9B

Washer Control Knob WPL 3402574 Contact Us For Availability

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $73.56

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Hinge Panel WPL 387402 Contact Us For Availability

10A

End Cap WPL 3949277 Contact Us For Availability

10B

End Cap WPL 3949275 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $80.37

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $60.54

Washer Terminal Connector WPL 353424 Contact Us For Availability

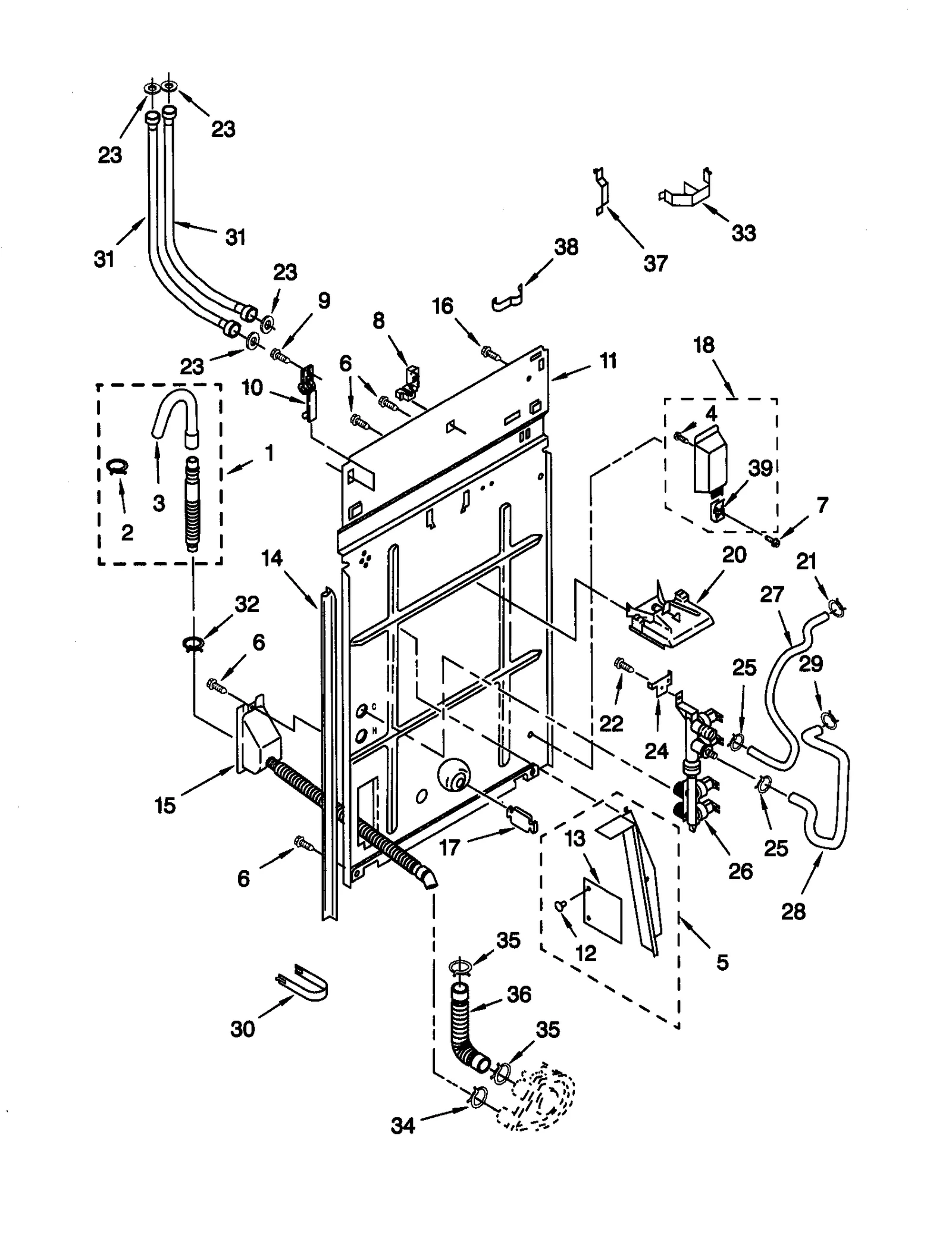

Rear Panel WPL 8299637 Contact Us For Availability

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $102.72

Washer Timer Dial WPL 3949428 Contact Us For Availability

12A

Dial WPL 3949429 Contact Us For Availability

12B

Dial WPL 3949430 Contact Us For Availability

13

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

13

Shield WPL 8272150 Contact Us For Availability

13

Washer Control Knob WPL 3948412 Contact Us For Availability

13A

Washer Timer Knob (Black) WPL 3948413 Contact Us For Availability

13B

Knob WPL 3948414 Contact Us For Availability

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

14

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

14A

Trim WPL 3953667 Contact Us For Availability

14B

Trim WPL 3951010 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

Hinge Washer WPL 8055257 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

Clip WPL 8283343 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

16

Receptacle WPL 717252 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Connector WPL 387566 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $14.59

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Harness Clip WPL 3352944 Contact Us For Availability

Microcomputer WPL 8299621 Contact Us For Availability

WP3946995 Whirlpool Retainer Backorder WPL WP3946995 $19.42

Washer Drive Motor WPL 8299649 Contact Us For Availability

Connector WPL 3390423 Contact Us For Availability

Washer Timer WPL 3953251 Contact Us For Availability

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $22.78

WP8578209 Whirlpool Agitator In Stock WPL WP8578209 $93.40

Washer Bleach Dispenser Assembly WPL 8272137 Contact Us For Availability

Connector WPL 3347730 Contact Us For Availability

Washer Water Temperature Control Board WPL 3407125 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.41

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

Washer Lid Seal WPL 8054939 Contact Us For Availability

Connector WPL 388818 Contact Us For Availability

21A

Washer Lid Seal WPL 8283532 Contact Us For Availability

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $62.61

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP8055140 Whirlpool Spring Backorder WPL WP8055140 $12.00

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Connector WPL 3369366 Contact Us For Availability

23

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

23

Connector WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $2.51

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

Housing WPL 60687 Contact Us For Availability

Bracket WPL 8271909 Contact Us For Availability

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

Washer Water Inlet Valve WPL 8271960 Contact Us For Availability

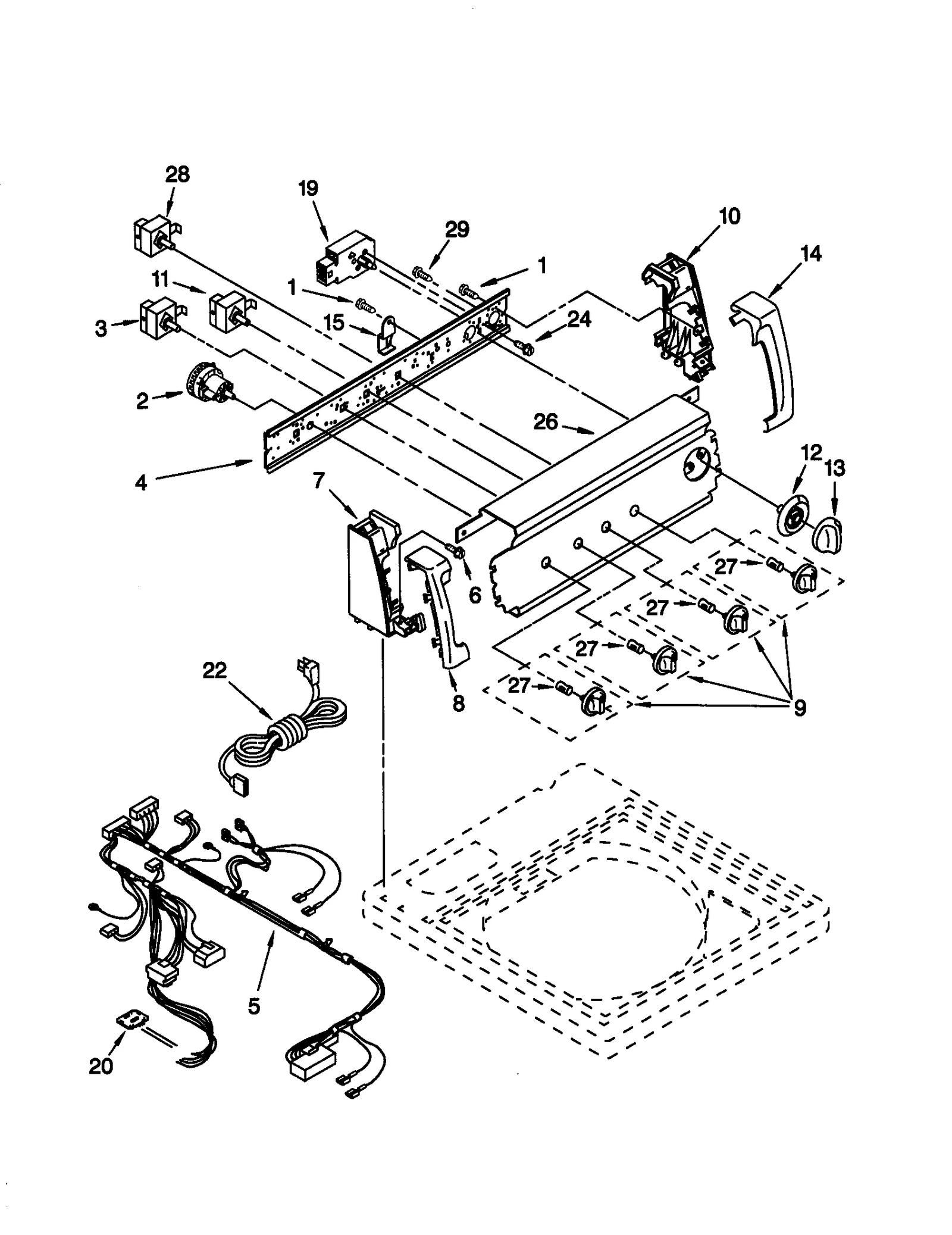

Control Panel WPL 3953357 Contact Us For Availability

26A

Control Panel WPL 3953359 Contact Us For Availability

26B

Control Panel WPL 3953358 Contact Us For Availability

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $9.70

Connector WPL 3360056 Contact Us For Availability

Hose WPL 8280532 Contact Us For Availability

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

Washer Cold Water Inlet Valve Wire Connector WPL 3354925 Contact Us For Availability

Hose WPL 8055327 Contact Us For Availability

Washer Cycle Selector Switch WPL 3953141 Contact Us For Availability

29

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

29

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

29

Connector WPL 3354926 Contact Us For Availability

30

Connector WPL 3948615 Contact Us For Availability

30

Clip WPL 8272128 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

33

Retainer WPL 8055003 Contact Us For Availability

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

37

Retainer WPL 8054658 Contact Us For Availability

38

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

39

WP3400915 Whirlpool Nut Backorder WPL WP3400915 $2.98

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
