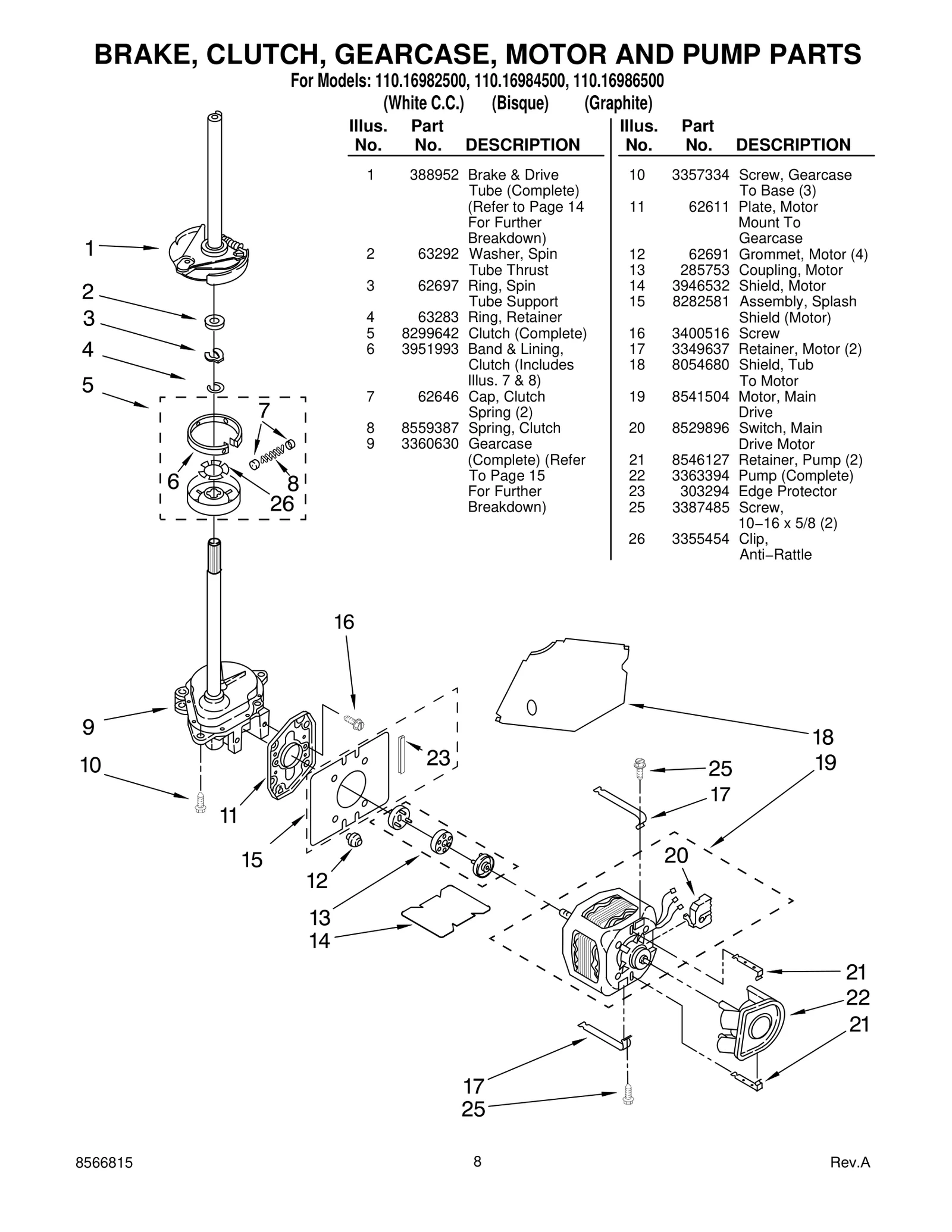

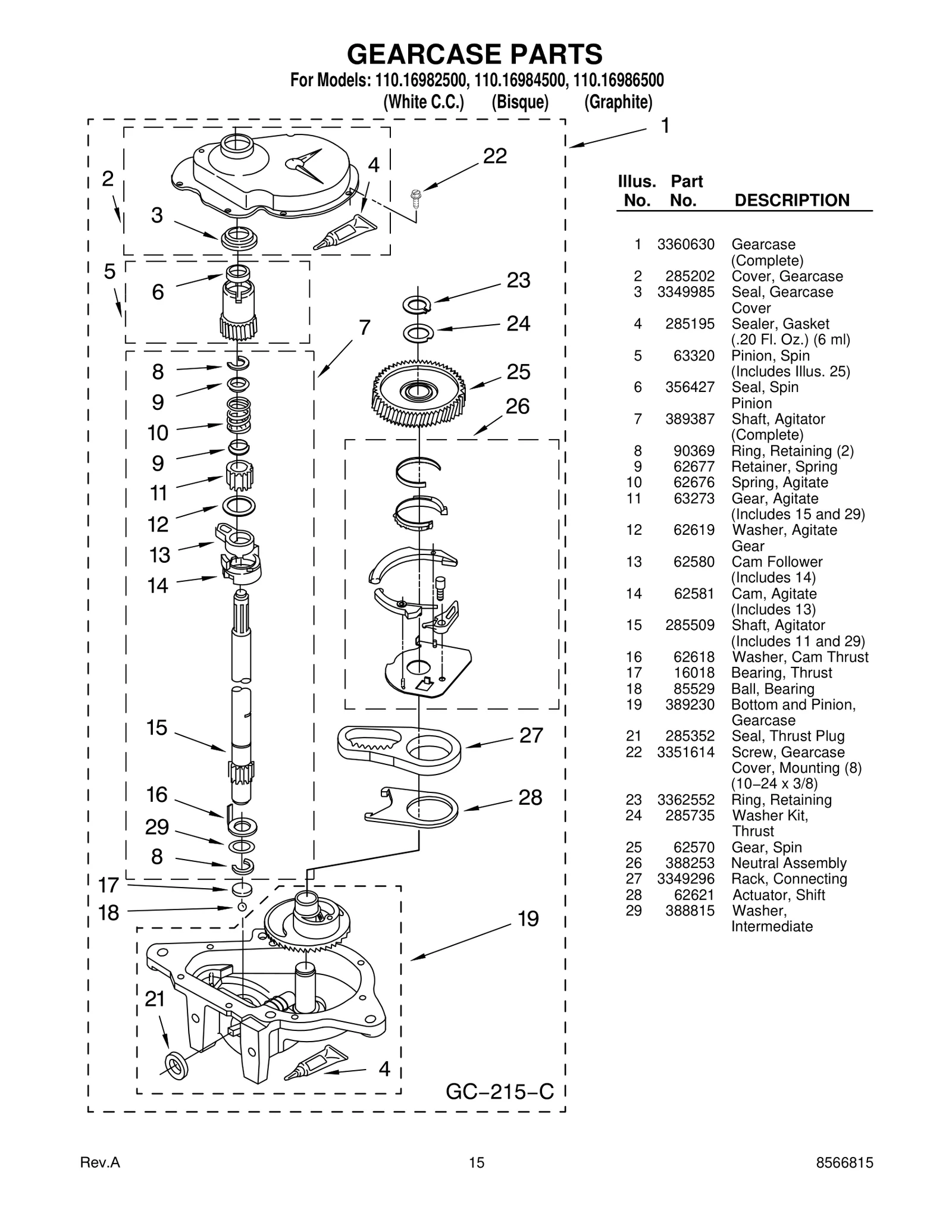

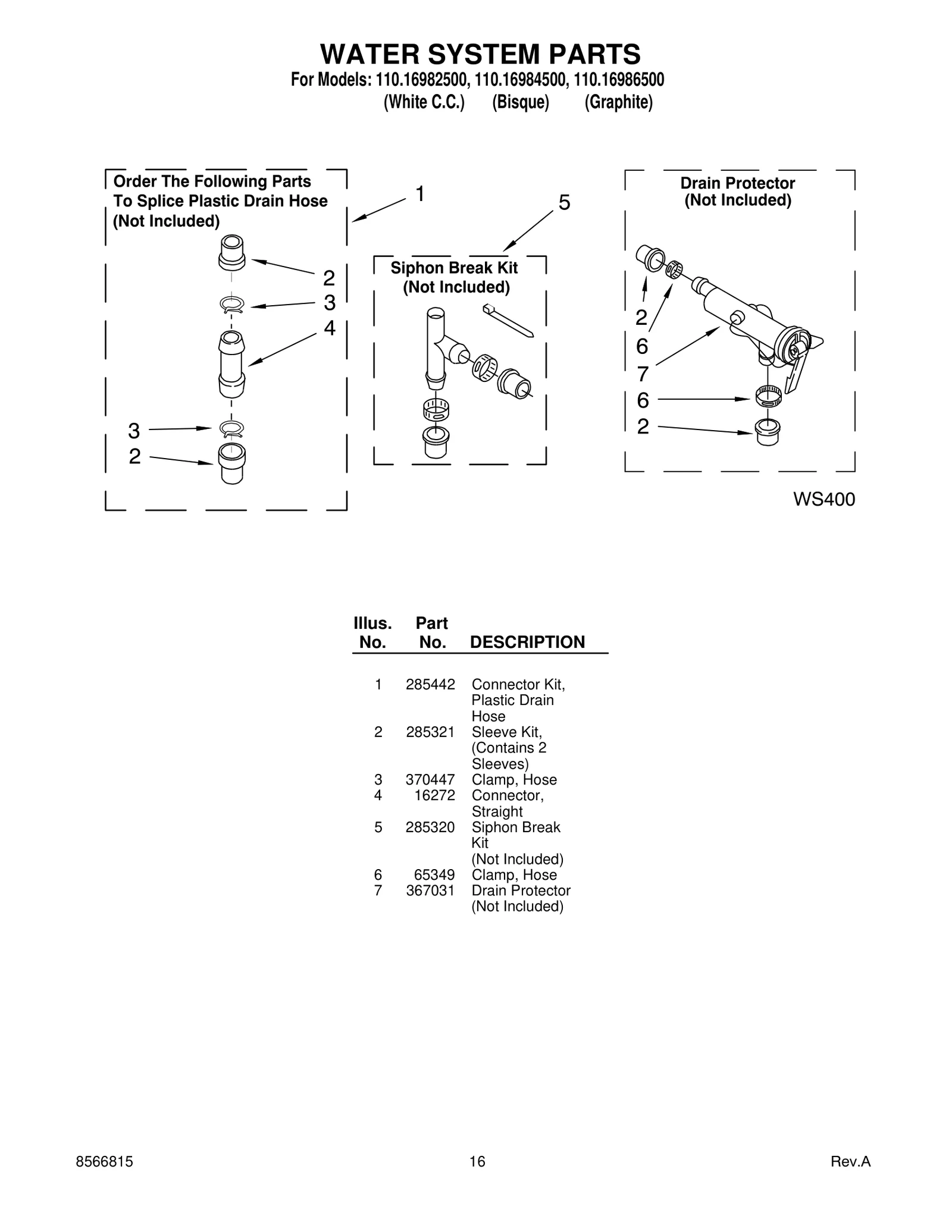

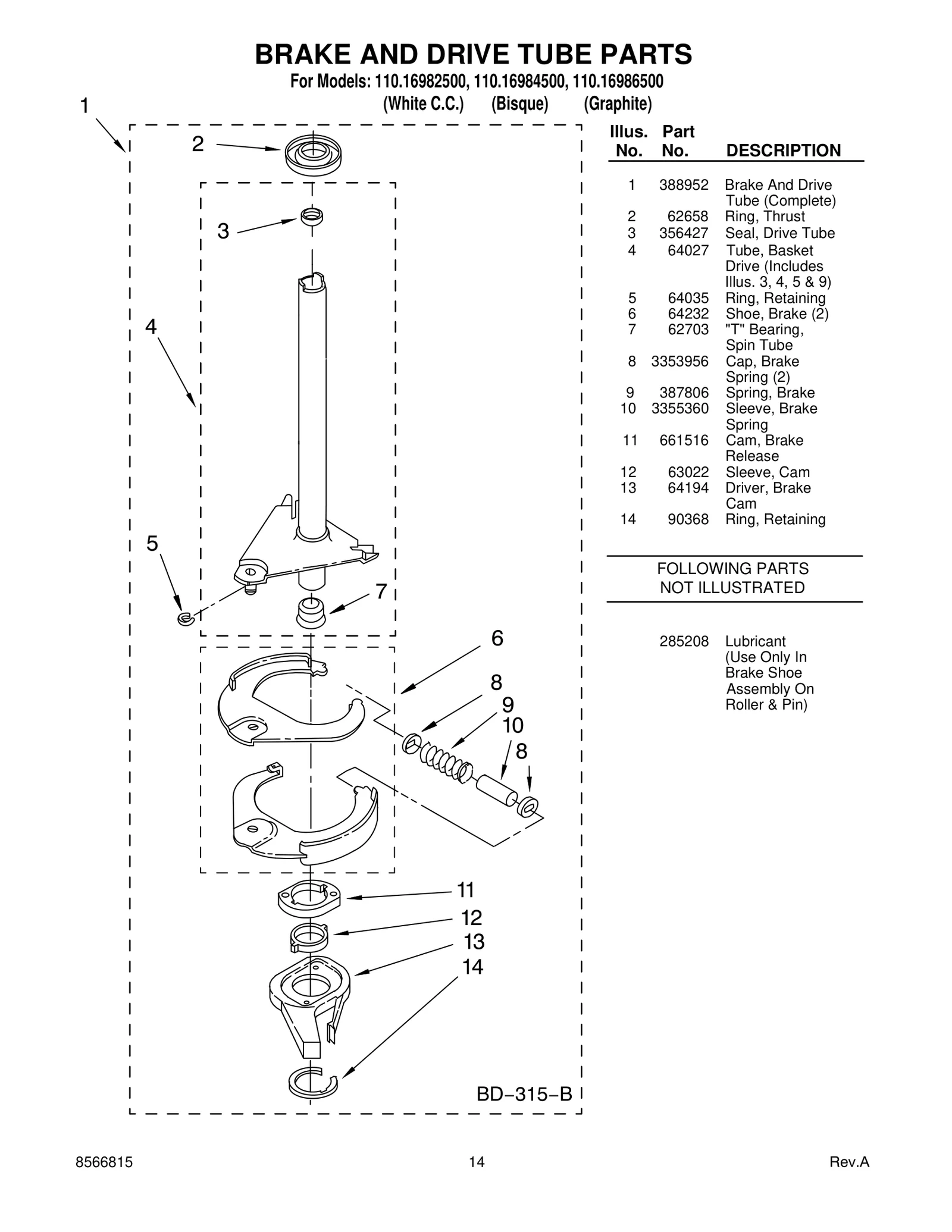

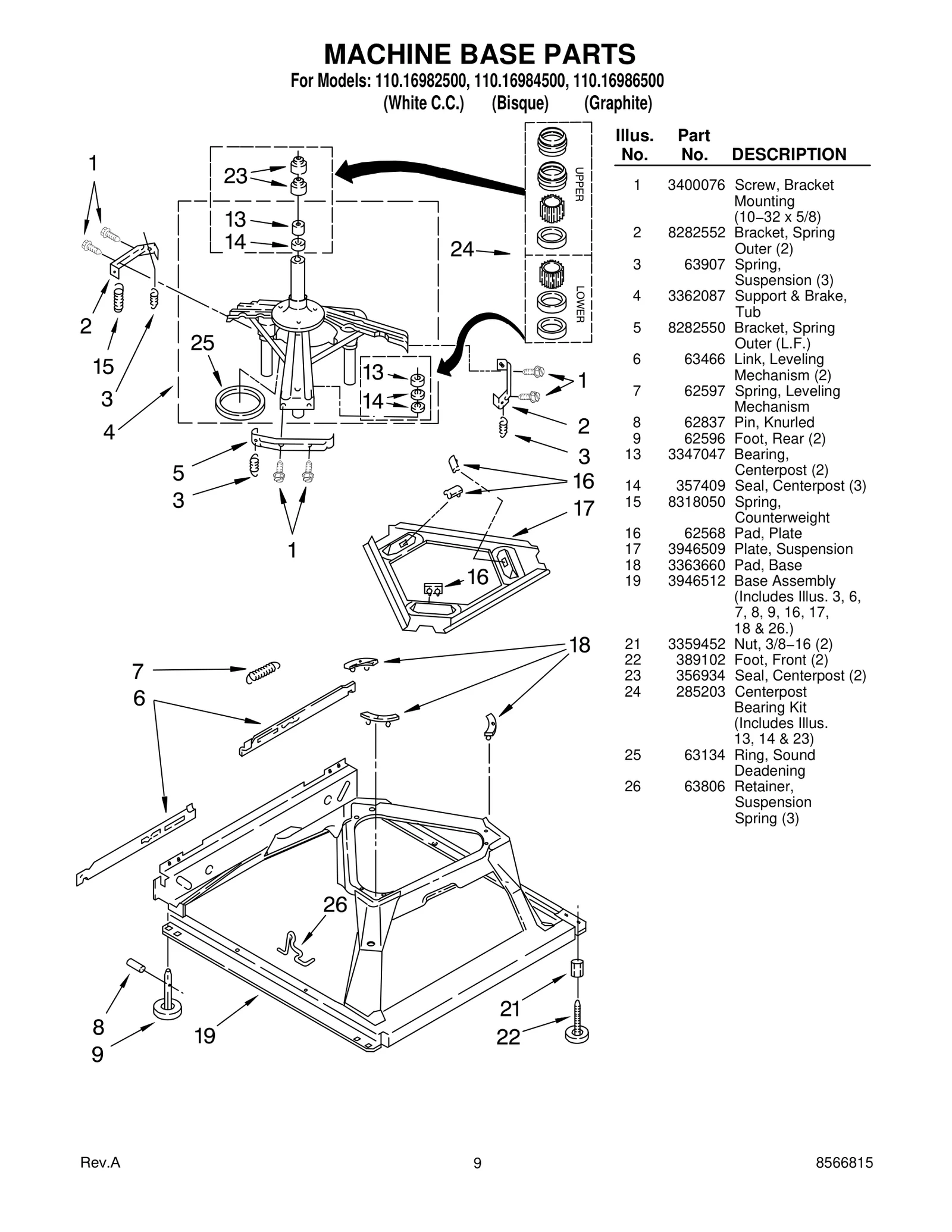

Model Whirlpool 110.16982500 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

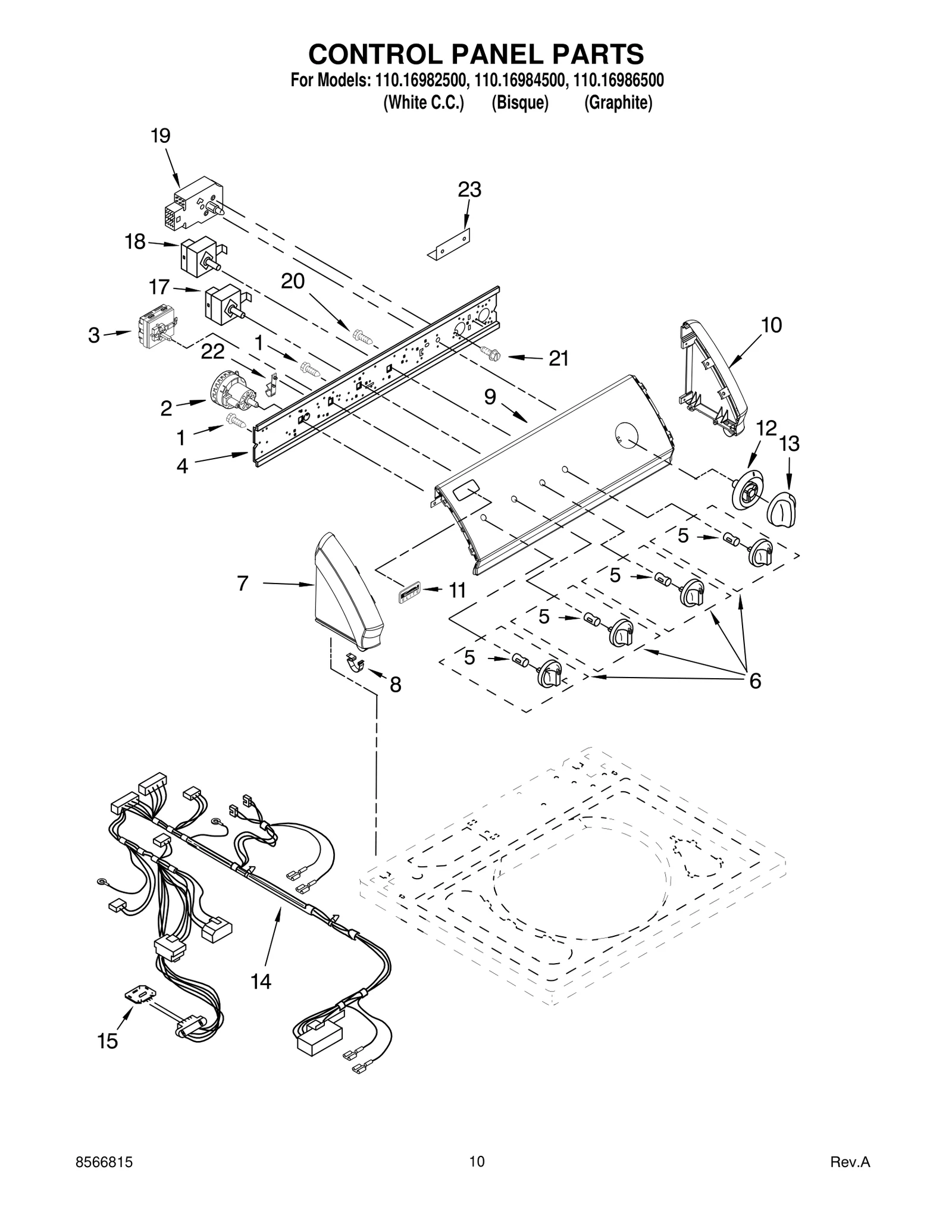

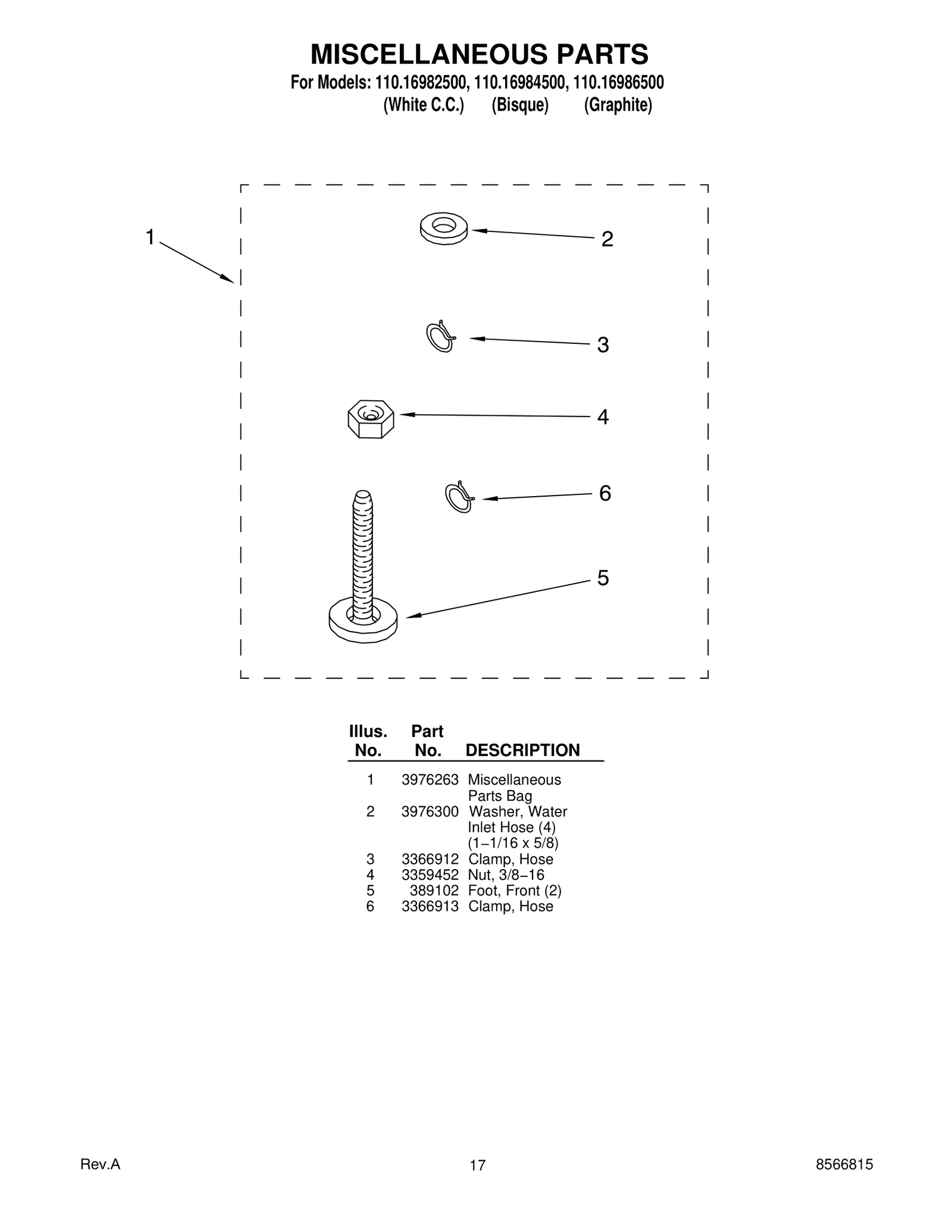

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP8537434 Whirlpool Agitator Cam Backorder WPL WP8537434 $50.80

3

Switch, Water Temperature (ATC) WPL 8572525 Contact Us For Availability

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

4

Cabinet −Sound Damper (3) WPL 3976348 Contact Us For Availability

4

Clip, Drape WPL 8282566 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP8299642 Whirlpool Clutch In Stock WPL WP8299642 $68.96

5

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.88

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

6

W10816321 Whirlpool Knob Backorder WPL W10816321 $35.59

6

W10817888 Whirlpool Lining In Stock WPL W10817888 $49.15

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Knob, Control — Bisque WPL 8541469 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

Clamp, Hose WPL 3976395 No Longer Available

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $42.77

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $8.69

8

Timer, Block Disconnect — White WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

Seal, Tub Ring WPL 8054355 Contact Us For Availability

9

Panel, Console — White WPL 8566615 Contact Us For Availability

9

Panel, Console — Bisque WPL 8566649 Contact Us For Availability

9

Panel, Console — Graphite WPL 8566650 Contact Us For Availability

9

Spring, Brake WPL 387806 Contact Us For Availability

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $42.62

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Plug, Terminal WPL 353424 Contact Us For Availability

Cap, End (R.H.) — Bisque WPL 8559514 Contact Us For Availability

Cap, End (R.H.) — Graphite WPL 8559515 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $80.37

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Medallion WPL 8557504 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Dial and Guard, Timer — White WPL 8541465 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

Dial and Guard, Timer — Bisque WPL 8541466 Contact Us For Availability

Dial and Guard, Timer — Graphite WPL 8541467 Contact Us For Availability

Block, Disconnect WPL 3347243 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

Knob, Timer — White WPL 8541457 Contact Us For Availability

Tub WPL 8055061 Contact Us For Availability

Knob, Timer — Graphite WPL 8541459 Contact Us For Availability

Knob, Timer — Bisque WPL 8541458 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $102.72

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

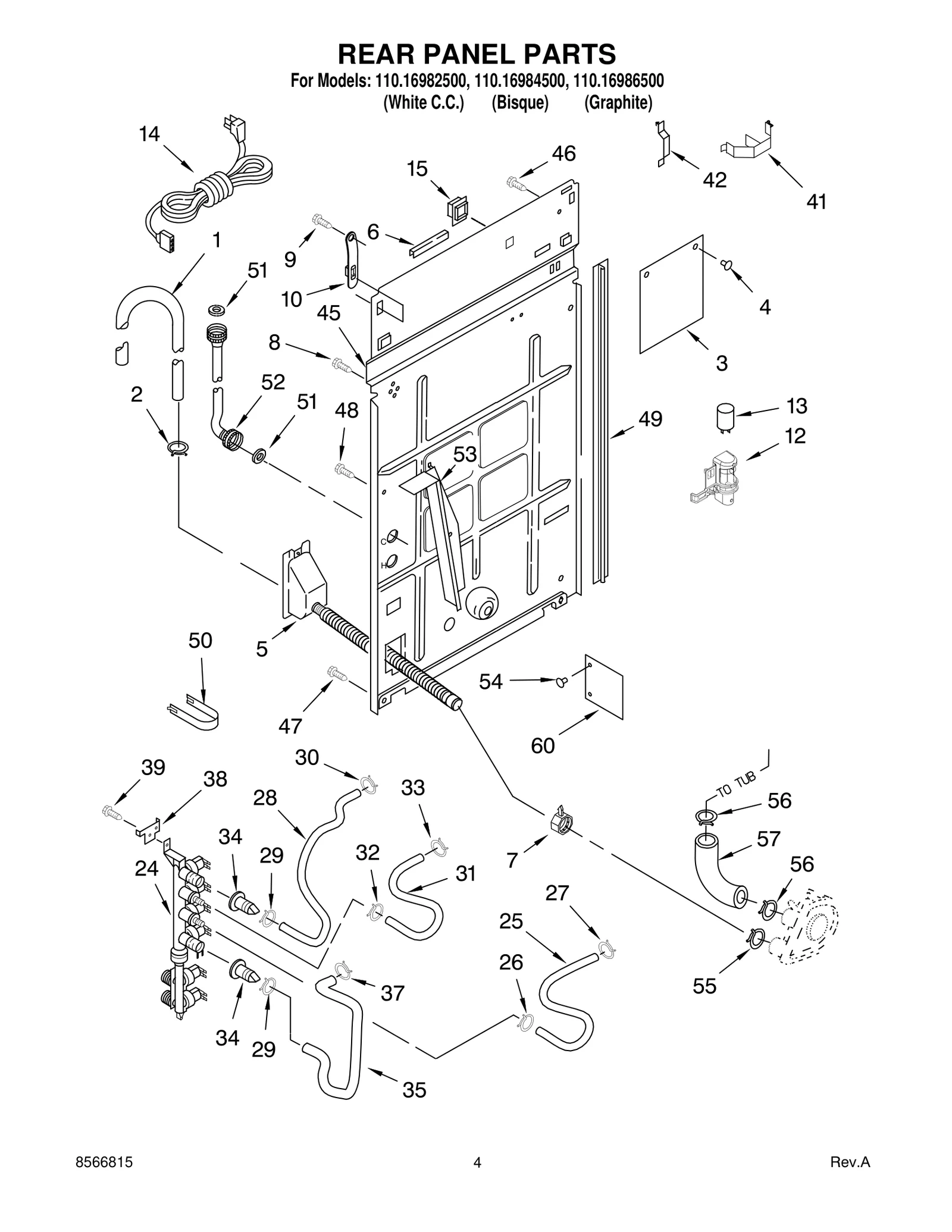

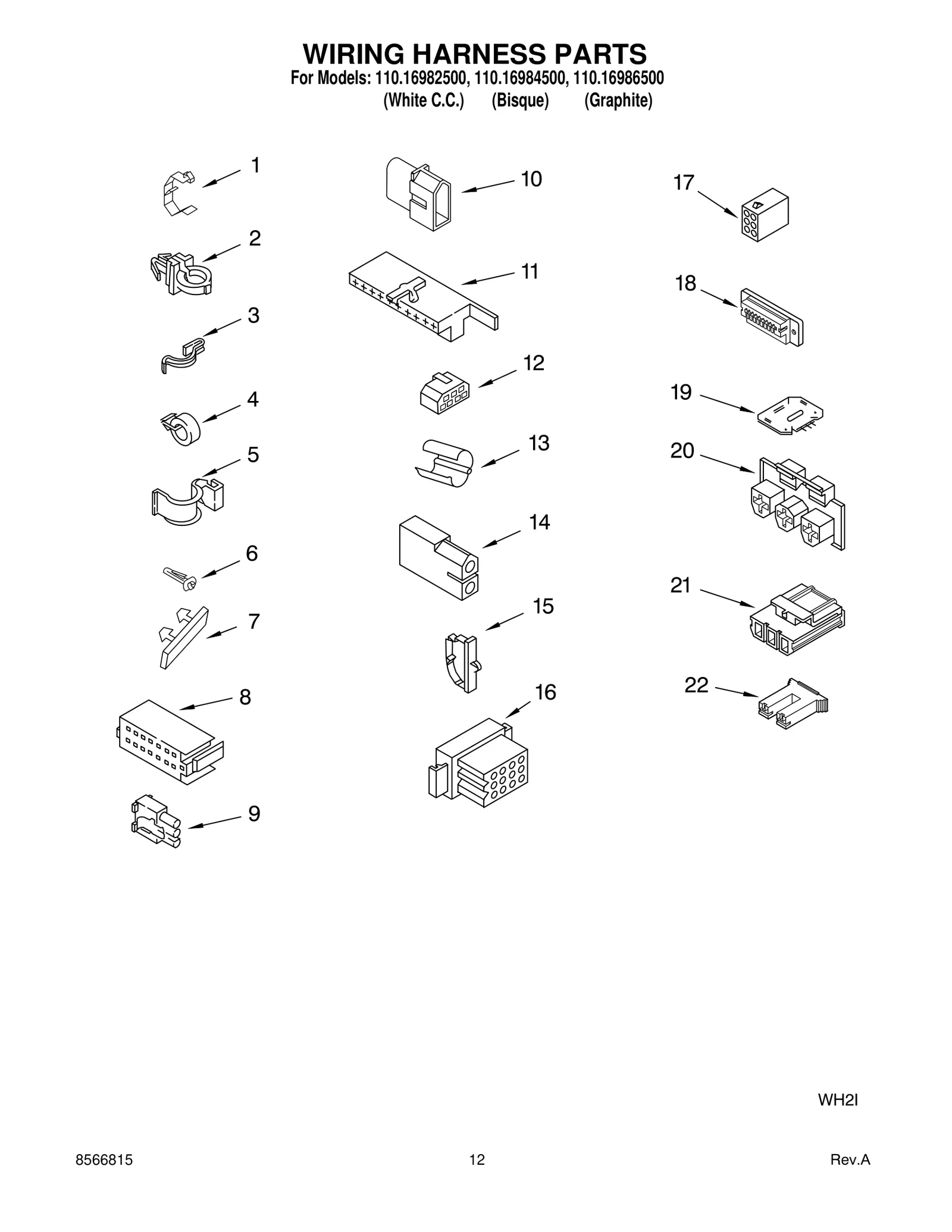

Harness, Wiring (For Detail, See Pages 12 & 1 WPL 3957365 Contact Us For Availability

Connector WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

Hinge, Lid WPL 8055257 Contact Us For Availability

Control, DTC WPL 8571877 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

For Models: 110.16982500, 110.16984500, 110.1 WPL N/S Contact Us For Availability

Block, Disconnect WPL 3390423 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Switch, Rotary WPL 3950357 Contact Us For Availability

Receptacle WPL 3347730 Contact Us For Availability

18

WP3954573 Whirlpool Cycle Switch Backorder WPL WP3954573 $109.35

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

Connector, Etc WPL 3349494 Contact Us For Availability

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $9.70

Motor, Main Drive WPL 8541504 Contact Us For Availability

Timer, 60 Hz (Motor is not a Service Part) WPL 8571845 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

20

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector (T.P.A) WPL 3360056 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

Retainer, Harness WPL 8317975 Contact Us For Availability

Block, Connector — Cold Valve WPL 3354925 Contact Us For Availability

Block, Connector — Hot Valve WPL 3354926 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

23

Shield, ATC WPL 8316039 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Hose, Detergent WPL 8271982 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

Hose, Bleach Outlet WPL 8526793 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

27

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $29.74

28

Hose, Bleach WPL 8271984 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $3.70

31

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $12.15

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

49

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

54

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

57

Hose, Tub to Pump WPL 8055063 Contact Us For Availability

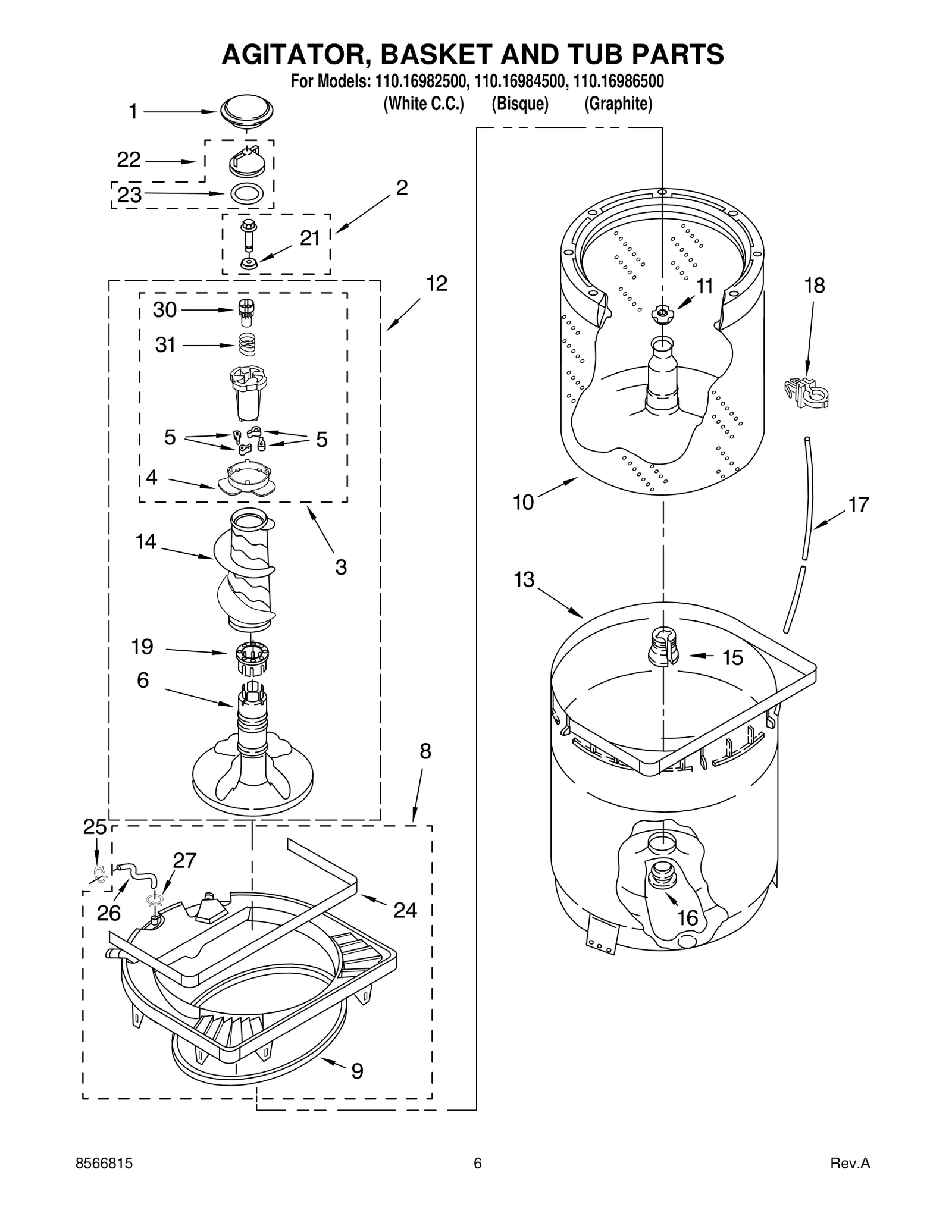

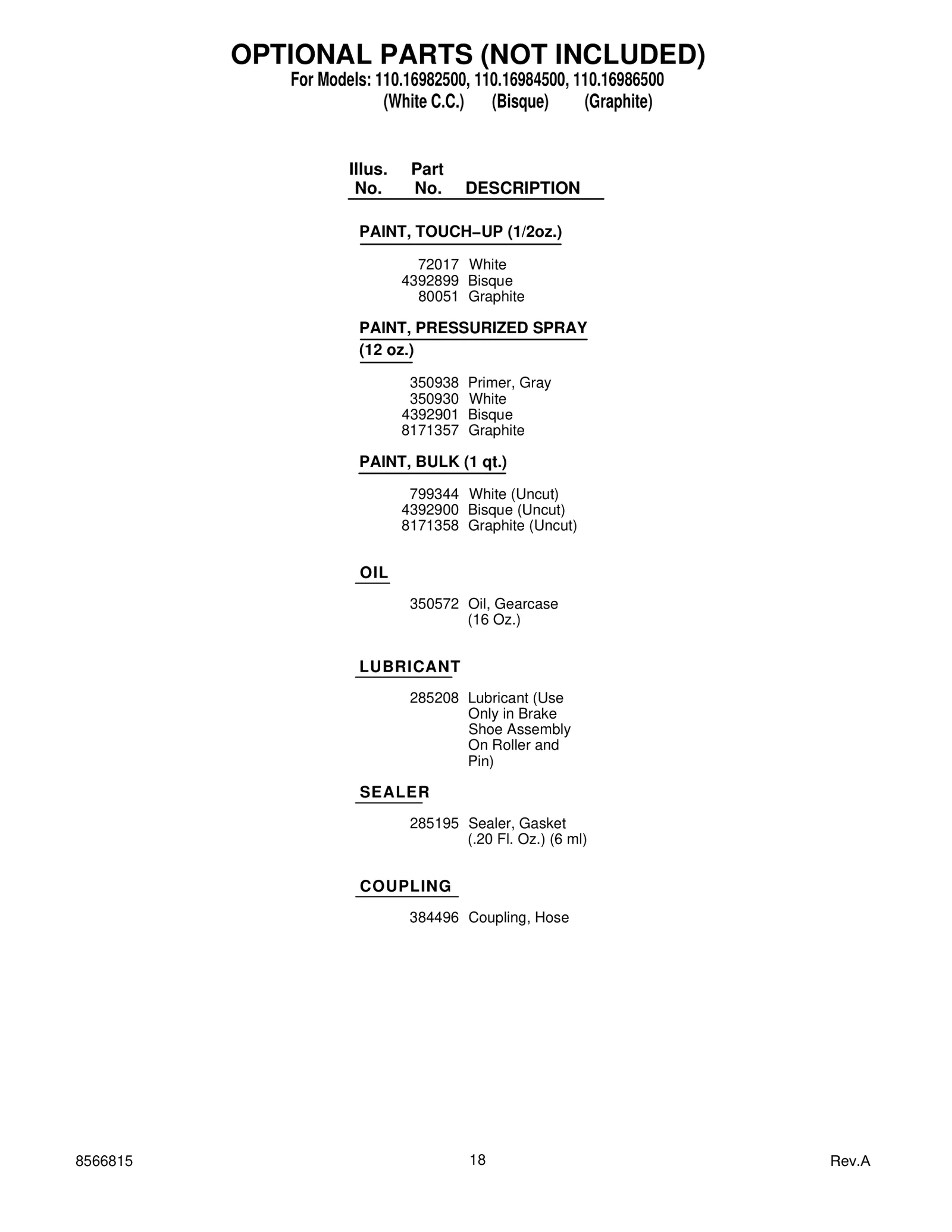

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-2

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

OPT-3

Graphite WPL 80051 Contact Us For Availability

OPT-4

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

OPT-7

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

OPT-8

White (Uncut) WPL 799344 Contact Us For Availability

OPT-9

Bisque (Uncut) WPL 4392900 Contact Us For Availability

OPT-10

Graphite (Uncut) WPL 8171358 Contact Us For Availability

OPT-11

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

OPT-12

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-13

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

OPT-14

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33
