Model Whirlpool YWED9450WR1 ELECTRIC DRYER – Common Parts &amp; Diagrams

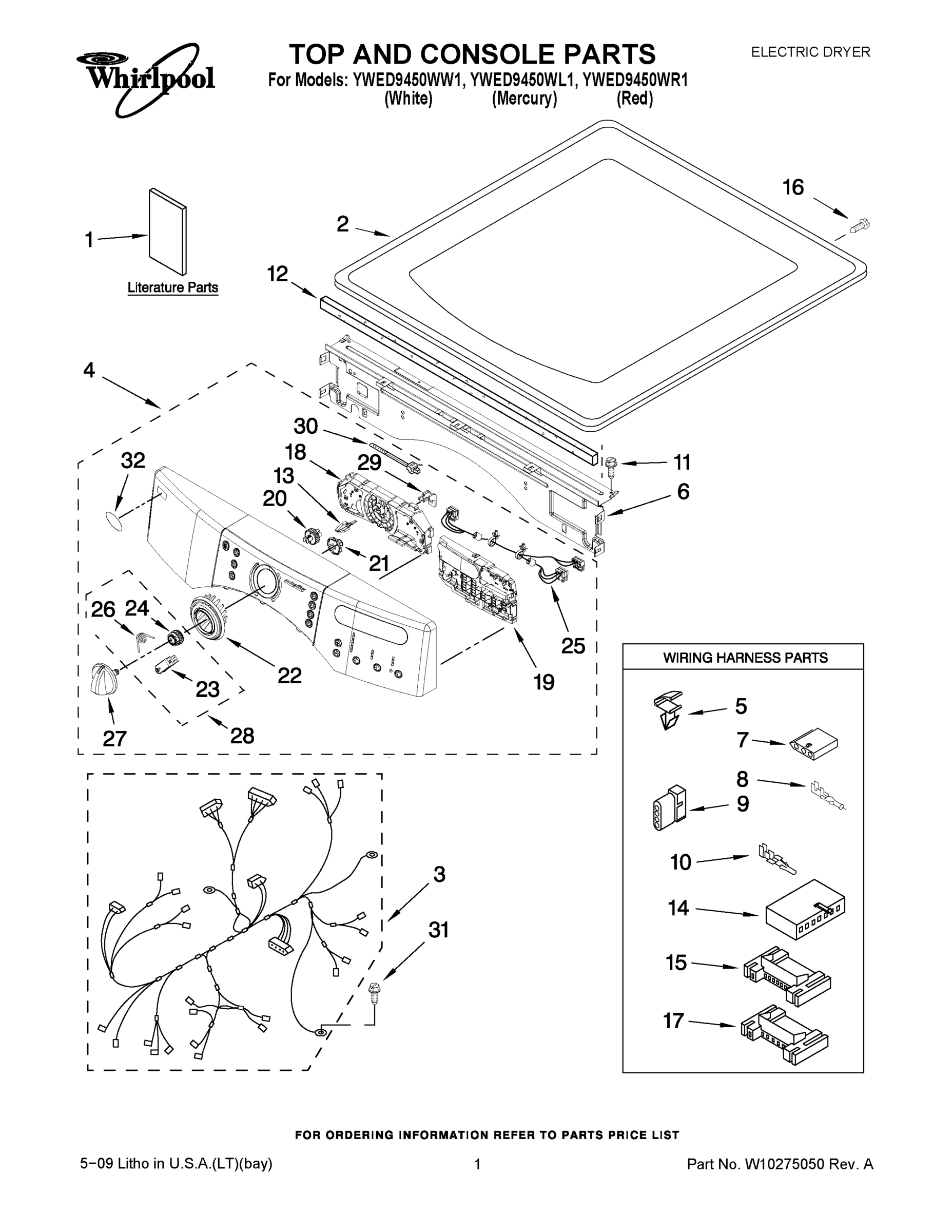

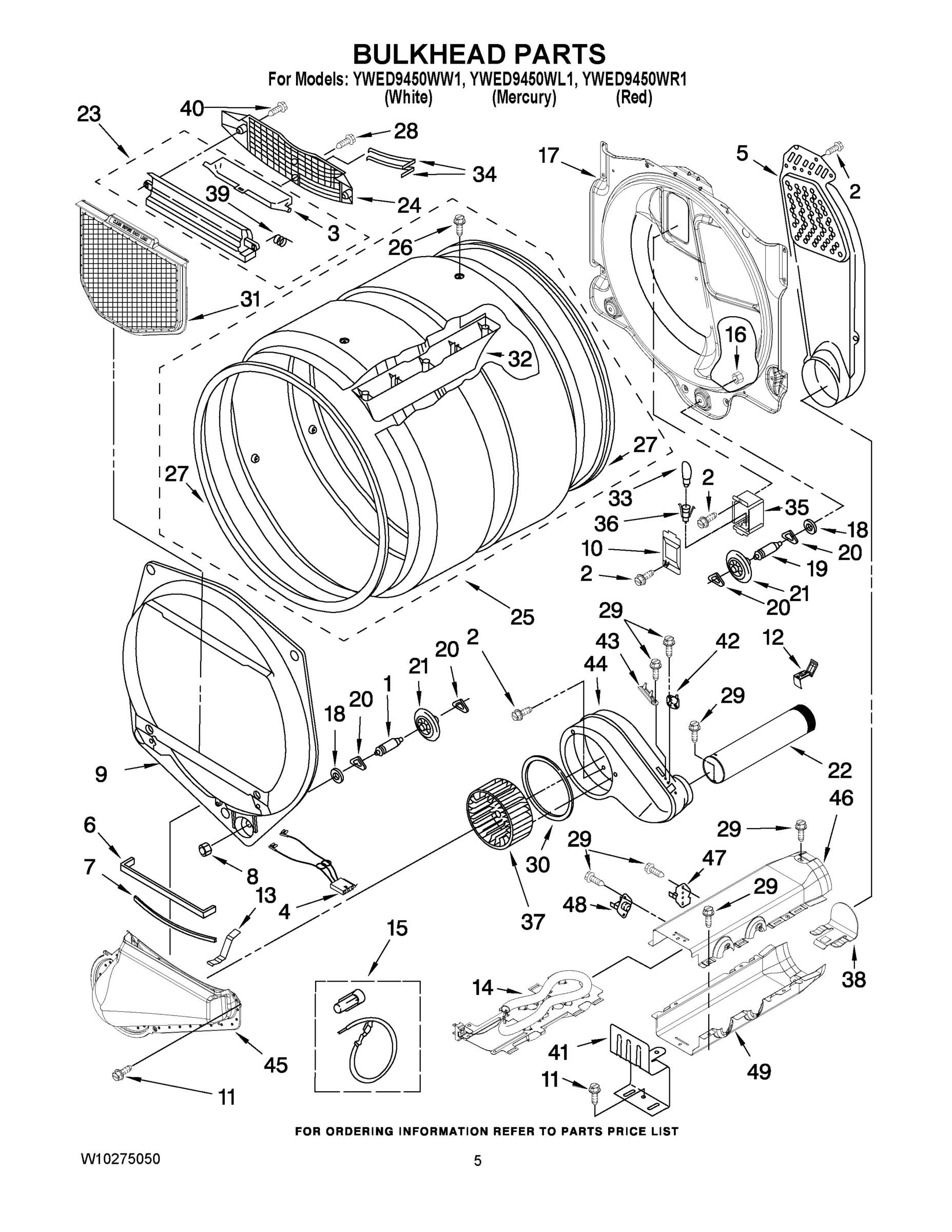

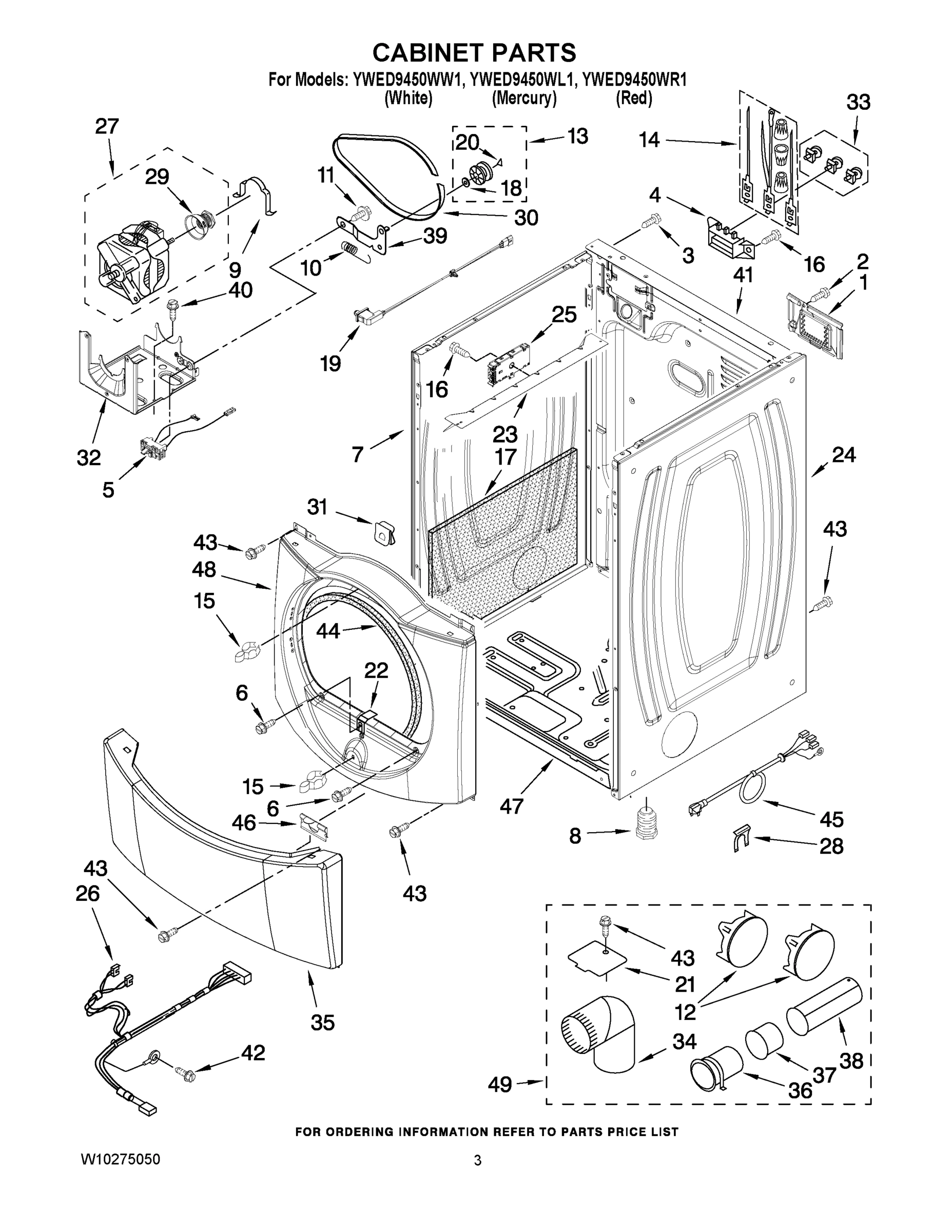

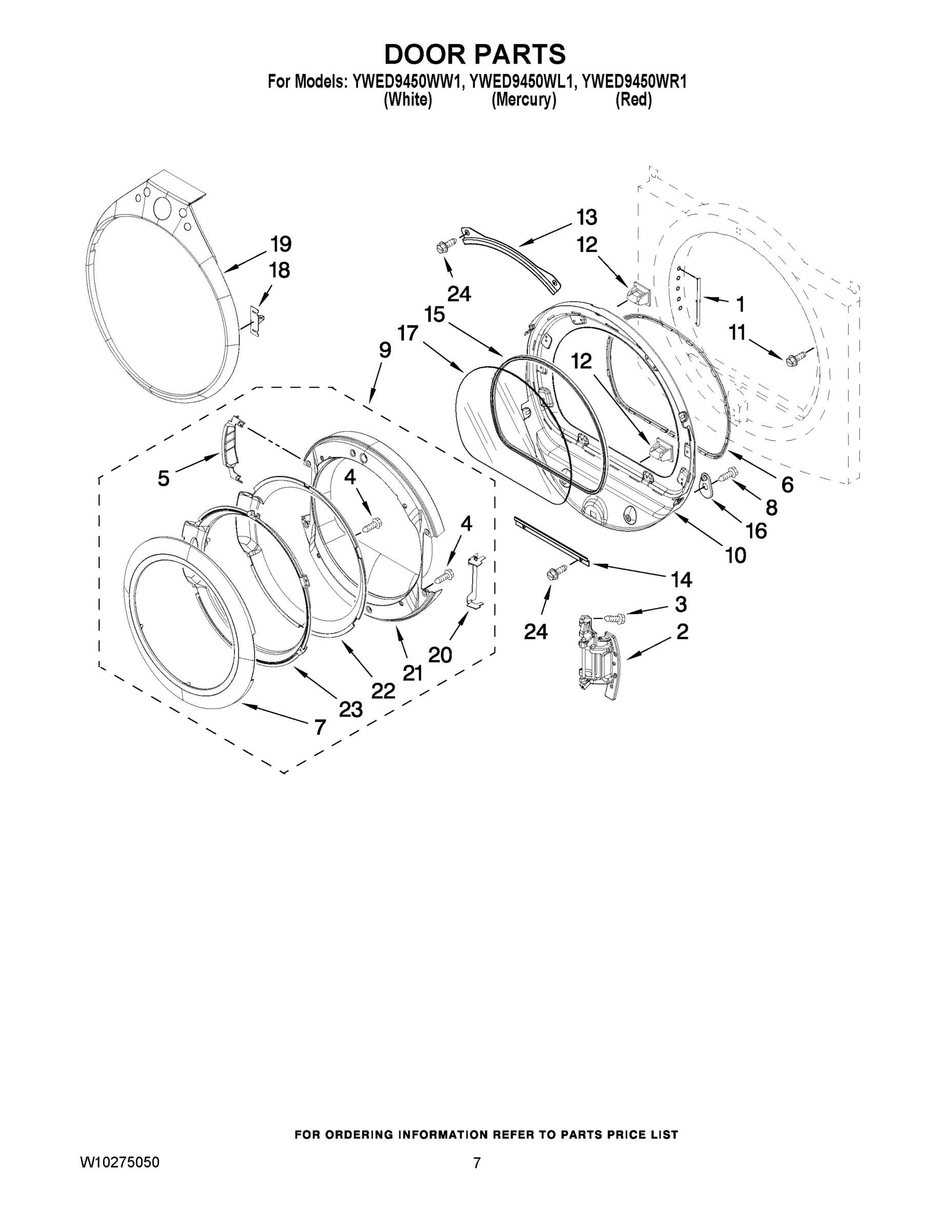

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

USE & CARE GUIDE WPL W10244607 Contact Us For Availability

1

INSTALLATION, INSTRUCTION WPL W10255469 Contact Us For Availability

1

TECH SHEET WPL W10258369 Contact Us For Availability

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

2

Top (White) WPL 3980634 Contact Us For Availability

2

TOP (RED) WPL W10249738 Contact Us For Availability

2

TOP (MERCURY) WPL W10249739 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

3

HARNESS, MAIN WPL W10111064 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20, 21, 22, 2 WPL W10255226 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20, 21, 22, 2 WPL W10255227 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20, 21, 22, 2 WPL W10255228 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $126.90

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

Bracket, Console (Includes No.12) WPL W10215656 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

BULKHEAD, FRONT WPL W10252304 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $129.25

WINDOW WPL ARI139516A Contact Us For Availability

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

CLIP, METAL WPL ARI139517A Contact Us For Availability

USER INTERFACE (CENTER) (INCLUDES: ITEM. 13 ) WPL W10121375 Contact Us For Availability

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL ARI139518A Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL ARI139519A Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL ARI139520A Contact Us For Availability

USER INTERFACE (RIGHT) WPL W10255235 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

DOOR-SHIELD WPL ARI139521A Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

DOOR INTERMEDIATE WPL ARI139522A Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

Ramp, Door WPL 8529053 Contact Us For Availability

DOOR MASK WPL ARI139523A Contact Us For Availability

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

DOOR SCREEN WPL ARI139524A Contact Us For Availability

Rast, Wheel Assembly (Service Only With Illus WPL W10012810 Contact Us For Availability

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

24

SCREW, 10-16 X 1/2 WPL ARI139525A Contact Us For Availability

24

Detent Wheel (Service Only With Illus. 28) WPL W10012450 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $60.29

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

CONTROL BOARD WPL W10169969 Contact Us For Availability

26

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $59.39

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

Knob, Spring (2) (Service Only With Illus. 28 WPL W10012820 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

30

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

31

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

31

Clip-S Type WPL 62825 Contact Us For Availability

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $31.07

32

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

32

Badge WPL W10117943 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

41

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

43

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $27.61

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

(Following Parts Not Included) WPL ARI139503A Contact Us For Availability

COVER-HINGE (R.H.) WPL ARI139504A Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) WPL ARI139526A Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) WPL ARI139527A Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL ARI139528A Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL ARI139529A Contact Us For Availability

KIT, HOLD DOWN WPL ARI139530A Contact Us For Availability

KIT, STACK ASSEMBLY WPL ARI139531A Contact Us For Availability

KIT, DOOR REVERSING WPL ARI139532A Contact Us For Availability

KIT, DRYER REPAIR WPL ARI139533A Contact Us For Availability

DRY RACK WPL ARI139534A Contact Us For Availability

4 30 AMP 3 WIRE DRYER CORD WPL ARI139535A Contact Us For Availability

4 30 AMP 4 WIRE DRYER CORD WPL ARI139536A Contact Us For Availability

6 30 AMP 4 WIRE DRYER CORD WPL ARI139537A Contact Us For Availability
