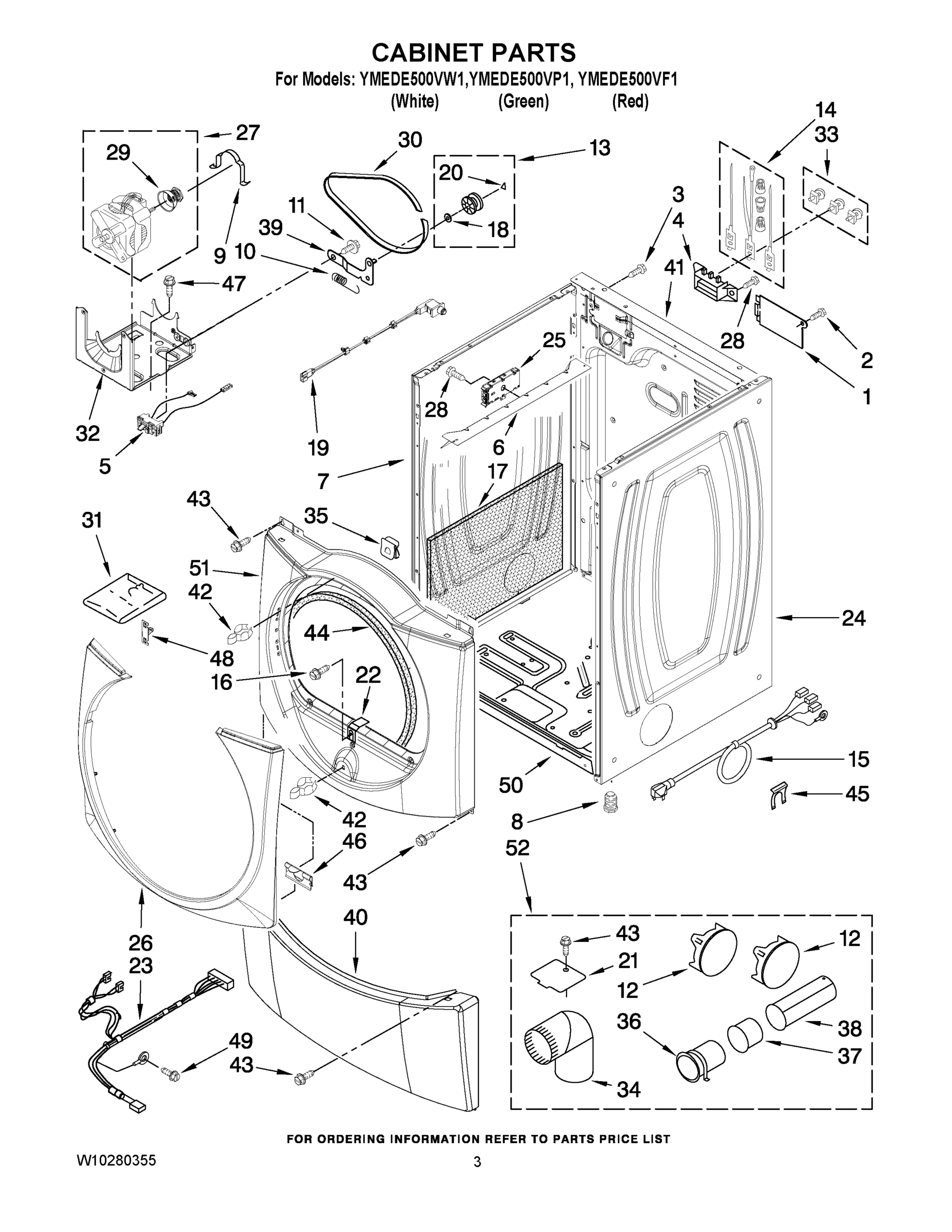

Model Whirlpool YMEDE500VF1 29`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

COVER, DOOR HINGE WPL W10180119 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

6

Door, Intermediate WPL W10180118 Contact Us For Availability

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

7

HANDLE RING WPL W10193522 Contact Us For Availability

8

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

8

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM. 8 ) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

DOOR, OUTER ASSEMBLY WPL W10193530 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

13

Door Mask WPL W10180117 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

W10164576 Whirlpool Knob Backorder WPL W10164576 $33.16

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

SCREEN, DOOR WPL W10171571 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Door Shield WPL W10180120 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

17

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

20

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

21

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

22

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $59.39

23

W11219327 Whirlpool Grille Outlet Backorder WPL W11219327 $31.44

24

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

CONTROL BOARD WPL W10174746 Contact Us For Availability

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.59

TRIM-RING ASSEMBLY (INCLUDES ITEM. 48 ) (WHIT WPL W10221445 Contact Us For Availability

TRIM-RING ASSEMBLY (INCLUDES ITEM. 48 ) (GREE WPL W10221450 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

30

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $56.82

30

BULKHEAD, FRONT WPL W10252304 Contact Us For Availability

31

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

31

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

32

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $31.07

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

35

Clip, S Type (3) WPL 62825 Contact Us For Availability

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

41

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

43

W10665050 Whirlpool Plug Backorder WPL W10665050 $7.32

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $27.61

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

48

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

49

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

53

VALVE, WATER INLET WPL W10044596 Contact Us For Availability

54

WPL W10044597 WPL W10044597 Contact Us For Availability

55

WPL W10044606 WPL W10044606 Contact Us For Availability

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10044629 WPL W10044629 Contact Us For Availability

58

W10044599 Whirlpool Clip Backorder WPL W10044599 $8.73

59

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

60

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

61

W10184825 Whirlpool Cover Backorder WPL W10184825 $28.80

62

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

63

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $12.60

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $17.81

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.23

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62
