Model Whirlpool YLTE5243DQ5 WASHER/DRYER LAUNDRY SYSTEM – Common Parts & Diagrams

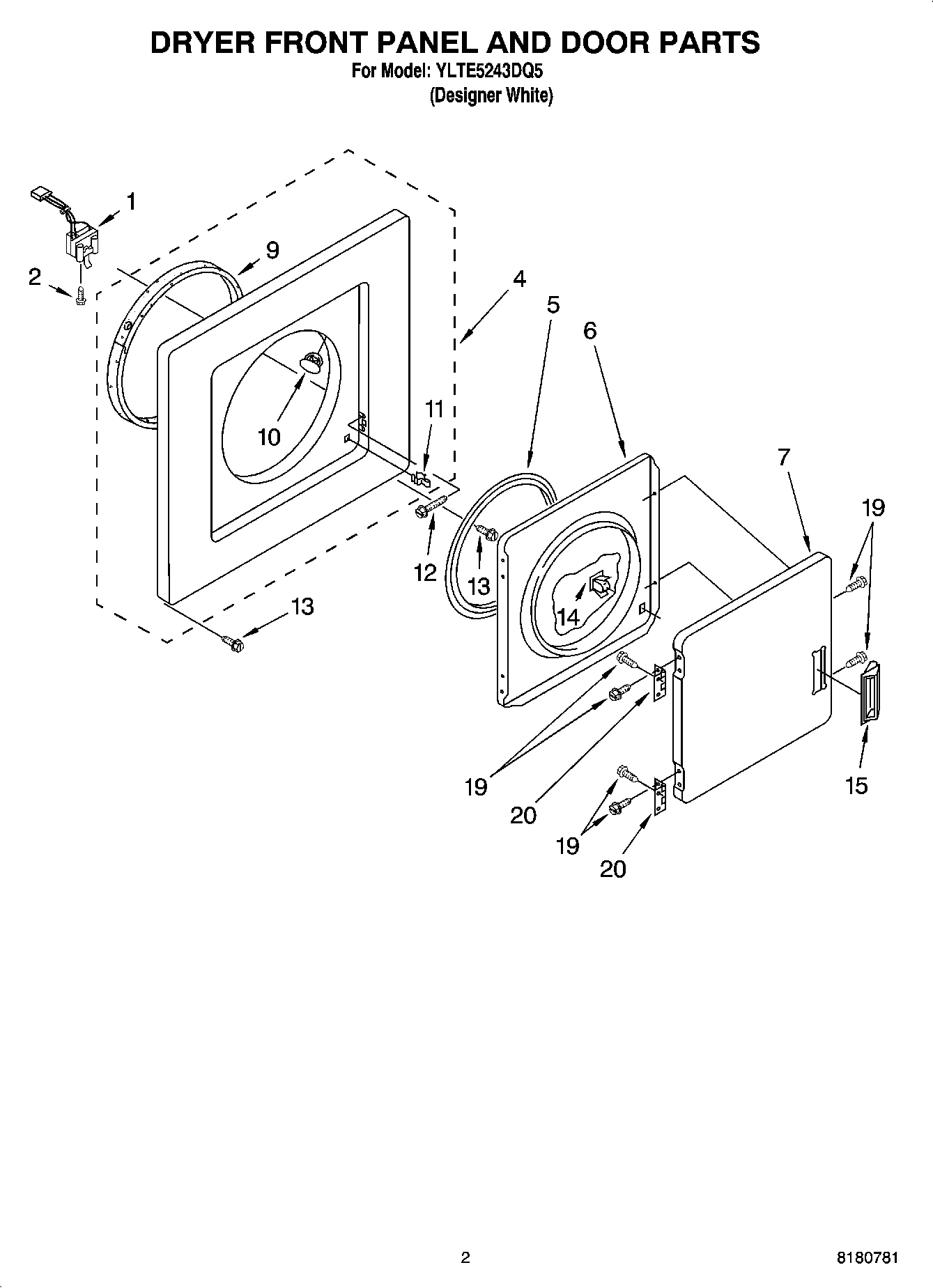

02 - DRYER FRONT PANEL AND DOOR PARTS

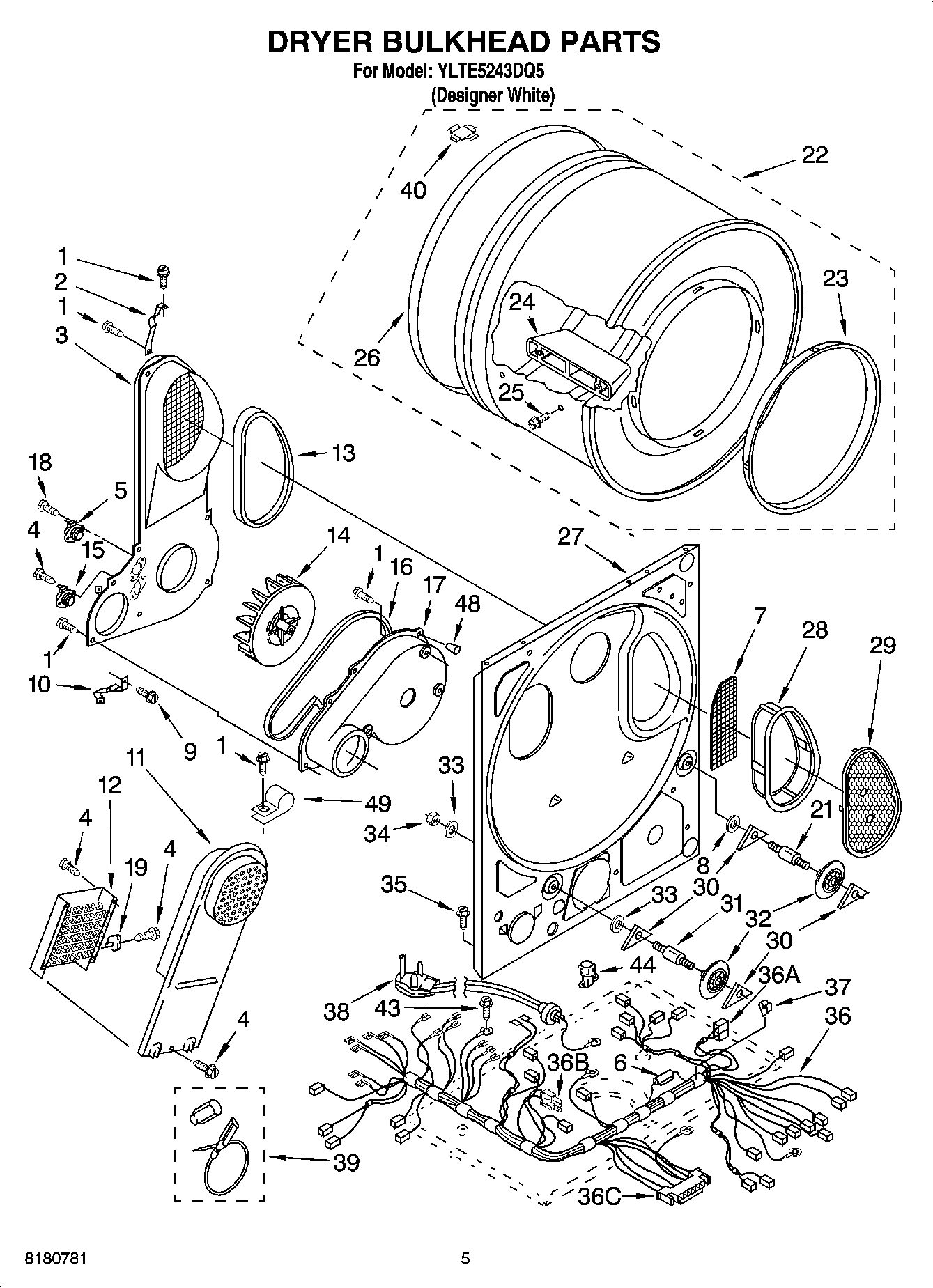

04 - DRYER BULKHEAD PARTS

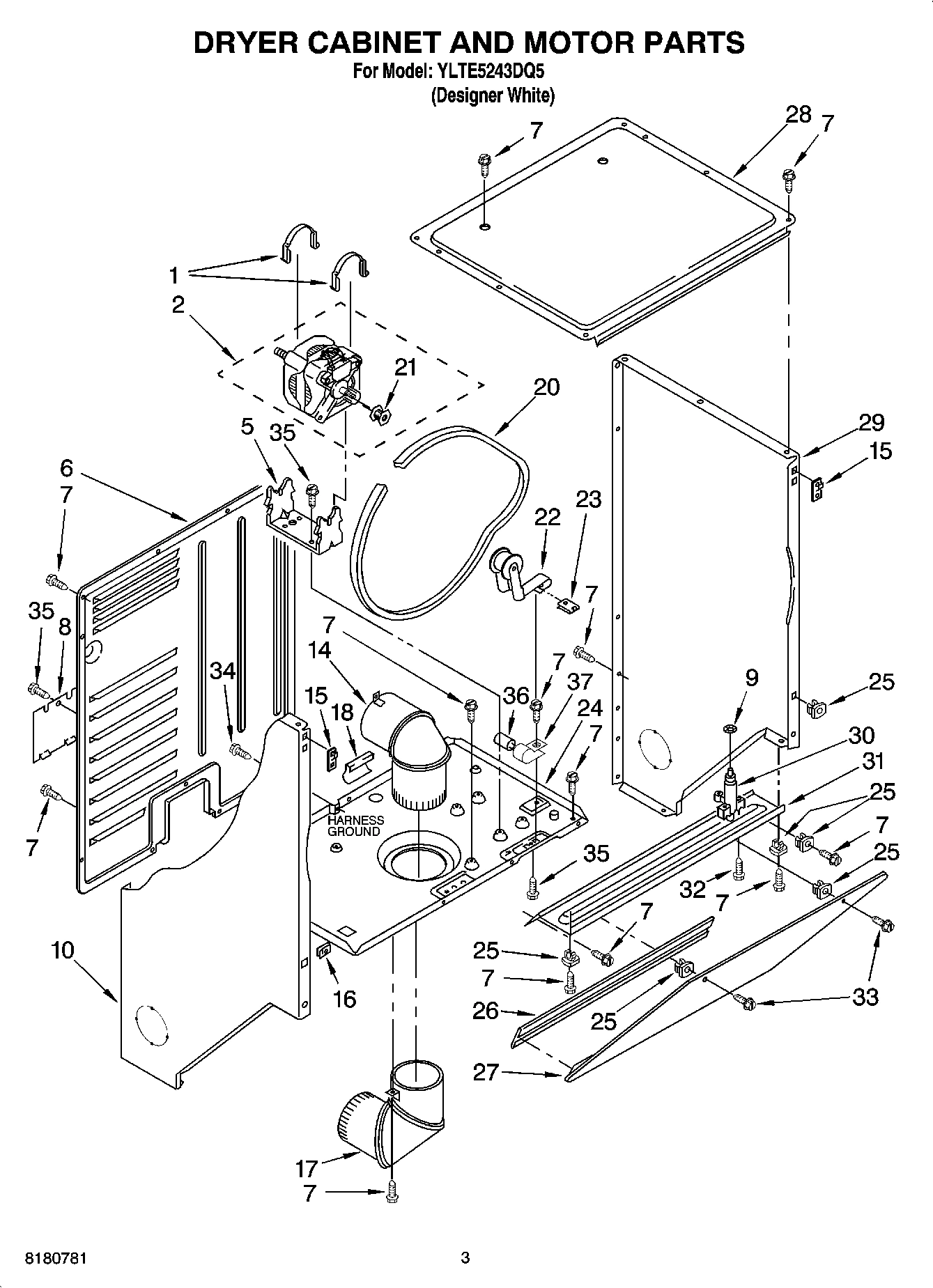

03 - DRYER CABINET AND MOTOR PARTS

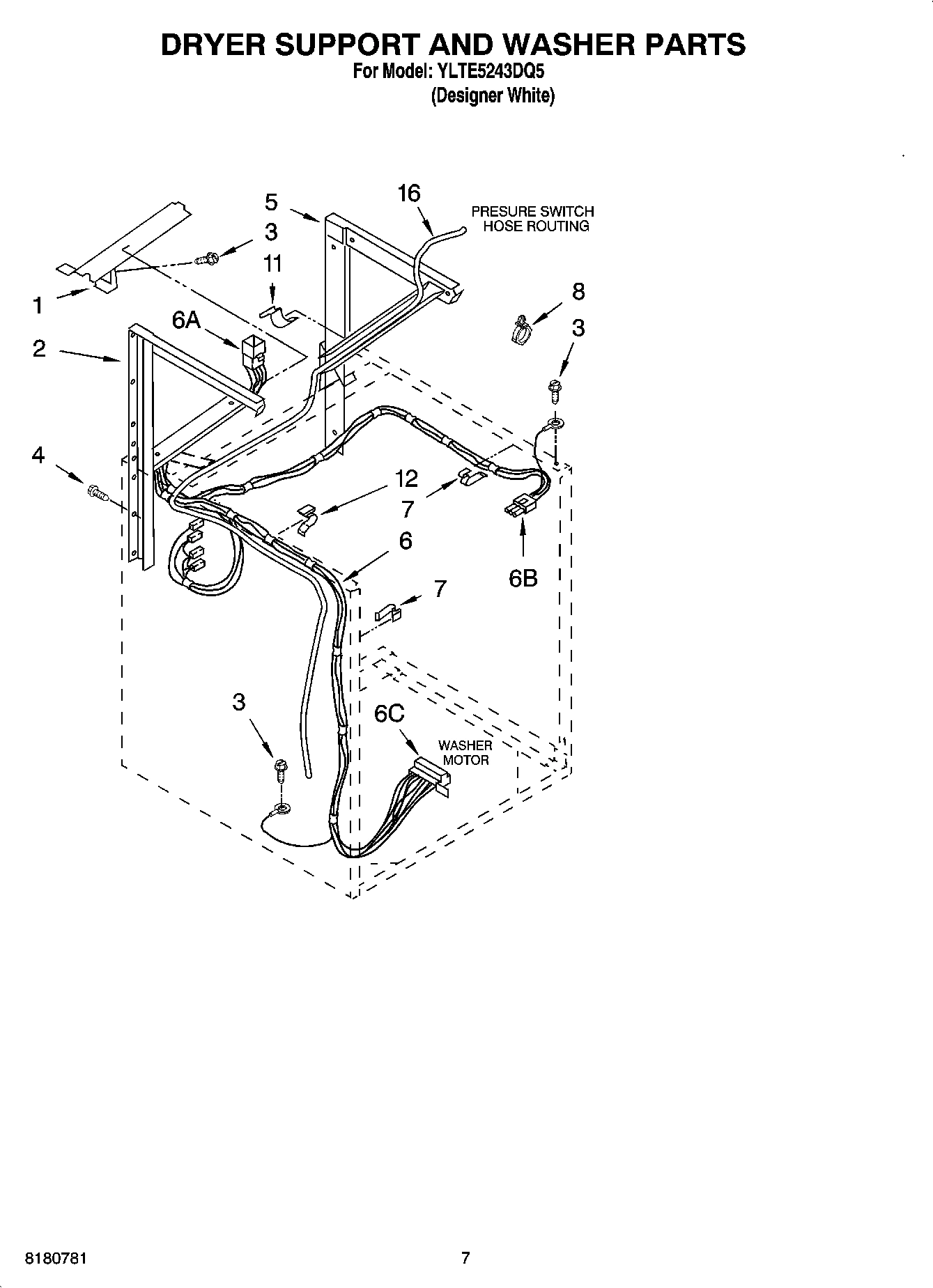

05 - DRYER SUPPORT AND WASHER PARTS
12 - GEARCASE PARTS

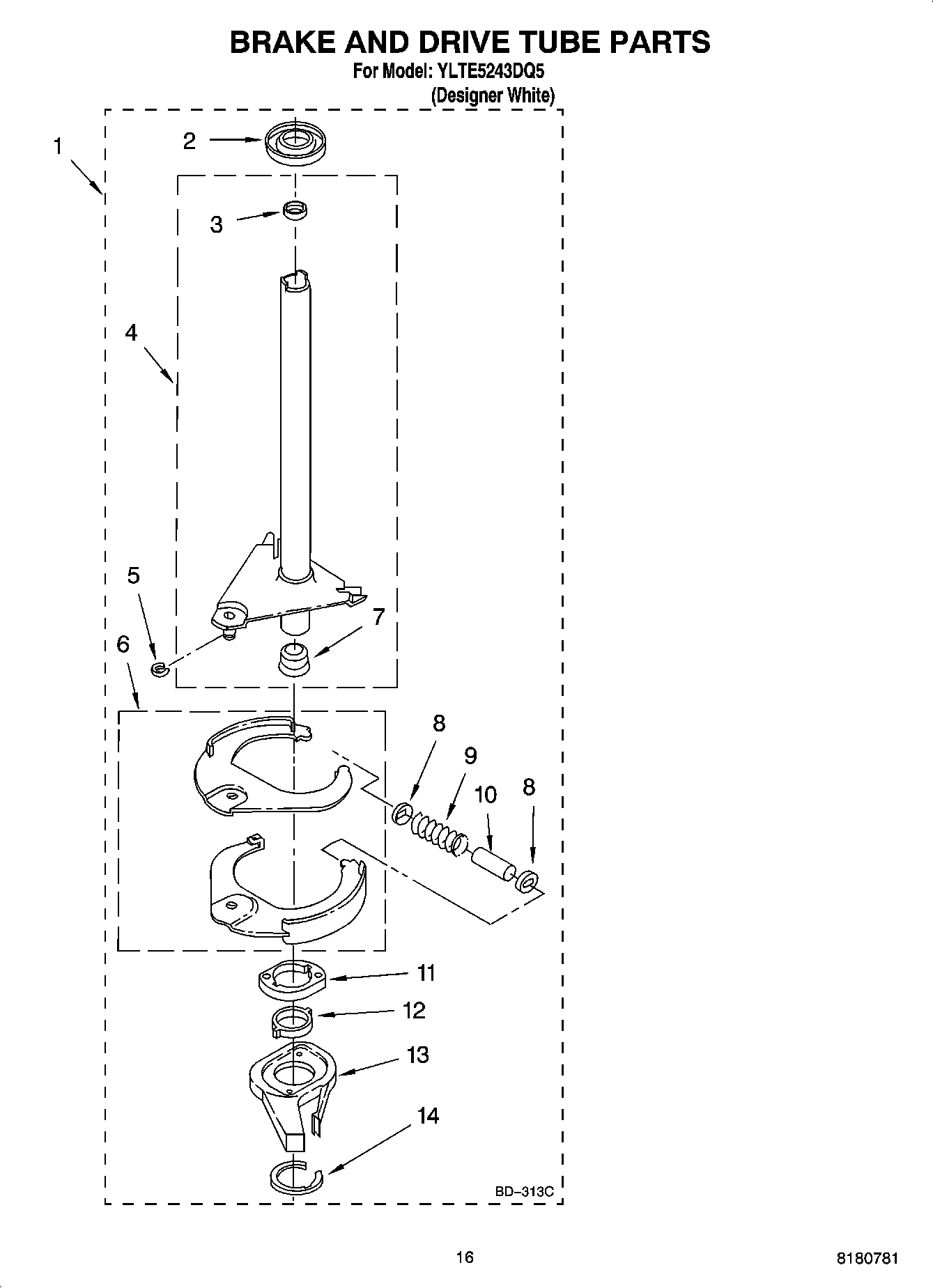

13 - BRAKE AND DRIVE TUBE PARTS

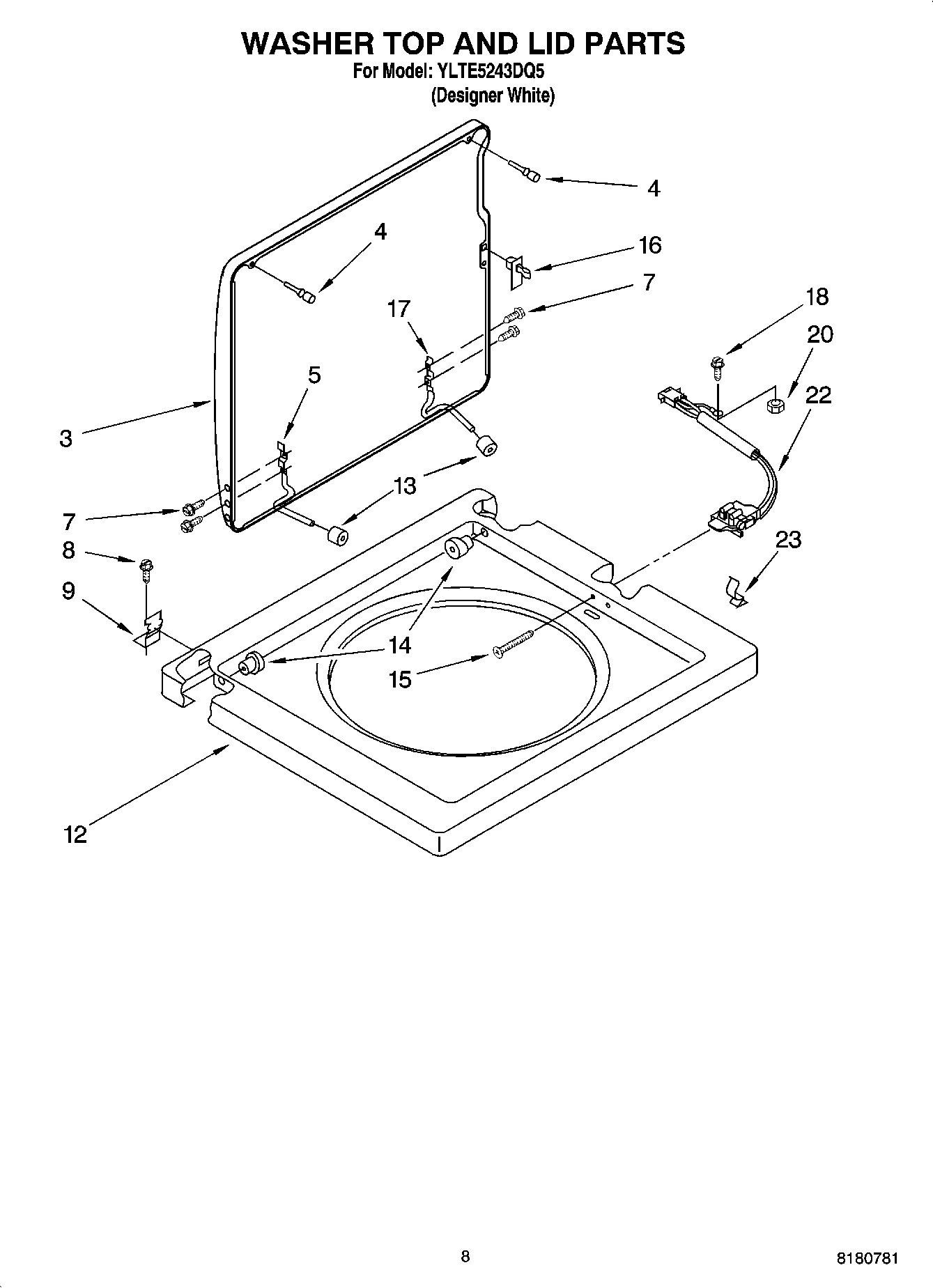

06 - WASHER TOP AND LID PARTS

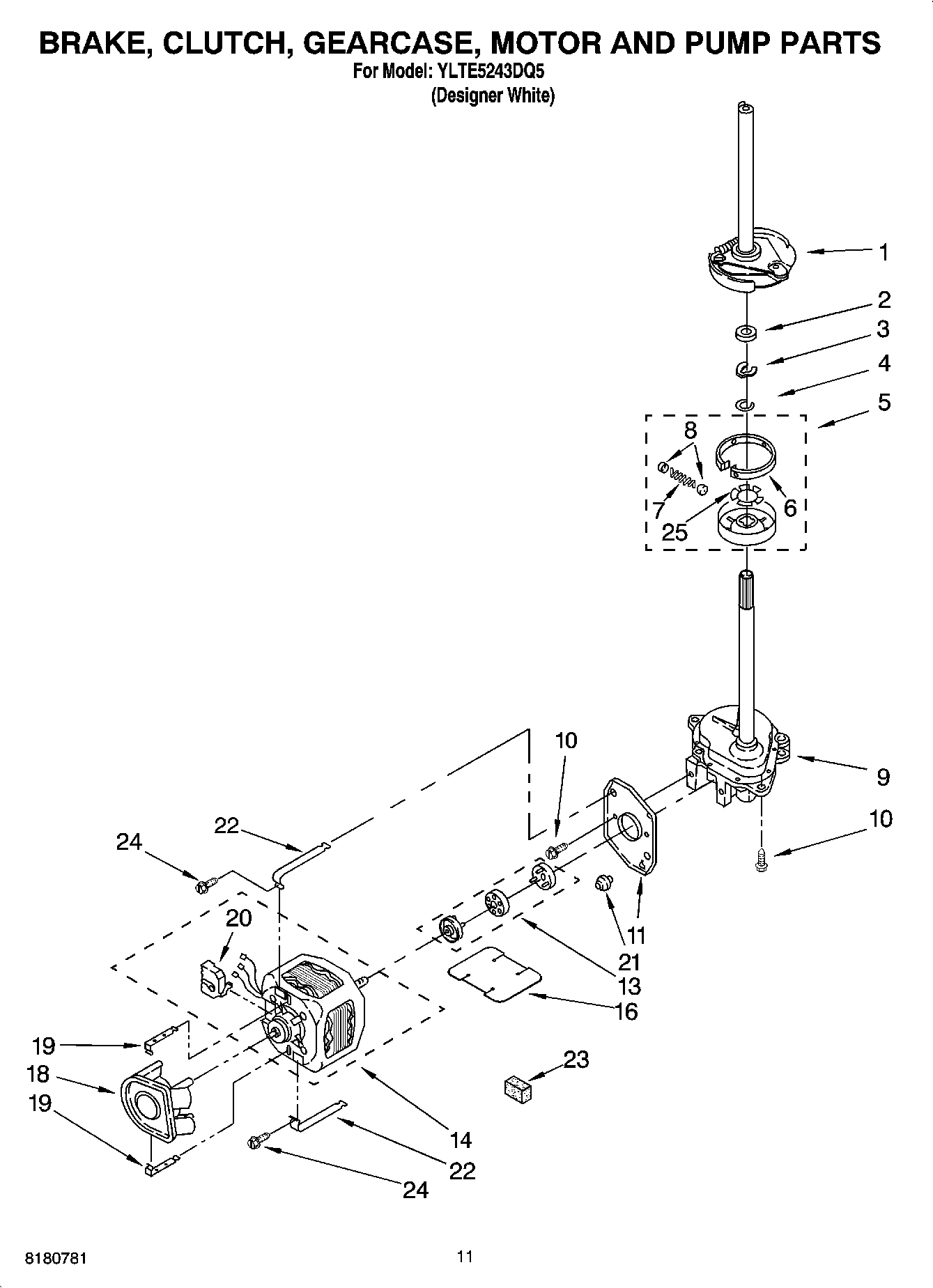

08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

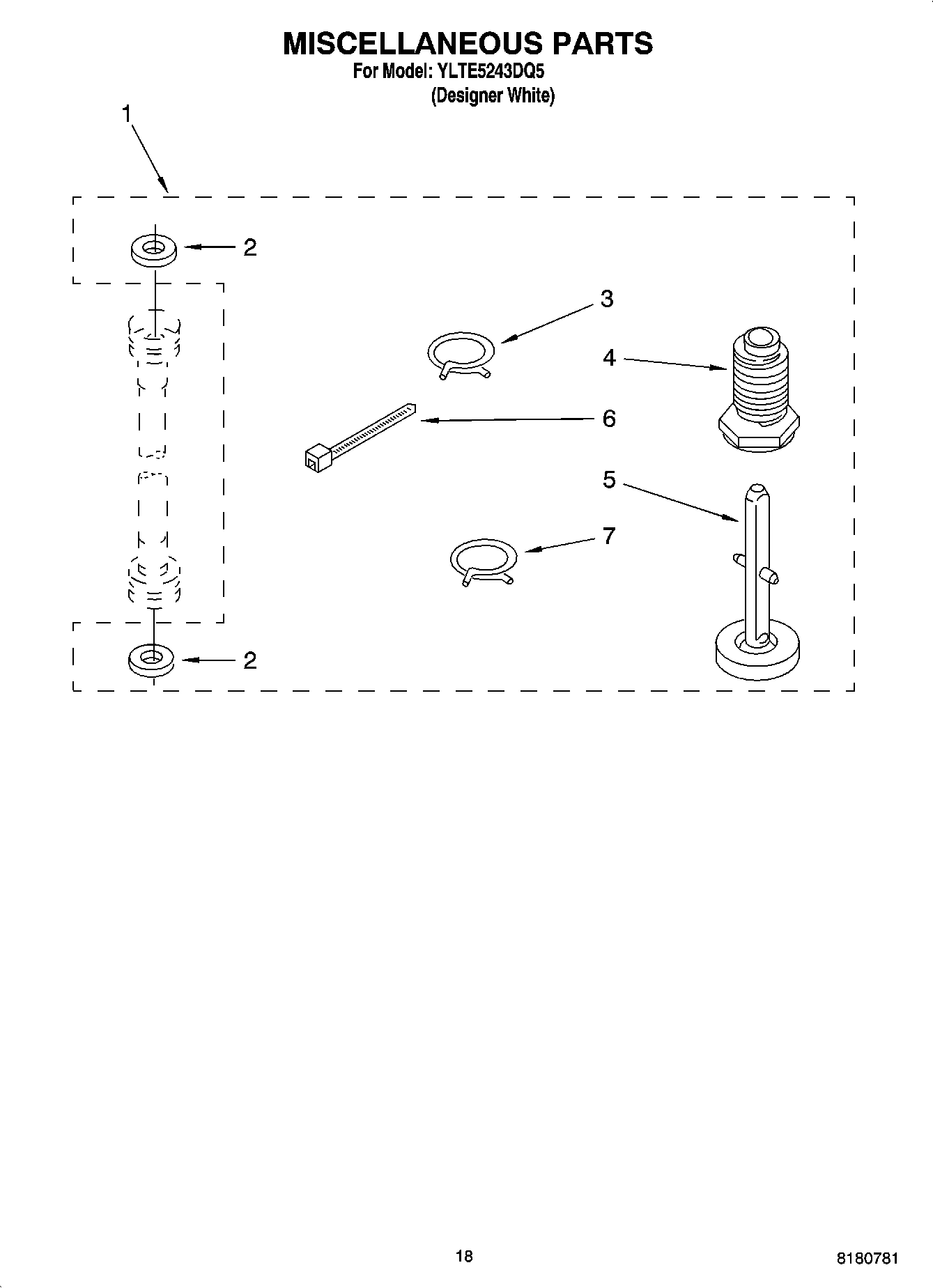

15 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)

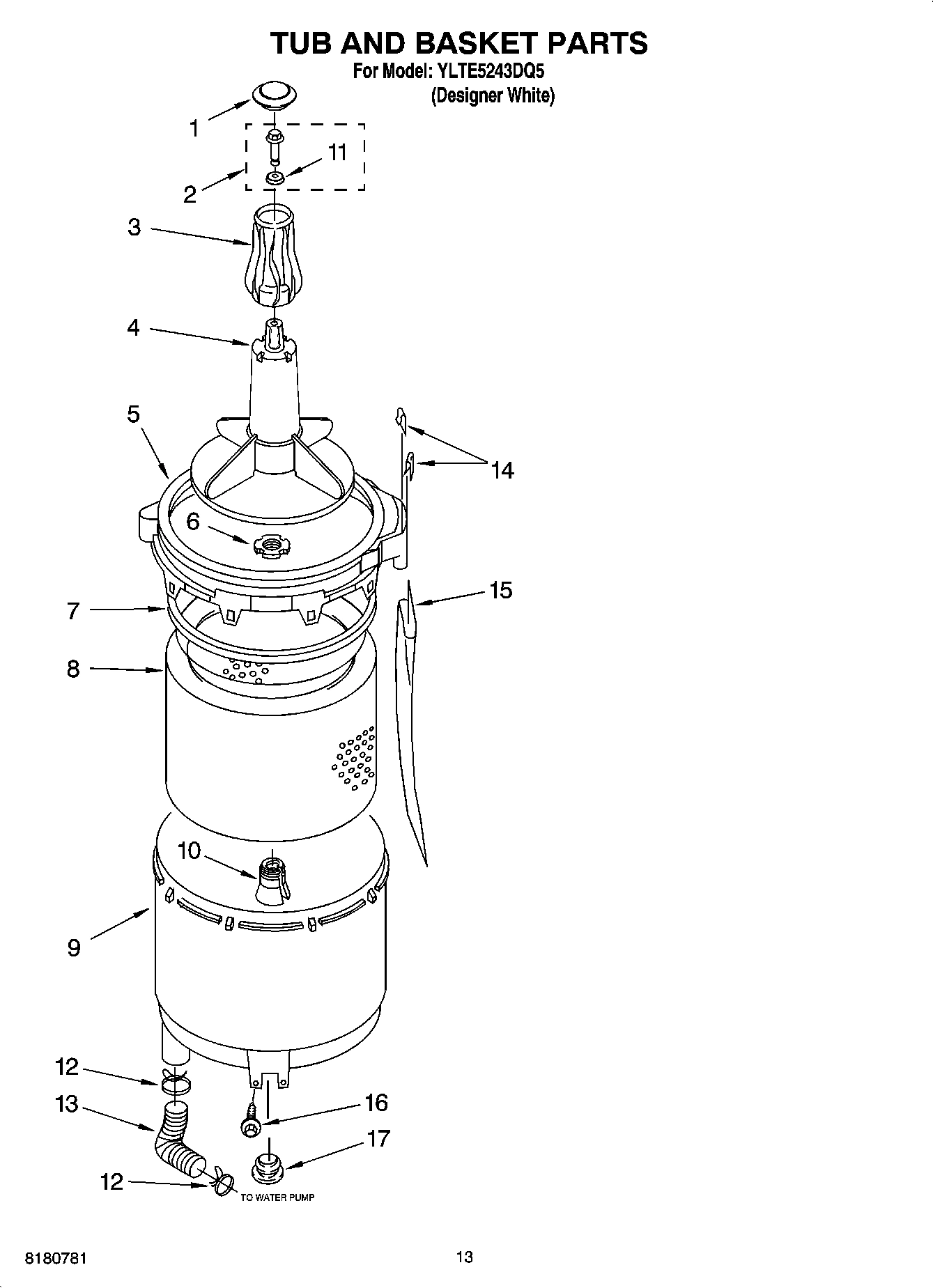

10 - TUB AND BASKET PARTS

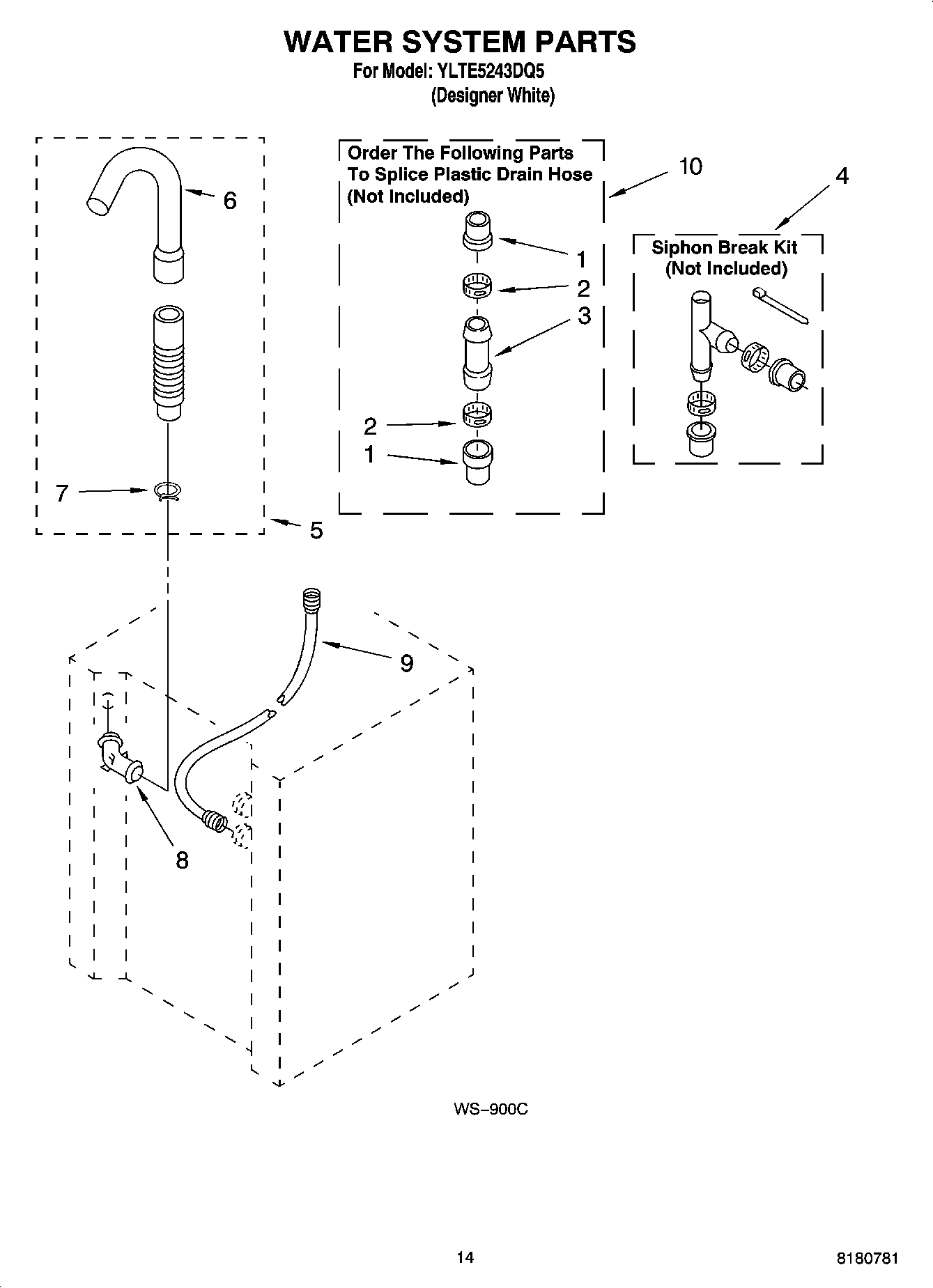

11 - WATER SYSTEM PARTS

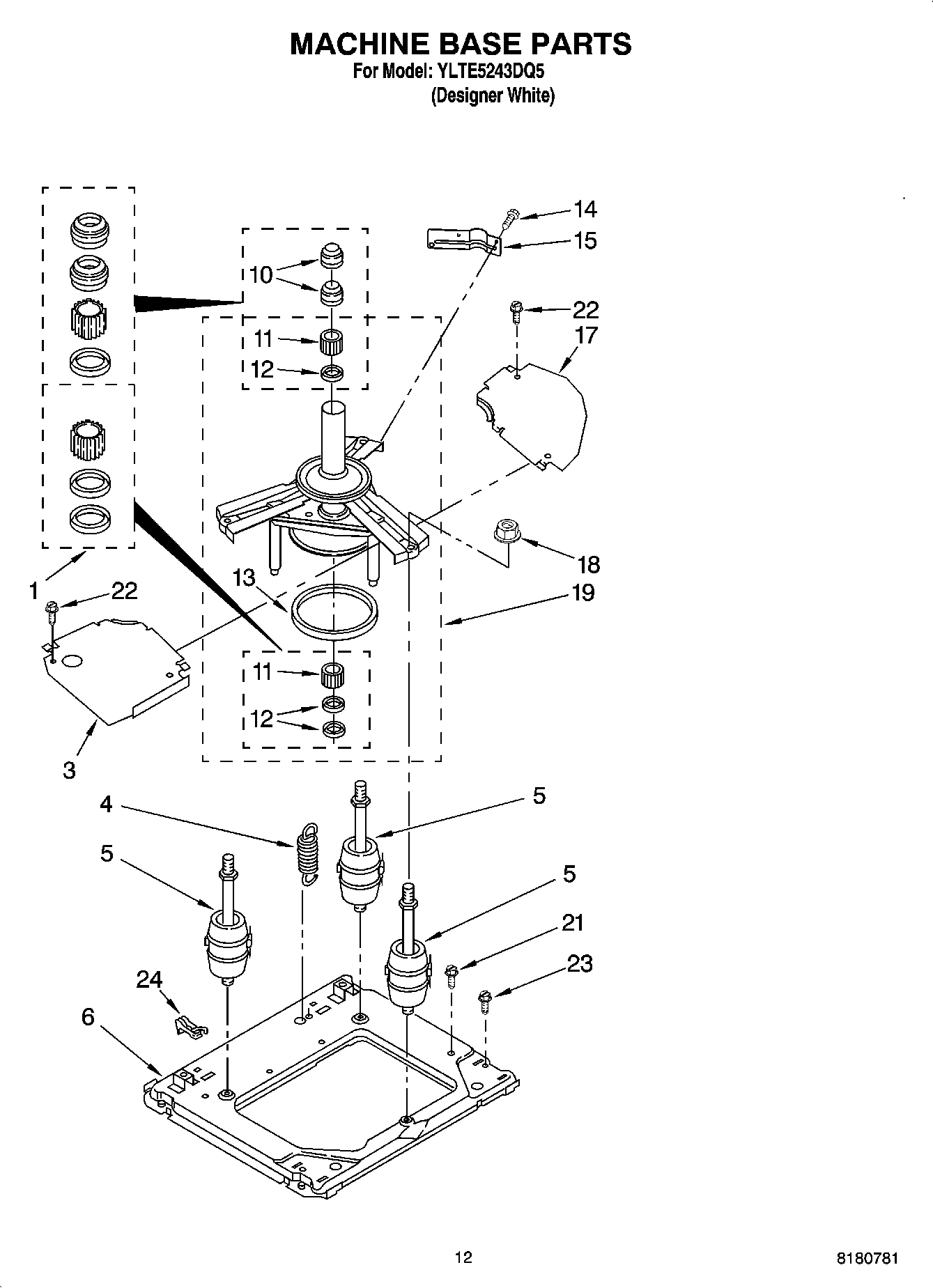

09 - MACHINE BASE PARTS

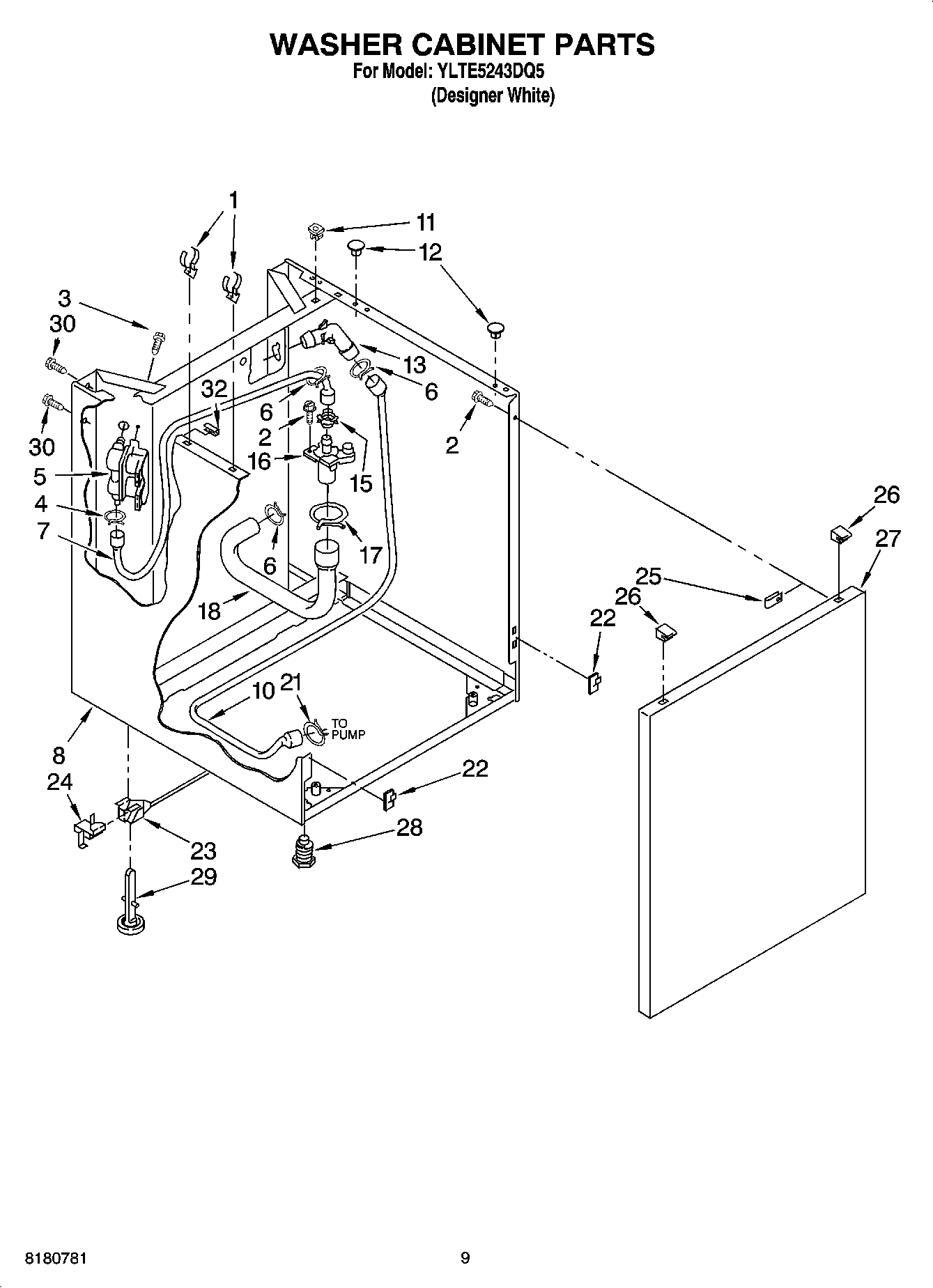

07 - WASHER CABINET PARTS

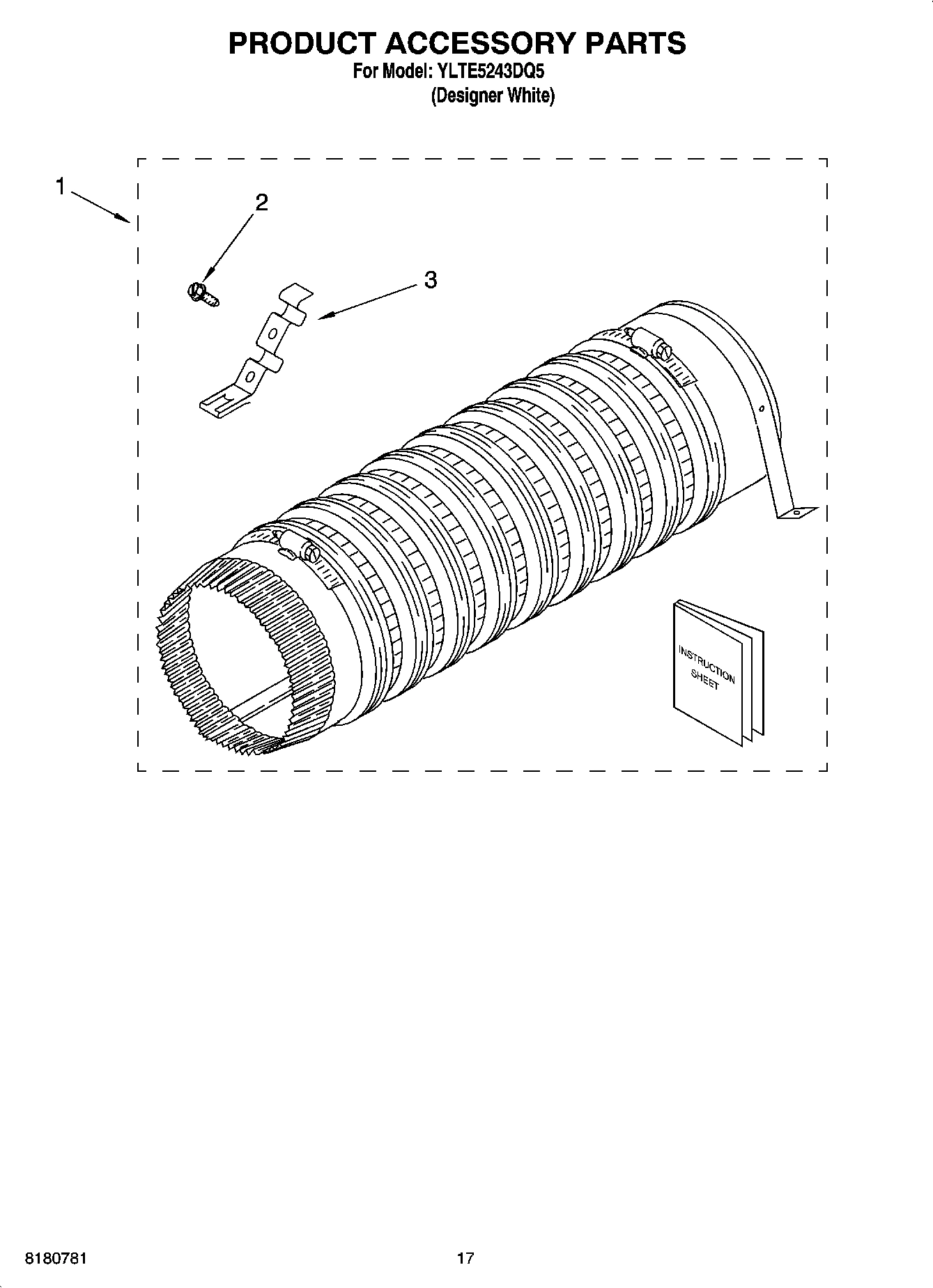

14 - PRODUCT ACCESSORY PARTS

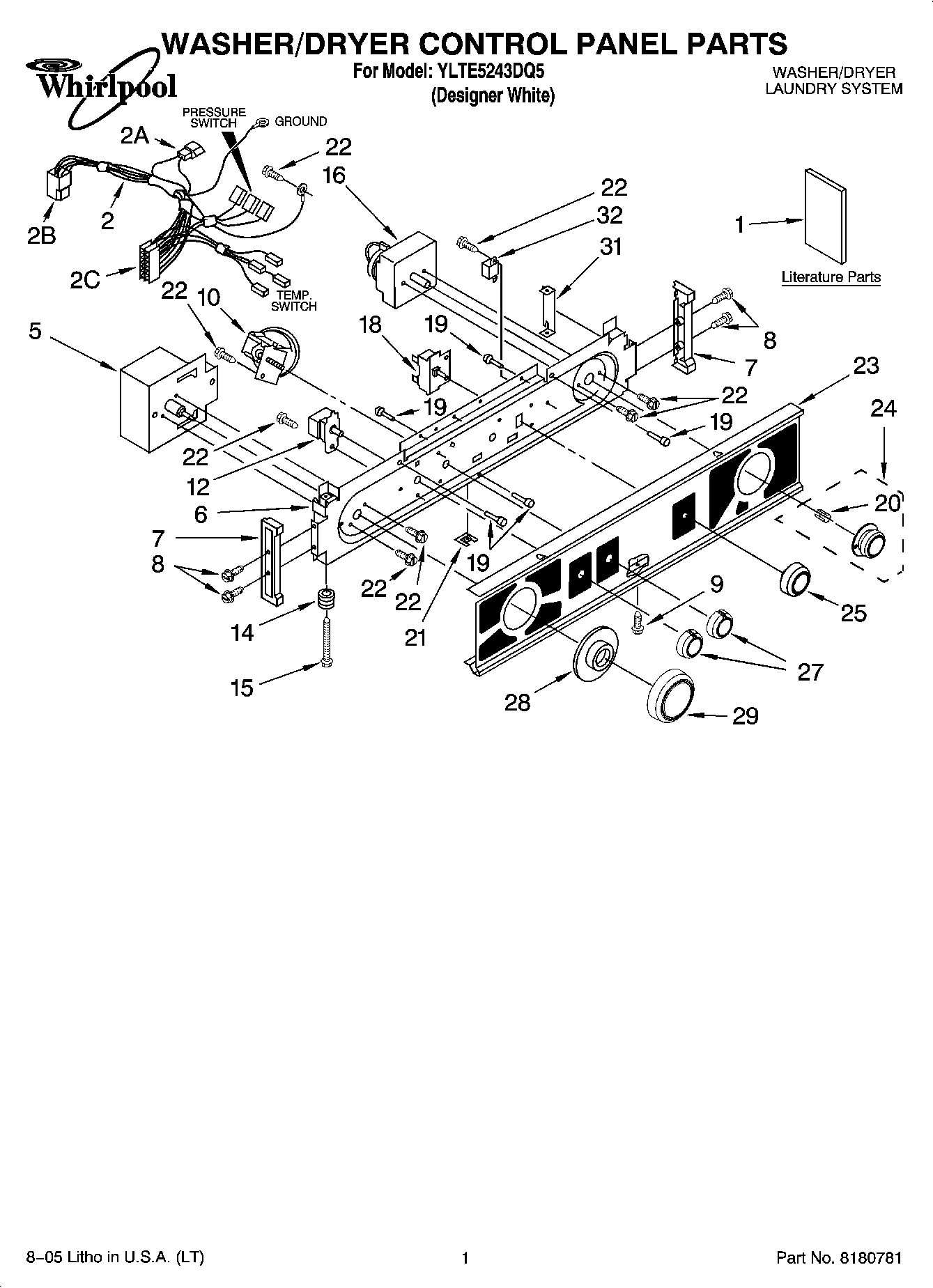

01 - WASHER/DRYER CONTROL PANEL PARTS
Common parts from model Whirlpool YLTE5243DQ5 WASHER/DRYER LAUNDRY SYSTEM
2C
Disconnect Block (Connects With Automatic Tim WPL 3948614 Contact Us For Availability
6
Harness, Upper (Automatic) (Includes Illus. 6 WPL 3954108 Contact Us For Availability
7
End Cap, Console (L.H. & R.H.) WPL 692993 Contact Us For Availability
7
Screen, Back-Up WPL 348378 Contact Us For Availability
8
Basket WPL 3351985 Contact Us For Availability
8
Cover, Terminal Block WPL 3394228 Contact Us For Availability
23
Panel, Control WPL 3977194 Contact Us For Availability
× ![]()
