Model Whirlpool WRS970CIDE00 REFRIGERATOR, SIDE-BY-SIDE – Common Parts &amp; Diagrams

1

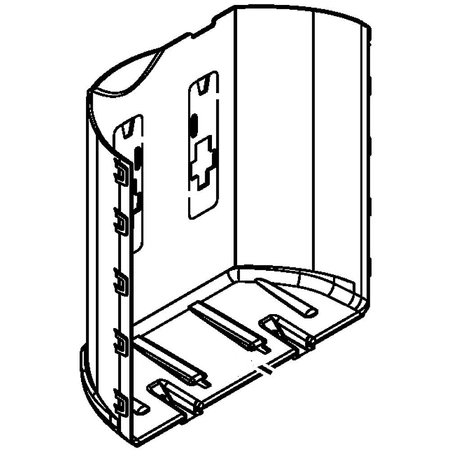

W10254254 Whirlpool Refrigerator Separator Backorder WPL W10254254 $50.09

1

W11109888 Whirlpool Refrigerator Ice Containe Backorder WPL W11109888 $181.72

1B

W10276226 Whirlpool Refrigerator Separator Backorder WPL W10276226 $50.09

2

W10836801 Whirlpool Refrigerator Drawer Cover Backorder WPL W10836801 $72.53

2

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $8.20

2

WPW10276209 Whirlpool Grille Backorder WPL WPW10276209 $43.85

2

WPW10387382 Whirlpool Refrigerator Evaporator In Stock WPL WPW10387382 $101.98

2

WPW10527272 Whirlpool Door Shelf Bin Backorder WPL WPW10527272 $54.53

3

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.78

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly Backorder WPL W11708426 $98.26

3

DUCT, UPPER AIR WPL W10260380 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

4

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $13.71

4

WPW10308388 Whirlpool Refrigerator Cantilever Backorder WPL WPW10308388 $52.50

4

WPW10341320 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10341320 $107.26

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

5

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

5

W11409190 Whirlpool Refrigerator Drain Tube Backorder WPL W11409190 $22.91

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5A

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $20.39

6

W11672777 Whirlpool Refrigerator Crisper Pan Backorder WPL W11672777 $56.58

7

W10446646 Whirlpool Refrigerator Meat Pan Backorder WPL W10446646 $131.54

7

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.08

7

W11204869 Whirlpool Refrigerator Reservoir In Stock WPL W11204869 $56.51

7

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $74.68

7

W11519143 Whirlpool Refrigerator Extension In Stock WPL W11519143 $13.03

7

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $29.15

7

WPW10346124 Whirlpool Refrigerator Support Backorder WPL WPW10346124 $15.94

8

W10257332 Whirlpool Refrigerator Control Body Backorder WPL W10257332 $30.12

8

W11175807 Whirlpool Axle Assembly In Stock WPL W11175807 $6.90

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $25.27

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10247885 Whirlpool Door Gasket In Stock WPL WPW10247885 $151.09

8

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

8A

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W10257334 Whirlpool Refrigerator Slide Backorder WPL W10257334 $27.74

9

W10457583 Whirlpool Refrigerator Dispenser Tr Backorder WPL W10457583 $84.82

9

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

9

WPW10248011 Whirlpool Refrigerator White Door In Stock WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9A

W11607100 Whirlpool Refrigerator Thimble Cam Backorder WPL W11607100 $4.90

9A

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $8.67

9B

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9B

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

W10395554 Whirlpool Refrigerator XL Wine Rack Backorder WPL W10395554 $82.95

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $24.28

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $26.21

10A

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

W11126296 Whirlpool Refrigerator Front Cover Backorder WPL W11126296 $66.28

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

WPW10223328 Whirlpool Refrigerator Tube In Stock WPL WPW10223328 $50.51

WPW10269156 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10269156 $76.69

W10341548 Whirlpool Refrigerator Support Backorder WPL W10341548 $33.76

W10632059 Whirlpool Refrigerator Wire Cover Backorder WPL W10632059 $8.45

W11449066 Whirlpool Refrigerator Evaporator F In Stock WPL W11449066 $34.28

W11684619 Whirlpool Refrigerator Jumper Wire Backorder WPL W11684619 $7.34

W11766461 Whirlpool Rail Backorder WPL W11766461 $14.11

WPW10511975 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511975 $38.01

PAD, ICE AND WATER (WHITE) WPL W10370583 Contact Us For Availability

W10370577 Whirlpool Refrigerator Pad Backorder WPL W10370577 $125.88

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $26.55

W11678966 Whirlpool Rail Backorder WPL W11678966 $7.94

WPW10511972 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511972 $37.35

12B

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

12B

W11624941 Whirlpool Refrigerator Pad In Stock WPL W11624941 $24.14

12B

WPW10632062 Whirlpool Refrigerator Wire Cover Backorder WPL WPW10632062 $3.70

W10254258 Whirlpool Refrigerator Drip Tray Backorder WPL W10254258 $43.11

W10691248 Whirlpool Refrigerator Plate Backorder WPL W10691248 $51.99

W11087200 Whirlpool Refrigerator Inverter Box In Stock WPL W11087200 $110.49

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

W11678574 Whirlpool Refrigerator Track In Stock WPL W11678574 $7.94

WPW10394053 Whirlpool Refrigerator Housing In Stock WPL WPW10394053 $88.91

13A

W10254259 Whirlpool Refrigerator Drip Tray Backorder WPL W10254259 $43.79

13A

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

13A

W11685636 Whirlpool Refrigerator Rail In Stock WPL W11685636 $7.94

13B

W10276225 Whirlpool Refrigerator Drip Tray Backorder WPL W10276225 $47.80

13B

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $24.69

W10789144 Whirlpool Refrigerator Wire Cover Backorder WPL W10789144 $11.11

W10918003 Whirlpool Refrigerator RKR Switch In Stock WPL W10918003 $29.41

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $52.08

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $30.69

14A

W10789145 Whirlpool Refrigerator Wire Cover Backorder WPL W10789145 $11.11

14B

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

14B

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $35.43

W11123943 Whirlpool Refrigerator Switch In Stock WPL W11123943 $14.15

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $25.57

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $59.68

15A

W11088196 Whirlpool Refrigerator Door Hinge Backorder WPL W11088196 $26.55

15B

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $25.57

16

W10749467 Whirlpool Refrigerator Insulation Backorder WPL W10749467 $57.85

16

W11501035 Whirlpool Refrigerator Filter Cover Backorder WPL W11501035 $7.94

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

16A

W11311416 Whirlpool Refrigerator Door Hinge Backorder WPL W11311416 $25.57

16B

W11292872 Whirlpool Refrigerator Door Hinge In Stock WPL W11292872 $26.55

17

W11311685 Whirlpool Refrigerator Door Cam Backorder WPL W11311685 $4.90

17

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

17A

W11311686 Whirlpool Closing Cam In Stock WPL W11311686 $4.90

18

W11678273 Whirlpool Bracket Backorder WPL W11678273 $26.77

19

W10166854 Whirlpool Refrigerator Gasket In Stock WPL W10166854 $10.07

20

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

21

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

21

W11676538 Whirlpool Gasket Backorder WPL W11676538 $9.88

21B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

W11226500 Whirlpool LED Light In Stock WPL W11226500 $57.02

22

W11700341 Whirlpool Wire Harness Backorder WPL W11700341 $37.50

22

WPW10713160 Whirlpool Refrigerator Grille Backorder WPL WPW10713160 $47.91

22A

WPW10713158 Whirlpool Refrigerator Grille Backorder WPL WPW10713158 $39.62

22B

WPW10713153 Whirlpool Refrigerator Grille Backorder WPL WPW10713153 $51.61

23

W10680691 Whirlpool Refrigerator Support Asse Backorder WPL W10680691 $73.18

23

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

24

W11676537 Whirlpool Gasket Backorder WPL W11676537 $9.88

24

WPW10242407 Whirlpool Refrigerator Power Cord Backorder WPL WPW10242407 $30.03

24A

W10770895 Whirlpool Refrigerator Door Cam Backorder WPL W10770895 $9.39

25

W11702233 Whirlpool Gasket Backorder WPL W11702233 $16.21

25

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $48.39

26

WPW10279882 Whirlpool Water Line In Stock WPL WPW10279882 $30.48

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $57.63

27

WPW10279885 Whirlpool Refrigerator Water Tube Backorder WPL WPW10279885 $42.22

27

COVER, UNIT BOTTOM WPL W10284726 Contact Us For Availability

28

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $13.10

31

WPW10643261 Whirlpool Refrigerator Evaporator In Stock WPL WPW10643261 $180.26

32

W11720794 Whirlpool Drain Pan In Stock WPL W11720794 $54.81

32

WPW10247993 Whirlpool Refrigerator Control Bo In Stock WPL WPW10247993 $44.73

33

WPW10333887 Whirlpool Refrigerator Unit Cover Backorder WPL WPW10333887 $127.61

34

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

35

W11678575 Whirlpool Ring Backorder WPL W11678575 $8.11

35A

W11676611 Whirlpool Ring Backorder WPL W11676611 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4318168 Whirlpool Refrigerator Primary Permag In Stock WPL 4318168 $24.72

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2OZ. GRAPHITE) WPL 80051 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
