LG WM3550HWCA Washer Parts List

*040

MCK62973302 LG Front Cover Backorder LGE MCK62973302 $131.67

View on Model

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $33.69

View on Model

A104

SHIPPING BOLT ASSEMBLY LGE 4011FR3159E Contact Us For Availability

View on Model

A105

SHIPPING BOLT ASSEMBLY LGE 4011FR3159D Contact Us For Availability

View on Model

A111

4810ER3021A LG Washer Hinge Bracket Backorder LGE 4810ER3021A $6.19

View on Model

A130

MCK58110503 LG Washer Front Panel Cabinet Backorder LGE MCK58110503 $212.13

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 $6.19

View on Model

A133

ACA56078801 LG Washer Front Boot Seal Gasket In Stock LGE ACA56078801 $9.86

View on Model

A140

AEH71610401 LG Washer Door Hinge Assembly Backorder LGE AEH71610401 $153.83

View on Model

A141

AEJ33026401 LG Holder Assembly In Stock LGE AEJ33026401 $6.19

View on Model

A150

Door Assembly LGE ADC73047903 Contact Us For Availability

View on Model

A151

MDQ61998301 LG Outer Door Frame Backorder LGE MDQ61998301 $258.86

View on Model

A152

MDQ62136701 LG Inner Door Frame Backorder LGE MDQ62136701 $9.86

View on Model

A155

3650FA3488M LG Handle Backorder LGE 3650FA3488M $6.19

View on Model

A156

AGM73610701 LG Washing Machine Door Plunger M In Stock LGE AGM73610701 $8.71

View on Model

A175

AGM73409001 LG Washer Door Hinge Bushing Kit In Stock LGE AGM73409001 $9.86

View on Model

A200

3041ER0001J LG Cabinet Assembly Base Backorder LGE 3041ER0001J $126.81

View on Model

A220

AFC72755401 LG Washer Leveling Leg Assembly Backorder LGE AFC72755401 $14.79

View on Model

A275

5215FD3715U LG Washer Hot Water Inlet Fill Ho Backorder LGE 5215FD3715U $26.88

View on Model

A276

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V $26.88

View on Model

A300

MBN47927902 LG Case Backorder LGE MBN47927902 $9.86

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $4.94

View on Model

A310

5006ER2006M LG Cap Cover In Stock LGE 5006ER2006M $20.35

View on Model

A410

6601ER1006G LG Washer Pressure Switch Water L Backorder LGE 6601ER1006G $49.19

View on Model

A430

EAD40521449 LG Washer Power Cord Assembly Backorder LGE EAD40521449 $82.70

View on Model

A440

EBF49827801 LG Washer Door Lock and Switch As In Stock LGE EBF49827801 $53.47

View on Model

A450

PCB Assembly,Main LGE EBR64144910 Contact Us For Availability

View on Model

A455

3550ER1032A LG Protective Cover Backorder LGE 3550ER1032A $26.26

View on Model

F110

PCB Assembly,Display LGE EBR73047701 Contact Us For Availability

View on Model

F130

EAD61212306 LG Multi Harness Backorder LGE EAD61212306 $63.62

View on Model

F145

6877ER3003B LG Harness Assembly Backorder LGE 6877ER3003B $20.35

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H $15.84

View on Model

F180

AGM73269501 LG Washer Water Inlet Valve Filte In Stock LGE AGM73269501 $6.19

View on Model

F215

4941ER3005A LG Dryer Control Knob Backorder LGE 4941ER3005A $72.49

View on Model

F225

5006ER3021A LG Washer Fabric Softener Cap Backorder LGE 5006ER3021A $20.35

View on Model

F226

5006ER3022A LG Siphon Cap Backorder LGE 5006ER3022A $14.79

View on Model

F227

3891ER2003A LG Washer Liquid Detergent Box As In Stock LGE 3891ER2003A $11.51

View on Model

F300

4925ER1015B LG Washer Detergent Dispenser Ass In Stock LGE 4925ER1015B $35.17

View on Model

F310

4738ER1004B LG Washer Fill Hose Bellows In Stock LGE 4738ER1004B $23.53

View on Model

F315

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A $26.26

View on Model

F321

5214ER4001R LG Hose Inlet Backorder LGE 5214ER4001R $20.35

View on Model

F322

5214ER4001J LG Washer Inlet Dispenser Hose In Stock LGE 5214ER4001J $20.35

View on Model

F323

HOSE,INLET LGE 5214ER4002F Contact Us For Availability

View on Model

F327

5214FR4006F LG Hose Connector Backorder LGE 5214FR4006F $26.26

View on Model

F328

5214FR4006R LG Hose Connector Backorder LGE 5214FR4006R $26.26

View on Model

F430

5215ER2002G LG Washer Water Drain Hose In Stock LGE 5215ER2002G $16.49

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.19

View on Model

F441

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.19

View on Model

F463

4860FR3092D LG Clamp Backorder LGE 4860FR3092D $9.86

View on Model

F464

4860FR3092C LG Clamp Backorder LGE 4860FR3092C $9.86

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $9.86

View on Model

G010

AGM73171801 LG Washer Non-Skid Pad Backorder LGE AGM73171801 $9.86

View on Model

K105

3045ER0048U LG Outer Tub Assembly Backorder LGE 3045ER0048U $360.38

View on Model

K110

AJQ54138205 LG Tub Inner Drum Assembly Backorder LGE AJQ54138205 $477.91

View on Model

K111

AFH72909001 LG Washer Lifter Assembly In Stock LGE AFH72909001 $72.49

View on Model

K115

MHW61841105 LG Spider Backorder LGE MHW61841105 $255.48

View on Model

K117

4011FA4353E LG Washer Common Bolt In Stock LGE 4011FA4353E $14.79

View on Model

K121

MAP61913708 LG Washer Tub Ball Bearing Backorder LGE MAP61913708 $41.80

View on Model

K122

4280FR4048Z LG Washer Tub Bearing Seal In Stock LGE 4280FR4048Z $82.70

View on Model

K123

4040FR4051C LG Washer Bolt Assembly In Stock LGE 4040FR4051C $9.86

View on Model

K125

MDS62058301 LG Washer Rear Tub Gasket Seal In Stock LGE MDS62058301 $26.26

View on Model

K130

MAG47123901 LG Washer Balance Weight Backorder LGE MAG47123901 $82.70

View on Model

K131

1SZZER4002A LG Customized Screw In Stock LGE 1SZZER4002A $6.19

View on Model

K135

MAG47123701 LG Washer Balance Weight Backorder LGE MAG47123701 $82.70

View on Model

K140

MCK47123502 LG Tub Cover Backorder LGE MCK47123502 $153.83

View on Model

K141

4036ER4001B LG Washer Tub Gasket Seal In Stock LGE 4036ER4001B $11.51

View on Model

K142

1SZZFA4362C LG Customized Screw In Stock LGE 1SZZFA4362C $6.19

View on Model

K143

4011FA4353B LG Washer Bolt In Stock LGE 4011FA4353B $6.19

View on Model

K190

4769ER4001B LG Washer Float Assembly In Stock LGE 4769ER4001B $14.79

View on Model

K340

4681EA2001T LG Washer Drain Pump and Motor In Stock LGE 4681EA2001T $44.47

View on Model

K342

5214FR4006G LG Washer Water Clean Out Drain H In Stock LGE 5214FR4006G $6.19

View on Model

K344

3108ER1001A LG Washer Pump Casing Housing Backorder LGE 3108ER1001A $20.35

View on Model

K345

EAU61383503 LG Washer Circulation Pump AC Mot In Stock LGE EAU61383503 $95.01

View on Model

K346

383EER2001A LG Washer Drain Filter and Cap As In Stock LGE 383EER2001A $11.51

View on Model

K347

MAZ41498201 LG Pump Bracket Backorder LGE MAZ41498201 $26.26

View on Model

K348

MCQ41502701 LG Damper In Stock LGE MCQ41502701 $4.65

View on Model

K349

FAA30153701 LG Washer Common Bolt Backorder LGE FAA30153701 $6.19

View on Model

K350

4417EA1002Y LG Washer Stator Assembly In Stock LGE 4417EA1002Y $205.91

View on Model

K360

AHL72914401 LG Washer Rotor Assembly In Stock LGE AHL72914401 $181.76

View on Model

K361

Bush,Rotor LGE MBF62845201 Contact Us For Availability

View on Model

K410

4970FR2084Z LG Washer Door Hinge Spring In Stock LGE 4970FR2084Z $26.26

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $6.19

View on Model

K510

MDS47123604 LG Washer Door Boot Gasket Seal In Stock LGE MDS47123604 $120.04

View on Model

K512

4932ER3007A LG Washer Nozzle Connector Backorder LGE 4932ER3007A $6.19

View on Model

K516

4974ER3008A LG Water Guide Backorder LGE 4974ER3008A $9.86

View on Model

K520

4738ER1002A LG Washer Drain Hose Bellows In Stock LGE 4738ER1002A $41.23

View on Model

K530

4861ER2001J LG Washer Door Boot Spring Clamp In Stock LGE 4861ER2001J $20.35

View on Model

K540

3504ER3002A LG Washer Pressure Switch Air Cha Backorder LGE 3504ER3002A $9.86

View on Model

K550

5214FR4125N LG Inlet Hose Backorder LGE 5214FR4125N $20.35

View on Model

K560

5214ER4002U LG Inlet Hose Backorder LGE 5214ER4002U $41.23

View on Model

K570

5214FR4058Y LG Washer Tub to Pump Hose In Stock LGE 5214FR4058Y $9.86

View on Model

K571

4932ER4007B LG Washer Drain Pump Hose Connect In Stock LGE 4932ER4007B $6.19

View on Model

K572

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.19

View on Model

K610

383EER3001J LG Washer Shock Absorber Damper A In Stock LGE 383EER3001J $23.53

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $9.86

View on Model

M400

CASE ASSEMBLY LGE 3111ER1001D Contact Us For Availability

View on Model

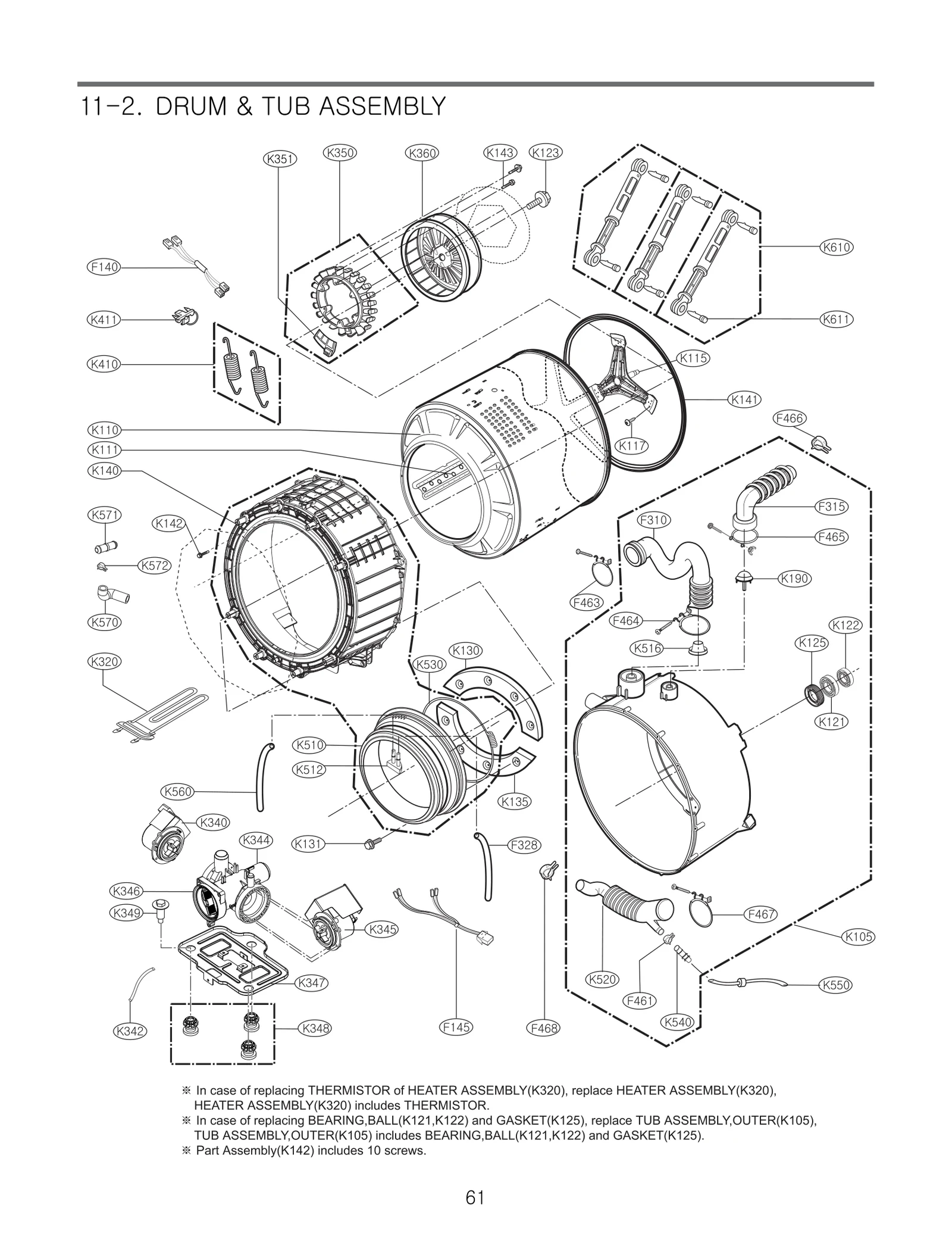

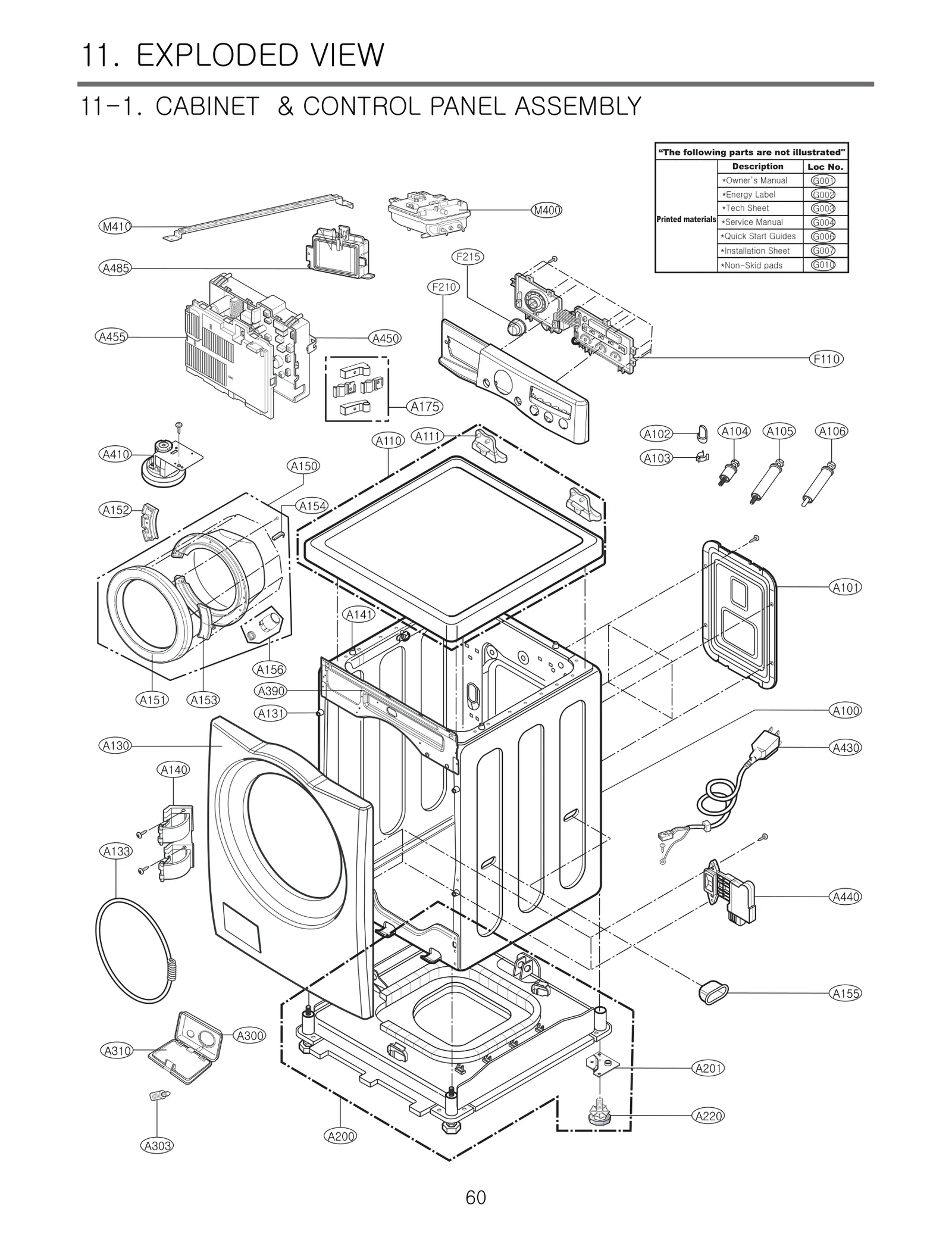

Model LG WM3550HWCA Washer – Common Parts & Diagrams

Common parts from model LG WM3550HWCA Washer
