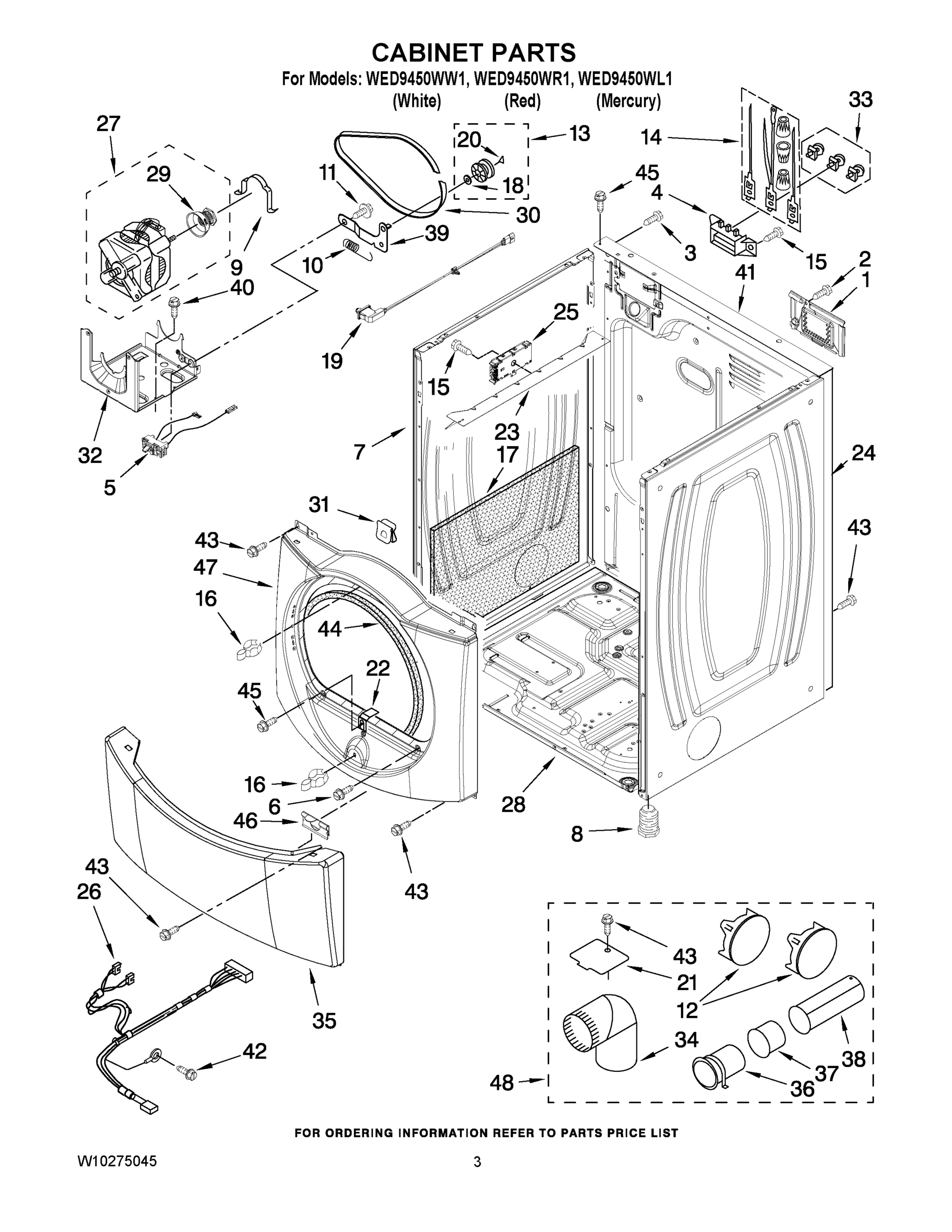

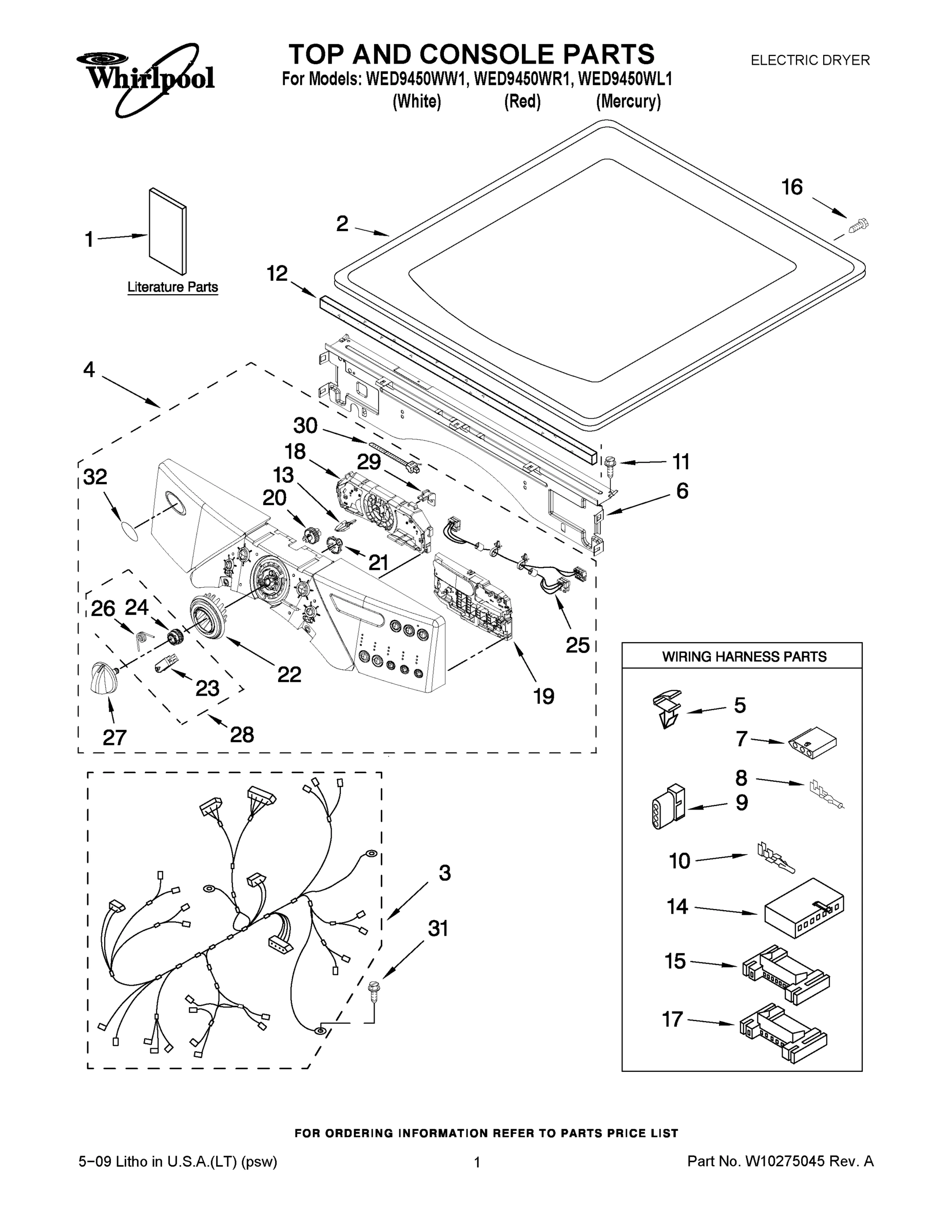

Model Whirlpool WED9450WL1 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

3

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

3

HARNESS, MAIN WPL W10111063 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $133.23

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

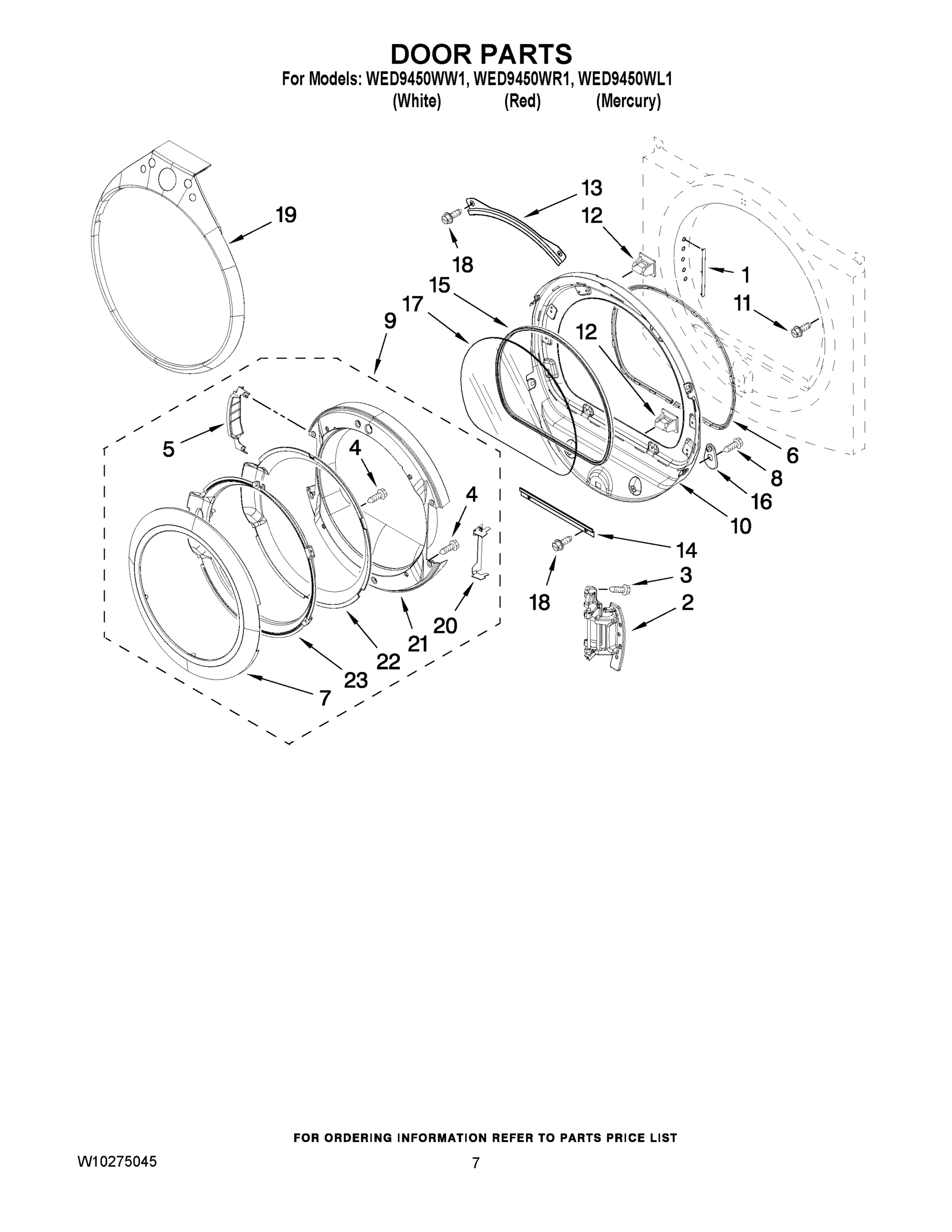

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

9

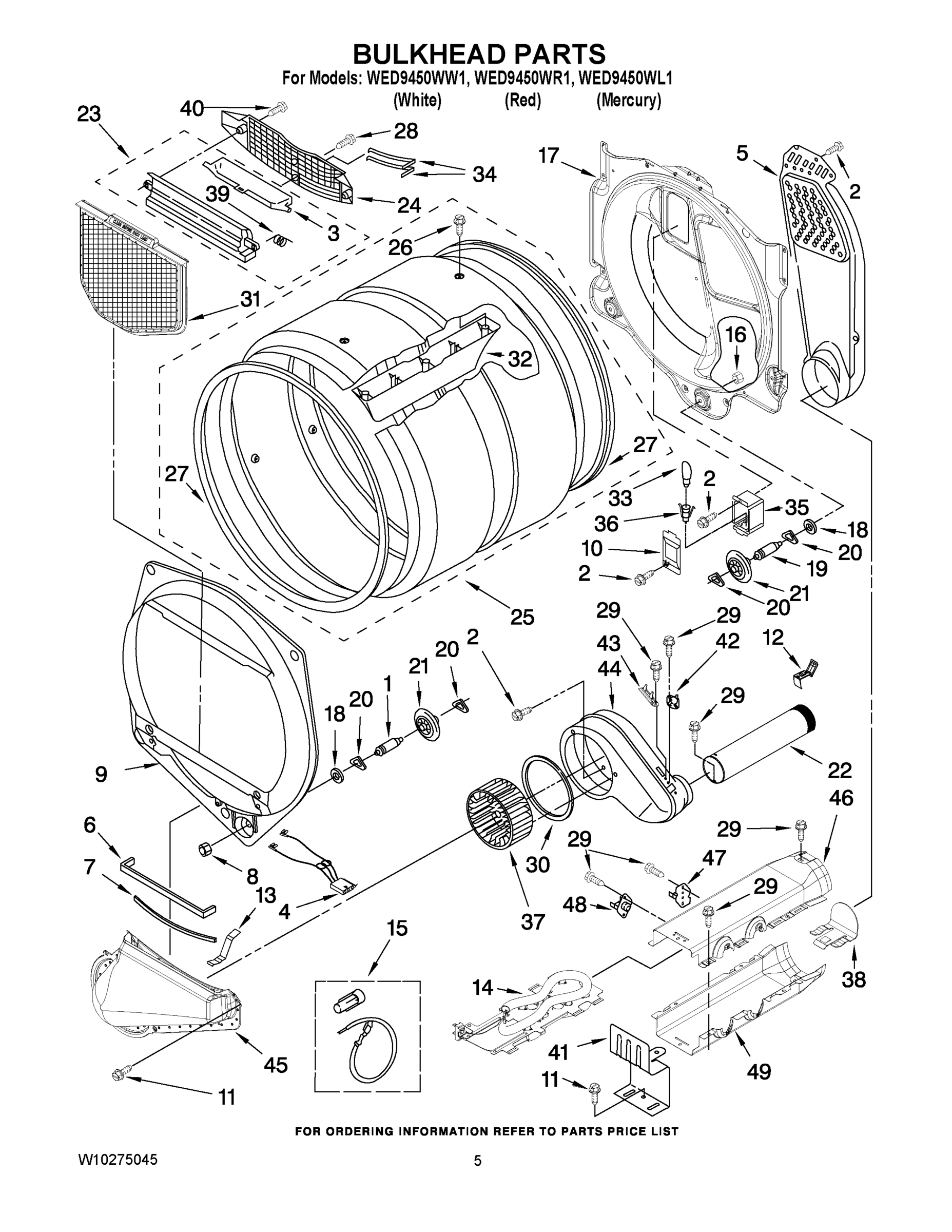

BULKHEAD, FRONT WPL W10252304 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

15

Gasket, Window WPL 8579662 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $97.09

17

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $129.25

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249741 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246598 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10236937 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $49.63

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

Ramp, Door WPL 8529053 Contact Us For Availability

Door Mask WPL W10180117 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $41.99

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

23

Door Screen WPL 8578155 Contact Us For Availability

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $63.31

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

CONTROL BOARD WPL W10169969 Contact Us For Availability

26

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $62.35

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $39.91

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

30

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

31

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

31

Clip-S Type WPL 62825 Contact Us For Availability

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $32.63

32

Baffle, Drum WPL 697693 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

41

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

43

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $35.89

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $74.28

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
