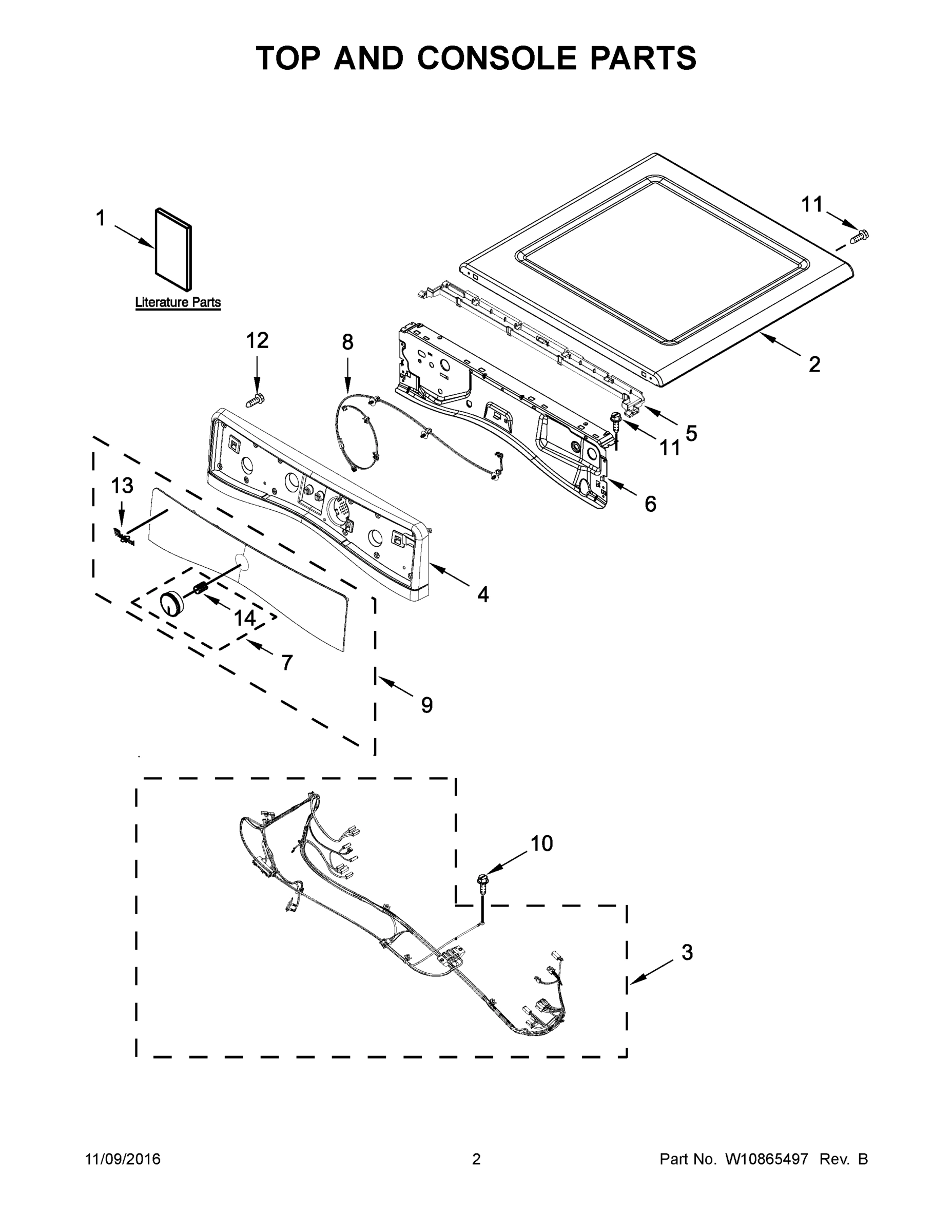

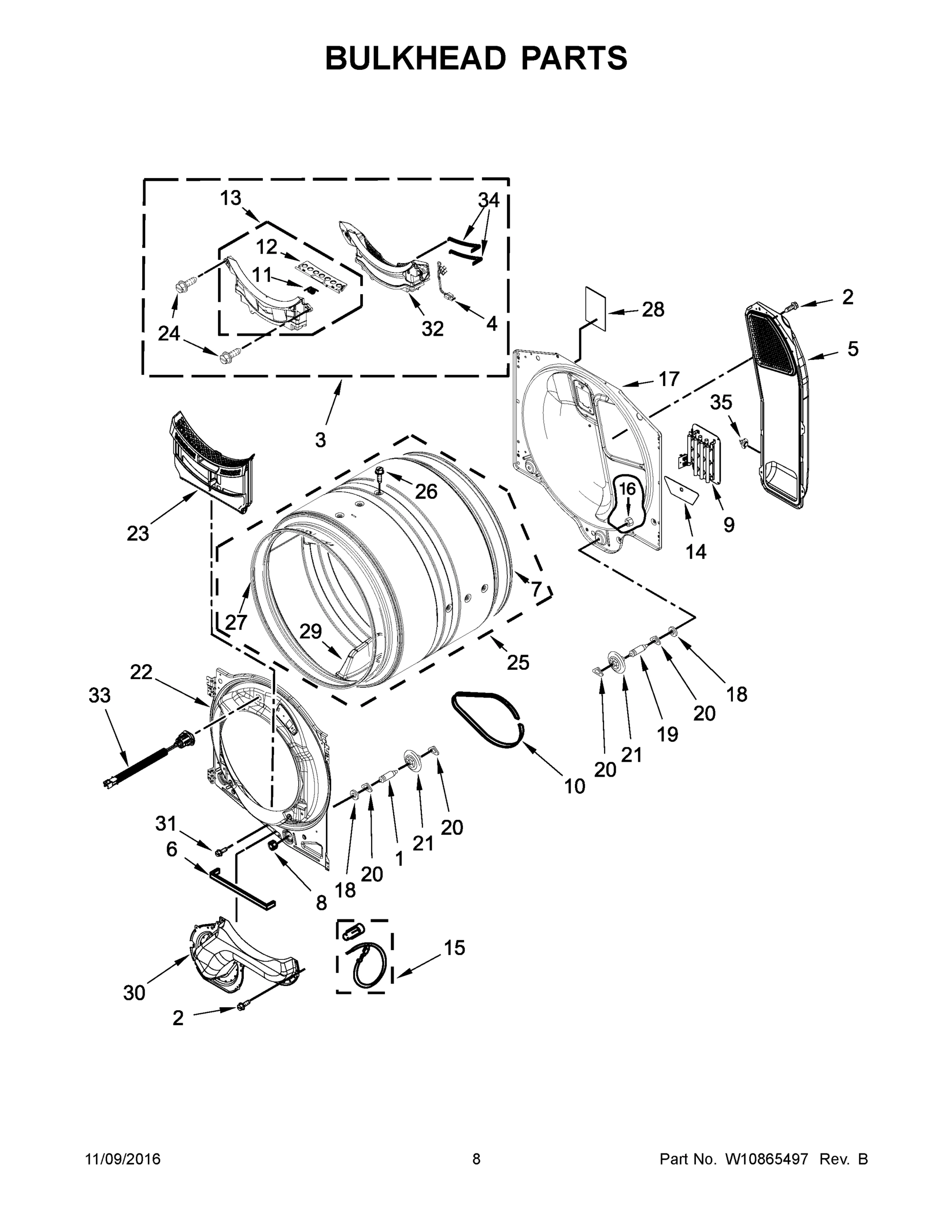

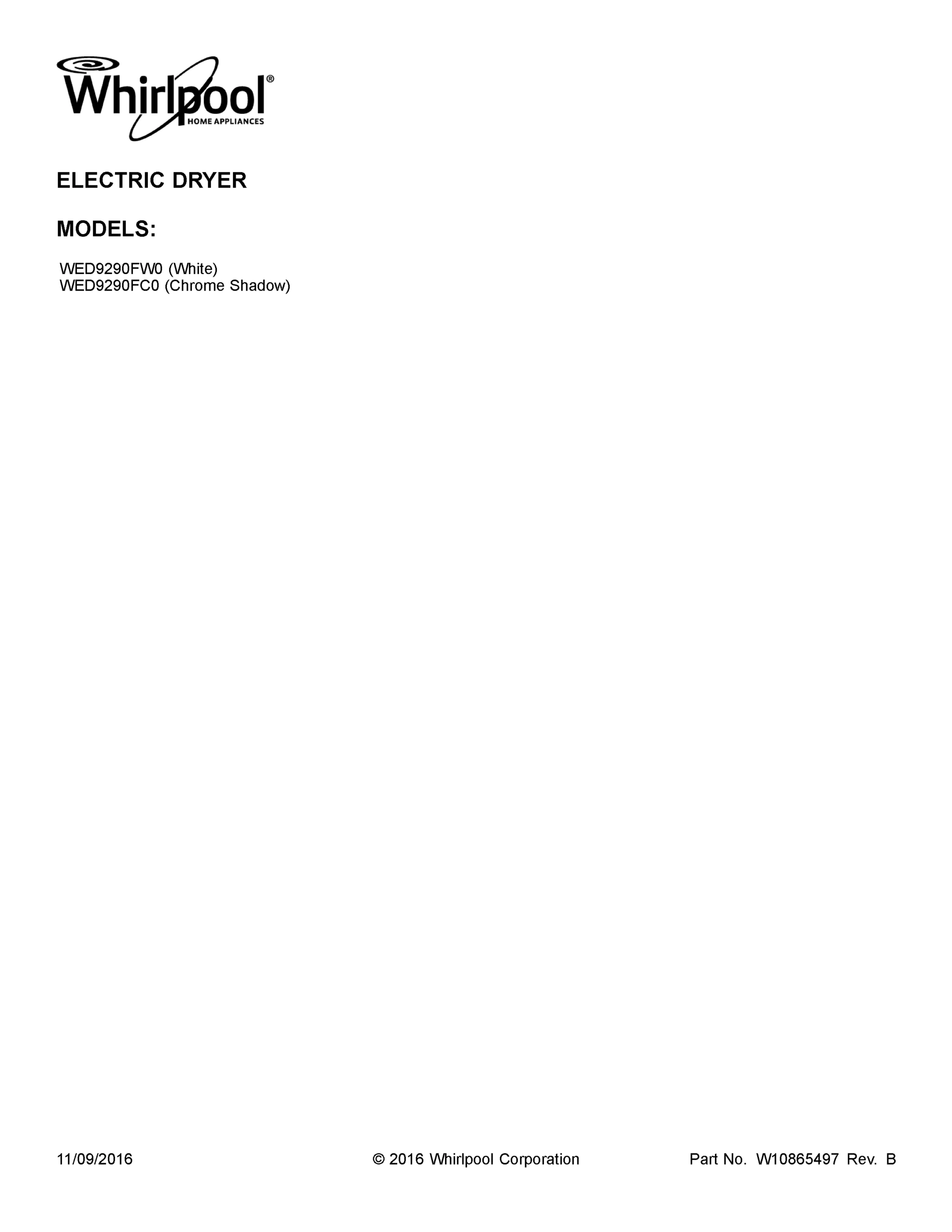

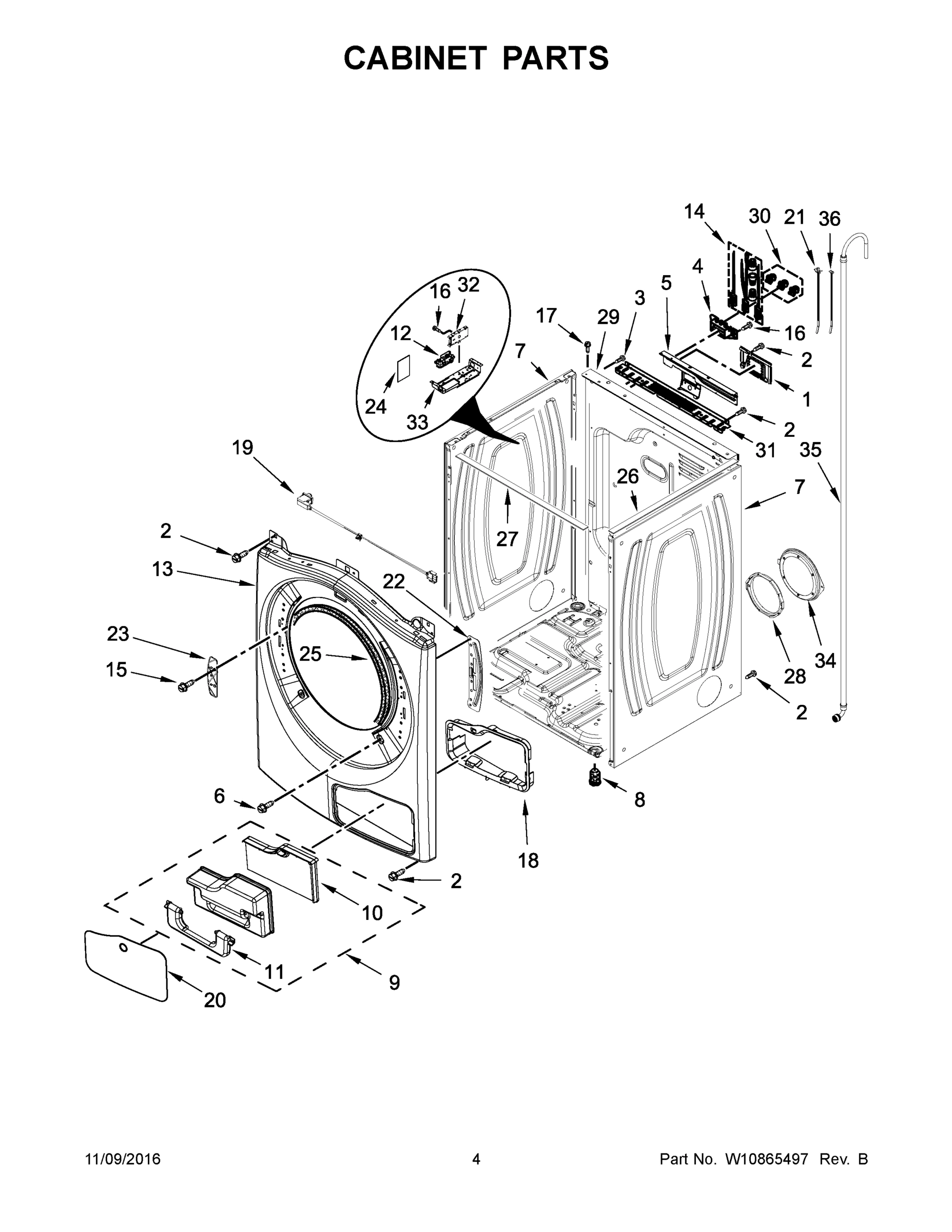

Model Whirlpool WED9290FW0 LAUNDRY, ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10316167 Whirlpool Dryer Terminal Cover Backorder WPL WPW10316167 $38.59

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $31.07

2

W10608831 Whirlpool Cover Backorder WPL W10608831 $112.55

2

WPW10208383 Whirlpool Top Panel Backorder WPL WPW10208383 $176.77

2

ASSEMBLY, INNER DOOR WPL W10811034 Contact Us For Availability

2A

WPW10460919 Whirlpool Top Backorder WPL WPW10460919 $148.31

3

W10459416 Whirlpool Seal In Stock WPL W10459416 $14.44

3

W10635057 Whirlpool Wire Harness Backorder WPL W10635057 $153.93

3

W11051465 Whirlpool Hinge Assembly In Stock WPL W11051465 $71.68

3

W11211470 Whirlpool Out Housing Backorder WPL W11211470 $73.96

4

W10772469 Whirlpool Door Catch Cover Backorder WPL W10772469 $48.55

4

WPW10298258 Whirlpool Wire Harness In Stock WPL WPW10298258 $5.42

4

WPW10391519 Whirlpool Console Backorder WPL WPW10391519 $73.94

5

WPW10208415 Whirlpool Washer Dryer Door Hinge In Stock WPL WPW10208415 $74.38

5

WPW10653575 Whirlpool Channel Backorder WPL WPW10653575 $31.62

6

W11480682 Whirlpool Bracket Backorder WPL W11480682 $28.82

6

W11573366 Whirlpool Flywheel In Stock WPL W11573366 $29.24

6

W11676493 Whirlpool Seal Assembly Backorder WPL W11676493 $9.75

6

DOOR, INNER WPL W10267837 Contact Us For Availability

7

W11233548 Whirlpool Panel In Stock WPL W11233548 $96.51

8

W10837344 Whirlpool Wire Harness Backorder WPL W10837344 $11.62

8

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $19.25

8

WPW10208254 Whirlpool Catch In Stock WPL WPW10208254 $44.12

9

W10208252 Whirlpool Retainer Backorder WPL W10208252 $7.41

9

W10897401 Whirlpool Housing Backorder WPL W10897401 $149.61

9

W11209428 Whirlpool Drive Motor In Stock WPL W11209428 $218.81

9

W11678121 Whirlpool Dryer Heating Element Backorder WPL W11678121 $118.94

10

W10442513 Whirlpool Capacitor Backorder WPL W10442513 $32.30

10

W11199484 Whirlpool Screen Assembly Backorder WPL W11199484 $56.29

10

W11310035 Whirlpool Seal In Stock WPL W11310035 $52.71

11

W10724414 Whirlpool Capacitor Backorder WPL W10724414 $37.15

11

W10823368 Whirlpool Window Assembly Backorder WPL W10823368 $115.52

12

W11156832 Whirlpool Air Grille In Stock WPL W11156832 $49.11

12

WPW10208398 Whirlpool Hinge Pin Cap In Stock WPL WPW10208398 $9.11

12

WPW10652285-includeCORE Whirlpool WPW10652285 Backorder WPL WPW10652285-includeCORE $196.50

W10670373 Whirlpool Door Assembly Backorder WPL W10670373 $81.18

W10682653 Whirlpool Panel Backorder WPL W10682653 $126.75

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

WPW10208419 Whirlpool Plate Backorder WPL WPW10208419 $32.10

13A

W10510982 Whirlpool Nameplate Backorder WPL W10510982 $50.22

279318 Whirlpool Terminal In Stock WPL 279318 $42.38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.33

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

SCREW WPL 9742177 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.76

15

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

15

SCREW WPL W10288126 Contact Us For Availability

16

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

18

W10739602 Whirlpool Control Bezel In Stock WPL W10739602 $54.39

18A

W10739601 Whirlpool Control Bezel In Stock WPL W10739601 $156.92

19

WPW10350906 Whirlpool Door Switch In Stock WPL WPW10350906 $34.40

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

20

W11168387 Whirlpool Cover In Stock WPL W11168387 $53.62

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

20A

DOOR, SECONDARY LINT (CHROME SHADOW) WPL W10739597 Contact Us For Availability

21

W10585594 Whirlpool Filter Backorder WPL W10585594 $155.91

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

22

W10673491 Whirlpool Bulkhead Assembly Backorder WPL W10673491 $126.66

22

BRACKET, DOOR HINGE WPL W10208218 Contact Us For Availability

23

W11483547 Whirlpool Screen Backorder WPL W11483547 $50.97

23

WPW10208250 Whirlpool Strike Backorder WPL WPW10208250 $16.60

24

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

25

W10540767 Whirlpool Compressor Backorder WPL W10540767 $195.69

25

W10541657 Whirlpool Drum Assembly Backorder WPL W10541657 $252.65

25

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.99

26

W10834235 Whirlpool Switch Backorder WPL W10834235 $210.32

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

27

W11193479 Whirlpool Seal In Stock WPL W11193479 $7.98

27

W11715723 Whirlpool Filter Assembly Backorder WPL W11715723 $33.38

28

W11409002 Whirlpool Pad In Stock WPL W11409002 $11.58

28

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

29

W10280771 Whirlpool Drum Baffle In Stock WPL W10280771 $43.24

29

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $11.71

30

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $16.18

30

W10642437 Whirlpool Duct Lint Backorder WPL W10642437 $149.89

31

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

32

W10684400 Whirlpool Out Grille Backorder WPL W10684400 $87.26

33

ASSEMBLY, DRUM LIGHT WPL W10460935 Contact Us For Availability

33

BRACKET, CONTROL WPL W10259611 Contact Us For Availability

34

W10651558 Whirlpool Switch Assembly Backorder WPL W10651558 $50.14

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.21

35

W10574749 Whirlpool Bracket Backorder WPL W10574749 $22.12

35

W11169712 Whirlpool Hose Backorder WPL W11169712 $52.56

35

W11676807 Whirlpool Dryer Thermal Cutoff Backorder WPL W11676807 $13.12

36

W10574747 Whirlpool Cover Backorder WPL W10574747 $47.16

38

W10683172 Whirlpool Hose Backorder WPL W10683172 $14.22

39

W11307123 Whirlpool Connector In Stock WPL W11307123 $27.93

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $14.71

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $21.80

W10322470A Whirlpool Dryer Drying Rack Backorder WPL W10322470A $27.27

W10446202 Whirlpool Washer/Dryer Touch-Up Pai Backorder WPL W10446202 $7.48

W10819173 Whirlpool Hose Fill Backorder WPL W10819173 $26.04

W10869845 Whirlpool Stack Kit In Stock WPL W10869845 $53.25

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
