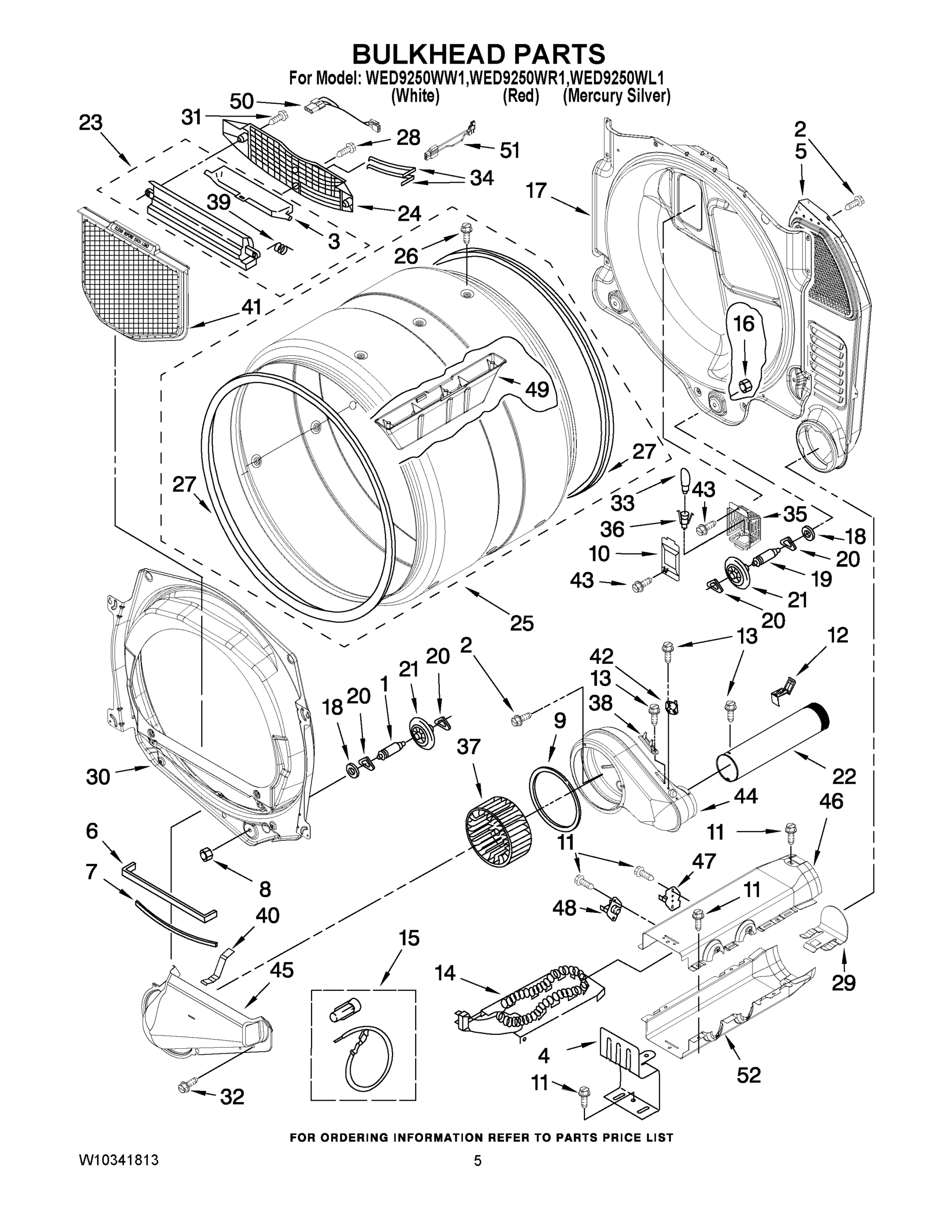

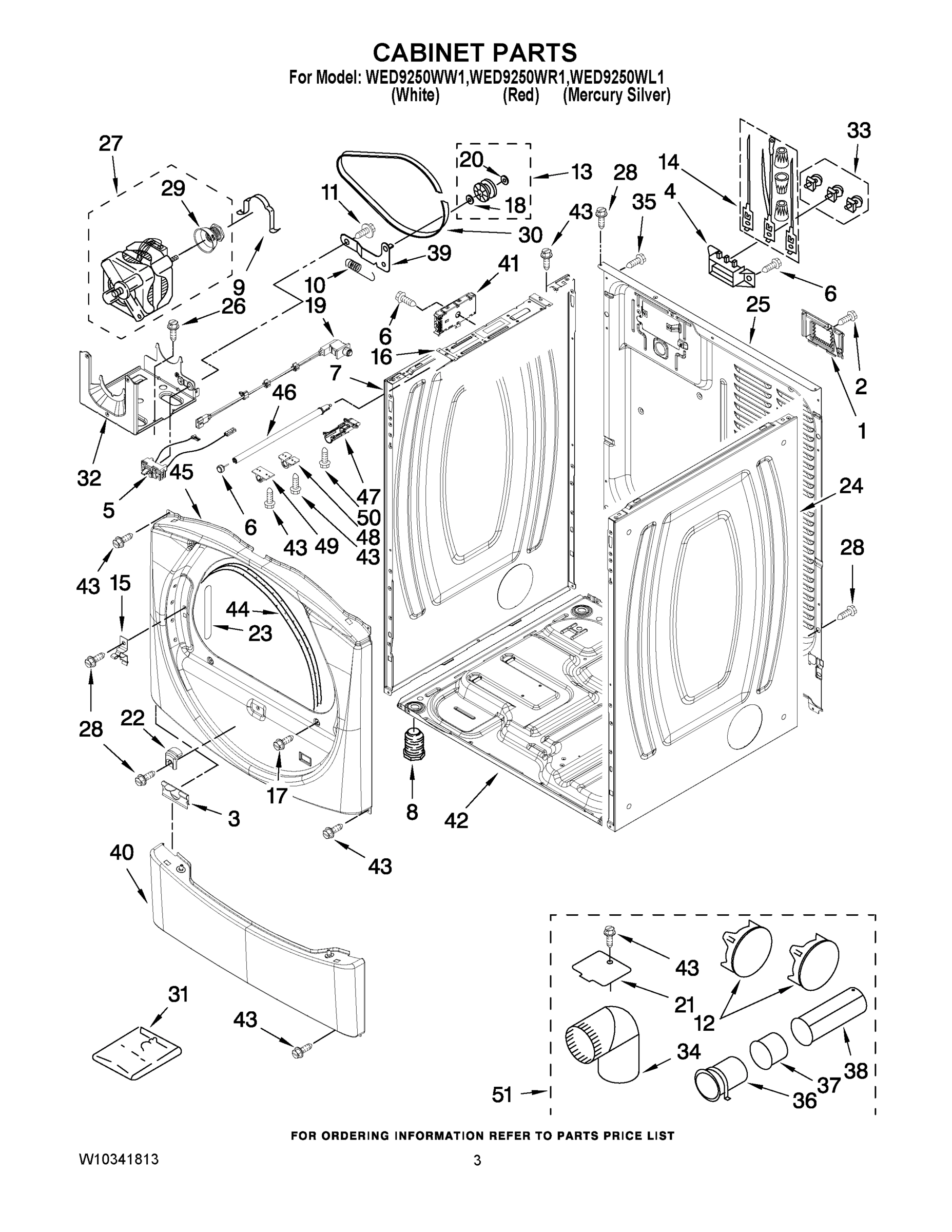

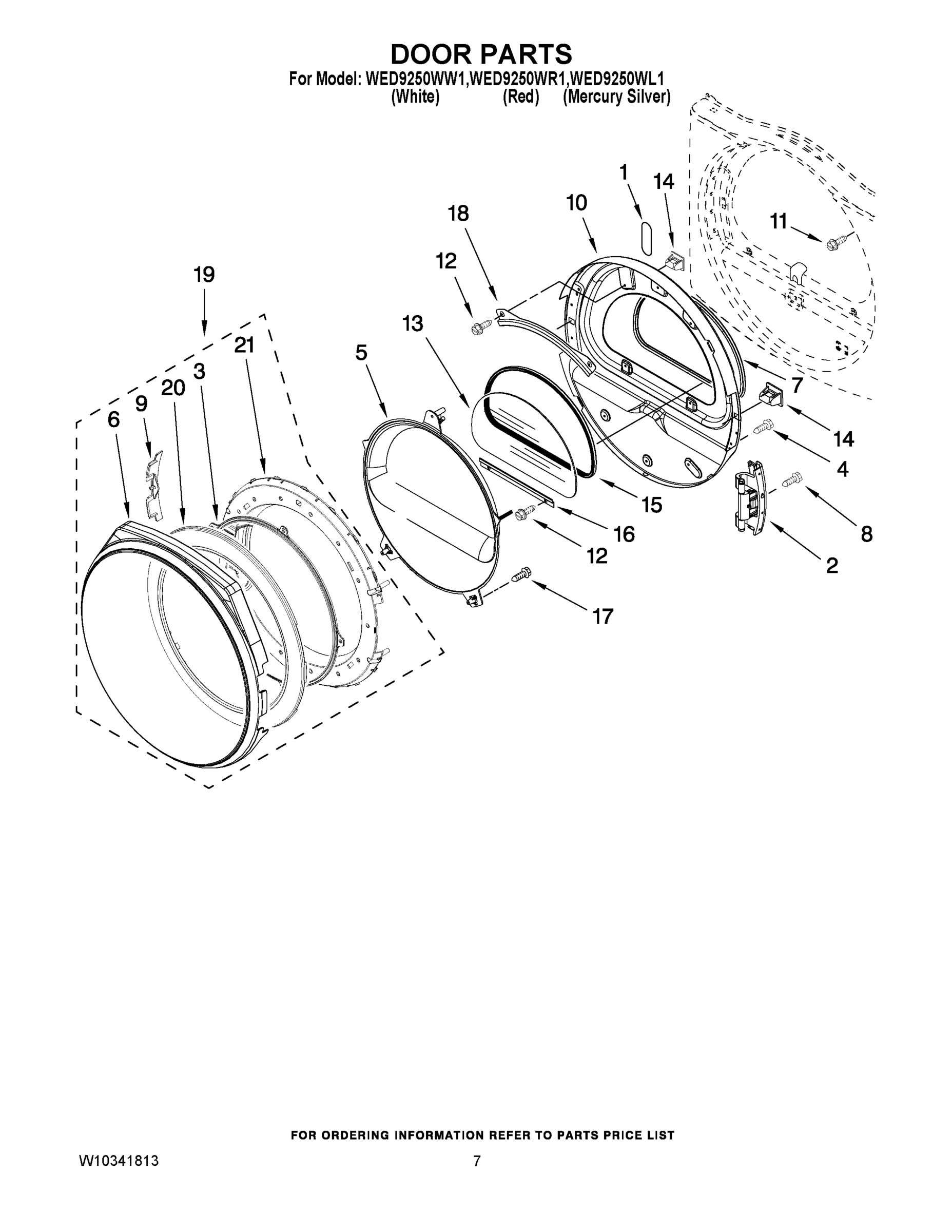

Model Whirlpool WED9250WL1 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

2

Door, Hinge Assembly WPL 8578887 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

3

HARNESS, MAIN WPL W10251442 Contact Us For Availability

4

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

4

W11116979 Whirlpool Screw Backorder WPL W11116979 $9.13

5

W10153920 Whirlpool Clip Backorder WPL W10153920 $5.65

5

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $133.23

5

DOOR, INTERMEDIATE STATIONARY WPL W10215764 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

DOOR TRIM OUTER RING (WHITE) WPL W10215757 Contact Us For Availability

6

DOOR TRIM OUTER RING (MERCURY) WPL W10215823 Contact Us For Availability

6

DOOR TRIM OUTER RING (RED) WPL W10215824 Contact Us For Availability

7

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $45.29

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $2.51

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

9

DOOR TRIM, HINGE COVER (WHITE) WPL W10215766 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (MERCURY) WPL W10215825 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (RED) WPL W10215826 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

W11690171 Whirlpool Door Assembly Backorder WPL W11690171 $76.33

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

12

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $107.14

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

14

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

W11706993 Whirlpool Seal Backorder WPL W11706993 $9.75

15

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $3.70

16

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

17

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $129.25

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10318609 Whirlpool Dryer Door Switch Backorder WPL W10318609 $28.02

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

DOOR ASSEMBLY OUTER (WHITE) WPL W10215756 Contact Us For Availability

DOOR ASSEMBLY OUTER (MERCURY) WPL W10215830 Contact Us For Availability

DOOR ASSEMBLY OUTER (RED) WPL W10215831 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

TRIM-DOOR INNER RING (NOT SERVICEABLE SEPERAT WPL NP Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

DOOR INTERMEDIATE ROTATIONAL WPL W10215762 Contact Us For Availability

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $56.54

23

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $33.01

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

25

W10865330 Whirlpool Drum In Stock WPL W10865330 $137.63

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

29

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

30

8565061 Whirlpool Bulkhead Assembly Backorder WPL 8565061 $152.35

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $23.97

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $32.63

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

41

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

41

CONTROL BOARD WPL W10235613 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $35.89

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $74.28

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

47

WPL W10101220 WPL W10101220 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

48

WPL W10101183 WPL W10101183 Contact Us For Availability

49

W10852390 Whirlpool Drum Baffle In Stock WPL W10852390 $54.74

49

WPL W10307561 WPL W10307561 Contact Us For Availability

50

HARNESS, MOISTURE SENSOR WPL W10110975 Contact Us For Availability

51

W10331132 Whirlpool Plug Backorder WPL W10331132 $39.33

51

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

52

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability
