Model WDF110PABB5 – Common Parts & Diagrams

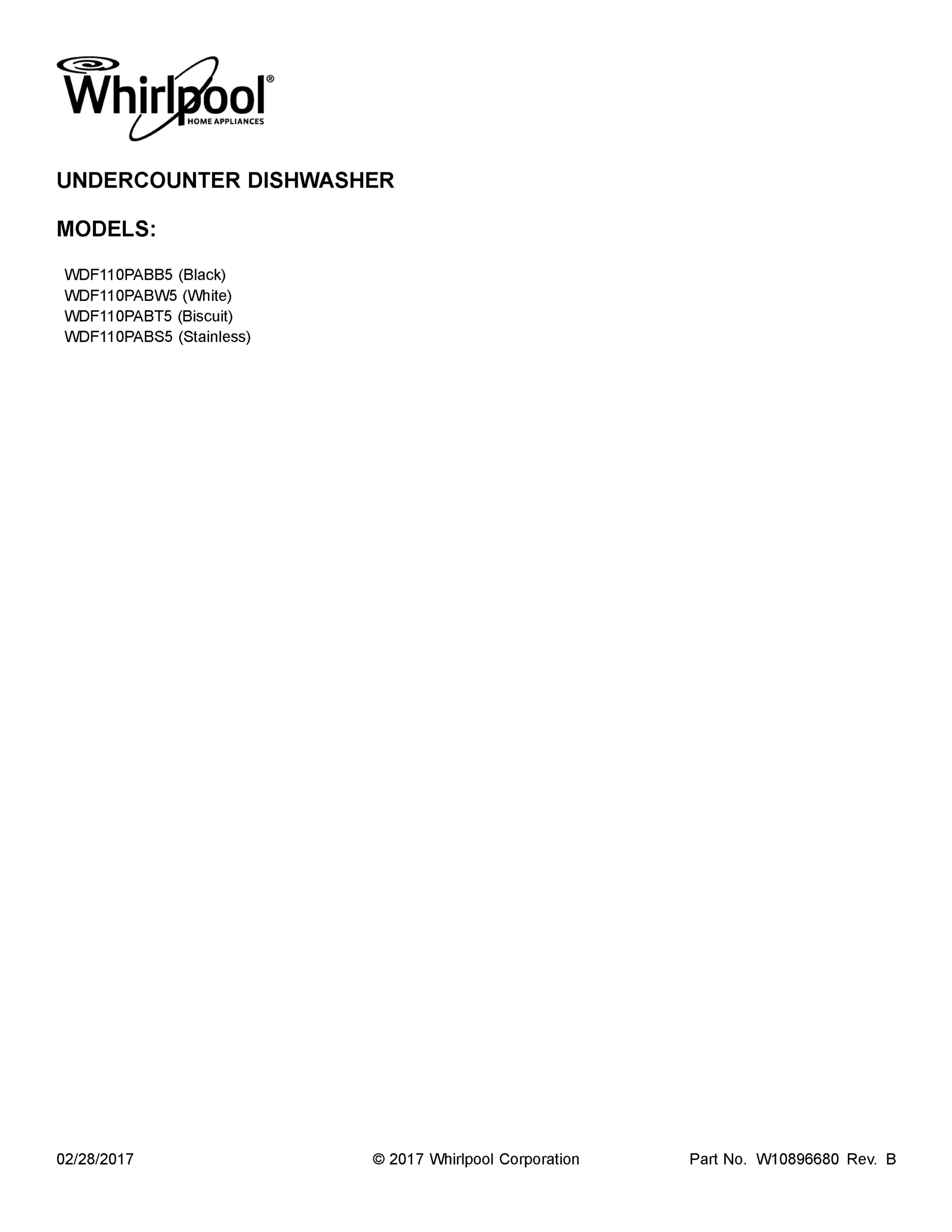

01 - COVER SHEET

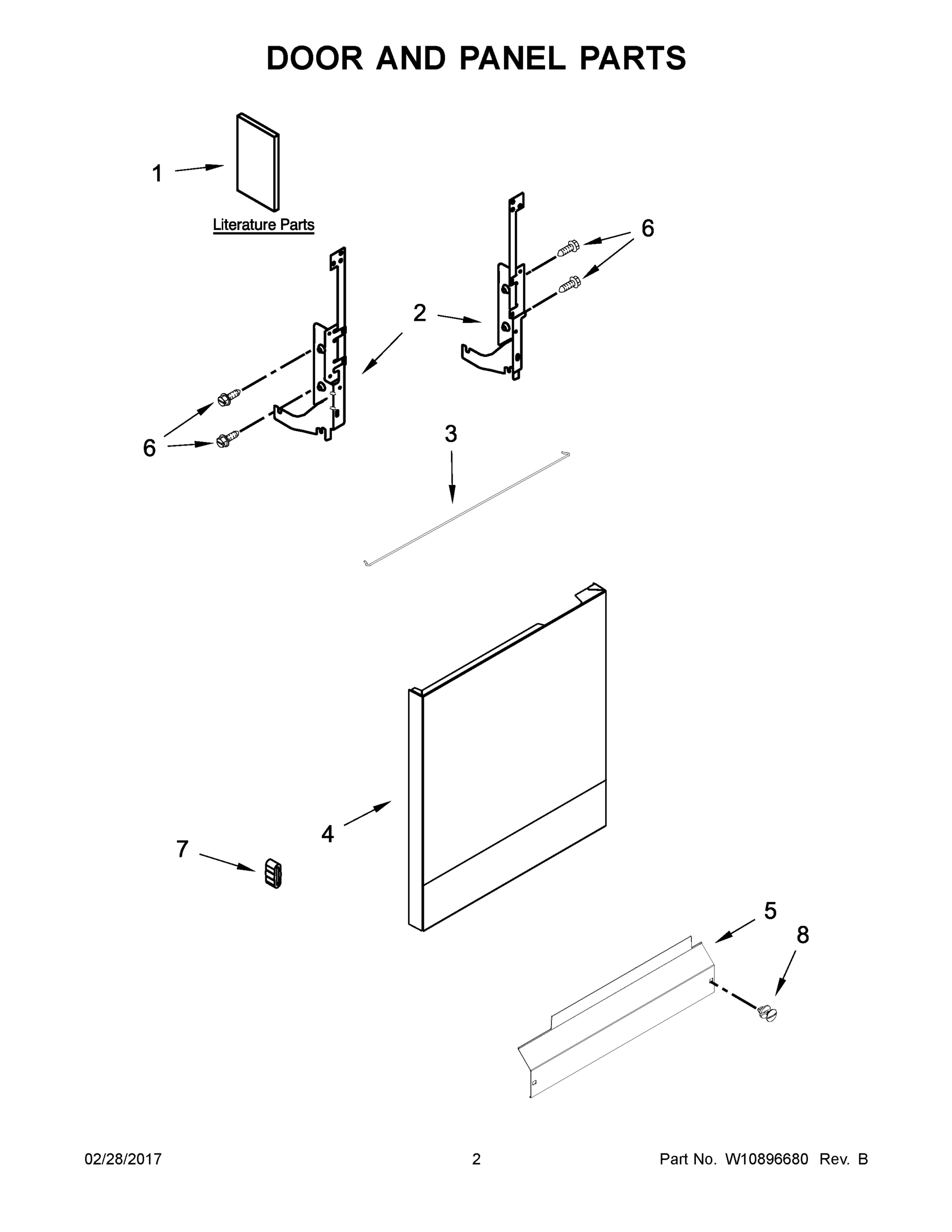

02 - DOOR AND PANEL PARTS
03 - CONTROL PANEL AND LATCH PARTS
04 - INNER DOOR PARTS
05 - FILL, DRAIN AND OVERFILL PARTS

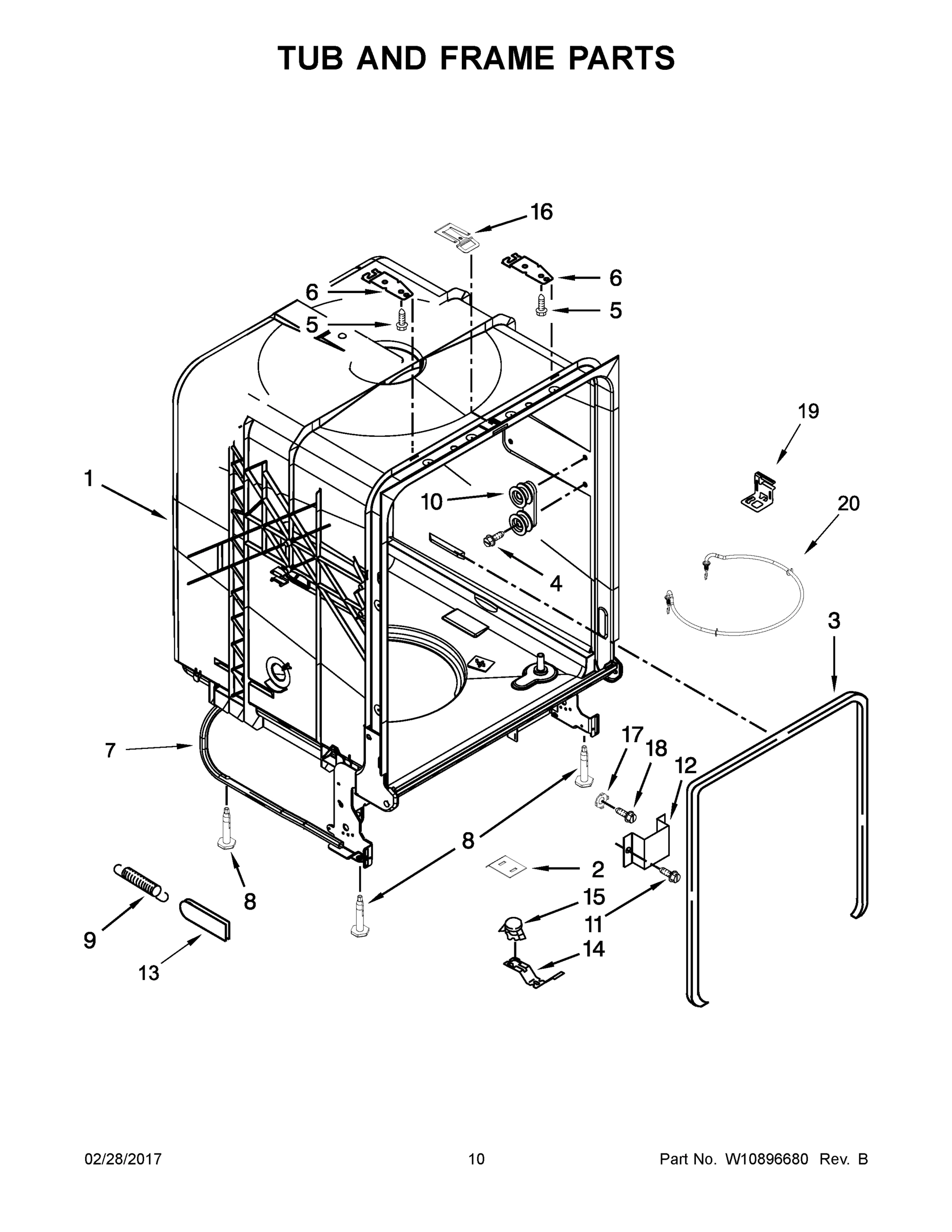

06 - TUB AND FRAME PARTS

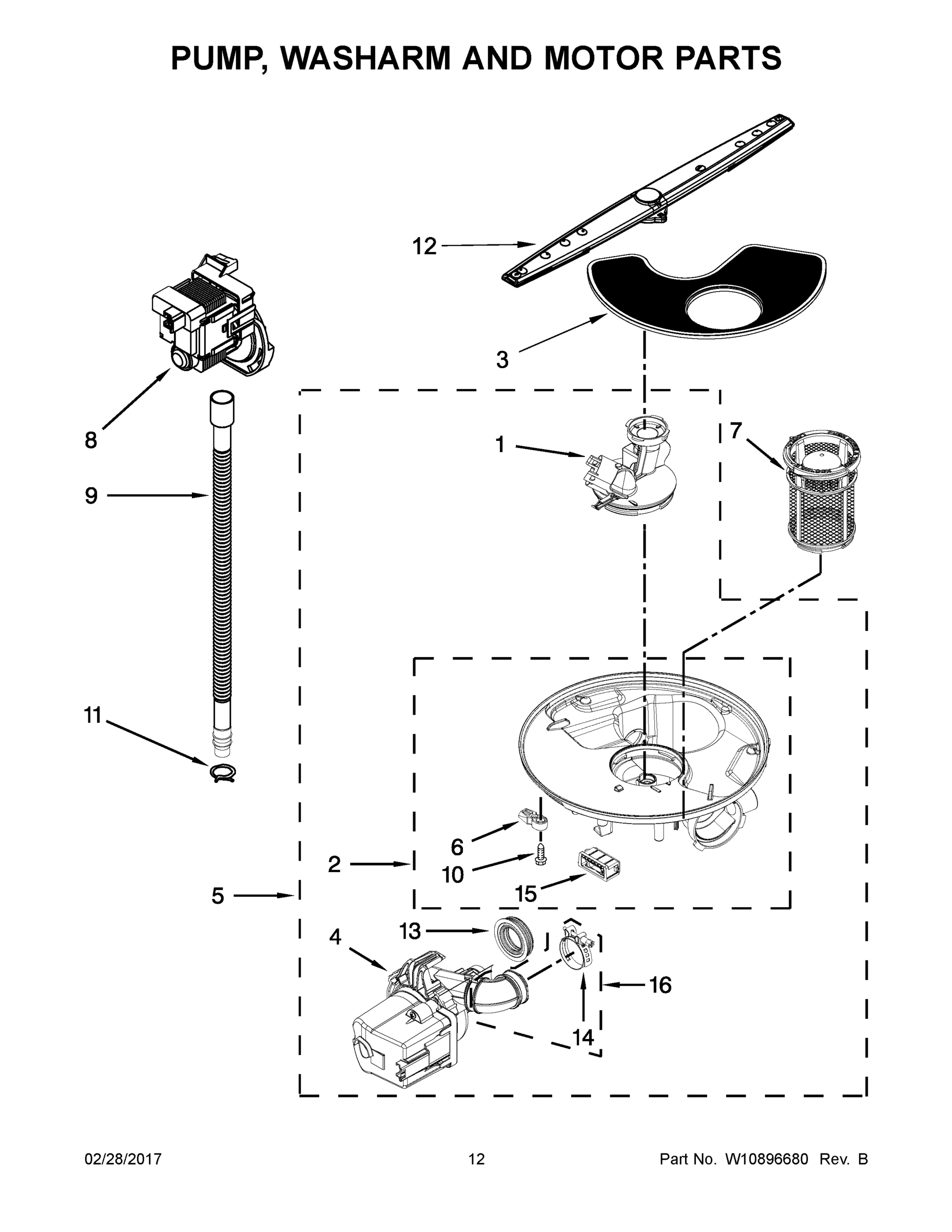

07 - PUMP, WASHARM AND MOTOR PARTS

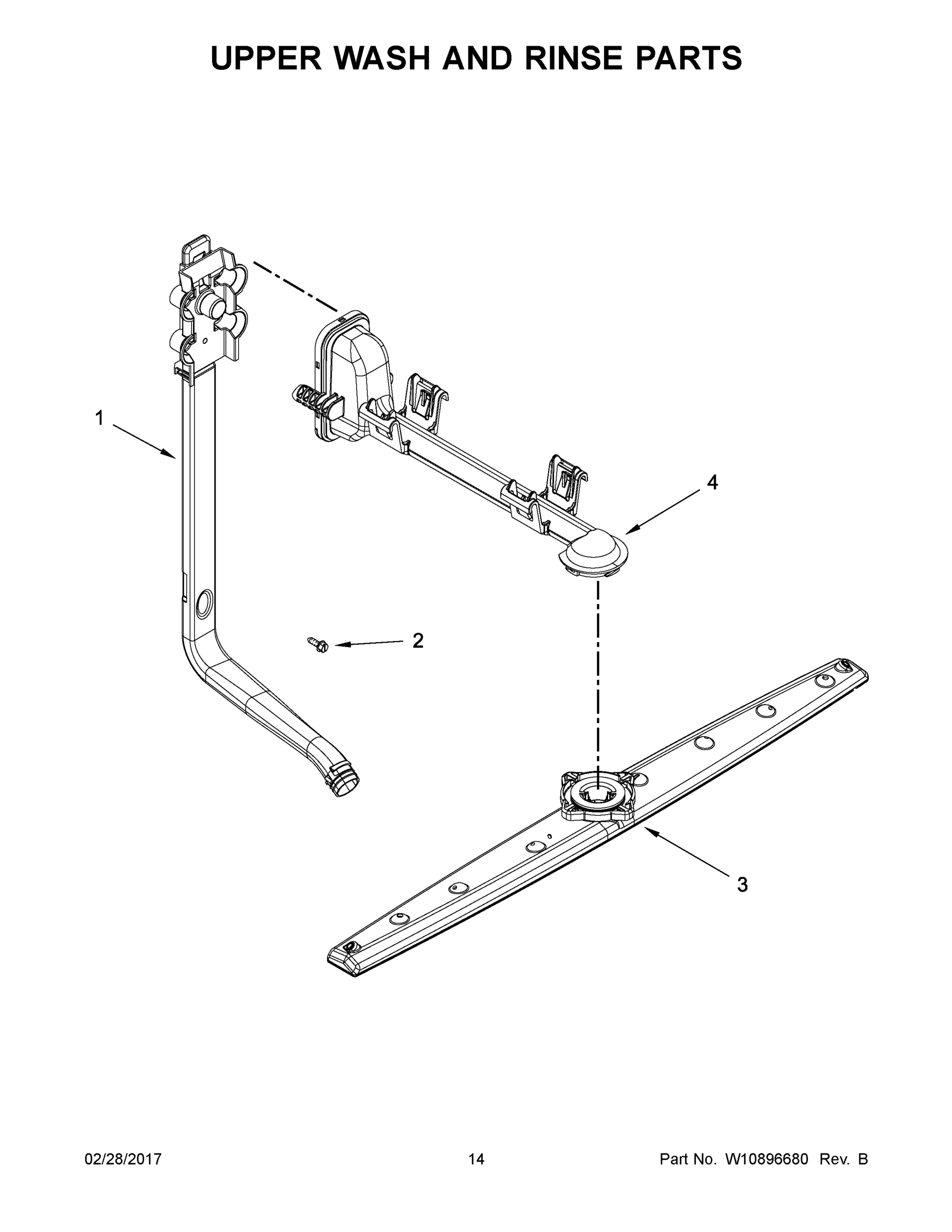

08 - UPPER WASH AND RINSE PARTS

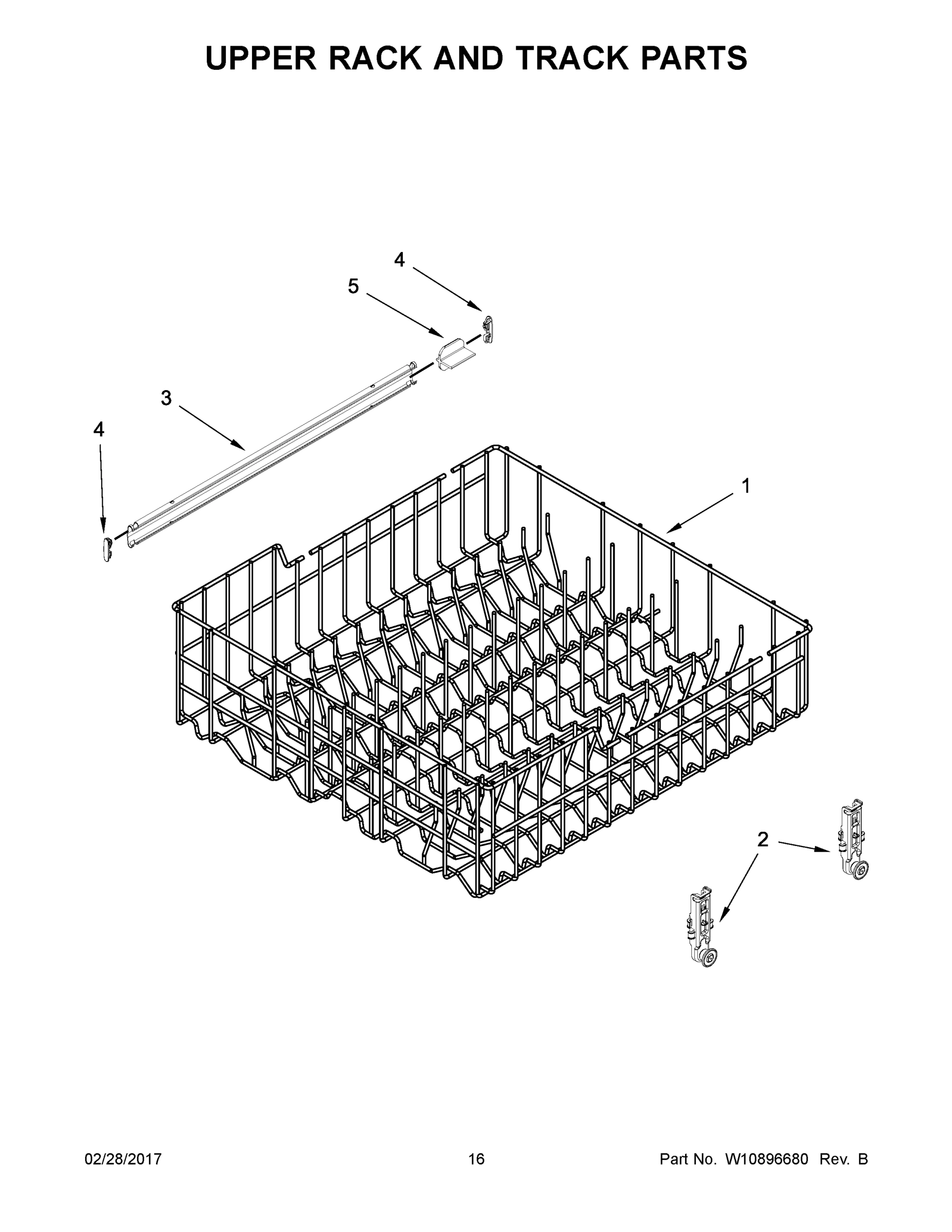

09 - UPPER RACK AND TRACK PARTS

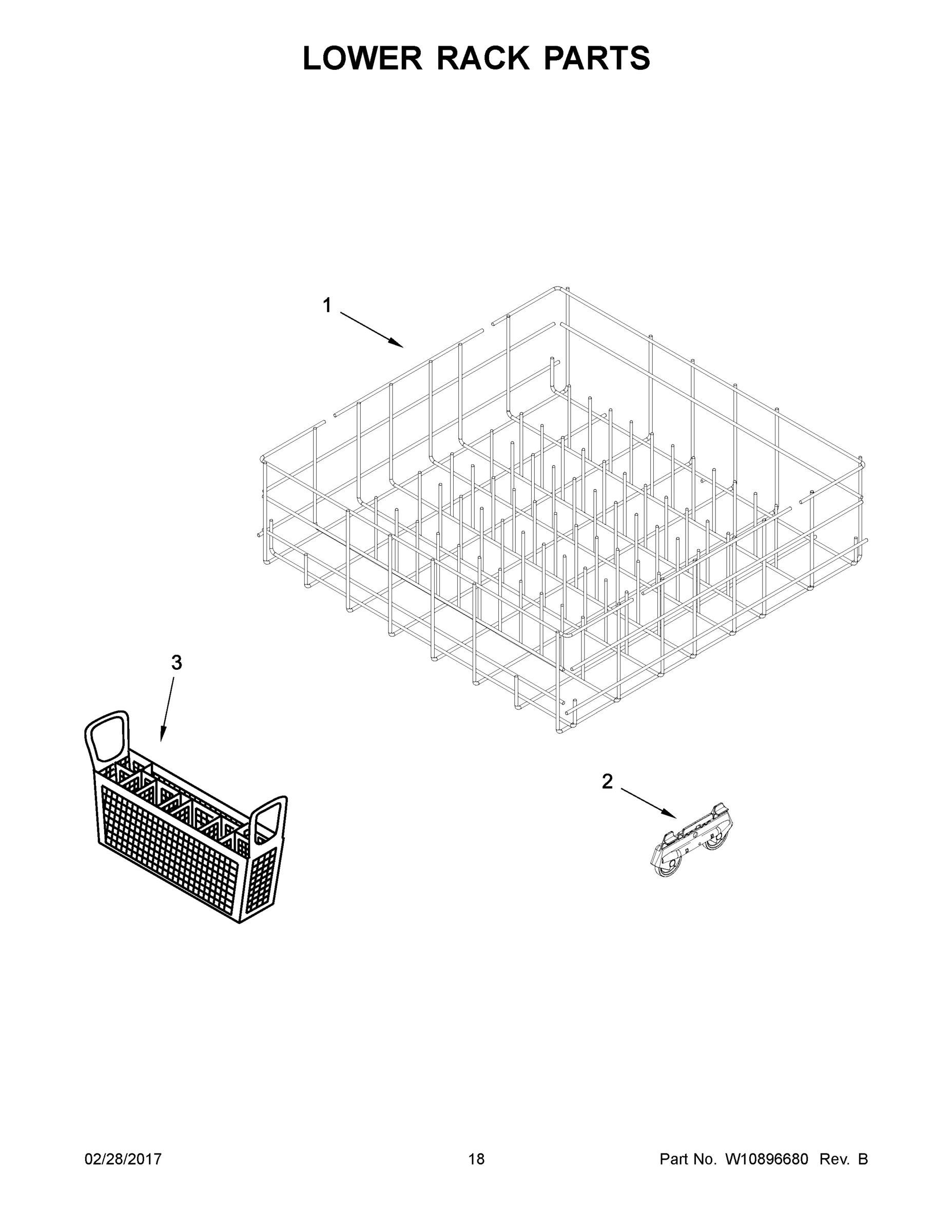

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
