Model Whirlpool TS25AQXBN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
02 - REFRIGERATOR LINER

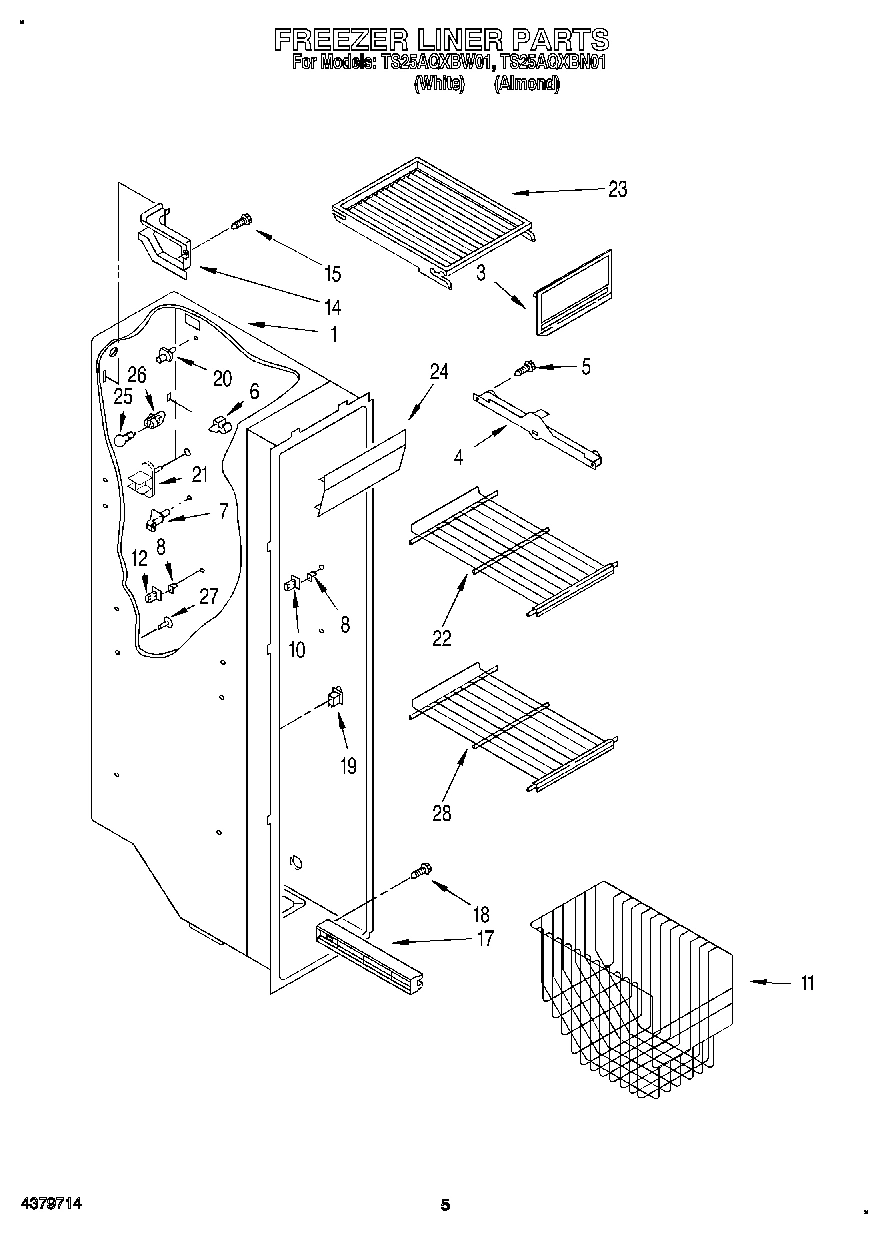

04 - FREEZER LINER

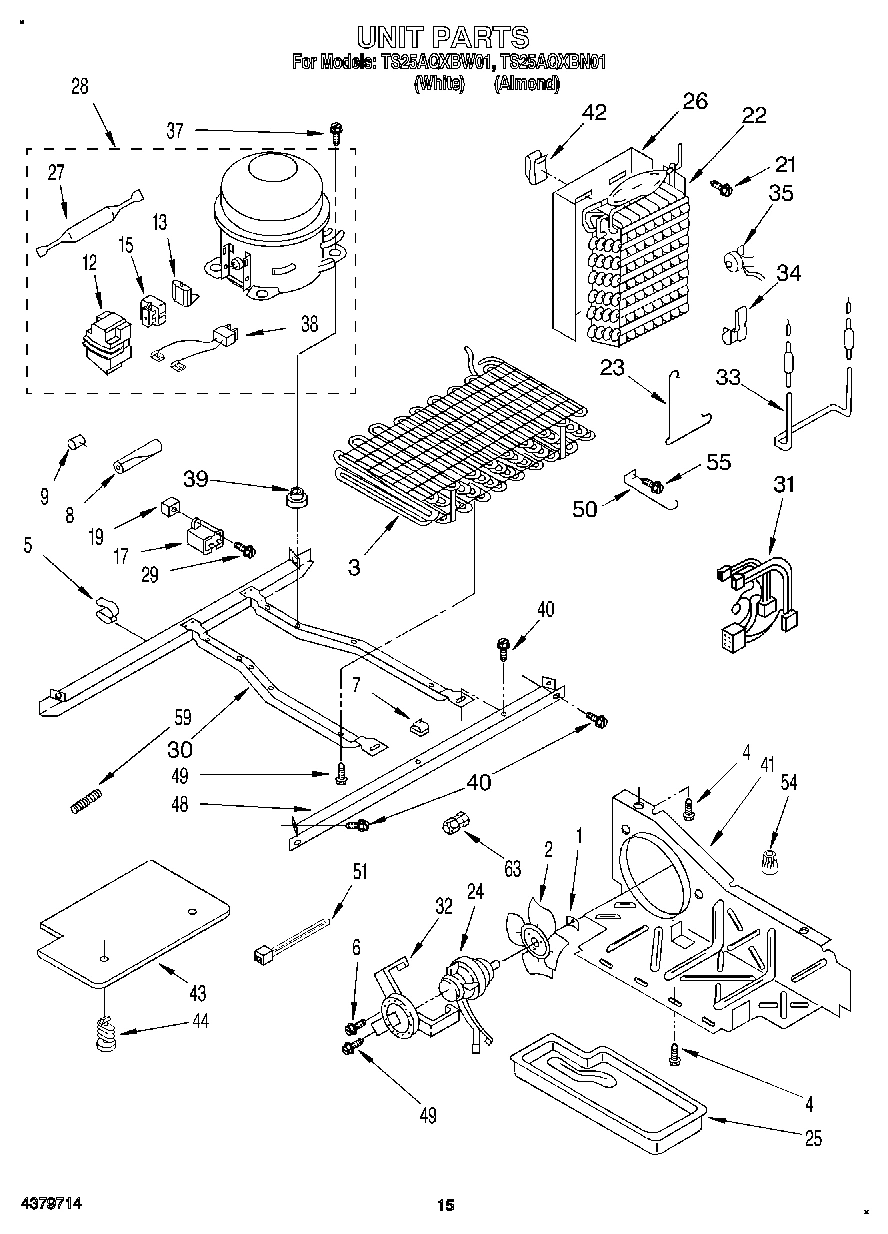

09 - UNIT

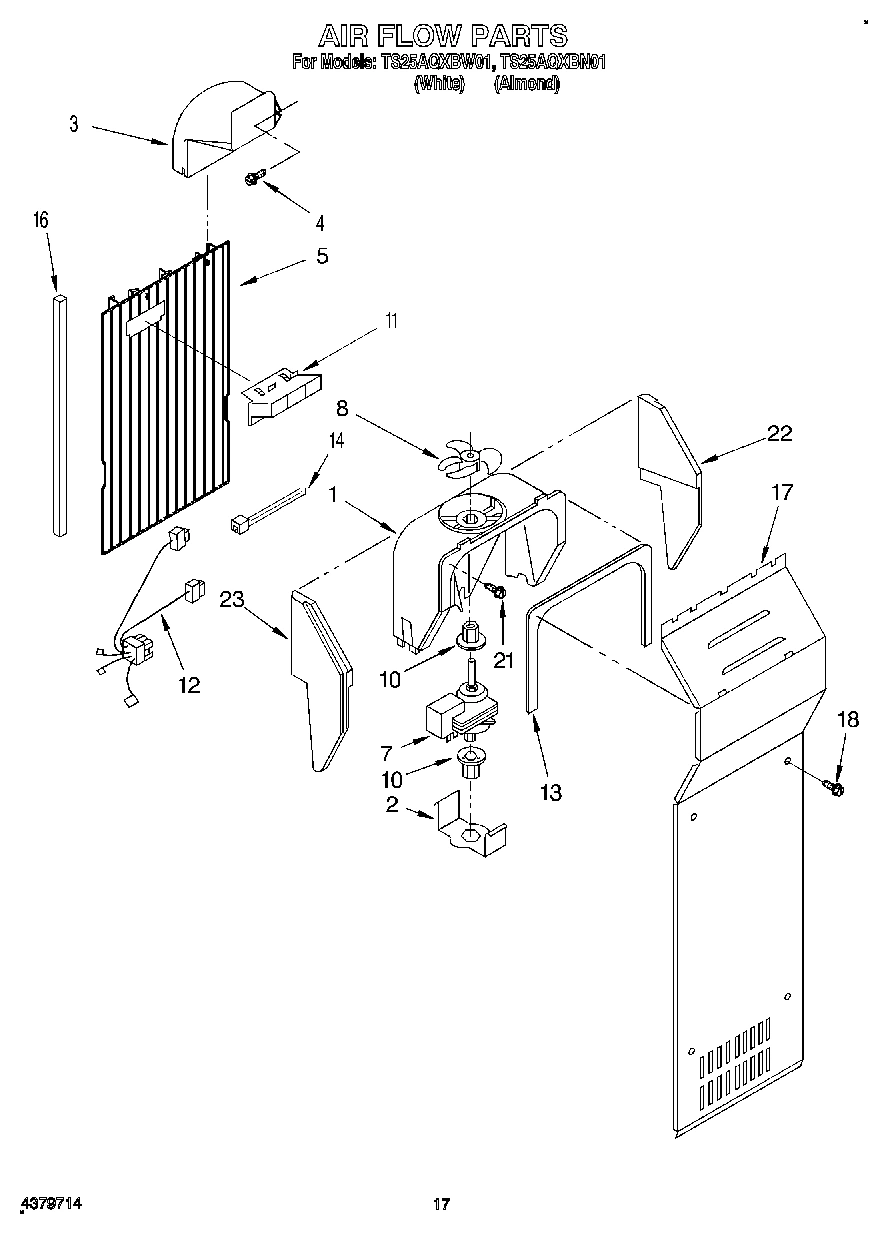

10 - AIR FLOW

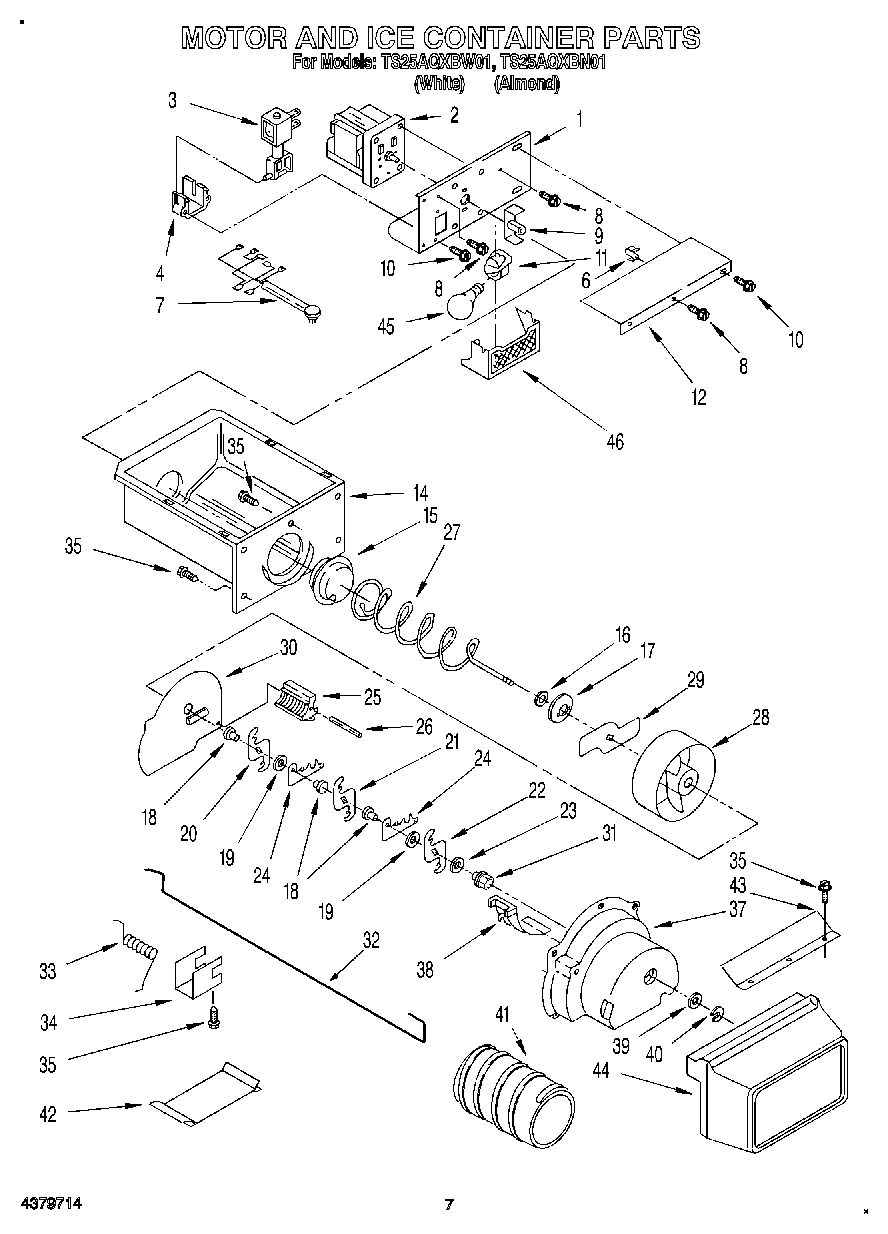

05 - MOTOR AND ICE CONTAINER

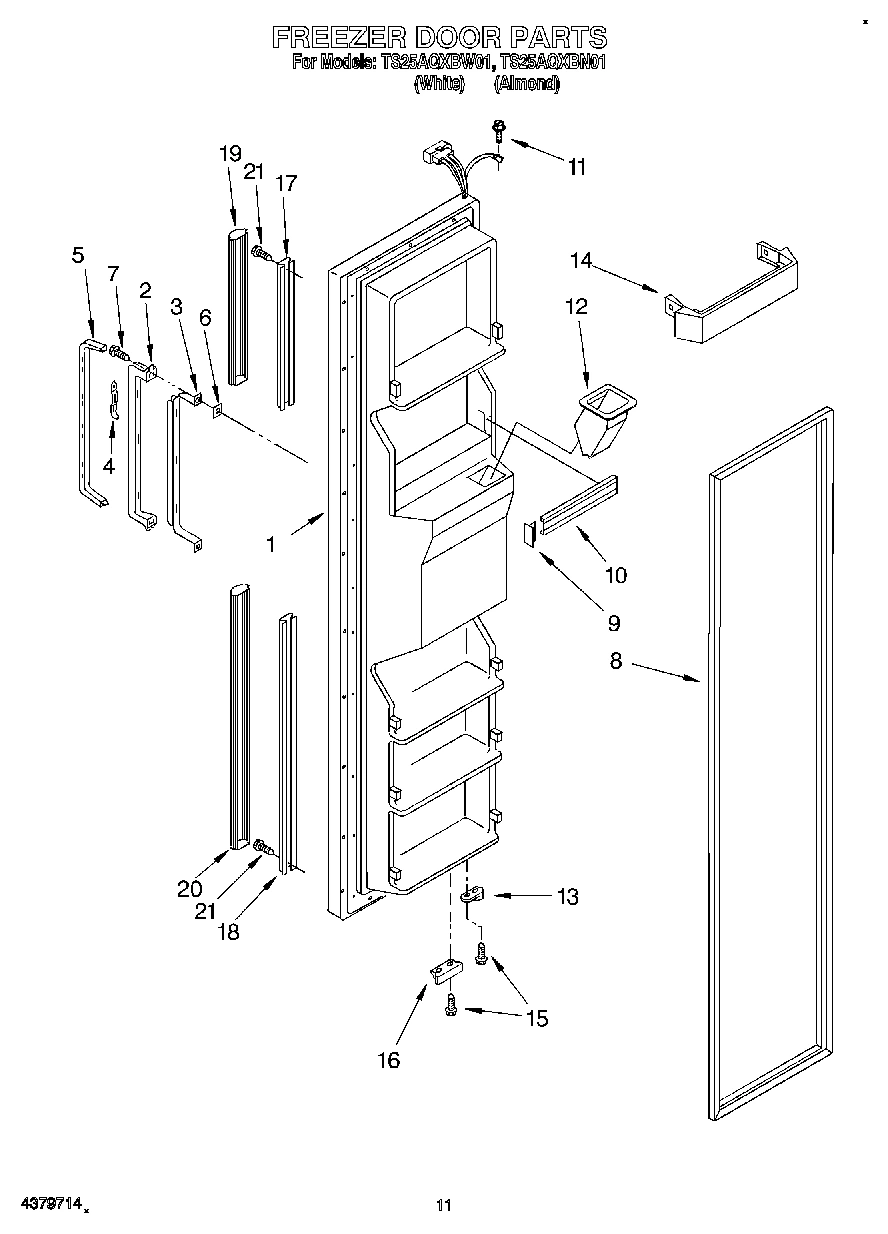

07 - FREEZER DOOR

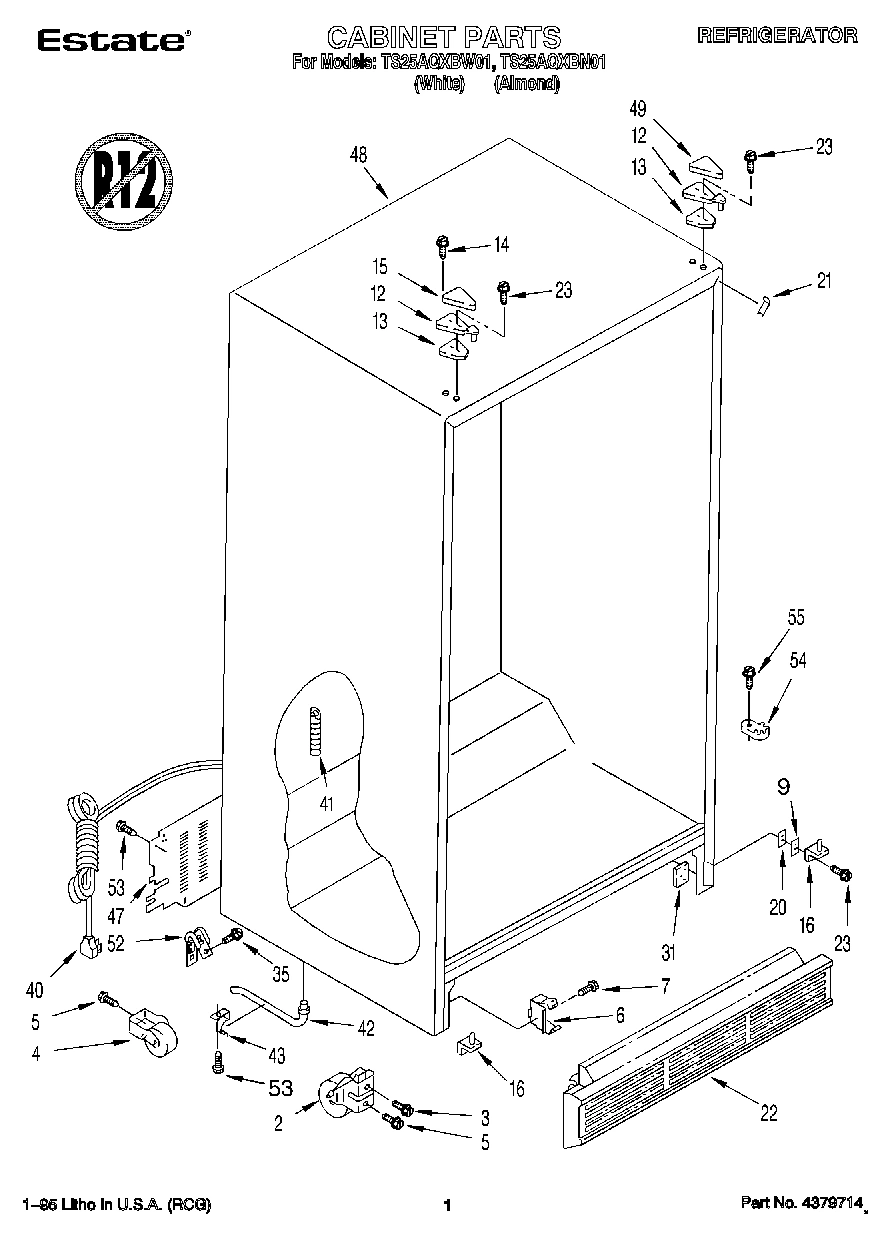

01 - CABINET

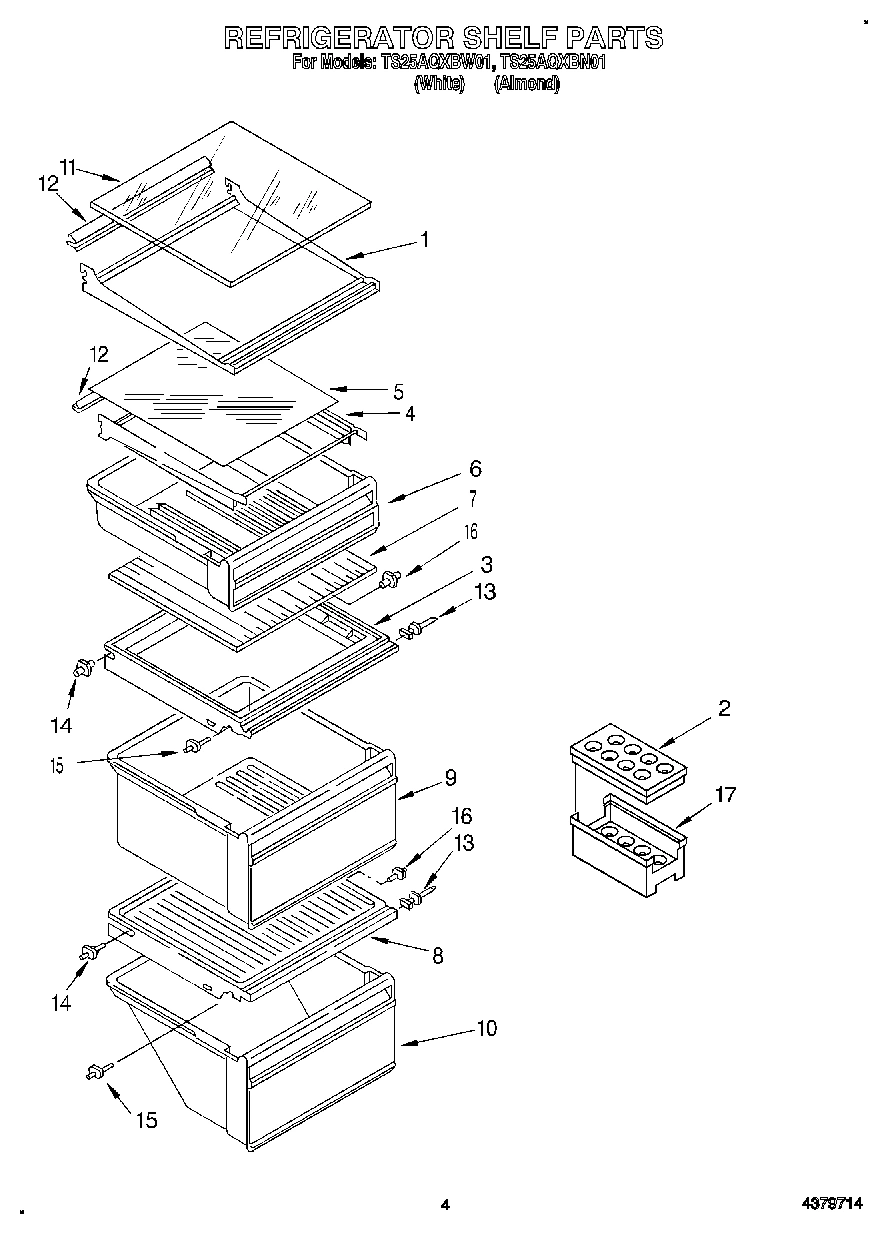

03 - REFRIGERATOR SHELF

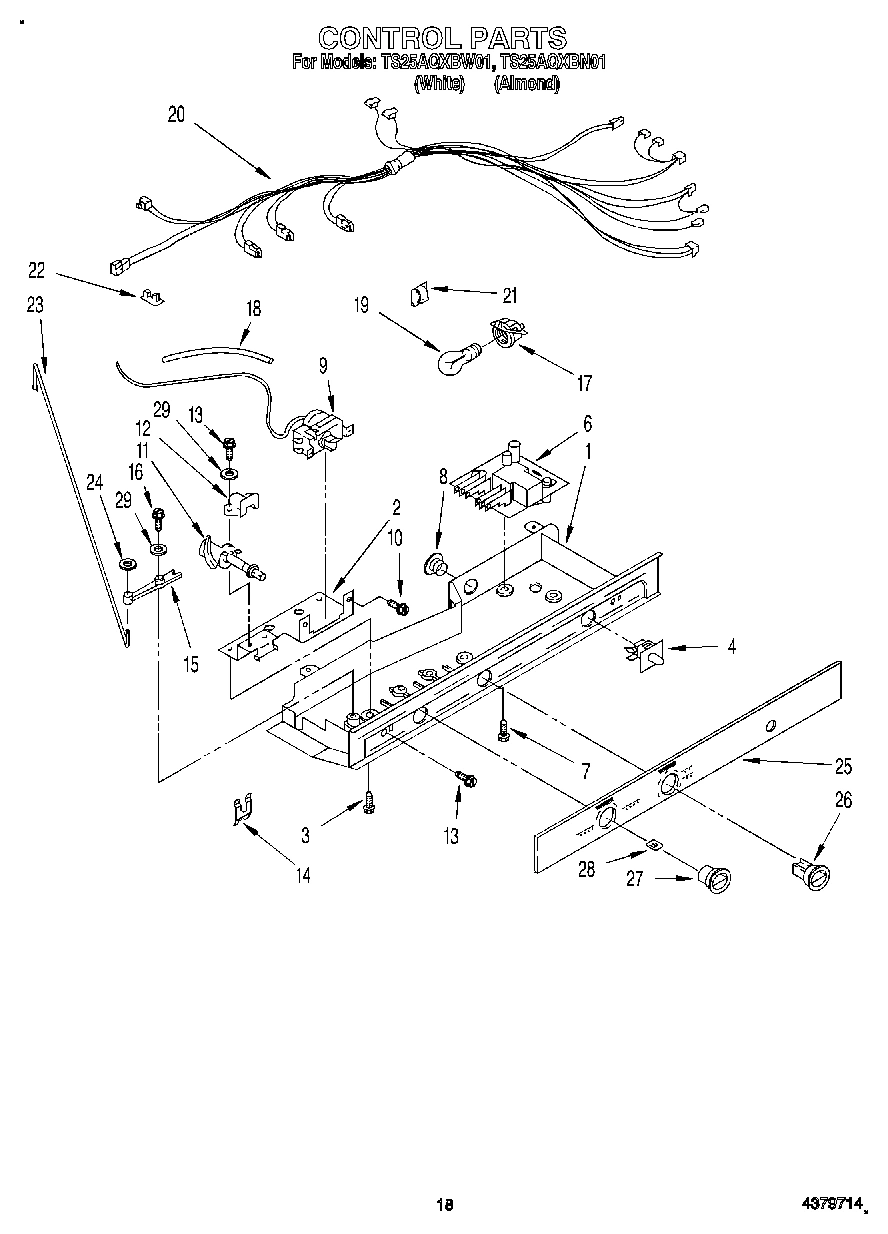

11 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL

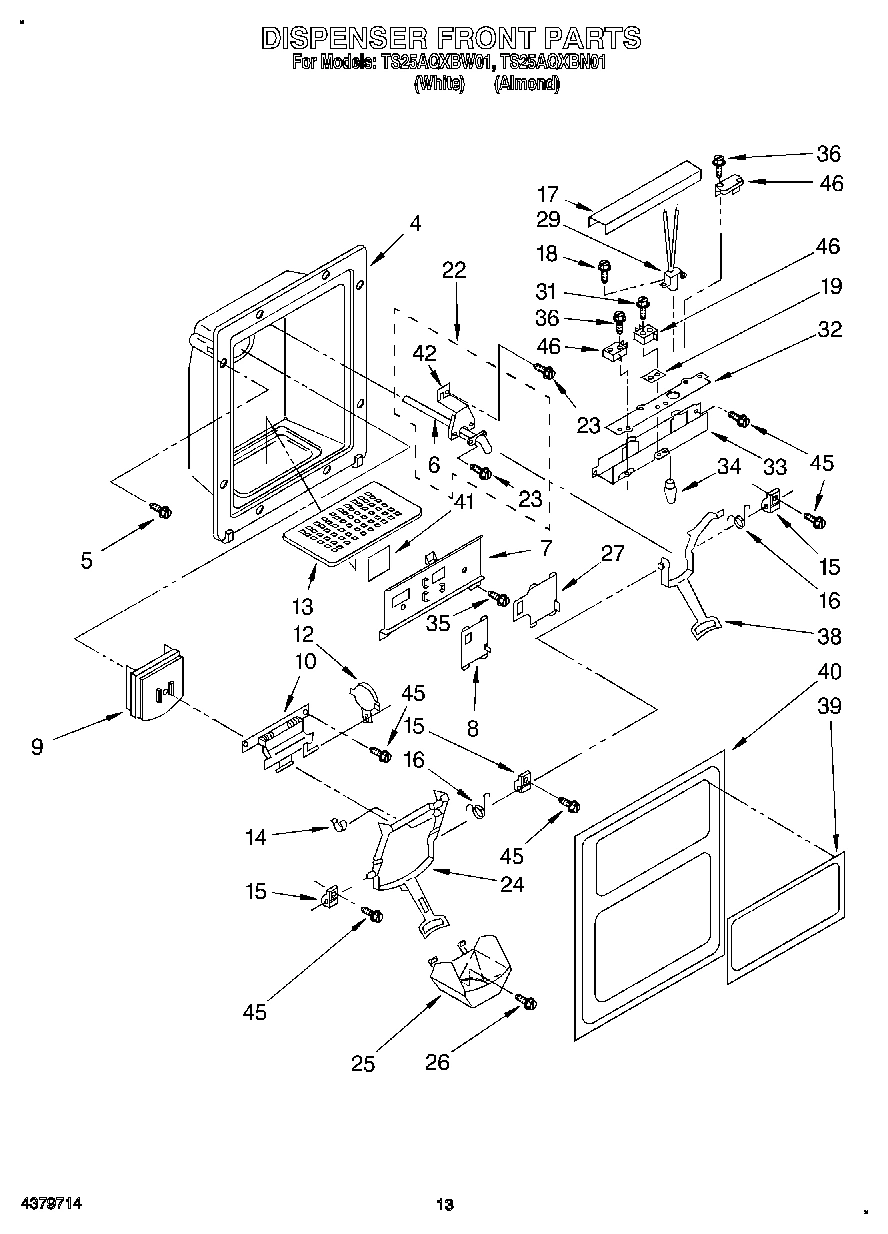

08 - DISPENSER FRONT
Common parts from model Whirlpool TS25AQXBN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173153 WPL LIT2173153 Contact Us For Availability
WPL LIT2173265 WPL LIT2173265 Contact Us For Availability
WPL LIT2176624 WPL LIT2176624 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173226 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173227 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle (White) WPL 2147470 Contact Us For Availability
2
Handle (Almond) WPL 2170066 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Egg Container, Top WPL 1107388 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Reinforcement, Handle WPL 1127465 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Clip, Handle (3) WPL 849445 Contact Us For Availability
4
Shelf, Cantilever (Snack Bin) WPL 2173125 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI132351A Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Insert, Handle WPL 2147581 Contact Us For Availability
5
Glass (Snack Bin) WPL 2173126 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Snack Bin WPL 2173211 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI132352A Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Glass, Crisper Cover WPL 2163673 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
10
Trim, Shelf WPL 2163651 Contact Us For Availability
10
Pan, Meat WPL 2173213 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Glass, Shelf WPL 2163573 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Chute, Ice WPL 2156146 Contact Us For Availability
12
Retainer, Glass WPL 1125594 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Shelf Stud WPL 1115290 No Longer Available
14
Trivet, Shelf WPL 2173175 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Bracket, Door Stop WPL 2155332 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer (Top) WPL 2147895 Contact Us For Availability
17
Egg Container, Bottom WPL 1107384 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Retainer (Bottom) WPL 2147896 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Extension (Top) (White) WPL 2163432 Contact Us For Availability
19
Extension (Top) (Almond) WPL 2173176 Contact Us For Availability
20
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
20
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2155816 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2173146 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2173097 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2173098 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2173110 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173111 Contact Us For Availability
41
Heat Shie WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI132348A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAIN WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
