Model GE TPX24BRYEWW Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

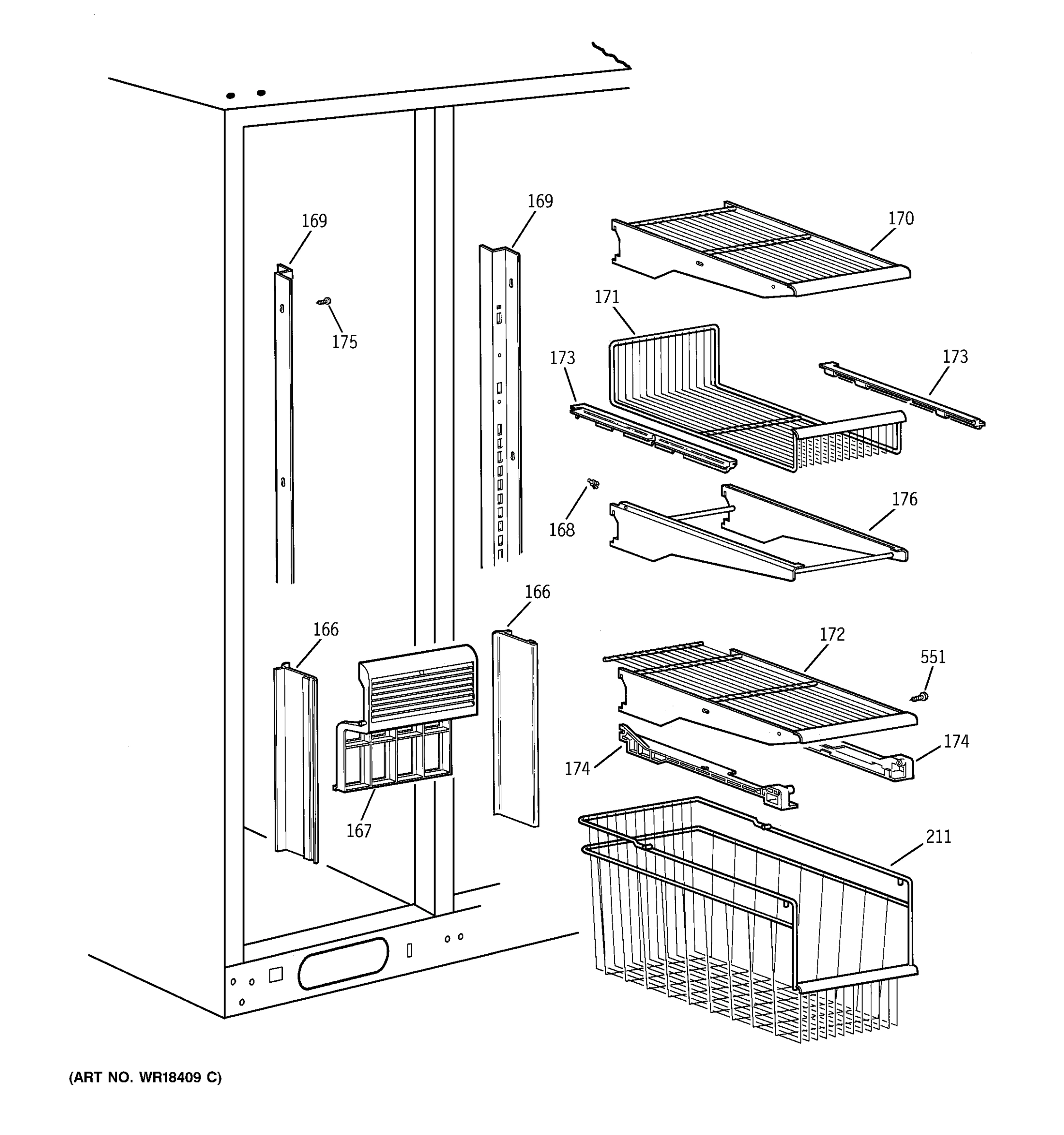

FREEZER SHELVES

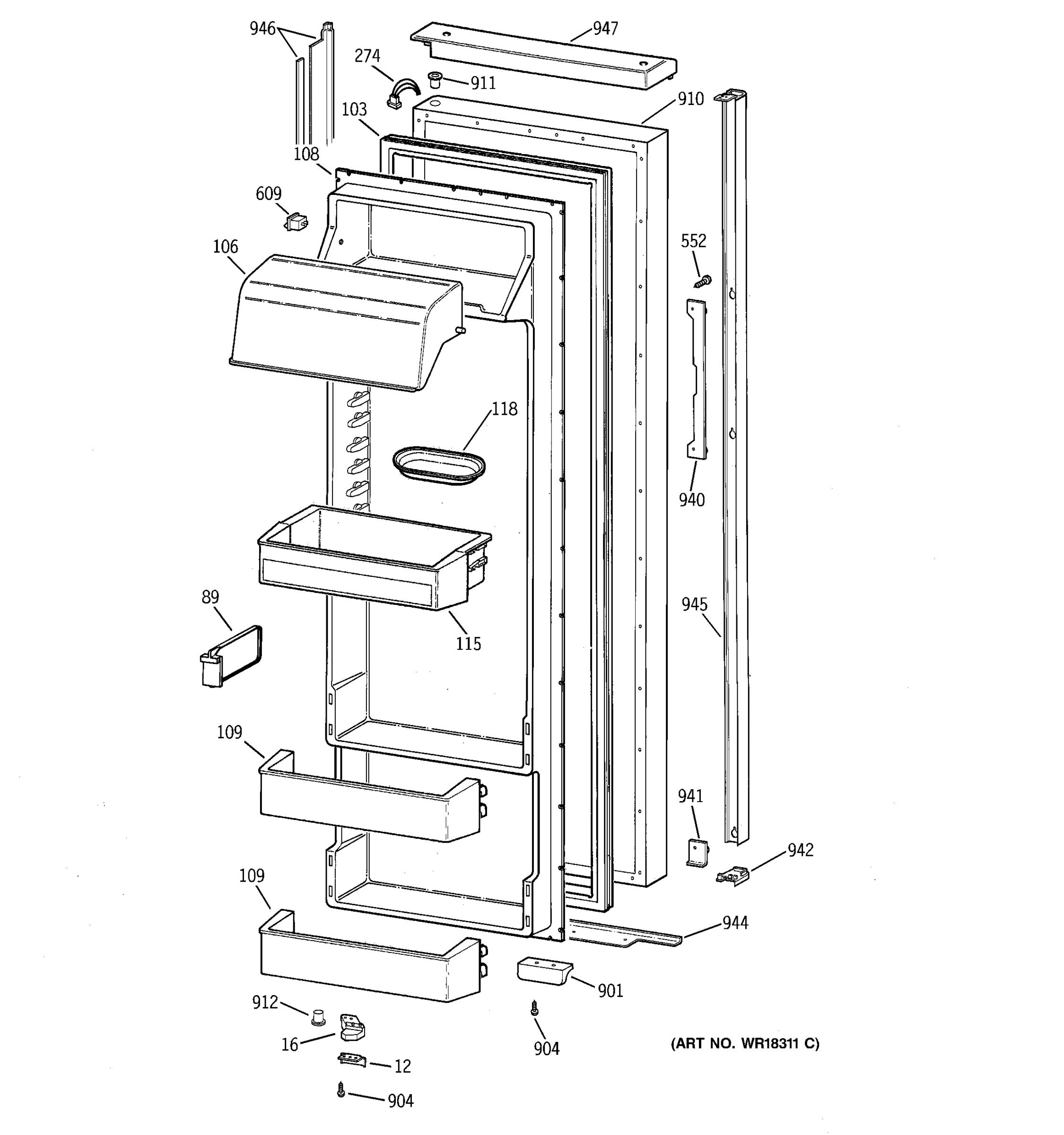

FRESH FOOD DOOR

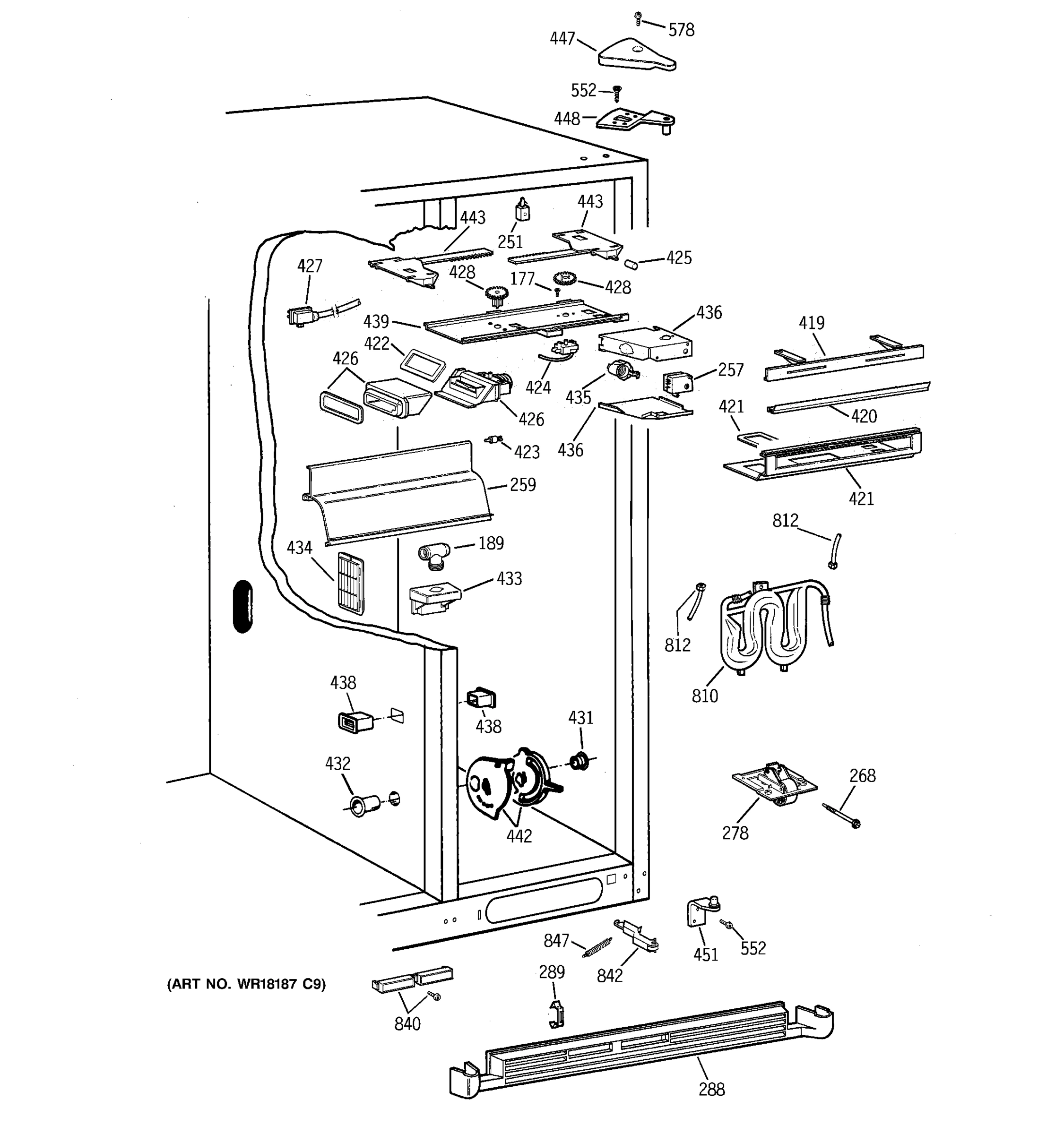

FRESH FOOD SECTION

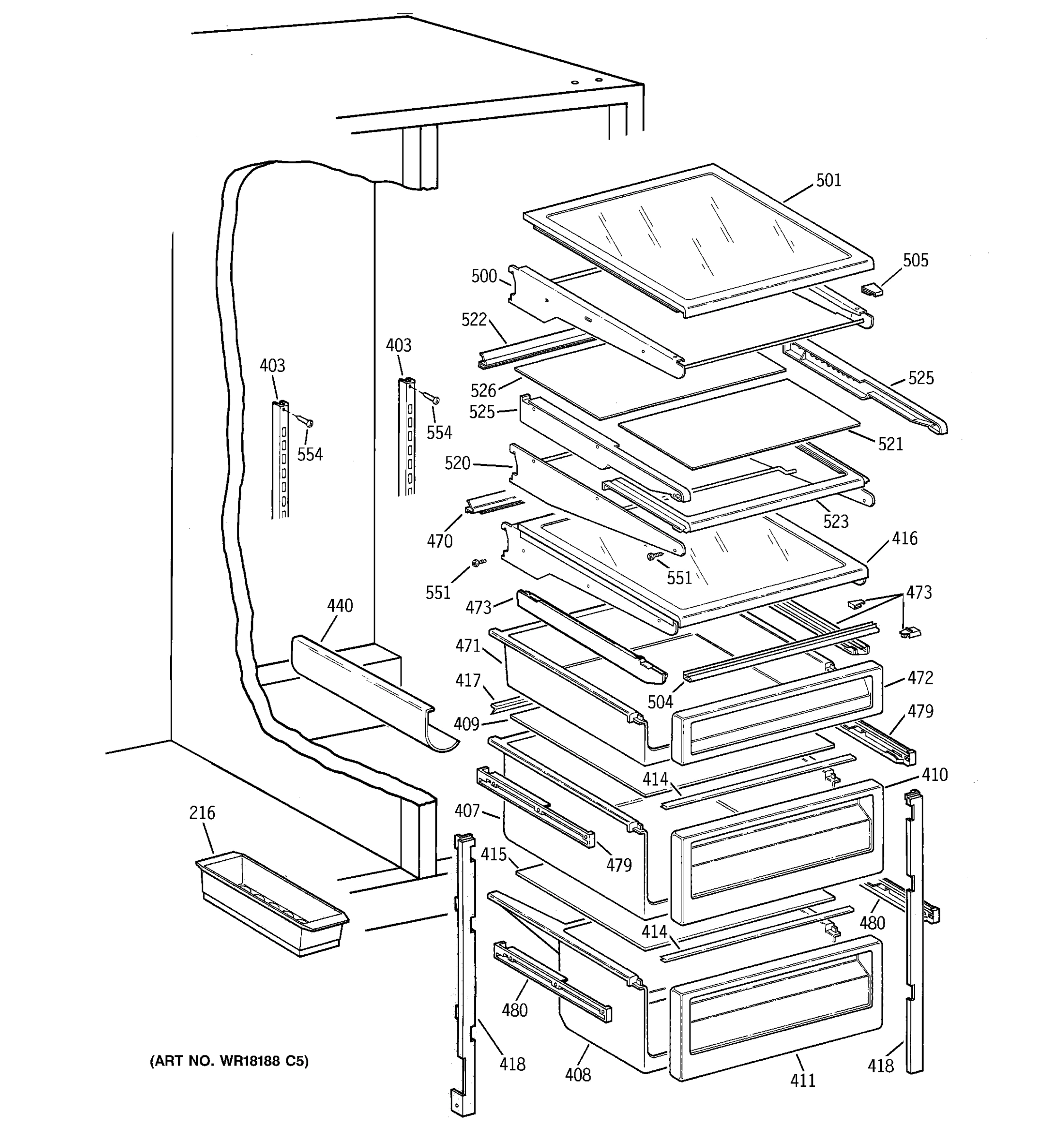

FRESH FOOD SHELVES

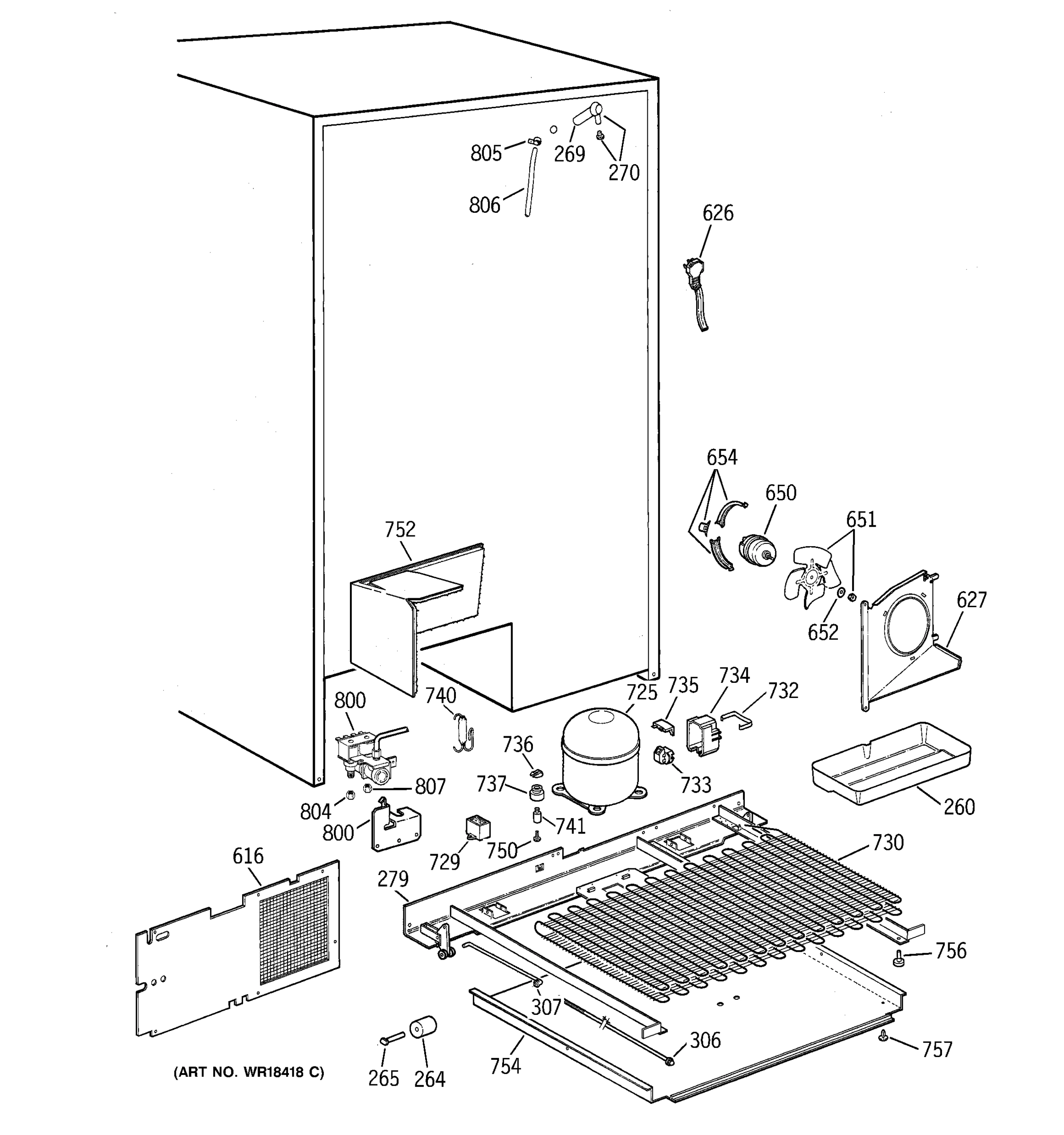

UNIT PARTS
Common parts from model GE TPX24BRYEWW Refrigerator
12
GEN WR02X9244 GEN WR02X9244 Contact Us For Availability
16
GEN WR02X9234 GEN WR02X9234 Contact Us For Availability
31
GEN WR17X4153 GEN WR17X4153 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8704 GEN WR02X8704 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X4128 GEN WR17X4128 Contact Us For Availability
54
GEN WR17X4208 GEN WR17X4208 Contact Us For Availability
56
LAMP GEN STD372071 Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X4126 GEN WR17X4126 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD WH GEN WR02X8954 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X4206 GEN WR17X4206 Contact Us For Availability
75
GROMMET TUBE ASM GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
86
SCREW GEN WH02X0940 Contact Us For Availability
89
GEN WR02X9444 GEN WR02X9444 Contact Us For Availability
103
GEN WR24X0560 GEN WR24X0560 Contact Us For Availability
106
GEN WR22X0524 GEN WR22X0524 Contact Us For Availability
108
GEN WR77X0675 GEN WR77X0675 Contact Us For Availability
109
GEN WR71X2700 GEN WR71X2700 Contact Us For Availability
115
GEN WR71X2702 GEN WR71X2702 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
122
GEN WR71X2703 GEN WR71X2703 Contact Us For Availability
124
GEN WR71X2701 GEN WR71X2701 Contact Us For Availability
154
GEN WR01X2116 GEN WR01X2116 Contact Us For Availability
166
GEN WR17X3836 GEN WR17X3836 Contact Us For Availability
167
GEN WR17X10017 GEN WR17X10017 Contact Us For Availability
168
GEN WR01X2029 GEN WR01X2029 Contact Us For Availability
169
GEN WR72X0271 GEN WR72X0271 Contact Us For Availability
169
GEN WR72X0272 GEN WR72X0272 Contact Us For Availability
170
GEN WR71X2708 GEN WR71X2708 Contact Us For Availability
171
GEN WR71X2699 GEN WR71X2699 Contact Us For Availability
172
GEN WR71X10005 GEN WR71X10005 Contact Us For Availability
173
GEN WR72X0276 GEN WR72X0276 Contact Us For Availability
173
GEN WR72X0277 GEN WR72X0277 Contact Us For Availability
174
GEN WR72X0278 GEN WR72X0278 Contact Us For Availability
174
GEN WR72X0279 GEN WR72X0279 Contact Us For Availability
175
GEN WR01X2023 GEN WR01X2023 Contact Us For Availability
176
GEN WR71X2698 GEN WR71X2698 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
211
GEN WR71X2697 GEN WR71X2697 Contact Us For Availability
214
GEN WR17X3835 GEN WR17X3835 Contact Us For Availability
228
GEN WR85X0306 GEN WR85X0306 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
247
GEN WR17X3846 GEN WR17X3846 Contact Us For Availability
248
GEN WR14X0460 GEN WR14X0460 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3848 GEN WR17X3848 Contact Us For Availability
259
SHIELD LIGHT LOWER GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1462 GEN WR32X1462 Contact Us For Availability
261
GEN WR01X2033 GEN WR01X2033 Contact Us For Availability
261
HINGE BTM PIN ASM WH GEN WR13X0762 Contact Us For Availability
264
GEN WR02X8838 GEN WR02X8838 Contact Us For Availability
265
GEN WR01X2050 GEN WR01X2050 Contact Us For Availability
267
GEN WR23X0424 GEN WR23X0424 Contact Us For Availability
268
GEN WR01X2025 GEN WR01X2025 Contact Us For Availability
269
GEN WR02X7927 GEN WR02X7927 Contact Us For Availability
274
GEN WR23X10004 GEN WR23X10004 Contact Us For Availability
275
GEN WR01X2018 GEN WR01X2018 Contact Us For Availability
278
GEN WR02X9241 GEN WR02X9241 Contact Us For Availability
279
GEN WR17X10019 GEN WR17X10019 Contact Us For Availability
288
GEN WR74X0265 GEN WR74X0265 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
306
GEN WR01X2146 GEN WR01X2146 Contact Us For Availability
307
GEN WR01X2145 GEN WR01X2145 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
GEN WR17X4210 GEN WR17X4210 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4204 GEN WR17X4204 Contact Us For Availability
360
GEN WR71X2704 GEN WR71X2704 Contact Us For Availability
361
COVER MOTOR SOLENOID GEN WR17X4242 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X10011 GEN WR02X10011 Contact Us For Availability
370
SCREW GEN WR01X1858 Contact Us For Availability
375
GEN WR23X0463 GEN WR23X0463 Contact Us For Availability
387
GEN WR17X3833 GEN WR17X3833 Contact Us For Availability
388
GEN WR17X3838 GEN WR17X3838 Contact Us For Availability
403
GEN WR72X0249 GEN WR72X0249 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
PAN MEAT CLEAR GEN WR32X1569 Contact Us For Availability
409
GEN WR32X1568 GEN WR32X1568 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR71X2707 GEN WR71X2707 Contact Us For Availability
417
GEN WR14X0482 GEN WR14X0482 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
419
GEN WR17X3308 GEN WR17X3308 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X3981 GEN WR17X3981 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0521 GEN WR09X0521 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR02X8826 GEN WR02X8826 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
426
GEN WR14X0462 GEN WR14X0462 Contact Us For Availability
427
GEN WR23X0462 GEN WR23X0462 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
SOCKET TERMINAL FF GEN WR02X8202 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR17X3842 GEN WR17X3842 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X3323 GEN WR17X3323 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
447
GEN WR02X9433 GEN WR02X9433 Contact Us For Availability
447
GEN WR02X9434 GEN WR02X9434 Contact Us For Availability
448
HINGE TOP & PIN ASM FZ GEN WR13X0754 Contact Us For Availability
448
HINGE TOP & PIN ASM FF GEN WR13X0755 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
451
BTM HINGE PIN ADJ WH GEN WR13X0761 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2705 GEN WR71X2705 Contact Us For Availability
501
GEN WR32X1570 GEN WR32X1570 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2706 GEN WR71X2706 Contact Us For Availability
521
GEN WR32X1529 GEN WR32X1529 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2638 GEN WR71X2638 Contact Us For Availability
525
GEN WR72X0280 GEN WR72X0280 Contact Us For Availability
525
GEN WR72X0281 GEN WR72X0281 Contact Us For Availability
526
GEN WR32X1571 GEN WR32X1571 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
609
GEN WR23X0426 GEN WR23X0426 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
612
GEN WR02X8549 GEN WR02X8549 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
616
GEN WR82X10003 GEN WR82X10003 Contact Us For Availability
627
GEN WR17X10005 GEN WR17X10005 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X9240 GEN WR02X9240 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
690
GEN WR01X1790 GEN WR01X1790 Contact Us For Availability
692
SCR 8-18 HXW 3/4 GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0213 GEN WR84X0213 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
737
GEN WR02X9237 GEN WR02X9237 Contact Us For Availability
752
GEN WR82X0359 GEN WR82X0359 Contact Us For Availability
754
GEN WR82X0387 GEN WR82X0387 Contact Us For Availability
756
GEN WR01X2021 GEN WR01X2021 Contact Us For Availability
757
GEN WR01X2035 GEN WR01X2035 Contact Us For Availability
764
GEN WB01X5755 GEN WB01X5755 Contact Us For Availability
806
GEN WR02X10013 GEN WR02X10013 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
840
GEN WR01X2024 GEN WR01X2024 Contact Us For Availability
840
MAGNET COVER ASM WH GEN WR11X0181 Contact Us For Availability
842
GEN WR11X0169 GEN WR11X0169 Contact Us For Availability
843
GEN WR11X0170 GEN WR11X0170 Contact Us For Availability
900
GEN WR78X8797 GEN WR78X8797 Contact Us For Availability
901
GEN WR10X0125 GEN WR10X0125 Contact Us For Availability
903
GEN WR01X2030 GEN WR01X2030 Contact Us For Availability
910
GEN WR78X8794 GEN WR78X8794 Contact Us For Availability
911
GEN WR01X2032 GEN WR01X2032 Contact Us For Availability
912
GEN WR01X2133 GEN WR01X2133 Contact Us For Availability
920
GEN WR17X4218 GEN WR17X4218 Contact Us For Availability
921
GEN WR17X4220 GEN WR17X4220 Contact Us For Availability
922
GEN WR17X4235 GEN WR17X4235 Contact Us For Availability
924
GEN WR17X4236 GEN WR17X4236 Contact Us For Availability
925
GEN WR12X10003 GEN WR12X10003 Contact Us For Availability
926
GEN WR17X4239 GEN WR17X4239 Contact Us For Availability
927
GEN WR17X4241 GEN WR17X4241 Contact Us For Availability
940
GEN WR17X4219 GEN WR17X4219 Contact Us For Availability
941
GEN WR17X4221 GEN WR17X4221 Contact Us For Availability
942
GEN WR17X4234 GEN WR17X4234 Contact Us For Availability
944
GEN WR17X4237 GEN WR17X4237 Contact Us For Availability
945
GEN WR12X10002 GEN WR12X10002 Contact Us For Availability
946
GEN WR17X4238 GEN WR17X4238 Contact Us For Availability
947
GEN WR17X4240 GEN WR17X4240 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
