Model GE TFX22PRXAWW Refrigerator – Common Parts & Diagrams
0
FREEZER DOOR

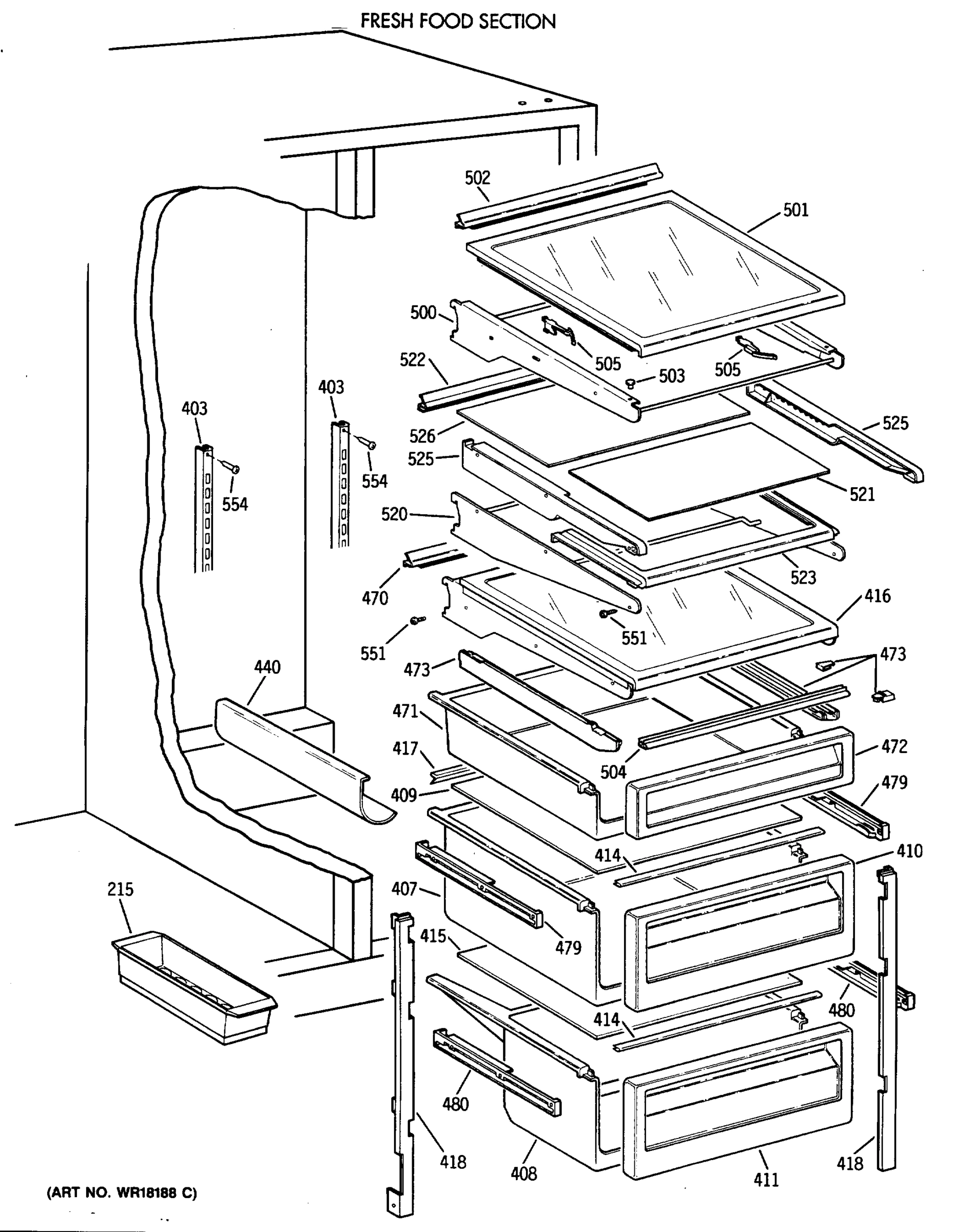

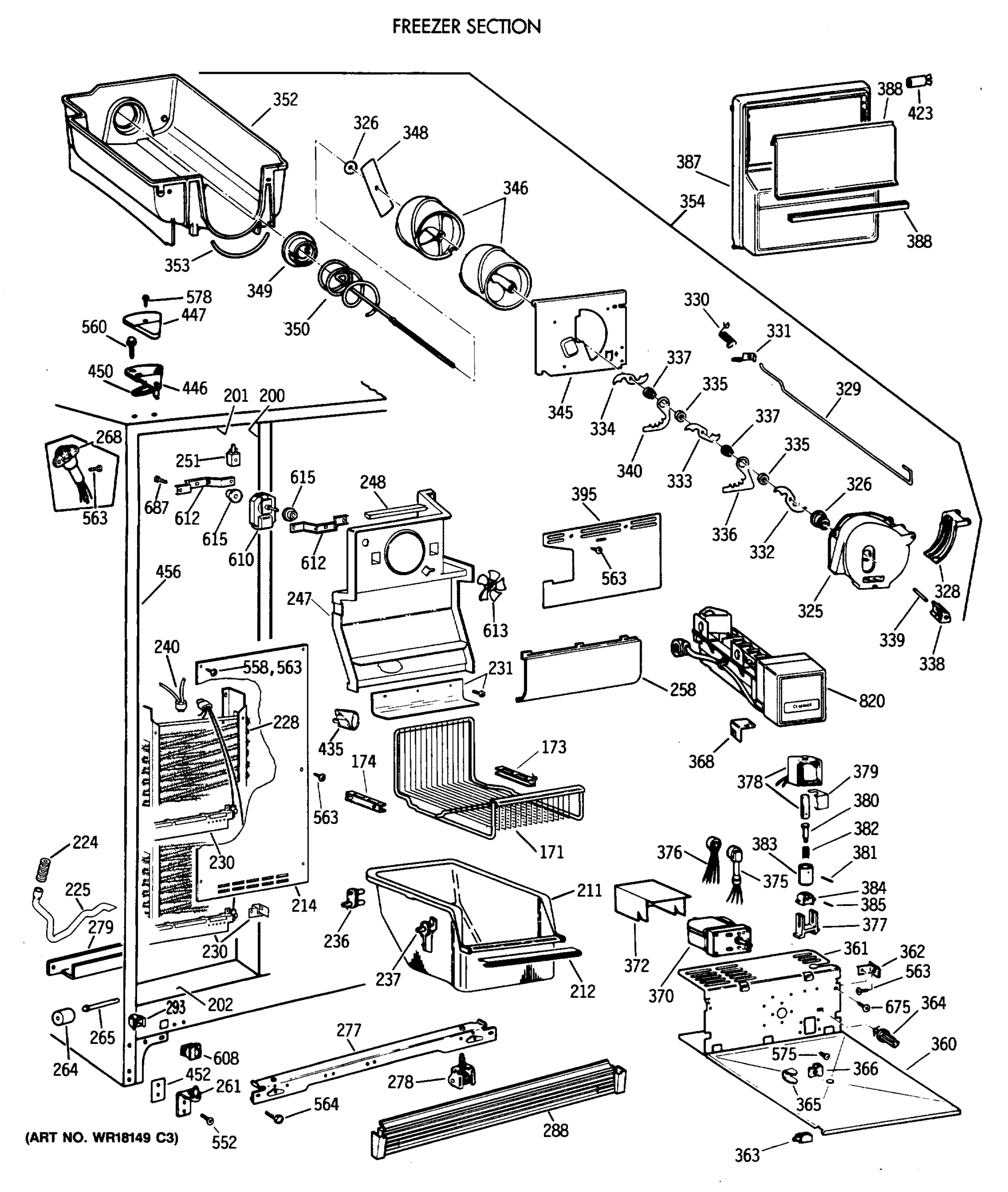

FREEZER SECTION

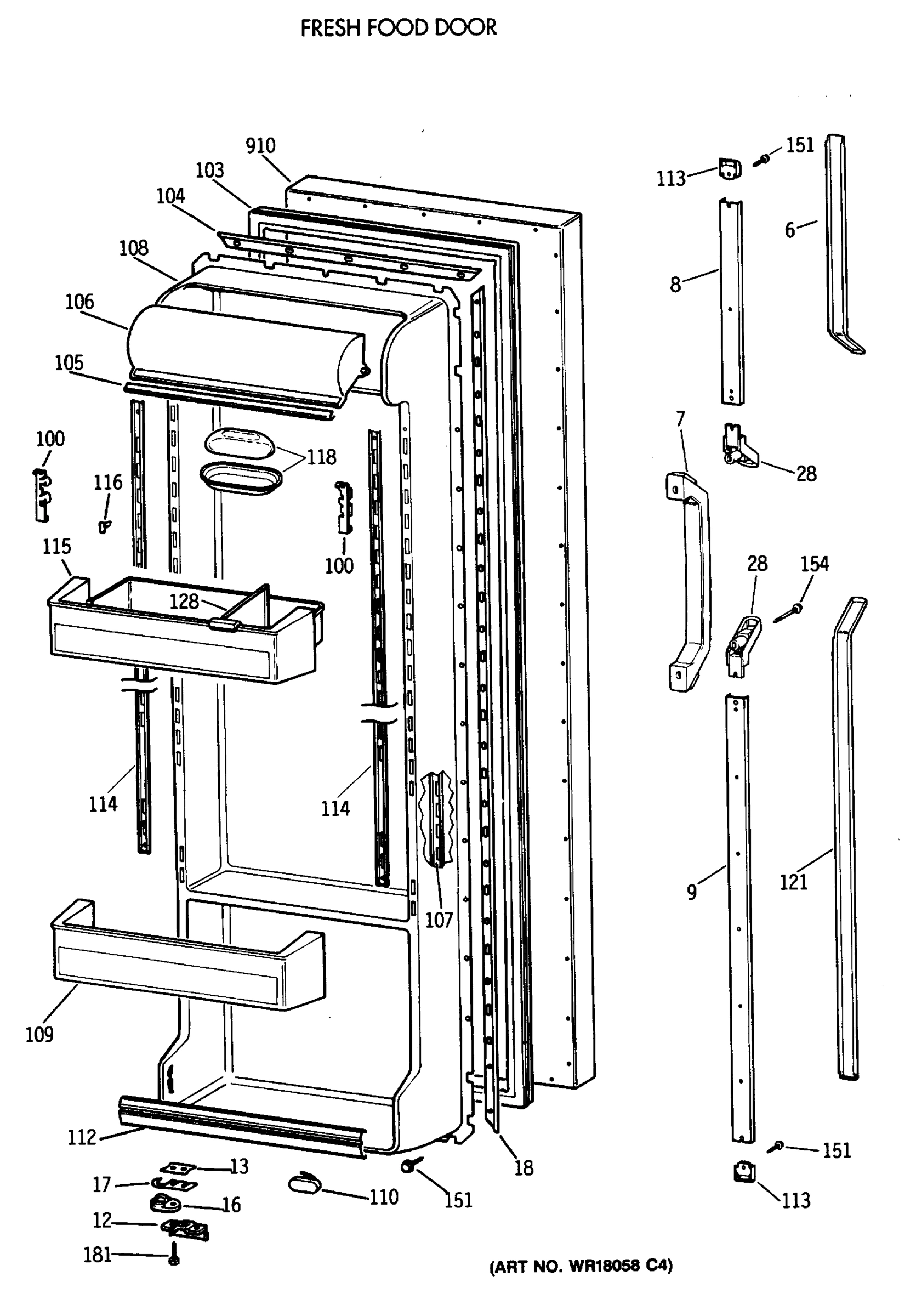

FRESH FOOD DOOR

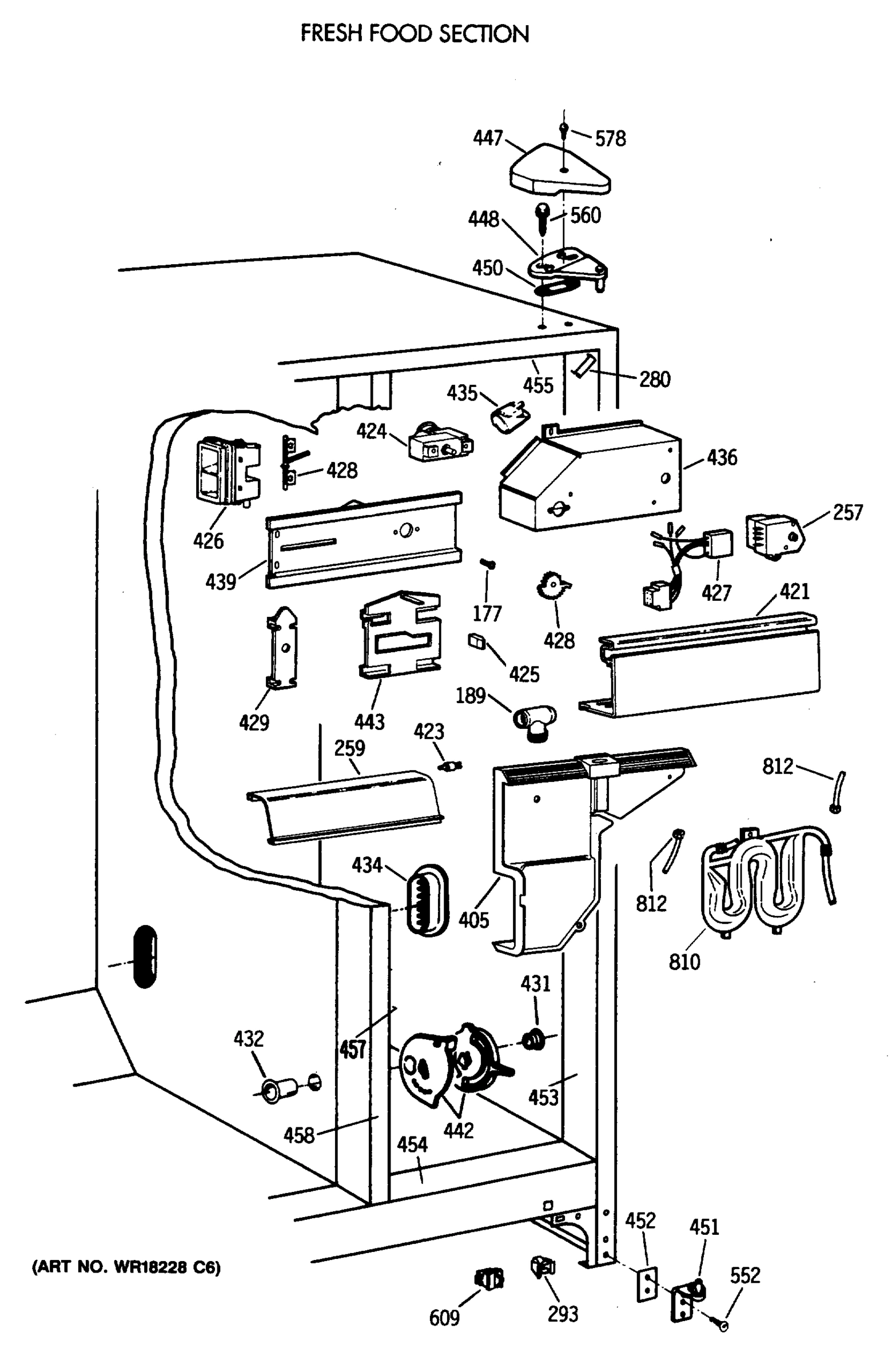

FRESH FOOD SECTION
FRESH FOOD SECTION
Common parts from model GE TFX22PRXAWW Refrigerator
1
GEN 31-51005 GEN 31-51005 Contact Us For Availability
1
GEN 49-6809 GEN 49-6809 Contact Us For Availability
3
GEN WR02X8669 GEN WR02X8669 Contact Us For Availability
6
GEN WR12X0848 GEN WR12X0848 Contact Us For Availability
7
GEN WR12X0869 GEN WR12X0869 Contact Us For Availability
8
GEN WR12X0872 GEN WR12X0872 Contact Us For Availability
9
GEN WR12X0873 GEN WR12X0873 Contact Us For Availability
11
GEN WR38X1920 GEN WR38X1920 Contact Us For Availability
12
GEN WR02X9300 GEN WR02X9300 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
14
GASKET DOOR WH GEN WR24X0527 Contact Us For Availability
15
GEN WR17X3119 GEN WR17X3119 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
17
GEN WR02X9147 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0600 GEN WR77X0600 Contact Us For Availability
21
GEN WR17X3956 GEN WR17X3956 Contact Us For Availability
23
GEN WR17X3957 GEN WR17X3957 Contact Us For Availability
24
GEN WR17X3958 GEN WR17X3958 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
29
GEN WR49X0350 GEN WR49X0350 Contact Us For Availability
31
GEN WR02X8656 GEN WR02X8656 Contact Us For Availability
32
GEN WR17X3304 GEN WR17X3304 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8704 GEN WR02X8704 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X3964 GEN WR17X3964 Contact Us For Availability
54
GEN WR17X3927 GEN WR17X3927 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
56
GEN WR02X8725 GEN WR02X8725 Contact Us For Availability
58
GEN WR17X3178 GEN WR17X3178 Contact Us For Availability
60
GEN WR02X8674 GEN WR02X8674 Contact Us For Availability
61
GEN WR17X3125 GEN WR17X3125 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL & GUARD WH GEN WR02X8954 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GEN WR17X3614 GEN WR17X3614 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GASKET DOOR FF WH GEN WR24X0529 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2037 GEN WR38X2037 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
107
GEN WR72X0256 GEN WR72X0256 Contact Us For Availability
108
GEN WR77X0668 GEN WR77X0668 Contact Us For Availability
109
GEN WR71X2604 GEN WR71X2604 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X3959 GEN WR17X3959 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
114
GEN WR72X0257 GEN WR72X0257 Contact Us For Availability
115
GEN WR71X2603 GEN WR71X2603 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
121
GEN WR12X0849 GEN WR12X0849 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
171
GEN WR71X2349 GEN WR71X2349 Contact Us For Availability
173
GEN WR02X8724 GEN WR02X8724 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
175
GEN WR01X2023 GEN WR01X2023 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
180
SCR 6-22 PL IHW 3/8 GEN WR01X1966 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1741 GEN WR40X1741 Contact Us For Availability
201
GEN WR40X1742 GEN WR40X1742 Contact Us For Availability
202
GEN WR40X1743 GEN WR40X1743 Contact Us For Availability
211
GEN WR21X0183 GEN WR21X0183 Contact Us For Availability
212
GEN WR38X1921 GEN WR38X1921 Contact Us For Availability
214
GEN WR02X8950 GEN WR02X8950 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3919 GEN WR17X3919 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8671 GEN WR02X8671 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3666 GEN WR17X3666 Contact Us For Availability
234
GEN WR23X0394 GEN WR23X0394 Contact Us For Availability
234
GEN WR23X0395 GEN WR23X0395 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X3483 GEN WR17X3483 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3484 GEN WR17X3484 Contact Us For Availability
259
GEN WR17X3849 GEN WR17X3849 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X3136 GEN WR17X3136 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3660 GEN WR17X3660 Contact Us For Availability
280
GEN WR02X8518 GEN WR02X8518 Contact Us For Availability
288
GEN WR74X0217 GEN WR74X0217 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2760 GEN WR17X2760 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
352
GEN WR30X0257 GEN WR30X0257 Contact Us For Availability
360
GEN WR02X8730 GEN WR02X8730 Contact Us For Availability
360
GEN WR71X2444 GEN WR71X2444 Contact Us For Availability
361
GEN WR71X2350 GEN WR71X2350 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X3004 GEN WR17X3004 Contact Us For Availability
388
GEN WR38X1497 GEN WR38X1497 Contact Us For Availability
395
GEN WR17X2904 GEN WR17X2904 Contact Us For Availability
403
GEN WR71X2588 GEN WR71X2588 Contact Us For Availability
405
GEN WR17X3890 GEN WR17X3890 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X1459 GEN WR32X1459 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X1458 GEN WR32X1458 Contact Us For Availability
417
GEN WR14X0470 GEN WR14X0470 Contact Us For Availability
418
GEN WR17X3851 GEN WR17X3851 Contact Us For Availability
418
GEN WR17X3961 GEN WR17X3961 Contact Us For Availability
421
GEN WR17X2975 GEN WR17X2975 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0499 GEN WR09X0499 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X8582 GEN WR02X8582 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9175 GEN WR02X9175 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
440
GEN WR17X3364 GEN WR17X3364 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
446
GEN WR13X0729 GEN WR13X0729 Contact Us For Availability
447
GEN WR02X8262 GEN WR02X8262 Contact Us For Availability
448
GEN WR13X0730 GEN WR13X0730 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1744 GEN WR40X1744 Contact Us For Availability
454
GEN WR40X1745 GEN WR40X1745 Contact Us For Availability
455
GEN WR40X1746 GEN WR40X1746 Contact Us For Availability
456
GEN WR40X1747 GEN WR40X1747 Contact Us For Availability
457
GEN WR40X1748 GEN WR40X1748 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X8721 GEN WR02X8721 Contact Us For Availability
458
GEN WR40X1749 GEN WR40X1749 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0250 GEN WR72X0250 Contact Us For Availability
473
GEN WR72X0251 GEN WR72X0251 Contact Us For Availability
500
GEN WR71X2242 GEN WR71X2242 Contact Us For Availability
501
GEN WR32X1266 GEN WR32X1266 Contact Us For Availability
502
GEN WR38X1791 GEN WR38X1791 Contact Us For Availability
503
GEN WR02X8573 GEN WR02X8573 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR02X8574 GEN WR02X8574 Contact Us For Availability
505
GEN WR02X8575 GEN WR02X8575 Contact Us For Availability
520
GEN WR71X2247 GEN WR71X2247 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X1792 GEN WR38X1792 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0220 GEN WR72X0220 Contact Us For Availability
525
GEN WR72X0221 GEN WR72X0221 Contact Us For Availability
526
GEN WR32X1269 GEN WR32X1269 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01 GEN WR01 Contact Us For Availability
552
GEN WR01X2078 GEN WR01X2078 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
GEN WR01X2081 GEN WR01X2081 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
730
GEN WR84X0188 GEN WR84X0188 Contact Us For Availability
731
GEN WR01X2014 GEN WR01X2014 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0148 GEN WR08X0148 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0169 GEN WR84X0169 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X3962 GEN WR17X3962 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
788
GEN WB17X5064 GEN WB17X5064 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
830
GEN WR17X3732 GEN WR17X3732 Contact Us For Availability
900
GEN WR78X8493 GEN WR78X8493 Contact Us For Availability
910
GEN WR78X8552 GEN WR78X8552 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
× ![]()
