Model Speed Queen SWRF61*N Washer – Common Parts & Diagrams

Control Panel and Controls

Control Cabinet Controls

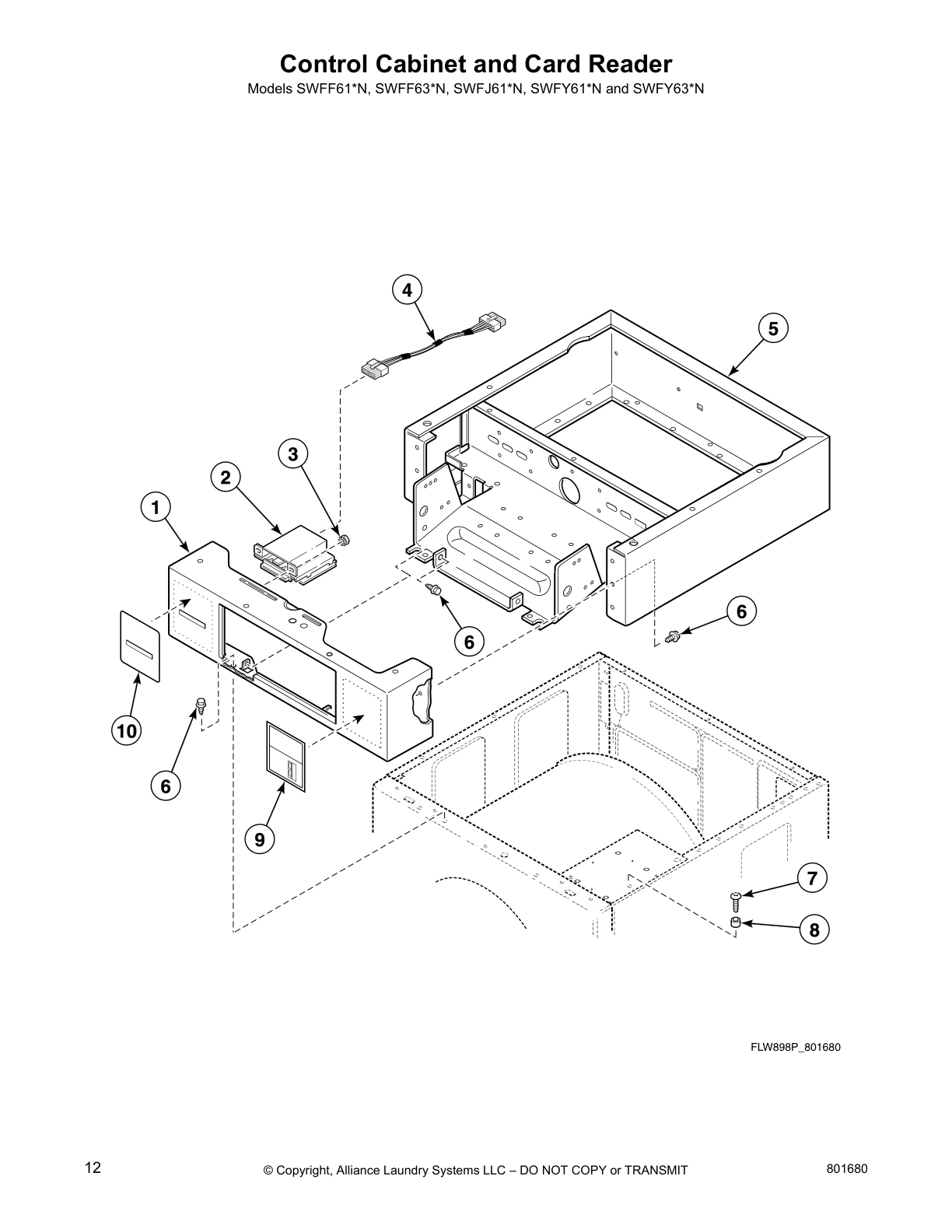

Control Cabinet and Card Reader

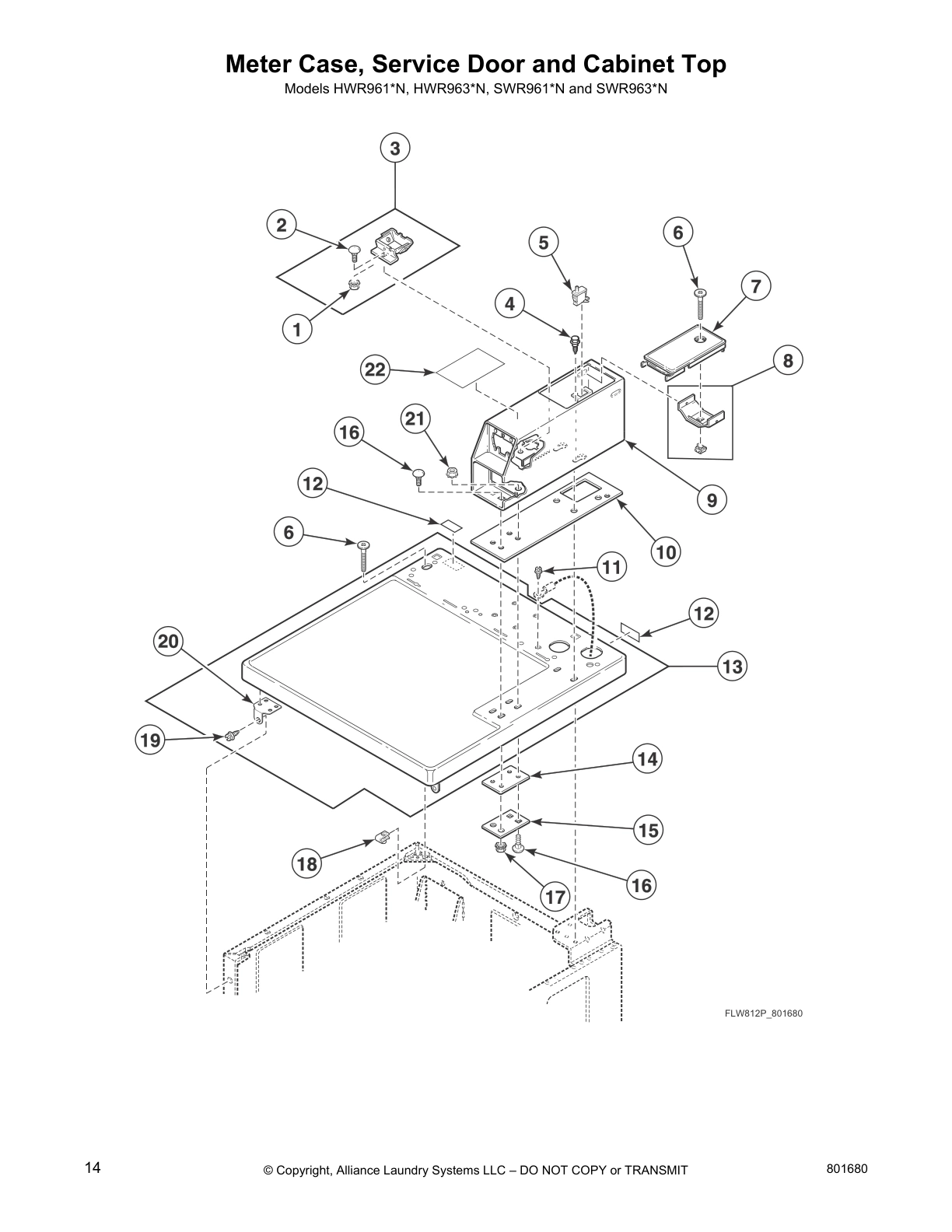

Meter Case, Service Door and Cabinet Top

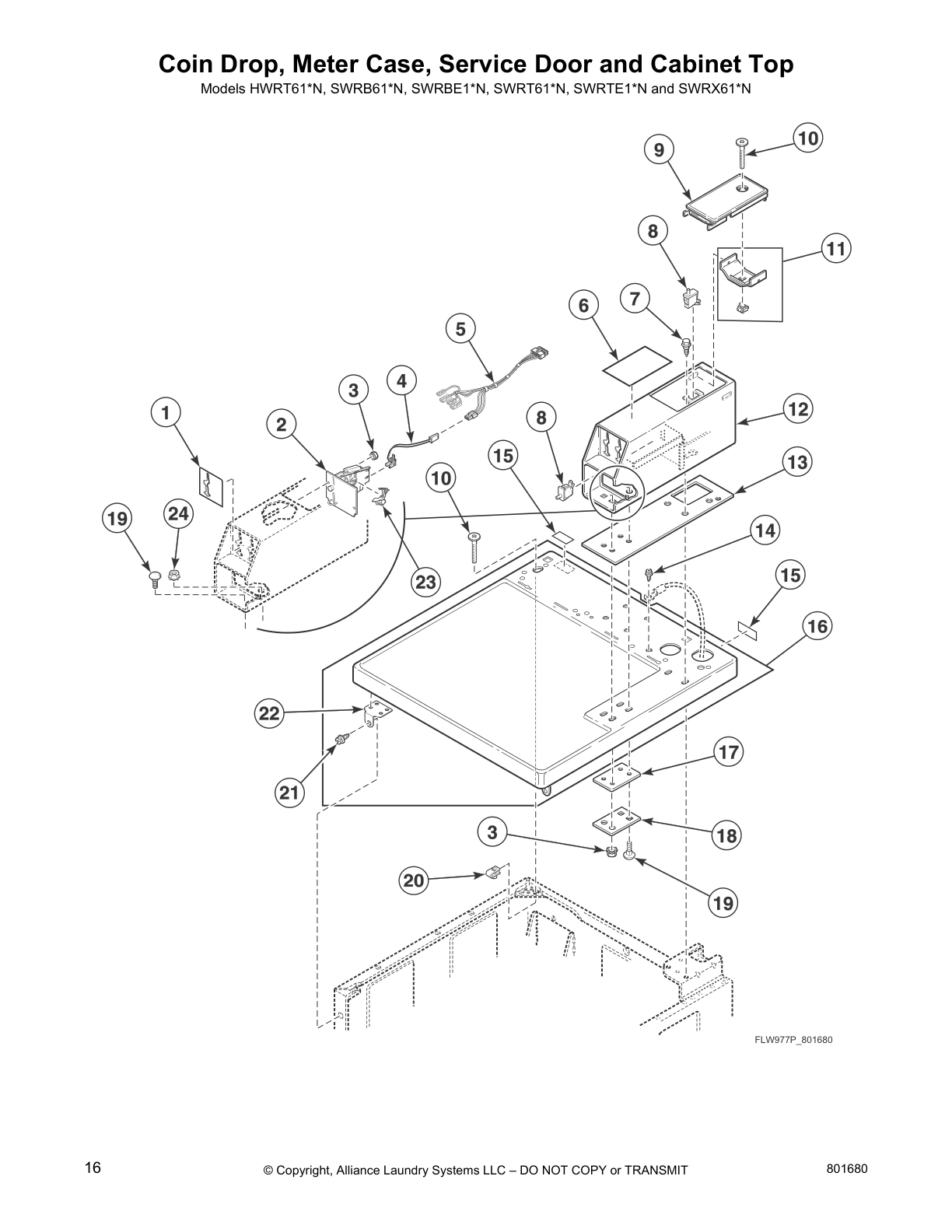

Coin Drop, Meter Case, Service Door and Cabinet Top

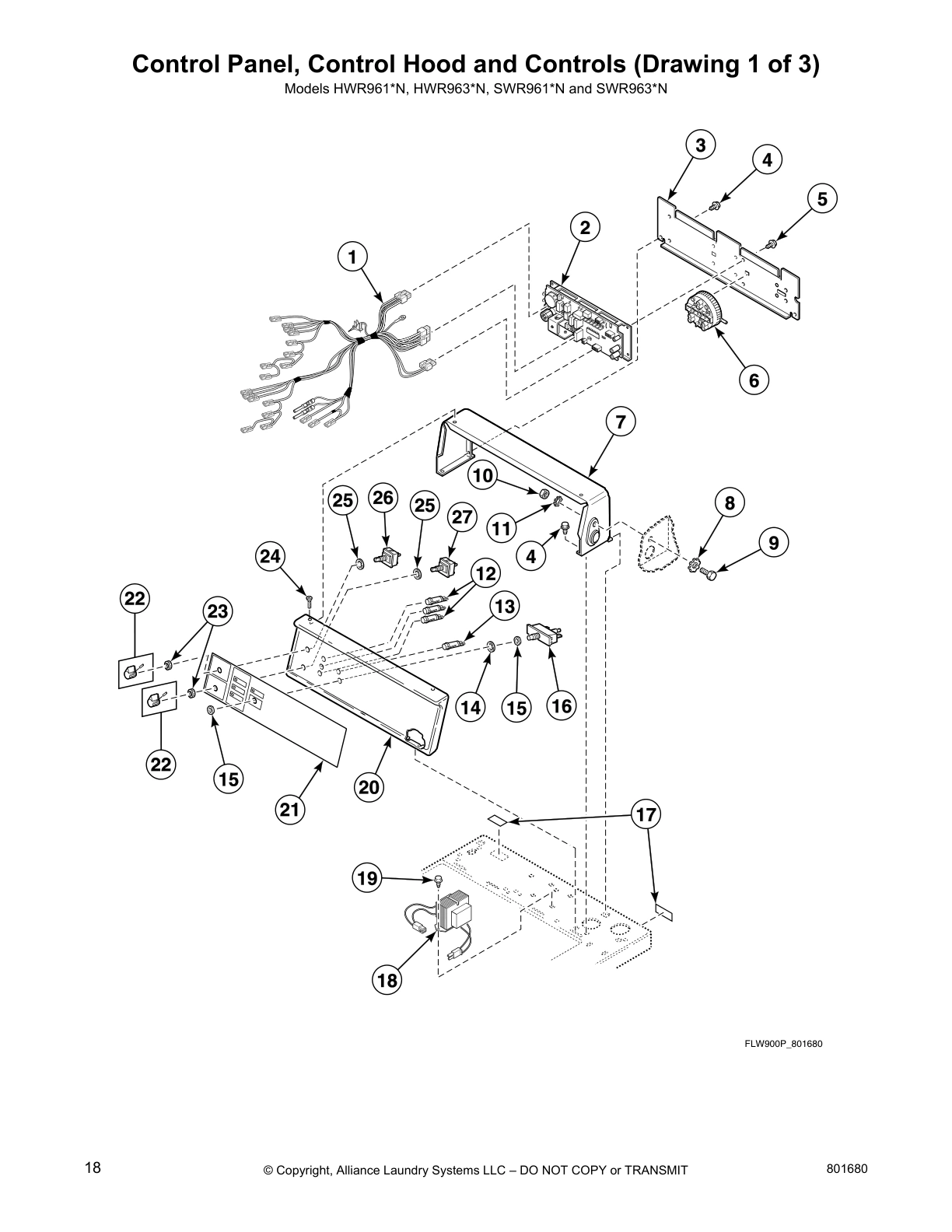

Control Panel, Control Hood and Controls (Drawing 1 of 3)

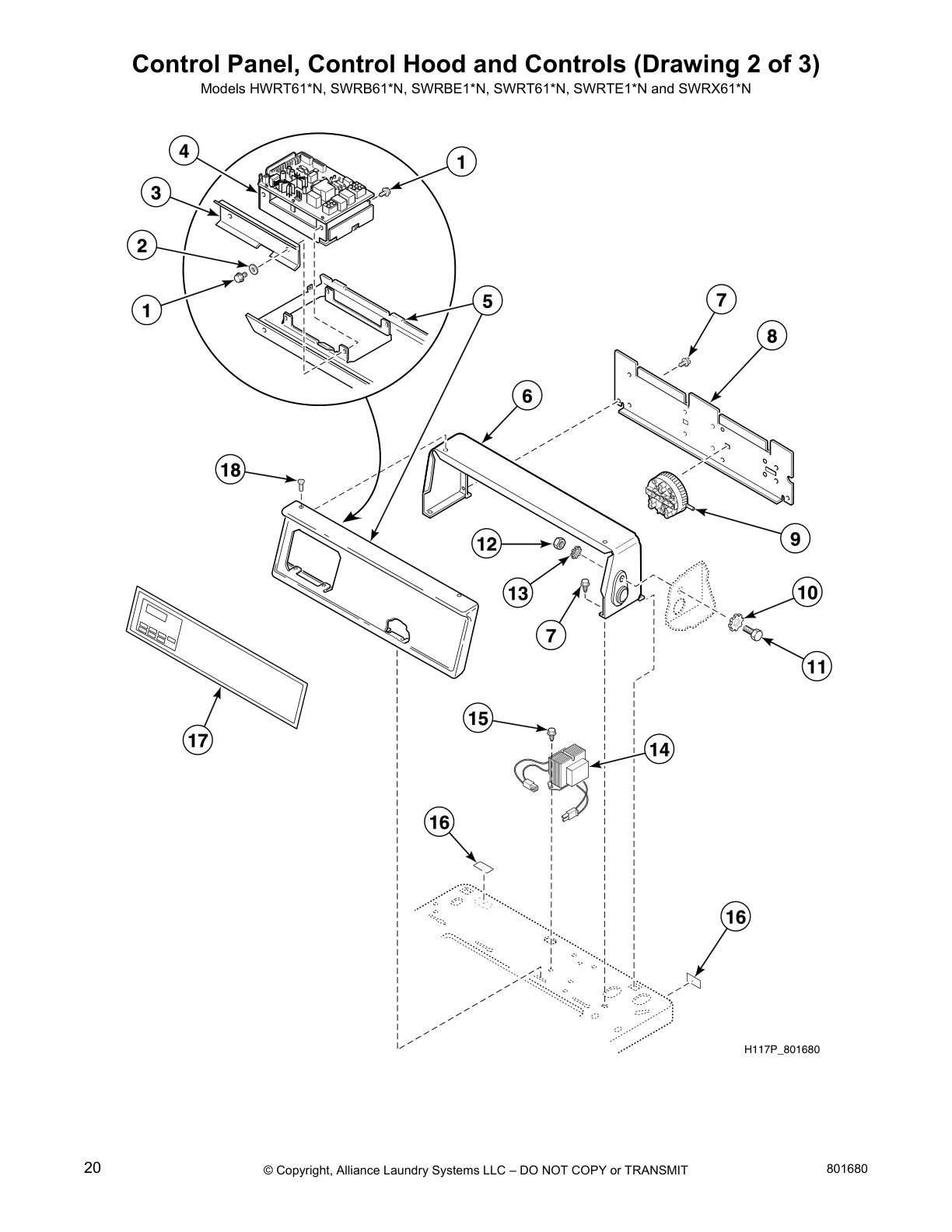

Control Panel, Control Hood and Controls (Drawing 2 of 3)

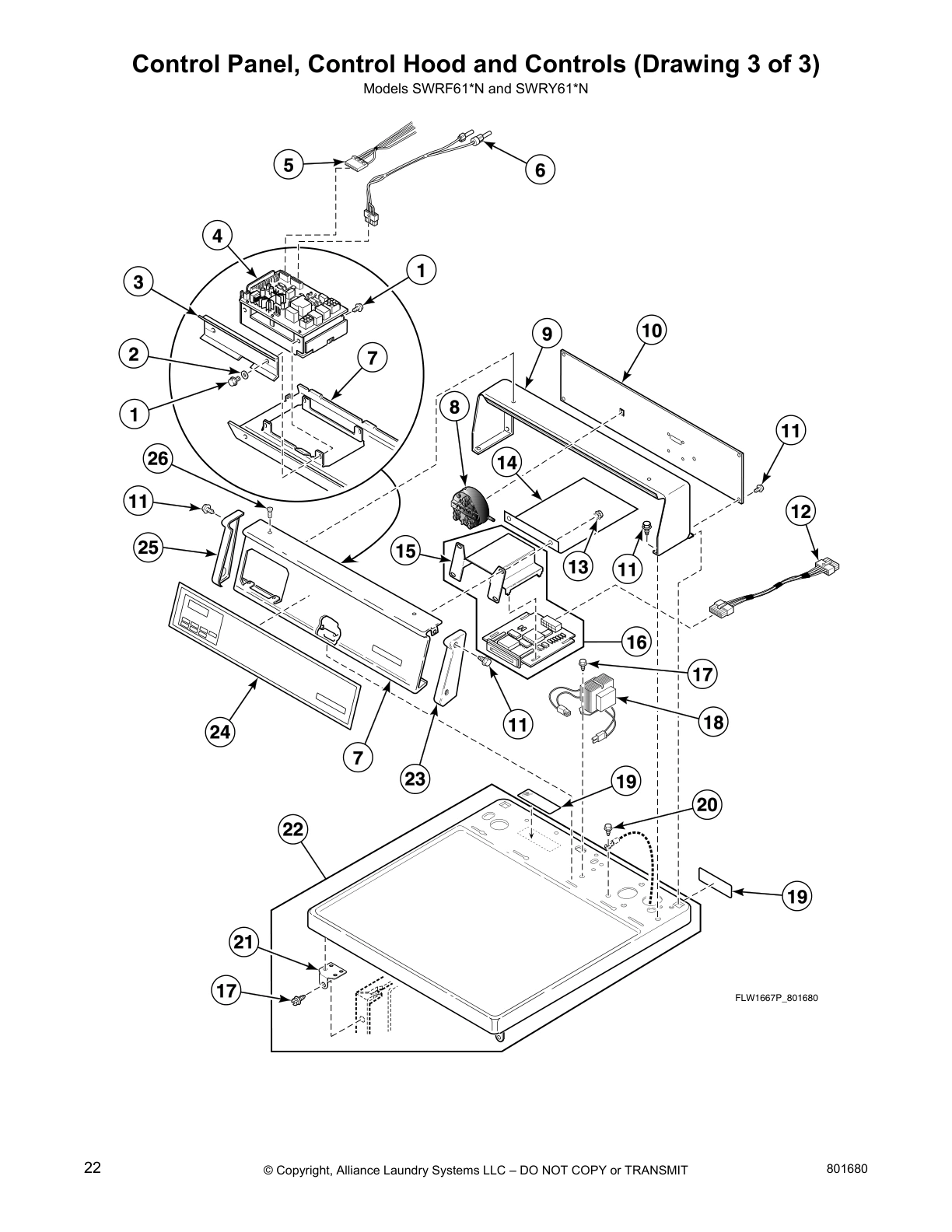

Control Panel, Control Hood and Controls (Drawing 3 of 3)

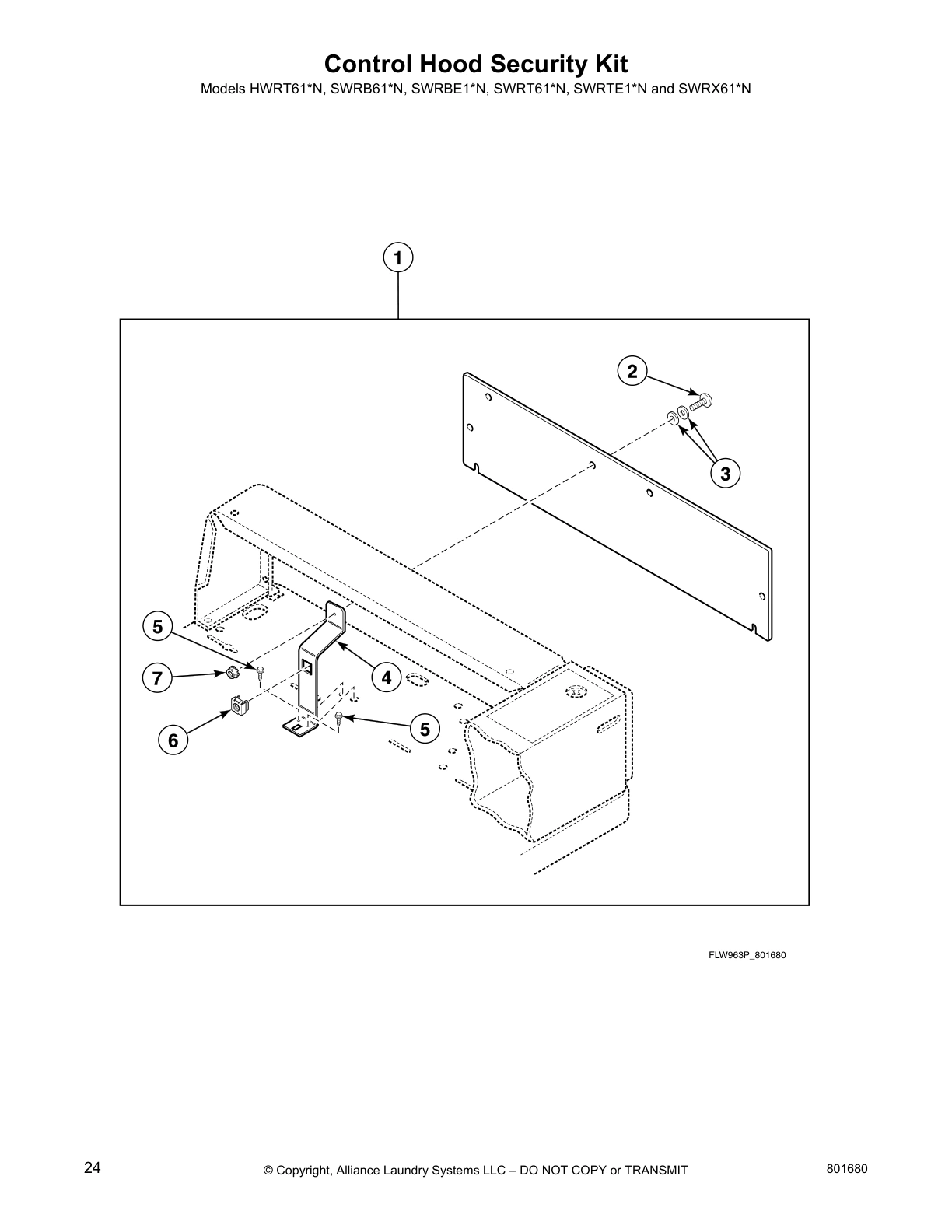

Control Hood Security Kit

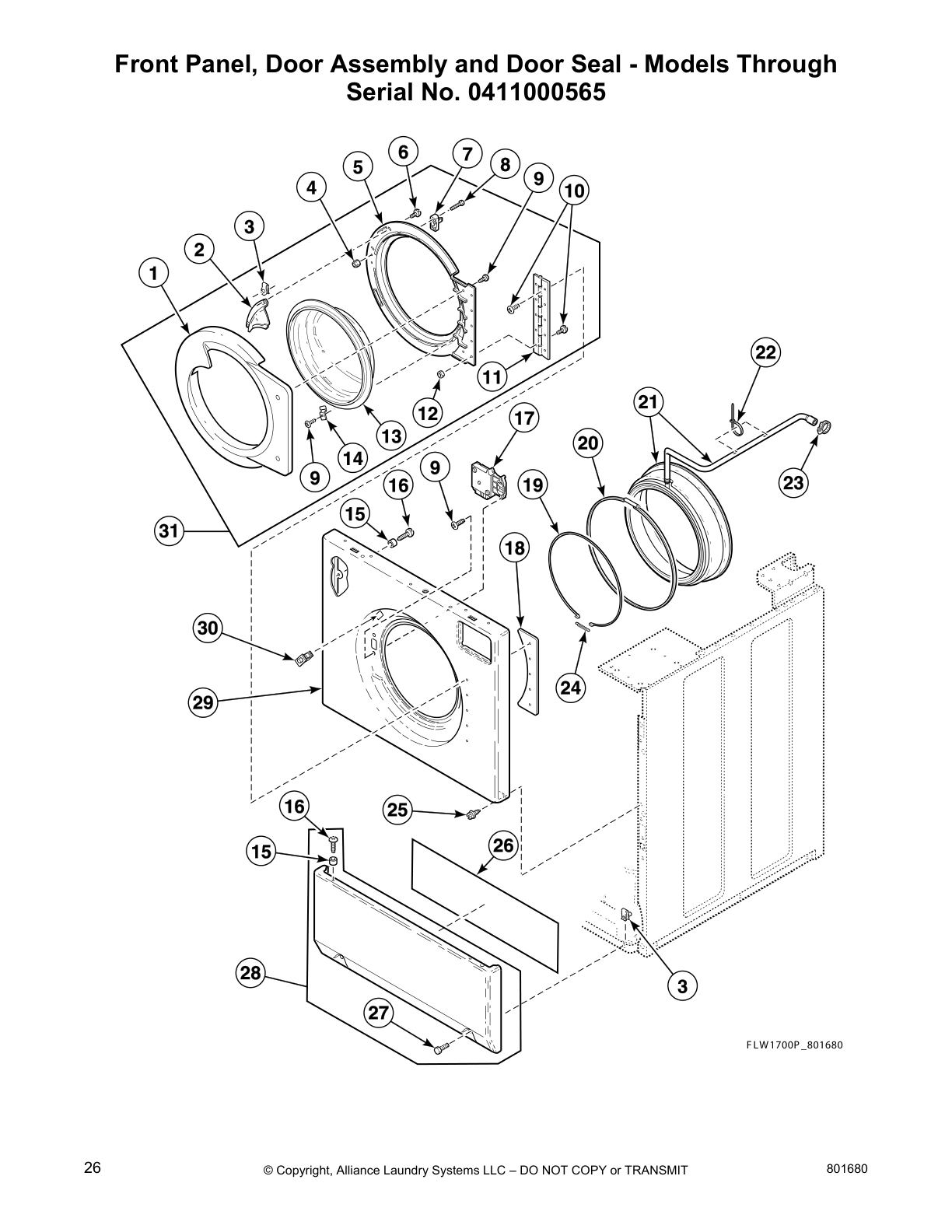

Front Panel, Door Assembly and Door Seal - Models Through Serial No. 0411000565

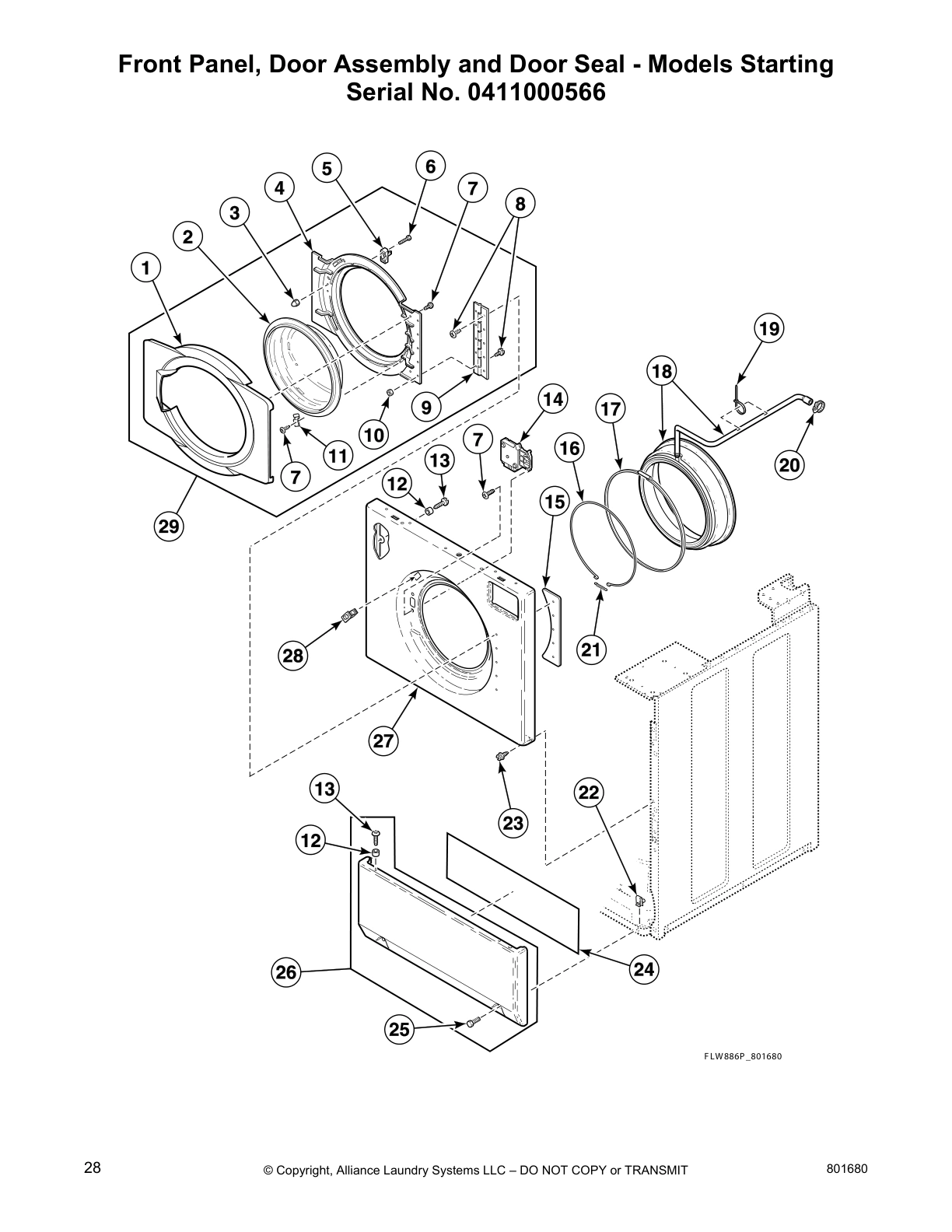

Front Panel, Door Assembly and Door Seal - Models Starting Serial No. 0411000566

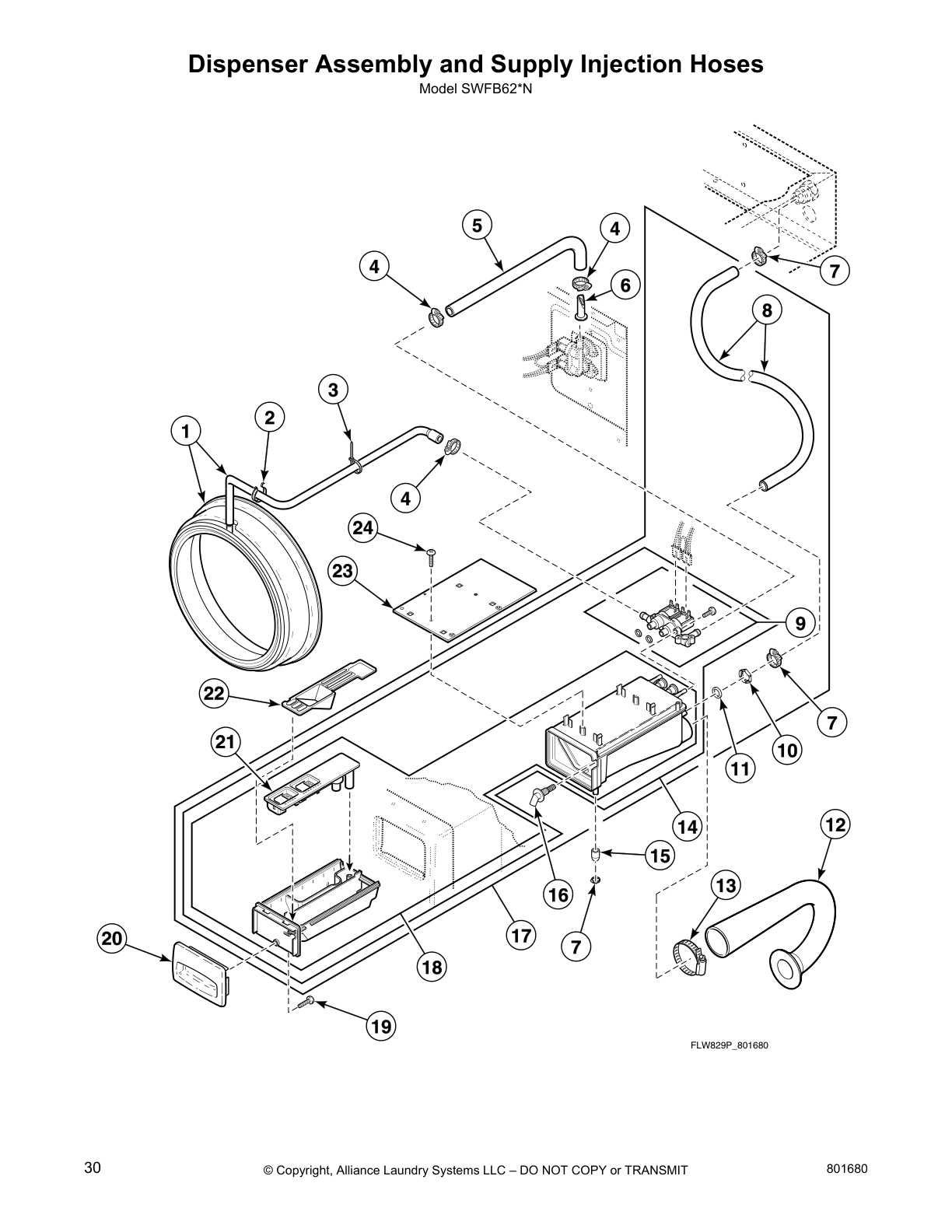

Dispenser Assembly and Supply Injection Hoses

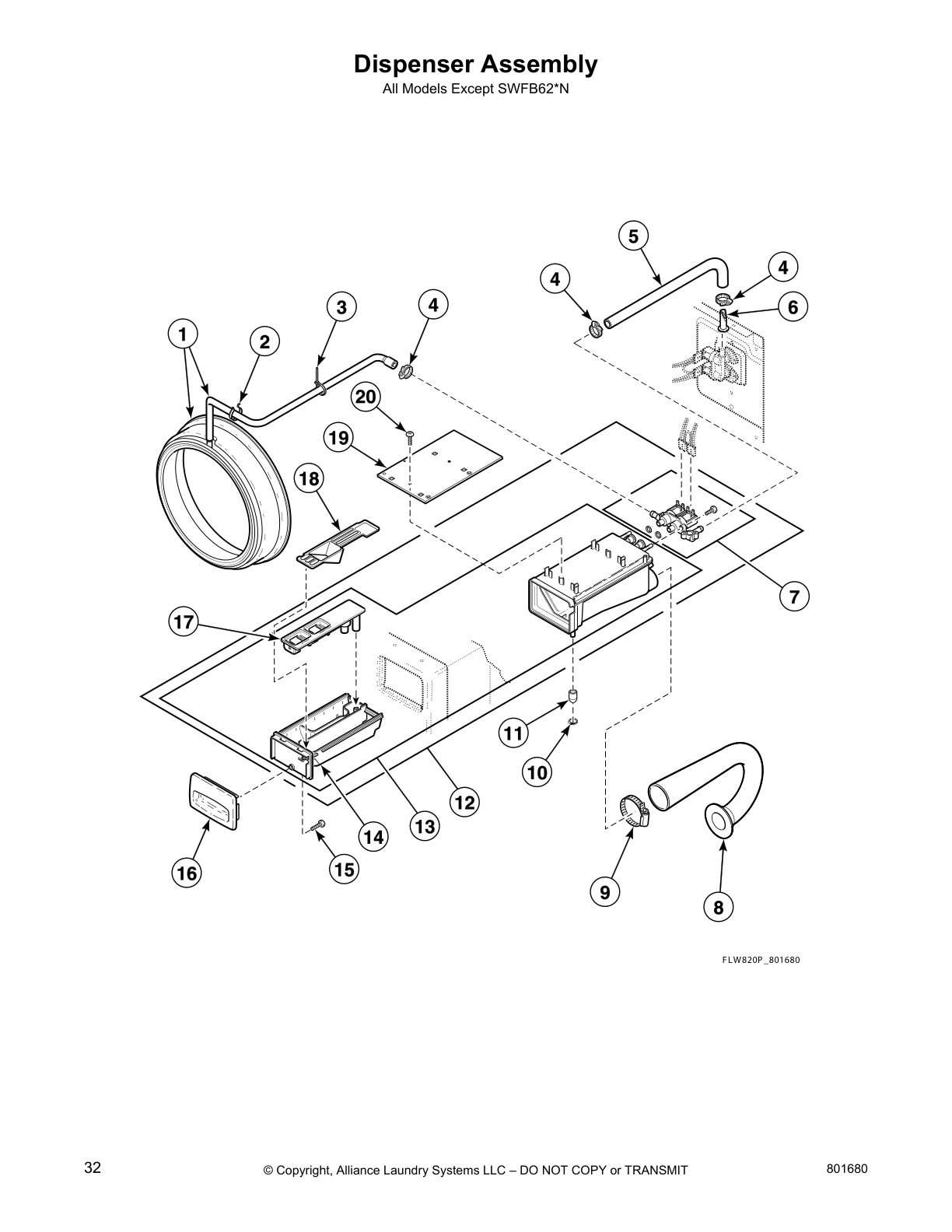

Dispenser Assembly

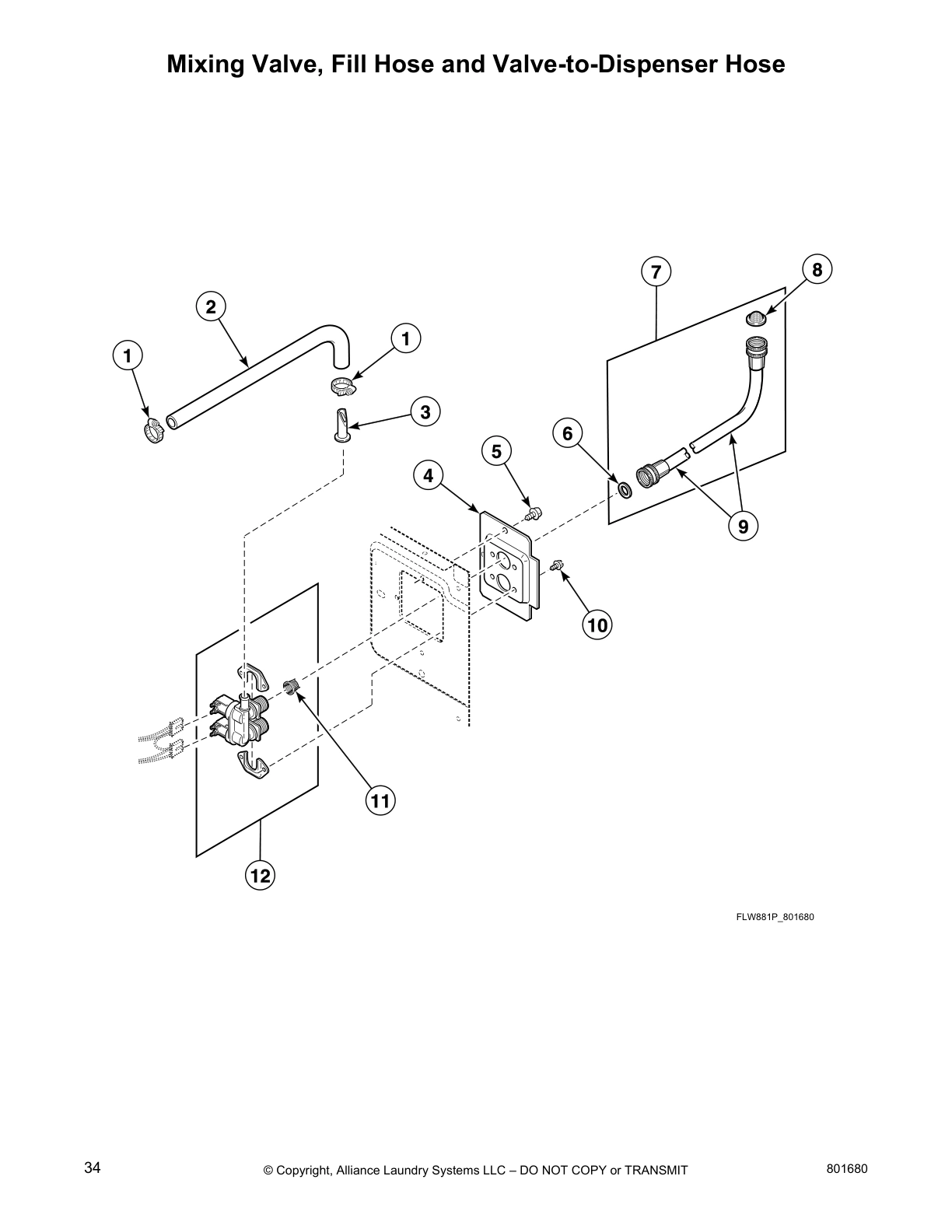

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

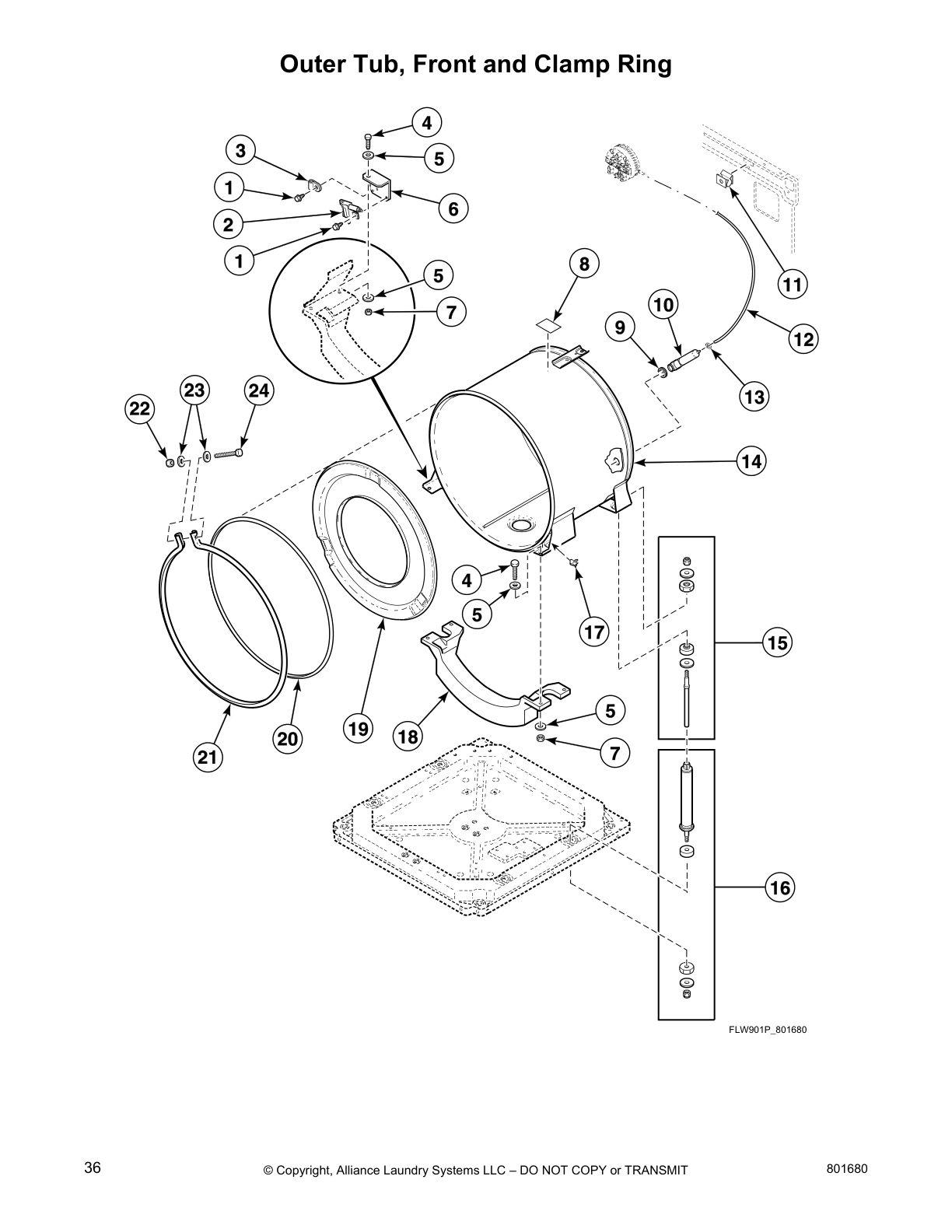

Outer Tub, Front and Clamp Ring

Inner Basket, Trunnion, Bearing Housing and Pulley

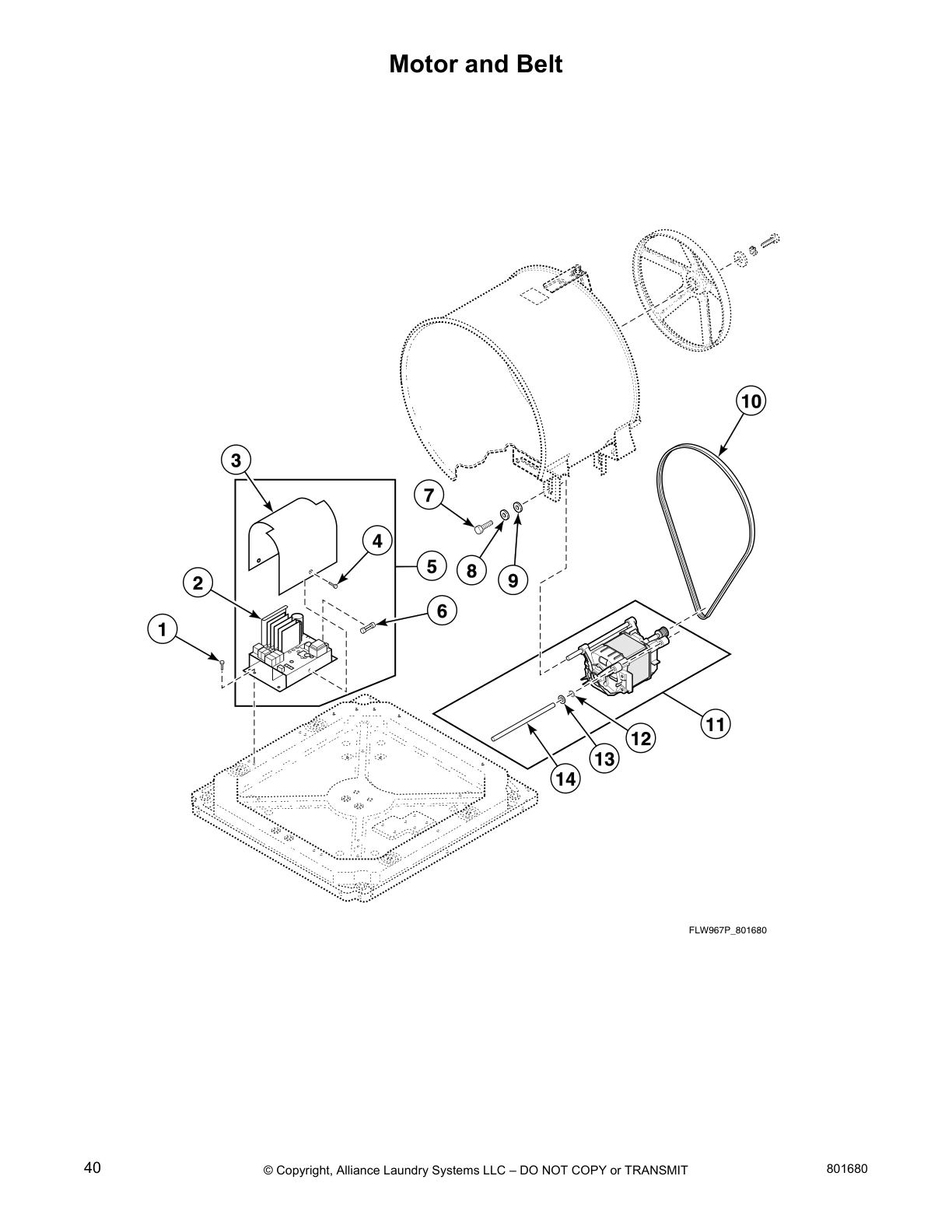

Motor and Belt

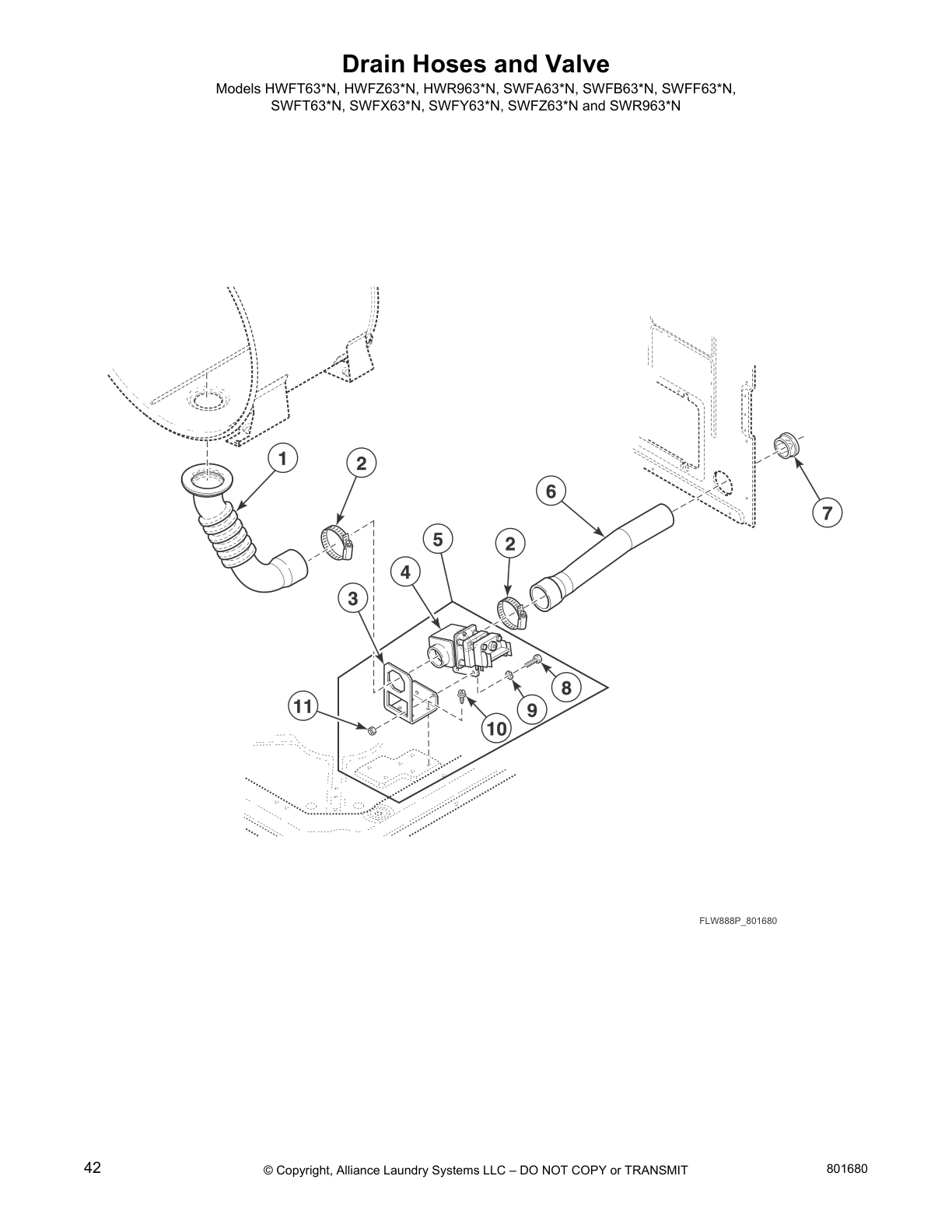

Drain Hoses and Valve

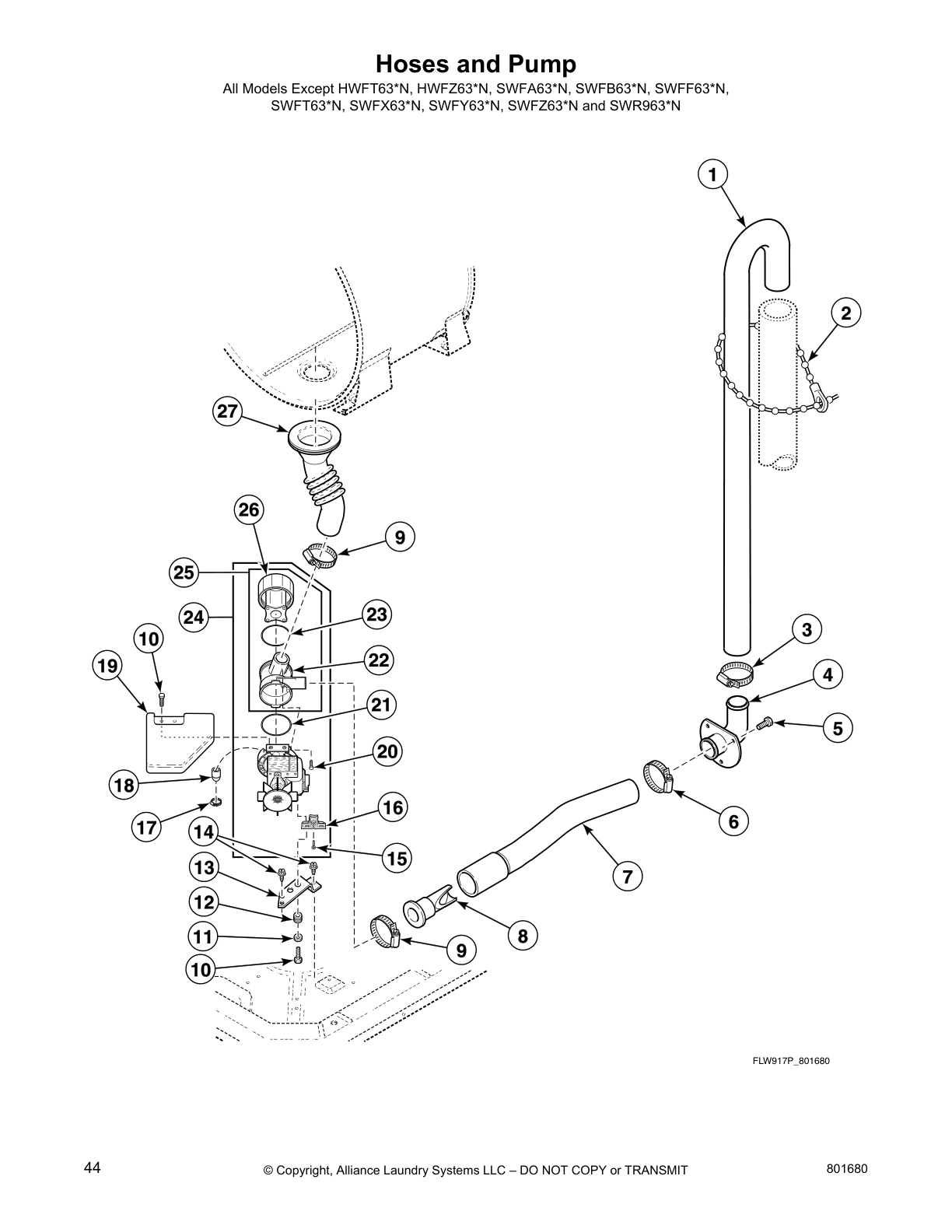

Hoses and Pump

Base, Side Panels and Rear Panel

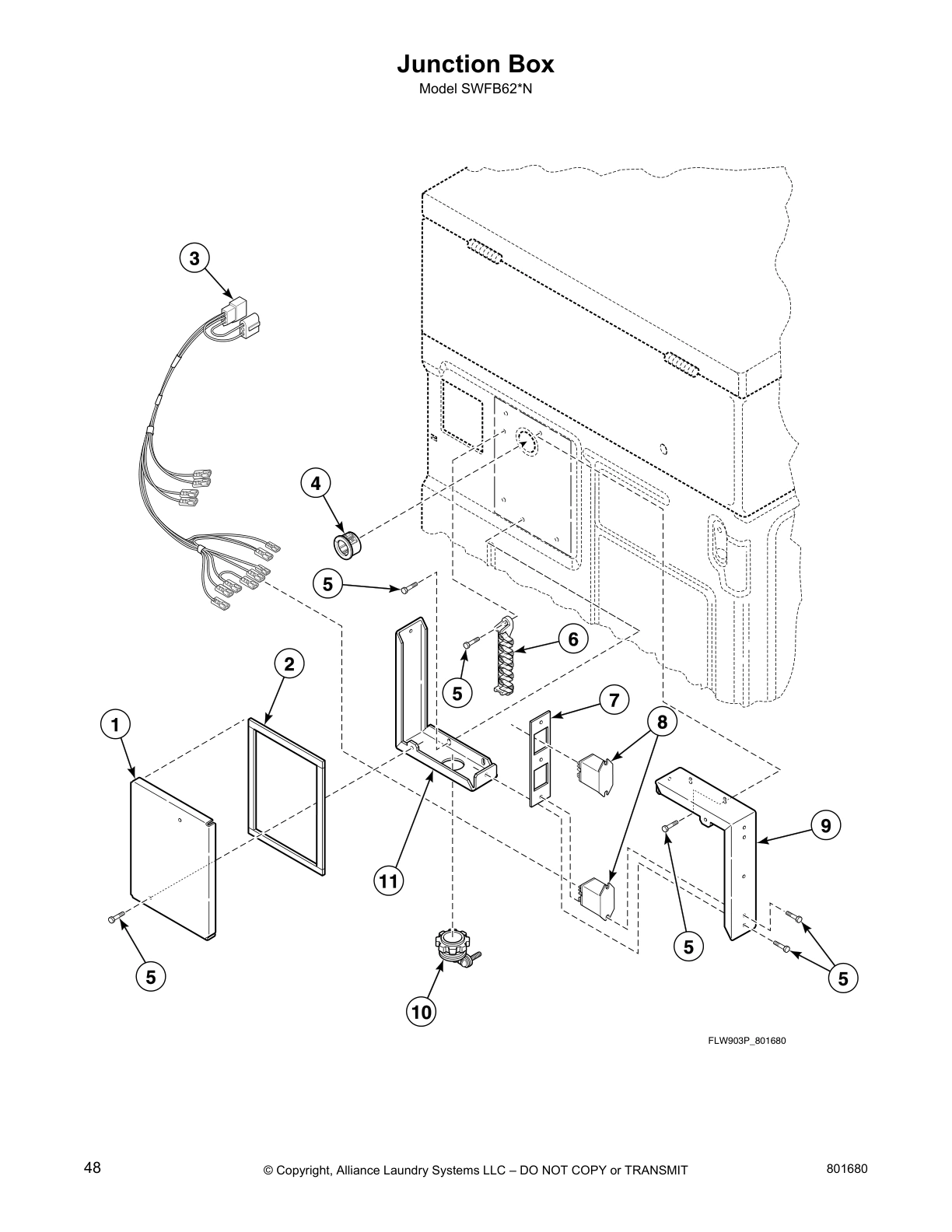

Junction Box

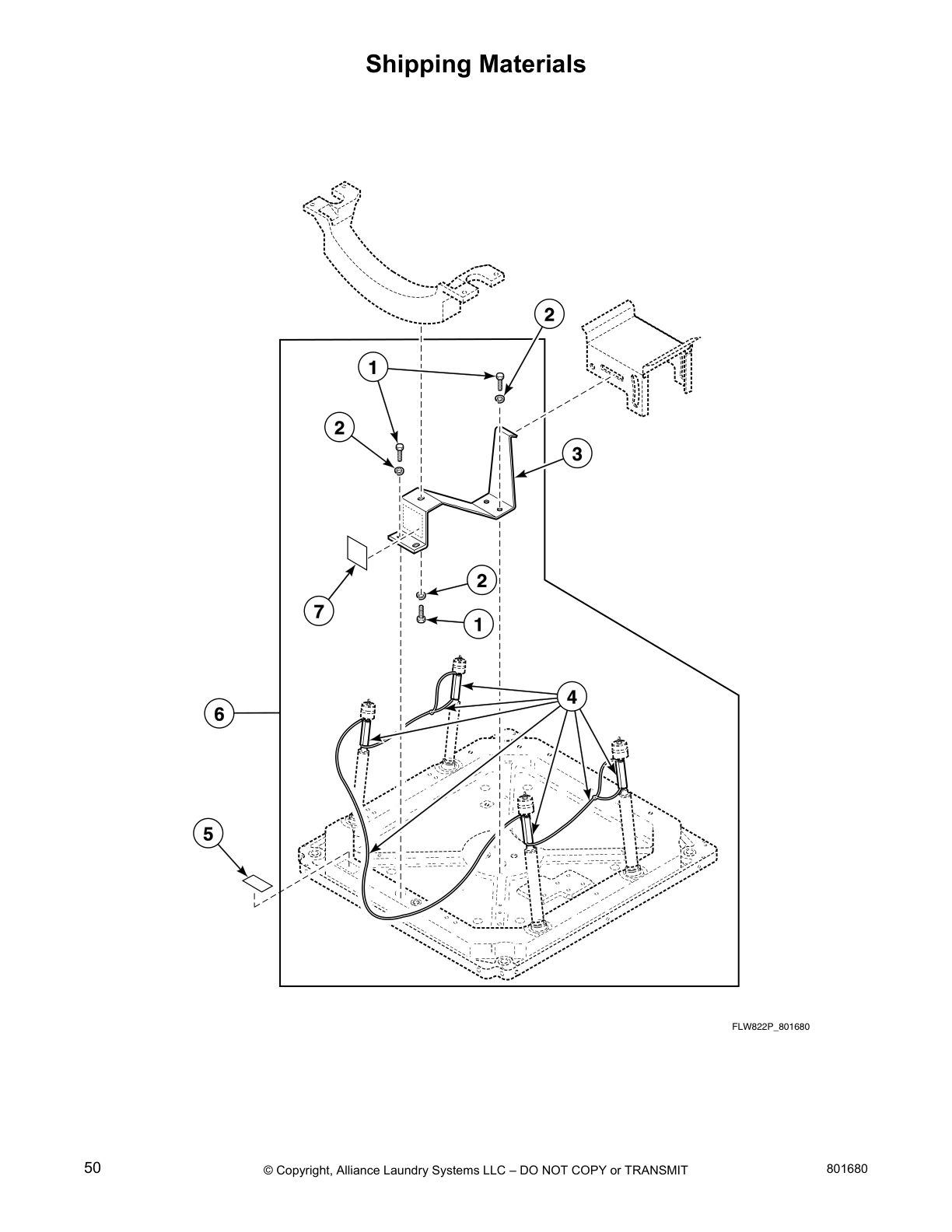

Shipping Materials

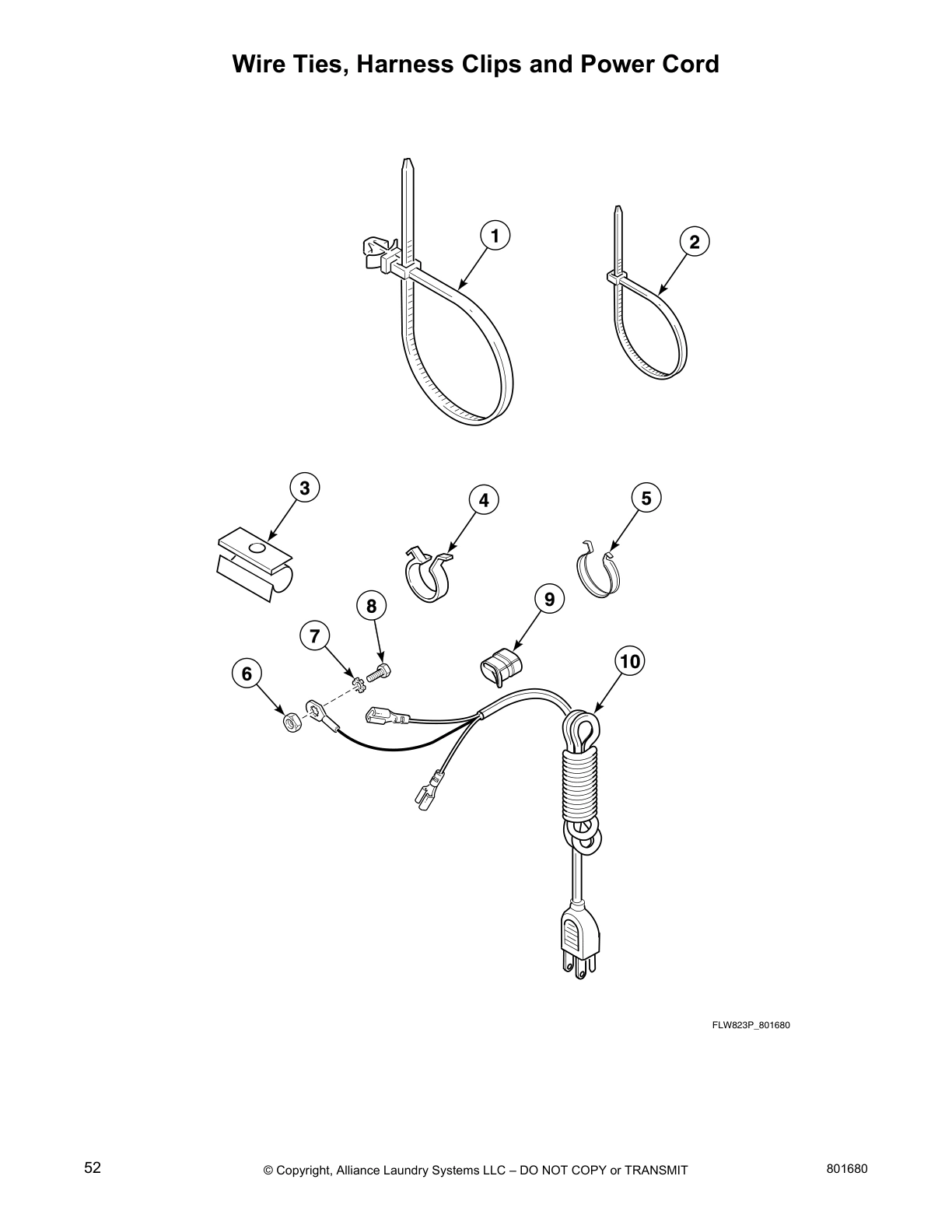

Wire Ties, Harness Clips and Power Cord

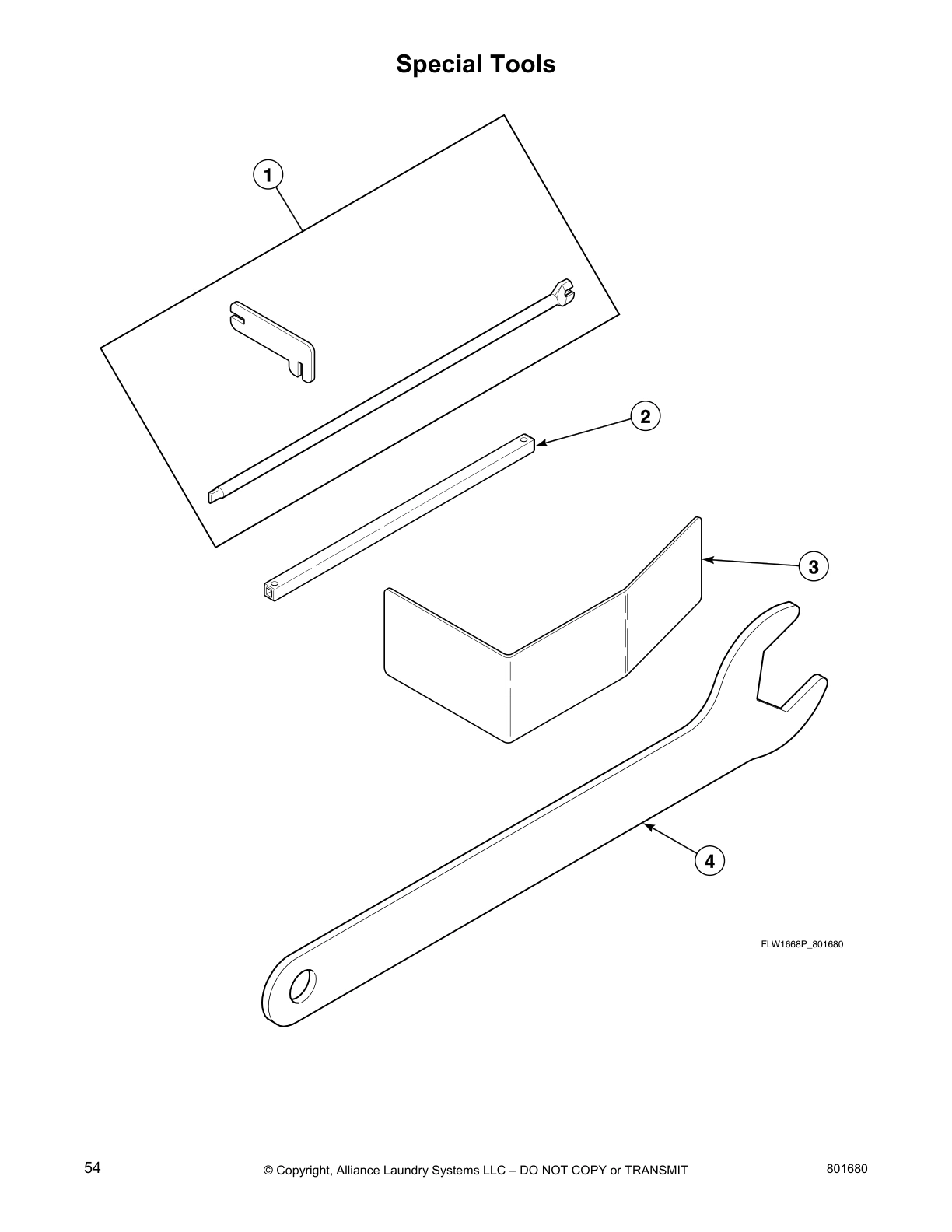

Special Tools

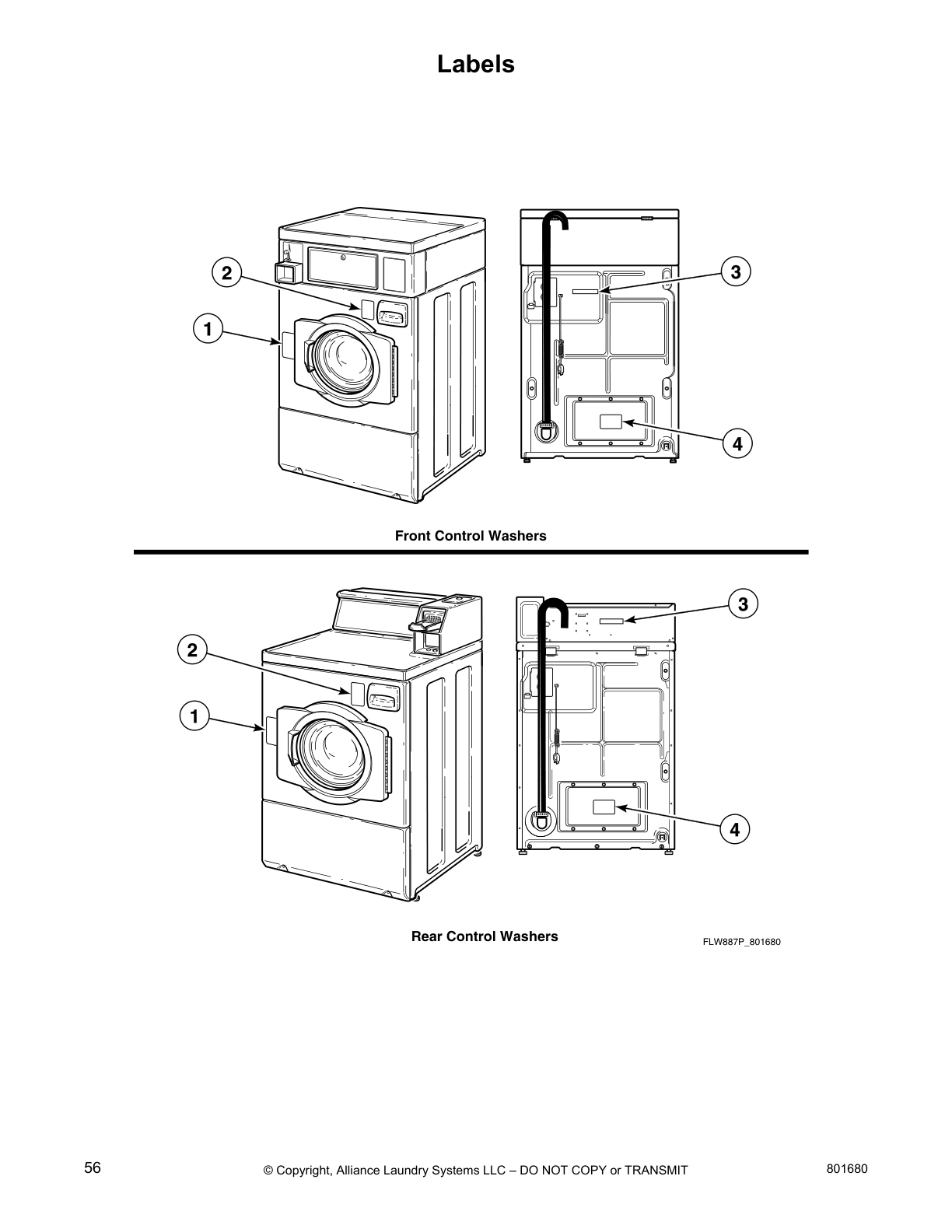

Labels

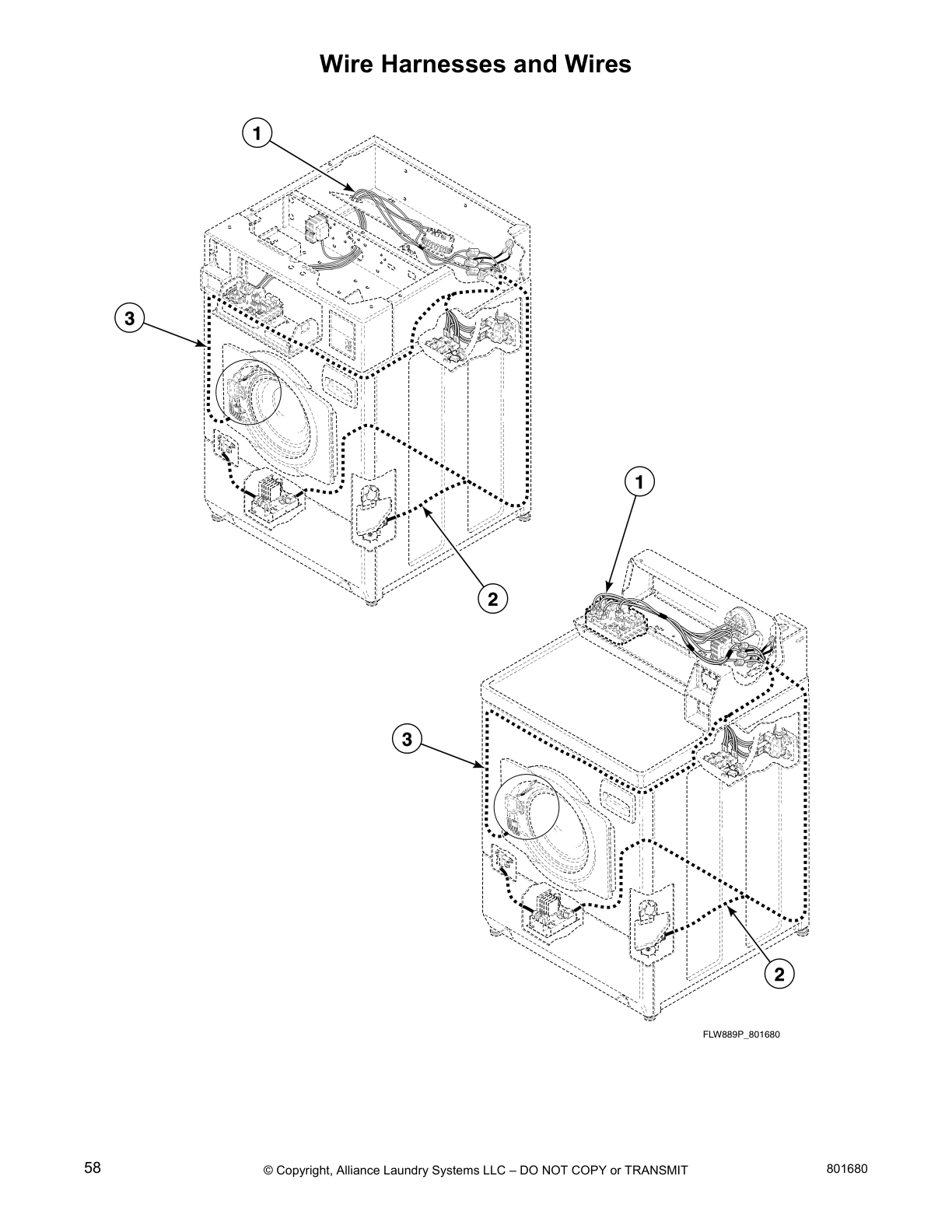

Wire Harnesses and Wires

Common parts from model Speed Queen SWRF61*N Washer
