Model Speed Queen SWRD61*H Washer – Common Parts & Diagrams
Cabinet Top and Control Cabinet
Timer, Motor Control Board, Pressure Switch and Relays

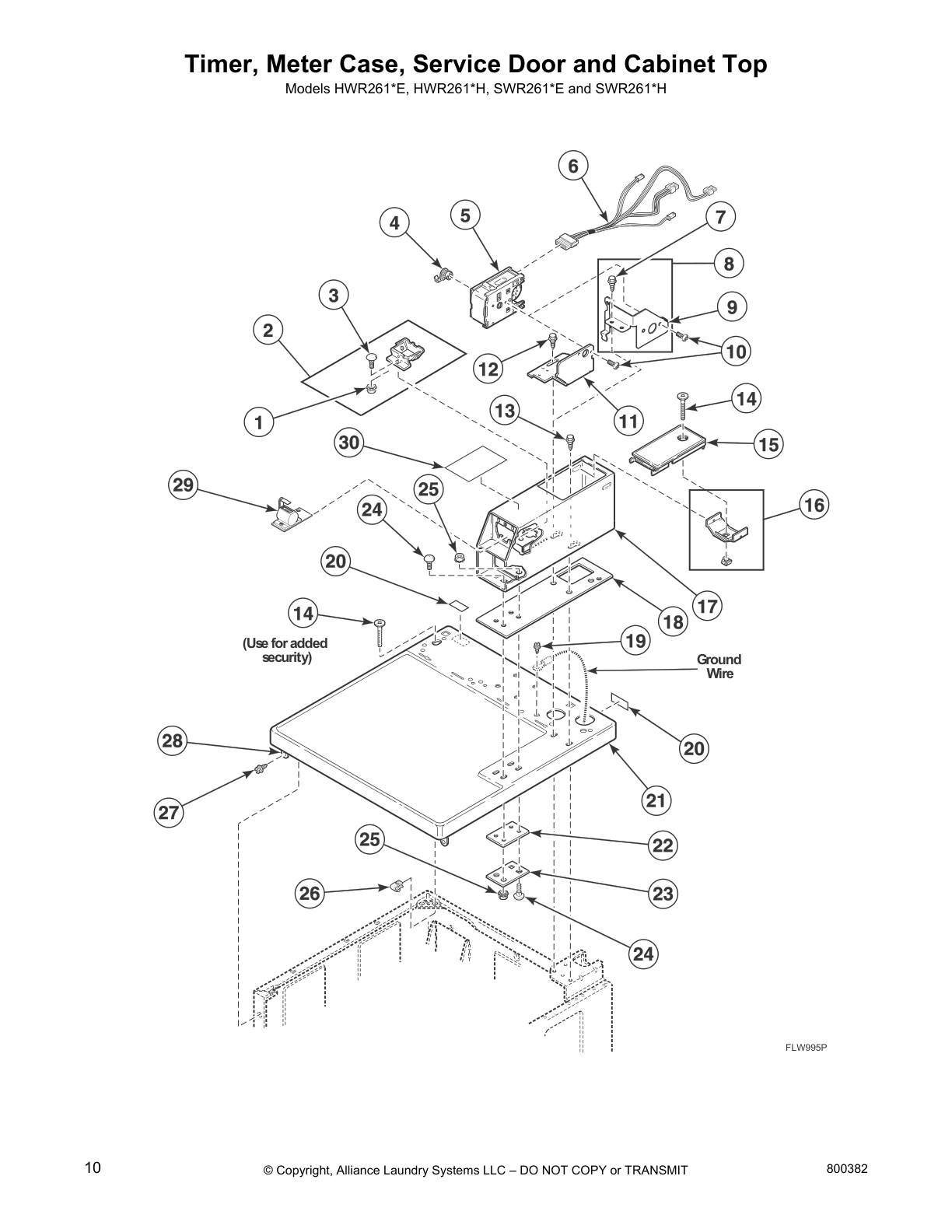

Timer, Meter Case, Service Door and Cabinet Top

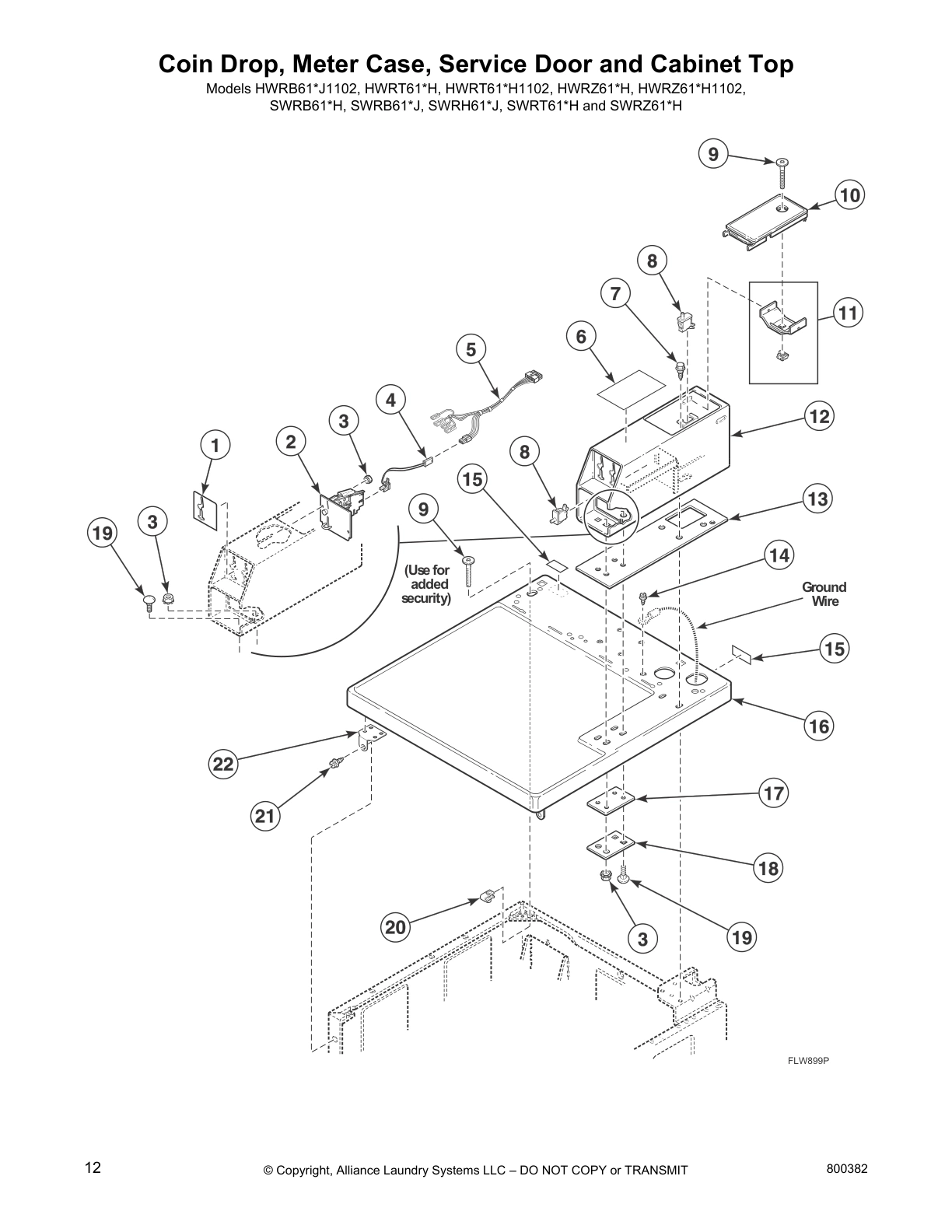

Coin Drop, Meter Case, Service Door and Cabinet Top
Security Case, Card Reader and Cabinet Top

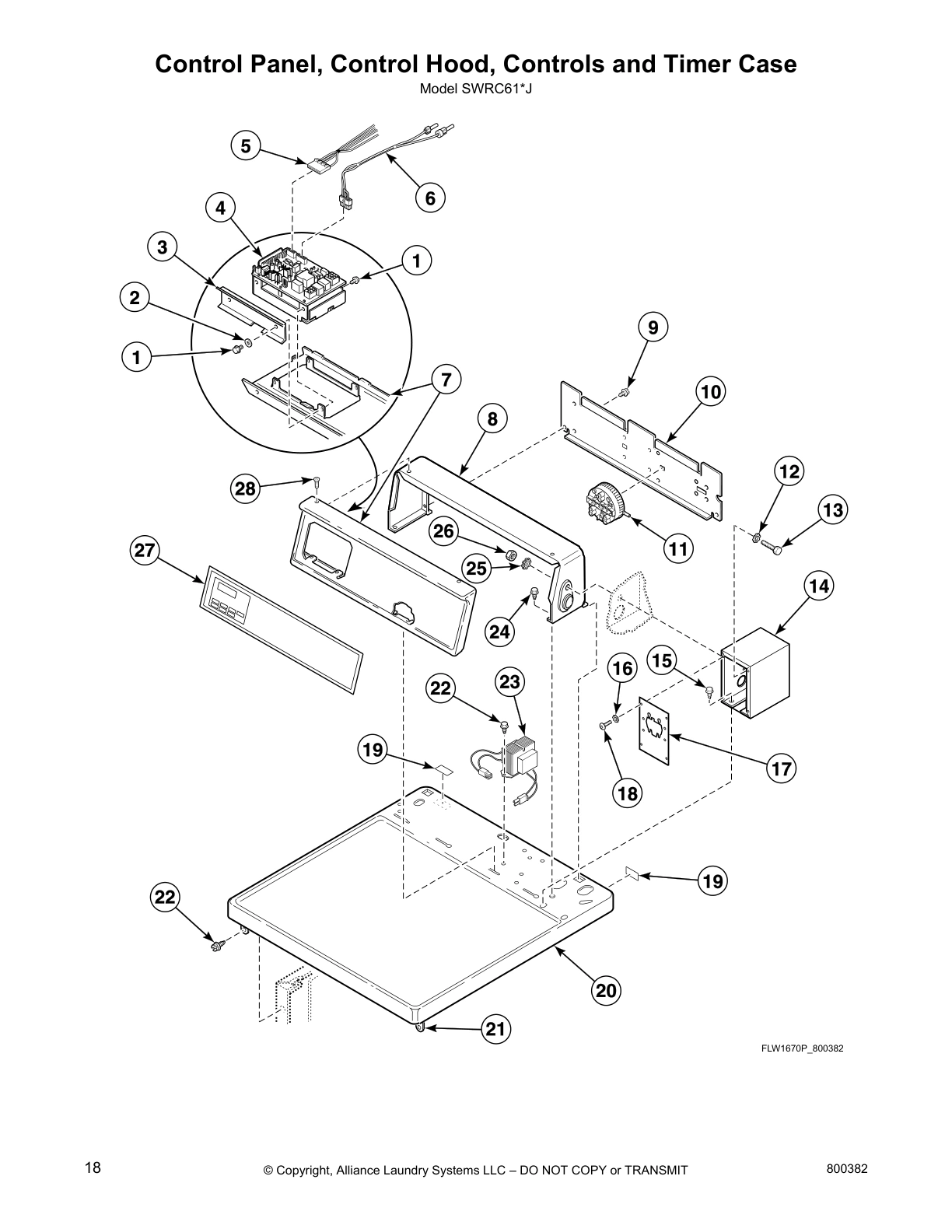

Control Panel, Control Hood, Controls and Timer Case
Control Panel, Control Hood and Controls (Drawing 1 of 4)

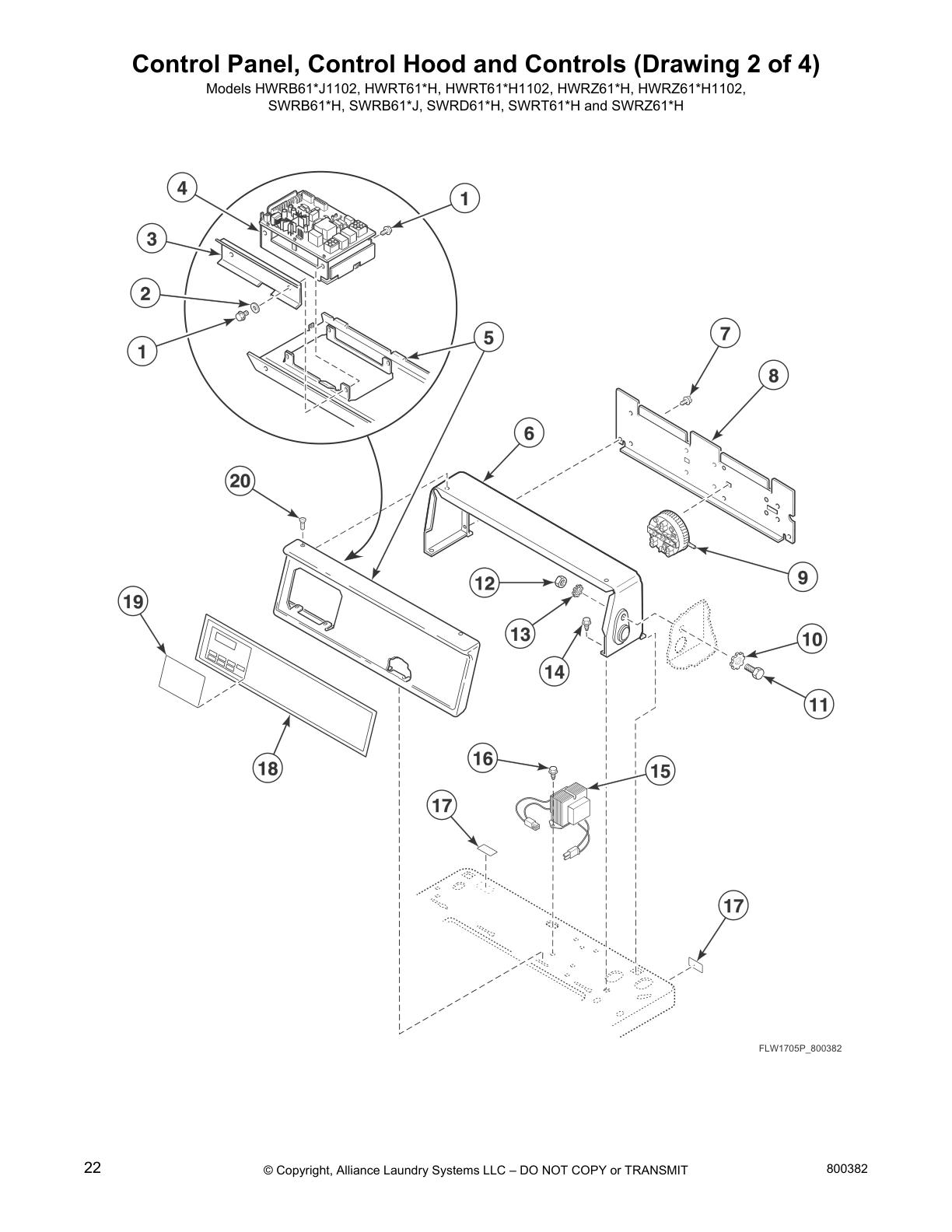

Control Panel, Control Hood and Controls (Drawing 2 of 4)
Control Panel, Control Hood and Controls (Drawing 3 of 4)

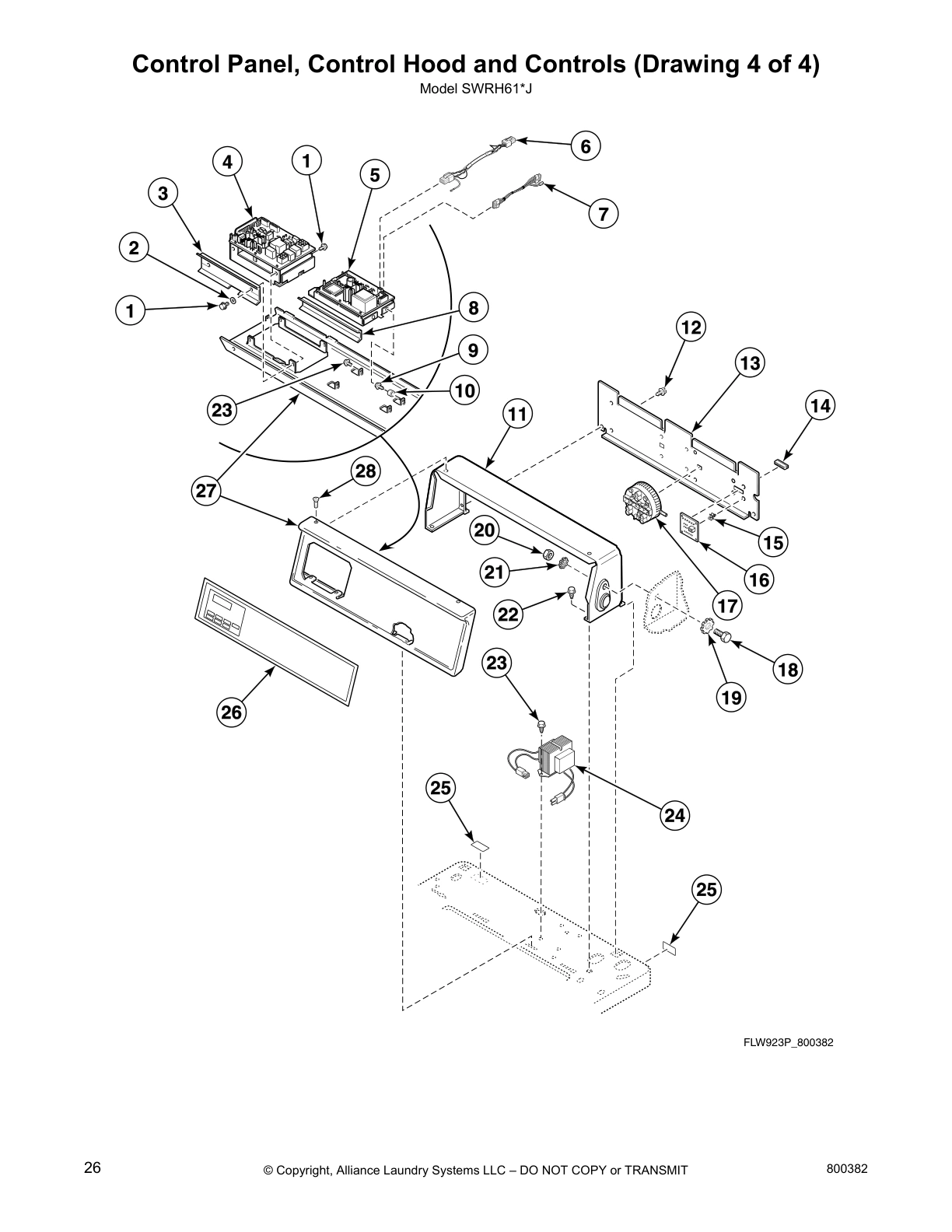

Control Panel, Control Hood and Controls (Drawing 4 of 4)

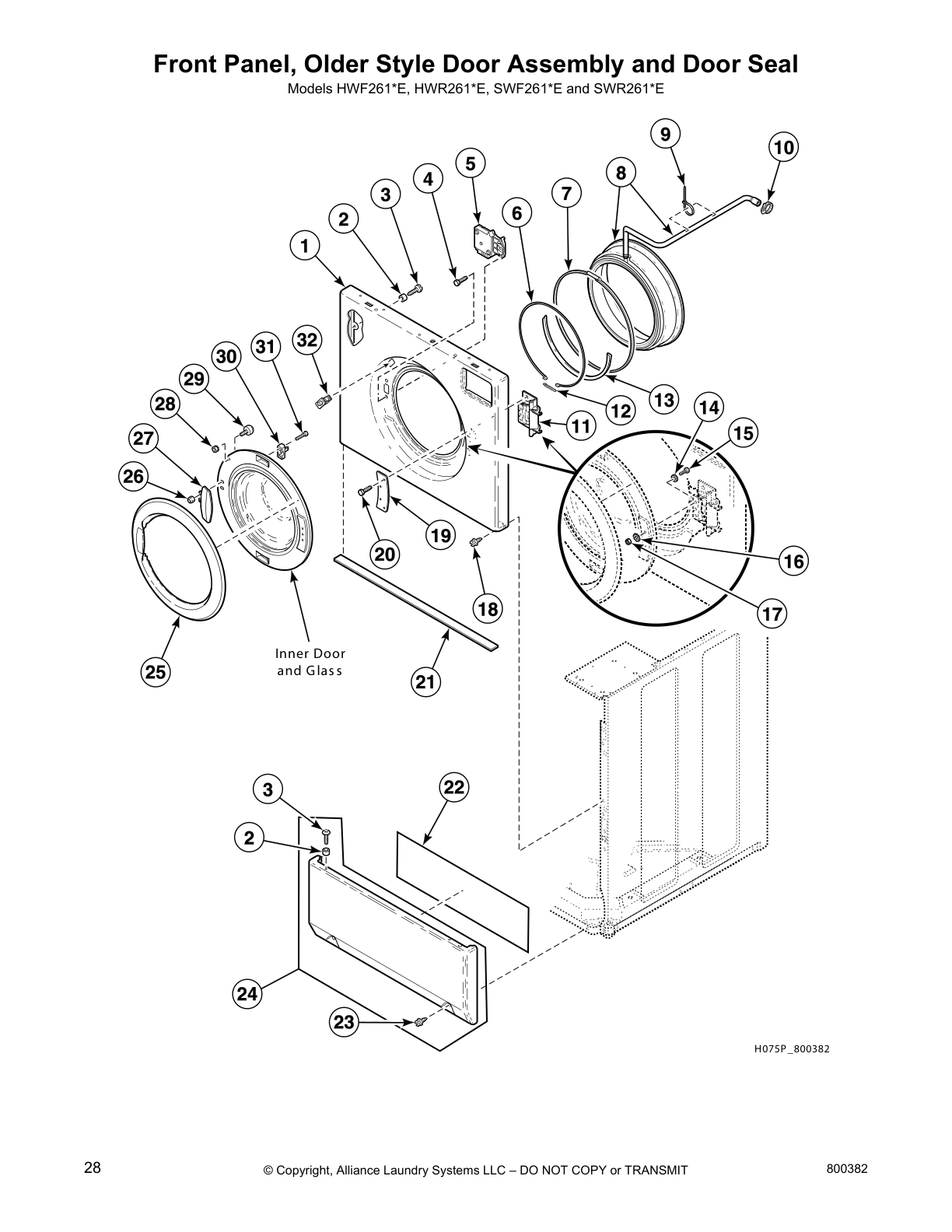

Front Panel, Older Style Door Assembly and Door Seal
Front Panel, Newer Style Door Assembly and Door Seal
Dispenser Assembly

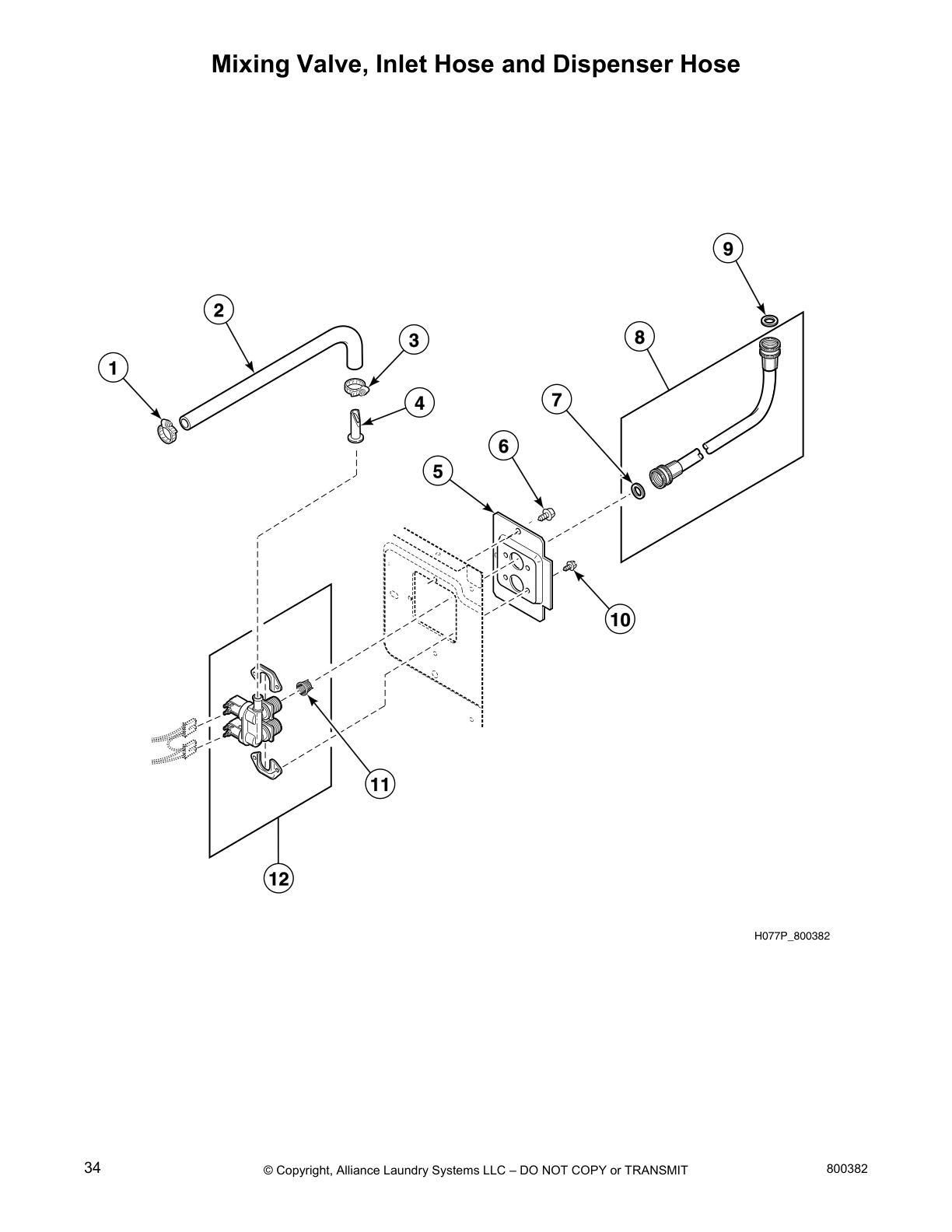

Mixing Valve, Inlet Hose and Dispenser Hose

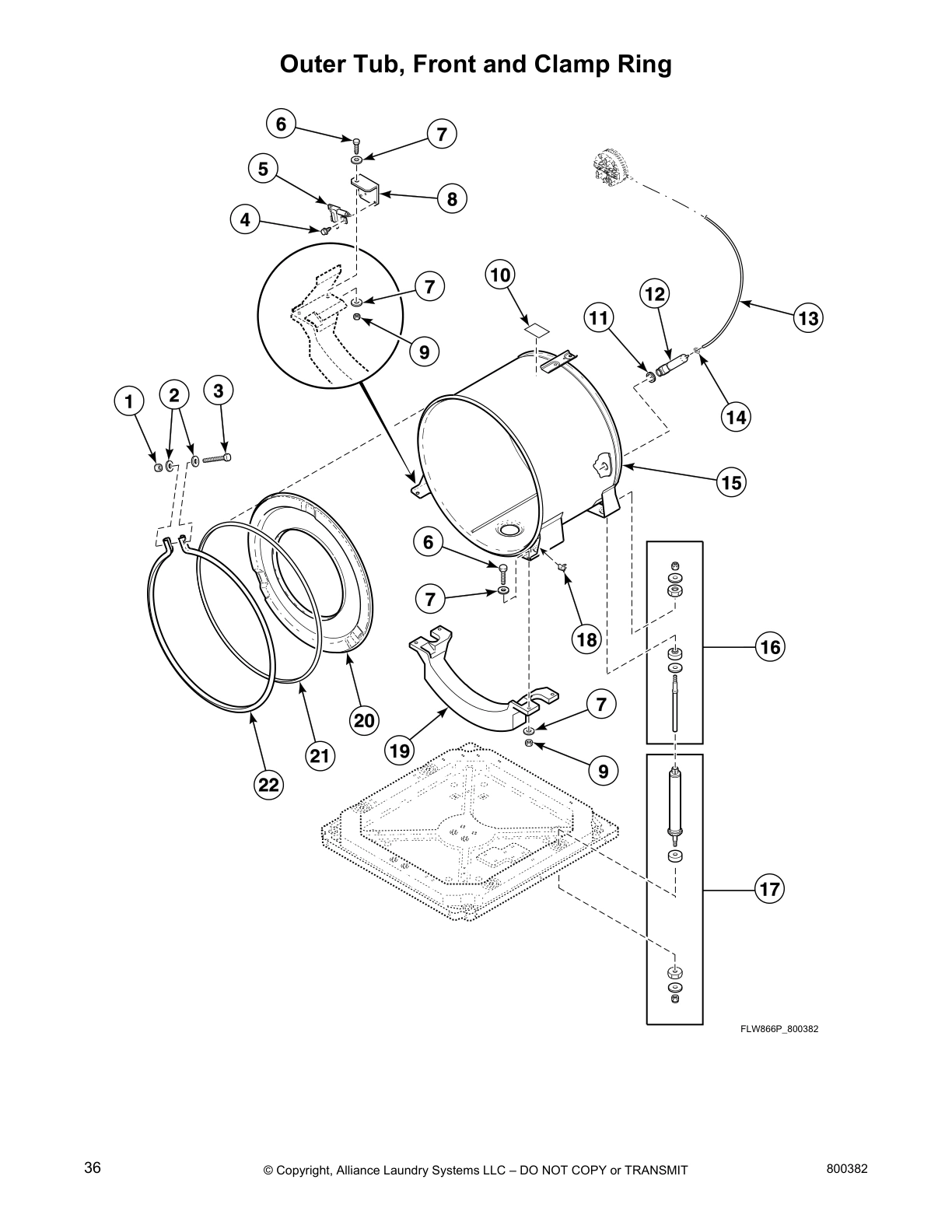

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

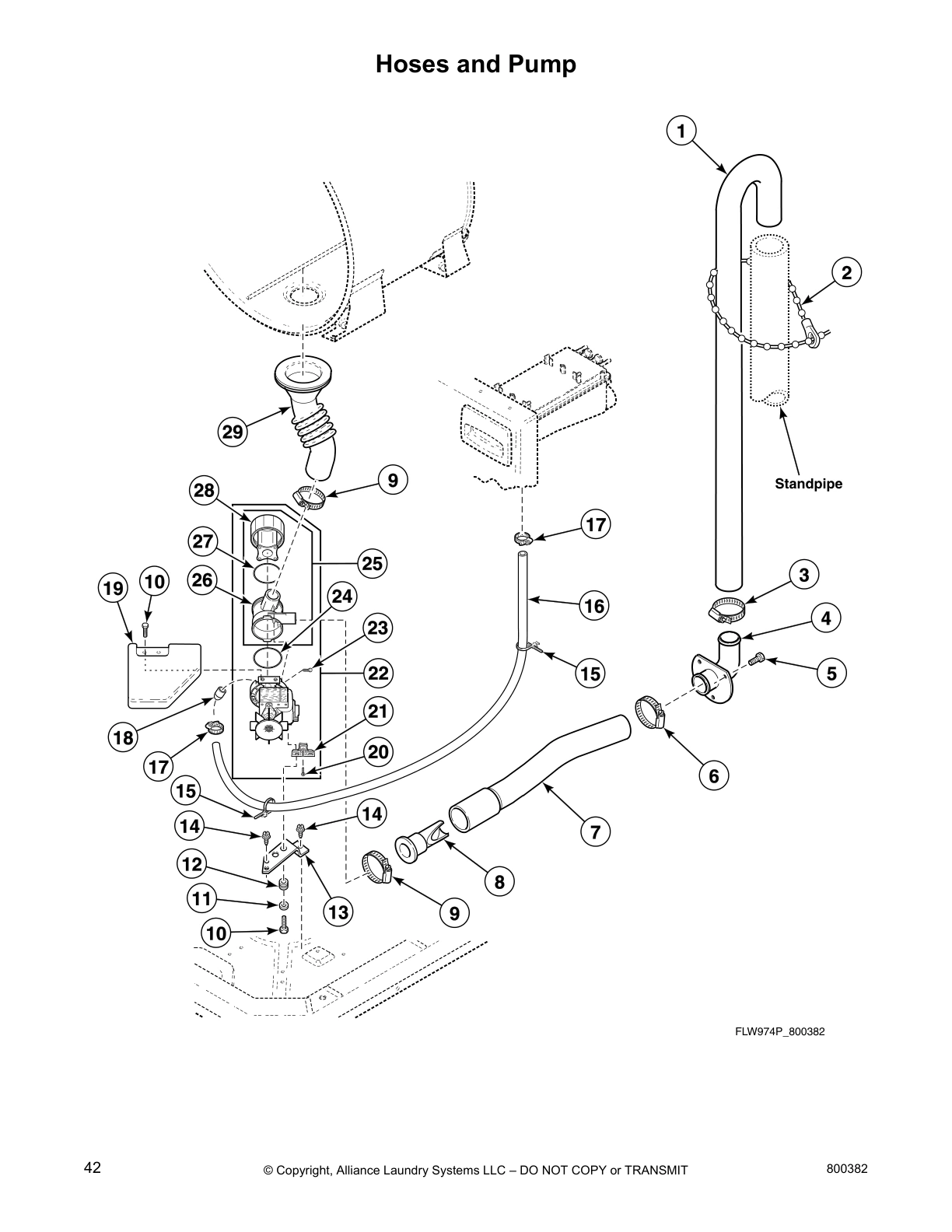

Hoses and Pump
Base, Side Panels and Rear Panel

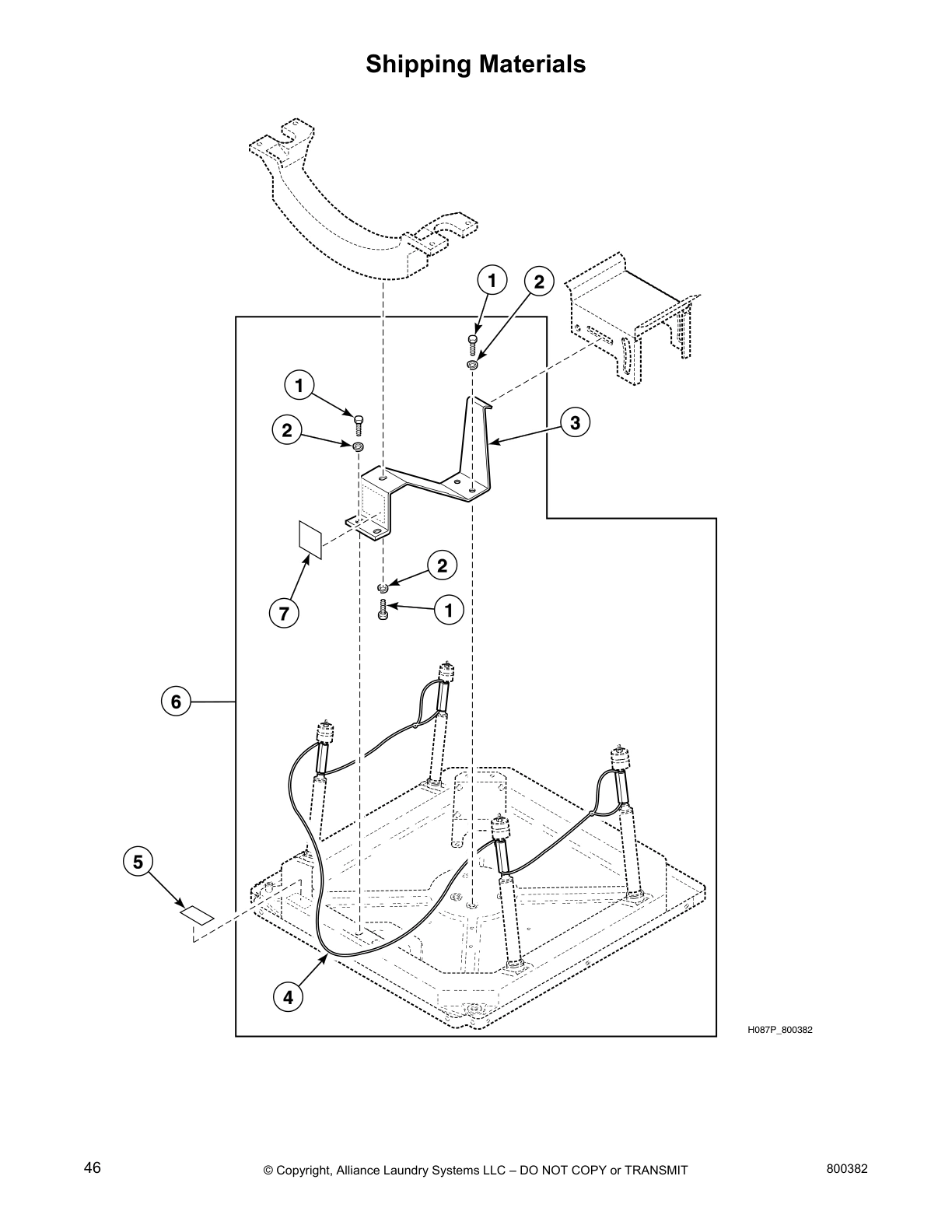

Shipping Materials
Wire Ties, Harness Clips and Power Cord

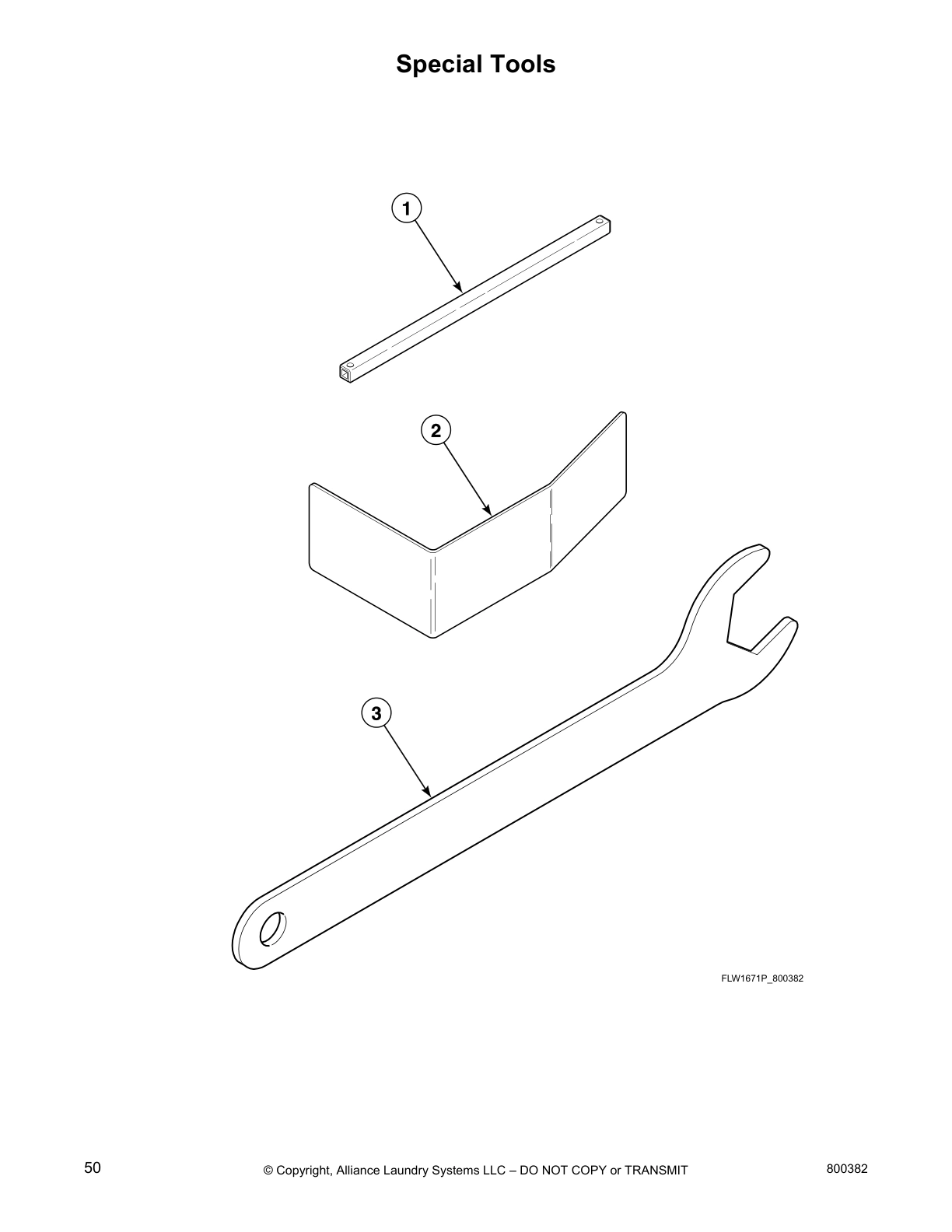

Special Tools

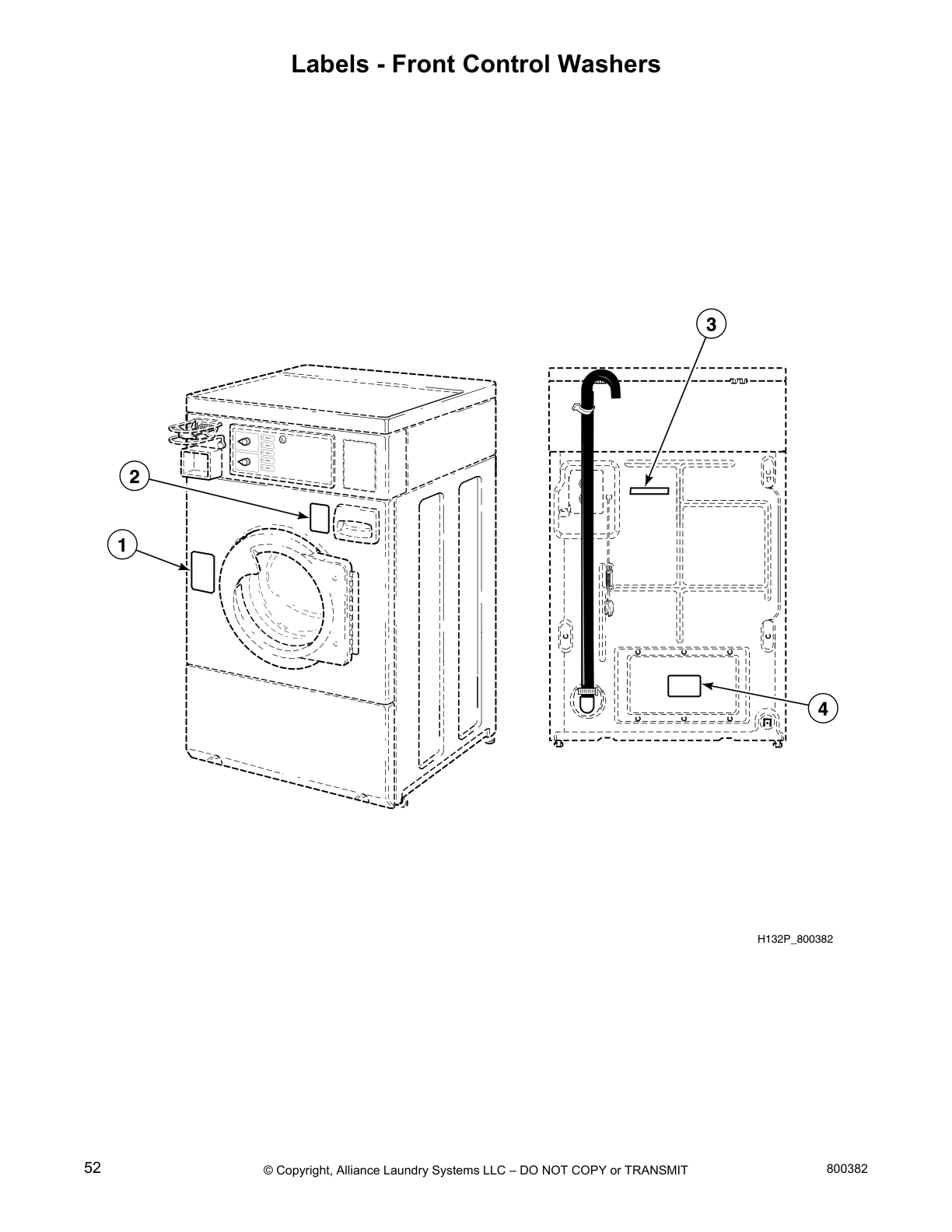

Labels - Front Control Washers

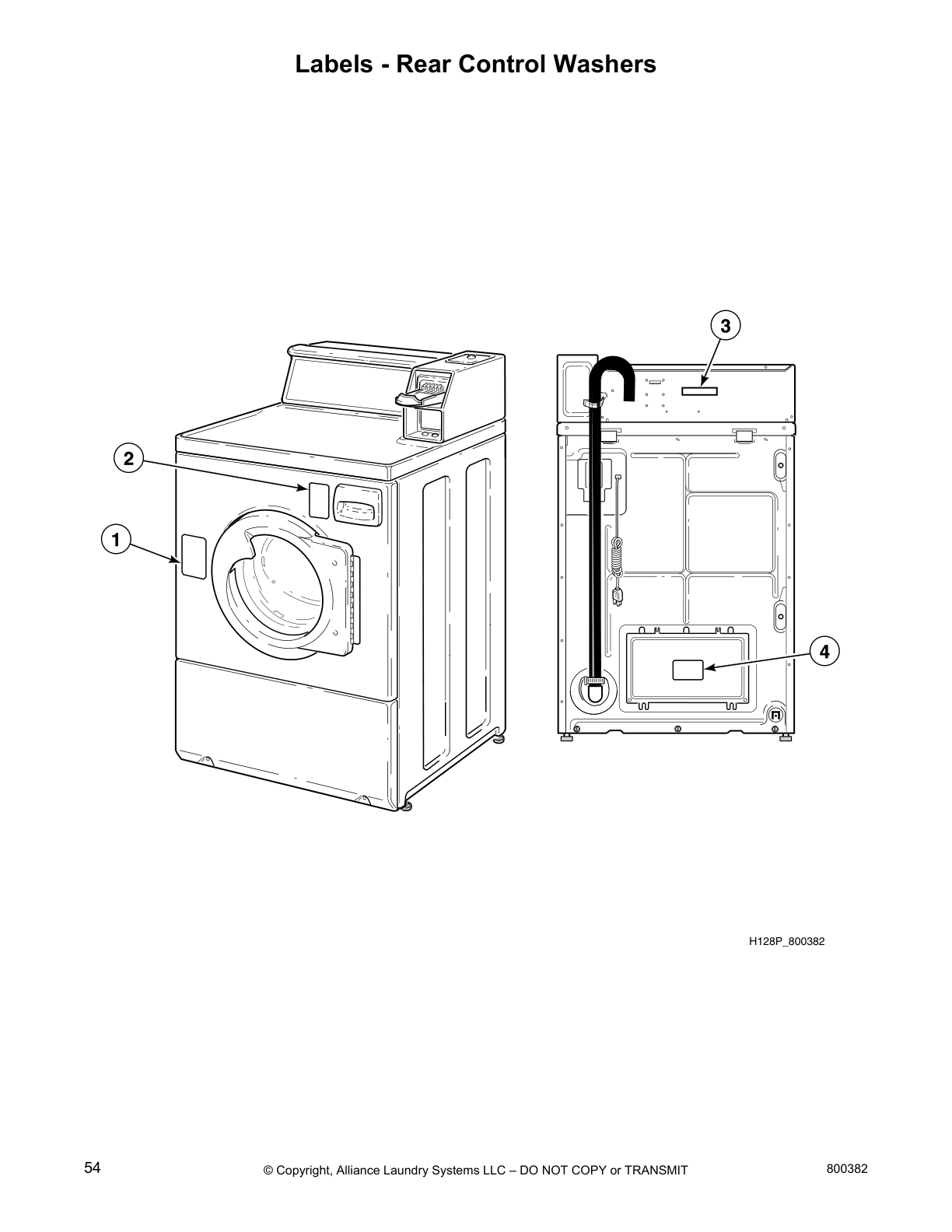

Labels - Rear Control Washers

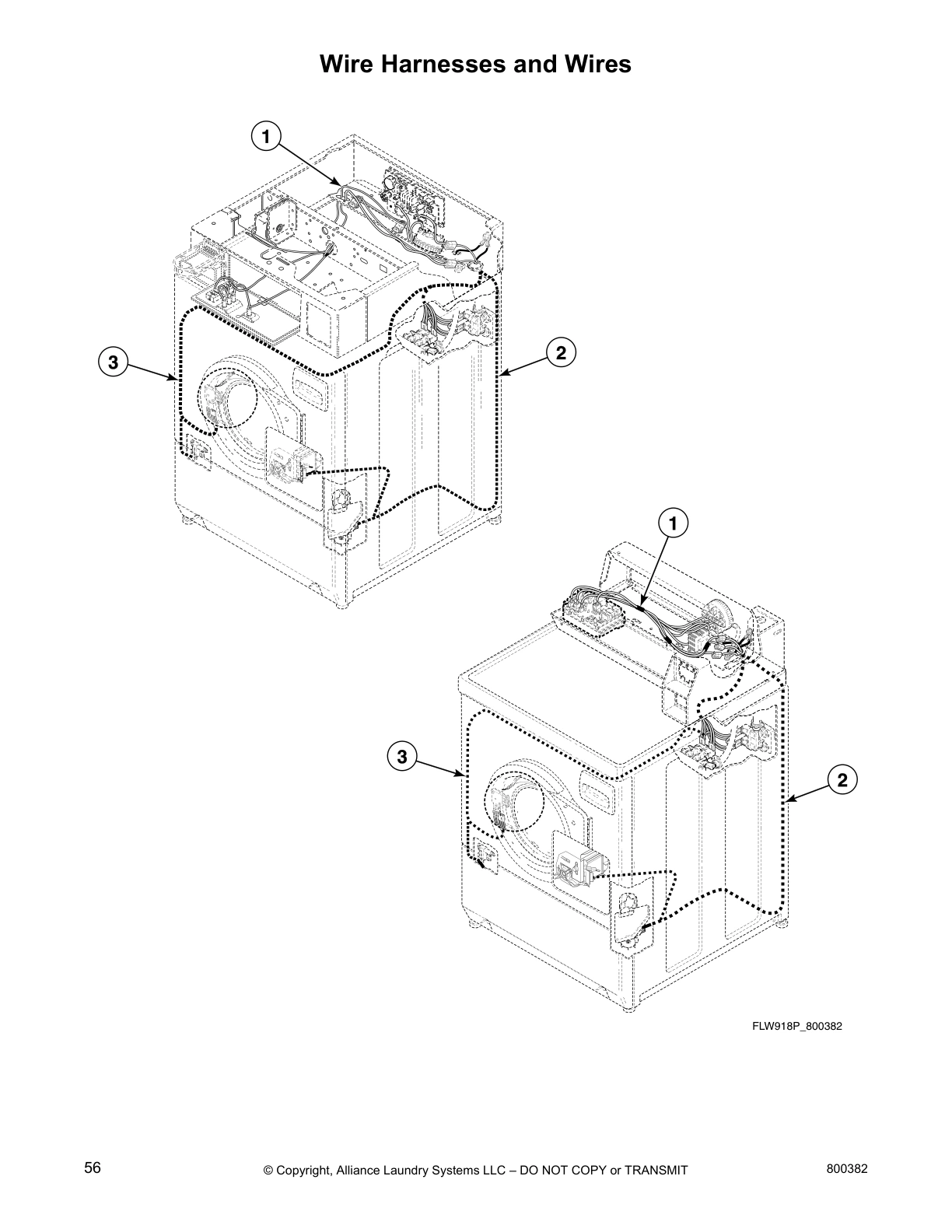

Wire Harnesses and Wires
Common parts from model Speed Queen SWRD61*H Washer
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
10
Hose Clamp SPQ 800232P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
16
Dispenser Drawer Front SPQ 801476P Contact Us For Availability
23
Security Case Assembly SPQ 39874LP Contact Us For Availability
29
Sealant SPQ 802434P Contact Us For Availability
32
Door Seal and Hose Assembly Kit SPQ 800211 Contact Us For Availability
× ![]()
