Model Speed Queen SFNNCASP116TW01 Washer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 3)
Control Panel and Controls (Drawing 2 of 3)
Control Panel and Controls (Drawing 3 of 3)
Top Assembly
Network Board Assembly
Control Cabinet
Non-Electronic Coin Drop, Cabinet Front and Wrapper Assembly
Electronic Coin Drop
Control Cabinet Controls - Front Control
Card Reader Ready Models

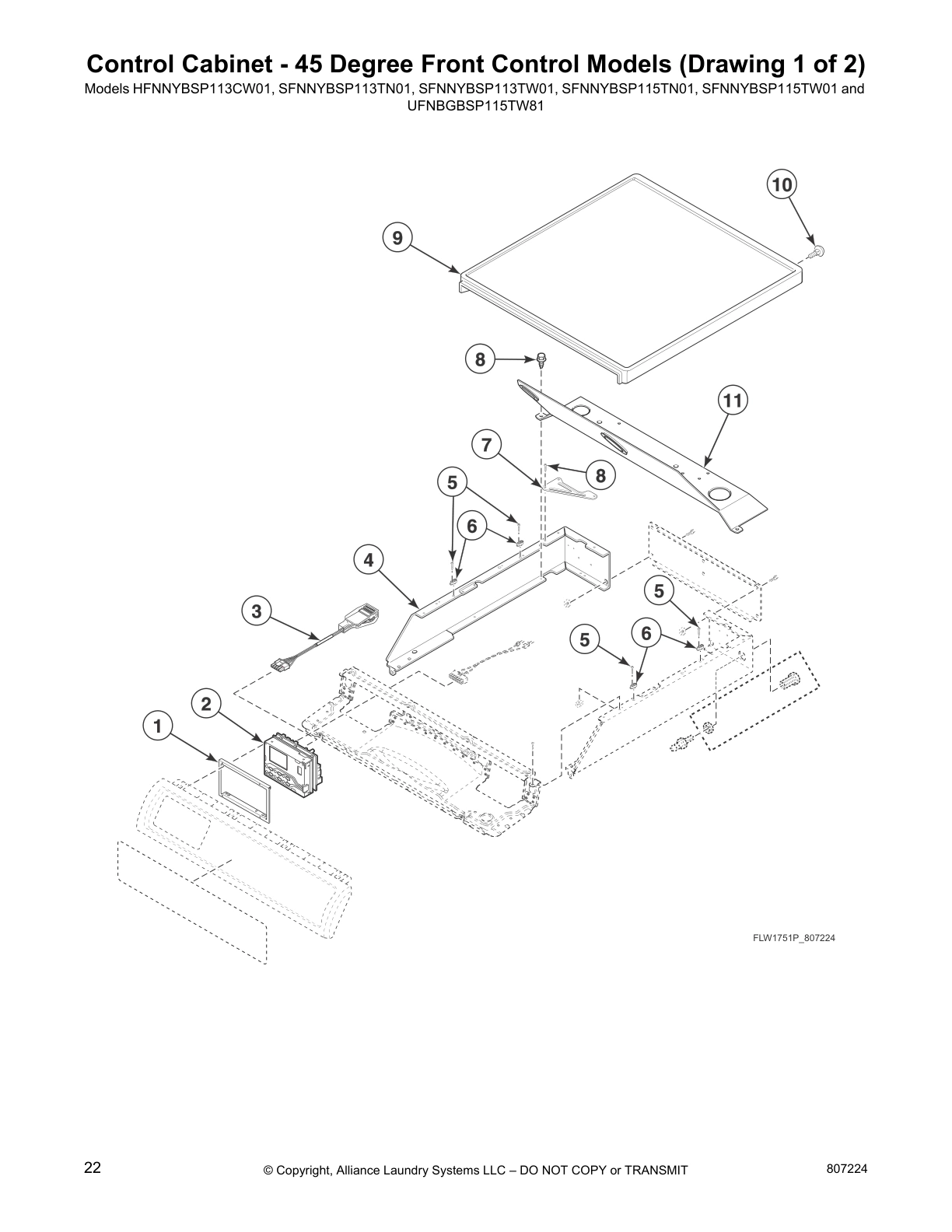

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Coin Drop, Meter Case and Cabinet Top (Drawing 1 of 2)
Coin Drop, Meter Case and Cabinet Top (Drawing 2 of 2)
Control Panel, Control Hood and Controls (Drawing 1 of 3)
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)

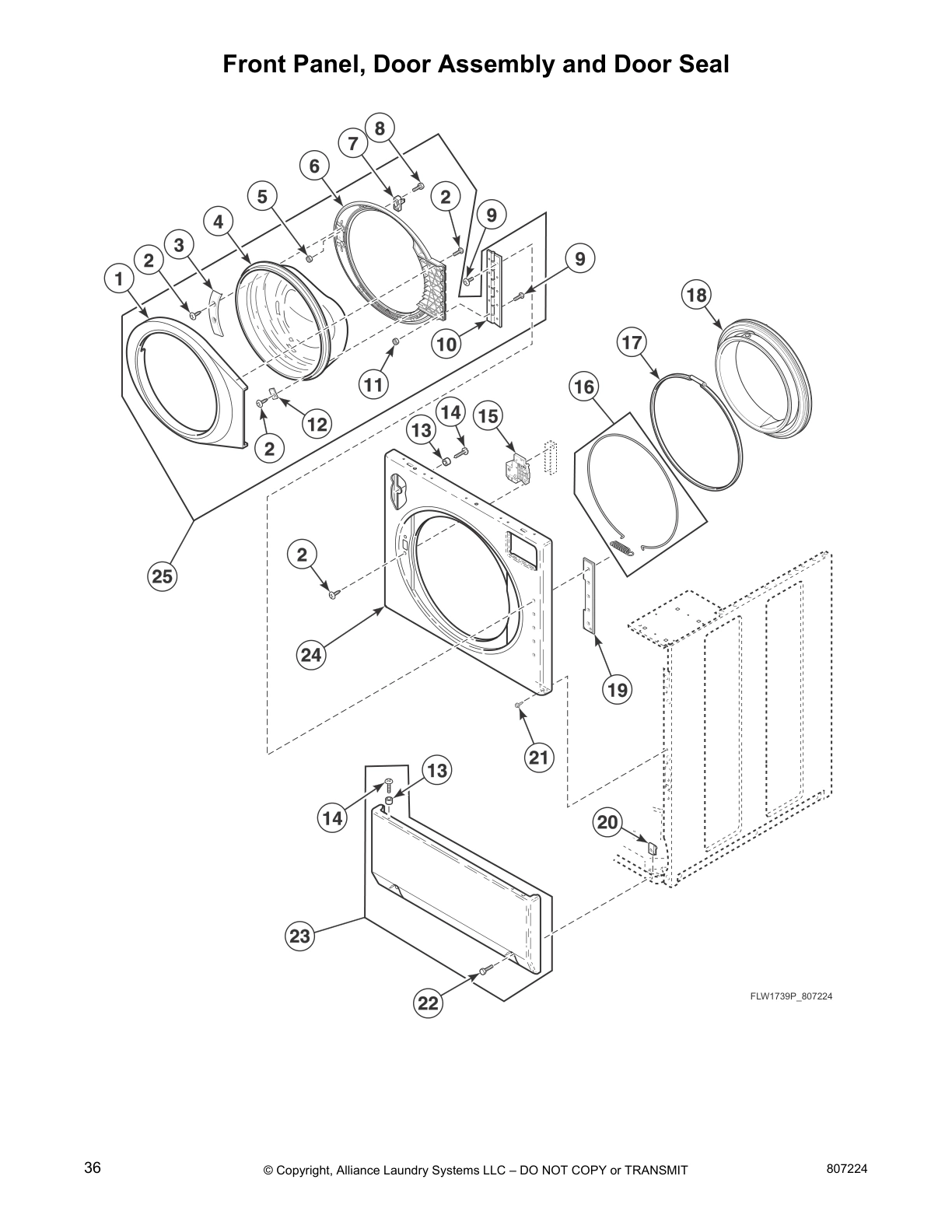

Front Panel, Door Assembly and Door Seal
Front Panel Assembly
Dispenser Assembly
Mixing Valve, Dispenser Hose and Fill Hose
Outer Tub, Clamp Ring and Shock Absorbers
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Drain Hose and Pump
Side, Base and Rear Panels
Junction Box
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Washer Labels
Wire Harnesses and Wires
Common parts from model Speed Queen SFNNCASP116TW01 Washer
2
Pressure Sensor Harness SPQ 807656 Contact Us For Availability
3
Warning Label SPQ 802367 Contact Us For Availability
4
Wire Clip SPQ F8449502 Contact Us For Availability
5
Shipping Bracket Label SPQ 807552 Contact Us For Availability
5
Caution Label SPQ 801706 Contact Us For Availability
6
Left Hand Thread Label SPQ 804949 Contact Us For Availability
7
Screw SPQ 20530 Contact Us For Availability
10
Shipping Plate SPQ 803851 Contact Us For Availability
12
Cabinet Side Panel SPQ 800005DG Contact Us For Availability
16
Pump Housing SPQ 802434P Contact Us For Availability
17
Gasket SPQ 802428 Contact Us For Availability
NI
Label SPQ 807550 Contact Us For Availability
× ![]()
