Model Speed Queen SDGSXRGS113TW02 Dryer – Common Parts & Diagrams

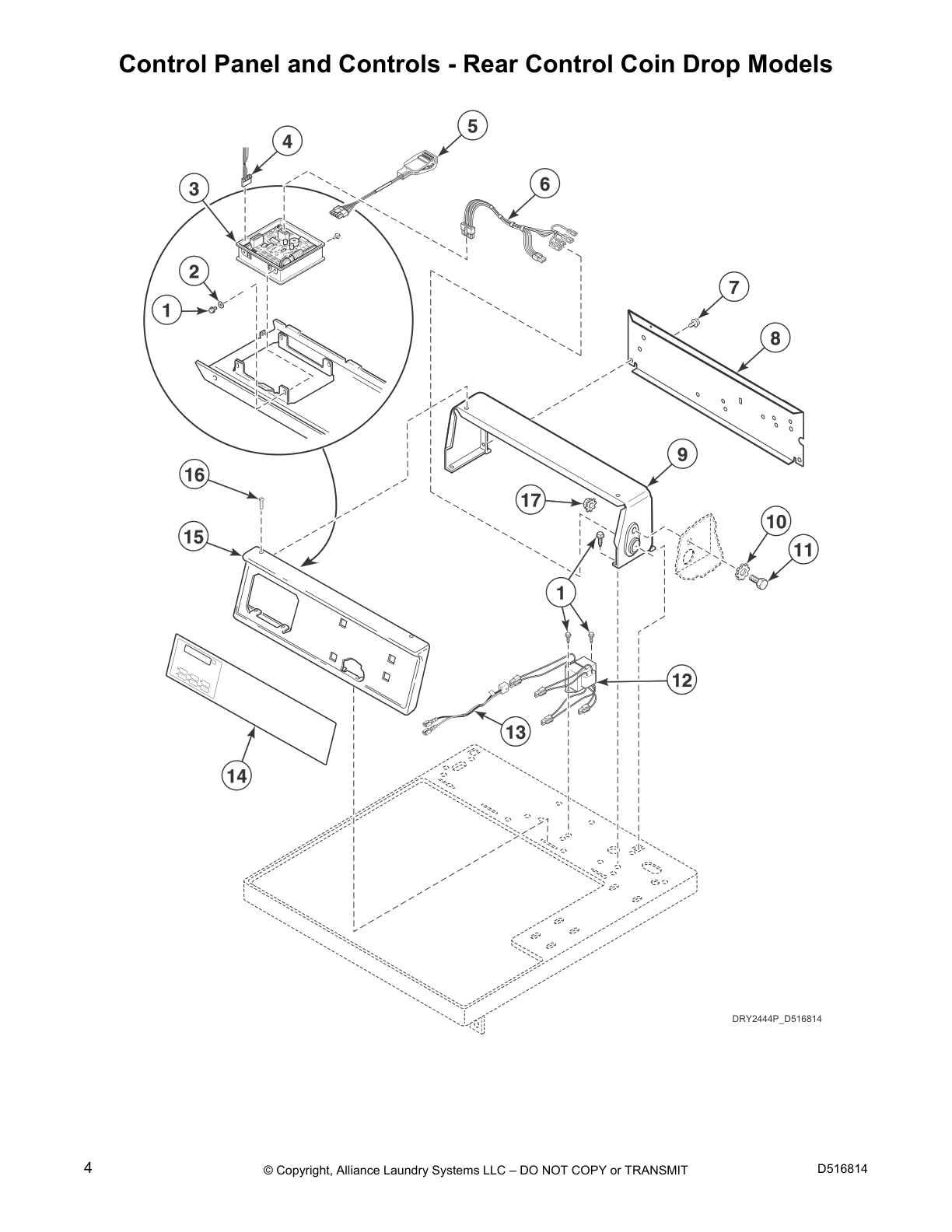

Control Panel and Controls - Rear Control Coin Drop Models

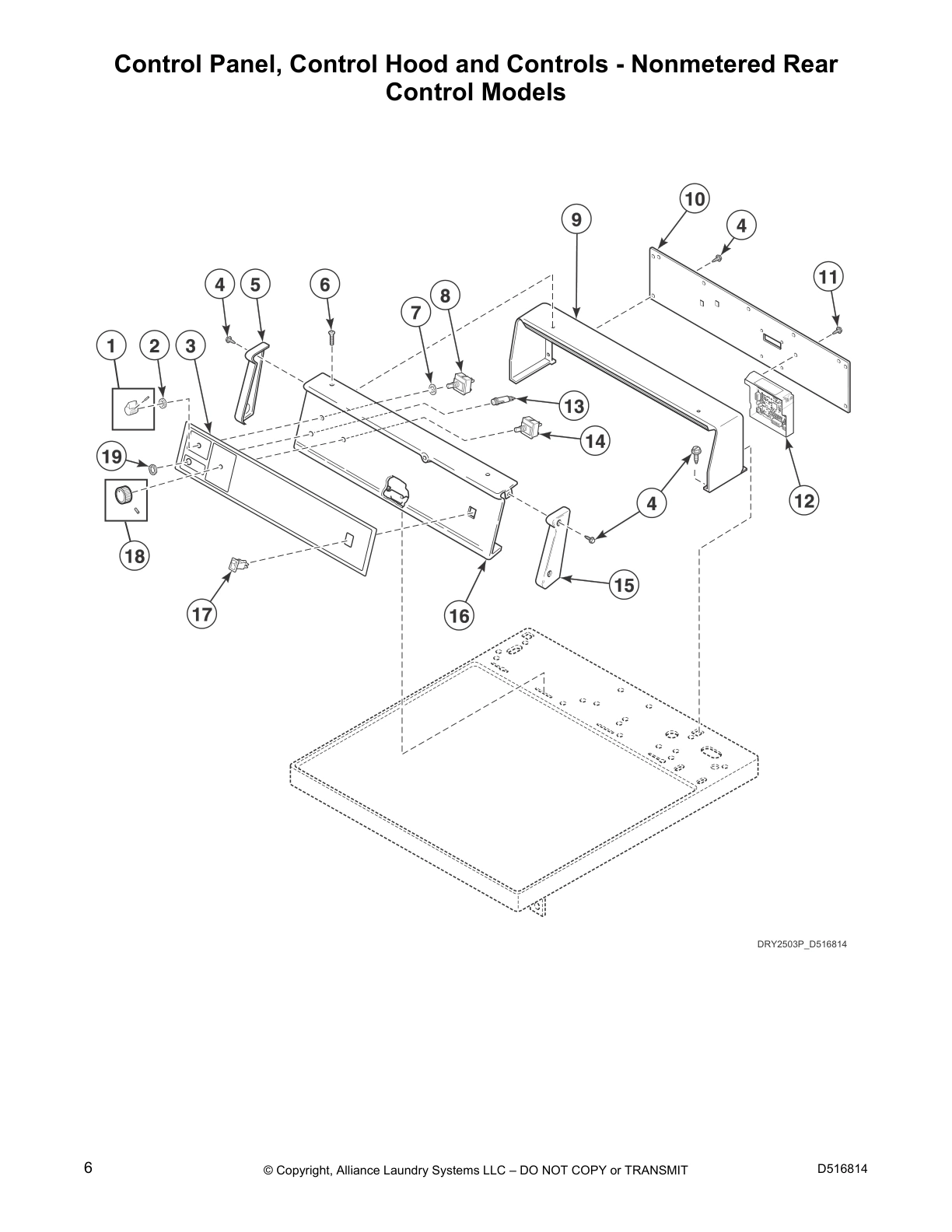

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models

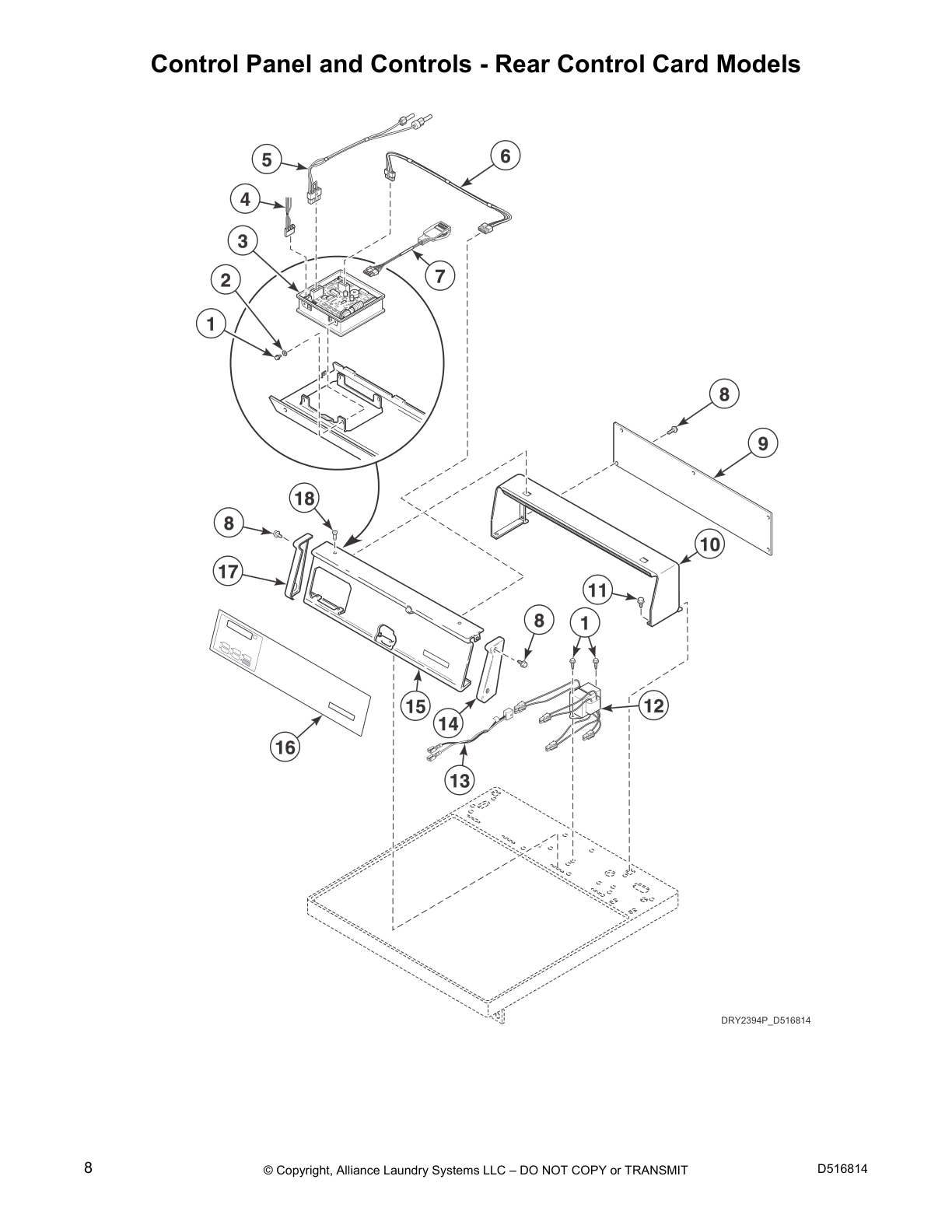

Control Panel and Controls - Rear Control Card Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models
Coin Slide Extension, Meter Case and Control

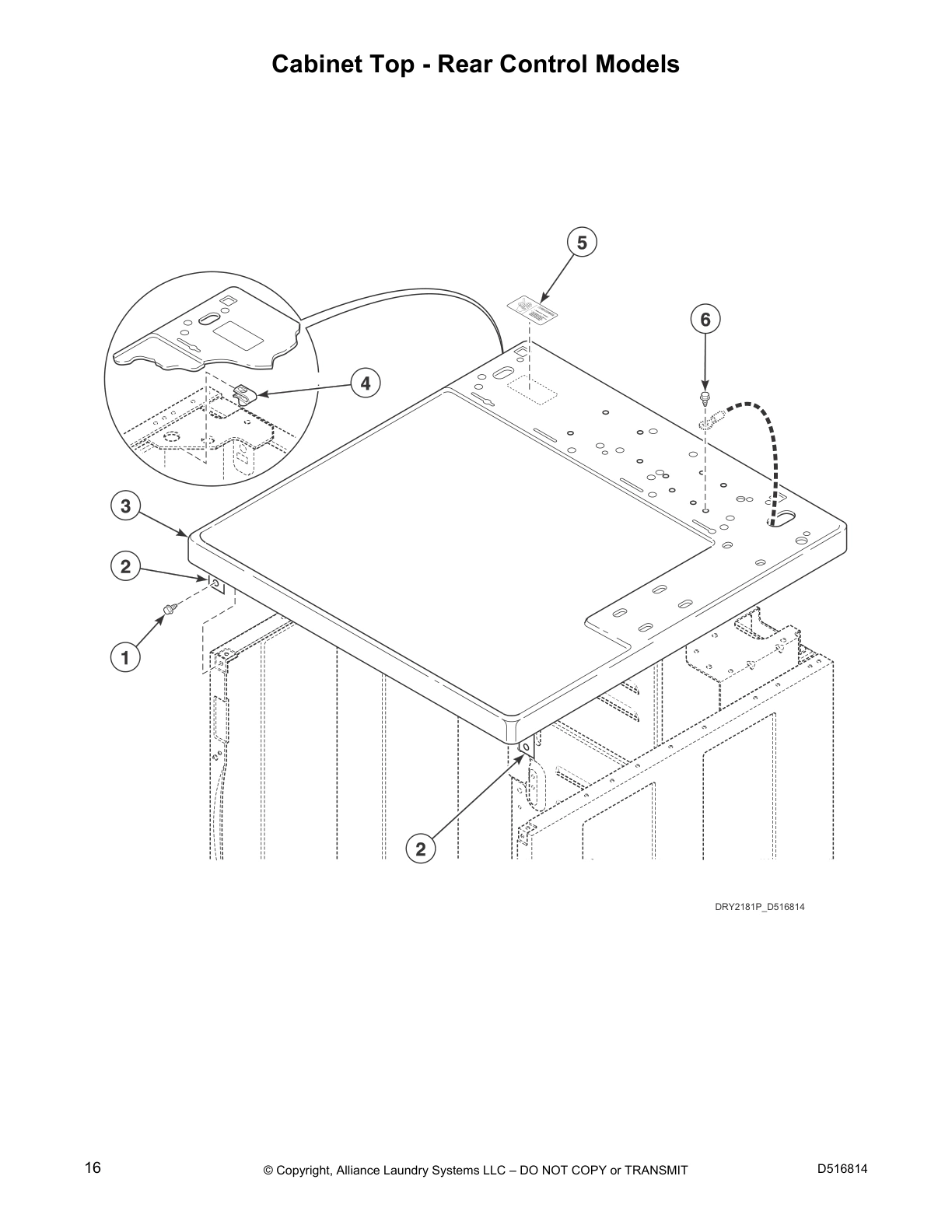

Cabinet Top - Rear Control Models
Non-Electronic Coin Drop
Electronic Coin Drop

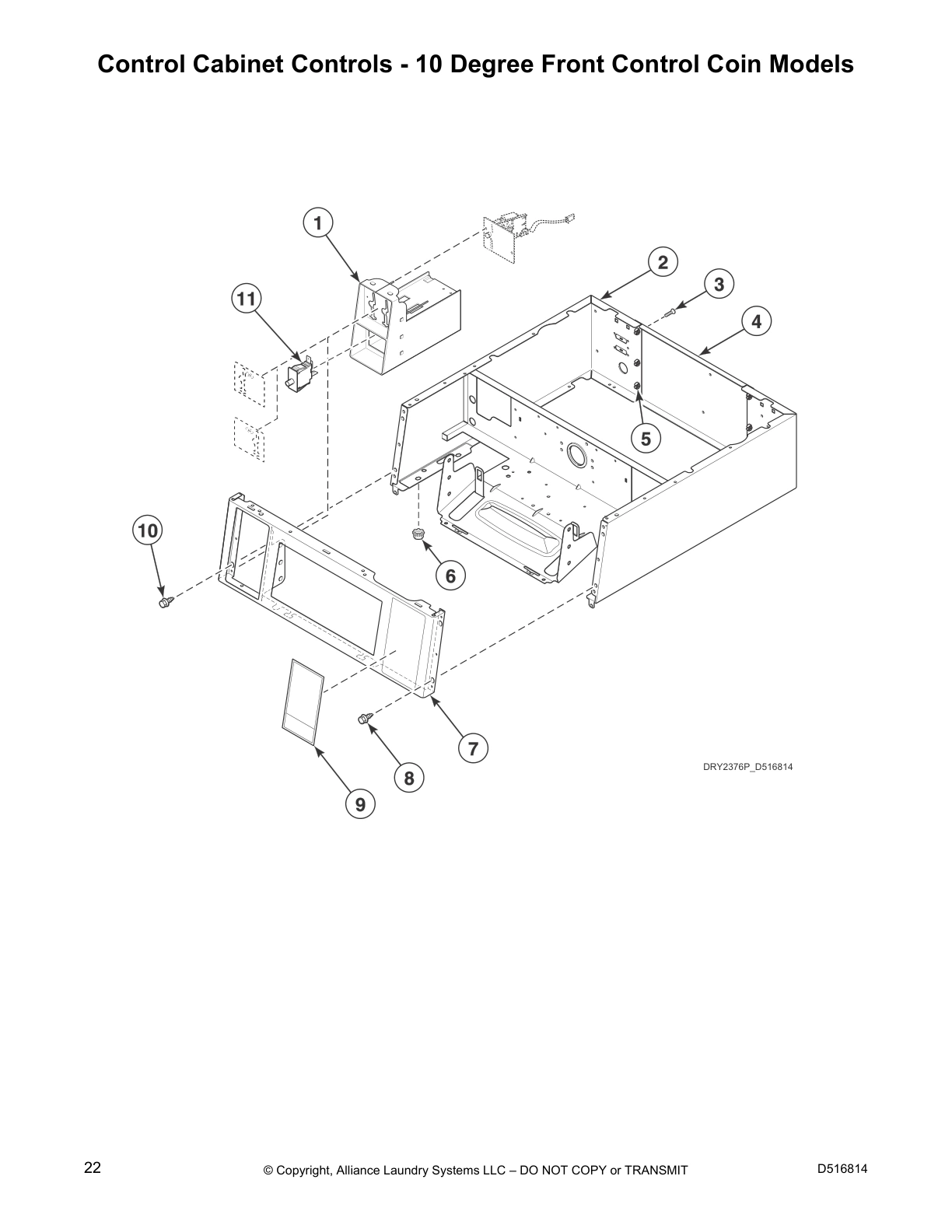

Control Cabinet Controls - 10 Degree Front Control Coin Models

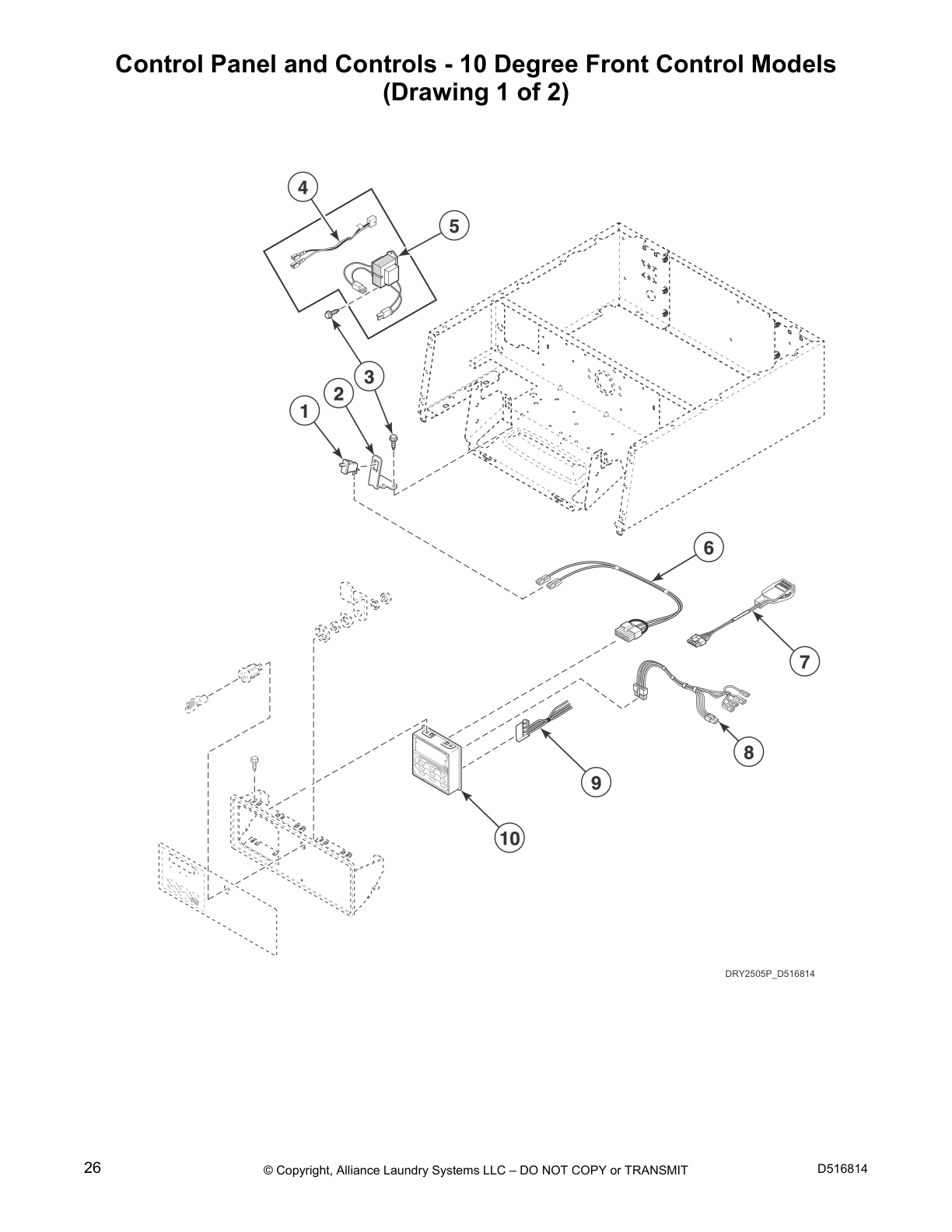

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

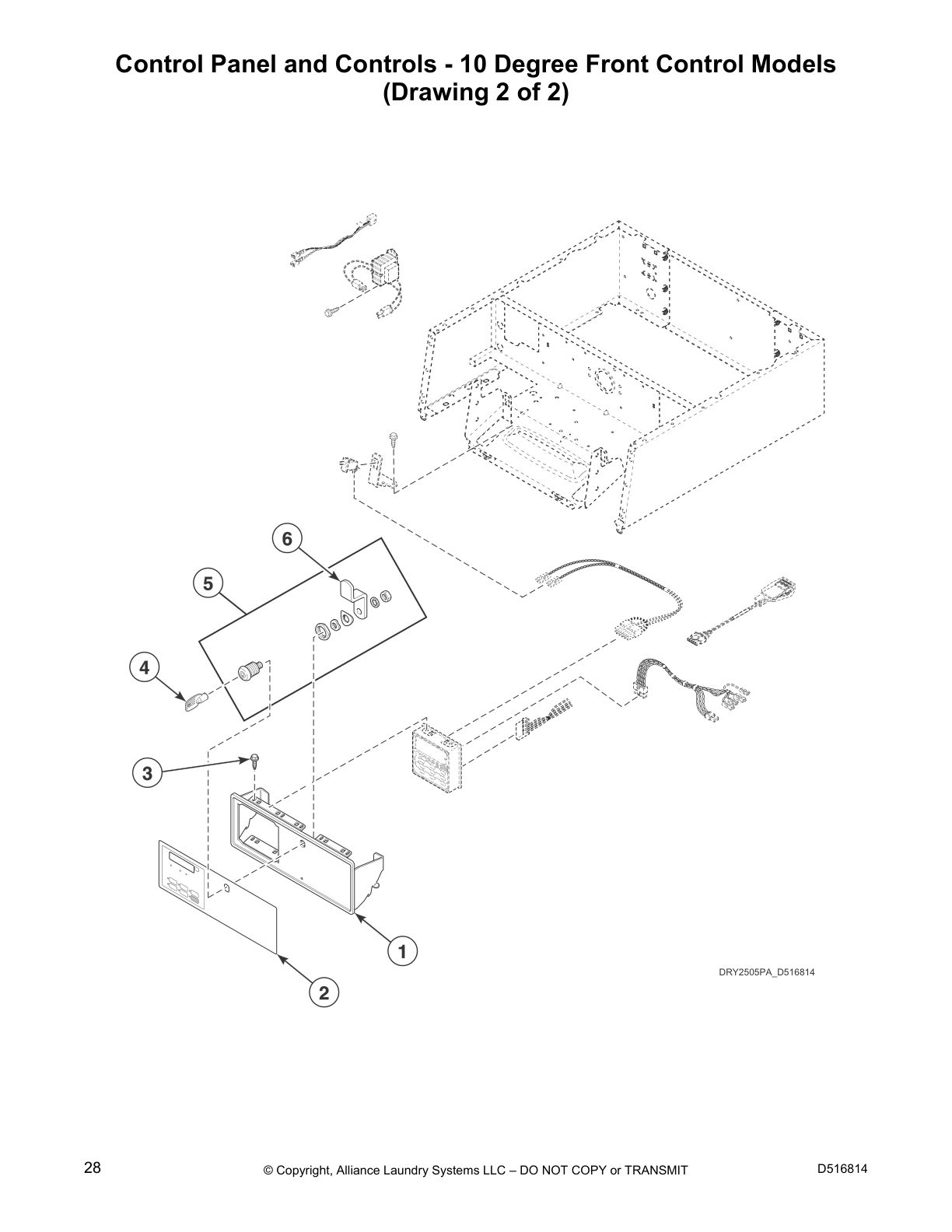

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

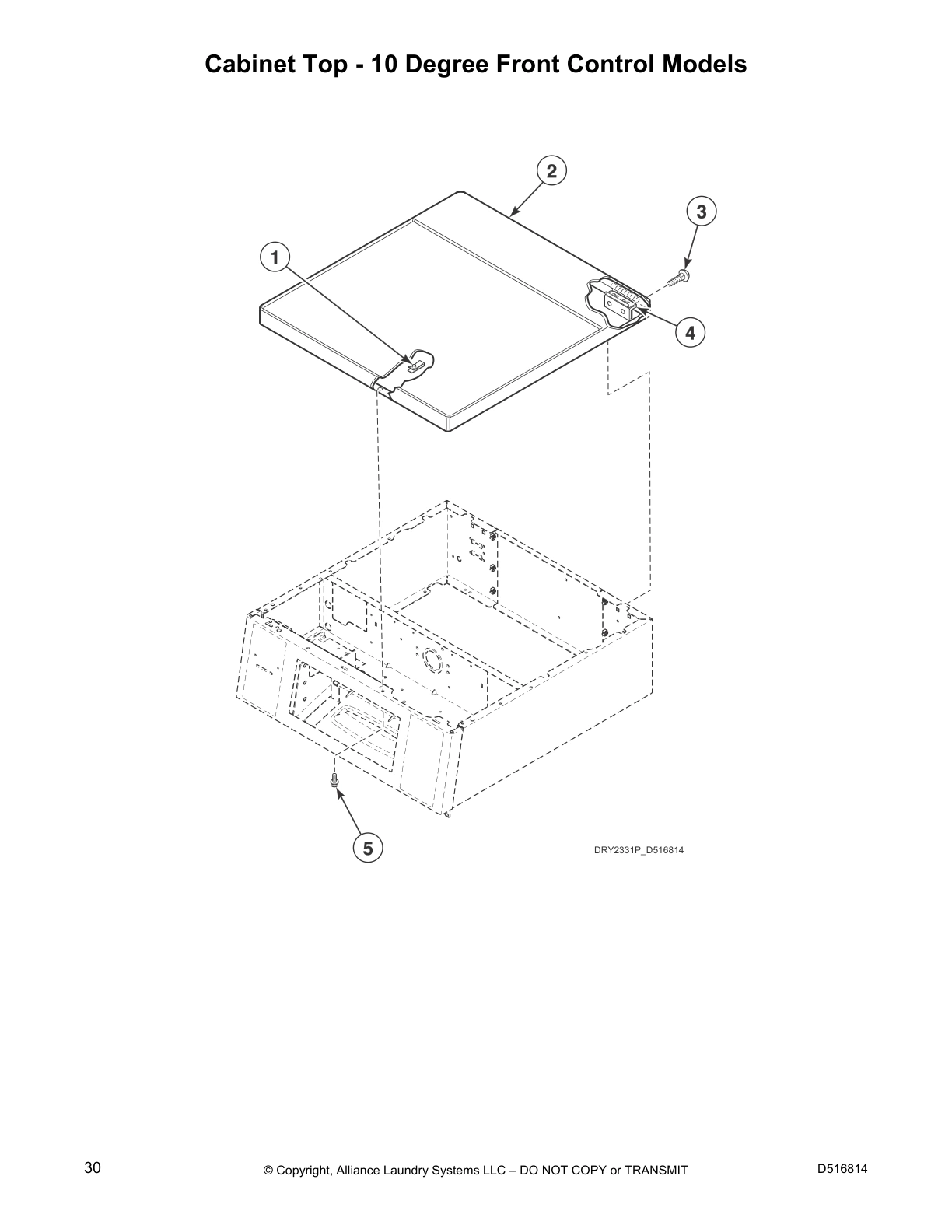

Cabinet Top - 10 Degree Front Control Models

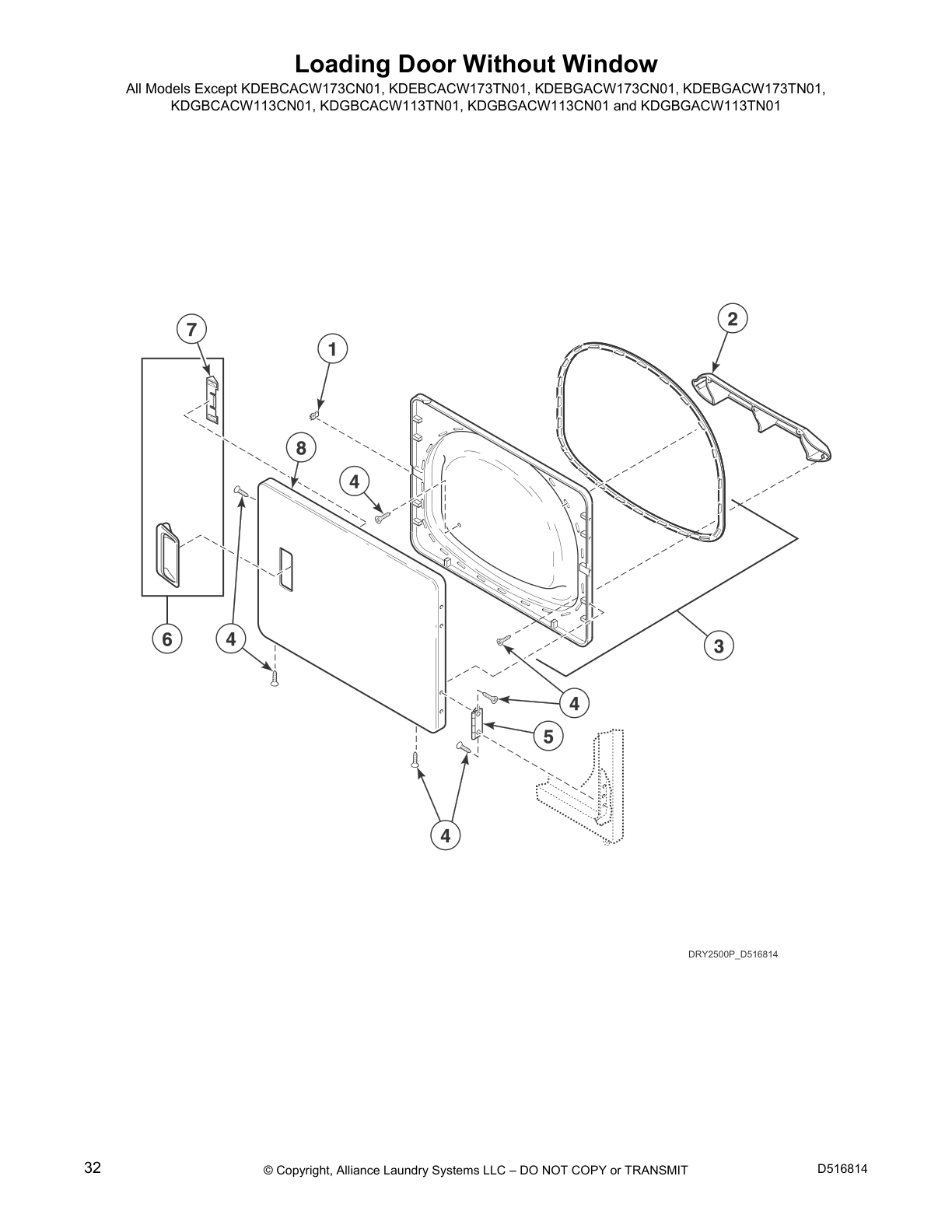

Loading Door Without Window

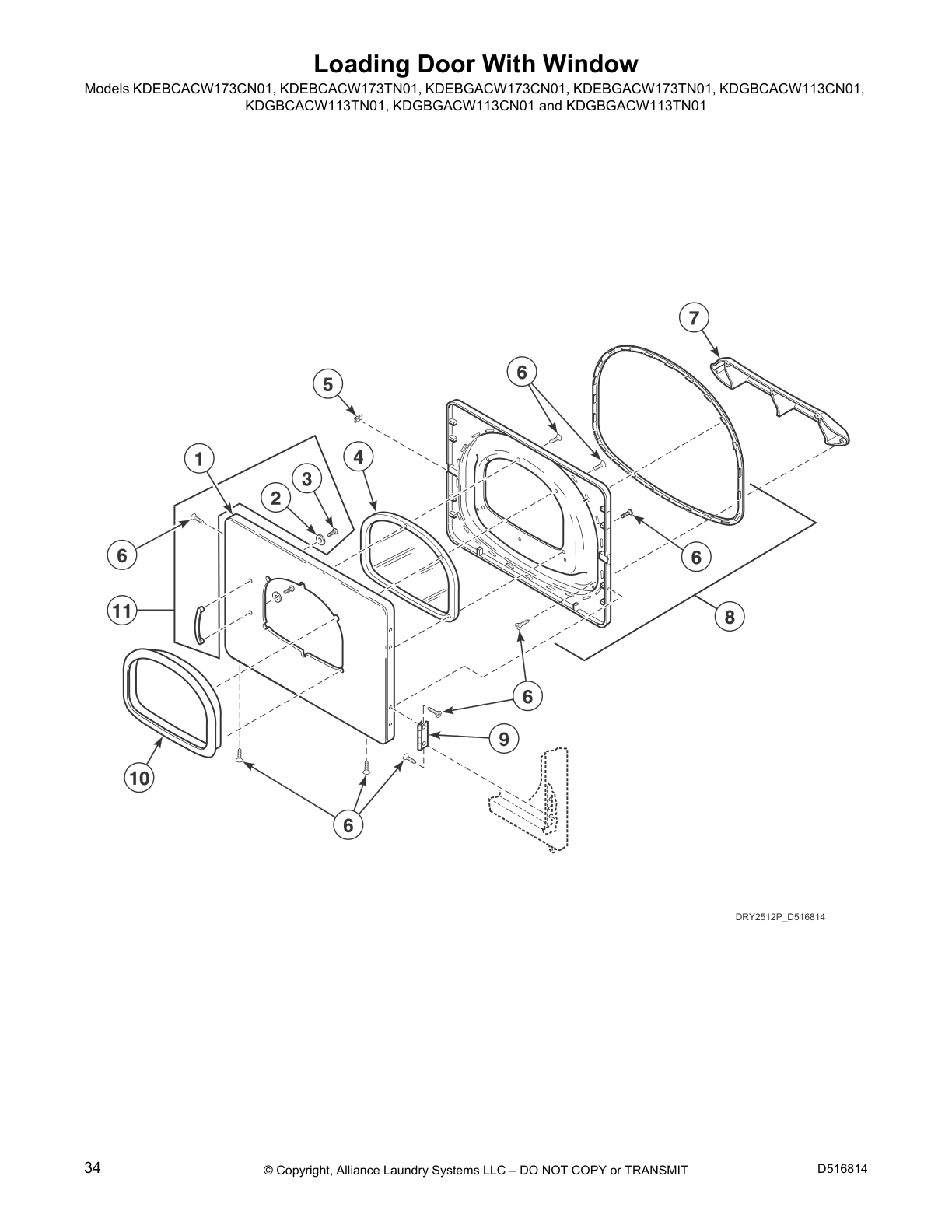

Loading Door With Window

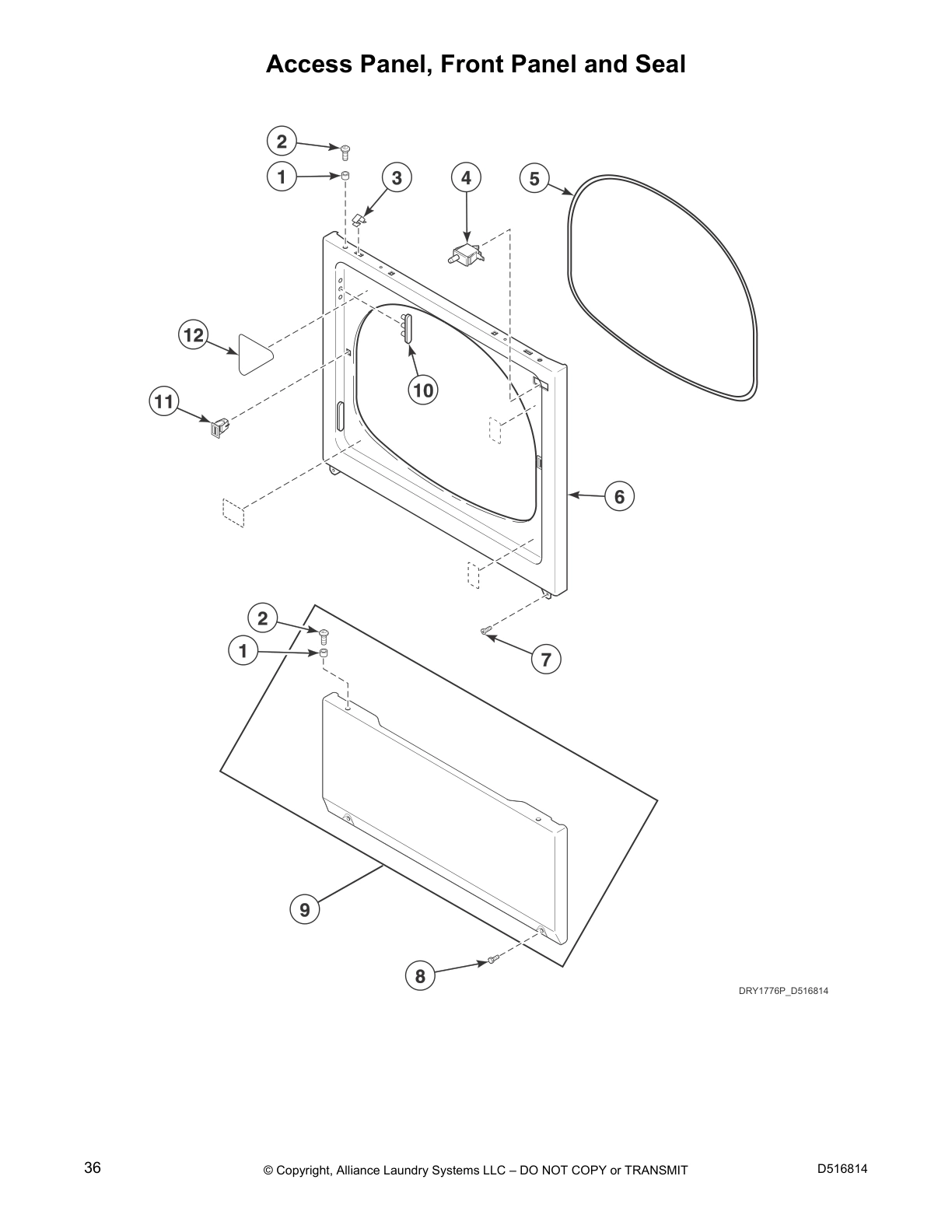

Access Panel, Front Panel and Seal

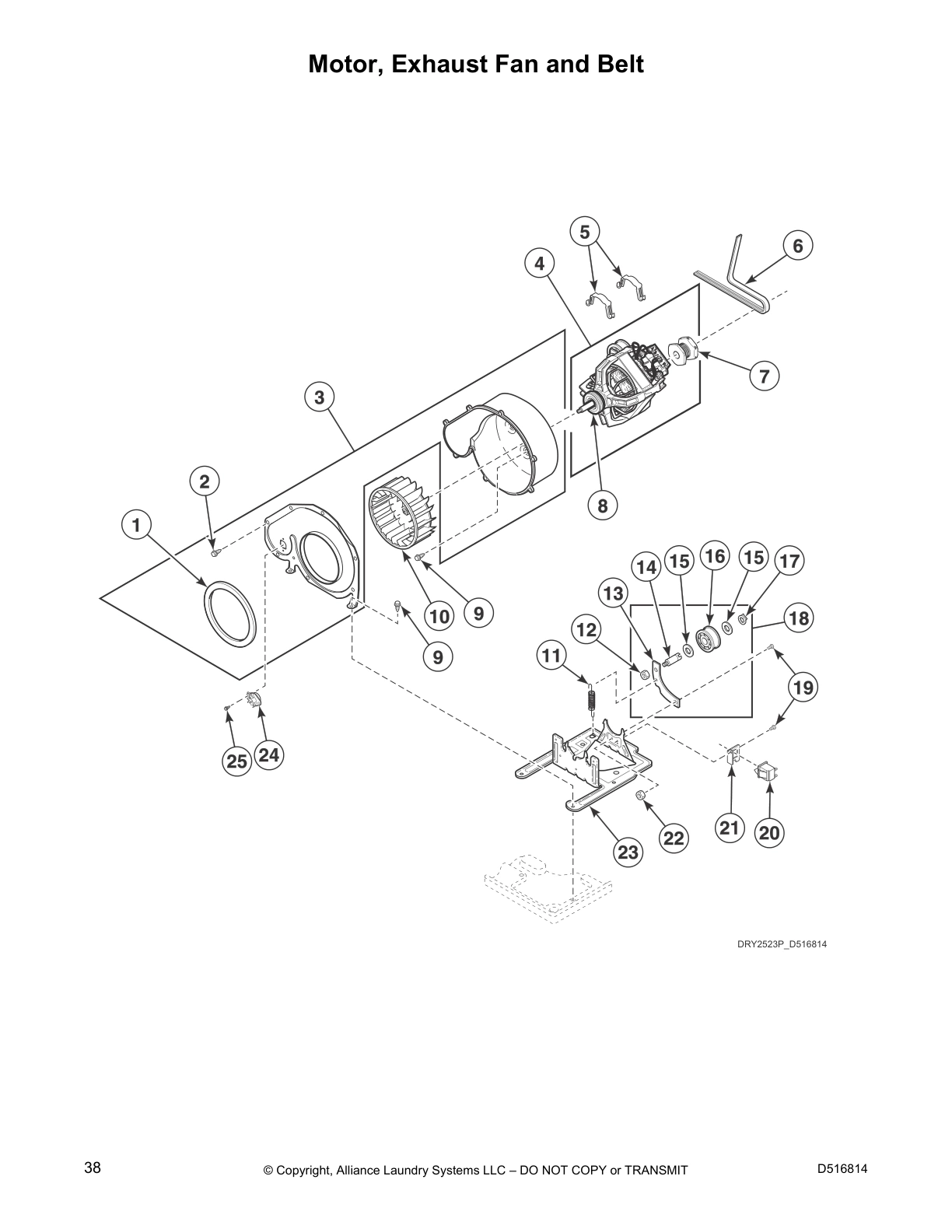

Motor, Exhaust Fan and Belt

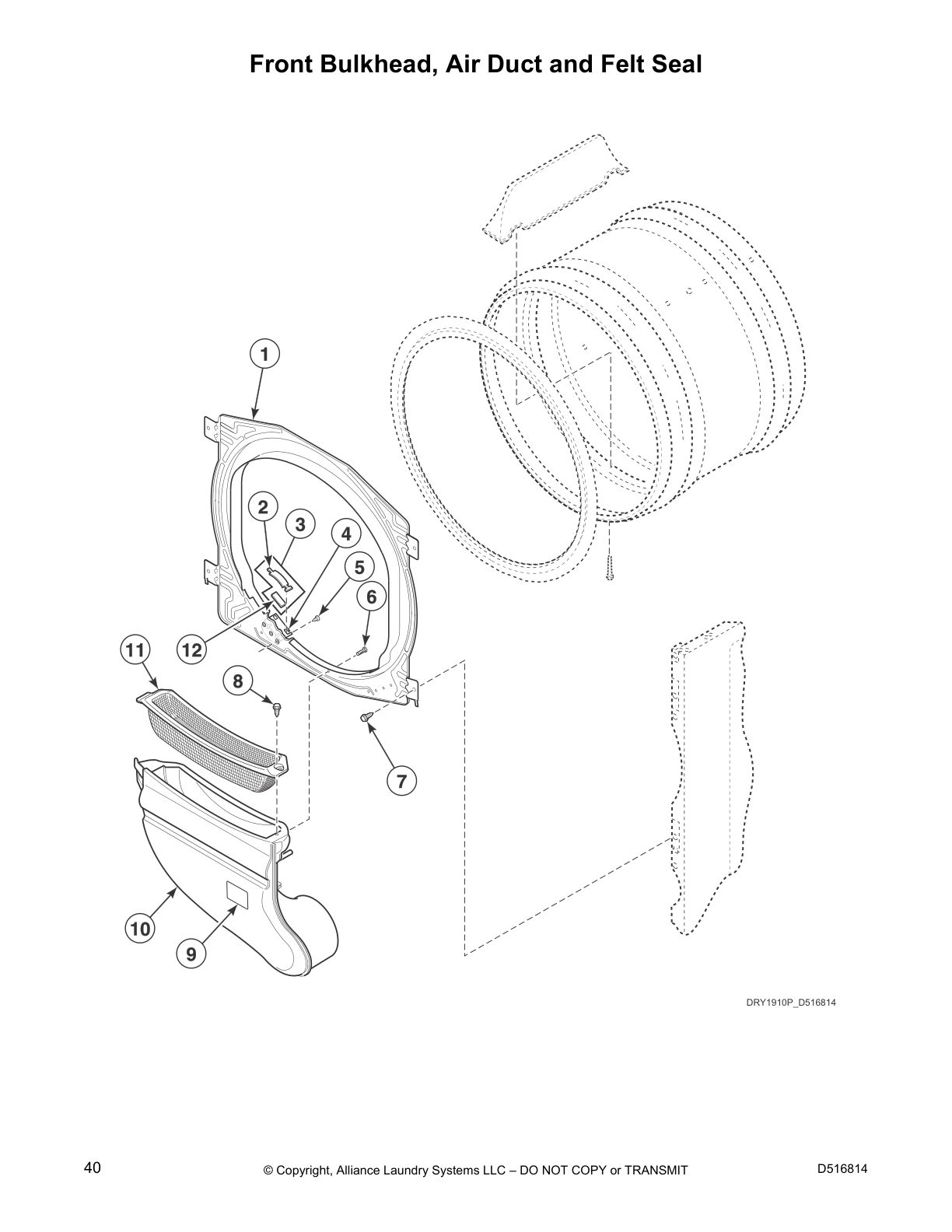

Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

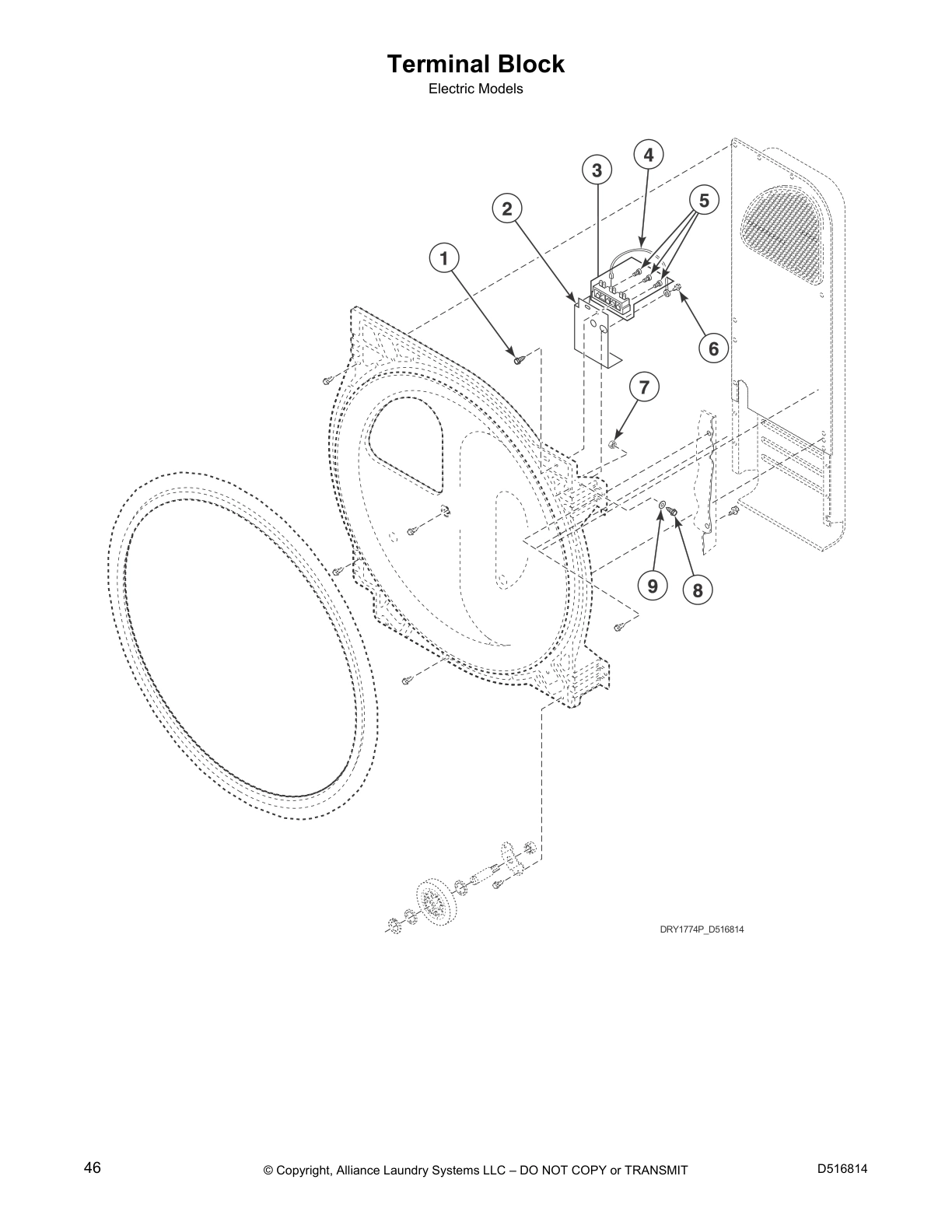

Terminal Block

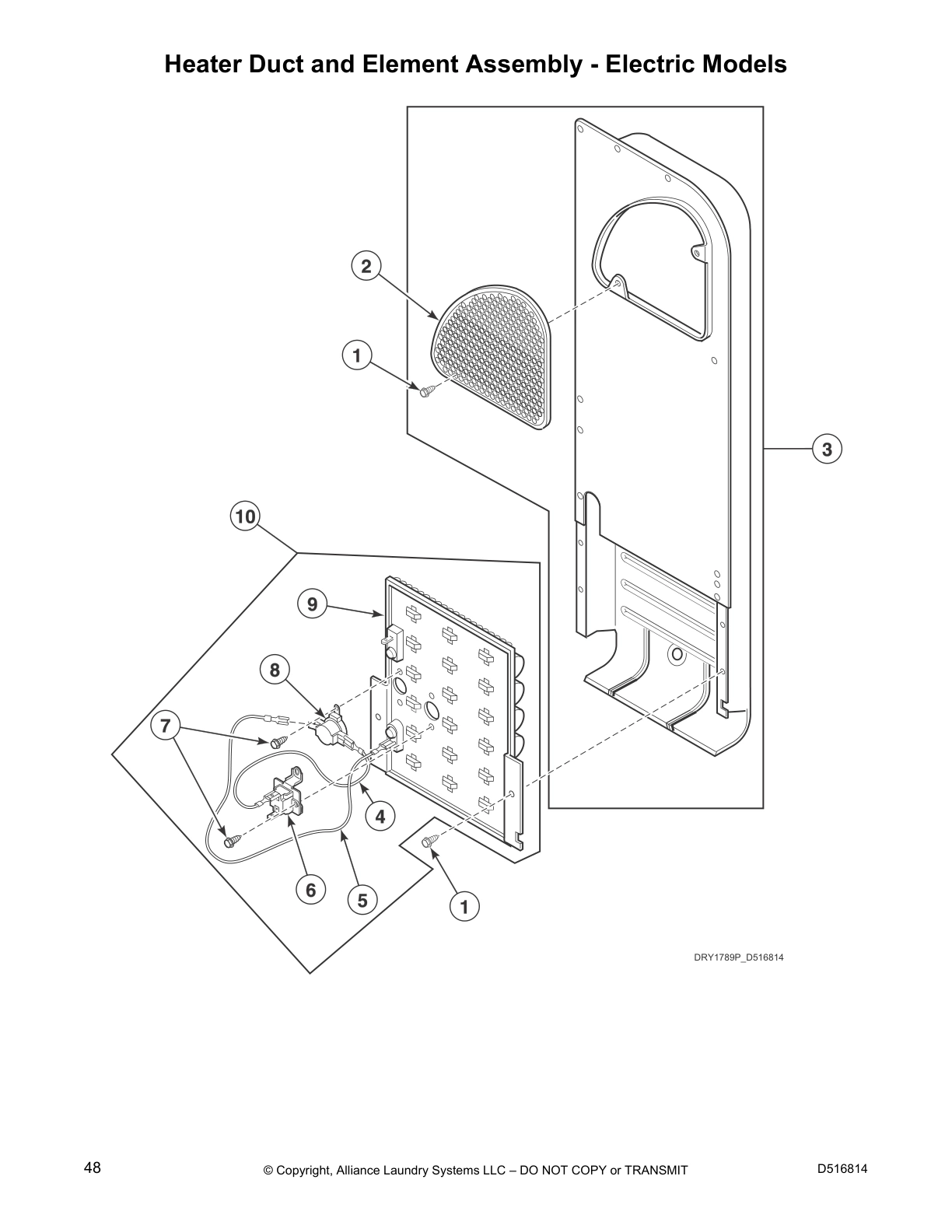

Heater Duct and Element Assembly - Electric Models

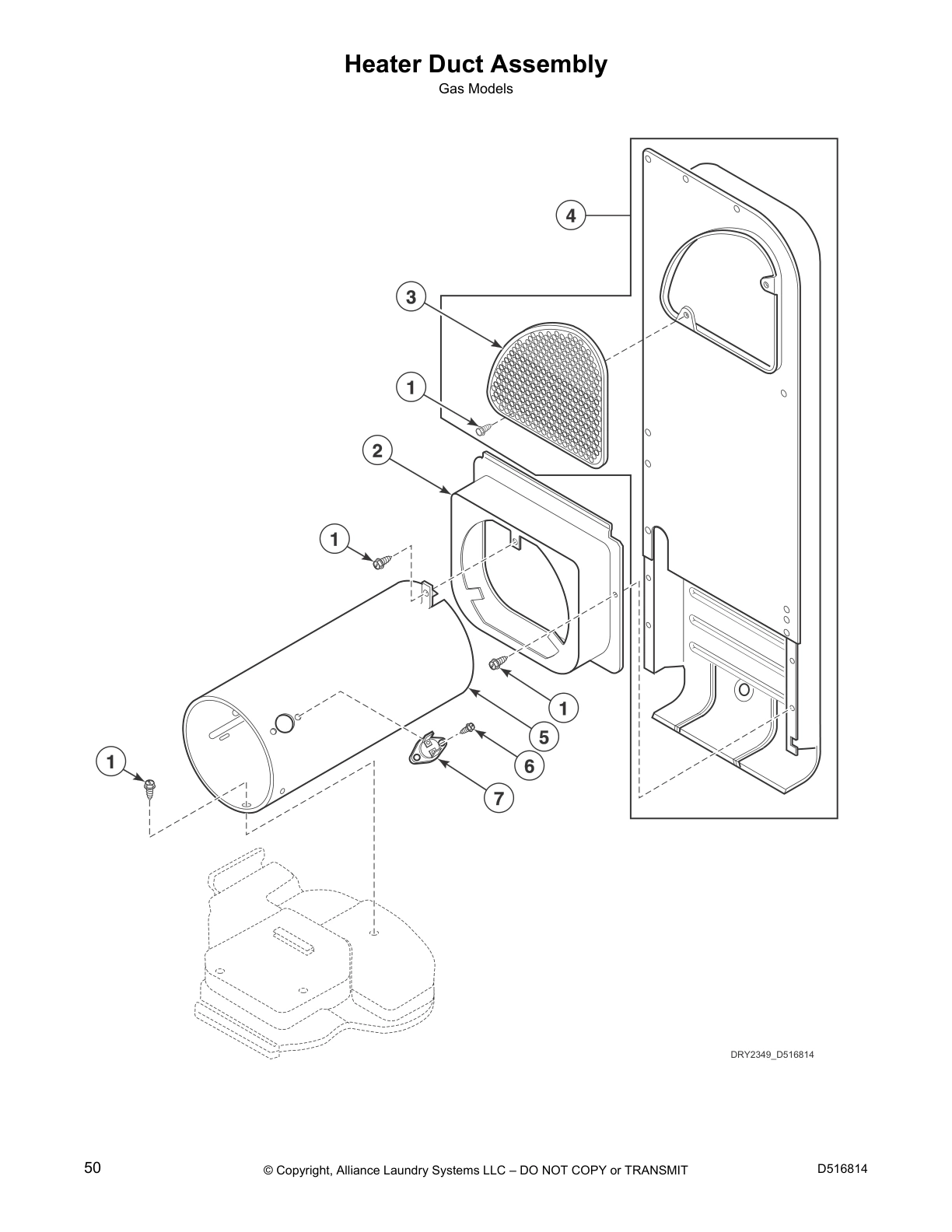

Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001

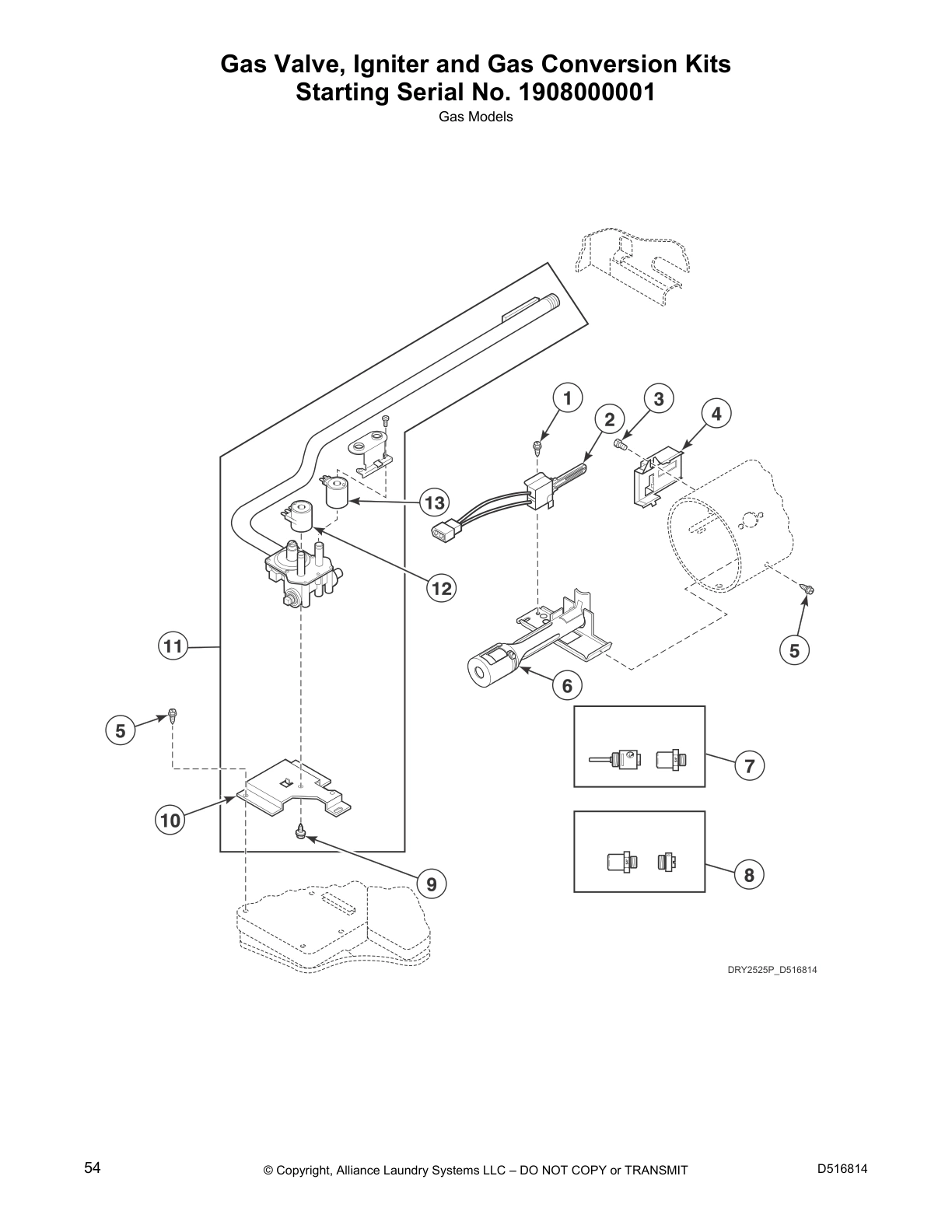

Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001

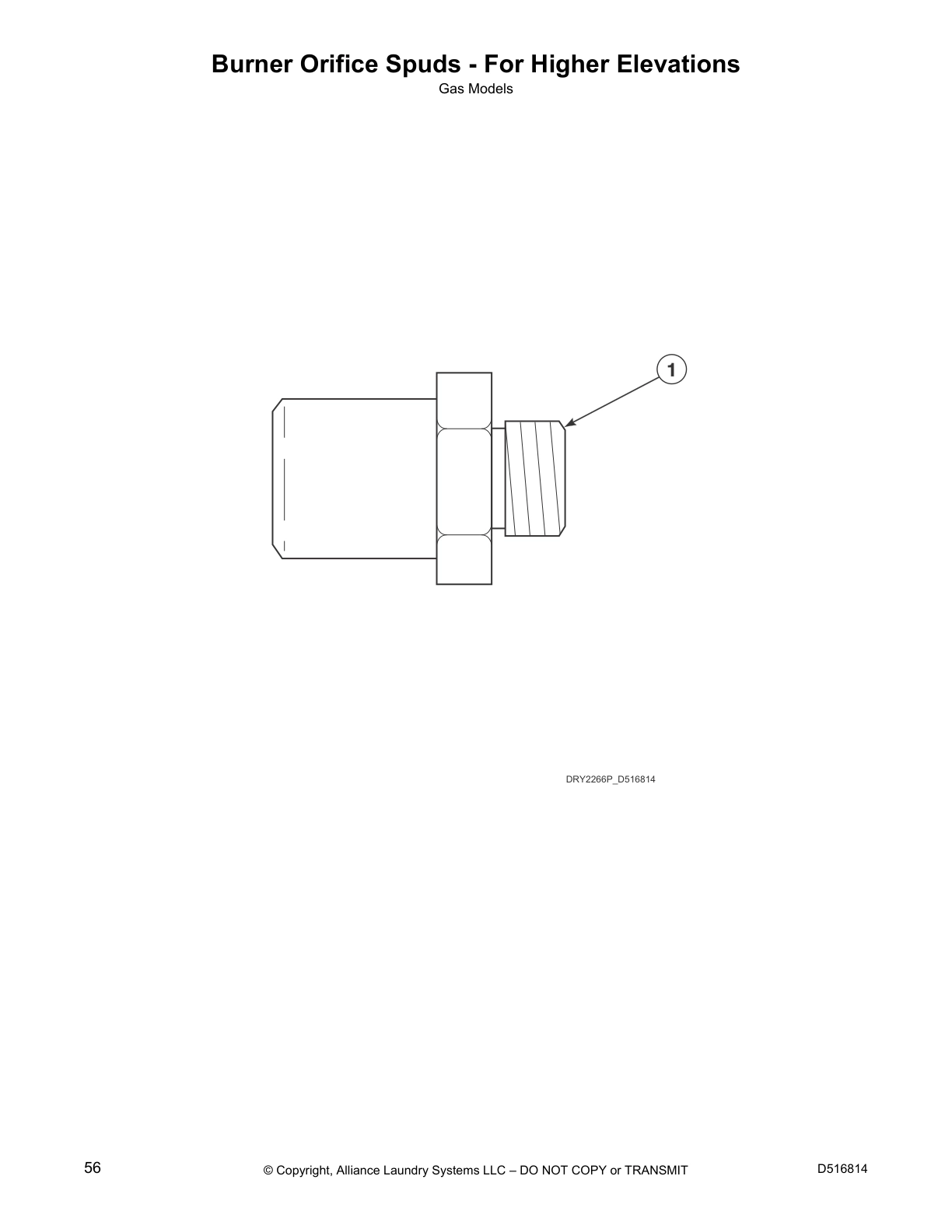

Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

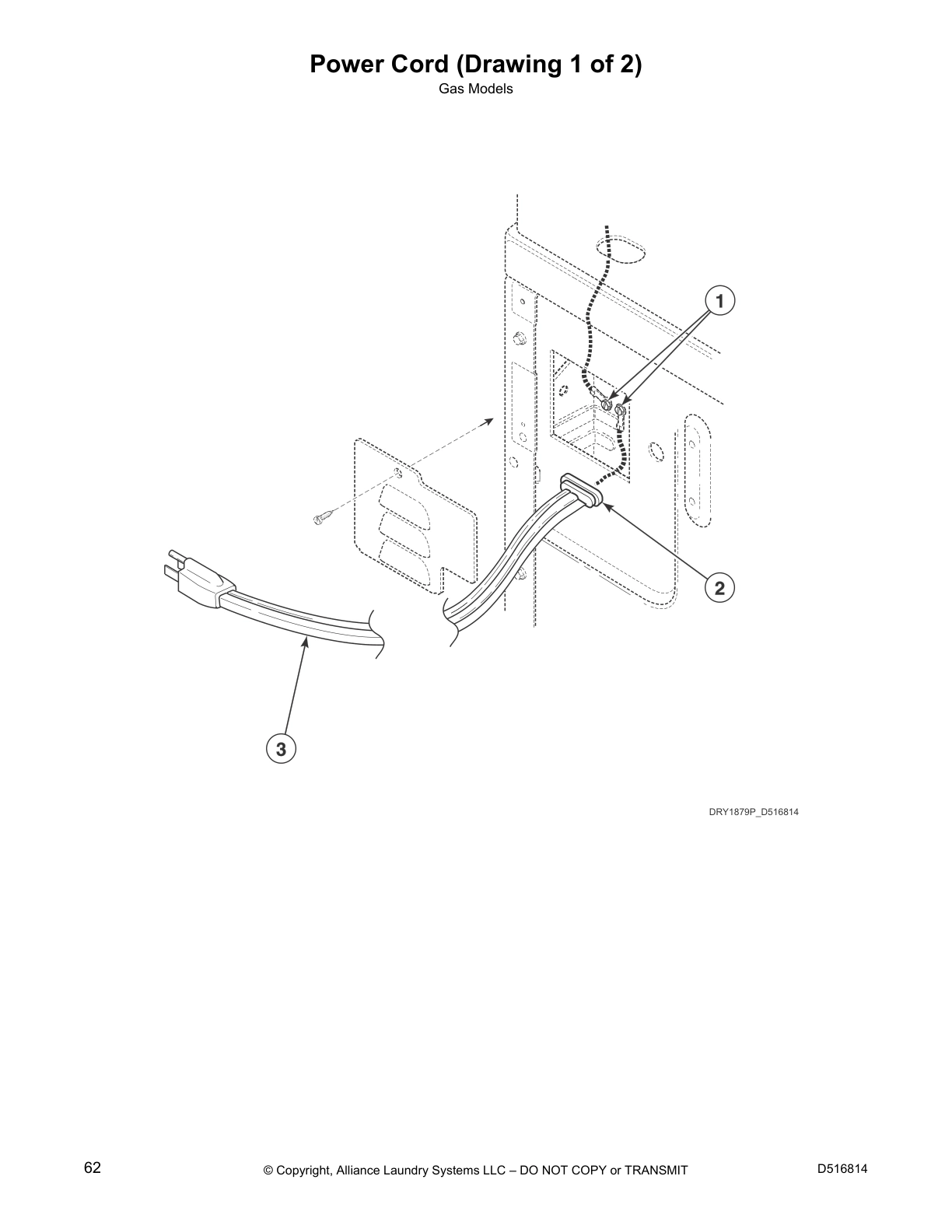

Power Cord (Drawing 1 of 2)

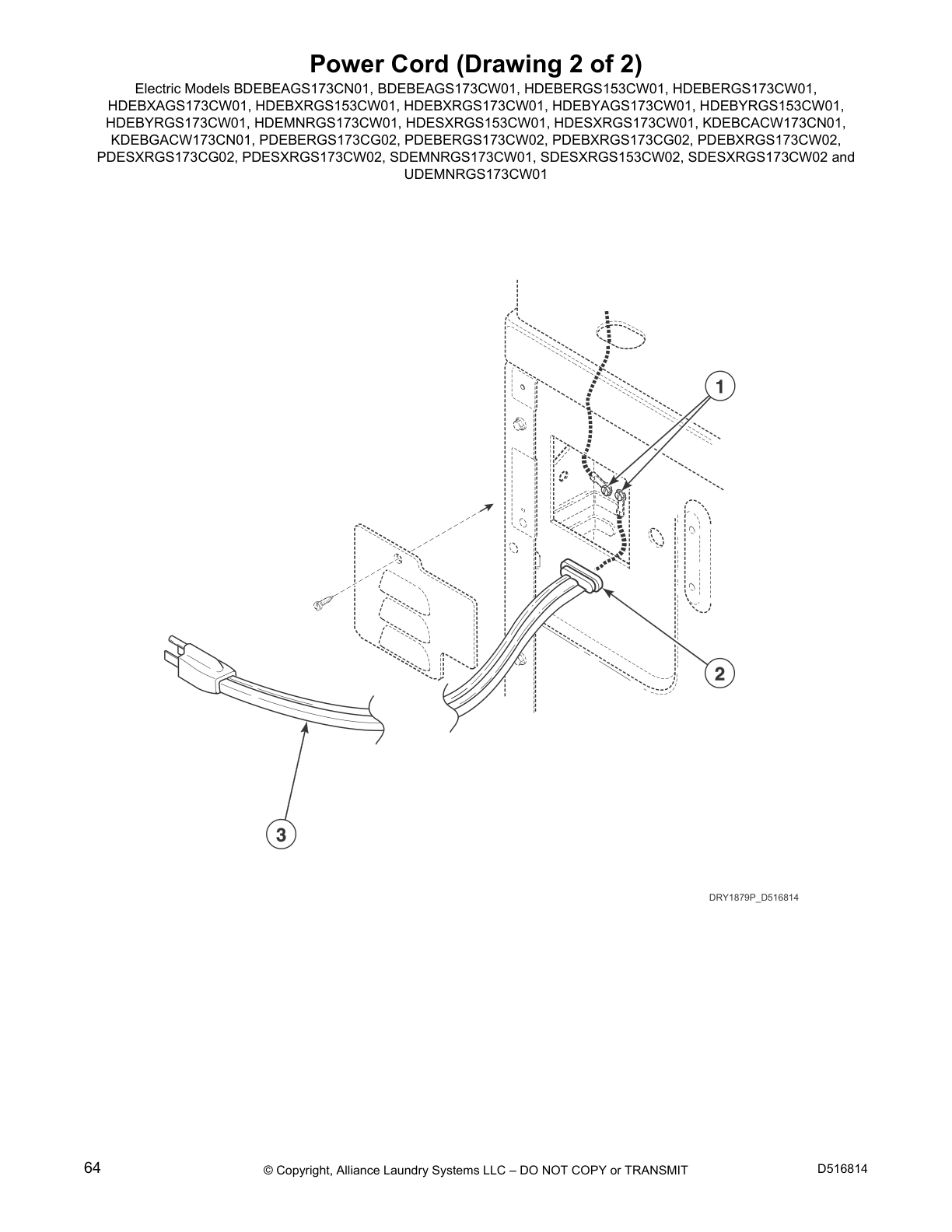

Power Cord (Drawing 2 of 2)
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models

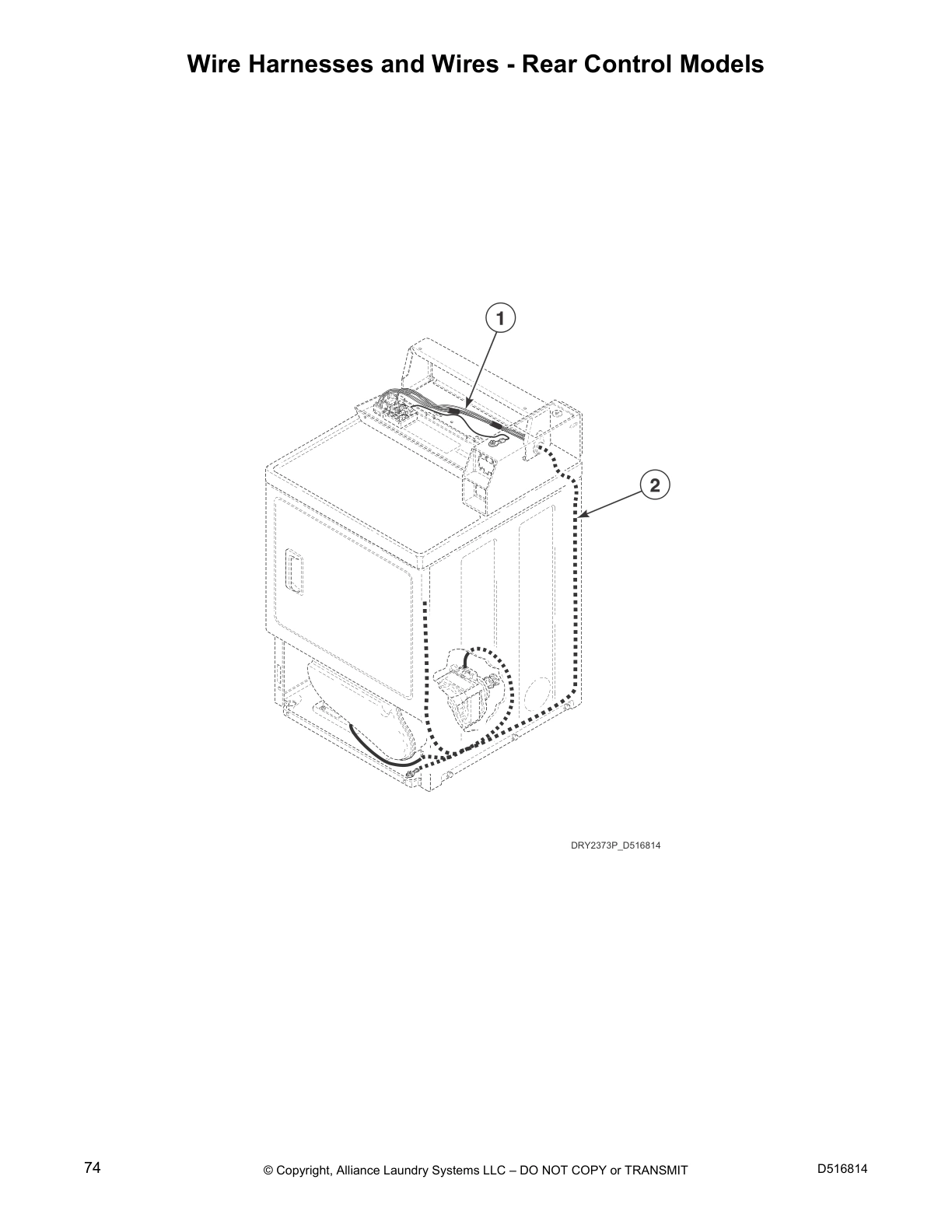

Wire Harnesses and Wires - Rear Control Models
Common parts from model Speed Queen SDGSXRGS113TW02 Dryer
SPQ D514251 SPQ D514251 Contact Us For Availability
SPQ 201581 SPQ 201581 Contact Us For Availability
SPQ 52947 SPQ 52947 Contact Us For Availability
1
Seal Kit SPQ RB170001 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Switch Knob SPQ 39897 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
L.P. Orifice SPQ 58755 Contact Us For Availability
1
Lead-In Pipe Assembly SPQ D510204 Contact Us For Availability
1
Wire Clip SPQ 687500 Contact Us For Availability
1
Screw SPQ D503673 Contact Us For Availability
2
Igniter and Bracket Assembly SPQ D510184P Contact Us For Availability
2
Cylinder Glide SPQ D513710 Contact Us For Availability
2
Adhesive SPQ D511637P Contact Us For Availability
2
Heat Duct Shroud SPQ D510101 Contact Us For Availability
2
Bracket SPQ D510146 Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
3
Roller Kit SPQ RB170002 Contact Us For Availability
3
Glide Kit SPQ RB170003 Contact Us For Availability
3
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
3
Outlet Cover SPQ D518524 Contact Us For Availability
3
Cylinder Belt SPQ D511969WP Contact Us For Availability
3
Chassis Mounting Bracket SPQ 804794 Contact Us For Availability
3
Door Liner Assembly SPQ D503870W Contact Us For Availability
3
Speed Clip SPQ 28835 Contact Us For Availability
3
Meter Case Lockdown Bracket SPQ 26354 Contact Us For Availability
4
Motor Pulley SPQ D511629P Contact Us For Availability
4
Heater Duct Assembly SPQ D500820 Contact Us For Availability
4
Control Assembly SPQ 200913 Contact Us For Availability
4
Burner Assembly SPQ D510213 Contact Us For Availability
4
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
4
Screw SPQ D516508 Contact Us For Availability
4
Damper SPQ D510001WP Contact Us For Availability
4
Cylinder Baffle SPQ D510102W Contact Us For Availability
4
Temperature Selector Switch SPQ 24205 Contact Us For Availability
5
Door Strike SPQ D510181 Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Front Panel Seal SPQ D511056 Contact Us For Availability
5
Motor Hub Ring Kit SPQ D510180 Contact Us For Availability
5
SPQ D501738W SPQ D501738W Contact Us For Availability
6
Anti-Seize Compound SPQ D511255P Contact Us For Availability
6
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
6
L.P. Conversion Kit SPQ D510149P Contact Us For Availability
6
Electrical Shock Label SPQ D500226 Contact Us For Availability
6
Screw SPQ D510131 Contact Us For Availability
6
SPQ 00360 SPQ 00360 Contact Us For Availability
7
Cylinder Roller SPQ D510708P Contact Us For Availability
7
Blower and Fan Kit SPQ D500011 Contact Us For Availability
7
Torx Bit SPQ 310P4 Contact Us For Availability
7
Screw SPQ D510066WP Contact Us For Availability
7
N.G. Conversion Kit SPQ 458P3 Contact Us For Availability
7
Door Pull SPQ D511213P Contact Us For Availability
7
SPQ 803662 SPQ 803662 Contact Us For Availability
7
Limit Thermostat SPQ 51782 Contact Us For Availability
8
Door Handle Wedge SPQ D510103WP Contact Us For Availability
8
SPQ D501285 SPQ D501285 Contact Us For Availability
8
SPQ 590P3 SPQ 590P3 Contact Us For Availability
8
Access Panel Assembly SPQ D512542 Contact Us For Availability
8
SPQ 56128 SPQ 56128 Contact Us For Availability
9
Hinge SPQ D511036 Contact Us For Availability
9
SPQ 431159 SPQ 431159 Contact Us For Availability
9
SPQ D514632P SPQ D514632P Contact Us For Availability
10
Blower Fan Assembly SPQ D510139P Contact Us For Availability
10
Air Duct Assembly SPQ D518433 Contact Us For Availability
10
Hinge Hole Plug SPQ D510186 Contact Us For Availability
10
Gas Valve Mounting Bracket SPQ D510128 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
11
Door Catch Assembly SPQ D510177 Contact Us For Availability
11
Lint Filter SPQ D503980W Contact Us For Availability
11
Idler Spring SPQ D510185 Contact Us For Availability
12
Switch SPQ D512973 Contact Us For Availability
12
Felt Pad SPQ D510189 Contact Us For Availability
12
Directional Exhaust Kit SPQ D510002WP Contact Us For Availability
12
Control Assembly SPQ D514218 Contact Us For Availability
14
Shaft SPQ 56461P Contact Us For Availability
15
Washer SPQ 52549 Contact Us For Availability
15
Bolt SPQ 803575WP Contact Us For Availability
15
Elbow SPQ D513072 Contact Us For Availability
16
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
16
Rubber Foot SPQ D514245 Contact Us For Availability
17
Retaining Ring SPQ 23748 Contact Us For Availability
17
Output Board Shield SPQ D510135 Contact Us For Availability
18
Idler Lever and Wheel Assembly SPQ D516792 Contact Us For Availability
18
Screw SPQ D501855 Contact Us For Availability
19
Screw SPQ D500824 Contact Us For Availability
20
Bumper Pad SPQ D513797P Contact Us For Availability
20
Motor Switch Bracket SPQ D516391 Contact Us For Availability
20
Coin Slide Extension Kit SPQ 201280P Contact Us For Availability
21
Coin Funnel Kit SPQ CK014 Contact Us For Availability
22
Top Hinge SPQ 804667 Contact Us For Availability
24
Motor and Pulley Assembly SPQ D510523 Contact Us For Availability
25
Motor Mount Clamp SPQ D502535 Contact Us For Availability
NI
SPQ D510702 SPQ D510702 Contact Us For Availability
NI
Cylinder Assembly SPQ D510265WP Contact Us For Availability
NI
SPQ D514250WP SPQ D514250WP Contact Us For Availability
NI
Shaft SPQ D504082 Contact Us For Availability
NI
SPQ D511711 SPQ D511711 Contact Us For Availability
NI
SPQ D510903 SPQ D510903 Contact Us For Availability
NI
SPQ D510717P SPQ D510717P Contact Us For Availability
NI
SPQ D503778 SPQ D503778 Contact Us For Availability
NI
SPQ 33562 SPQ 33562 Contact Us For Availability
NI
SPQ D510136 SPQ D510136 Contact Us For Availability
NI
SPQ D503786 SPQ D503786 Contact Us For Availability
NI
Screw SPQ 62588 Contact Us For Availability
NI
SPQ D501086 SPQ D501086 Contact Us For Availability
NI
SPQ 55881 SPQ 55881 Contact Us For Availability
NI
Screw Orifice SPQ 58719 Contact Us For Availability
NI
SPQ D510129W SPQ D510129W Contact Us For Availability
NI
SPQ 45001 SPQ 45001 Contact Us For Availability
× ![]()
