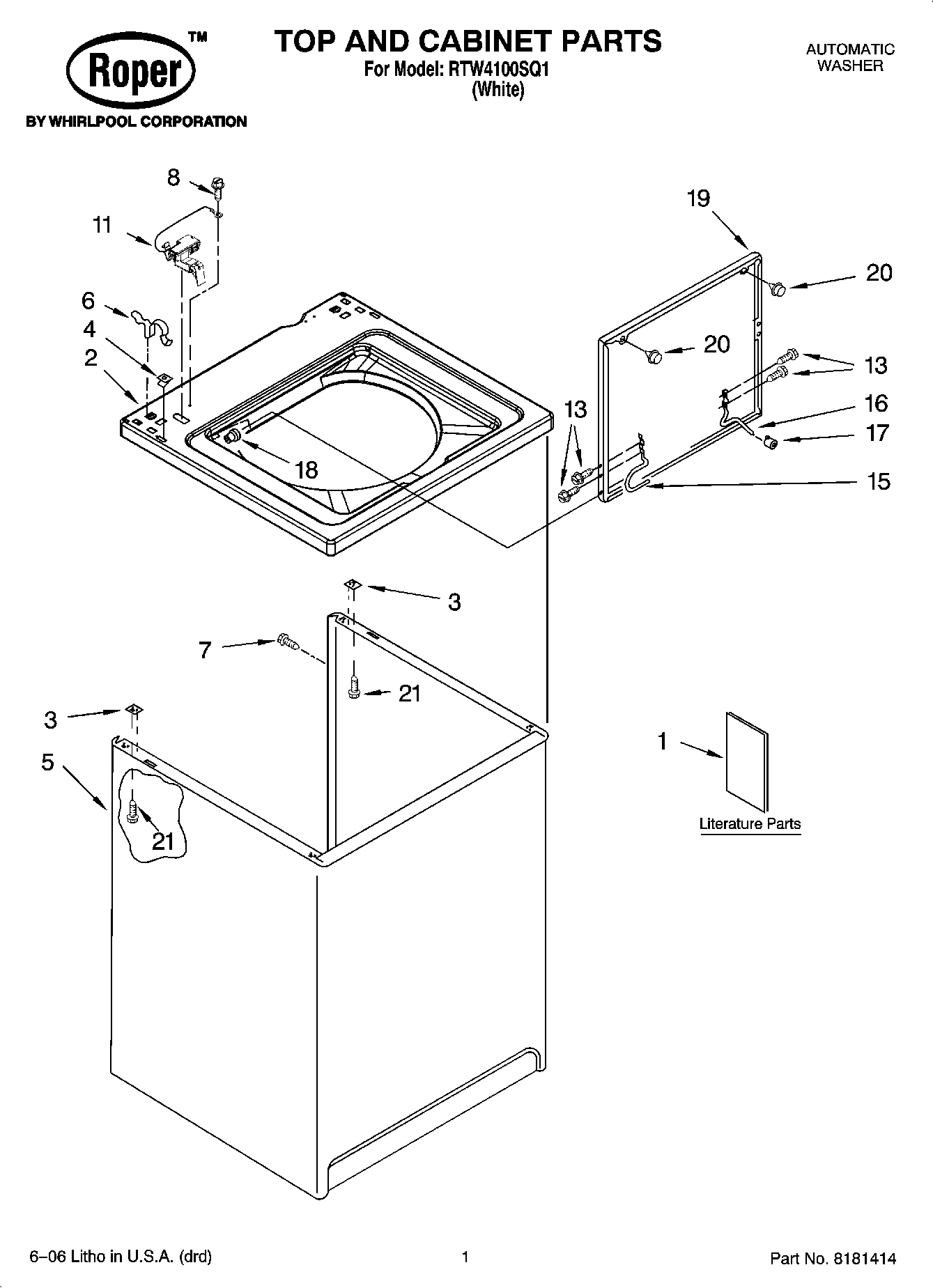

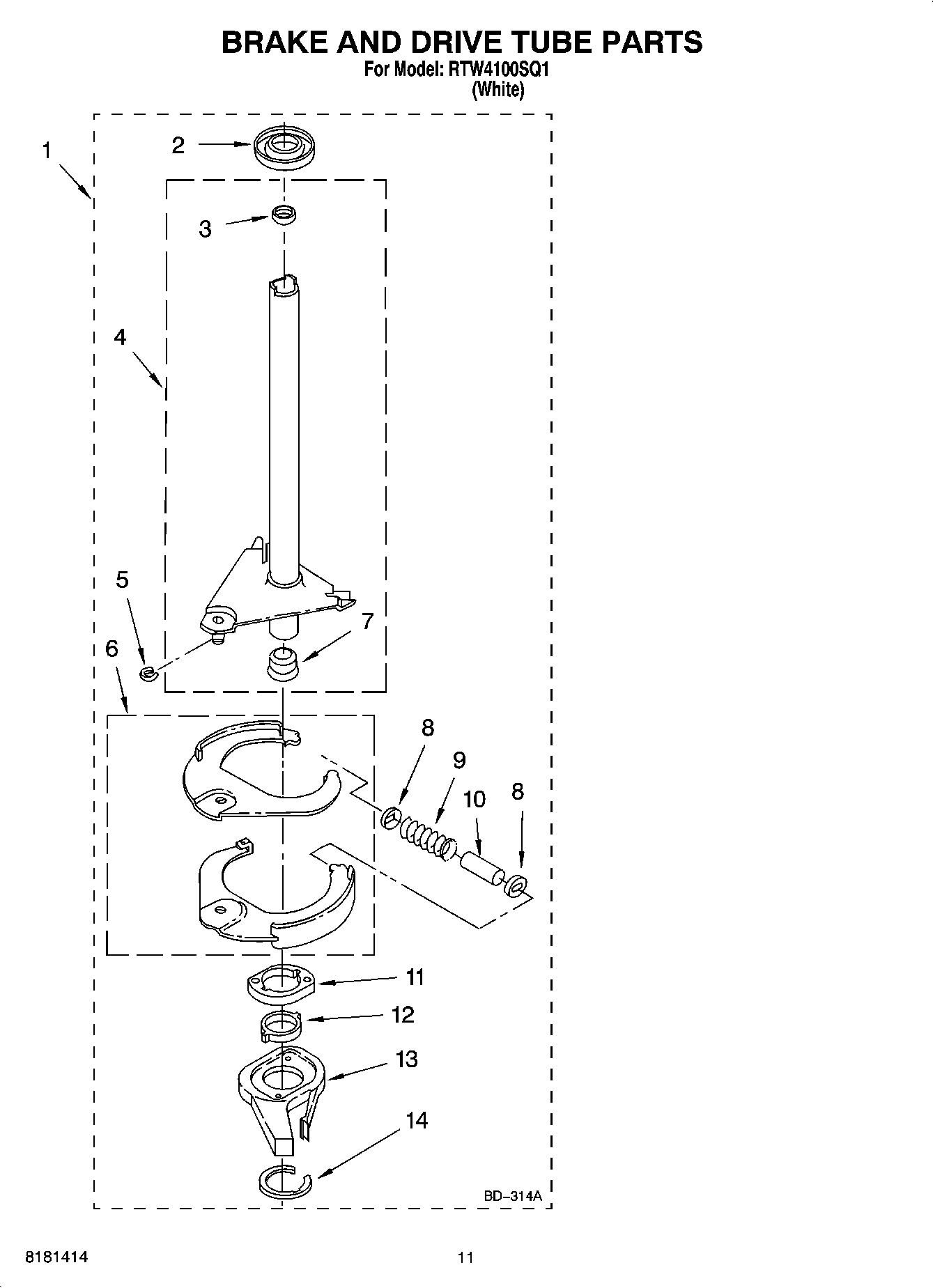

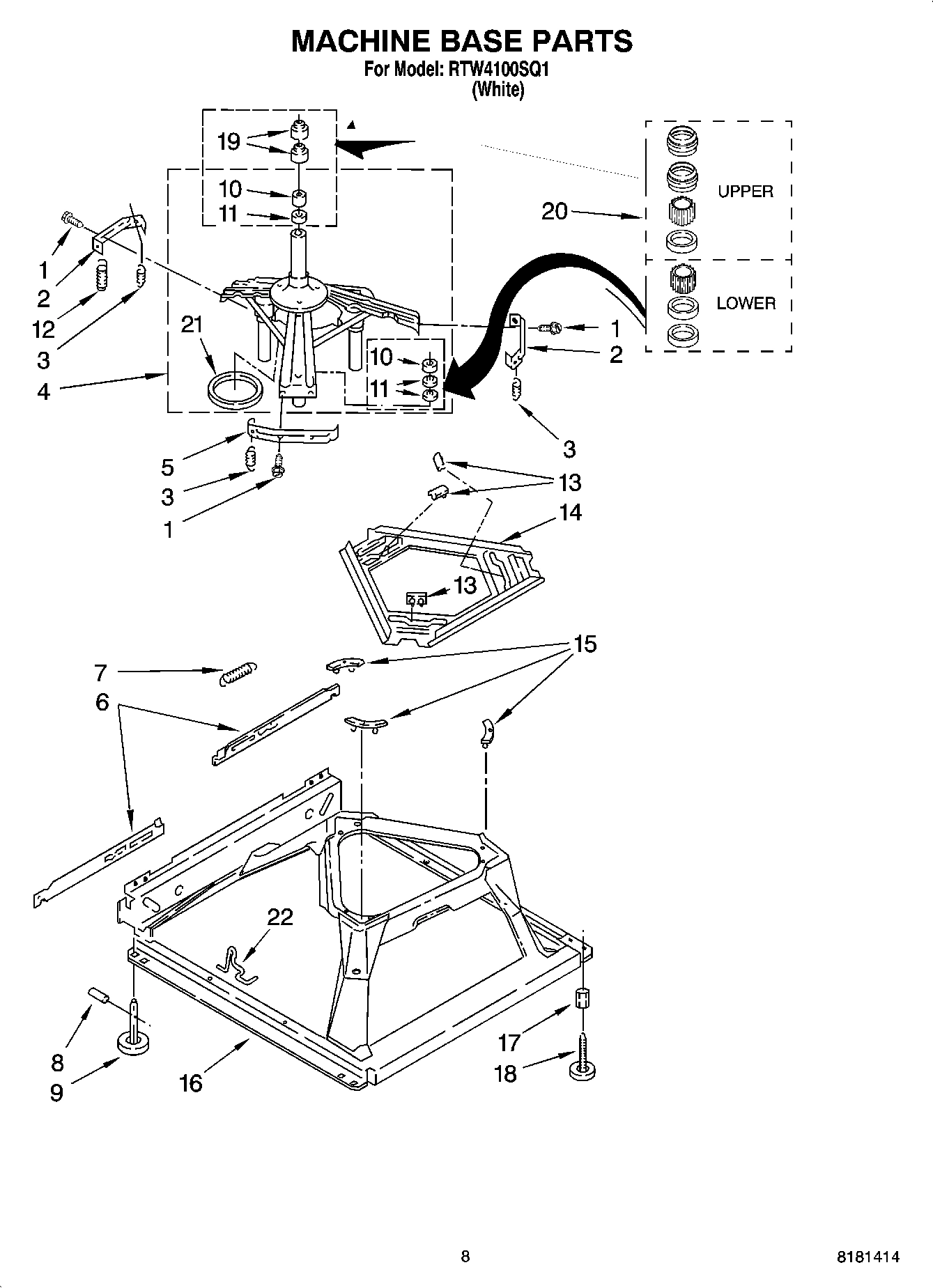

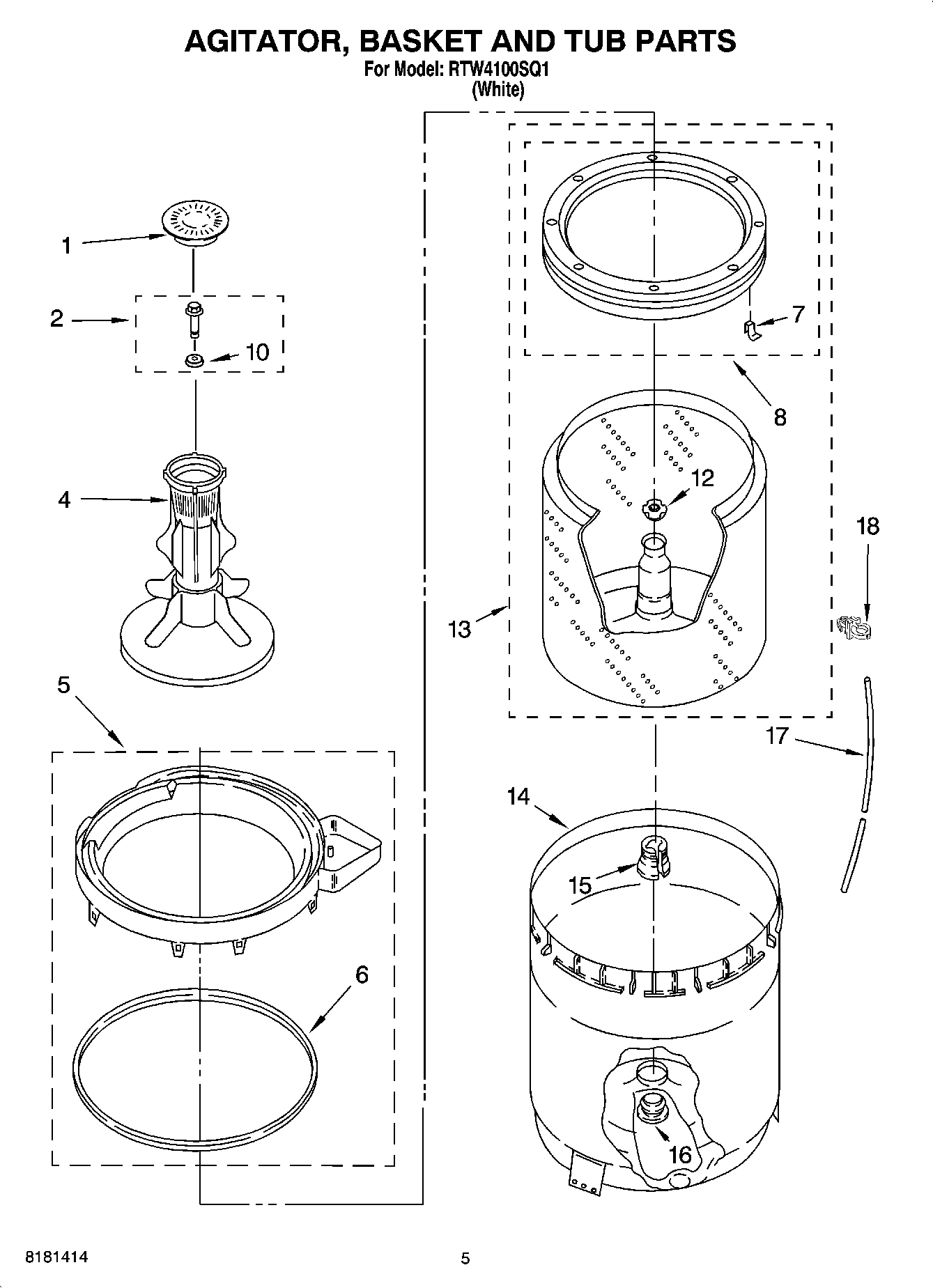

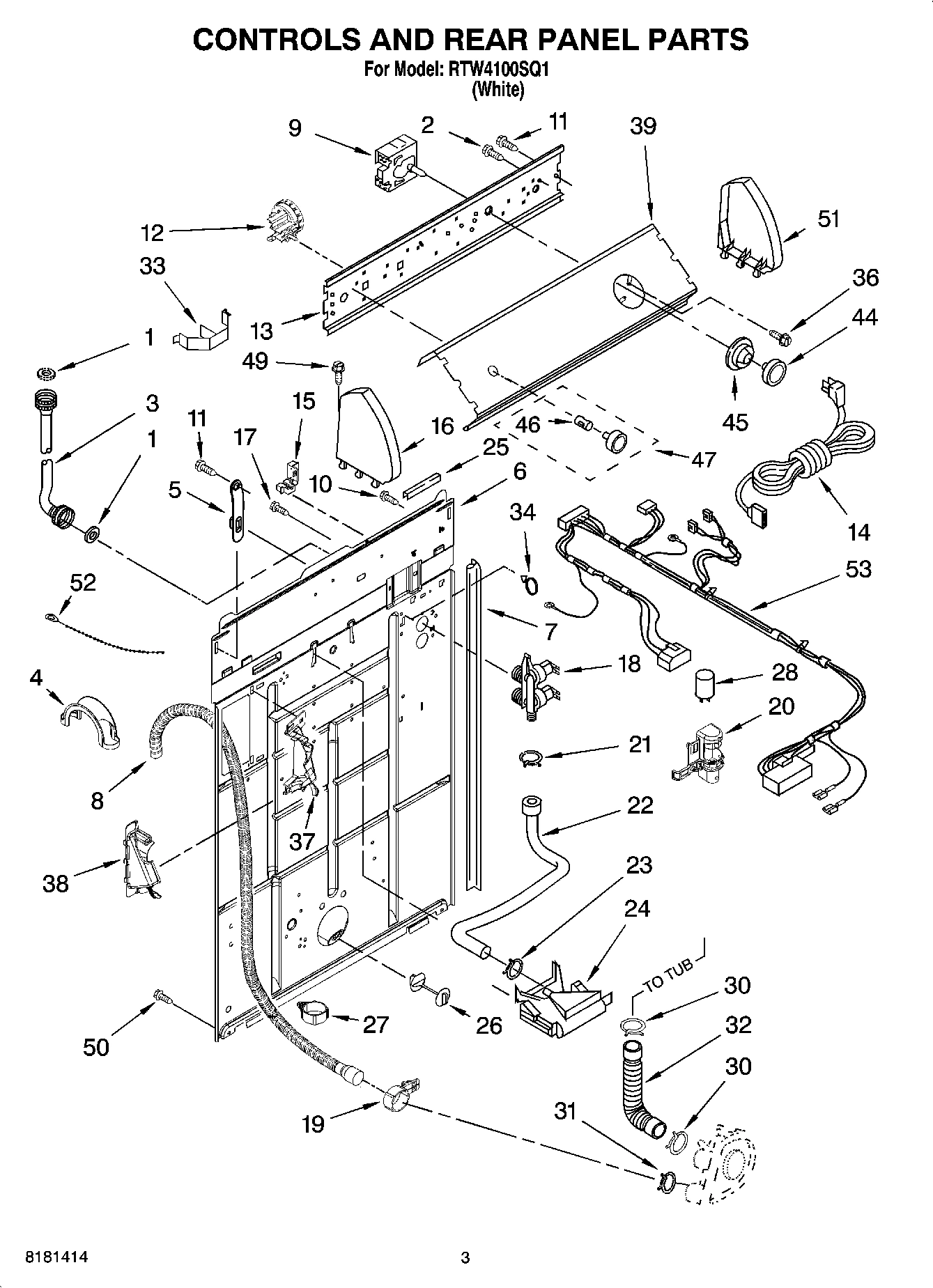

Model Whirlpool RTW4100SQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $34.35

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

4

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $71.30

4

Support & Brake, Tub WPL 8575214 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8546681 Whirlpool Timer In Stock WPL WP8546681 $173.73

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $27.29

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect WPL 3347243 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

Protector WPL 63523 Contact Us For Availability

Basket & Balance Ring WPL 3956206 Contact Us For Availability

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

14

Tub WPL 63125 Contact Us For Availability

14

Connector, 2-Way WPL 717252 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

Clip, Harness WPL 3352944 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Block, Disconnect (12-Way) WPL 3390423 Contact Us For Availability

Base Assembly (Includes Items 6, 7, 8, 9, 13, WPL 3946512 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle, 6 Way WPL 3347730 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $28.80

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

19

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

19

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

BLOCK, CONNECTOR (RED WPL 3354926 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

38

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $37.24

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $33.29

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $29.92

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $32.90

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

53

Harness, Wiring (For Detail See Pages 9 & 10) WPL W10071410 Contact Us For Availability
