Model Whirlpool RS22AWXEN01 – Common Parts & Diagrams

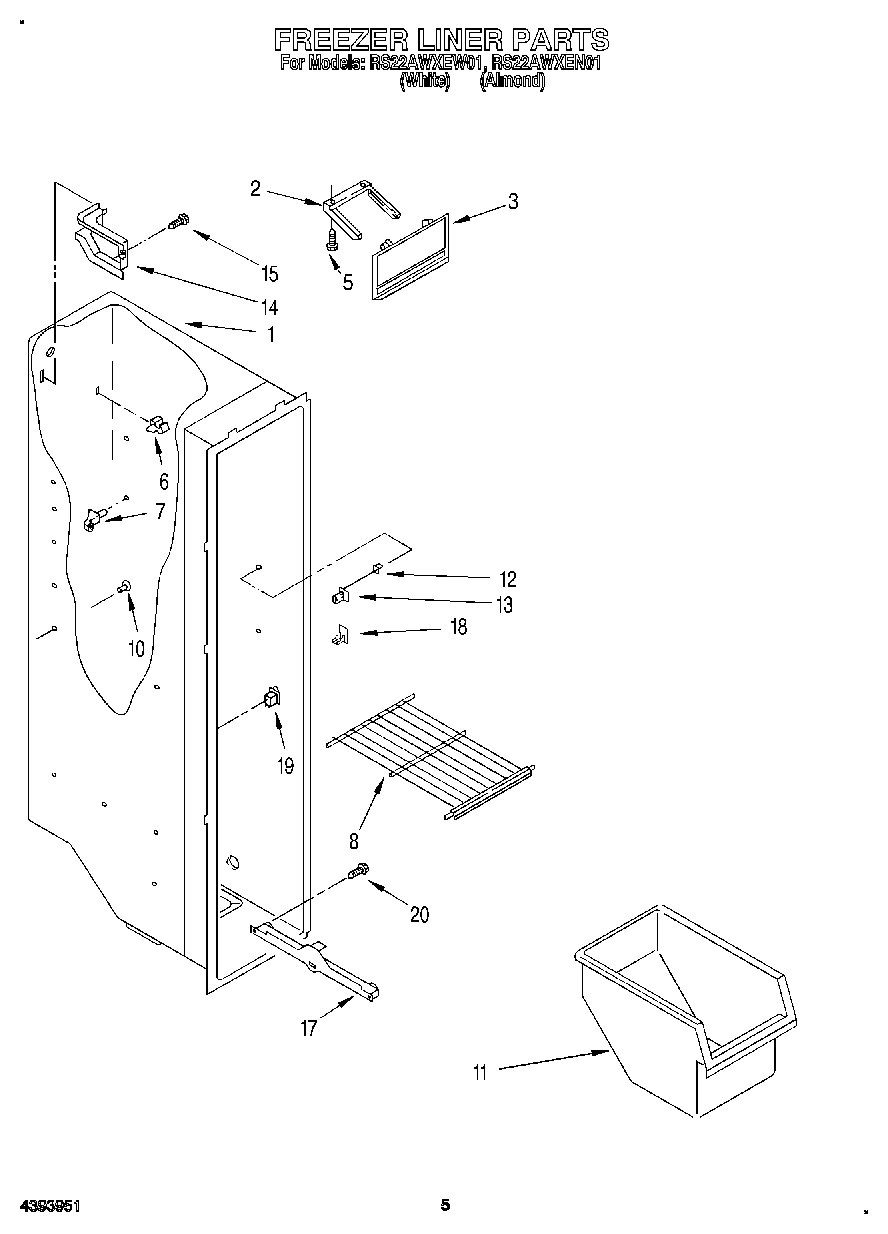

04 - FREEZER LINER

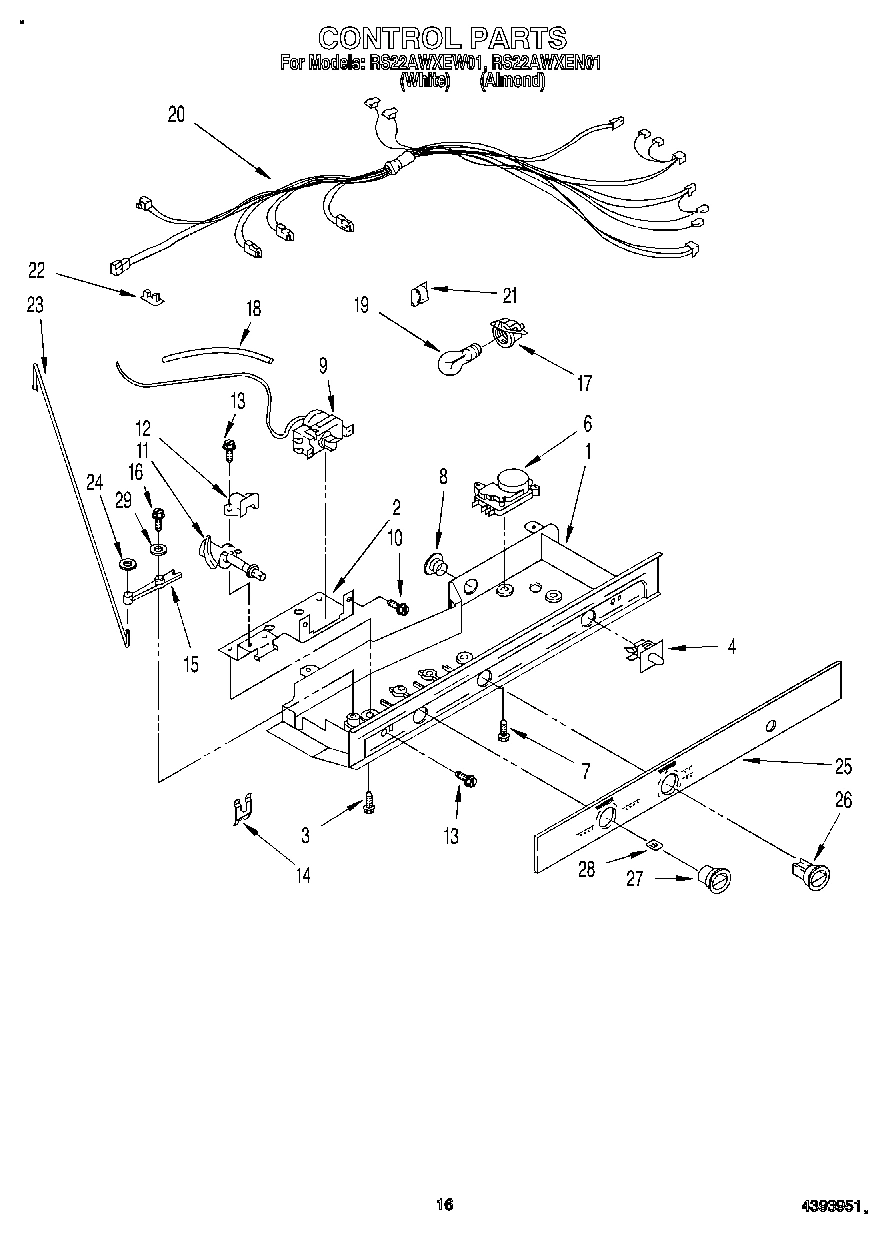

11 - CONTROL

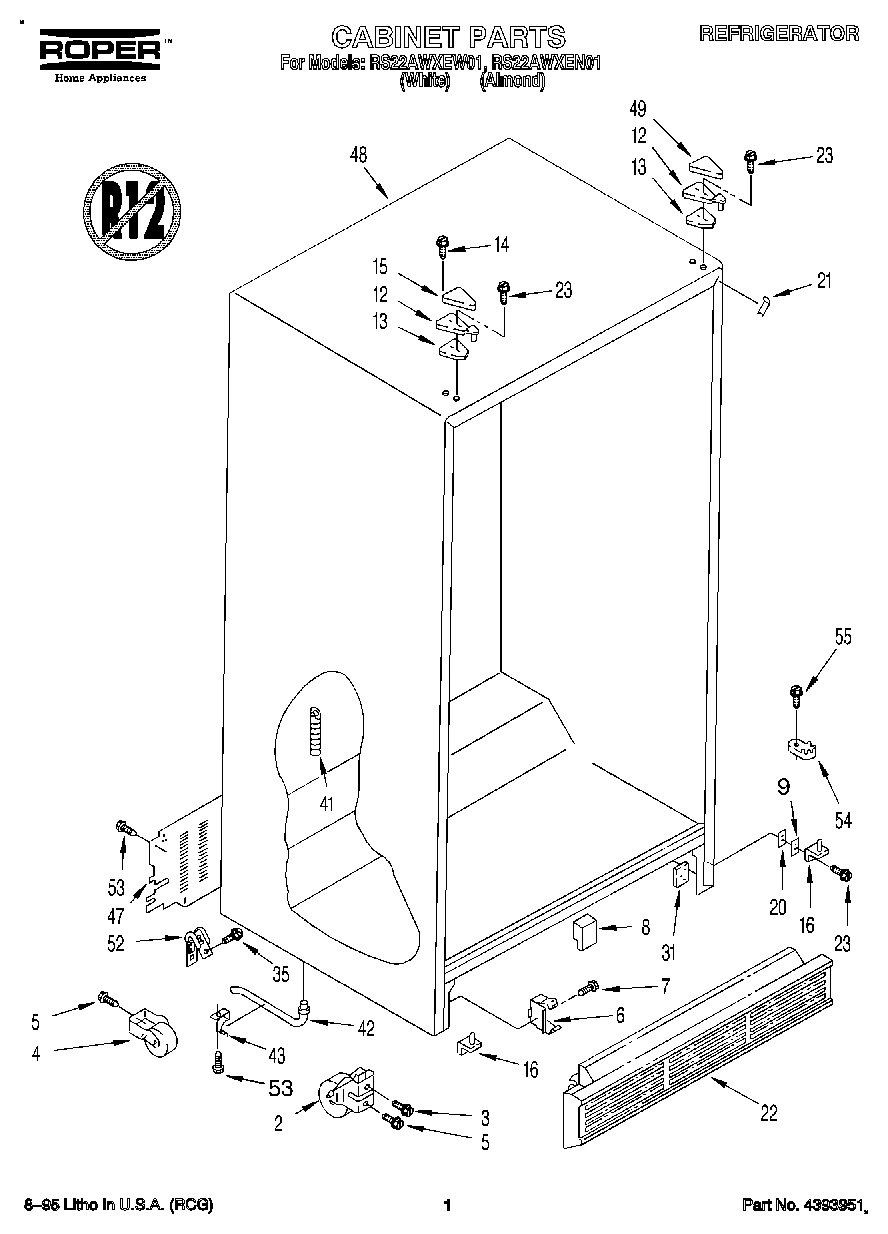

01 - CABINET

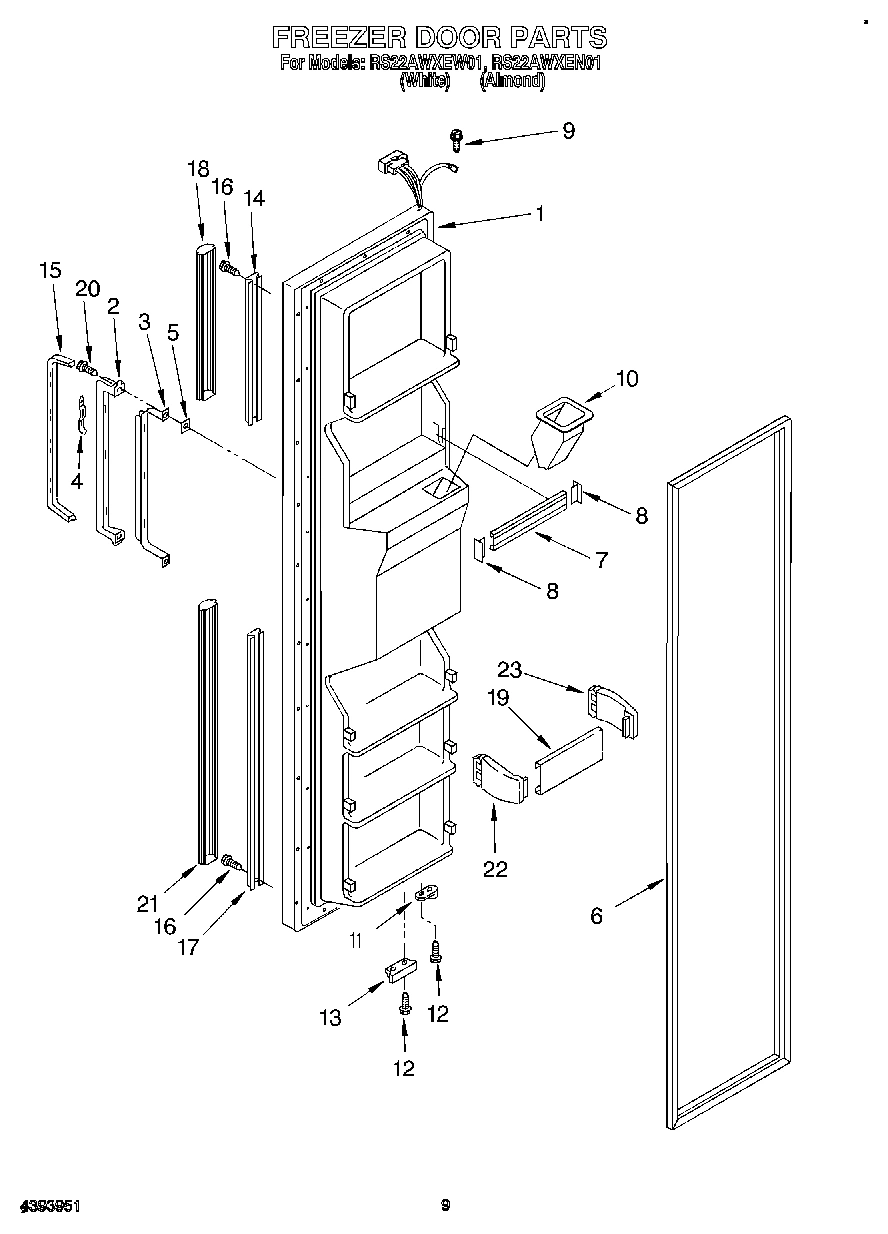

07 - FREEZER DOOR

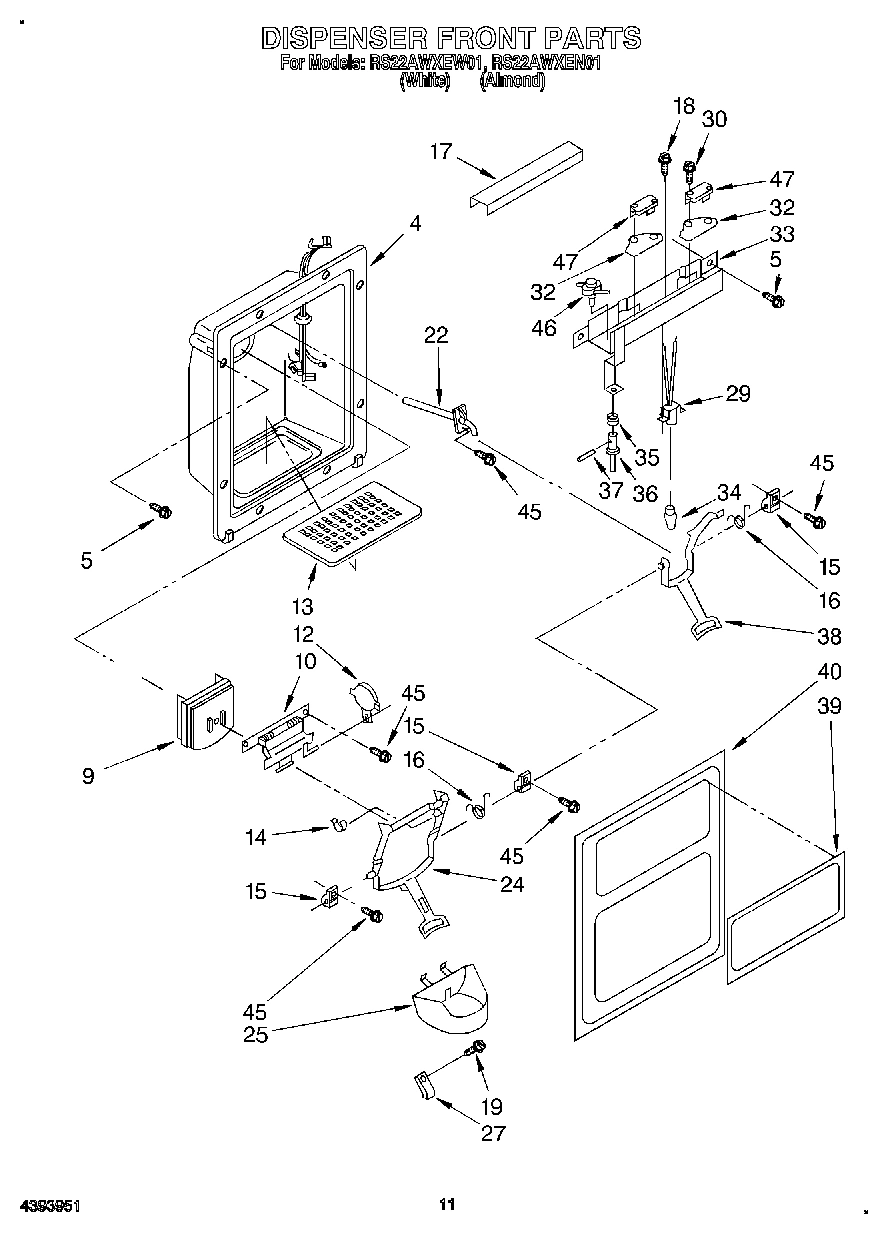

08 - DISPENSER FRONT

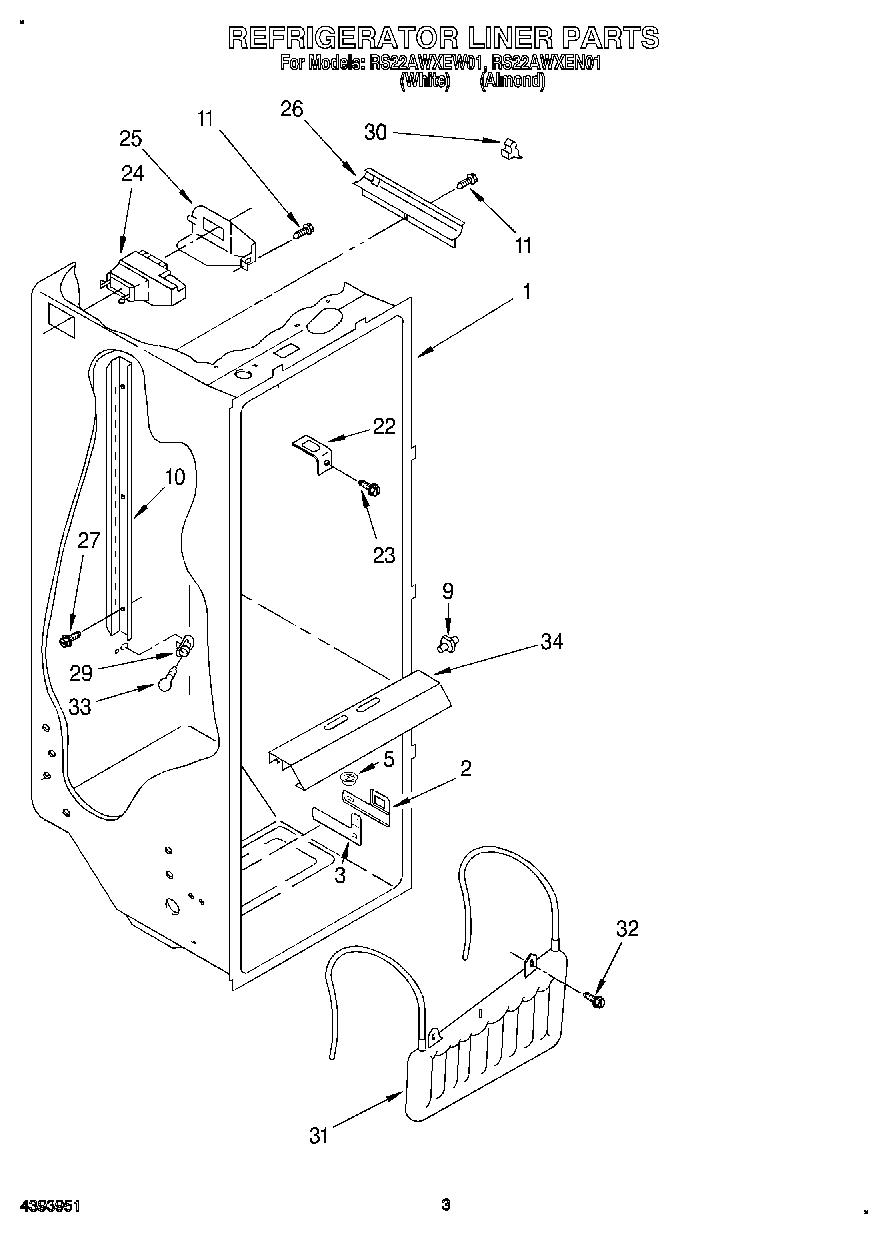

02 - REFRIGERATOR LINER

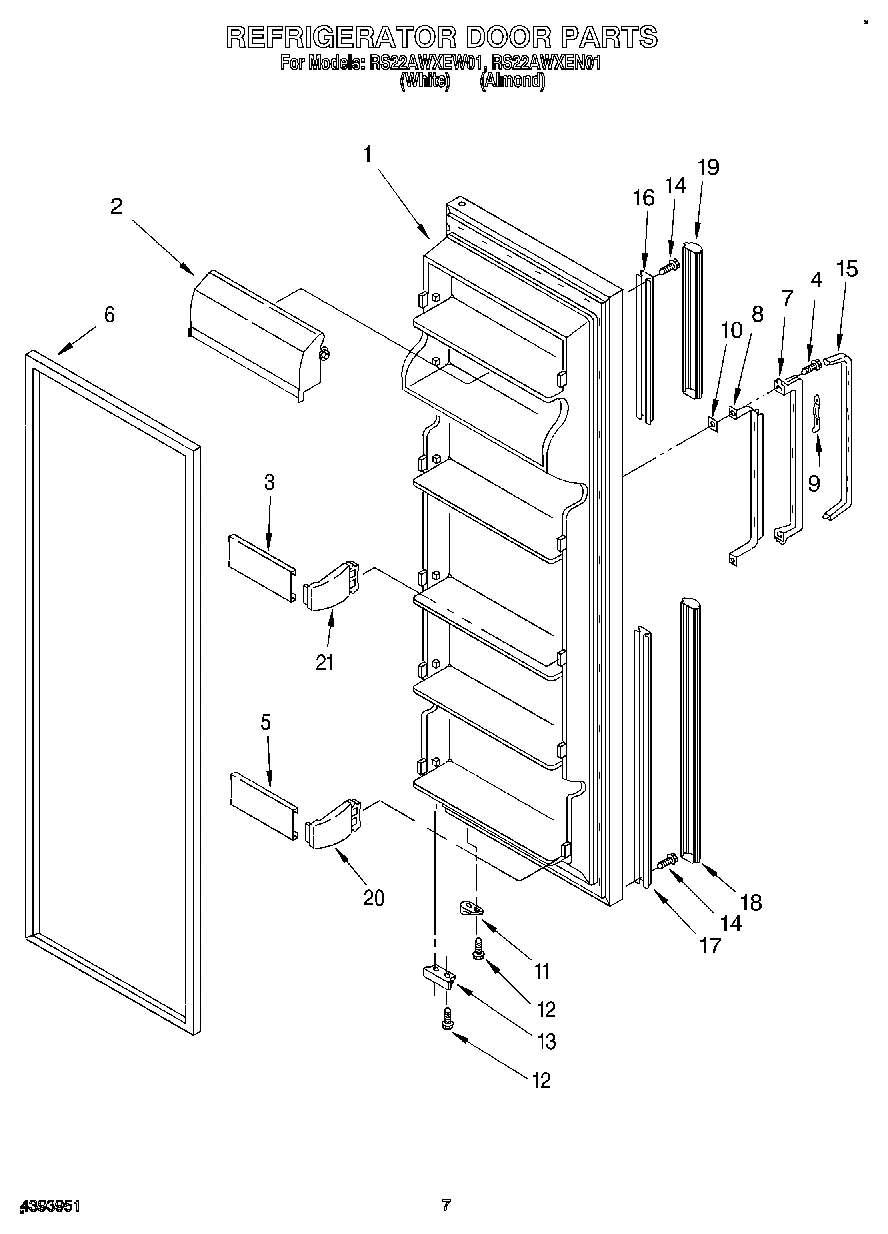

06 - REFRIGERATOR DOOR

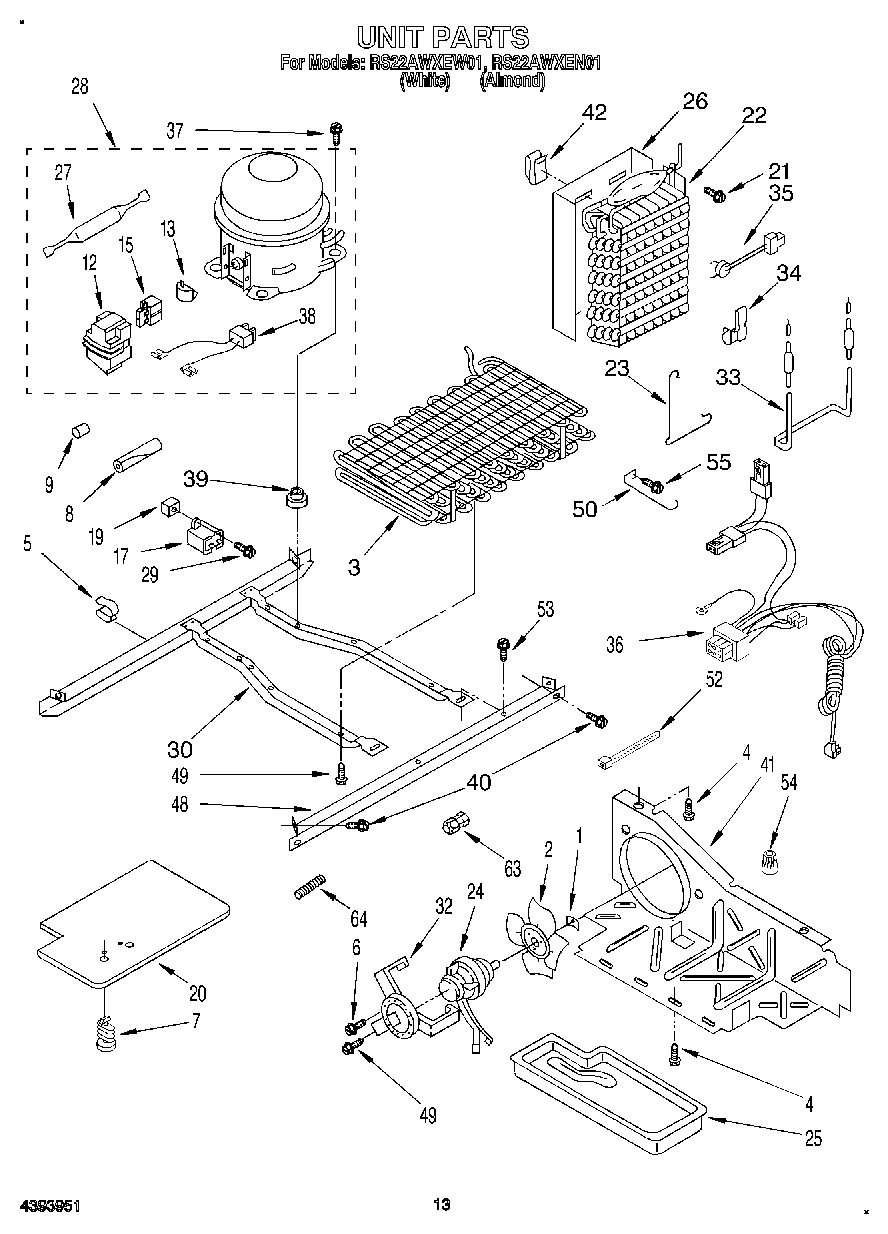

09 - UNIT

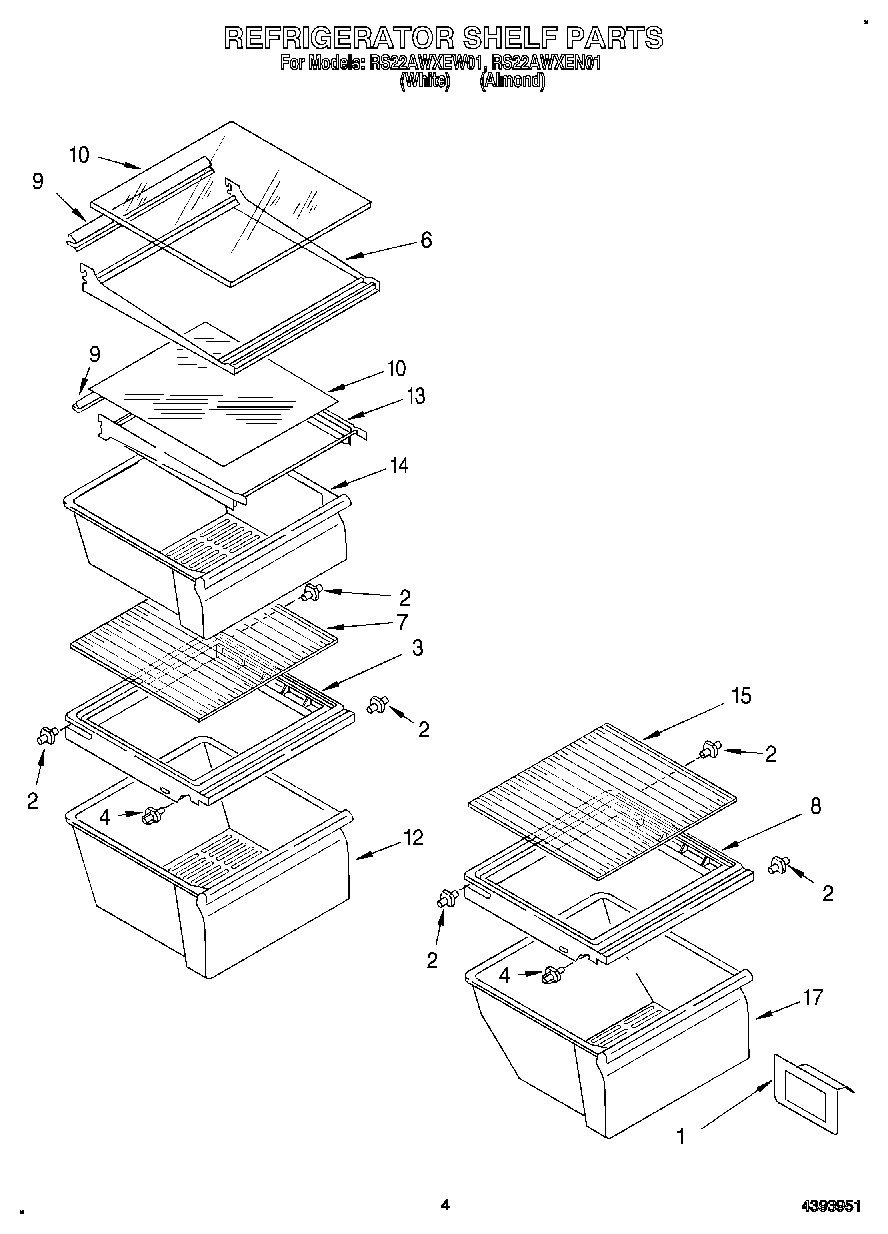

03 - REFRIGERATOR SHELF

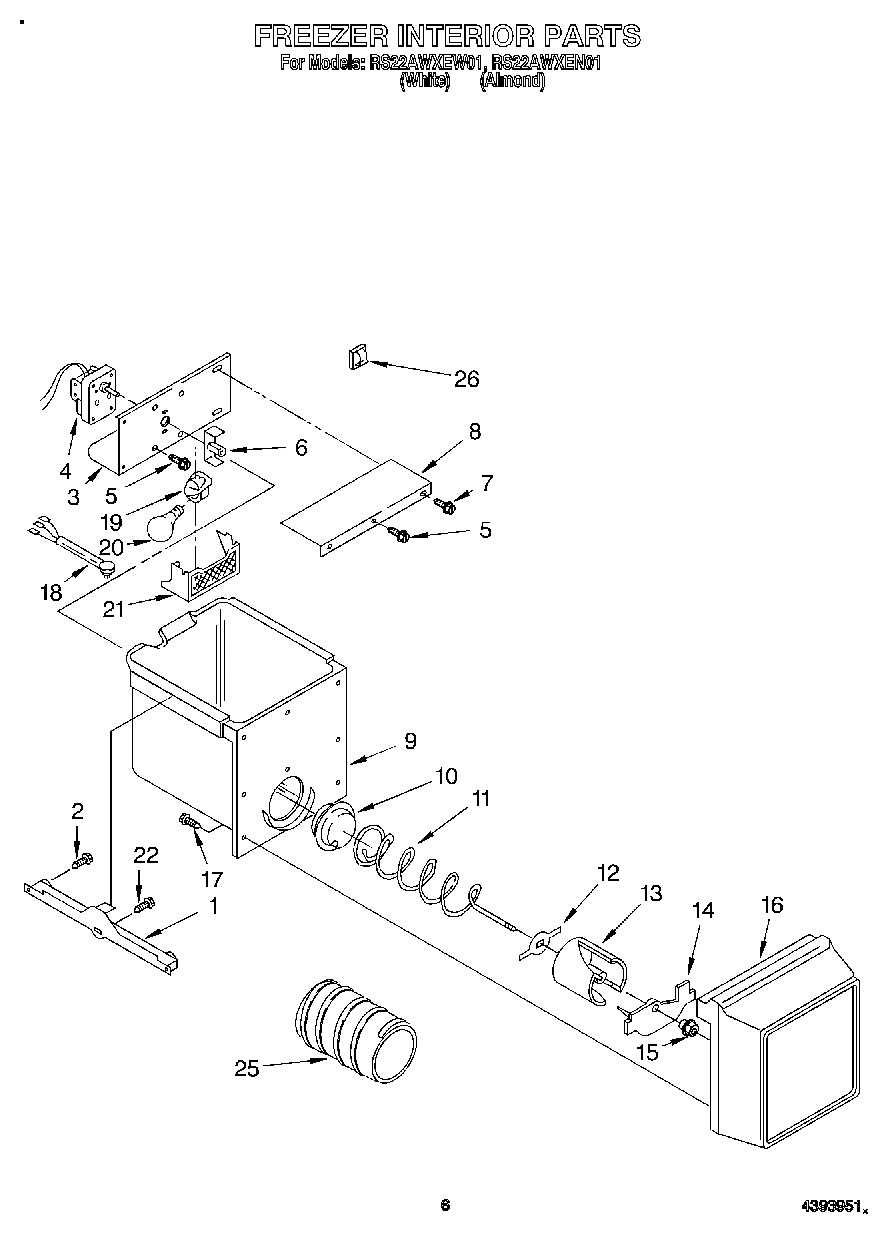

05 - FREEZER INTERIOR
10 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool RS22AWXEN01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173306 WPL LIT2173306 Contact Us For Availability
WPL LIT2176837 WPL LIT2176837 Contact Us For Availability
WPL LIT2182781 WPL LIT2182781 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124082A Contact Us For Availability
1
Refrigerator Door (White) WPL 2171490 Contact Us For Availability
1
Refrigerator Door (Almond (Includes Item No.6 WPL 2171491 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
Trim, Shelf WPL 2173390 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI124084A Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Handle, Center (White) WPL 2147470 Contact Us For Availability
7
Handle, Center (Almond) WPL 2170066 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
9
Clip, Handle WPL 849445 Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Shim WPL 2147097 Contact Us For Availability
10
Glass (3) WPL 2163573 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI124085A Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Top WPL 2147898 Contact Us For Availability
16
Front Cover WPL 2174351 Contact Us For Availability
17
Retainer (Bottom) WPL 2147896 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
18
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Extension, Top (White) WPL 2147472 Contact Us For Availability
19
Extension, Top (Almond) WPL 2170067 Contact Us For Availability
19
Trim, Shelf (4) WPL 2182786 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Glass Stop (Almond) WPL 1125978 Contact Us For Availability
27
Glass Stop (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Screw WPL 488280 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Unit, Harness WPL 2181709 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174326 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2174333 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173408 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2174304 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
46
Light Switch WPL 851386 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Spring-Tube WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
