Model Whirlpool RAX7244PQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI159851A Contact Us For Availability

LUBRICANT WPL ARI159852A Contact Us For Availability

SEALER WPL ARI159853A Contact Us For Availability

ACCESSORY PARTS WPL ARI159854A Contact Us For Availability

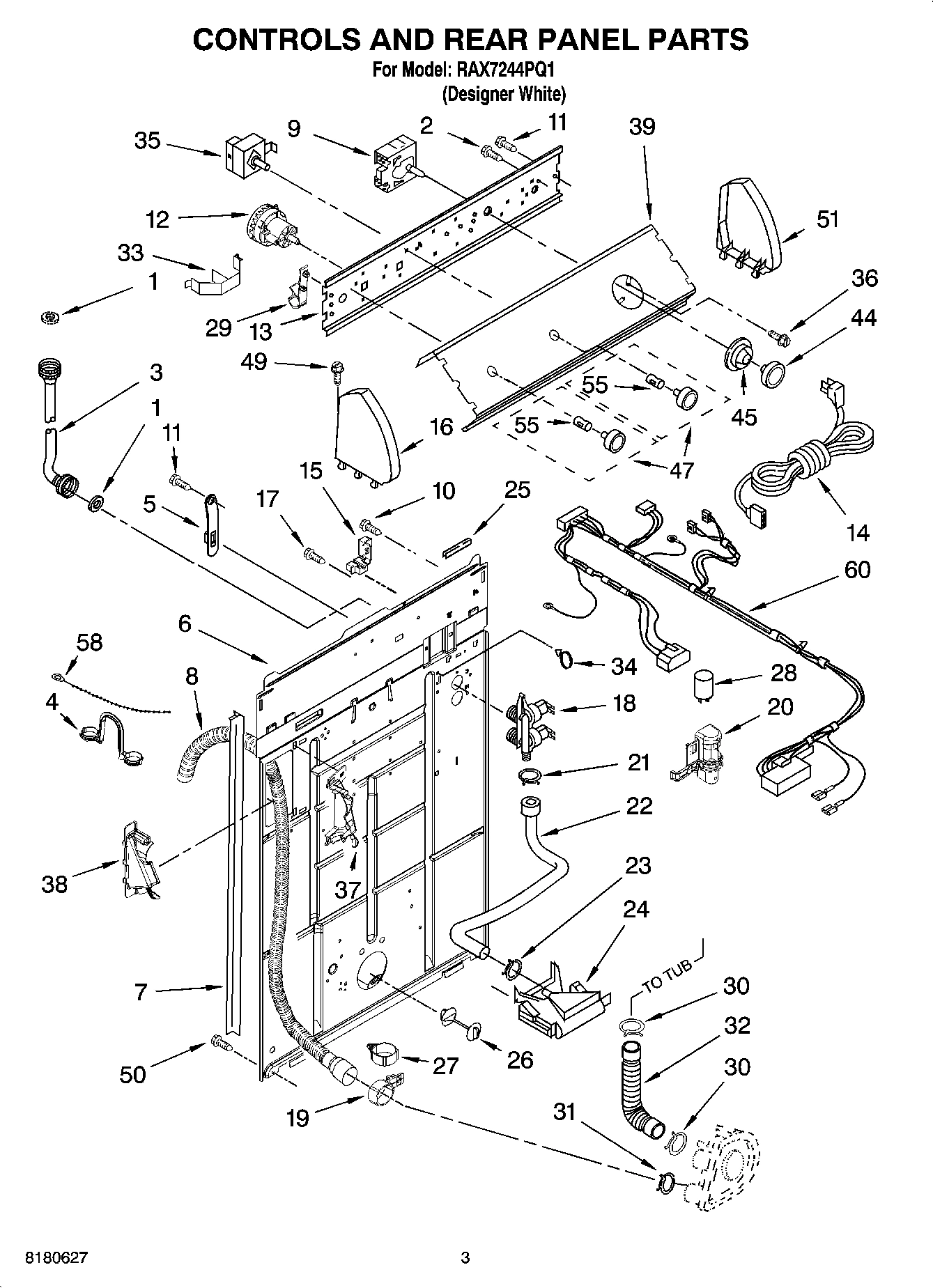

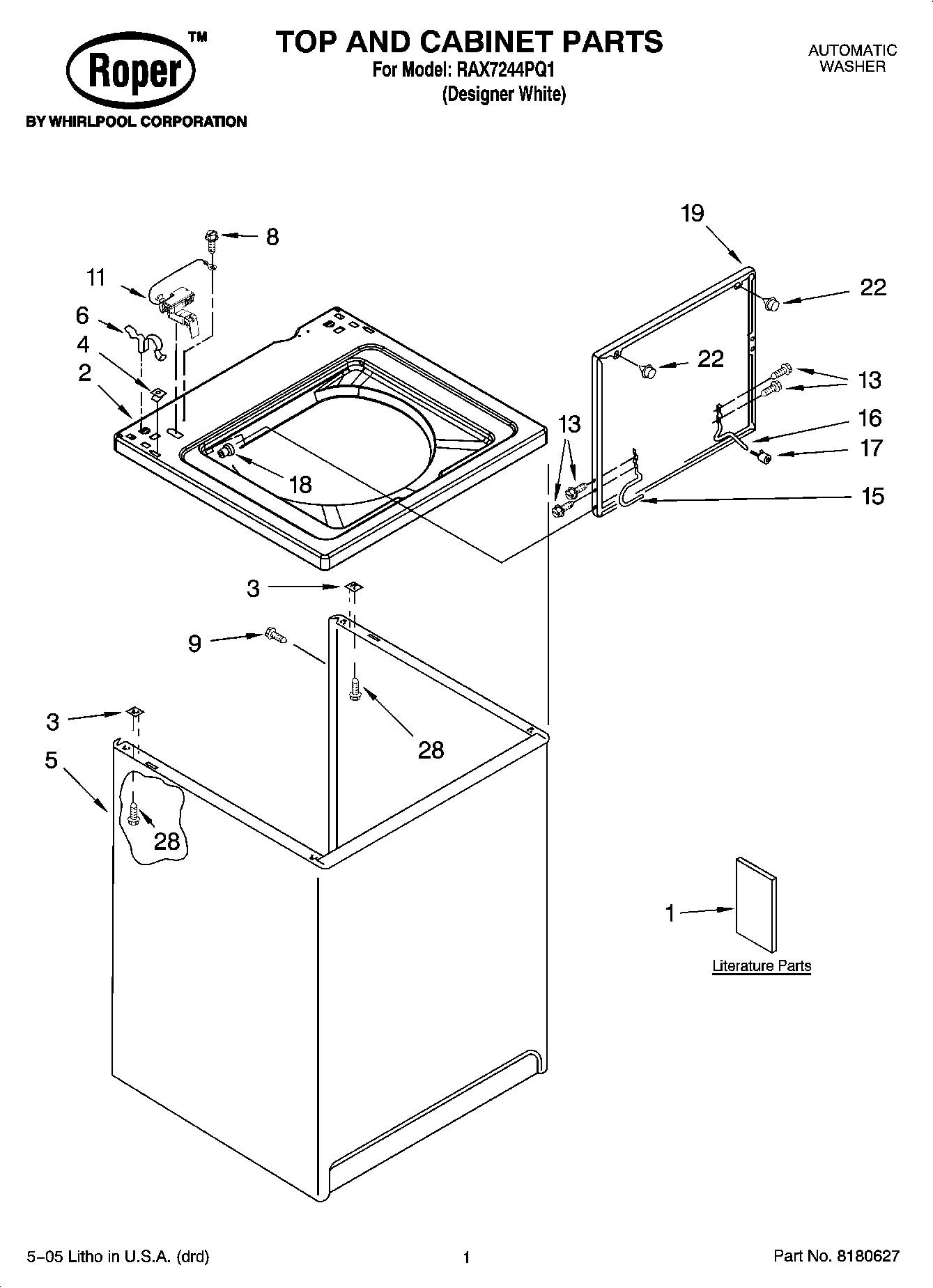

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

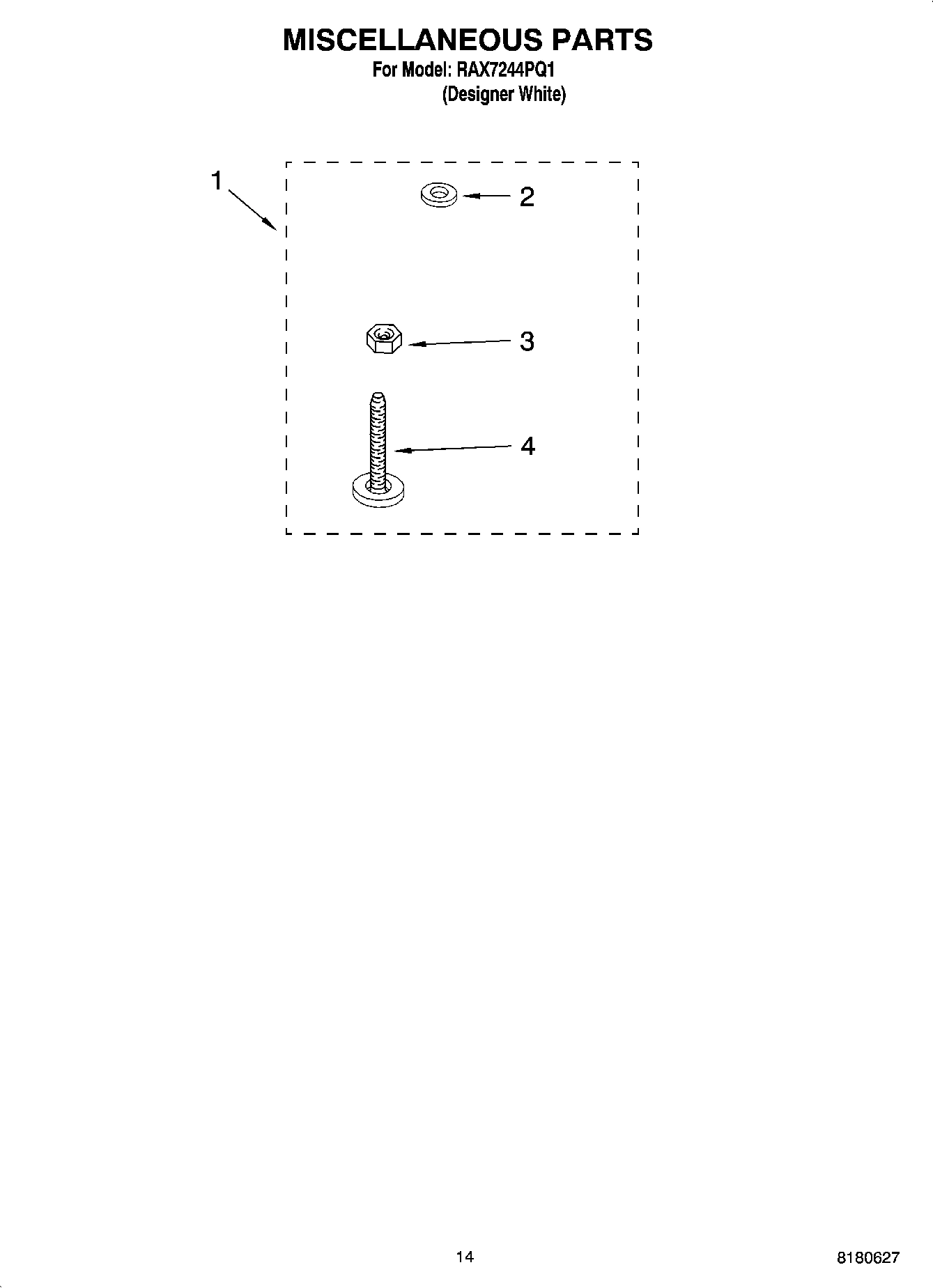

Miscellaneous Parts Bag WPL 3957361 Contact Us For Availability

1

Use & Care Guide WPL 3955872 Contact Us For Availability

1

Feature Sheet WPL 3955913 Contact Us For Availability

1

Installation Instructions WPL 3957165 Contact Us For Availability

1

Energy Guide WPL 3957466 Contact Us For Availability

1

Wiring Diagram WPL 8541941 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

TOP WPL 8318068 Contact Us For Availability

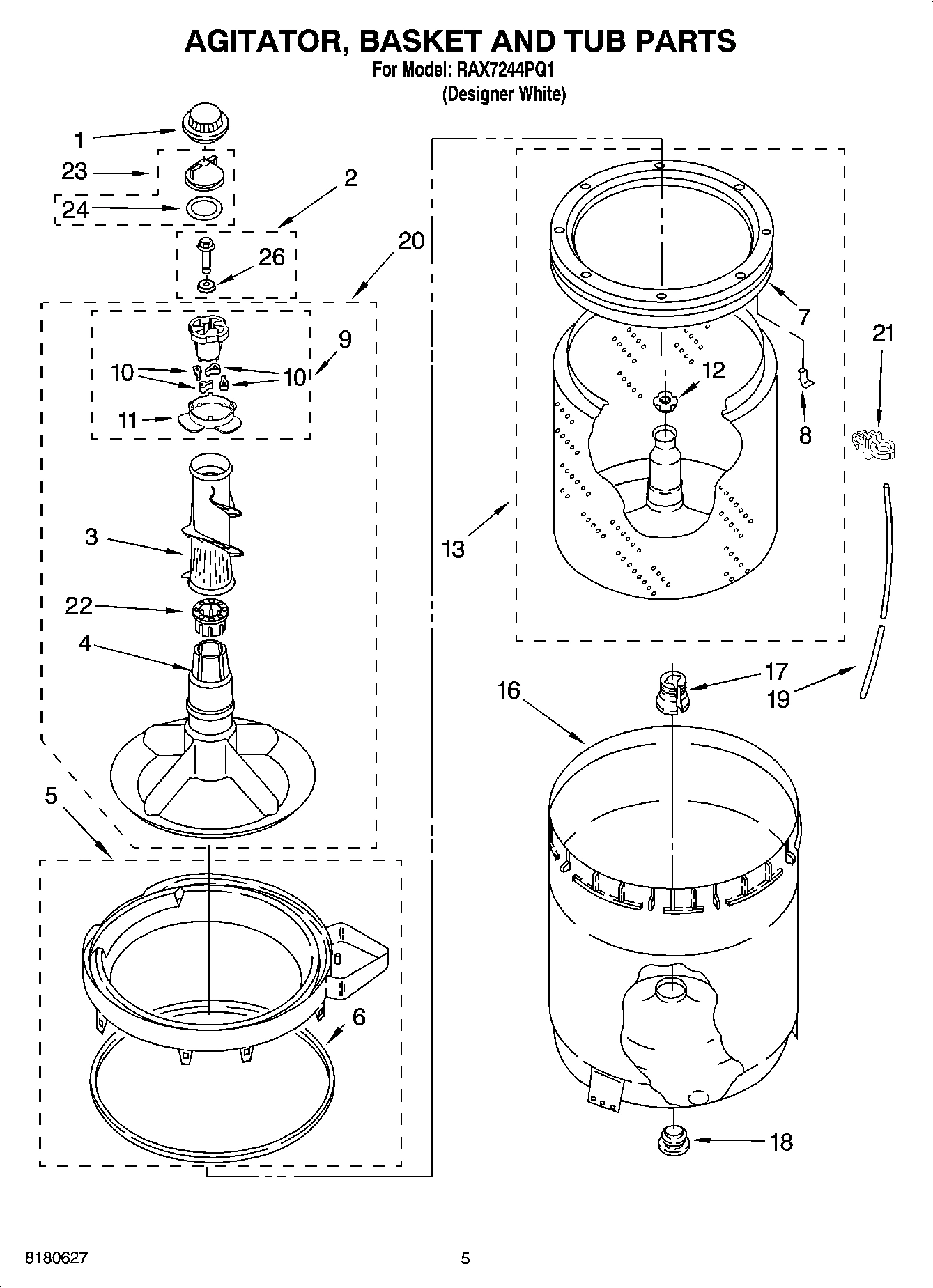

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $77.78

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

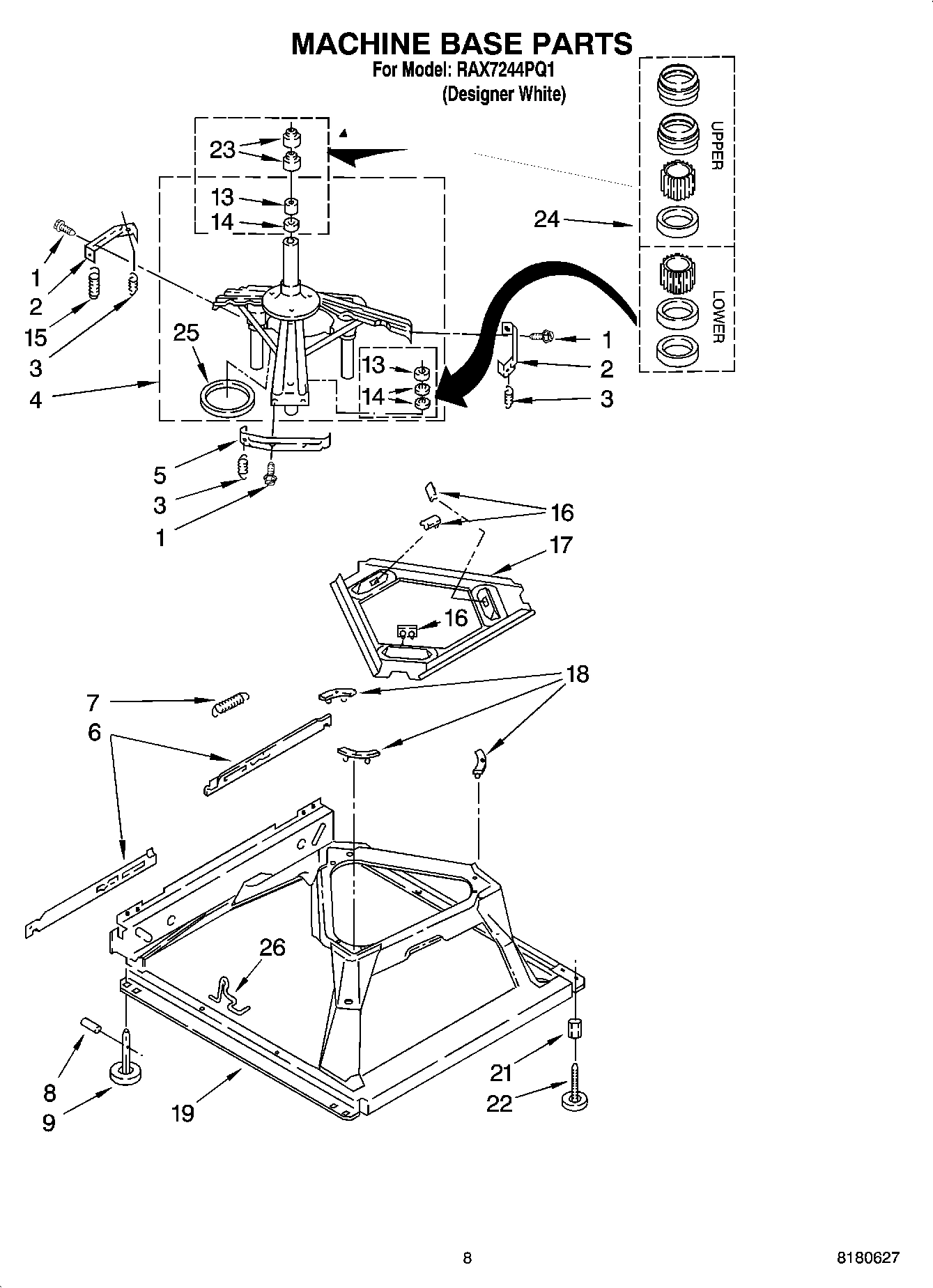

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $67.11

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

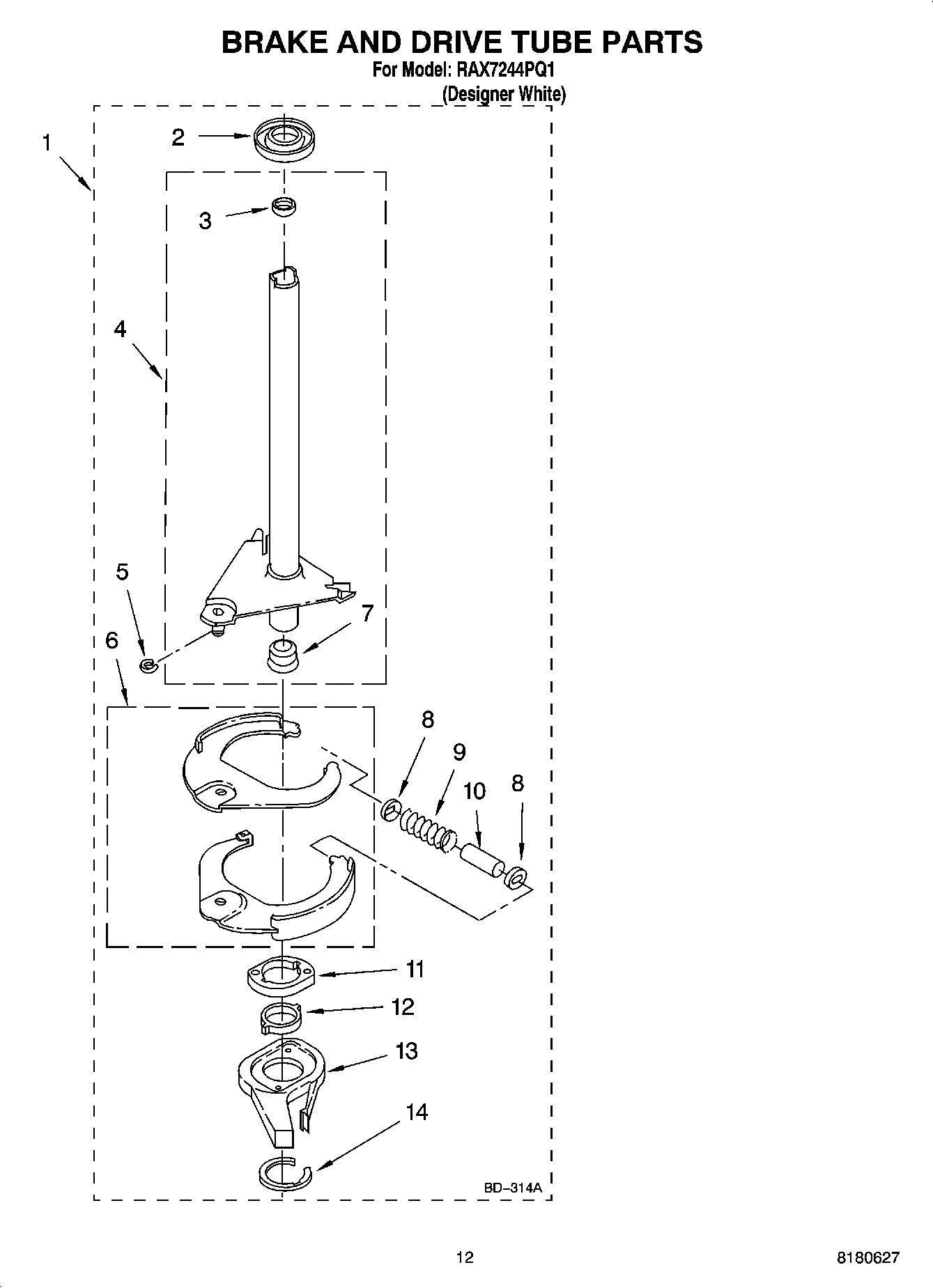

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8541939 Whirlpool Timer Assembly Backorder WPL WP8541939 $180.33

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

10

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

13

Basket & Balance Ring WPL 3956206 Contact Us For Availability

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

Tub WPL 63125 Contact Us For Availability

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $188.00

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

20

Agitator (Complete) WPL 3350829 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $28.80

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

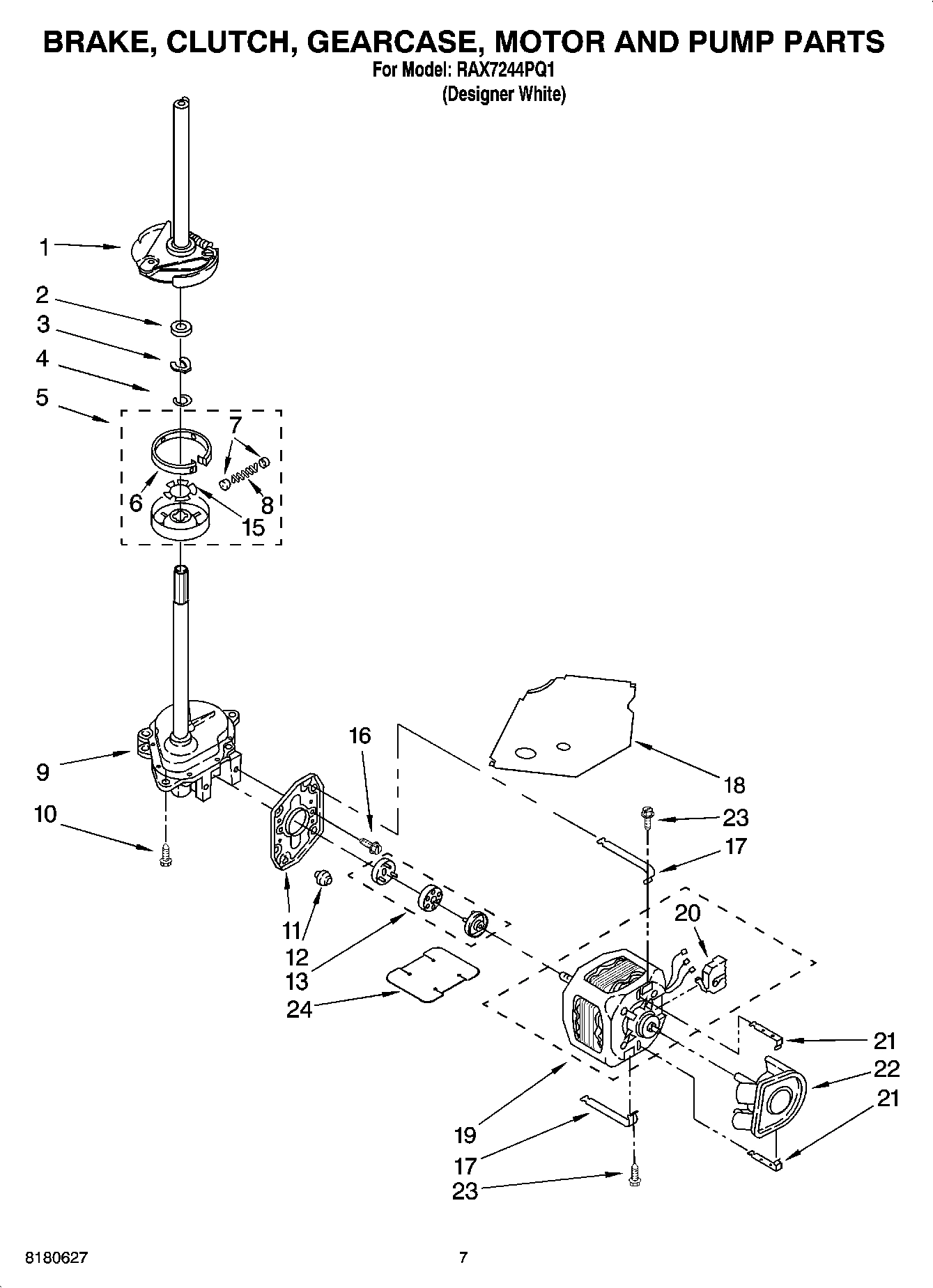

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

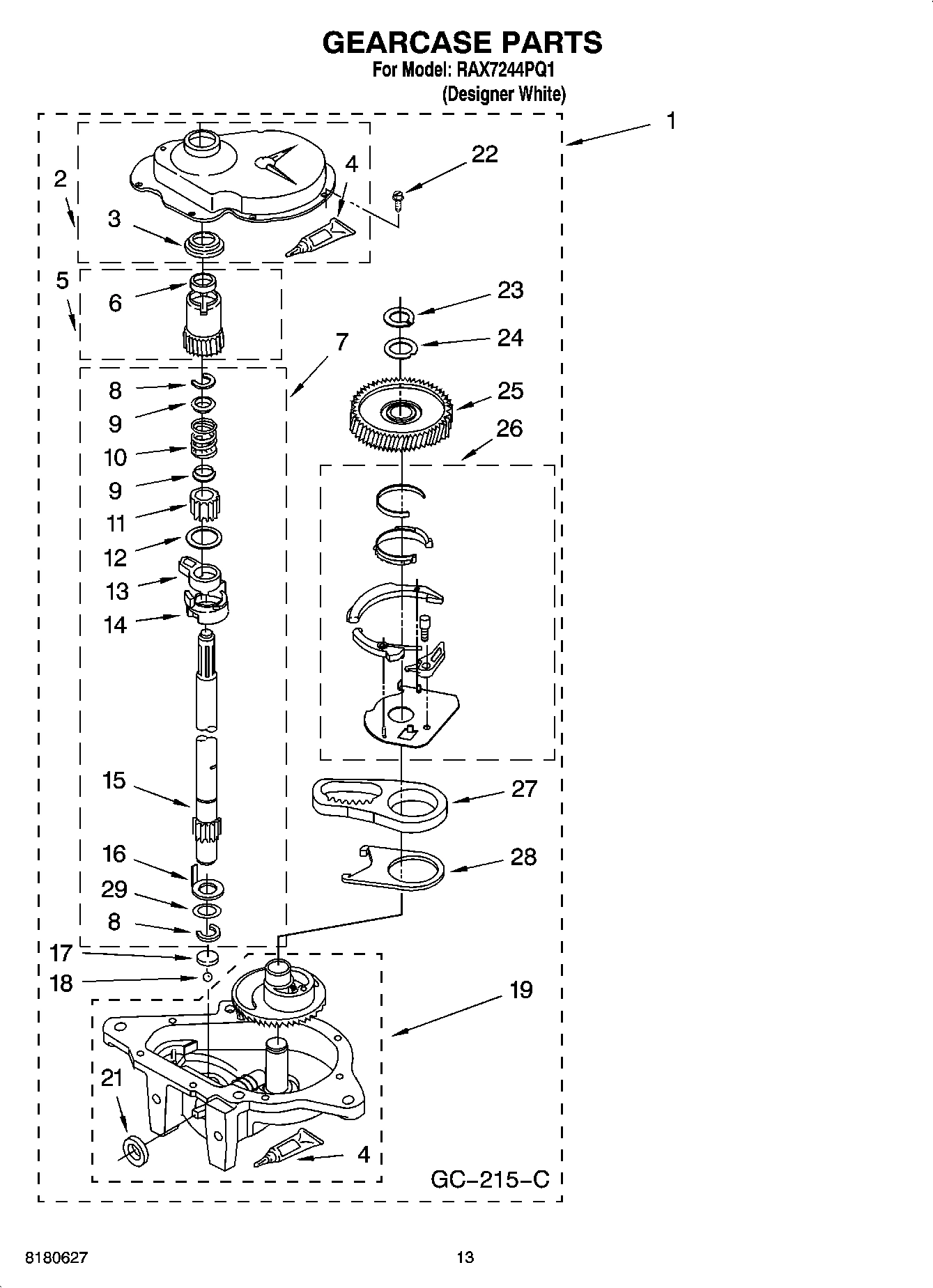

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

38

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $37.24

47

Knob, Control WPL 8557459 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

279960 Whirlpool Endcap Assembly Backorder WPL 279960 $46.30

55

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

60

Harness, Wiring (For Detail See Pages WPL 3956951 Contact Us For Availability
