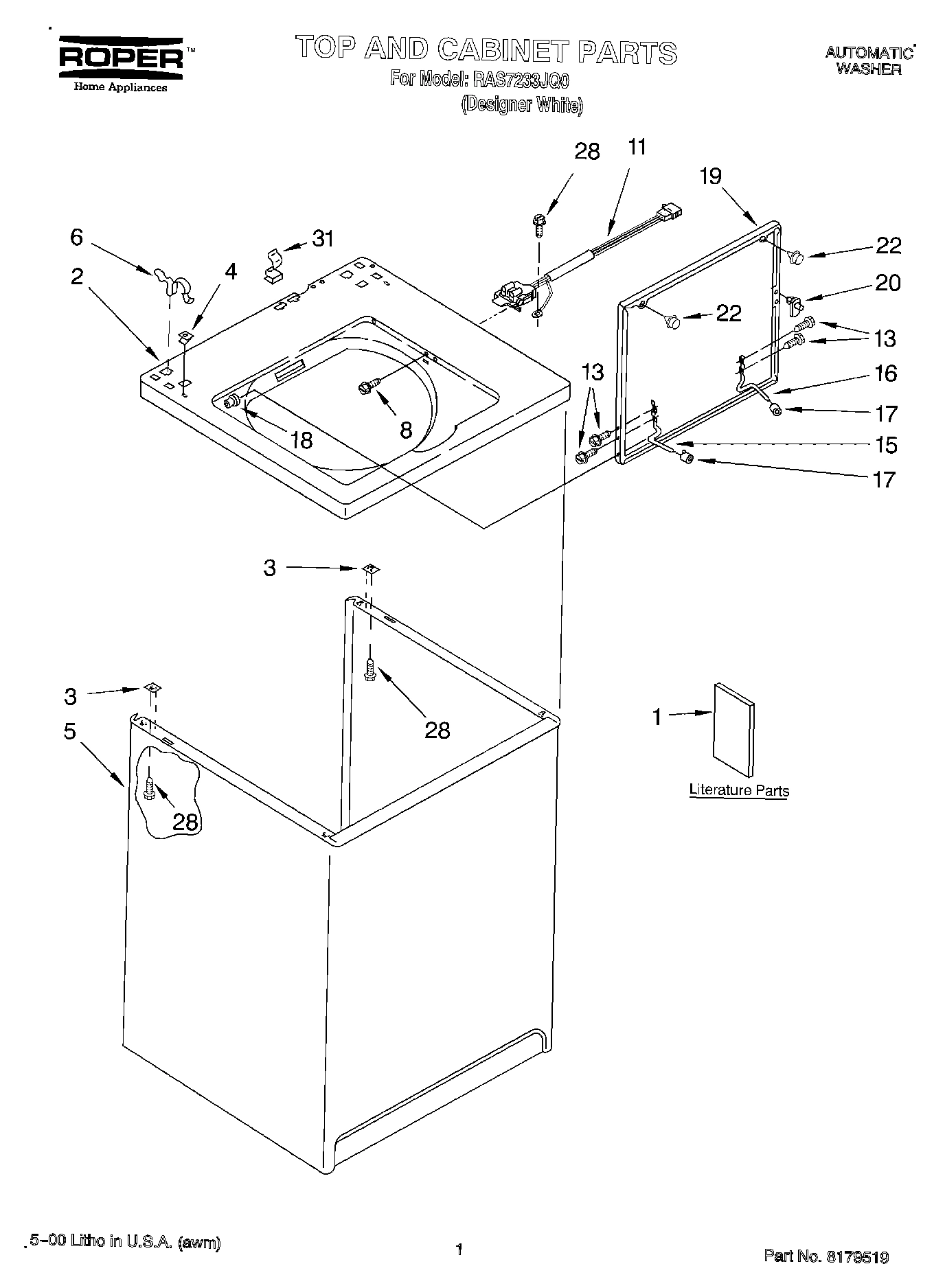

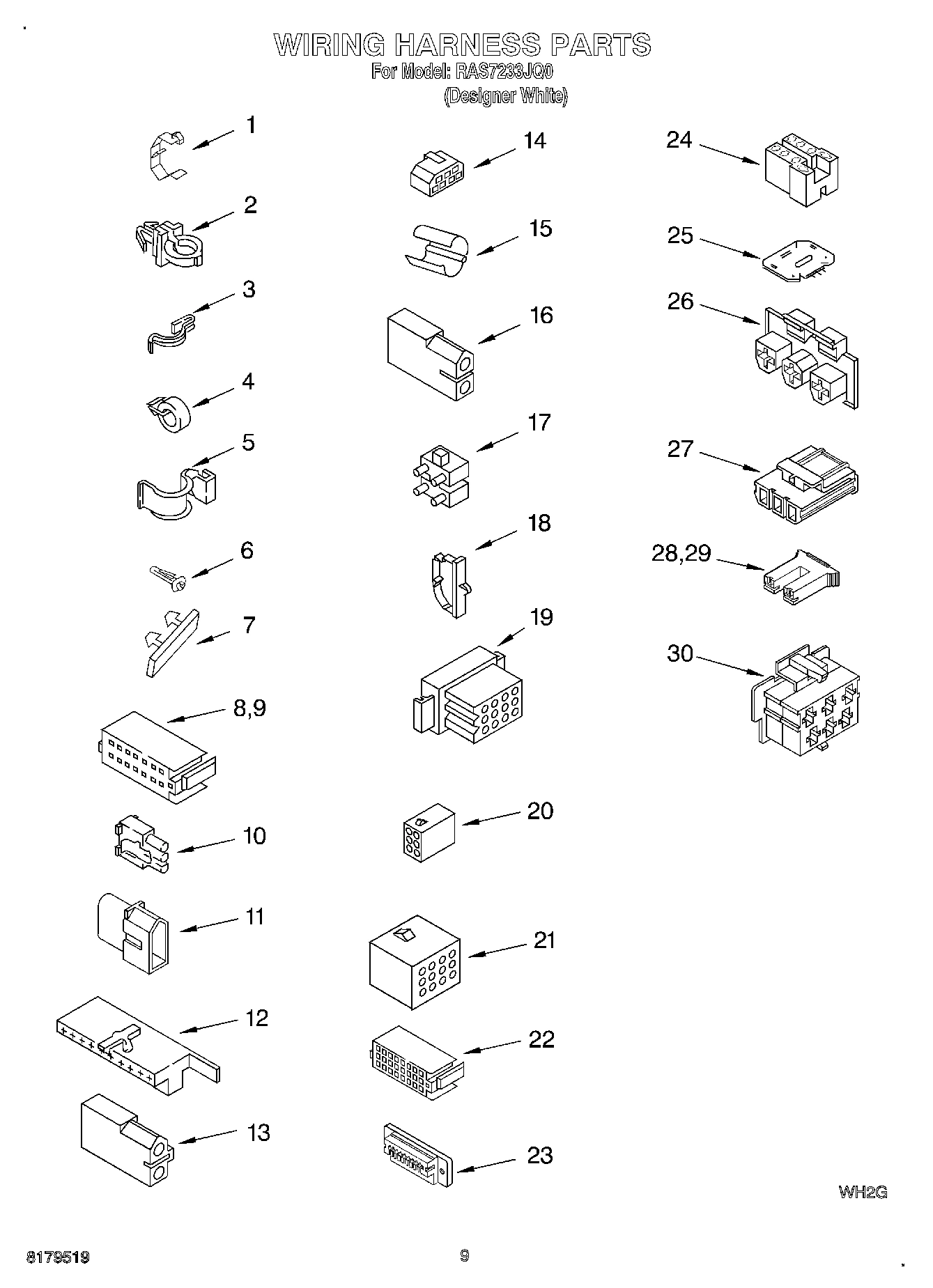

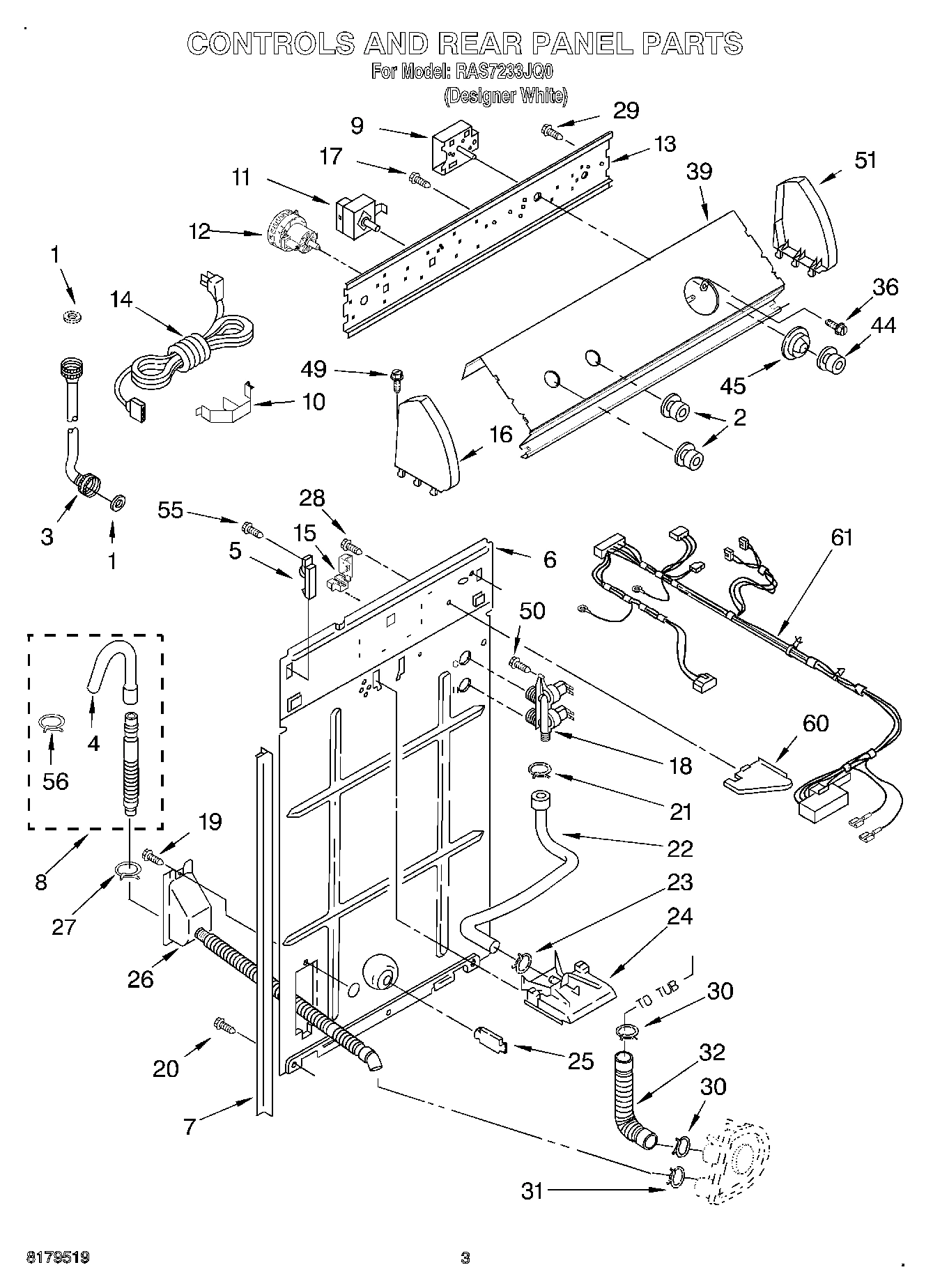

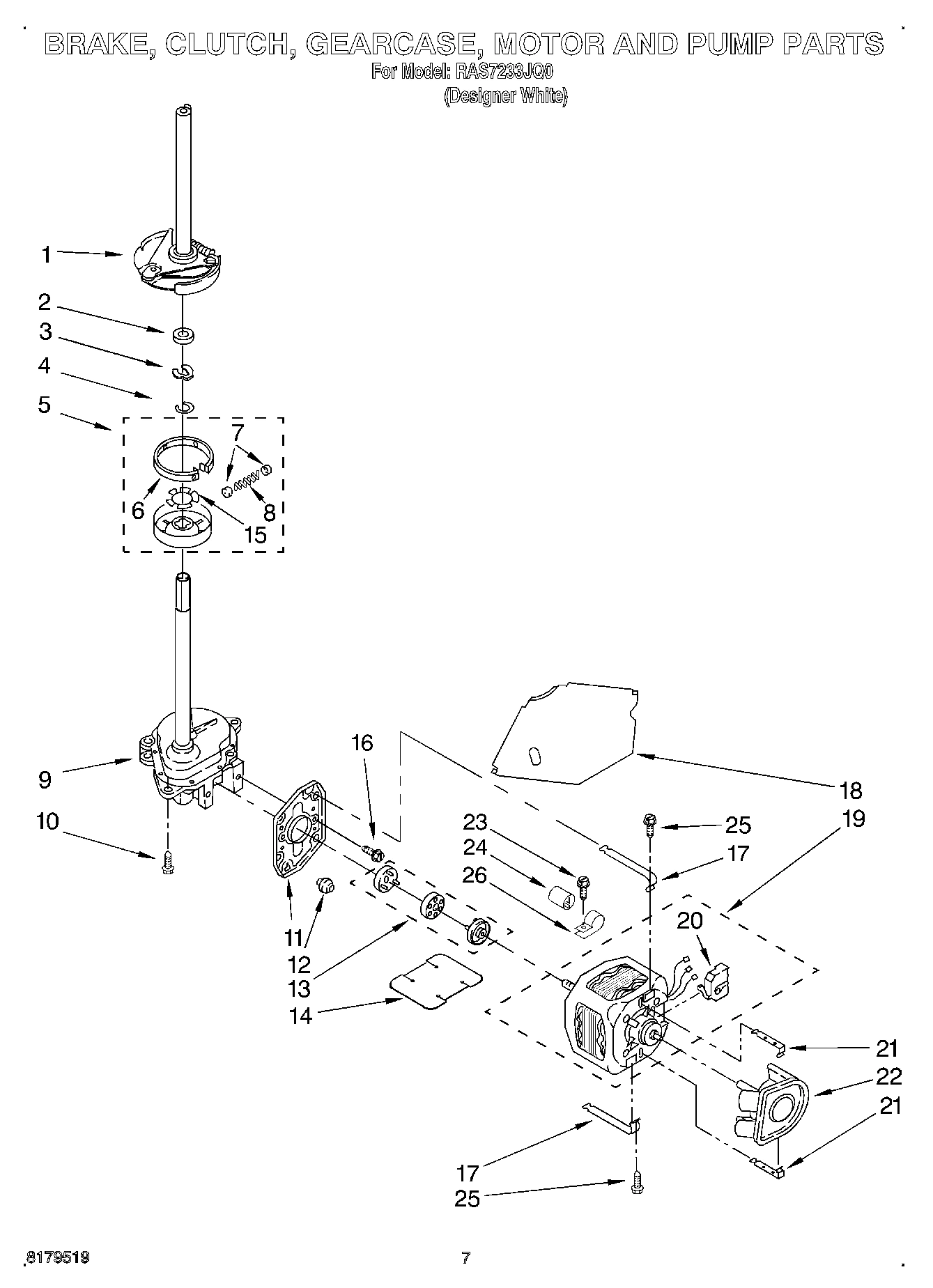

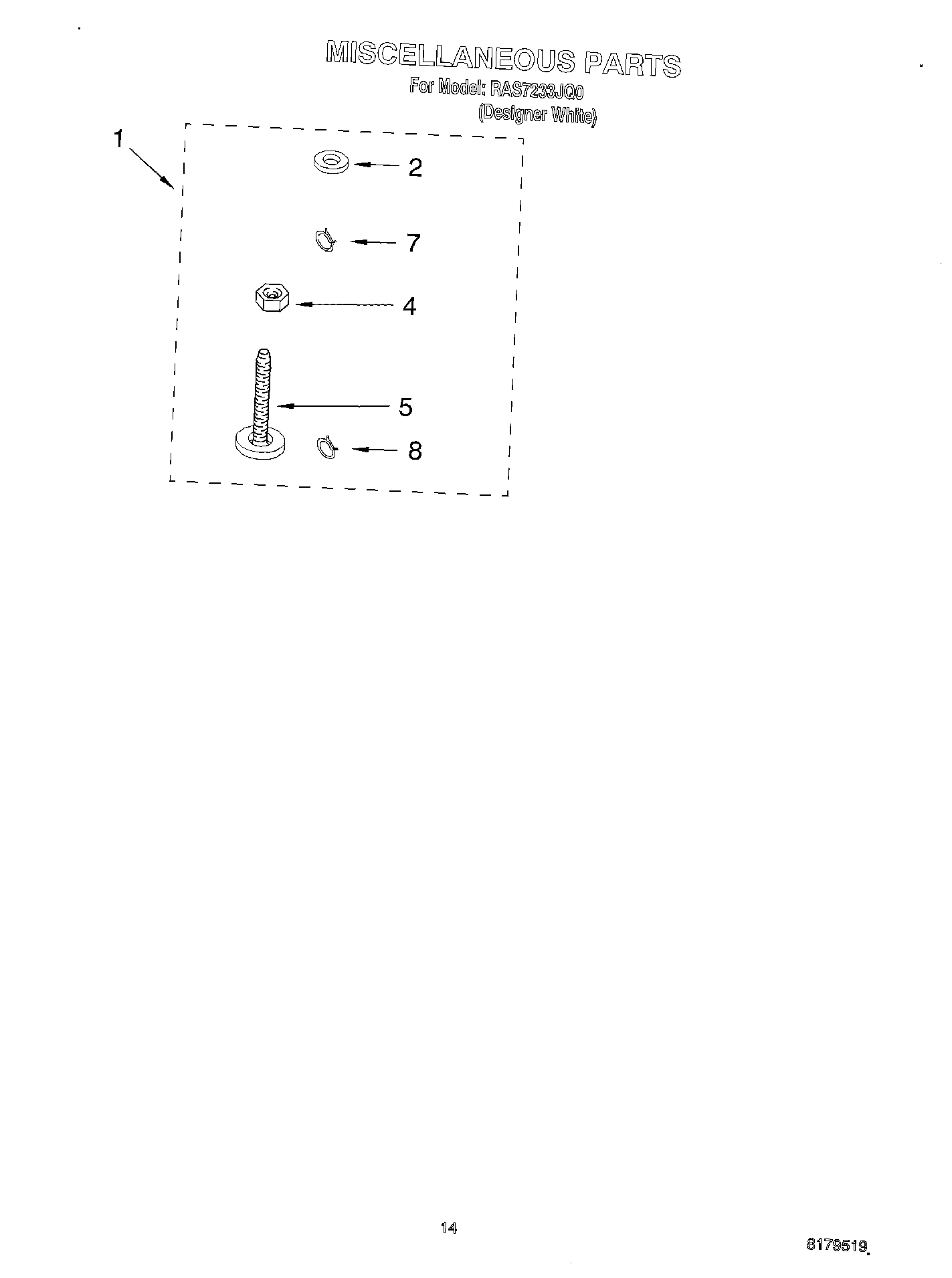

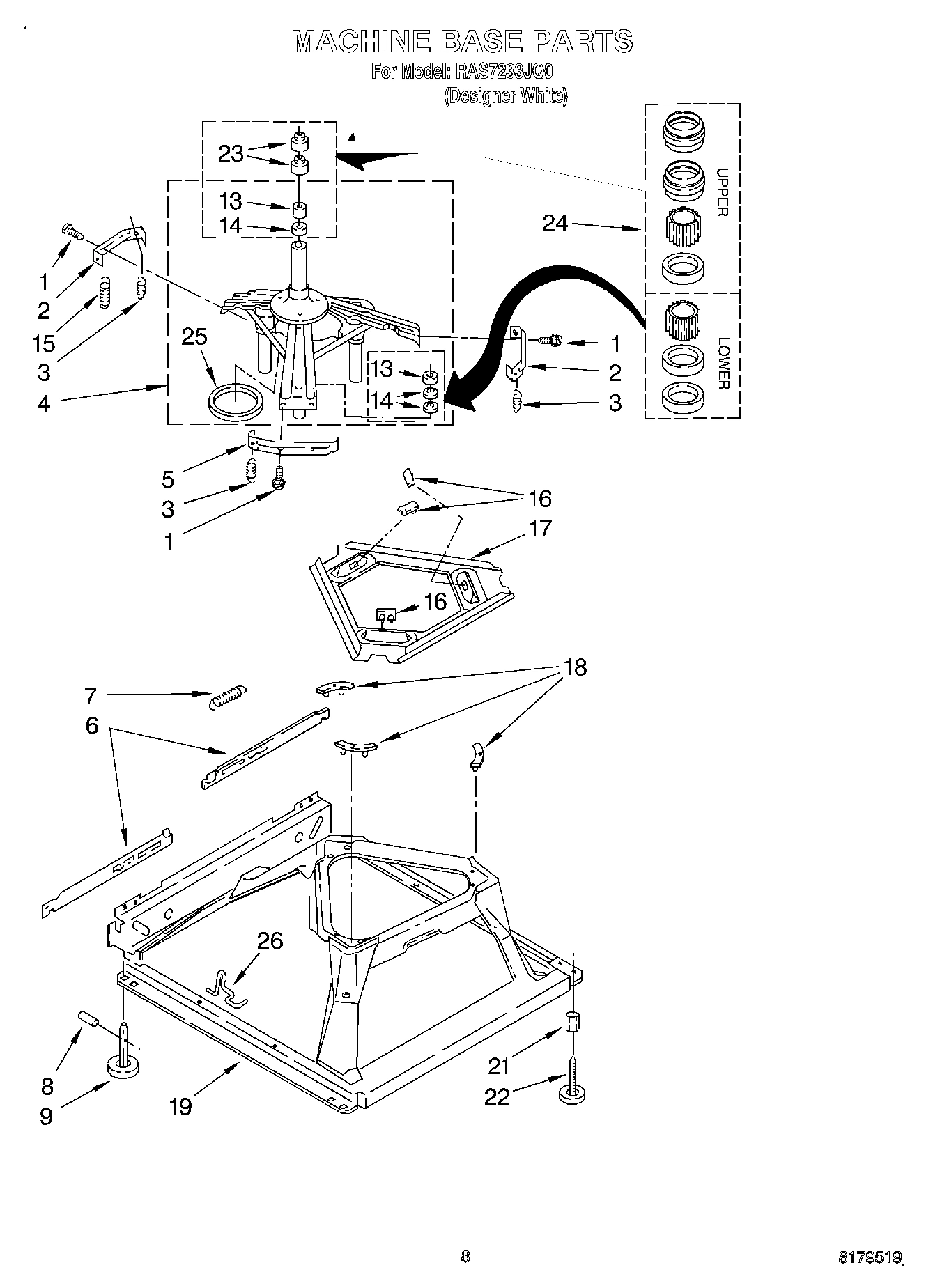

Model Whirlpool RAS7233JQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

LITERATURE PARTS WPL ARI159721A Contact Us For Availability

1

Literature Parts (Use & Care Guide) (French) WPL LIT3951072 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3951578 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3952817 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (English) WPL LIT3953960 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Energy G WPL LIT3954511 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Wiring D WPL LIT3954578 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Knob, Control WPL 8274378 Contact Us For Availability

2

Top WPL 8274315 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $108.05

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

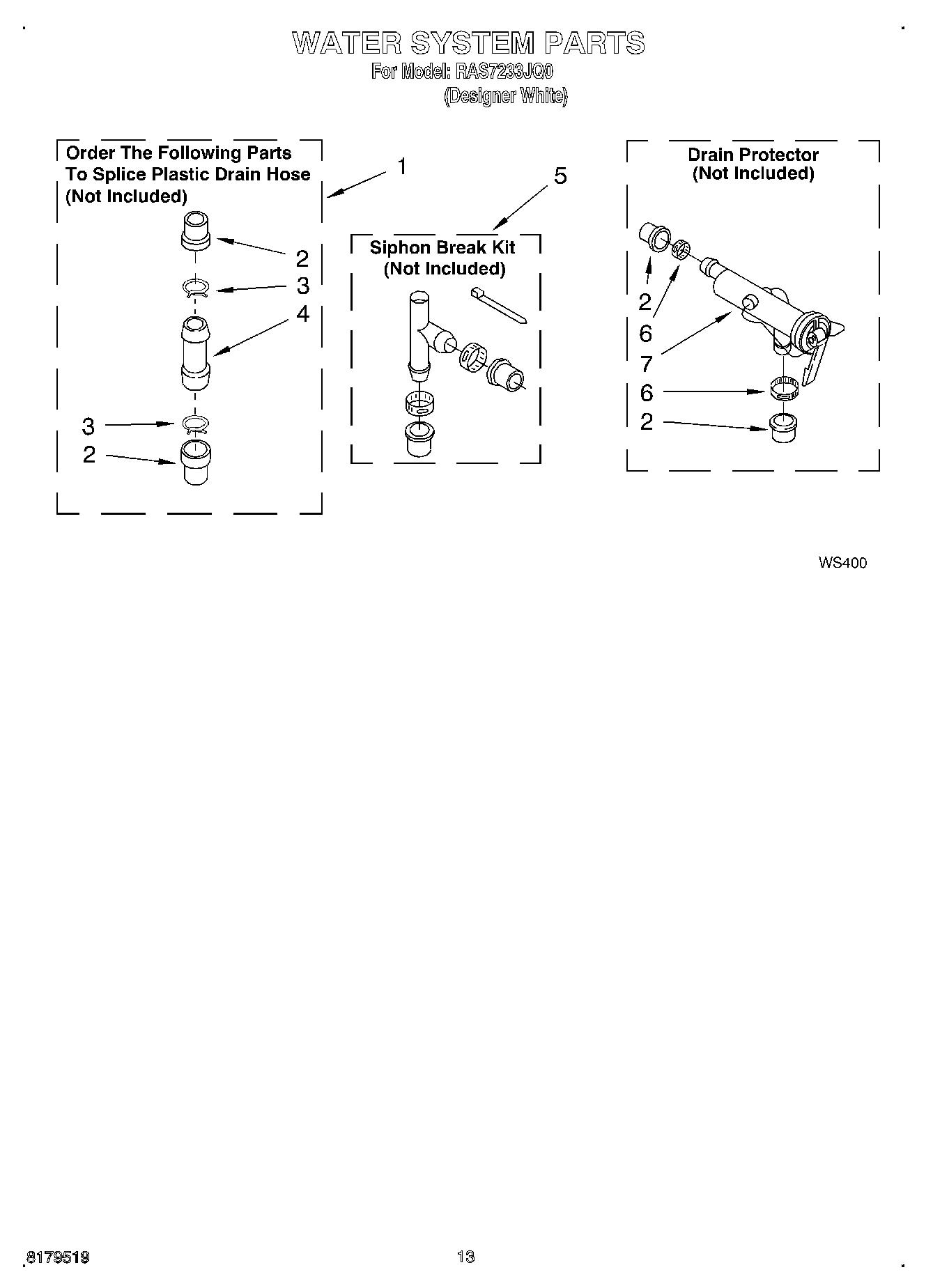

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

8

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3953146 Whirlpool Timer In Stock WPL WP3953146 $180.36

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $44.94

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

12

62619 Whirlpool Washer Backorder WPL 62619 $9.59

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.87

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

18

Clip, Harness WPL 3352944 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

Lid WPL 3361412 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Control, ETC WPL 3407125 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

45

Dial, Timer WPL 8274395 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

51

279960 Whirlpool Endcap Assembly Backorder WPL 279960 $48.62

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

60

Sheild, Suds WPL 3348424 Contact Us For Availability

61

Harness, Wiring (For Detail See Parts Page) WPL 3953617 Contact Us For Availability
