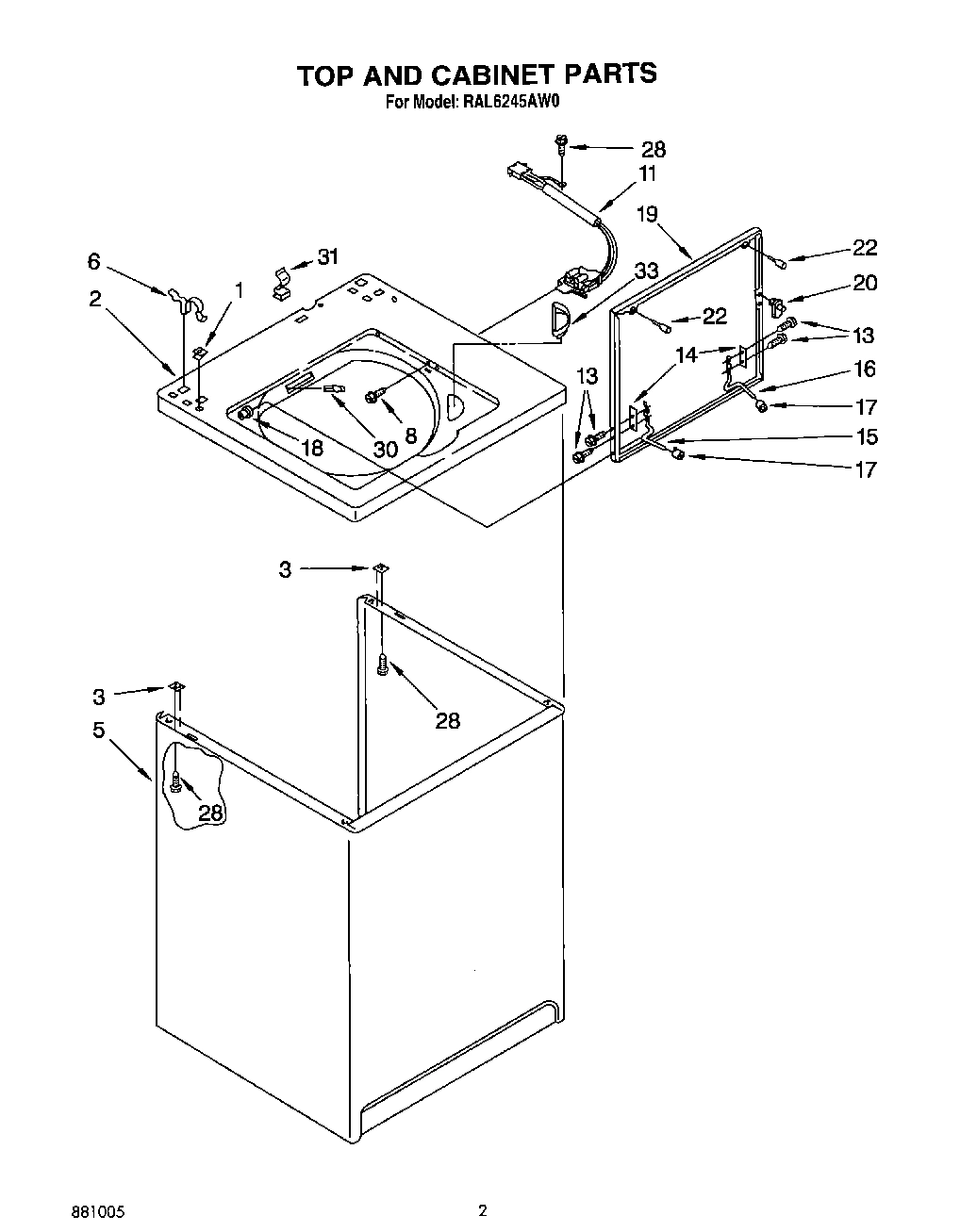

Model Whirlpool RAL6245AG0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.88

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

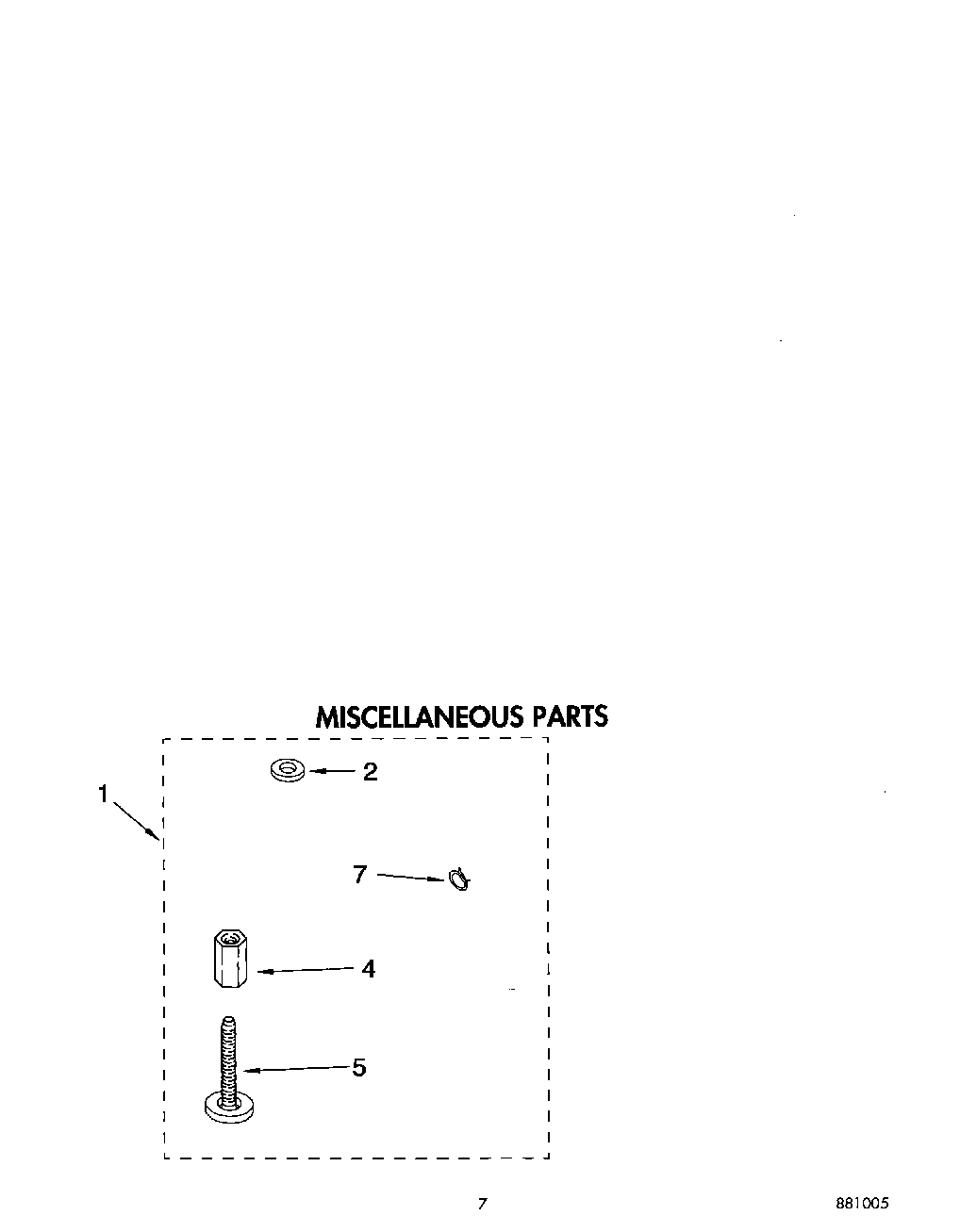

Miscellaneous Parts Bag WPL 3356711 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

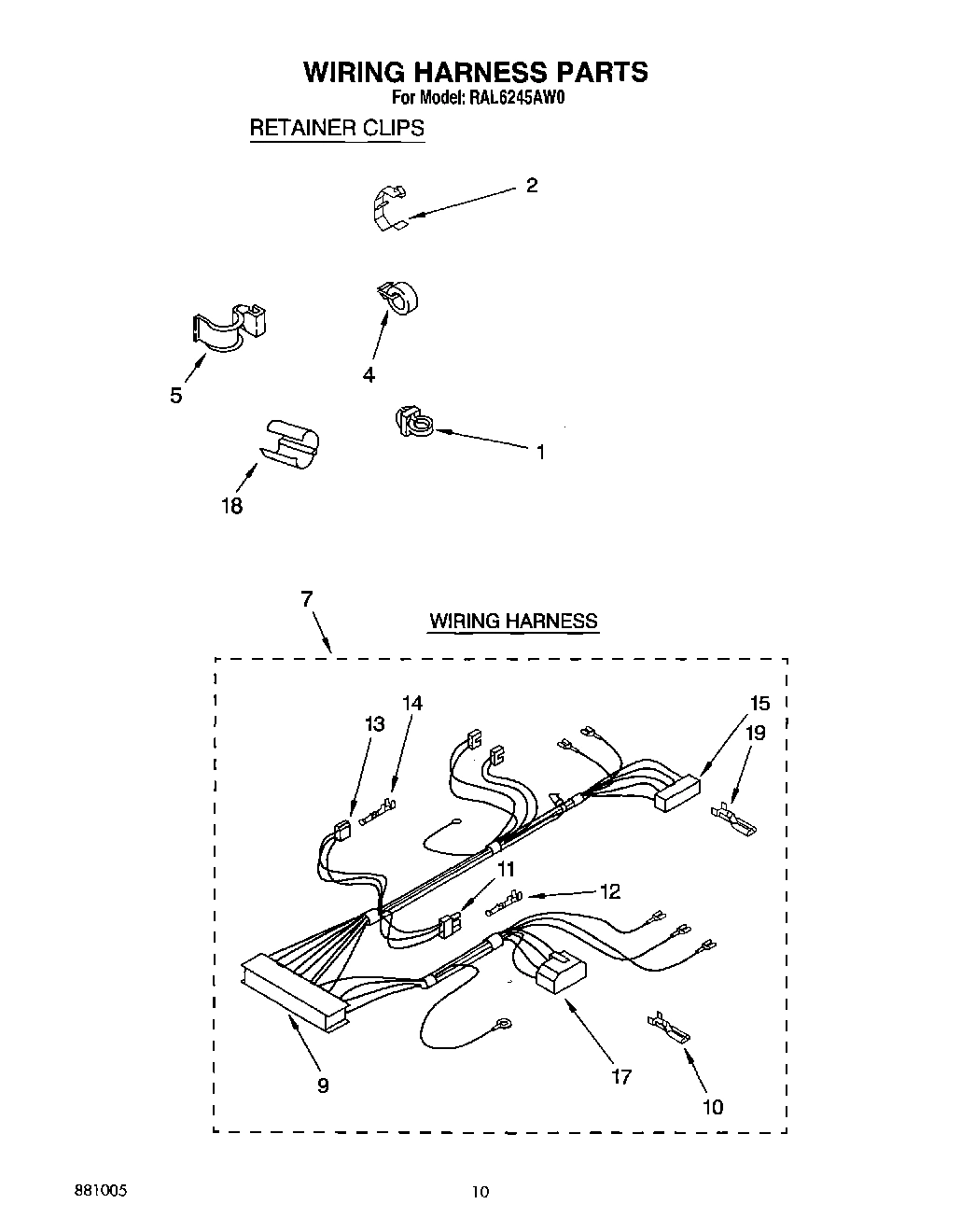

Retainer, Harness WPL 3349557 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

Tub Ring & Gasket WPL 387966 Contact Us For Availability

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

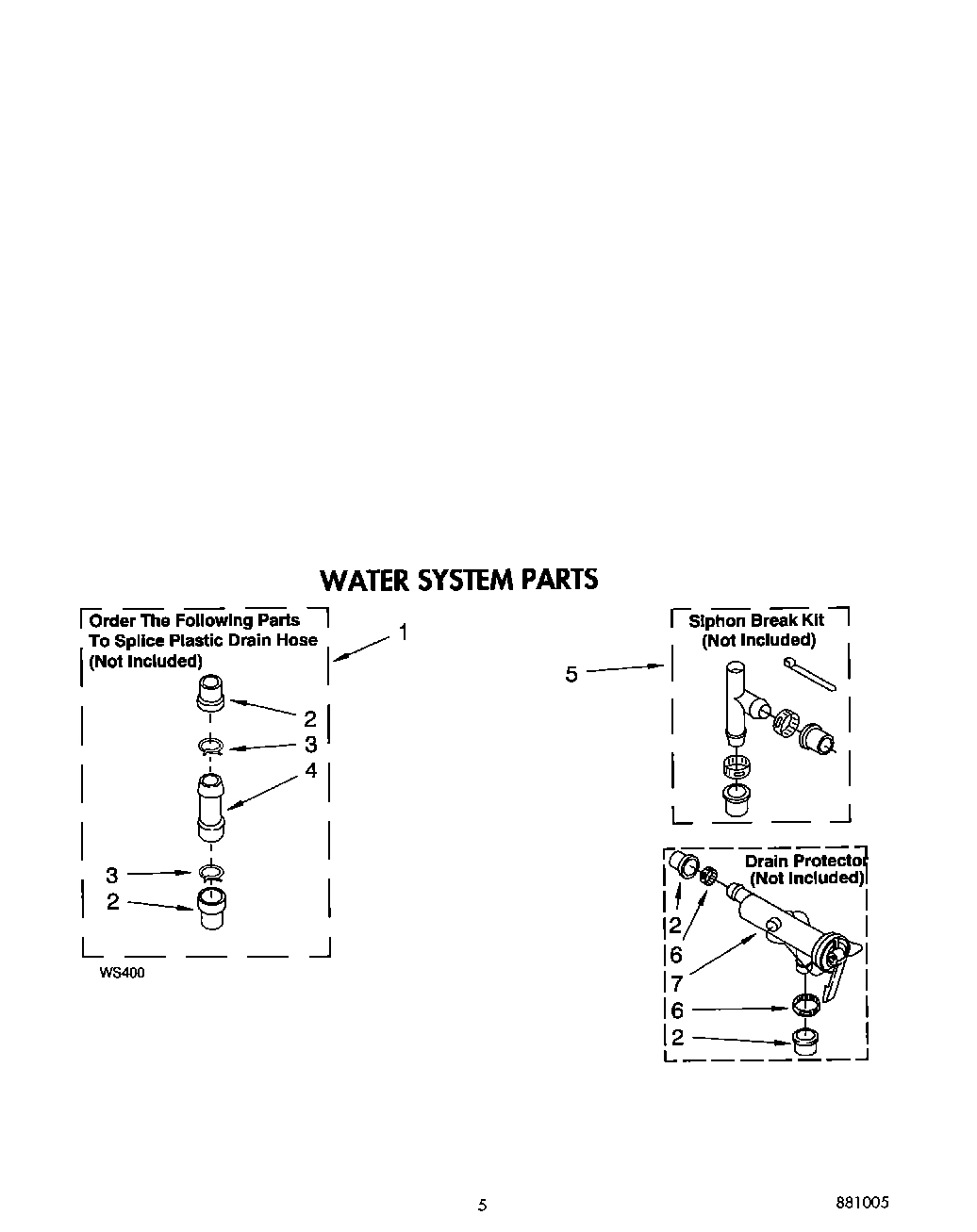

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $19.34

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

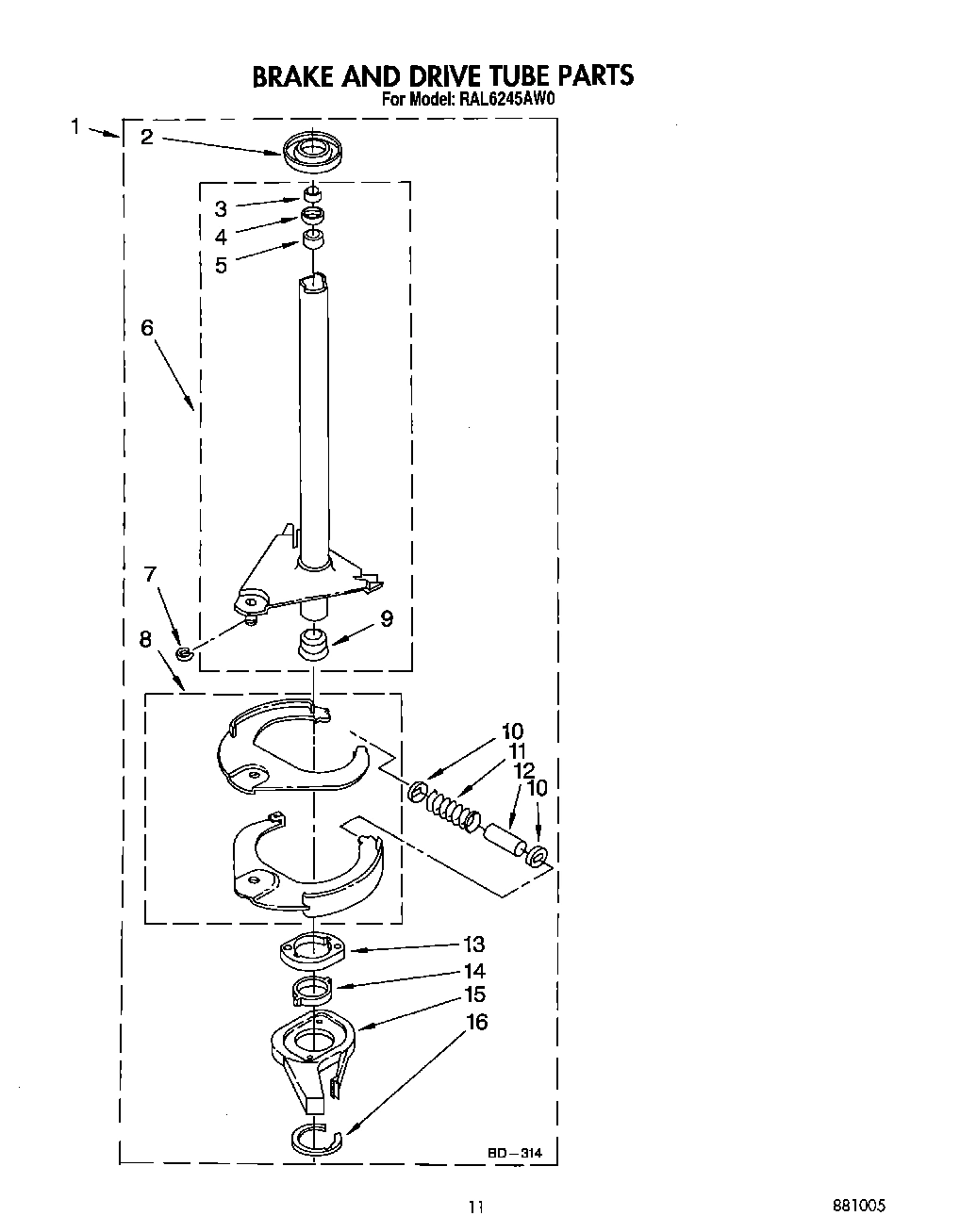

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $108.46

7

WP3956205 Whirlpool Balance Ring In Stock WPL WP3956205 $71.69

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

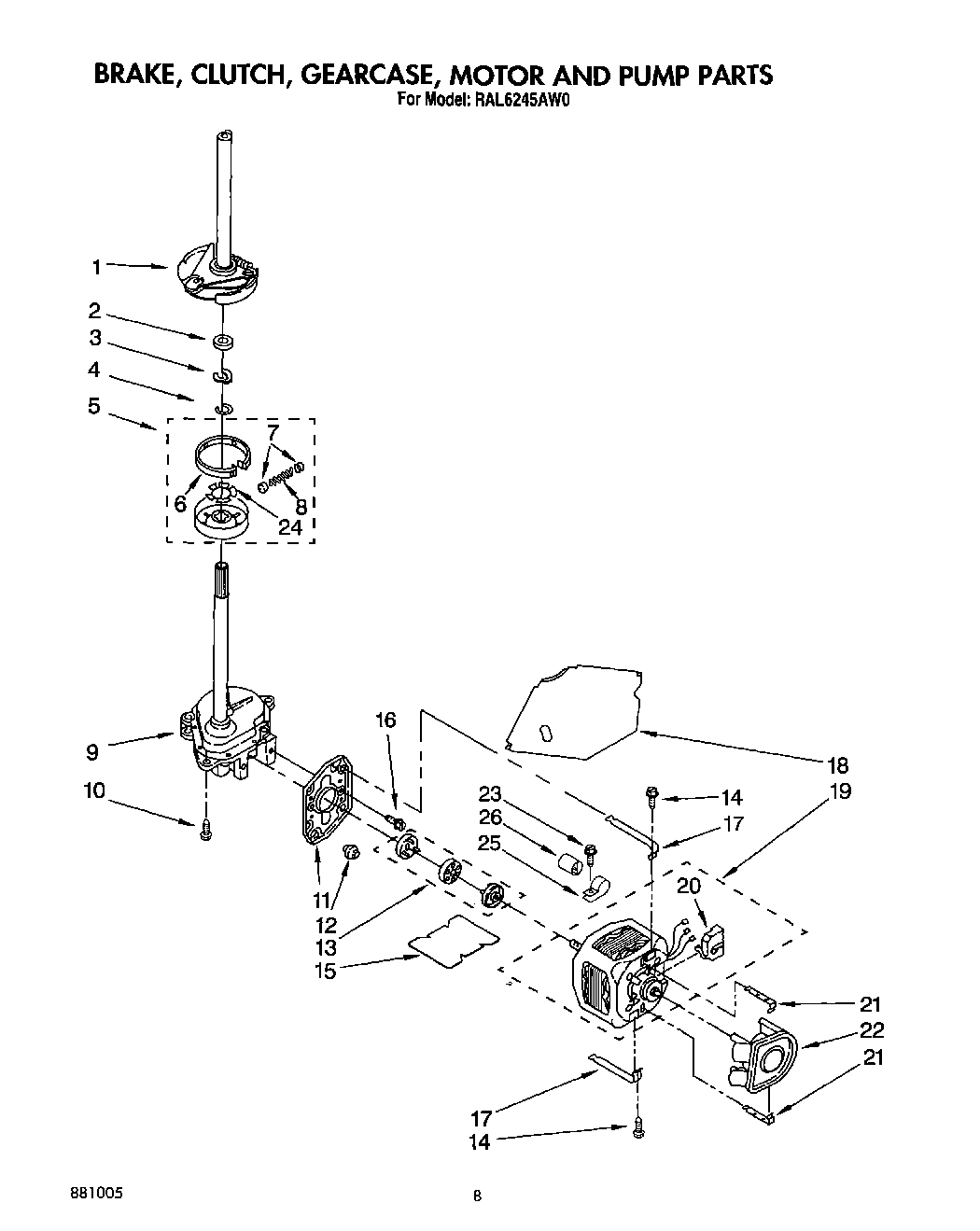

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $185.93

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

10

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP3356465 Whirlpool Washer Water Level Switch Backorder WPL WP3356465 $86.99

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

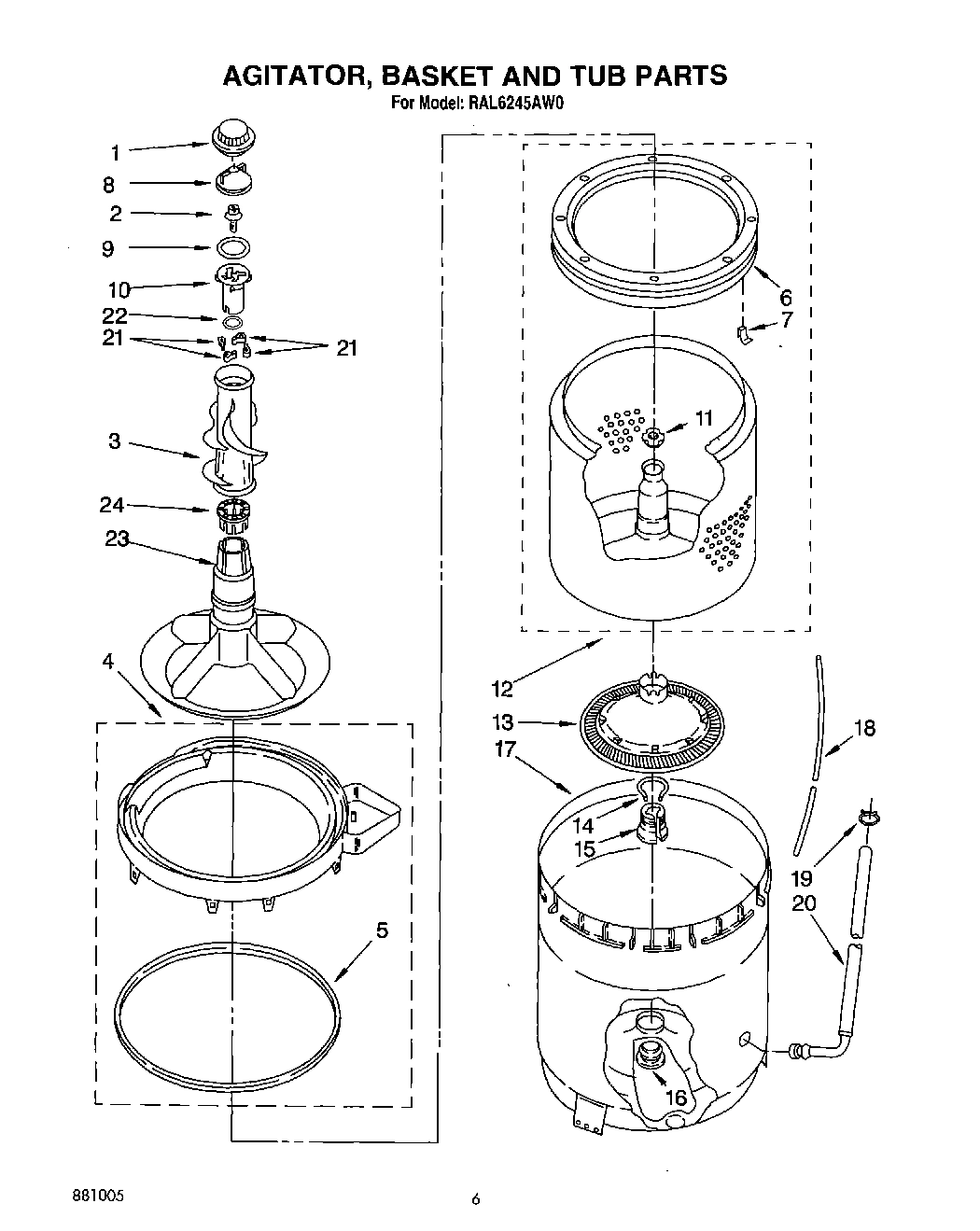

Basket & Balance Ring (Includes Illus. 6) WPL 387713 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $9.92

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

19

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

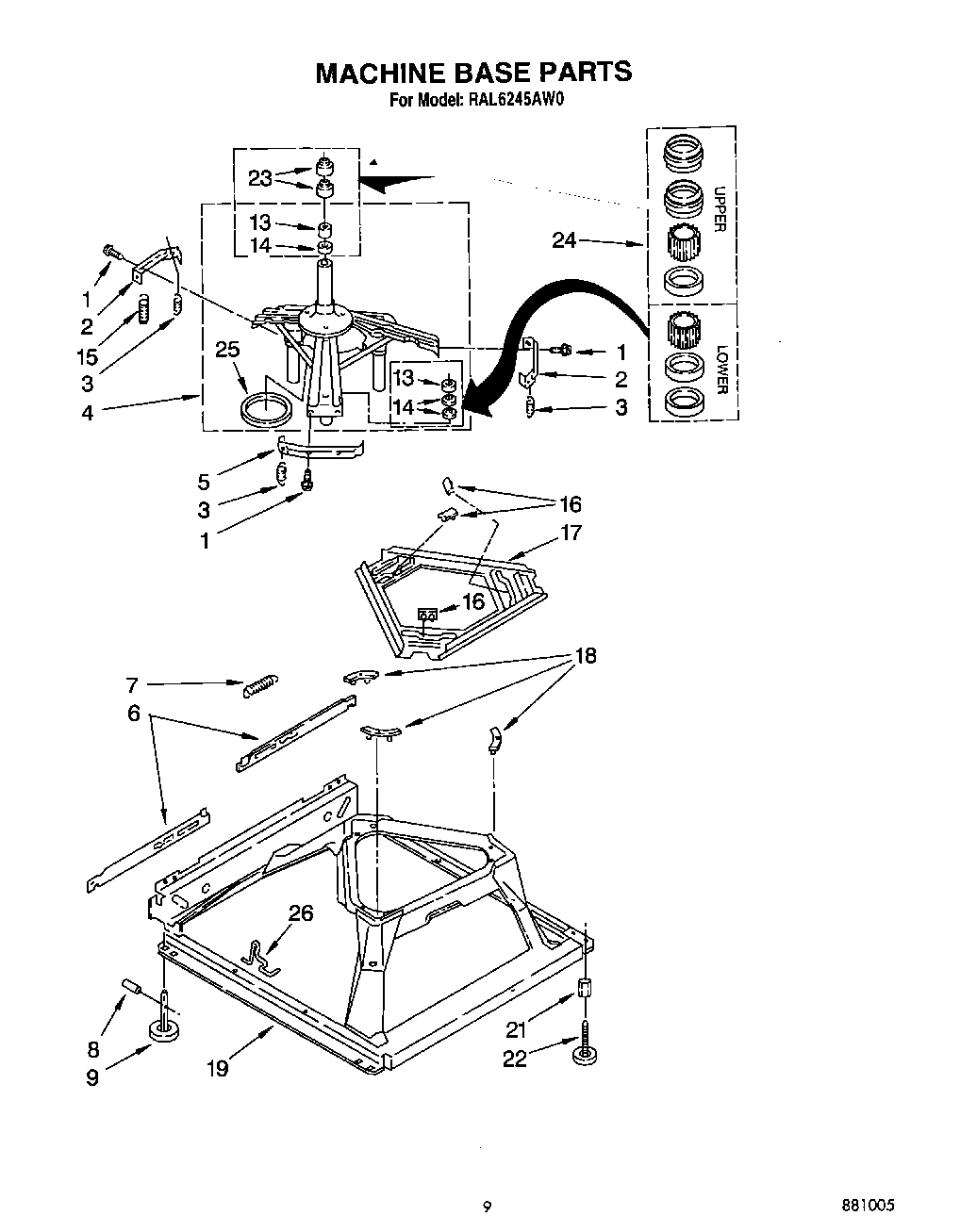

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3352259 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Hose, Bleach WPL 63323 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.15

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $21.92

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Seal, Agitator WPL 357574 Contact Us For Availability

23

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $70.46

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $30.12

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

25

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

35

Switch, Water Temperature WPL 661535 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

39

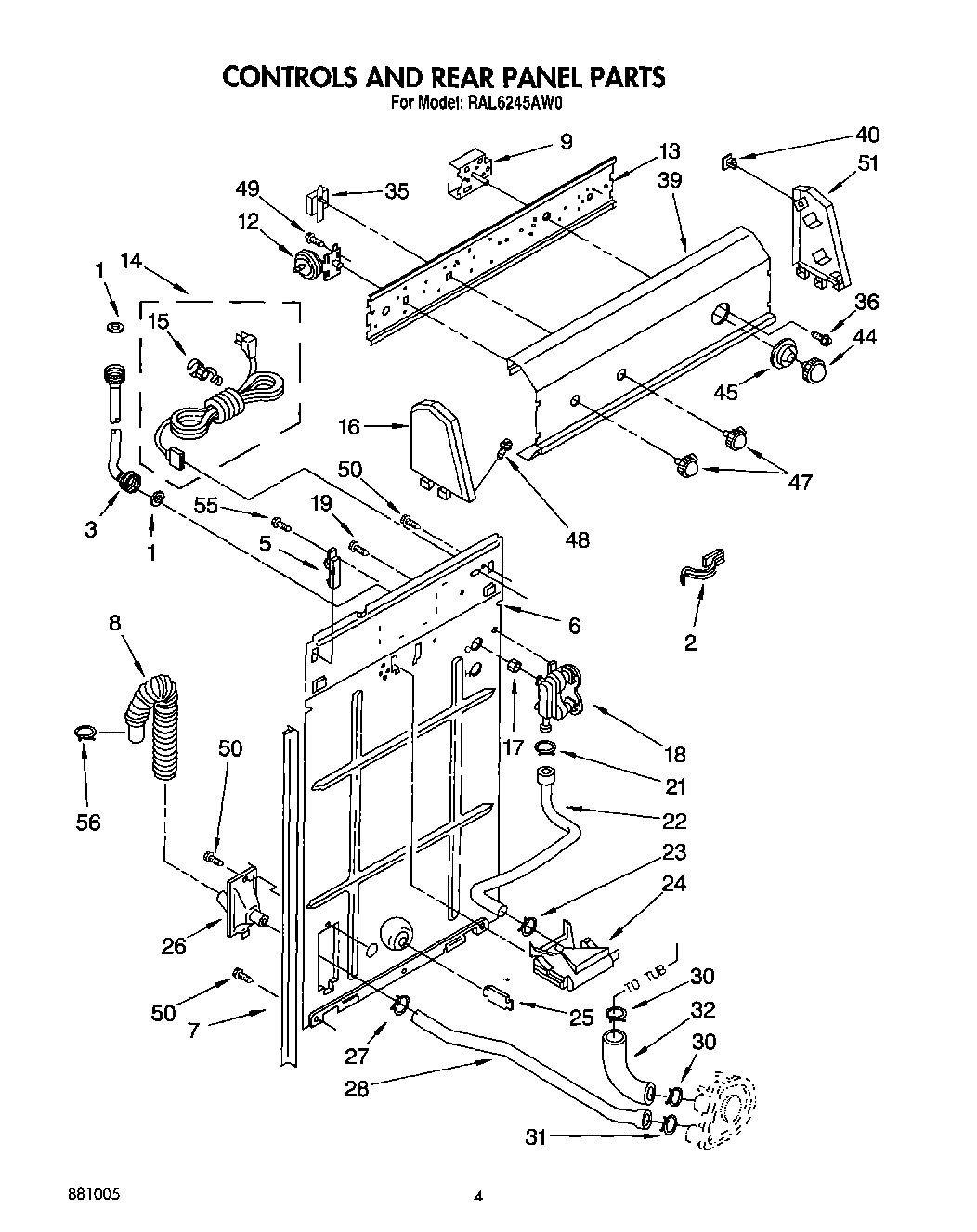

Panel, Console WPL 3359600 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

44

280193 Whirlpool Timer Knob Backorder WPL 280193 $34.97

45

Dial, Timer WPL 3388184 Contact Us For Availability

47

Knob, Control WPL 3352167 Contact Us For Availability

48

Screw, 8-18 WPL 64211 Contact Us For Availability

49

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

Cap, End (R.H.) WPL 3357998 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70
