Model Alliance PTEE3FSP283CG01 PTEE3FSP283CG01 – Common Parts & Diagrams
Dryer Door Without Window

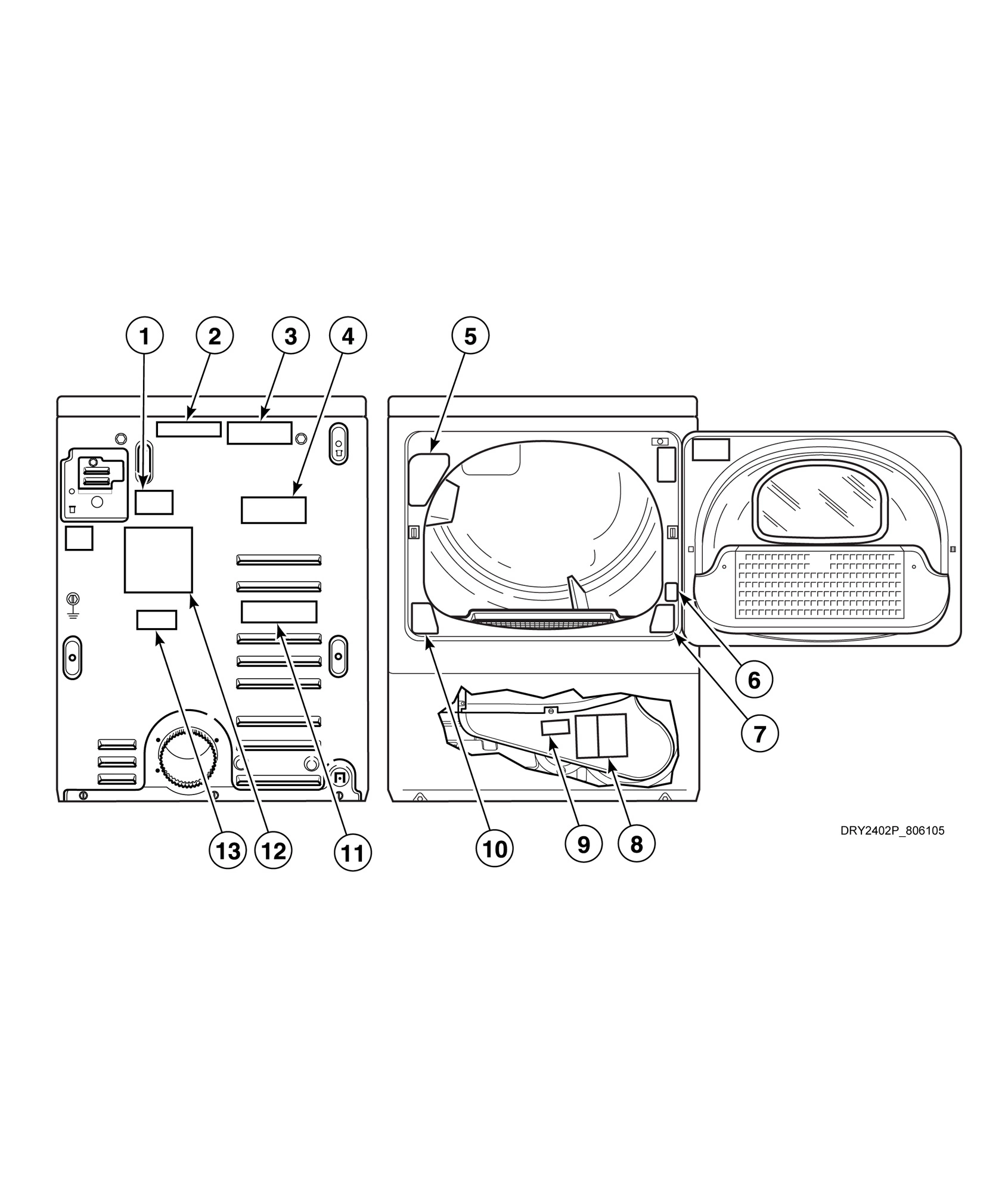

Dryer Labels
Fill Hose
Front Bulkhead, Felt Seal and Cylinder
Front Panel
Heater Duct and Element Assembly (Electric Models)
Heater Kit Assembly (Electric Models)
Idler Assembly
Inner Basket, Trunnion, Bearing Housing and Pulley
Mixing Valve and Valve-to-Dispenser Hose
Motor and Belt
Motor, Exhaust Fan and Belt
Outer Tub, Front and Clamp Ring
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Shipping Materials
Special Tools
Washer Labels
Washer Lead-In Cord, Wire Ties and Harness Clips
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Alliance PTEE3FSP283CG01 PTEE3FSP283CG01
1
Heater Kit Assembly (Comment: 5 kW, 240 Volt/ SPQ 61927 Contact Us For Availability
1
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, SPQ RB170001 Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 803415 Contact Us For Availability
1
Door Strike Mount SPQ D510127 Contact Us For Availability
1
Washer (Comment: Flow restrictor, Water press SPQ 802254 Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) SPQ D511637P Contact Us For Availability
1
Screw SPQ D503688 Contact Us For Availability
1
Idler Spring SPQ D510185 Contact Us For Availability
1
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
1
Washer (Comment: Filter screen) SPQ 803615 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use SPQ 802336 Contact Us For Availability
1
Motor Mount Clamp SPQ D510180 Contact Us For Availability
1
Screw SPQ D503661 Contact Us For Availability
1
Screw SPQ M400043 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) SPQ 804173 Contact Us For Availability
2
Outlet Cover (Comment: Aluminized steel) SPQ D500820 Contact Us For Availability
2
Inverter Control Assembly SPQ 807175P Contact Us For Availability
2
Door Strike SPQ D510181 Contact Us For Availability
2
Balance Ring Assembly SPQ 804393 Contact Us For Availability
2
Moisture Sensor Base SPQ D513738 Contact Us For Availability
2
Front Control Harness (Comment: Washer) SPQ 806031 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l SPQ 392P4 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f SPQ 203719 Contact Us For Availability
2
Panel Locator SPQ 56079 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 SPQ 203720 Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Harness Strap SPQ 55881 Contact Us For Availability
2
Dispenser Inlet Hose SPQ 803849 Contact Us For Availability
3
Motor Pulley (Comment: 60 Hertz) SPQ D500011 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu SPQ D510905WP Contact Us For Availability
3
Bar Sensor (Comment: 2 required) SPQ D513737 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, SPQ D511082P Contact Us For Availability
3
Motor Harness SPQ 806029 Contact Us For Availability
3
Liner Door Seal SPQ D510147P Contact Us For Availability
3
Washer SPQ 20290 Contact Us For Availability
3
Screw (Comment: Use with painted panels) SPQ 39733 Contact Us For Availability
3
Lifter SPQ 804382 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ SPQ D511629P Contact Us For Availability
4
Door Latch Assembly SPQ 803920 Contact Us For Availability
4
Inner Basket Assembly Kit (Comment: Includes SPQ 804376P Contact Us For Availability
4
Mixing Valve Screen SPQ 24122 Contact Us For Availability
4
Screw SPQ D501285 Contact Us For Availability
4
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
5
Liner, Seal and Grill Assembly (Comment: Incl SPQ D516510WP Contact Us For Availability
5
Cylinder Baffle (Comment: 3 required) SPQ D510102W Contact Us For Availability
5
Inner Basket Assembly SPQ 804374P Contact Us For Availability
5
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
5
Washer SPQ 800624 Contact Us For Availability
5
Wire Clip (Comment: Large) SPQ 687500 Contact Us For Availability
5
Security Cabinet Harness SPQ D513991 Contact Us For Availability
6
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 SPQ D510190P Contact Us For Availability
6
Cylinder Assembly (Comment: White) SPQ D510159WP Contact Us For Availability
6
Cylinder Assembly (Comment: Galvanized, Inclu SPQ D510265WP Contact Us For Availability
6
Screw SPQ D500226 Contact Us For Availability
6
Shipping Spacer SPQ 803858 Contact Us For Availability
7
Blower Fan Assembly SPQ D510139P Contact Us For Availability
7
Screw SPQ 61199 Contact Us For Availability
7
Hinge SPQ D511036 Contact Us For Availability
7
Hose Clamp (Comment: Seal to outer tub front) SPQ 802281 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar SPQ 804405P Contact Us For Availability
7
Screw SPQ 62588 Contact Us For Availability
8
Thermistor Assembly (Comment: Black) SPQ D510523 Contact Us For Availability
8
Door Seal (Comment: Black) SPQ 804428P Contact Us For Availability
8
Door Seal Assembly (Comment: Gray) SPQ 804429P Contact Us For Availability
8
Drying Rack SPQ D512082P Contact Us For Availability
8
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
8
Door Pull and Wedge Kit (Comment: Black, Incl SPQ D511213P Contact Us For Availability
9
Cylinder Roller SPQ D510708P Contact Us For Availability
9
Screw SPQ 800548 Contact Us For Availability
9
Dryer Door (Comment: White) SPQ D510013WP Contact Us For Availability
9
Dryer Door (Comment: Stainless steel) SPQ D512969 Contact Us For Availability
9
Pressure Bulb SPQ 803837 Contact Us For Availability
9
Heater Assembly (Comment: 5000 Watt, 240 Volt SPQ D510324P Contact Us For Availability
9
Screw SPQ D500824 Contact Us For Availability
9
Screw SPQ D502535 Contact Us For Availability
9
Washer SPQ M400080 Contact Us For Availability
9
Strain Relief SPQ 38384 Contact Us For Availability
10
Felt Pad (Comment: 2 required) SPQ D510189 Contact Us For Availability
10
Retaining Ring SPQ 23748 Contact Us For Availability
10
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
10
Drive Belt SPQ 804985 Contact Us For Availability
10
Lead-In Cord SPQ 202777 Contact Us For Availability
10
Pulley Assembly SPQ 803974 Contact Us For Availability
10
Hinge Plate SPQ 802206 Contact Us For Availability
10
Hose Clip SPQ 36985 Contact Us For Availability
11
Washer SPQ 52549 Contact Us For Availability
11
Cylinder Glide (Comment: 2 required) SPQ D513710 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes SPQ 805726P Contact Us For Availability
11
Front Panel (Comment: White) SPQ 802277WP Contact Us For Availability
11
Pressure Sensor Tube Assembly SPQ 804483 Contact Us For Availability
11
Front Panel (Comment: Stainless steel) SPQ 802288P Contact Us For Availability
12
Glide Kit (Comment: Includes items 10 and 11 SPQ RB170003 Contact Us For Availability
12
Washer SPQ D504082 Contact Us For Availability
12
Screw (Comment: Left hand thread) SPQ 685831 Contact Us For Availability
12
Nut SPQ 52566 Contact Us For Availability
13
Shaft SPQ 56461P Contact Us For Availability
13
Cylinder Glide Bracket (Comment: 2 required) SPQ D510145 Contact Us For Availability
13
Grommet SPQ 29175 Contact Us For Availability
13
Nut SPQ 36020 Contact Us For Availability
13
Washer (Comment: Used through Serial No. 1609 SPQ M403958 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items SPQ RB170002 Contact Us For Availability
14
Screw SPQ 801045 Contact Us For Availability
14
Outer Tub Assembly SPQ 803864 Contact Us For Availability
14
Front Bulkhead Assembly (Comment: Includes it SPQ D515532 Contact Us For Availability
15
Access Panel Assembly (Comment: White) SPQ D514250WP Contact Us For Availability
15
Nut SPQ 56156 Contact Us For Availability
15
Access Panel Assembly (Comment: Stainless ste SPQ D514251 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa SPQ 805525 Contact Us For Availability
16
Counterweight SPQ 803810 Contact Us For Availability
17
Tub Front SPQ 803770 Contact Us For Availability
20
Foreign Object Deflector (Comment: Black, Inc SPQ 806308 Contact Us For Availability
20
Foreign Object Deflector (Comment: Gray, Incl SPQ 806313 Contact Us For Availability
20
Foreign Object Deflector (Comment: Tall, Gray SPQ 806361 Contact Us For Availability
21
Tub Front Seal SPQ 803801 Contact Us For Availability
22
Clamp Ring SPQ 803802 Contact Us For Availability
25
Screw SPQ 800462 Contact Us For Availability
26
Screw SPQ 802596 Contact Us For Availability
27
Clothes Guard Deflector SPQ 804467 Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) SPQ 805548 Contact Us For Availability
28
Tub Front Assembly (Comment: Includes items 1 SPQ 803879 Contact Us For Availability
29
Nut SPQ 802343 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner SPQ 27604P Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by SPQ 45380 Contact Us For Availability
NA
Bearing Kit SPQ 805730 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by SPQ 45001 Contact Us For Availability
× ![]()
