Model Primus PFNJEASP115CN01 Washer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 3)
Control Panel and Controls (Drawing 2 of 3)
Control Panel and Controls (Drawing 3 of 3)
Top Assembly
Network Board Assembly
Control Cabinet
Non-Electronic Coin Drop, Cabinet Front and Wrapper Assembly
Electronic Coin Drop
Control Cabinet Controls - Front Control
Card Reader Ready Models

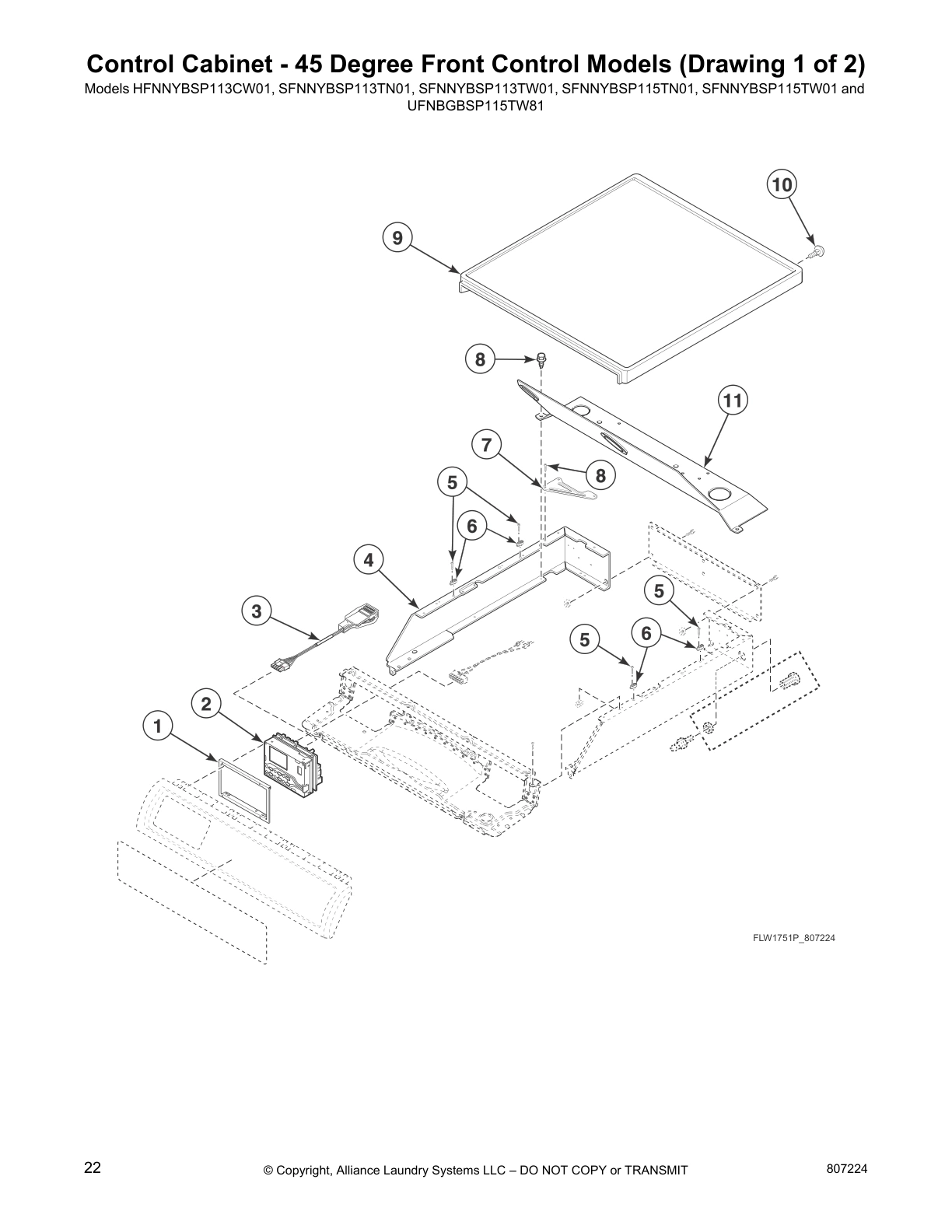

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Coin Drop, Meter Case and Cabinet Top (Drawing 1 of 2)
Coin Drop, Meter Case and Cabinet Top (Drawing 2 of 2)
Control Panel, Control Hood and Controls (Drawing 1 of 3)
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)

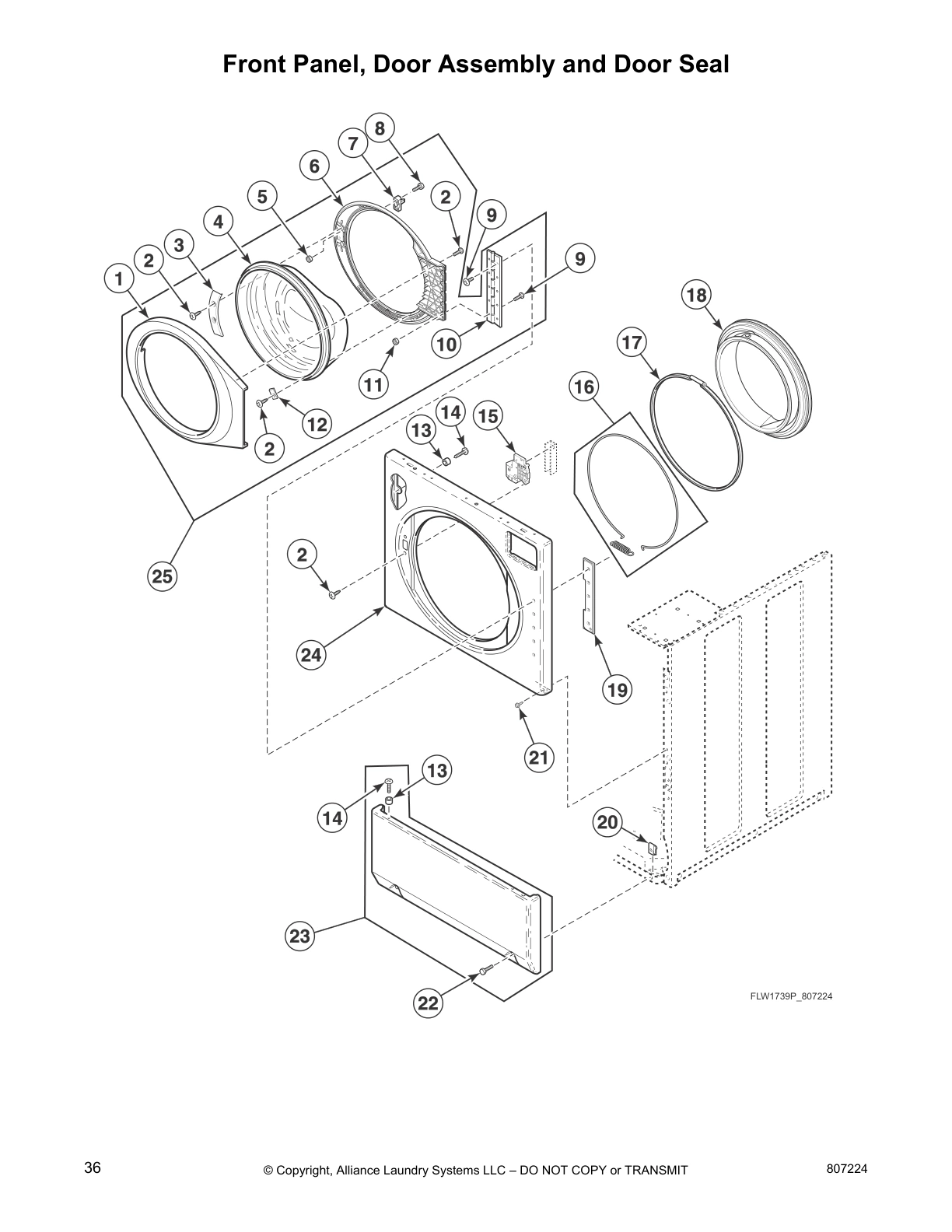

Front Panel, Door Assembly and Door Seal
Front Panel Assembly
Dispenser Assembly
Mixing Valve, Dispenser Hose and Fill Hose
Outer Tub, Clamp Ring and Shock Absorbers
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Drain Hose and Pump
Side, Base and Rear Panels
Junction Box
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Washer Labels
Wire Harnesses and Wires
Common parts from model Primus PFNJEASP115CN01 Washer
SPQ 805726P SPQ 805726P Contact Us For Availability
SPQ 808095 SPQ 808095 Contact Us For Availability
SPQ 802695P SPQ 802695P Contact Us For Availability
SPQ 803615 SPQ 803615 Contact Us For Availability
SPQ 803789 SPQ 803789 Contact Us For Availability
SPQ 801993 SPQ 801993 Contact Us For Availability
SPQ 808067P SPQ 808067P Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability
1
Electronic Coin Drop Kit SPQ CK115 Contact Us For Availability
1
Front Control Harness SPQ 806031 Contact Us For Availability
1
Mounting Tool Kit SPQ CK096 Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Lock Assembly SPQ 804339P Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
1
Meter Case Assembly SPQ 807396W Contact Us For Availability
2
Ratchet Extension Tool SPQ 310P4 Contact Us For Availability
2
Hinge Plate SPQ 806466 Contact Us For Availability
2
Inner Basket Assembly SPQ 804393 Contact Us For Availability
2
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
2
Dispenser Inlet Hose SPQ 803669 Contact Us For Availability
2
Tub-to-Pump Hose SPQ 33489 Contact Us For Availability
2
Screw SPQ 806313 Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Electronic Coin Drop Assembly SPQ CK110 Contact Us For Availability
2
Harness Strap SPQ 55881 Contact Us For Availability
3
Inverter Control Assembly SPQ 807175P Contact Us For Availability
3
Pressure Sensor SPQ 203843 Contact Us For Availability
3
Screw SPQ D512973 Contact Us For Availability
3
Motor Harness SPQ 806029 Contact Us For Availability
3
Mixing Valve SPQ 803849 Contact Us For Availability
3
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
3
Coin Drop Assembly SPQ 201595P Contact Us For Availability
3
Trunnion Shaft Kit SPQ 804382 Contact Us For Availability
3
Coin Drop SPQ 70441603 Contact Us For Availability
3
Hose Clip SPQ 36985 Contact Us For Availability
3
Hinge SPQ 803868WP Contact Us For Availability
3
Detergent Hose SPQ 801001 Contact Us For Availability
3
SPQ 805548 SPQ 805548 Contact Us For Availability
4
Mixing Valve Screen SPQ 807837P Contact Us For Availability
4
Bearing Kit SPQ 804376P Contact Us For Availability
4
Door Catch Assembly SPQ 801045 Contact Us For Availability
4
Wrench SPQ 392P4 Contact Us For Availability
4
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
4
Coin Drop SPQ 70441602 Contact Us For Availability
4
SPQ 804467 SPQ 804467 Contact Us For Availability
5
Nut SPQ 70441601P Contact Us For Availability
5
Top Mounting Bracket SPQ D511036 Contact Us For Availability
5
Washer SPQ 24122 Contact Us For Availability
5
SPQ 803879 SPQ 803879 Contact Us For Availability
5
Anti-Seize Compound SPQ 804374P Contact Us For Availability
5
Screw SPQ 39733 Contact Us For Availability
5
Pump-to-Elbow Hose SPQ 35766 Contact Us For Availability
6
SPQ 804617W SPQ 804617W Contact Us For Availability
6
Fill Hose SPQ 20290 Contact Us For Availability
6
Cabinet Panel Kit SPQ 800004WP Contact Us For Availability
6
Backflow Preventer SPQ 52909 Contact Us For Availability
6
SPQ 802343 SPQ 802343 Contact Us For Availability
7
Washer SPQ 203720 Contact Us For Availability
8
Bumper Pad SPQ D503688 Contact Us For Availability
8
Overlay SPQ 802905 Contact Us For Availability
8
Strain Relief SPQ 38384 Contact Us For Availability
9
Lead-In Cord SPQ 202777 Contact Us For Availability
9
Dual Coin Harness Assembly SPQ 200674P Contact Us For Availability
9
SPQ 800310 SPQ 800310 Contact Us For Availability
9
SPQ 802288P SPQ 802288P Contact Us For Availability
9
Motor and Rod Assembly Kit SPQ M400080 Contact Us For Availability
9
Control Panel SPQ 70240301 Contact Us For Availability
9
Coin Identification Paper SPQ 201375P Contact Us For Availability
10
Pressure Bulb SPQ 803415 Contact Us For Availability
10
Pulley Assembly SPQ 803974 Contact Us For Availability
10
Screw SPQ D503661 Contact Us For Availability
11
Dispenser Assembly SPQ 803698 Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
12
Dispenser Drawer SPQ 803667 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Side Panel Kit SPQ 806492 Contact Us For Availability
13
Panel Locator SPQ 802934 Contact Us For Availability
13
Hose Clamp SPQ 804483 Contact Us For Availability
13
Washer SPQ M403958 Contact Us For Availability
13
Central Pay Harness SPQ 203423 Contact Us For Availability
14
Rubber Foot SPQ D501855 Contact Us For Availability
14
Switch SPQ 38717 Contact Us For Availability
14
Screw SPQ 23951 Contact Us For Availability
14
Bearing Housing Kit SPQ M400043 Contact Us For Availability
15
Rubber Foot SPQ 34318 Contact Us For Availability
15
Compartment Cover SPQ 804227WP Contact Us For Availability
15
Door Latch Assembly SPQ 802700 Contact Us For Availability
15
Pump Housing Assembly SPQ 802429P Contact Us For Availability
16
Lifter SPQ 805525 Contact Us For Availability
16
Anchor Floor Mount Assembly SPQ 802844P Contact Us For Availability
16
Wire Ring and Spring SPQ 56079 Contact Us For Availability
16
Pump Housing SPQ 802434P Contact Us For Availability
17
Anchor SPQ 155P3 Contact Us For Availability
17
Tub Front SPQ 803864 Contact Us For Availability
17
Gasket SPQ 802428 Contact Us For Availability
17
Hose Clamp SPQ 806086 Contact Us For Availability
18
Leveling Leg SPQ 34319 Contact Us For Availability
18
Foreign Object Deflector SPQ 803770 Contact Us For Availability
18
Lid Assembly SPQ 802427 Contact Us For Availability
19
Door Seal SPQ 803920 Contact Us For Availability
19
Nut SPQ 21899 Contact Us For Availability
19
Tub Front Seal SPQ 806361 Contact Us For Availability
19
Standpipe Strap SPQ 802426P Contact Us For Availability
20
Access Panel Assembly SPQ 802281 Contact Us For Availability
20
Clamp Ring SPQ 806308 Contact Us For Availability
20
Sealant SPQ 803829 Contact Us For Availability
21
Front Panel SPQ 804429P Contact Us For Availability
21
Nut SPQ 803801 Contact Us For Availability
22
Door Assembly SPQ 804428P Contact Us For Availability
23
Clothes Guard Deflector SPQ 803802 Contact Us For Availability
23
Door Glass Mounting Plate SPQ 802206 Contact Us For Availability
23
Coin Identification Paper SPQ 38725 Contact Us For Availability
24
Door Glass SPQ 800548 Contact Us For Availability
25
Inner Door Bezel SPQ 36020 Contact Us For Availability
26
Pop Rivet SPQ 800462 Contact Us For Availability
27
Grommet SPQ 802596 Contact Us For Availability
NI
SPQ 802803 SPQ 802803 Contact Us For Availability
NI
SPQ 27604P SPQ 27604P Contact Us For Availability
NI
Wireless Network Kit SPQ 54612 Contact Us For Availability
NI
SPQ 802254 SPQ 802254 Contact Us For Availability
NI
Belt Install Tool SPQ 804985 Contact Us For Availability
NI
SPQ 29175 SPQ 29175 Contact Us For Availability
NI
SPQ 802277WP SPQ 802277WP Contact Us For Availability
NI
SPQ 804717 SPQ 804717 Contact Us For Availability
NI
SPQ F200204 SPQ F200204 Contact Us For Availability
NI
SPQ 203719 SPQ 203719 Contact Us For Availability
NI
SPQ 801019 SPQ 801019 Contact Us For Availability
NI
SPQ 122P4P SPQ 122P4P Contact Us For Availability
NI
SPQ 38462P SPQ 38462P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ D510136 Contact Us For Availability
NI
Screw SPQ 807429P Contact Us For Availability
NI
SPQ 685846 SPQ 685846 Contact Us For Availability
NI
SPQ 36226 SPQ 36226 Contact Us For Availability
NI
Paint SPQ 806716 Contact Us For Availability
NI
SPQ 805771 SPQ 805771 Contact Us For Availability
NI
SPQ 805730 SPQ 805730 Contact Us For Availability
NI
SPQ 803859 SPQ 803859 Contact Us For Availability
NI
SPQ 44087201 SPQ 44087201 Contact Us For Availability
NI
SPQ 23008 SPQ 23008 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
