Model Whirlpool MLG19PRAXW ELECTRIC DRYER – Common Parts & Diagrams

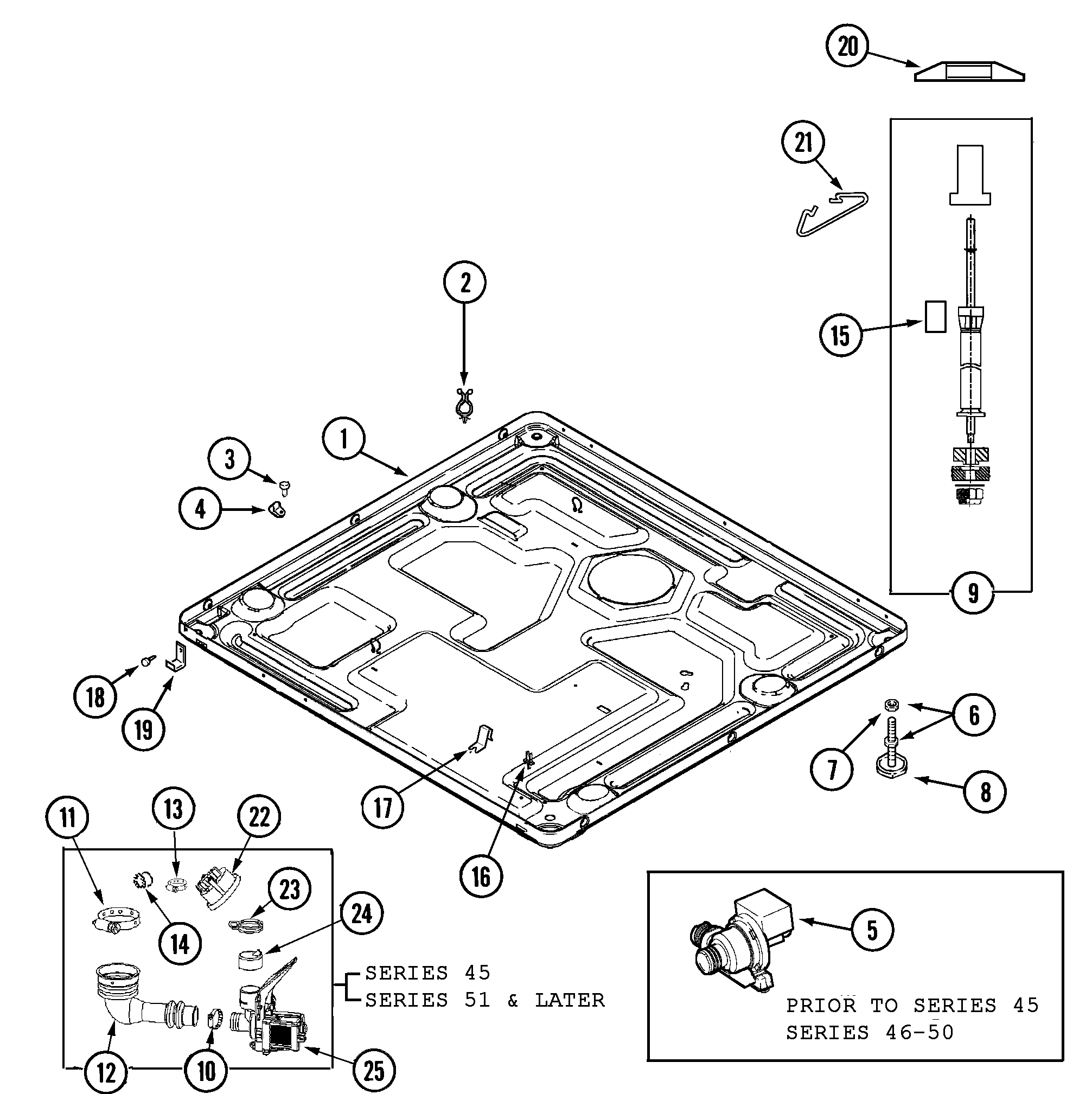

14 - BASE (WASHER)

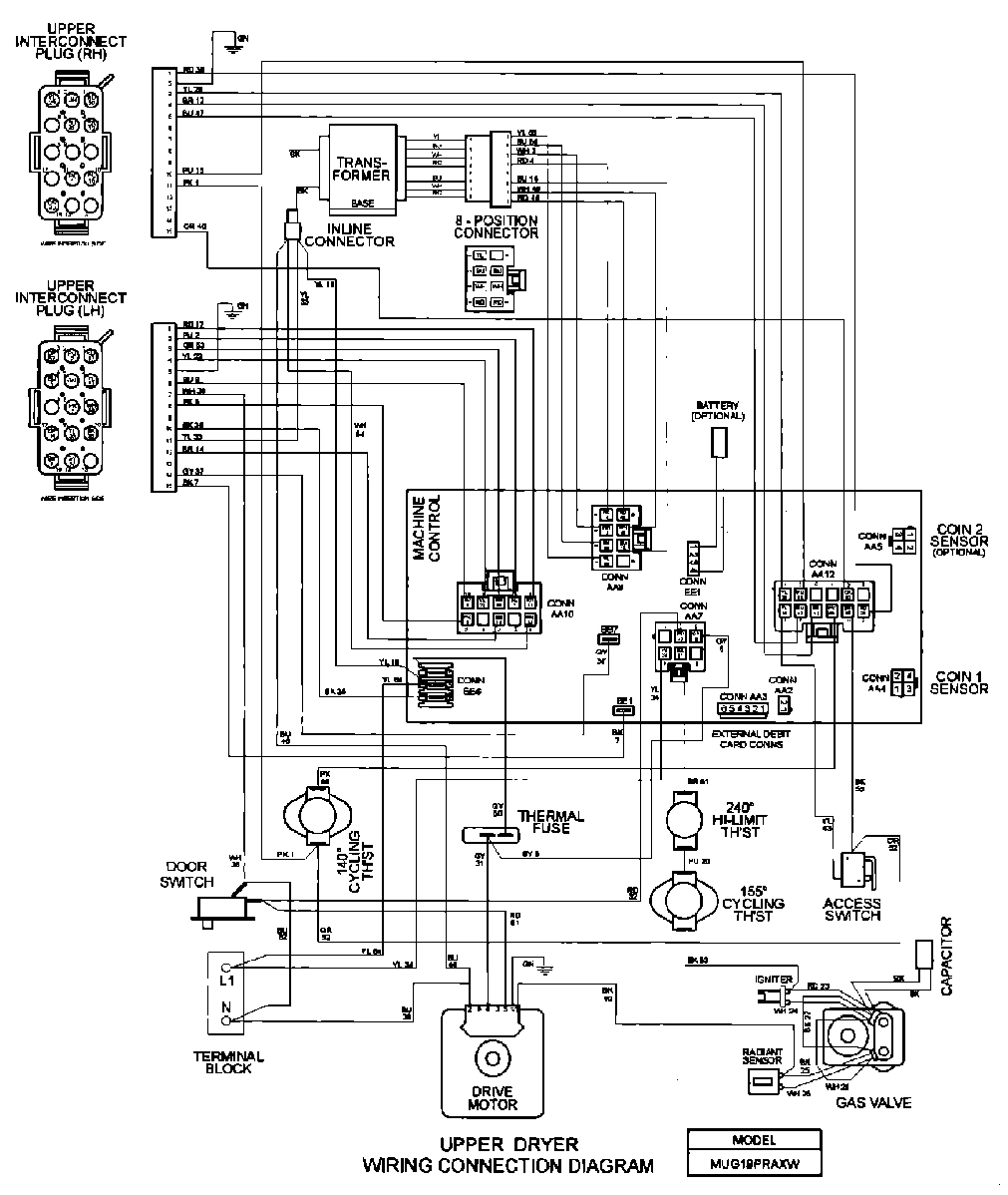

15 - WIRING INFORMATION

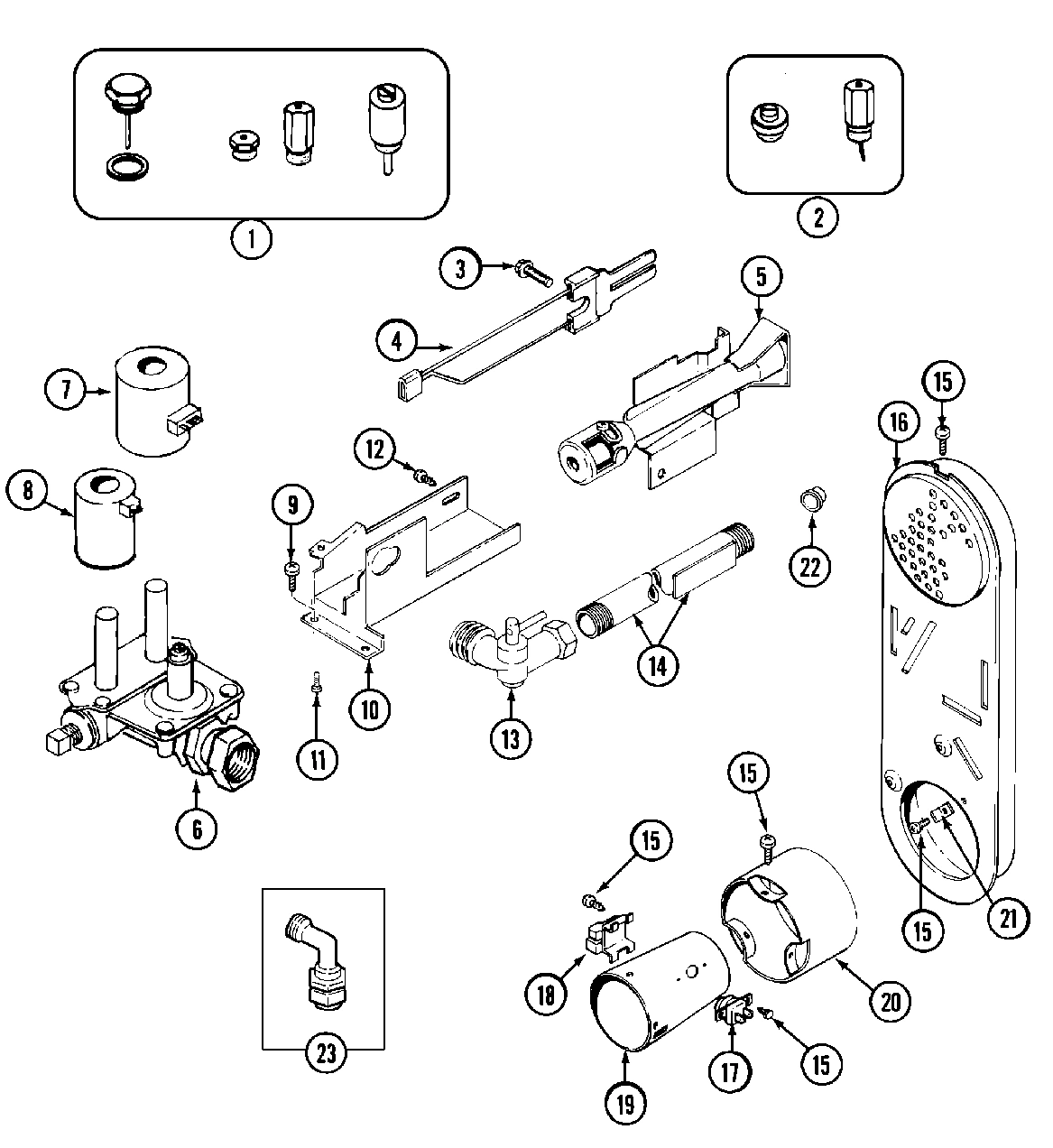

06 - GAS VALVE (DRYER)

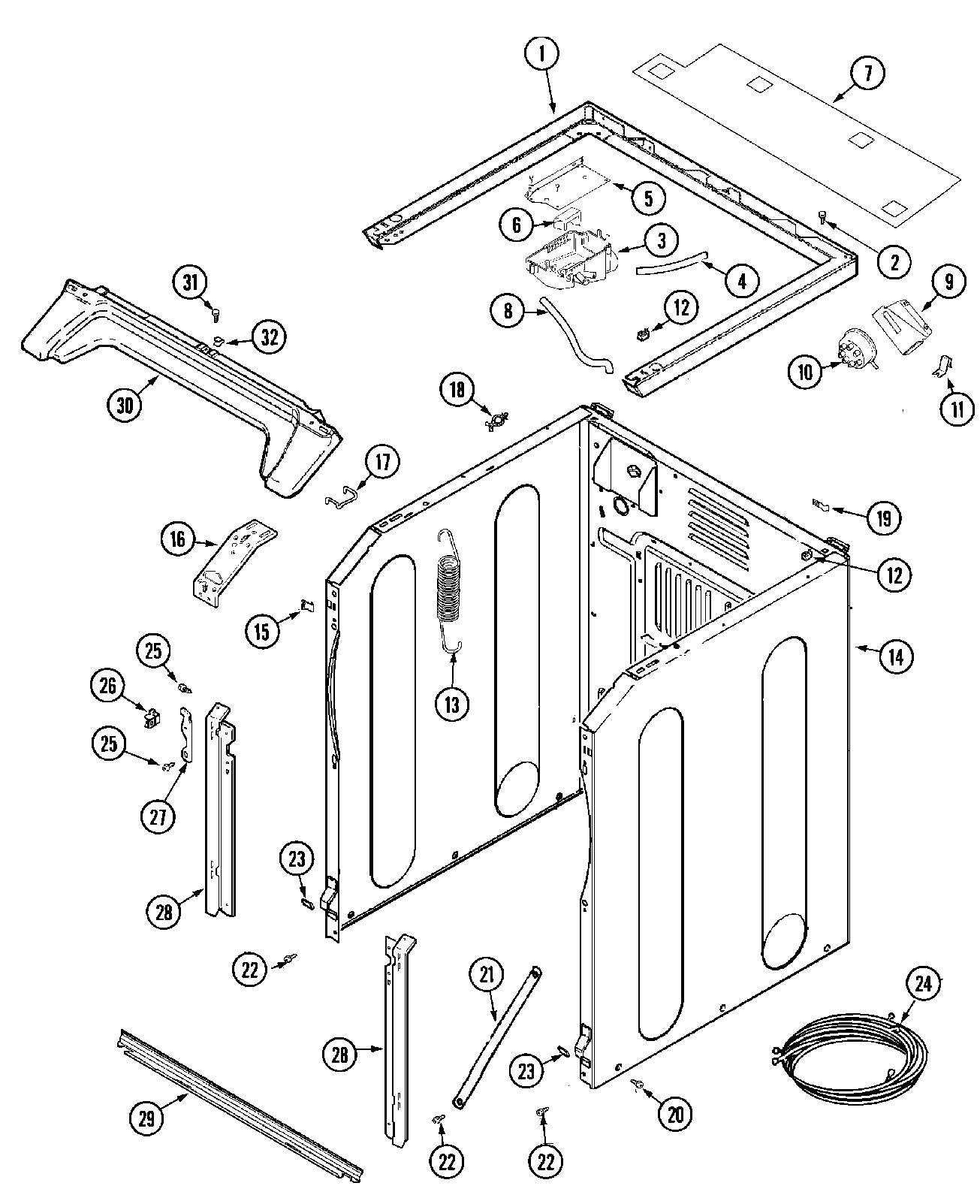

08 - CABINET-FRONT (WASHER)

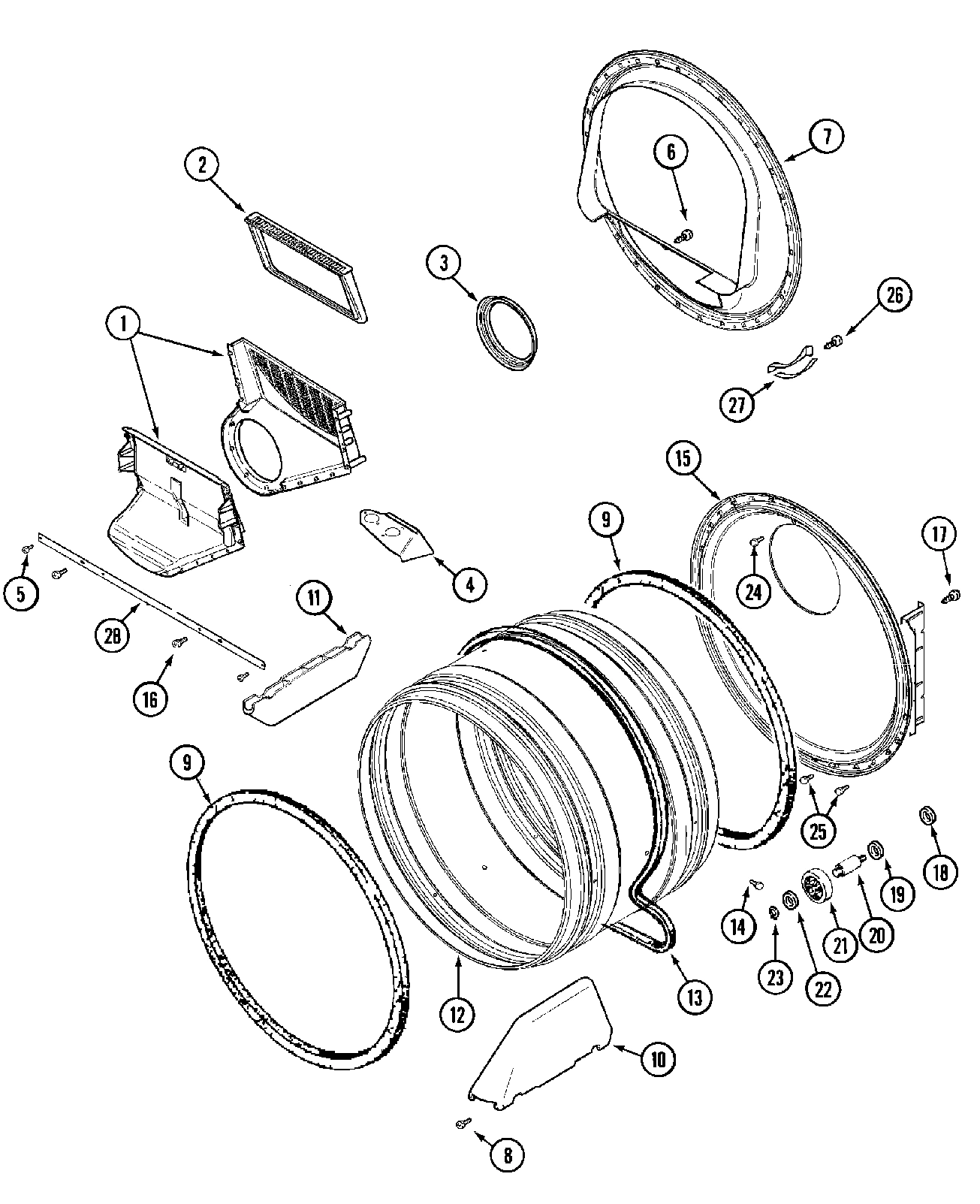

05 - TUMBLER (DRYER)
07 - MOTOR DRIVE (DRYER)

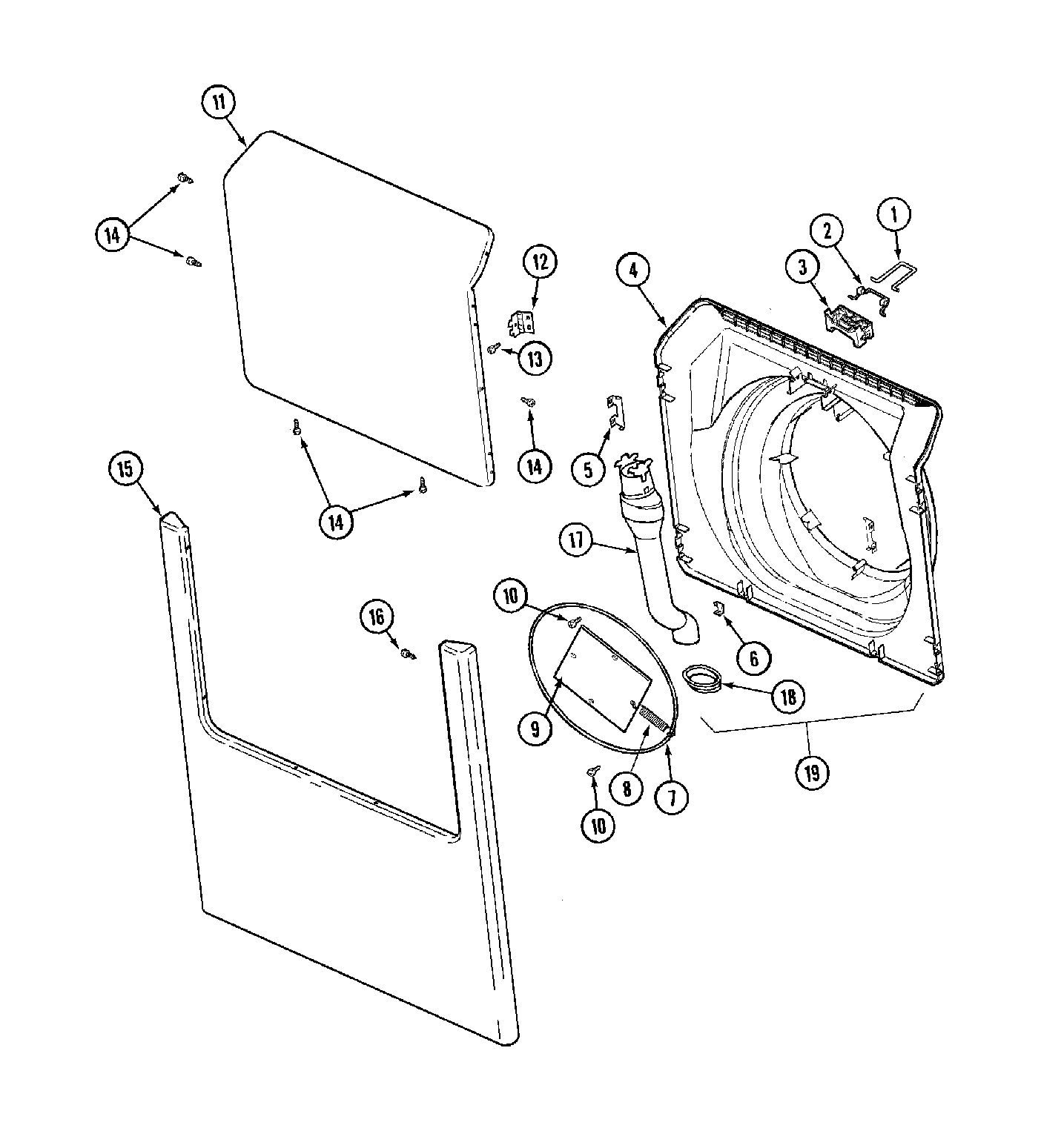

10 - DOOR & FRONT PANEL (WASHER)

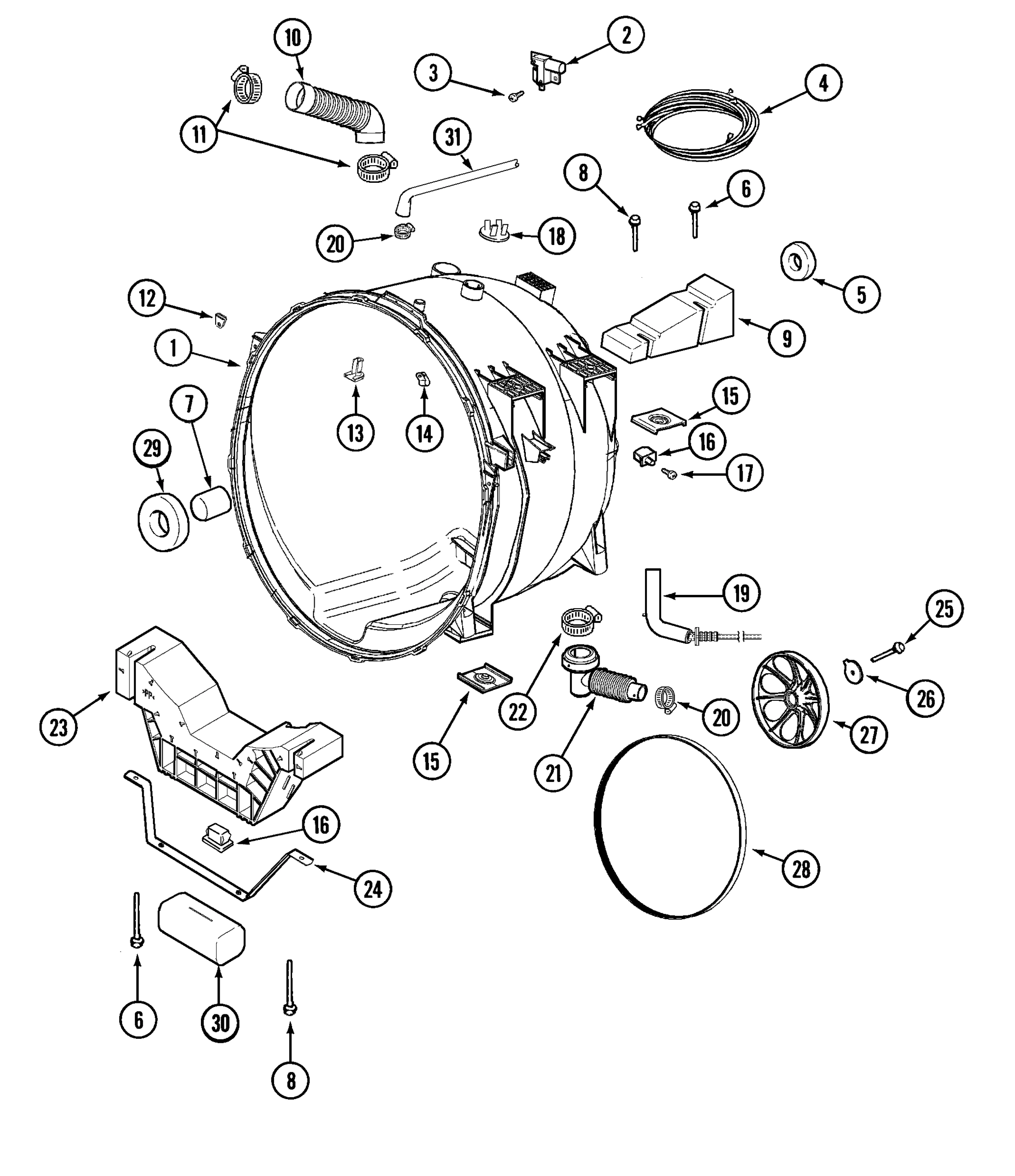

12 - OUTER TUB (WASHER)

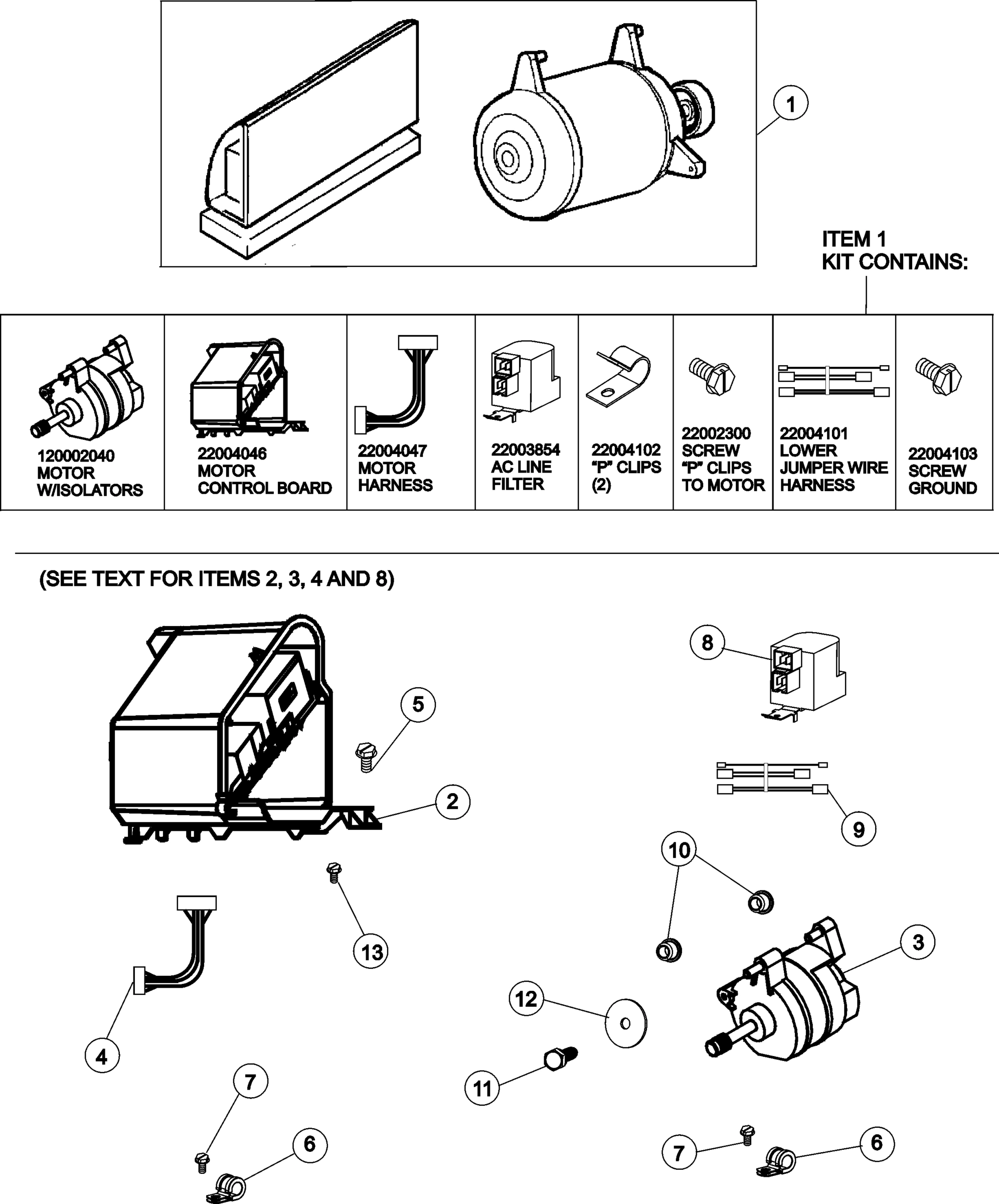

16 - MOTOR & MOTOR CONTROL

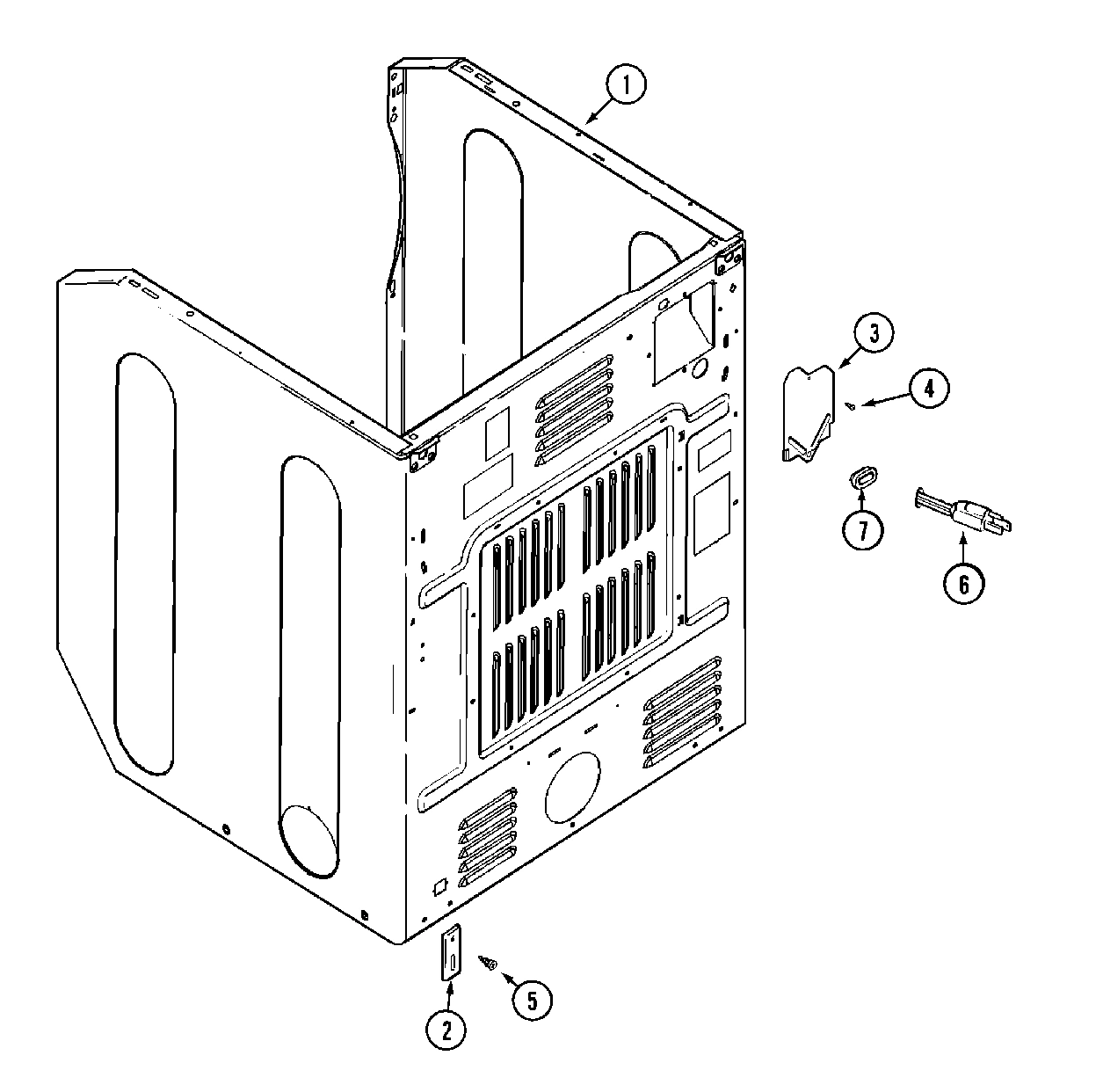

04 - CABINET-REAR (DRYER)

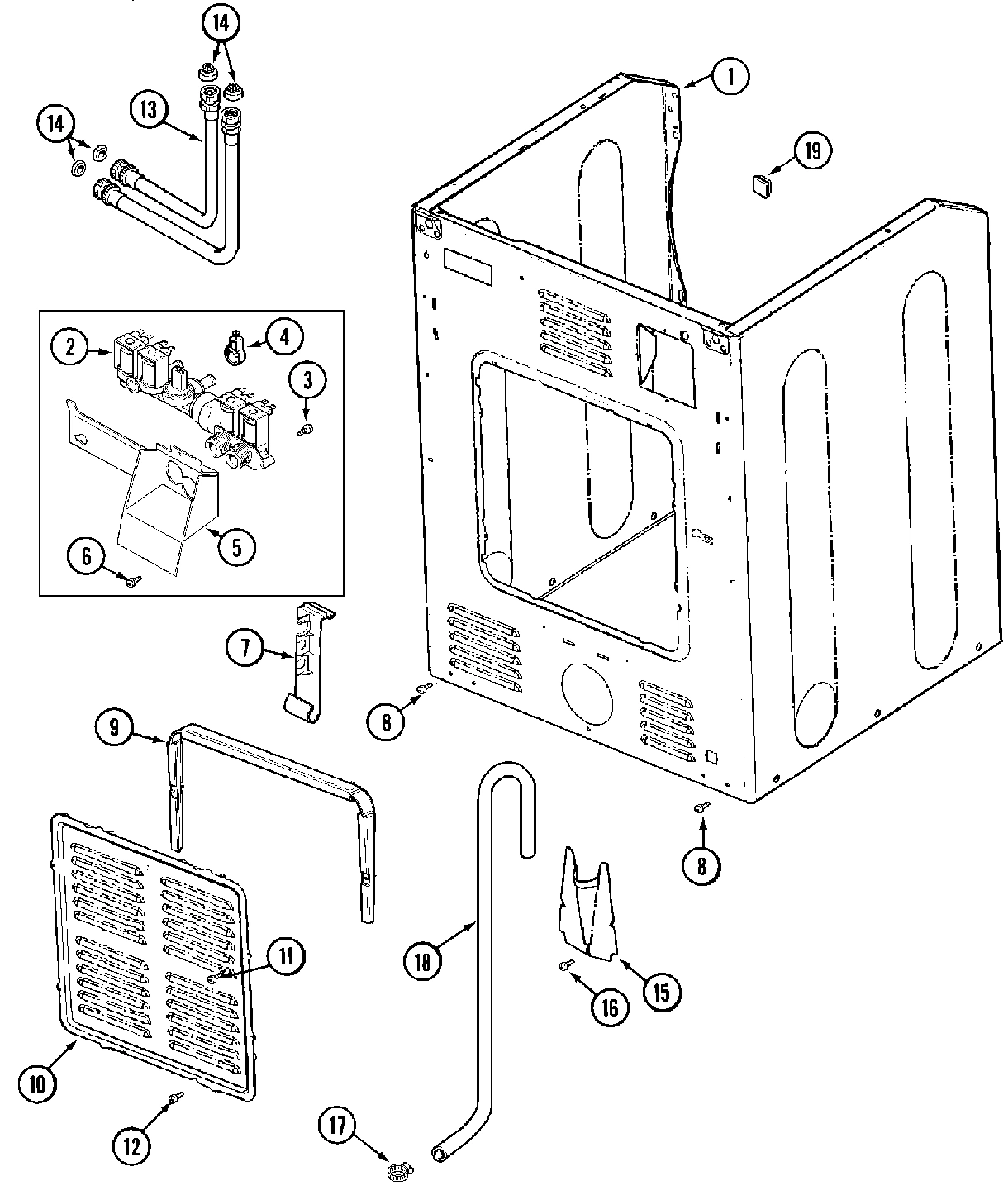

11 - CABINET-REAR (WASHER)
01 - CONTROL PANEL (DRYER)

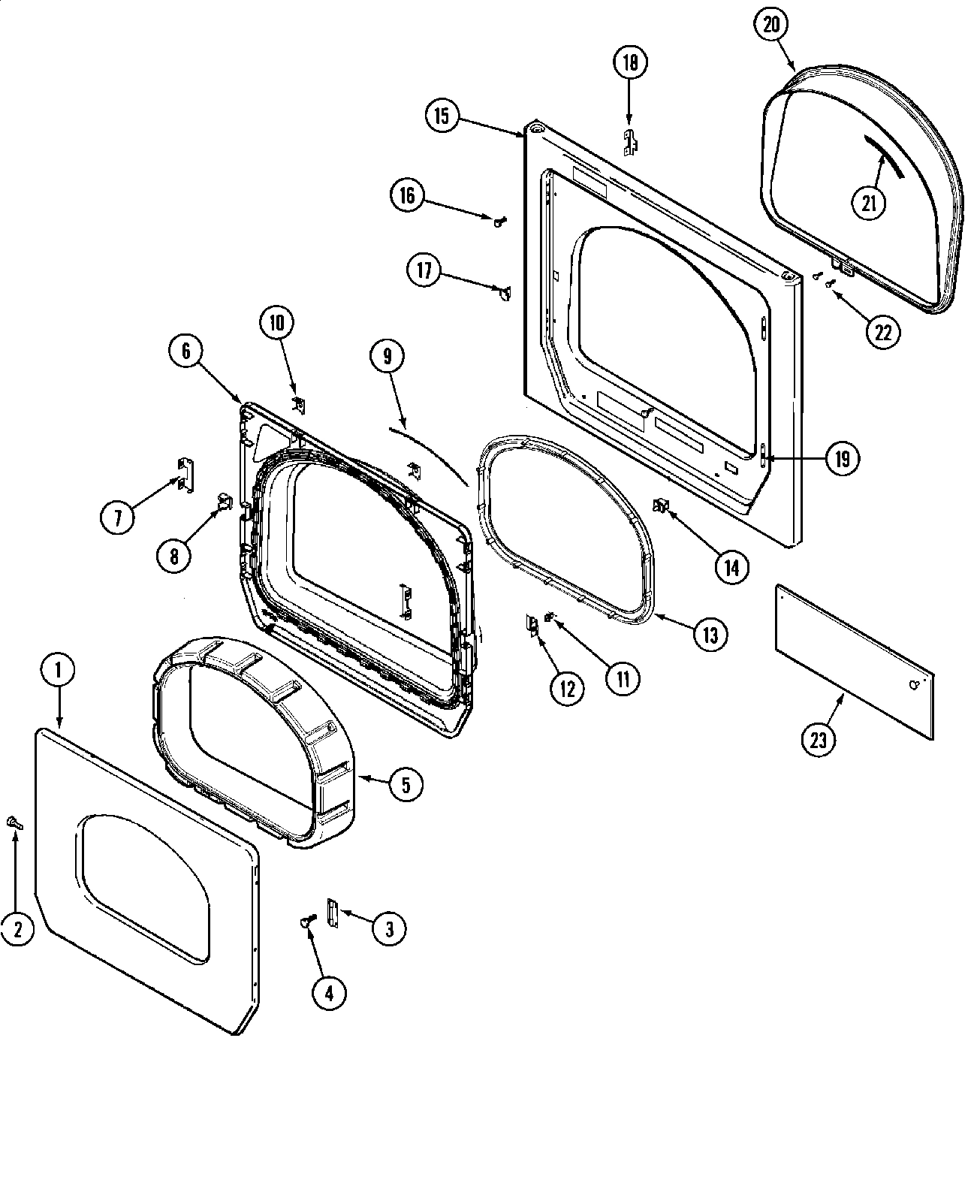

03 - DOOR (DRYER)
02 - CABINET-FRONT (DRYER)

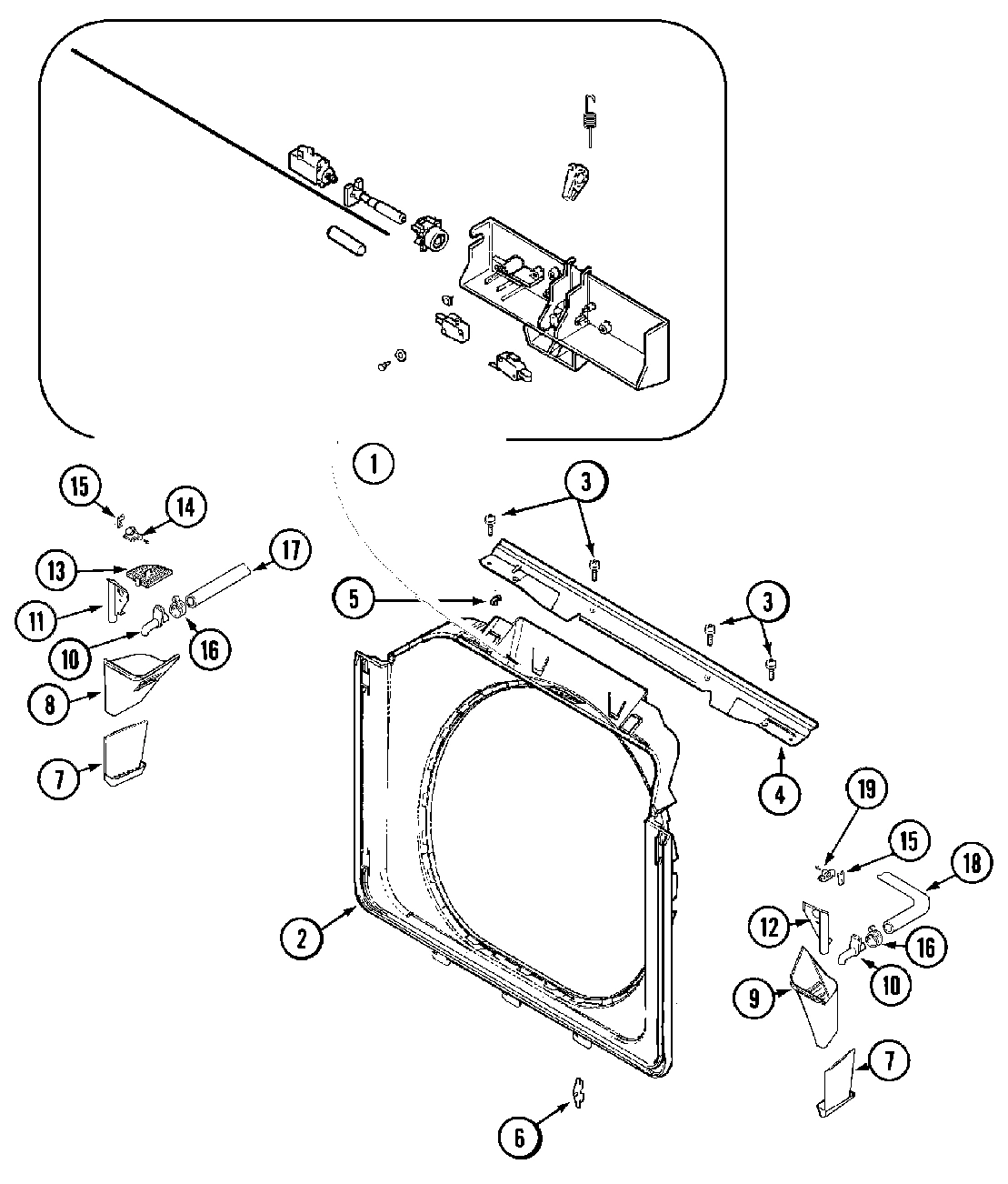

09 - DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

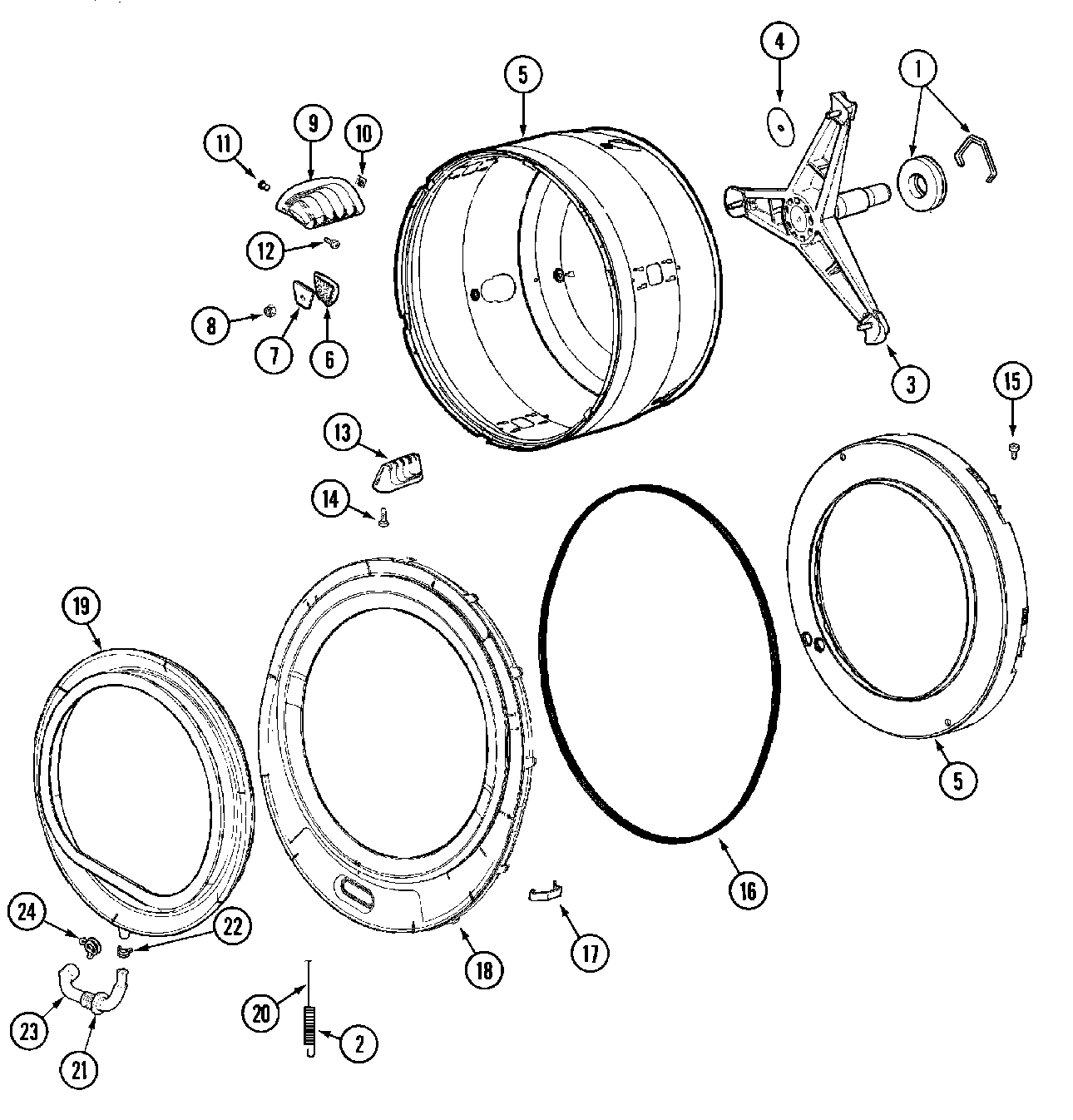

13 - SPINNER ASSEMBLY & OUTER TUB COVER(WASH)
Common parts from model Whirlpool MLG19PRAXW ELECTRIC DRYER
001
NEPTUNE MOTOR CONVERSION KIT WPL 12002039 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
SUPPORT WELD ASSY, WHITE WPL 33002187 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
HOOP, LOCK WPL 22002002 Contact Us For Availability
001
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 33002278 Contact Us For Availability
001
LABEL, OPEN DOOR (DRYER) WPL 33001893 Contact Us For Availability
001
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001995 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33002058 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33002185 Contact Us For Availability
002
SPRING, LATCH WPL 22002003 Contact Us For Availability
002
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
002
SWITCH, UNBALANCE WPL 22002045 Contact Us For Availability
002
SWITCH, INTERNAL UNBALANCE WPL 22003302 Contact Us For Availability
002
VALVE, WATER WPL 33002211 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
002
SHROUD & DISPENSER HOSE (WHT) WPL 22002506 Contact Us For Availability
002
SPRING, TUB WPL 22002099 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
SCREW, TOP COVER WPL 22001883 Contact Us For Availability
003
VENT, TUB WPL 22002439 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
003
SUPPORT, LOCK HOOP WPL 22002168 Contact Us For Availability
003
MOTOR, VARIABLE SPEED WPL 22003856 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
SCREW, WATER VALVE WPL 22002436 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
003
TUBE, MOLYKOTE WPL 22002123 Contact Us For Availability
003
SUPPORT ASSY., SPINNER WPL 22002897 Contact Us For Availability
003
SPINNER SUPPORT ASSY AS PACK WPL 22003925 Contact Us For Availability
004
HOSE, VENT WPL 22002464 Contact Us For Availability
004
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
004
DOOR, INNER (WHT) WPL 22003076 Contact Us For Availability
004
INNER DOOR/VENTED (ASPK-WHT) WPL 22003800 Contact Us For Availability
004
WIRE HARNESS, UNBALANCE /COMM WPL 33002216 Contact Us For Availability
004
HARNESS, MOTOR/MOTOR CONTROL WPL 22004047 Contact Us For Availability
004
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
004
PANEL, CONTROL WPL 33002264 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
BRACKET, TOP COVER (RT) WPL 33001999 Contact Us For Availability
004
VAPOR BARRIER WPL 22003908 Contact Us For Availability
004
SUPPORT, DOOR LOCK WPL 33002202 Contact Us For Availability
004
CLIP, HOSE WPL 33002203 Contact Us For Availability
004
WASHER, PLASTIC WPL 22002023 Contact Us For Availability
005
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
005
BRACKET, VENT MOUNTING WPL 33002189 Contact Us For Availability
005
BEARING, REAR WPL Y200720 Contact Us For Availability
005
BRACKET, WATER VALVE WPL 33002212 Contact Us For Availability
005
SPINNER ASSY. (W/BALANCE RING) WPL 22002115 Contact Us For Availability
006
PLUG, HOLE WPL 33002056 Contact Us For Availability
006
DEFLECTOR, VENT WPL 22002440 Contact Us For Availability
006
BOLT, DOUBLE SEMS 5-3\8 WPL 22003615 Contact Us For Availability
006
P CLIPS WPL 22004102 Contact Us For Availability
006
CORD, POWER WPL 33002184 Contact Us For Availability
006
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK (CAN) WPL 33002059 Contact Us For Availability
006
WASHER, PROFILE WPL 22002021 Contact Us For Availability
007
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
007
WIRE SHIELD WPL 33002191 Contact Us For Availability
007
CLIP, SHIELD WPL 33002192 Contact Us For Availability
007
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
007
FRAME, WIRE WPL 22002104 Contact Us For Availability
007
SPACER, BEARING WPL 22002935 Contact Us For Availability
007
GROMMET, CORD WPL 211881 Contact Us For Availability
007
RACK, HOSE WPL 33002213 Contact Us For Availability
007
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
007
GRATE, OVERFLOW (LT) WPL 33002195 Contact Us For Availability
007
GRATE, OVERFLOW (RT) WPL 33002196 Contact Us For Availability
007
WASHER, SPINNER SUPPORT WPL 22002020 Contact Us For Availability
008
SHOWER HOSE WPL 33002193 Contact Us For Availability
008
SPRING, PLATE WPL 22002356 Contact Us For Availability
008
BOLT, DOUBLE SEMS 3-3\8 WPL 22003616 Contact Us For Availability
008
EMI SUPPRESSION FILTER, 12A WPL 22003854 Contact Us For Availability
008
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
008
PLUG, INNER DOOR (SHORT) WPL 33002111 Contact Us For Availability
008
CUP, BLEACH DISPENSER WPL 33002197 Contact Us For Availability
009
BAFFLE, DRIP (REAR) WPL 22001985 Contact Us For Availability
009
STRUT ASSY-REAR WPL 22001988 Contact Us For Availability
009
SUPPORT, PRESSURE SWITCH WPL 33002188 Contact Us For Availability
009
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
009
PLATE WPL 22002094 Contact Us For Availability
009
WEIGHT, COUNTER BALANCE WPL 22002102 Contact Us For Availability
009
REPAIR JUMPER HARNESS WPL 22004101 Contact Us For Availability
009
SPACER, ACCESS PANEL WPL 22002022 Contact Us For Availability
009
SWITCH, PUSH BUTTON WPL 33002178 Contact Us For Availability
009
CUP, FABRIC SOFTENER DISPENSER WPL 33002198 Contact Us For Availability
010
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
010
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
010
SCREW, WIRE FRAME WPL 22002007 Contact Us For Availability
010
ISOLATOR, MOTOR WPL 22003329 Contact Us For Availability
010
PANEL, ACCESS WPL 22002092 Contact Us For Availability
010
PLATE, CONTROL MOUNTING WPL 33002155 Contact Us For Availability
010
STRAP, GROUND WPL Y312184 Contact Us For Availability
010
SPOUT, DISPENSER FILL WPL 33002199 Contact Us For Availability
010
GROMMET, BAFFLE (REAR) WPL 22002009 Contact Us For Availability
011
DOOR, OUTER (WHT-W/DAMPER) WPL 22001979 Contact Us For Availability
011
LABEL, OPEN DOOR (WASHER) WPL 22002333 Contact Us For Availability
011
BOLT, MOTOR WPL 22003686 Contact Us For Availability
011
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
011
CAP, BLEACH DISPENSER WPL 33002200 Contact Us For Availability
011
GROMMET, BAFFLE (FRT) WPL 22001999 Contact Us For Availability
012
NUT, SPEED WPL 33002194 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
012
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
012
CLIP, U WPL 22002103 Contact Us For Availability
012
WASHER, STRUT WPL 22002320 Contact Us For Availability
012
BOARD ASSY., CIRCUIT WPL 33002154 Contact Us For Availability
012
SCREW, BAFFLE (REAR) WPL 22002325 Contact Us For Availability
013
VALVE, ANGLE GAS WPL 306086 Contact Us For Availability
013
SPRING WPL 22002100 Contact Us For Availability
013
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
013
SCREW WPL 22004103 Contact Us For Availability
013
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
LENS WPL 33002022 Contact Us For Availability
013
LENS WPL 33002607 Contact Us For Availability
013
SCREEN, BLEACH CUP WPL 33002204 Contact Us For Availability
013
BAFFLE, DRIP (FRONT) WPL 22001986 Contact Us For Availability
014
PLUG, OUTER TUB WPL 22003261 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
TIE, CABLE WPL 22002179 Contact Us For Availability
014
RETAINER, WIRE WPL 315471 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
014
WASHER, INLET HOSE WPL Y013783 Contact Us For Availability
014
PANEL, ACCESS (WHT) WPL 33002262 Contact Us For Availability
014
BRACKET, TERMINAL BLOCK WPL 33002182 Contact Us For Availability
014
RETAINER, BLEACH CUP WPL 33002205 Contact Us For Availability
014
SCREW, BAFFLE (FRONT) WPL 22002059 Contact Us For Availability
015
SLEEVING, BRAIDED WPL 33002224 Contact Us For Availability
015
SCREW, BALANCE RING WPL NLA Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
015
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
015
NUT, COUNTER BALANCE WPL 22002065 Contact Us For Availability
015
COVER, DRAIN HOSE WPL 22002093 Contact Us For Availability
015
NAMEPLATE WPL 33001711 Contact Us For Availability
015
SCREW, FRONT PANEL WPL 33002051 Contact Us For Availability
015
PANEL, FRONT (WHT-UPR) WPL 33002081 Contact Us For Availability
015
FASTENER, J TYPE WPL 33002206 Contact Us For Availability
015
PART NEVER USED IN PRODUCTION WPL 22002028 Contact Us For Availability
016
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
016
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
BRACKET, CORNER (RT) WPL 33002010 Contact Us For Availability
016
BRACKET, CORNER (LT) WPL 33002095 Contact Us For Availability
016
SCREW, TUMBLER FRONT BRACE WPL 33001768 Contact Us For Availability
016
BRACKET, UNBALANCE SWITCH WPL 33002215 Contact Us For Availability
017
VENT TUBE ASSEMBLY WPL 22002990 Contact Us For Availability
017
WIRE, GROUND WPL 33001981 Contact Us For Availability
017
CLIP, TUB TO COVER WPL 22002050 Contact Us For Availability
018
CLIP, HOSE (SADDLE HORN) WPL 22002797 Contact Us For Availability
018
TIE, CABLE WPL 22002893 Contact Us For Availability
018
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
018
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
018
HOSE, FABRIC SOFTENER WPL 33002208 Contact Us For Availability
018
COVER, TUB (W/SEAL) (ASP)--W WPL 22003212 Contact Us For Availability
018
COVER, TUB W/SEAL&CAPS ASPK WPL 22004254 Contact Us For Availability
019
LINER, DOOR ASSY W/VENT (WHT) WPL 22003083 Contact Us For Availability
019
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
019
SCREW, RELAY BRACKET WPL Y313561 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
BRACKET, WATER SWITCH WPL 22002178 Contact Us For Availability
019
HOSE, AIR DOME (SHORT) WPL 22002483 Contact Us For Availability
019
SCREW, PROGRAMMING SWITCH WPL 912012 Contact Us For Availability
019
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
019
BRACKET, RELAY (UPR) WPL 33002002 Contact Us For Availability
019
RETAINER, DISPENSER HOSE WPL 22003653 Contact Us For Availability
019
RETAINER, FABRIC SOFTENER WPL 33002209 Contact Us For Availability
019
KIT, DOOR BOOT W/DRAIN WPL 12001772 Contact Us For Availability
019
BOOT, DOOR WPL 22001978 Contact Us For Availability
020
DEFLECTOR, WATER (ON LEFT STRUT ONLY) WPL 33002222 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
020
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
020
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
020
RELAY WPL 306398 Contact Us For Availability
020
LABEL, BLEACH WPL 22002484 Contact Us For Availability
020
LABEL, FABRIC SOFTENER WPL 22002485 Contact Us For Availability
020
LABEL, LOADING INSTRUCTIONS WPL 22002486 Contact Us For Availability
020
LABEL, ADD DETERGENT WPL 22002487 Contact Us For Availability
020
BOOT CABLE CLAMP WPL 22002327 Contact Us For Availability
021
RESTRAINER, TUBE WPL 33002223 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
BRACE, CROSS WPL 22002259 Contact Us For Availability
021
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
021
CLIP, FASTENER WPL 33002004 Contact Us For Availability
021
SEAL, SHROUD WPL 33001767 Contact Us For Availability
022
SWITCH, PRESSURE ITEMS 22-30 LISTED AS SERIES WPL 22003728 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
023
ANGLE CONNECTOR ASSY. WPL 33002236 Contact Us For Availability
023
STOP, SHIPPING WPL 22002013 Contact Us For Availability
023
CLIP, UNBALANCE SWITCH HARNESS (ATTACHED TO F WPL 22002006 Contact Us For Availability
023
WEIGHT ASSEMBLY (FRT) WPL 22002579 Contact Us For Availability
023
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
023
FASTENER, PUSH WPL 33002048 Contact Us For Availability
023
SHIELD, CONTROL PANEL WPL 33002183 Contact Us For Availability
023
COVER, TERMINAL (CAN) WPL Y314174 Contact Us For Availability
024
CAP, RUBBER WPL 22003268 Contact Us For Availability
024
WIRE HARNESS, LOWER COMMERCIAL WPL 22003819 Contact Us For Availability
024
WIRE HARNESS / HH / UNBALANCE WPL 22003820 Contact Us For Availability
024
RETAINER, WIRE HARNESS WPL 33001989 Contact Us For Availability
024
WIRE HARNESS, MAIN (LWR) WPL 33002179 Contact Us For Availability
024
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
024
STRAP WPL 22002008 Contact Us For Availability
024
WIRE HARNESS, MAIN (UPR) WPL 33002180 Contact Us For Availability
024
(UPR) WPL 33002181 Contact Us For Availability
024
WIRE HARNESS, MAIN (UPR) WPL 33002279 Contact Us For Availability
024
(UPR) WPL 33002282 Contact Us For Availability
024
HARNESS, READER (KIT) WPL 33002434 Contact Us For Availability
024
HARNESS, WIRE UPPER GAS WPL 33002872 Contact Us For Availability
024
HARNESS, WIRE UPPER GAS CANADA WPL 33002875 Contact Us For Availability
024
HARNESS, WIRE UPPER ELEC WPL 33002877 Contact Us For Availability
024
HARNESS, WIRE UPPER ELEC WPL 33002879 Contact Us For Availability
025
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
025
PAD, FOAM (SOUND DAMPENER) WPL 22002782 Contact Us For Availability
025
EMI SUPPRESSION FILTER, 16A WPL 22003858 Contact Us For Availability
025
MANUAL, USE & CARE WPL 33002151 Contact Us For Availability
026
SUPPORT, HINGE WPL 22002001 Contact Us For Availability
027
HOOK, ACCESS COVER (LT) WPL 33002035 Contact Us For Availability
027
HOOK, ACCESS COVER (RT) WPL 33002036 Contact Us For Availability
027
FASTENER, ACCESS COVER HOOK WPL 33002037 Contact Us For Availability
027
BASE WELD ASSEMBLY (LWR) WPL 22003605 Contact Us For Availability
027
BASE (UPR) WPL 33002041 Contact Us For Availability
027
BASE (UPR) WPL 33002467 Contact Us For Availability
027
BASE, (UPR) WPL 33002623 Contact Us For Availability
028
BRACKET, SHROUD SUPPORT (RT) WPL 22002034 Contact Us For Availability
028
BRACKET, SHROUD SUPPORT (LT) WPL 22002035 Contact Us For Availability
028
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
029
SHROUD SUPPORT ASSEMBLY WPL 22003638 Contact Us For Availability
029
BRIDGE, SHROUD SUPPORT WPL 22001993 Contact Us For Availability
029
BEARING, FRONT WPL 22002934 Contact Us For Availability
030
COVER, ACCESS (WHT) WPL 33002011 Contact Us For Availability
030
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
030
CUSHION WPL 22002011 Contact Us For Availability
031
SHIELD, TRANSFORMER WPL 315218 Contact Us For Availability
032
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
032
BRACKET (LT) WPL 33002042 Contact Us For Availability
032
BRACKET (RT) WPL 33002043 Contact Us For Availability
033
GUIDE WPL 33002044 Contact Us For Availability
034
(INCL RT/LT BRKT & SCREWS) WPL 12001551 Contact Us For Availability
× ![]()
Login and Registration Form
