Model Maytag MGDB855DC0 GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

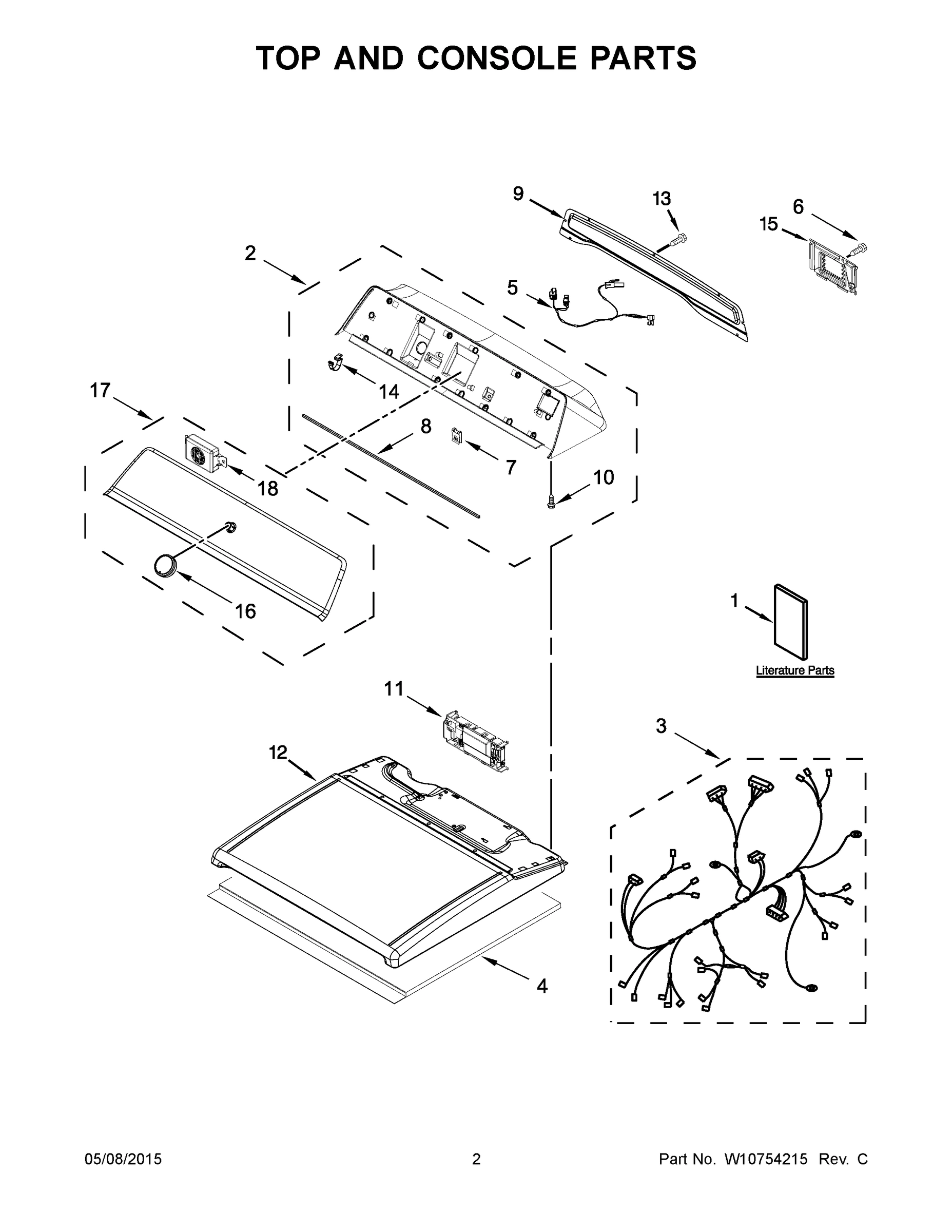

02 - TOP AND CONSOLE PARTS

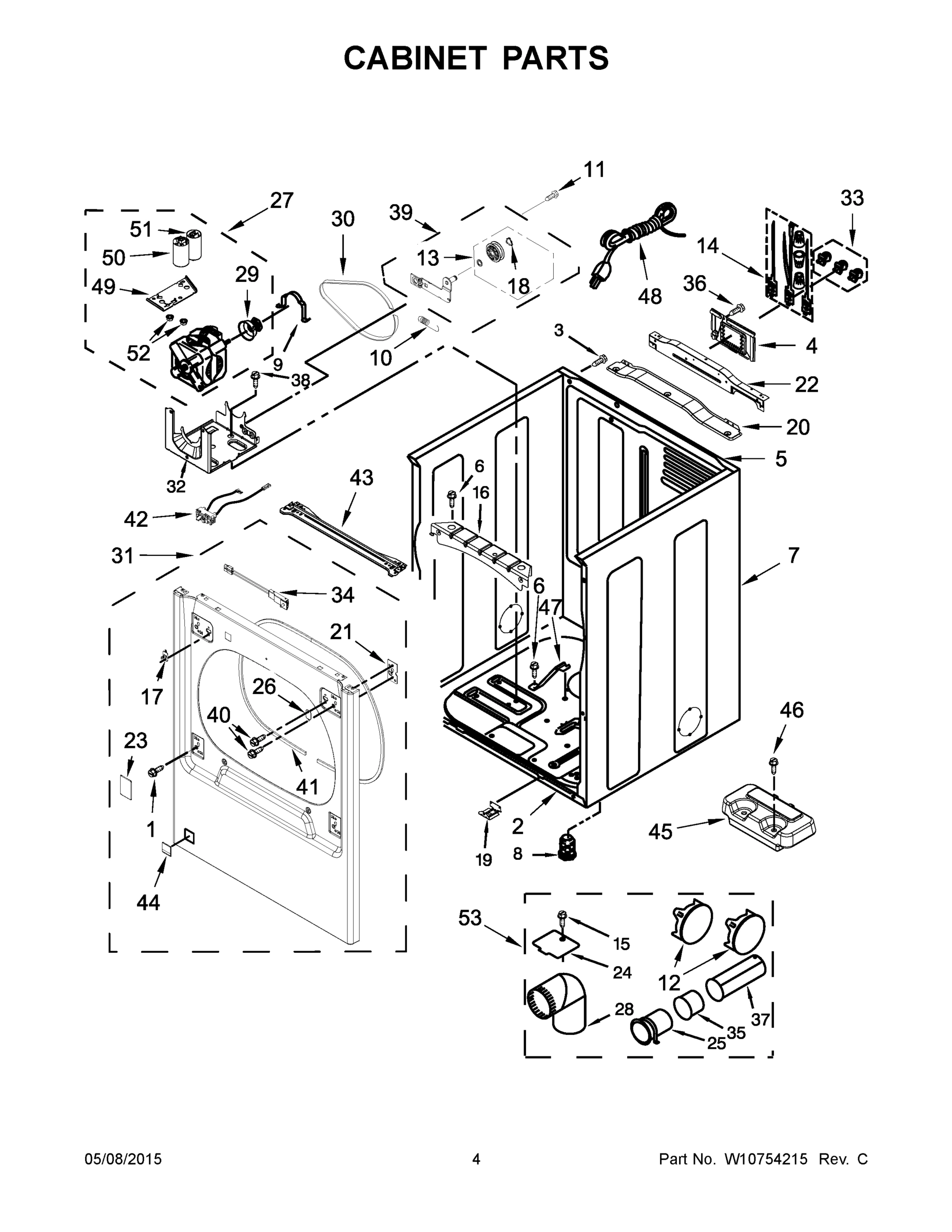

03 - CABINET PARTS
04 - BULKHEAD PARTS

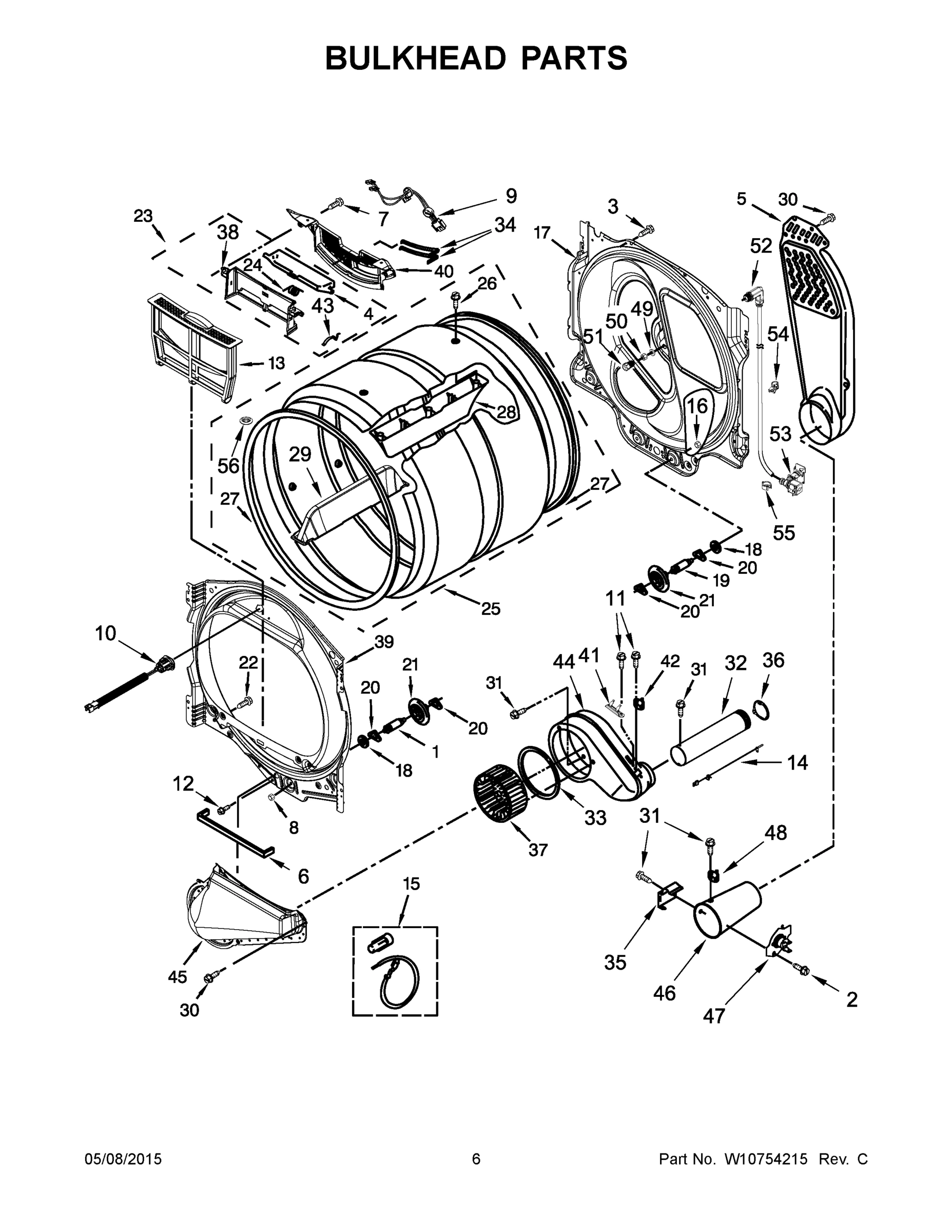

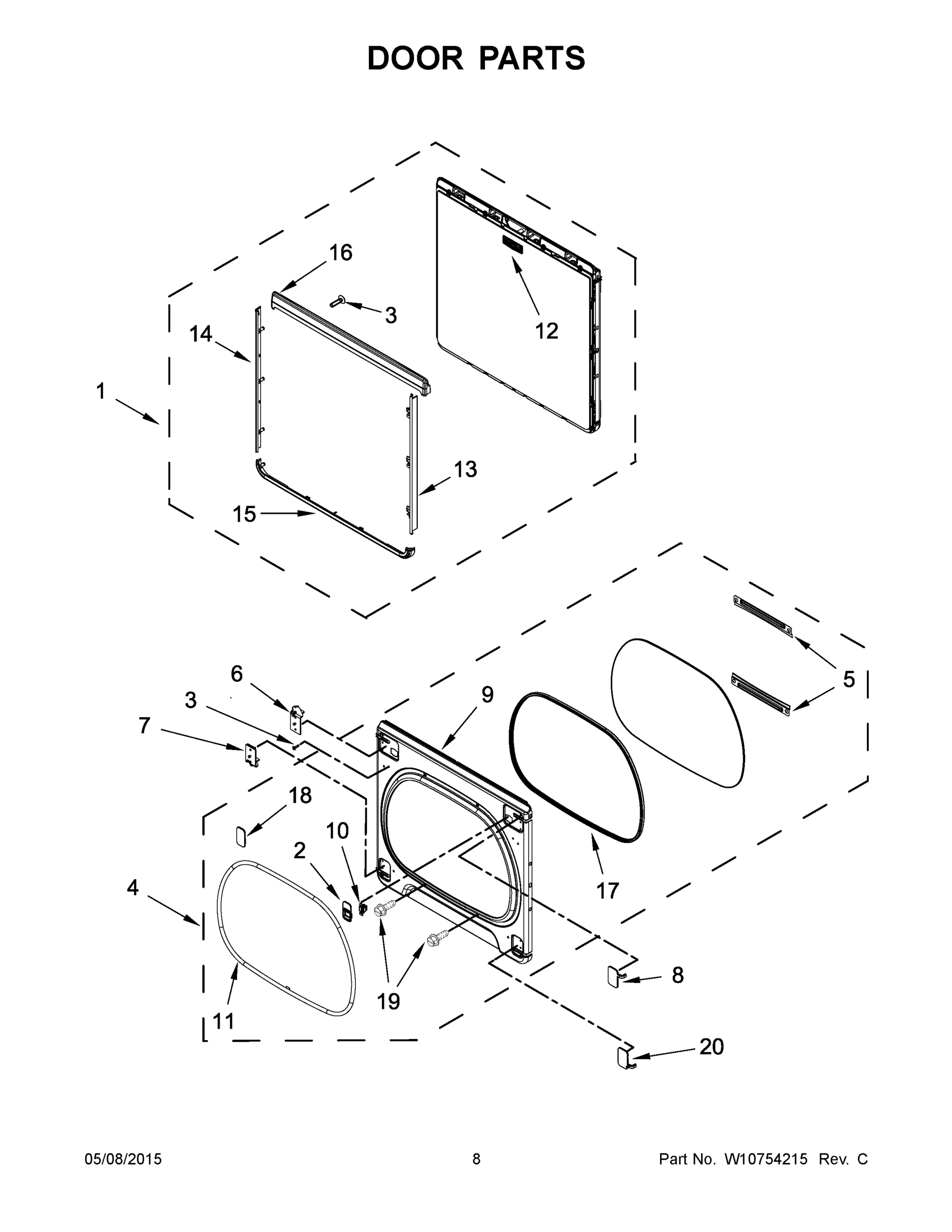

05 - DOOR PARTS

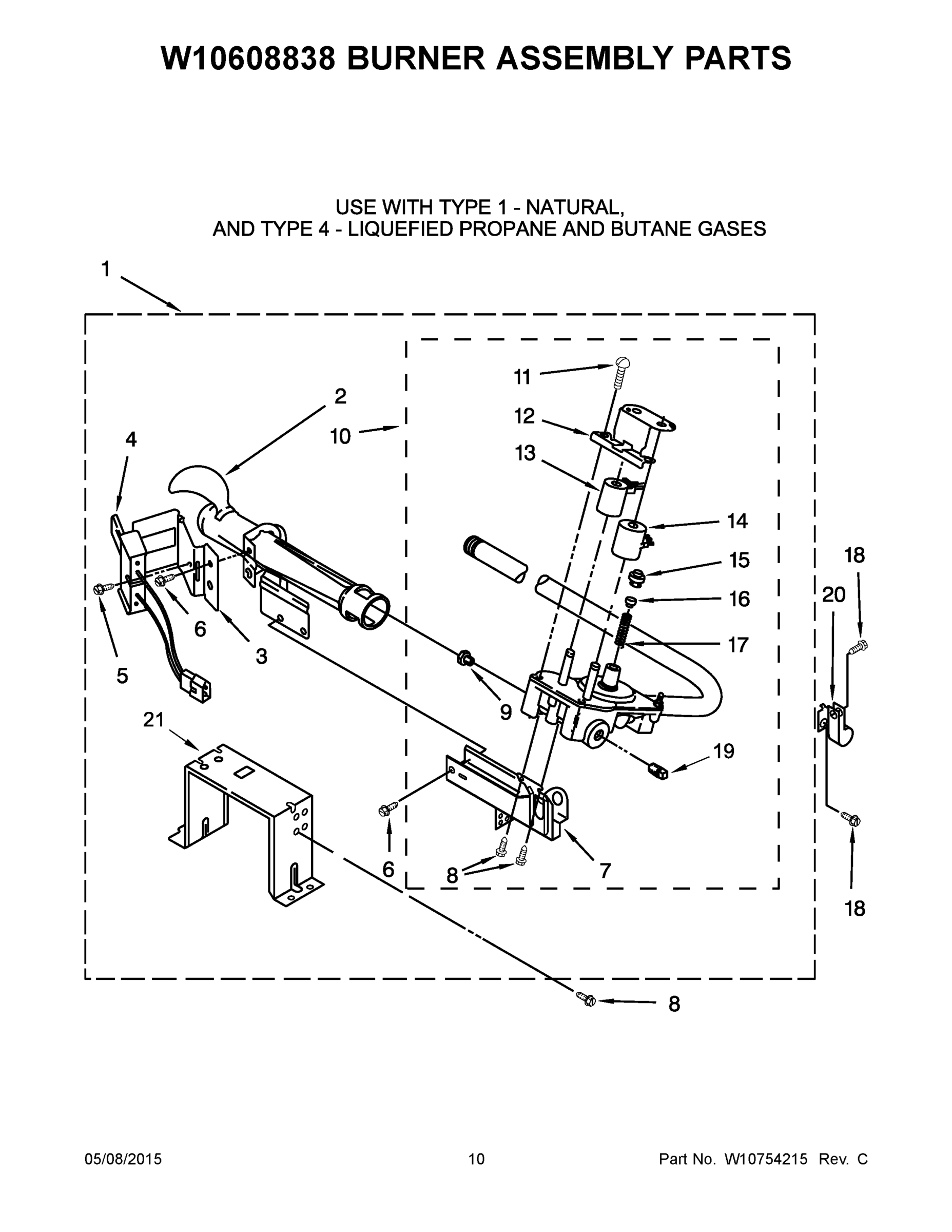

06 - W10608838 BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDB855DC0 GAS DRYER
1
MAY W10725269 MAY W10725269 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10669027 MAY W10669027 Contact Us For Availability
1
MAY W10608838 MAY W10608838 Contact Us For Availability
1A
MAY W10680141 MAY W10680141 Contact Us For Availability
1B
MAY W10680150 MAY W10680150 Contact Us For Availability
1C
MAY W10720372 MAY W10720372 Contact Us For Availability
2
ASSEMBLY, FASCIA (WHITE) MAY W10622102 Contact Us For Availability
2
MAY W10613683 MAY W10613683 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
MAY W10631401 MAY W10631401 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2A
MAY W10682013 MAY W10682013 Contact Us For Availability
2A
MAY W10669023 MAY W10669023 Contact Us For Availability
3
MAY W10706041 MAY W10706041 Contact Us For Availability
3
MAY W10636208 MAY W10636208 Contact Us For Availability
3
SCREW MAY 9742177 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
4
MAY 8317339 MAY 8317339 Contact Us For Availability
4
MAY W10608808 MAY W10608808 Contact Us For Availability
4
MAY W10614997 MAY W10614997 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4A
MAY W10615000 MAY W10615000 Contact Us For Availability
5
MAY W10593673 MAY W10593673 Contact Us For Availability
5
MAY W10622361 MAY W10622361 Contact Us For Availability
5
MAY W10613341 MAY W10613341 Contact Us For Availability
5
MAY W10621182 MAY W10621182 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
6
MAY 489470 MAY 489470 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY W10701355 MAY W10701355 Contact Us For Availability
6
MAY W10767920 MAY W10767920 Contact Us For Availability
7
MAY W10298336 MAY W10298336 Contact Us For Availability
7
CABINET (WHITE (WITH CUTOUT)) MAY W10645768 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
MAY W10767921 MAY W10767921 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7A
CABINET (CHROME SHADOW (WITH CUTOUT)) MAY W10681831 Contact Us For Availability
7B
CABINET (WHITE (WITHOUT CUTOUT)) MAY W10633648 Contact Us For Availability
7C
CABINET (CHROME SHADOW (WITHOUT CUTOUT)) MAY W10681830 Contact Us For Availability
8
MAY W10726632 MAY W10726632 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10631395 MAY W10631395 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8A
MAY W10631412 MAY W10631412 Contact Us For Availability
9
MAY W10622402 MAY W10622402 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10657328 MAY W10657328 Contact Us For Availability
9
MAY W10614998 MAY W10614998 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
9A
MAY W10614999 MAY W10614999 Contact Us For Availability
9A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 15422 Contact Us For Availability
9B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10629046 MAY W10629046 Contact Us For Availability
10
MAY W10610880 MAY W10610880 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
11
MAY W10771987 MAY W10771987 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10763835 MAY W10763835 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10508981 MAY W10508981 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
MAY W10612925 MAY W10612925 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12A
MAY W10701018 MAY W10701018 Contact Us For Availability
12A
MAY W10151499 MAY W10151499 Contact Us For Availability
13
SCREW MAY 9740849 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
MAY W10608811 MAY W10608811 Contact Us For Availability
13
MAY W10631398 MAY W10631398 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY W10651569 MAY W10651569 Contact Us For Availability
14
MAY W10631399 MAY W10631399 Contact Us For Availability
14
MAY 694539 MAY 694539 Contact Us For Availability
15
MAY W10316167 MAY W10316167 Contact Us For Availability
15
SCREW MAY W10348409 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY W10631400 MAY W10631400 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10727011 MAY W10727011 Contact Us For Availability
16
MAY W10632348 MAY W10632348 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10608739 MAY W10608739 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10618908 MAY W10618908 Contact Us For Availability
17
MAY W10775540 MAY W10775540 Contact Us For Availability
17
MAY W10623519 MAY W10623519 Contact Us For Availability
17
MAY W10726214 MAY W10726214 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY W10568405 MAY W10568405 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
MAY W10631410 MAY W10631410 Contact Us For Availability
18A
MAY W10669024 MAY W10669024 Contact Us For Availability
19
MAY 342055 MAY 342055 Contact Us For Availability
19
MAY W10632347 MAY W10632347 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 239822 MAY 239822 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
BULKHEAD BRACKET, REAR PANEL (WHITE) MAY W10672088 Contact Us For Availability
20
MAY W10631396 MAY W10631396 Contact Us For Availability
20
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
20A
MAY W10672089 MAY W10672089 Contact Us For Availability
20A
MAY W10631413 MAY W10631413 Contact Us For Availability
21
MAY W10596959 MAY W10596959 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 3389889 MAY 3389889 Contact Us For Availability
22
MAY W10622391 MAY W10622391 Contact Us For Availability
22
MAY W10460893 MAY W10460893 Contact Us For Availability
22
MAY W10641312 MAY W10641312 Contact Us For Availability
23
PLUG, HINGE (WHITE) MAY W10590953 Contact Us For Availability
23
MAY W10608812 MAY W10608812 Contact Us For Availability
23A
MAY W10596965 MAY W10596965 Contact Us For Availability
24
MAY 3394331 MAY 3394331 Contact Us For Availability
24
MAY W10219015 MAY W10219015 Contact Us For Availability
25
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
25
MAY W10646770 MAY W10646770 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY W10111888 MAY W10111888 Contact Us For Availability
27
MAY W10687541 MAY W10687541 Contact Us For Availability
27
MAY W10664120 MAY W10664120 Contact Us For Availability
28
ELBOW MAY 49026 Contact Us For Availability
28
MAY W10767090 MAY W10767090 Contact Us For Availability
29
ASSEMBLY, PULLEY MAY W10786088 Contact Us For Availability
29
MAY W10767074 MAY W10767074 Contact Us For Availability
30
MAY W10610886 MAY W10610886 Contact Us For Availability
30
MAY 8533974 MAY 8533974 Contact Us For Availability
31
MAY W10777207 MAY W10777207 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
31A
MAY W10777208 MAY W10777208 Contact Us For Availability
32
MAY W10578053 MAY W10578053 Contact Us For Availability
32
MAY W10608817 MAY W10608817 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
34
MAY W10459026 MAY W10459026 Contact Us For Availability
34
MAY W10608814 MAY W10608814 Contact Us For Availability
35
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
35
MAY 338906 MAY 338906 Contact Us For Availability
36
MAY W10567155 MAY W10567155 Contact Us For Availability
36
MAY W10344699 MAY W10344699 Contact Us For Availability
37
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY W10608806 MAY W10608806 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY W10623481 MAY W10623481 Contact Us For Availability
40
SCREW (ZINC) MAY 3400805 Contact Us For Availability
40
MAY W10608813 MAY W10608813 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY W10693363 MAY W10693363 Contact Us For Availability
42
MAY W10724631 MAY W10724631 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10722502 MAY W10722502 Contact Us For Availability
43
MAY W10608815 MAY W10608815 Contact Us For Availability
44
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
44
MAY W10667717 MAY W10667717 Contact Us For Availability
44A
MAY W10391496 MAY W10391496 Contact Us For Availability
45
MAY W10622383 MAY W10622383 Contact Us For Availability
45
MAY W10608803 MAY W10608803 Contact Us For Availability
46
MAY W10660592 MAY W10660592 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
MAY 8529757 MAY 8529757 Contact Us For Availability
47
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
48
MAY W10706056 MAY W10706056 Contact Us For Availability
48
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
49
BRACKET, CAPACITOR MAY W10565150 Contact Us For Availability
49
MAY W10044579 MAY W10044579 Contact Us For Availability
50
MAY W10442539 MAY W10442539 Contact Us For Availability
50
NUT, BRASS MAY W10044628 Contact Us For Availability
51
MAY W10701357 MAY W10701357 Contact Us For Availability
51
MAY W10363169 MAY W10363169 Contact Us For Availability
52
MAY W10604214 MAY W10604214 Contact Us For Availability
52
MAY W10638152 MAY W10638152 Contact Us For Availability
53
MAY W10323246 MAY W10323246 Contact Us For Availability
53
MAY W10595507 MAY W10595507 Contact Us For Availability
54
MAY 3391018 MAY 3391018 Contact Us For Availability
55
MAY W10044599 MAY W10044599 Contact Us For Availability
56
CAP, PLUG MAY W10128544 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY PT220L MAY PT220L Contact Us For Availability
NI
MAY PT400L MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE,DRYER CORD MAY PT600L Contact Us For Availability
NI
MAY W10242307 MAY W10242307 Contact Us For Availability
NI
MAY W10268217 MAY W10268217 Contact Us For Availability
NI
MAY W10336486 MAY W10336486 Contact Us For Availability
NI
MAY W10636192 MAY W10636192 Contact Us For Availability
NI
MAY W10676169 MAY W10676169 Contact Us For Availability
× ![]()
