Model Whirlpool MAT24PDAGW0 – Common Parts & Diagrams
TOP AND CABINET PARTS

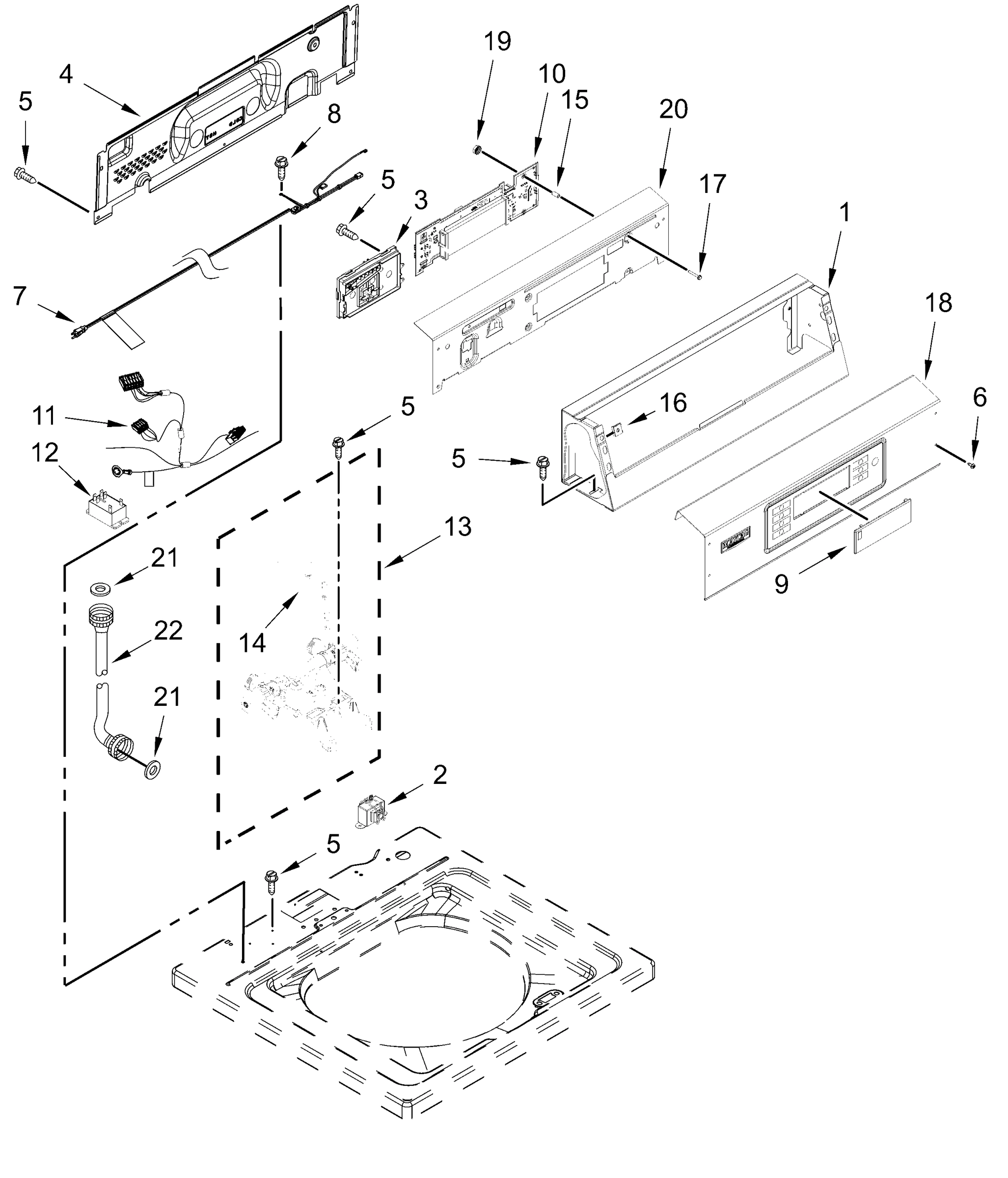

CONTROLS AND WATER INLET PARTS
METER CASE PARTS
BASKET AND TUB PARTS
GEARCASE, MOTOR AND PUMP PARTS
OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool MAT24PDAGW0
Affresh® Washer Cleaner WPL W10135699 Contact Us For Availability
Paint, Touch-up (White, 1/2 oz) WPL 72017 Contact Us For Availability
Paint, Spray (White, 12 oz) WPL 350930 Contact Us For Availability
Drain Hose with Clamp (4 Ft) WPL 285863 Contact Us For Availability
Connector Assembly WPL 285835 Contact Us For Availability
Paint, Spray (Grey Primer, 12 oz) WPL 350938 Contact Us For Availability
Siphon Break Kit WPL 285834 Contact Us For Availability
Paint, Bulk (White, Uncut 1 qt) WPL 799344 Contact Us For Availability
Cord, Power (United Kingdom) WPL W11318406 Contact Us For Availability
Cord, Power (Europe) WPL W11318407 Contact Us For Availability
PAINT, TOUCH-UP (1/2 oz) WPL ARICEE9DD10D6E137089B7191A71E7507C2 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz) WPL ARID101524930C2097021EE1F717E47B926 Contact Us For Availability
Main Top Rear Support WPL W10576550 Contact Us For Availability
PAINT, BULK (1 qt.) WPL ARI35DF150CE8A22C3E78798F6A27EE7999 Contact Us For Availability
SEALER WPL ARI75810820E115545BAC5B163FF983EC25 Contact Us For Availability
WATER SYSTEM PARTS WPL ARI144AB9B3DADFA62EC7D3D3453C2ADDB5 Contact Us For Availability
ACCESSORY PARTS WPL ARIAA321F82A52281B7C3C3798C10380D15 Contact Us For Availability
1
Console WPL W10461094 Contact Us For Availability
3
Control Unit Assembly, Machine & Motor WPL W11772721 Contact Us For Availability
4
Panel, Console Rear Cover WPL W11458924 Contact Us For Availability
6
Plate, Mounting WPL 3347825 Contact Us For Availability
7
Cord, Power (Australia) WPL W11323676 Contact Us For Availability
9
Cover, Display WPL W11565137 Contact Us For Availability
9
Harness, Coin Extender WPL W11512935 Contact Us For Availability
10
User Interface WPL W11456057 Contact Us For Availability
11
Harness, Upper WPL W11298254 Contact Us For Availability
12
Relay WPL W11295313 Contact Us For Availability
12
Capacitor, Motor Run WPL W10873918 Contact Us For Availability
13
Inlet Assembly, Water WPL W11577137 Contact Us For Availability
14
Harness, Valve WPL W11567611 Contact Us For Availability
15
Splutch Kit (50 Hz) WPL W10759993 Contact Us For Availability
16
Harness, Lower (Includes Pressure Hose and Ca WPL W11388912 Contact Us For Availability
17
Cabinet (White) WPL W10845574 Contact Us For Availability
17
Screw WPL W10137322 Contact Us For Availability
18
Clamp, Cable WPL W10005430 Contact Us For Availability
20
Bracket, Control WPL W11407434 Contact Us For Availability
21
Lock, Top WPL W10461182 Contact Us For Availability
32
Bushing-Top, Screw WPL W10461181 Contact Us For Availability
37
Top, Foam Seal WPL W10161707 Contact Us For Availability
43
Damper, Sound WPL W11096159 Contact Us For Availability
× ![]()
