Model Whirlpool LXR7144EW1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3363573 Contact Us For Availability

Energy Guide WPL LIT3948649 Contact Us For Availability

Label, Wiring Diagram WPL LIT3948851 Contact Us For Availability

Installation Instructions WPL LIT3949145 Contact Us For Availability

A/W WPL LIT4313896 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

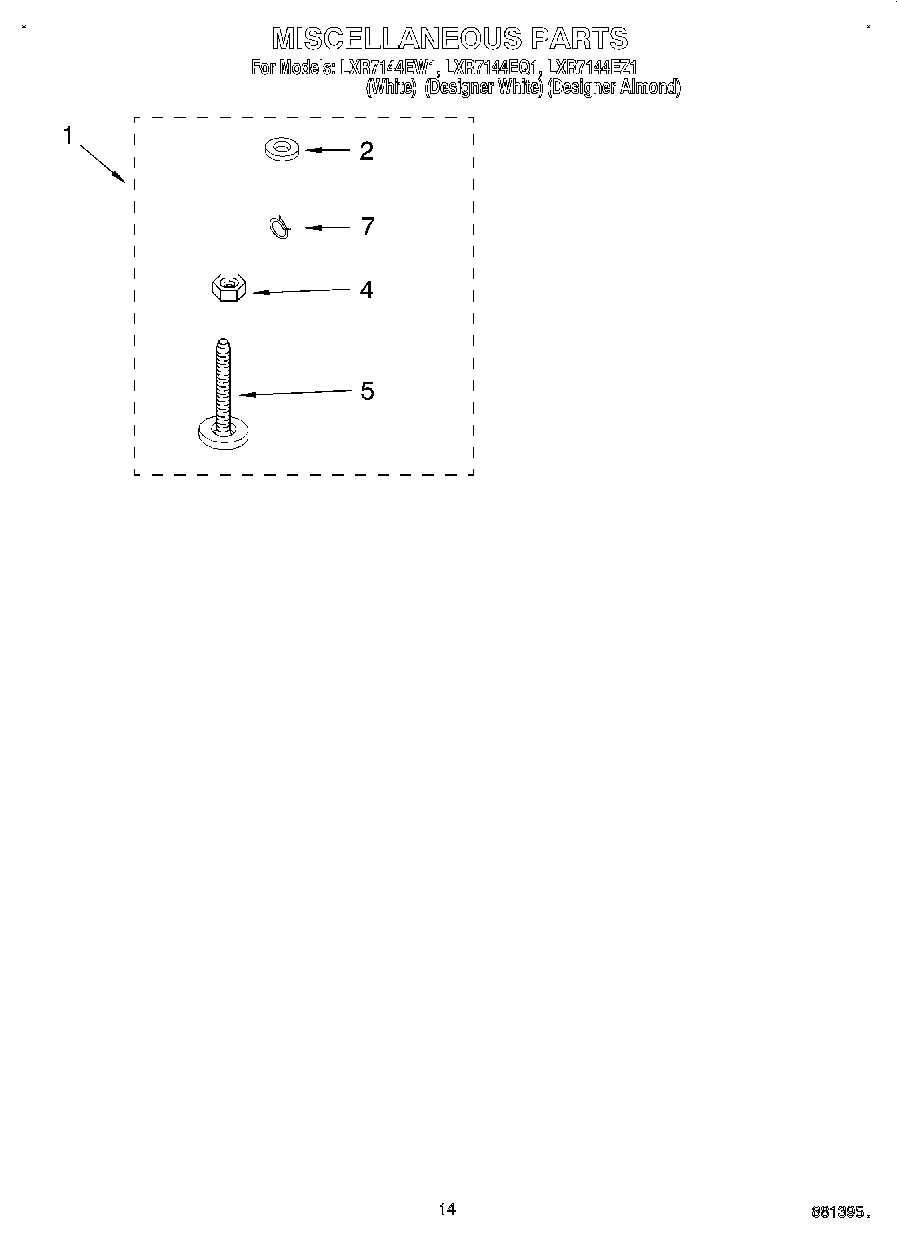

Miscellaneous Parts Bag WPL 3976252 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

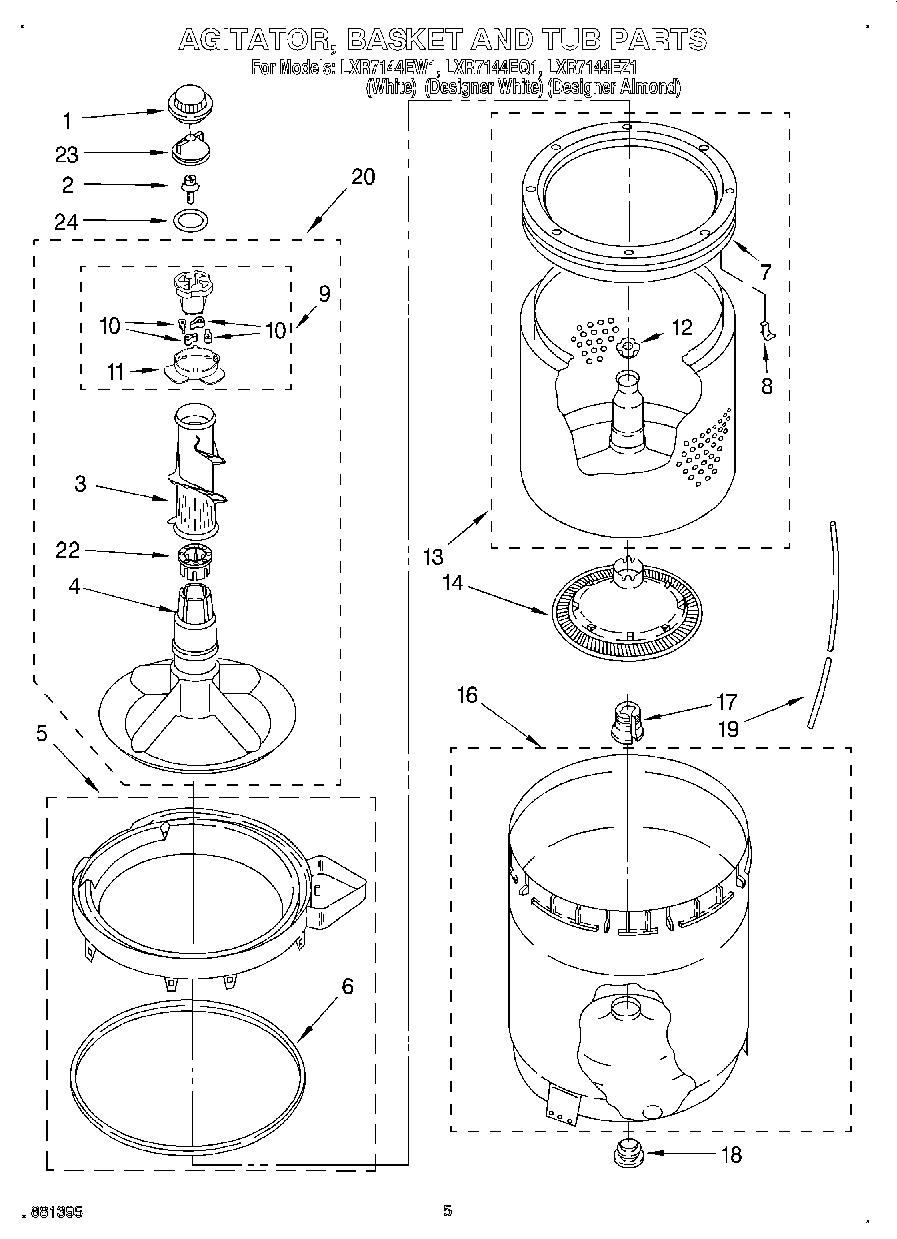

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $70.46

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

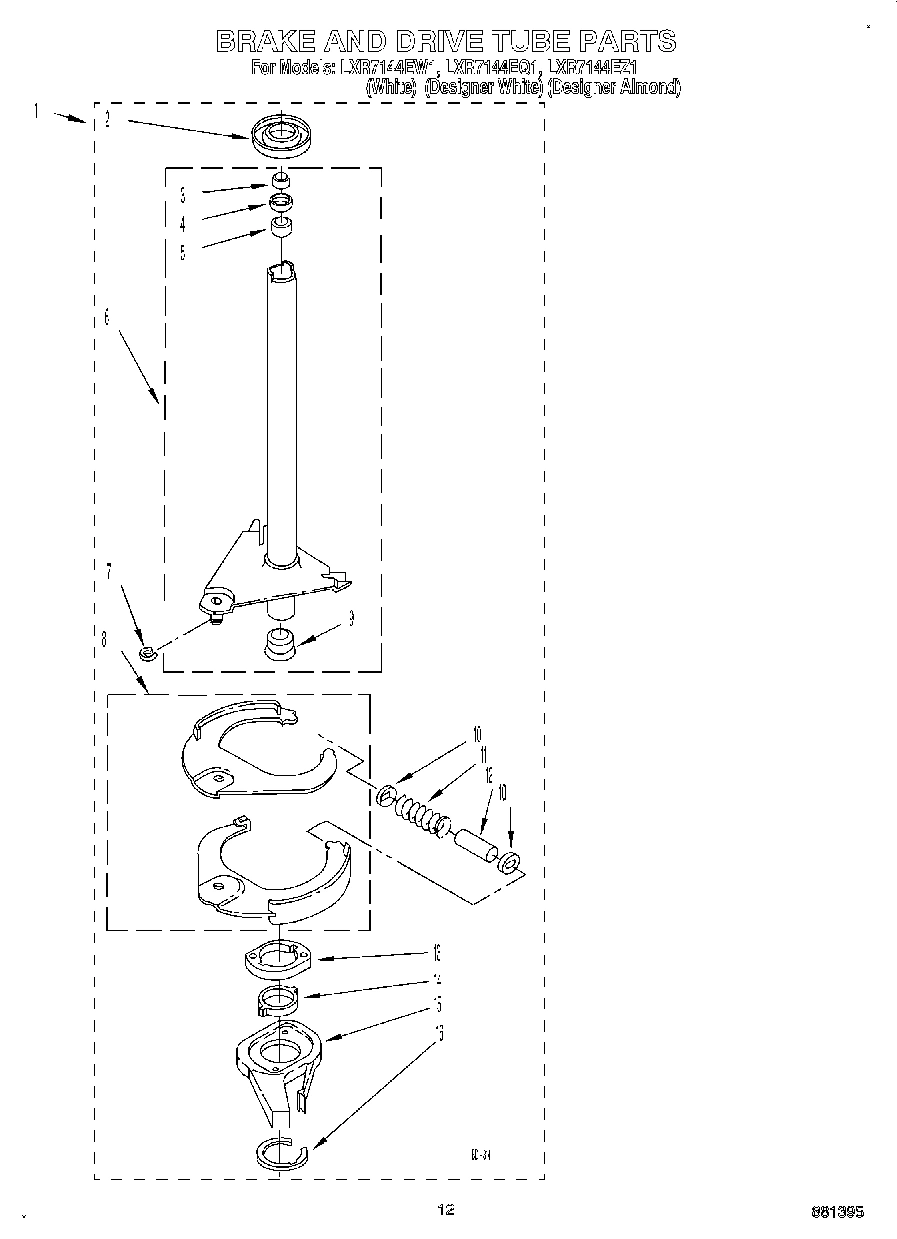

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

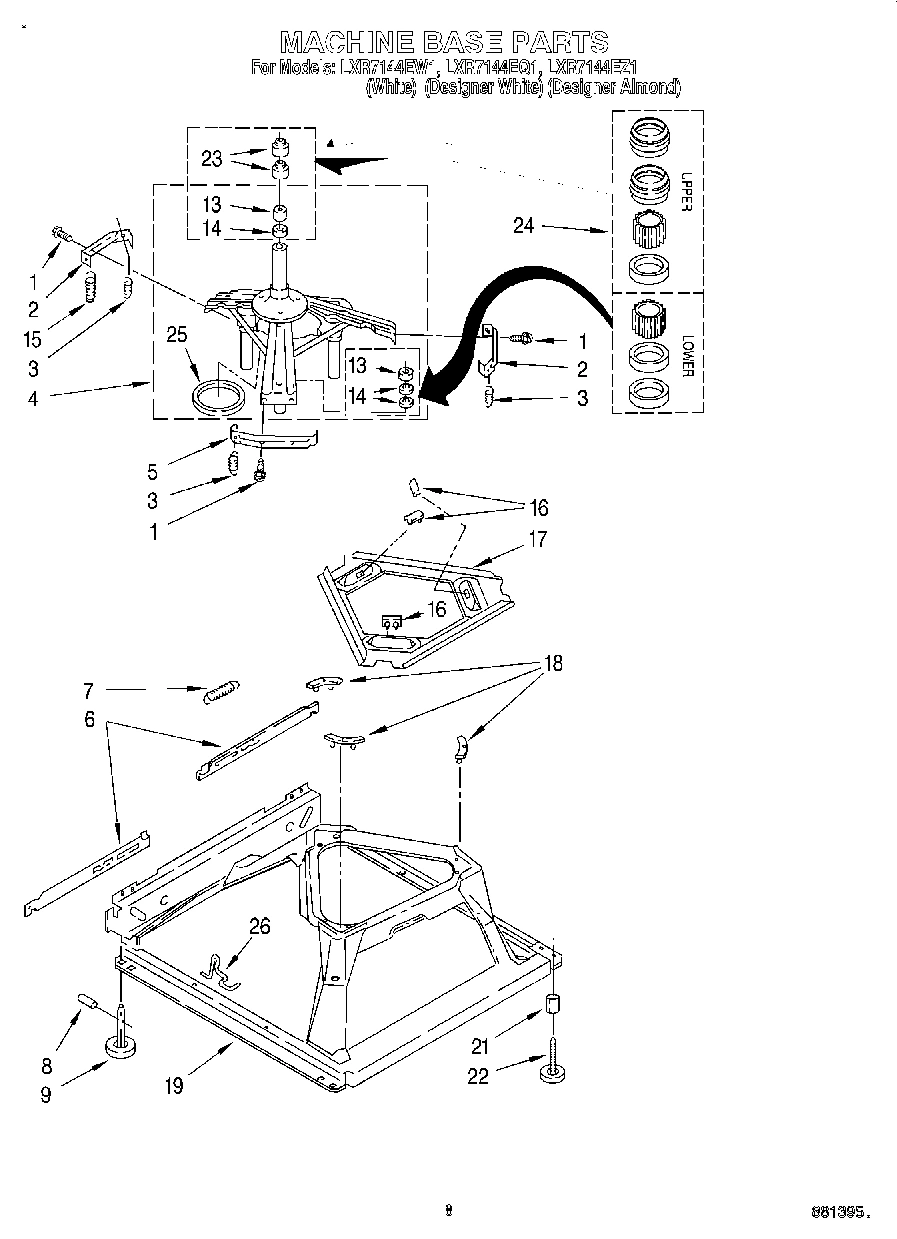

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $3.33

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

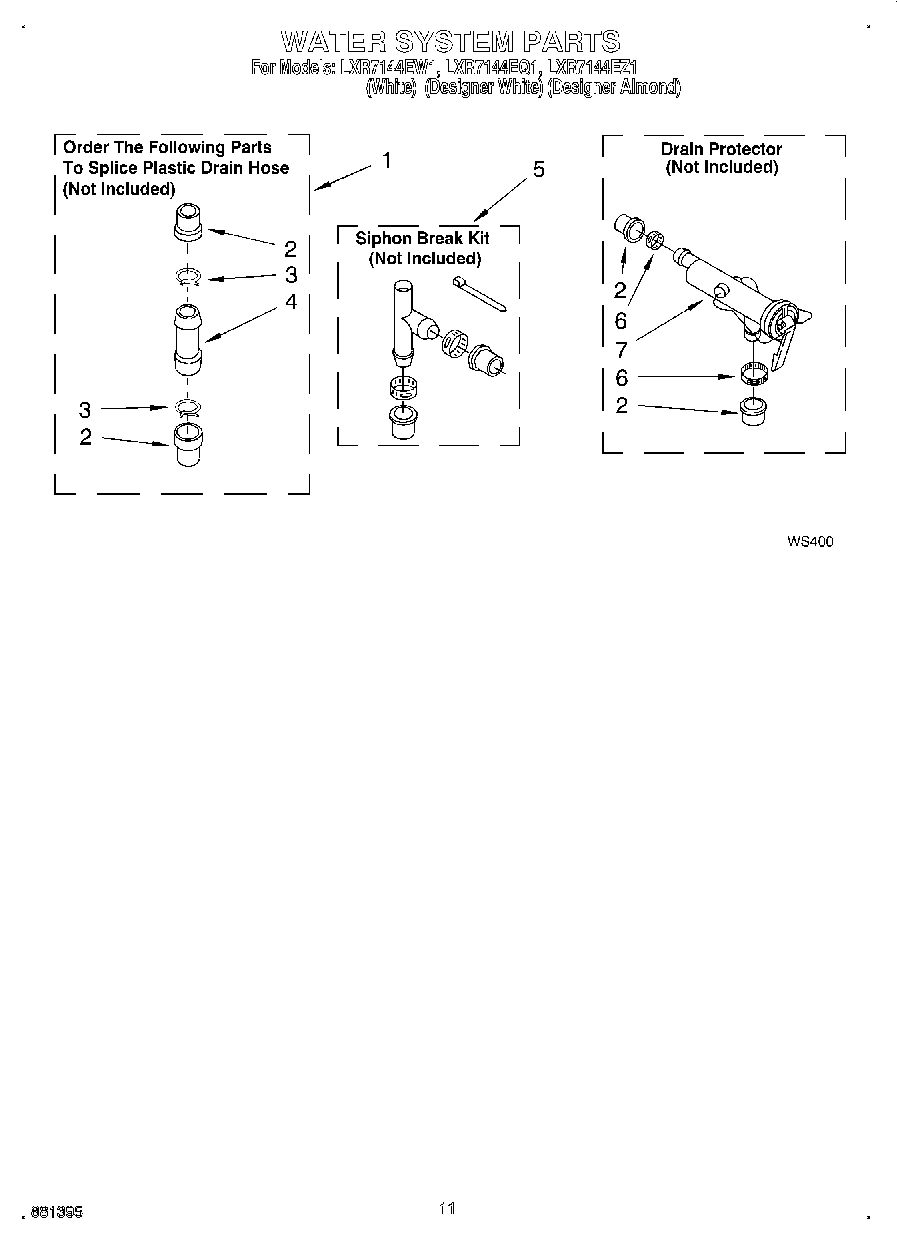

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Balance Ring WPL 387868 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.33

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $9.50

9

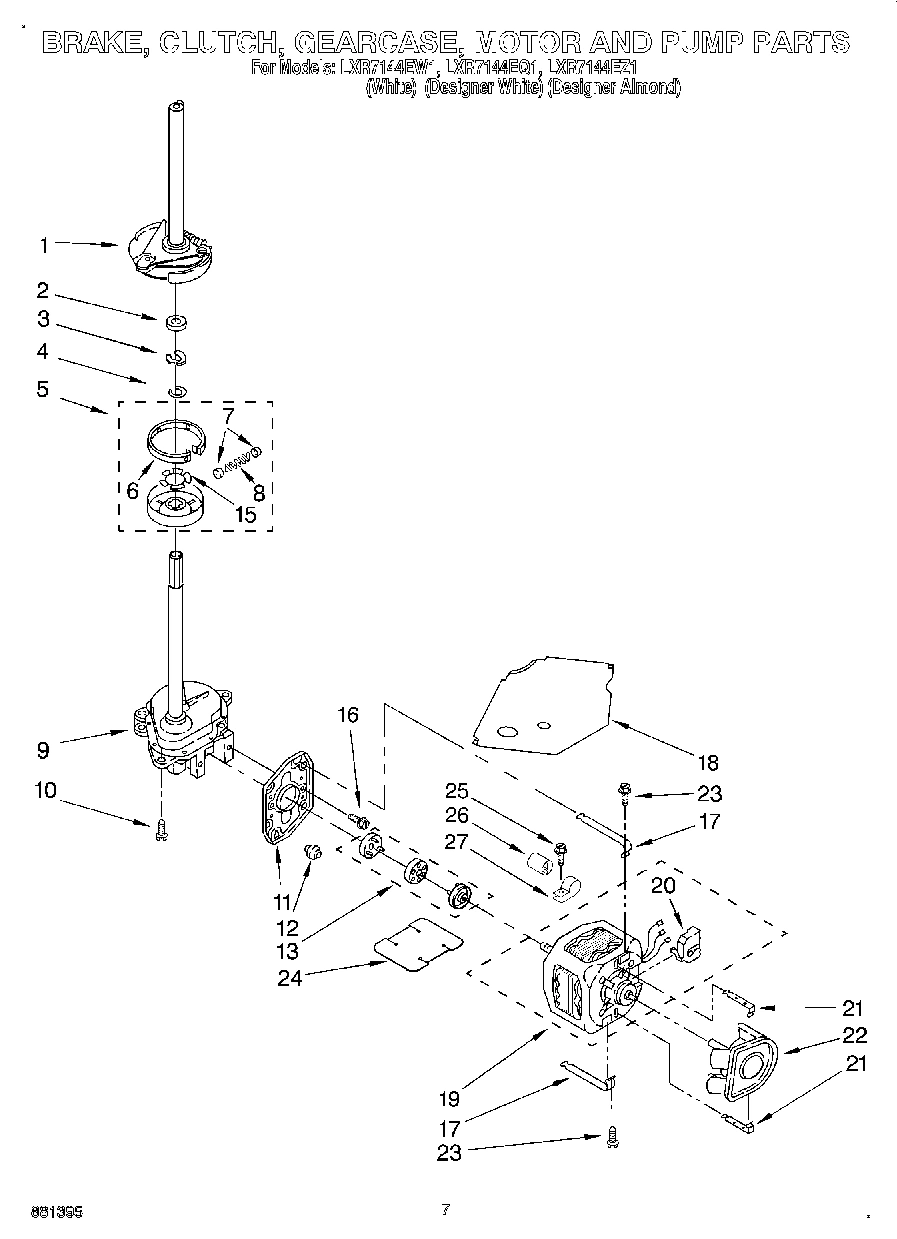

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3948850 Contact Us For Availability

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

13

Basket & Balance Ring WPL 387713 Contact Us For Availability

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $15.41

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Tub WPL 63125 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $146.58

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Agitator (Complete Asy.) WPL 3350829 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

285587 Whirlpool Thrust Washer In Stock WPL 285587 $2.25

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $3.33

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $8.66

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.70

25

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

44

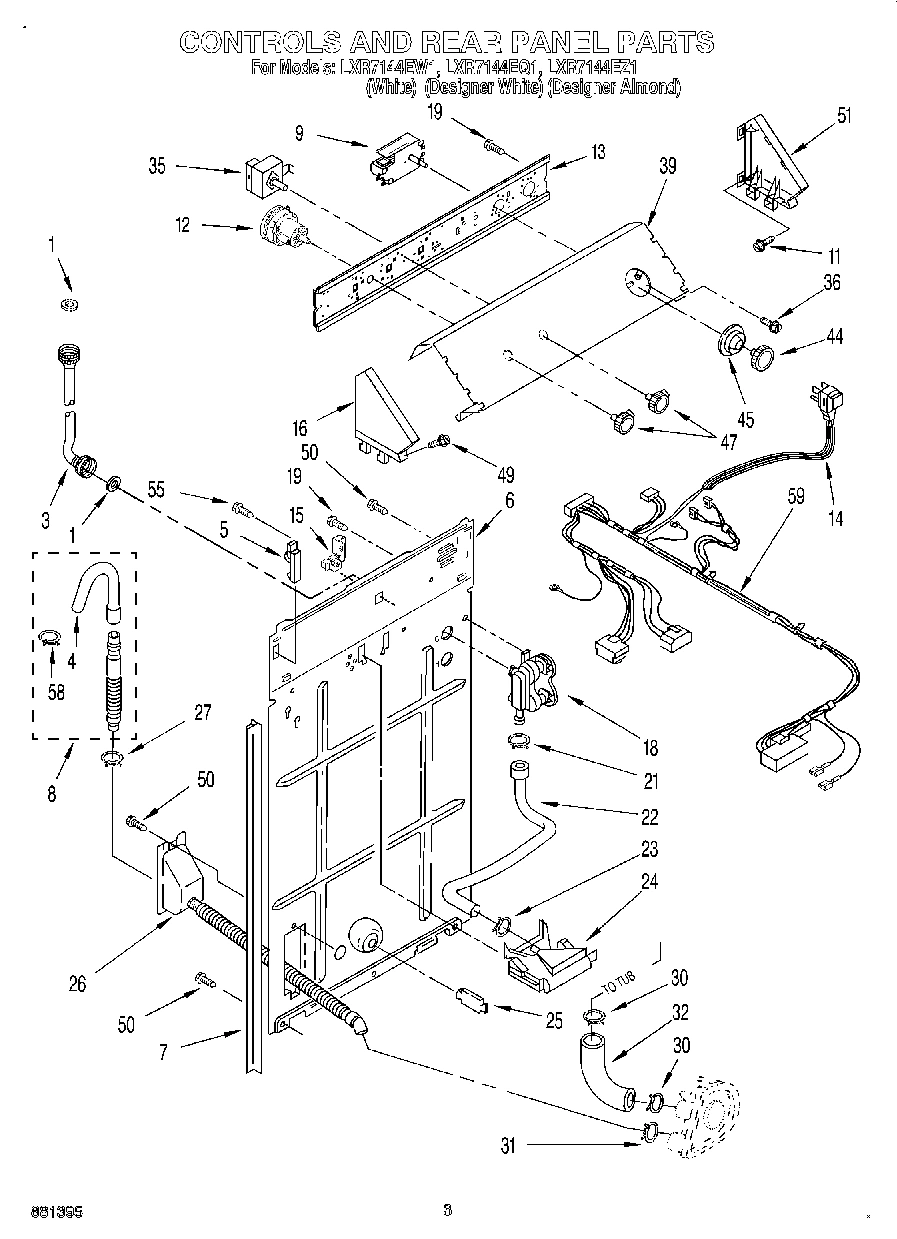

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $32.35

44

WP3957823 Whirlpool Knob Backorder WPL WP3957823 $31.66

45

WP3957841 Whirlpool Dial Backorder WPL WP3957841 $27.94

45

WPL 3948586 WPL 3948586 Contact Us For Availability

45

WPL 3948588 WPL 3948588 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 3358513 WPL 3358513 Contact Us For Availability

51

WPL 3358514 WPL 3358514 Contact Us For Availability

51

WPL 3358516 WPL 3358516 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

59

WPL 3950639 WPL 3950639 Contact Us For Availability
