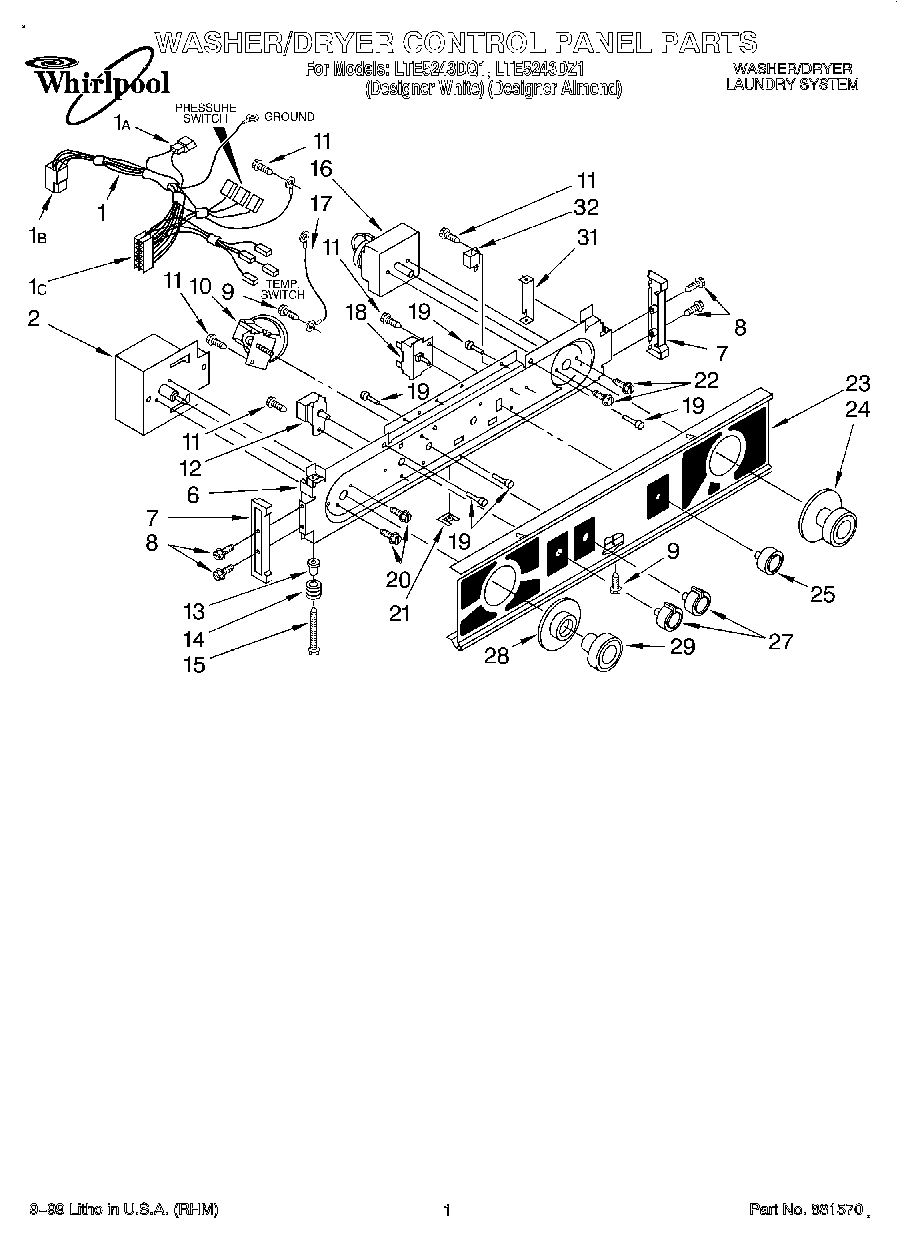

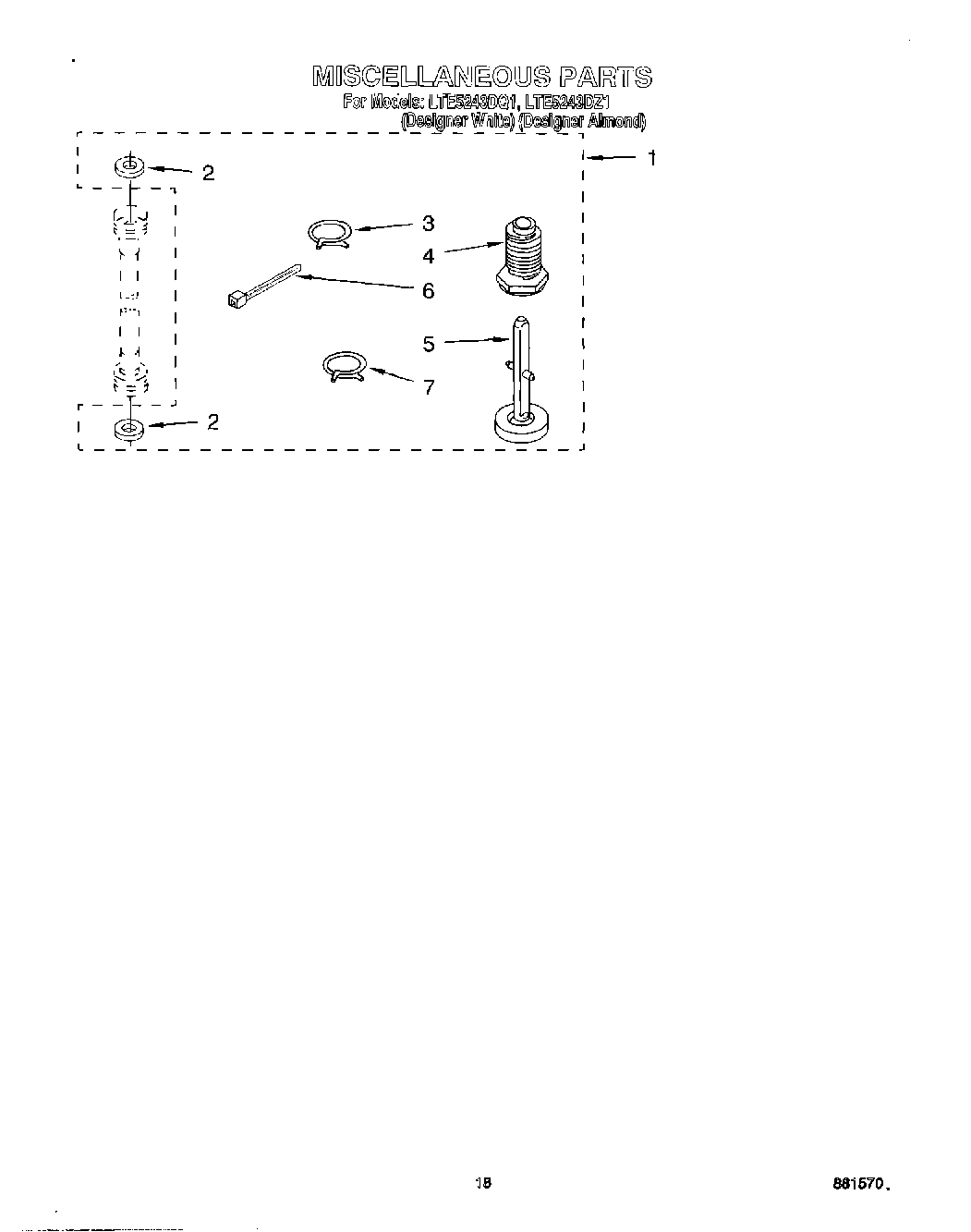

Model Whirlpool LTE5243DQ1 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP3406108 Whirlpool Door Switch In Stock WPL WP3406108 $16.98

1

WP3406288 Whirlpool Wire Harness Backorder WPL WP3406288 $89.85

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1B

696073 Whirlpool Connector Backorder WPL 696073 $30.25

1C

Disconnect Block (Connects With Automatic Tim WPL 3948614 Contact Us For Availability

2

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP3952499 Whirlpool Timer Control In Stock WPL WP3952499 $176.22

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

4

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $41.32

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Panel, Rear WPL 3390405 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $16.56

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

Basket WPL 3351985 Contact Us For Availability

8

Cover, Terminal Block WPL 3394228 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

9

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

9

Tub WPL 63782 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $96.44

WP3402293 Whirlpool Panel Assembly Backorder WPL WP3402293 $158.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP696710 Whirlpool Hose In Stock WPL WP696710 $25.46

Panel, Side (L.H.) (Almond) WPL 3402294 Contact Us For Availability

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.84

WP3401380 Whirlpool Box In Stock WPL WP3401380 $109.54

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP8054142 Whirlpool Temperature Switch Backorder WPL WP8054142 $52.39

280120 Whirlpool Hose Backorder WPL 280120 $13.36

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

(Alt.) WPL 334828 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

Elbow, Upper WPL 3399602 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

WP3399849 Whirlpool Thermal Fuse In Stock WPL WP3399849 $12.46

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

Handle, Door (Almond) WPL 689308 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

WP3406720 Whirlpool Timer In Stock WPL WP3406720 $189.09

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

17

3399603 Whirlpool Elbow Backorder WPL 3399603 $44.62

17

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

17

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $35.38

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

WP3404154 Whirlpool High Limit Thermostat In Stock WPL WP3404154 $46.06

20

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $27.45

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

694037 Whirlpool Clip Backorder WPL 694037 $30.25

8066051 Whirlpool Motor Pulley Backorder WPL 8066051 $43.90

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $25.73

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

WP692771 Whirlpool Nut Backorder WPL WP692771 $2.51

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Panel, Control (White) WPL 3977194 Contact Us For Availability

3399632 Whirlpool Dryer Base Backorder WPL 3399632 $70.72

696044 Whirlpool Block In Stock WPL 696044 $30.89

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

BAFFLE-DRM WPL 685207 Contact Us For Availability

25

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

26

WP692926 Whirlpool Cover Appliance Backorder WPL WP692926 $30.25

27

692933 Whirlpool Panel Backorder WPL 692933 $105.81

27

Panel, Front (White) WPL 692628 Contact Us For Availability

27

Panel, Transition (Almond) WPL 692934 Contact Us For Availability

28

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

28

WP692641 Whirlpool Dryer Top Assembly Backorder WPL WP692641 $114.70

29

WP3402287 Whirlpool Panel Backorder WPL WP3402287 $158.74

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Panel, Side (R.H.) (Almond) WPL 3402288 Contact Us For Availability

30

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.11

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

31

WP692781 Whirlpool Closure Assembly Backorder WPL WP692781 $72.31

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

31

Closure, Control Area (Almond) WPL 692782 Contact Us For Availability

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

32

Screw & Washer (3) (Lid Latch Mounting) WPL 354975 Contact Us For Availability

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

34

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

36

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

36B

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

48

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25
