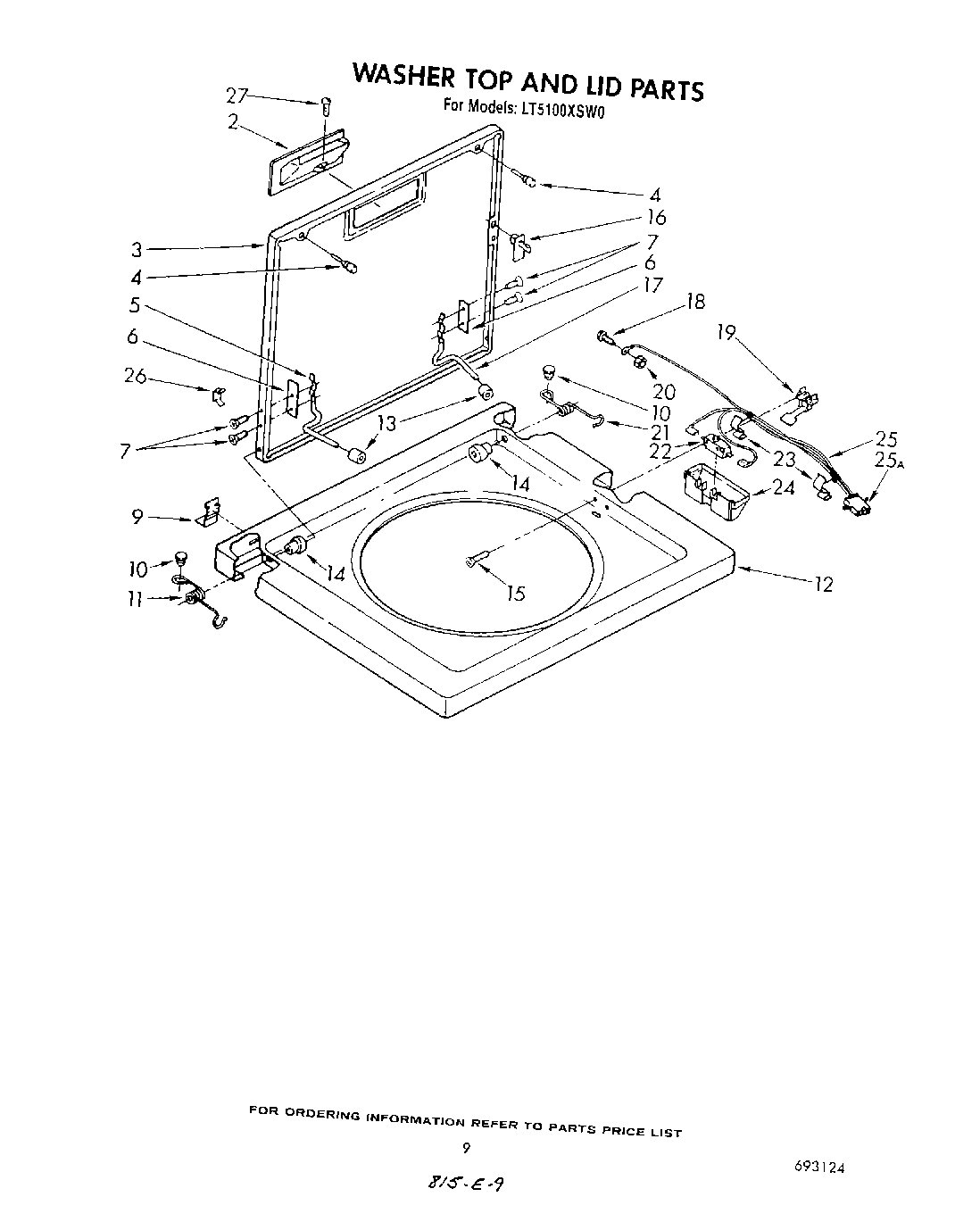

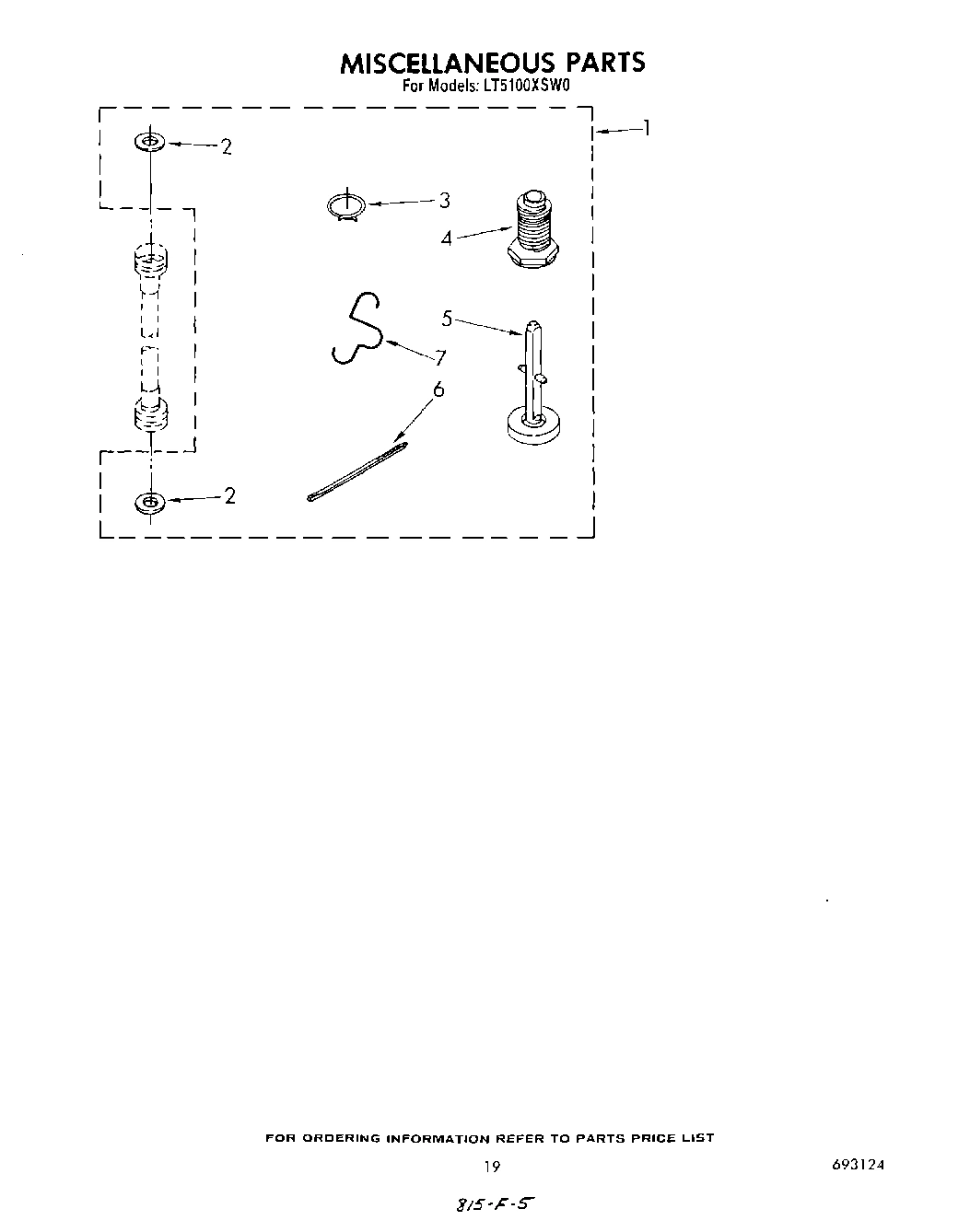

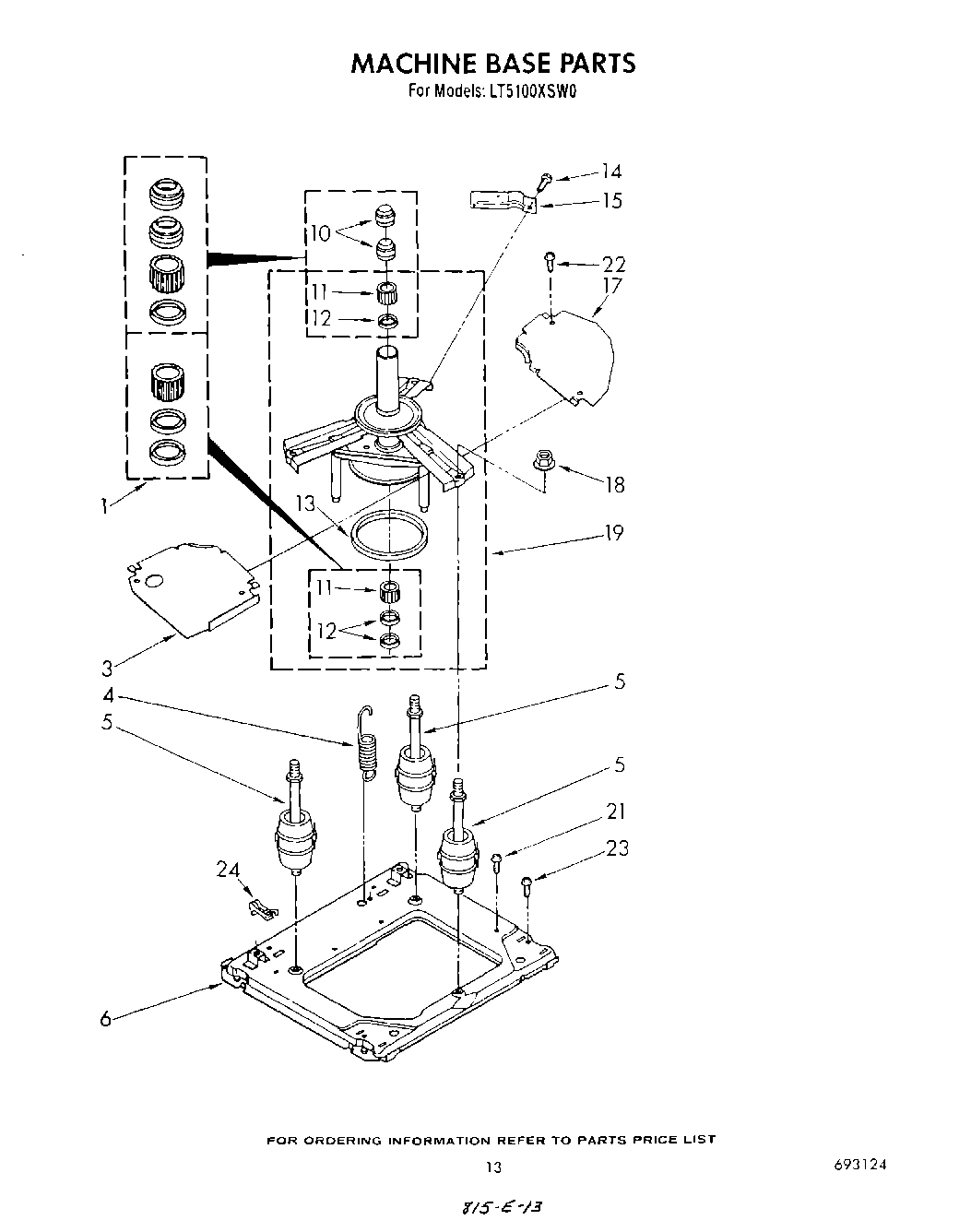

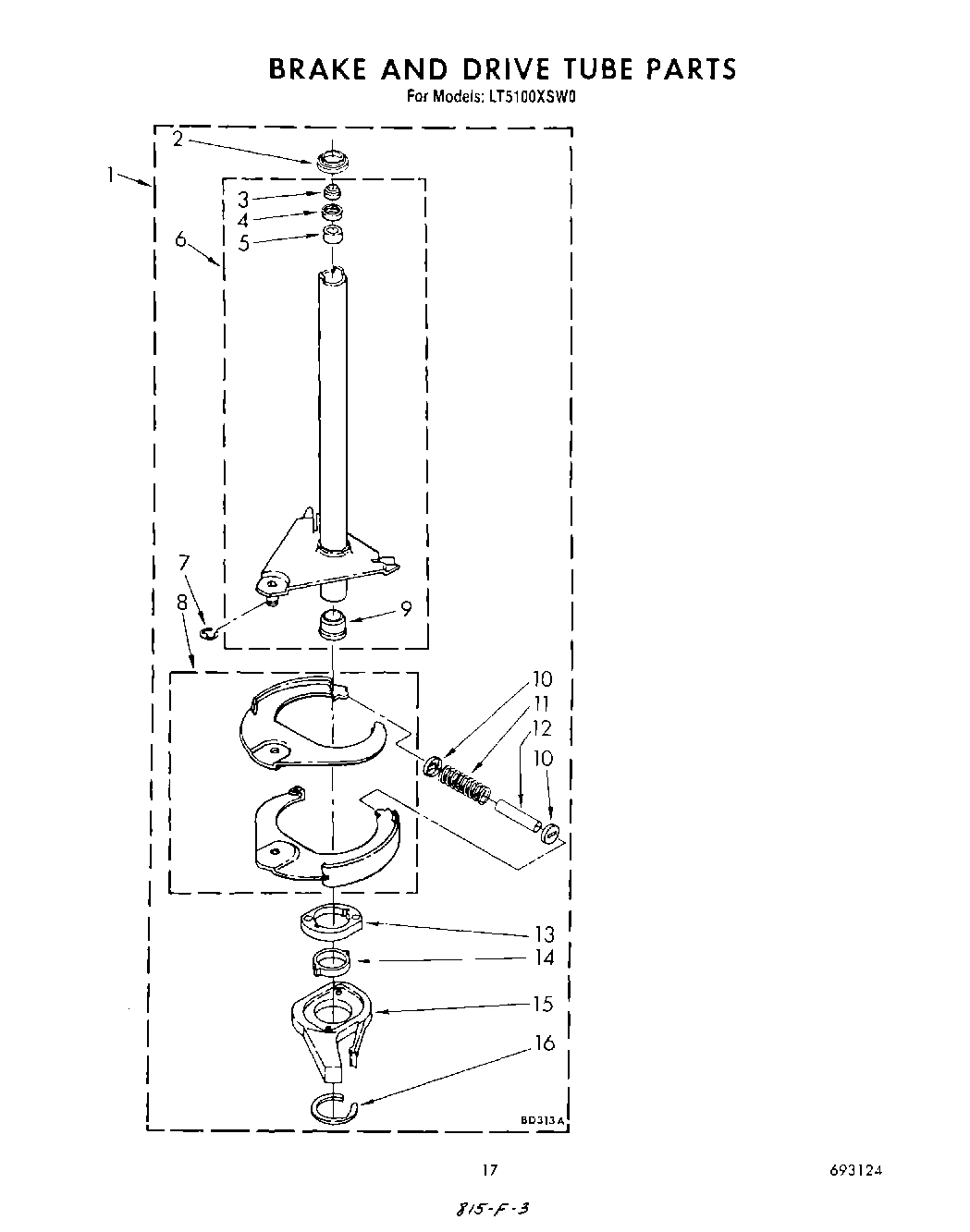

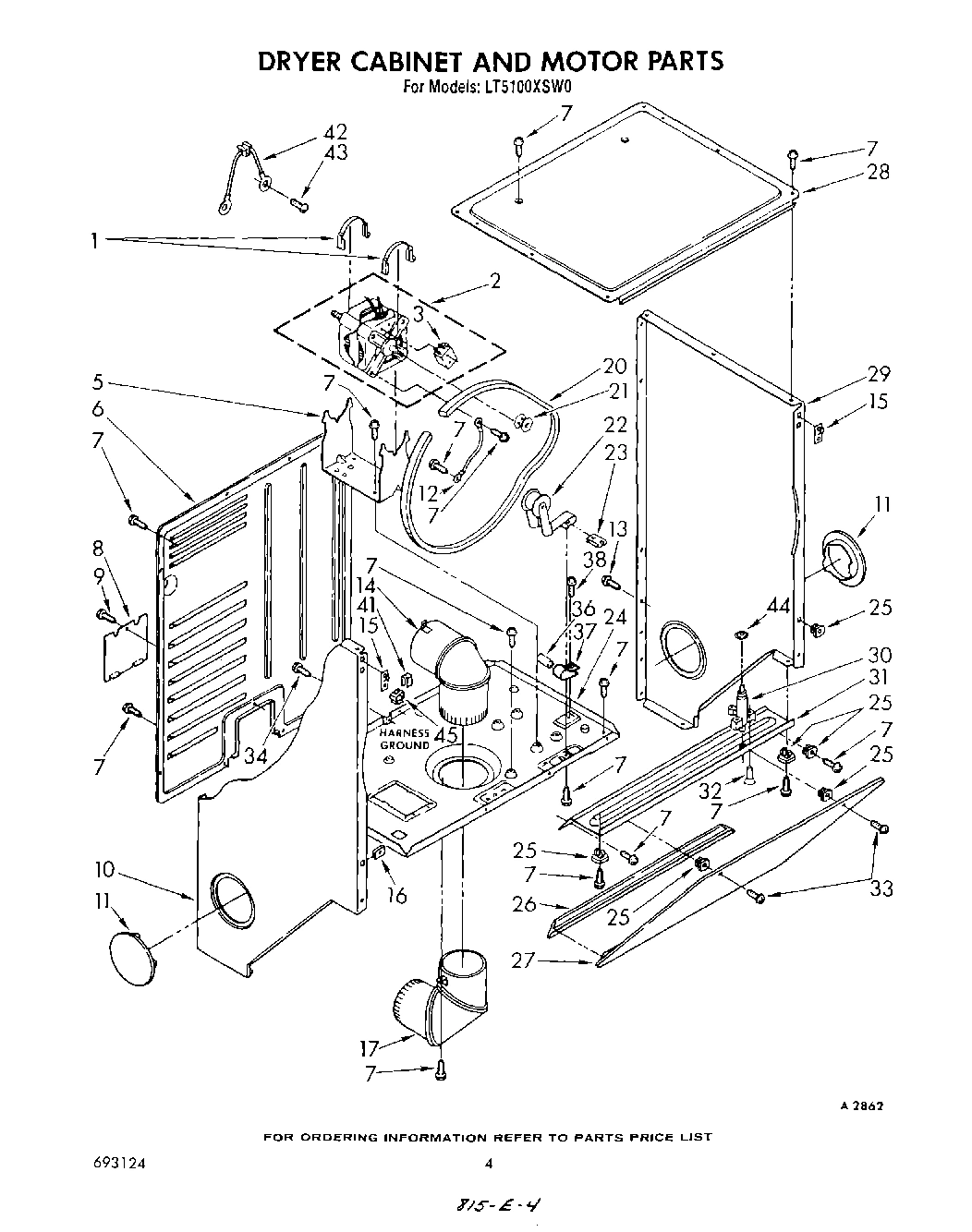

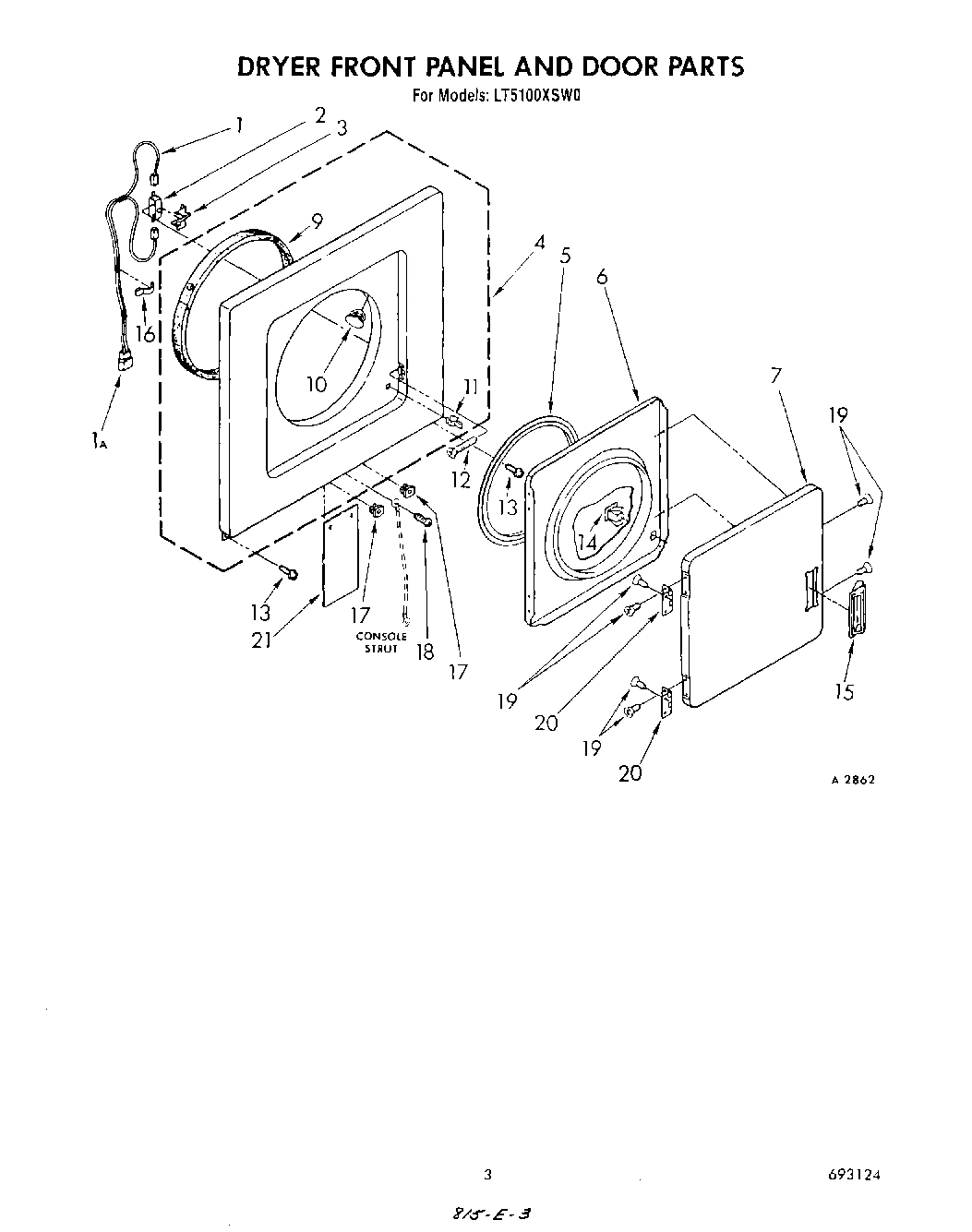

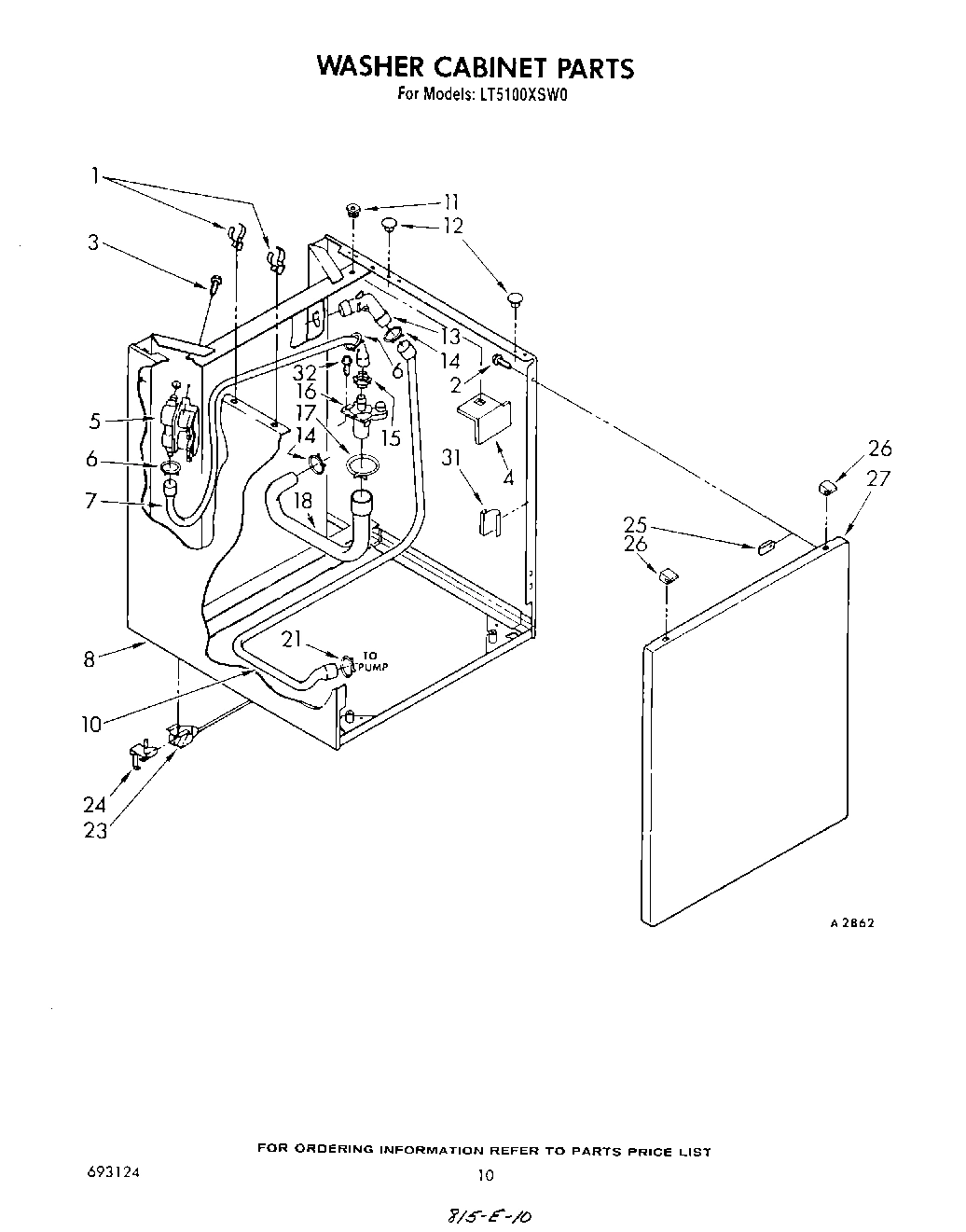

Model Whirlpool LT5100XSW0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

694304 Whirlpool Channel Cover Backorder WPL 694304 $29.26

1

696073 Whirlpool Connector Backorder WPL 696073 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

1

Harness, Door Switch (Includes Illus. 1A) WPL 692728 Contact Us For Availability

1

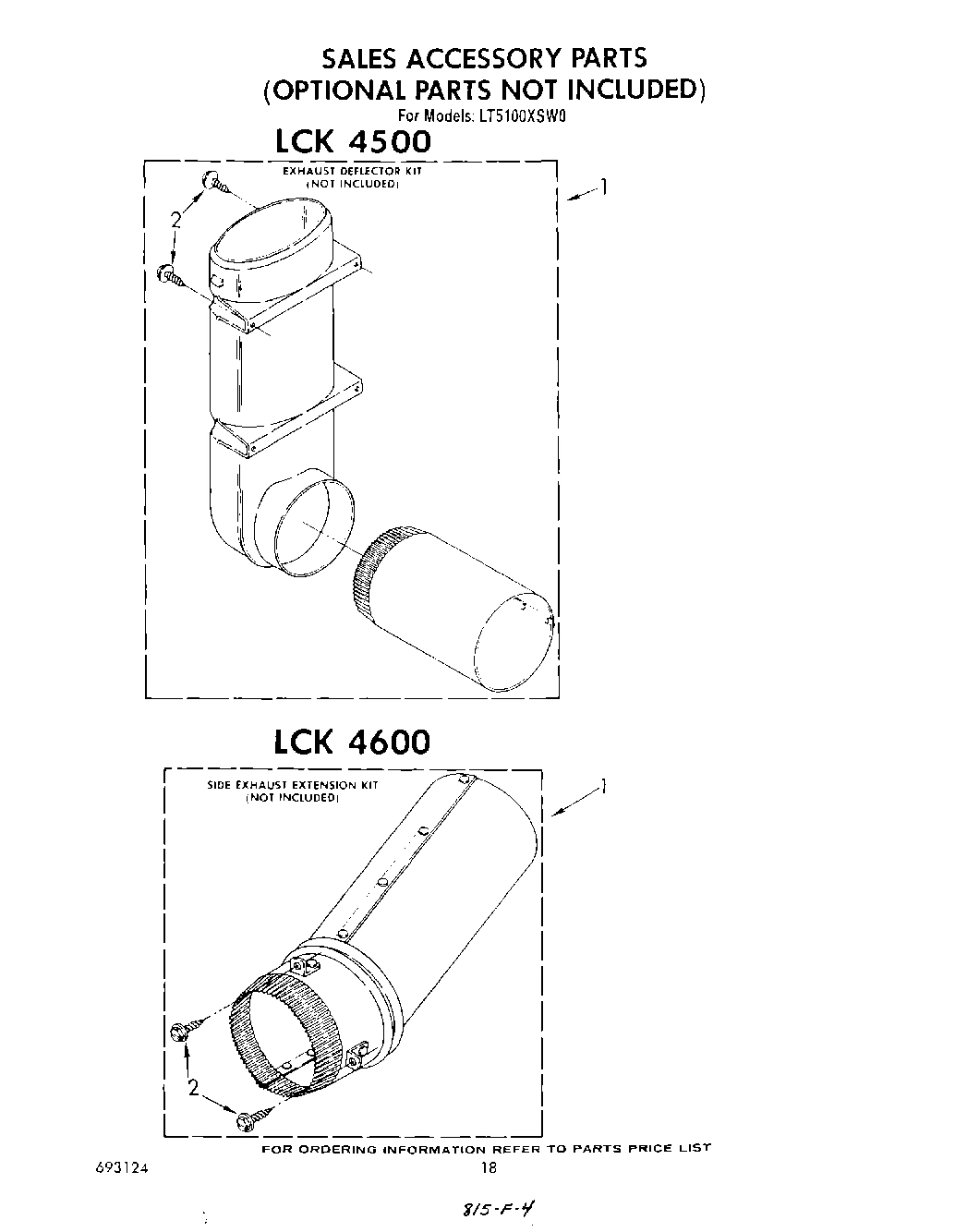

Exhaust Deflector Kit (Complete) WPL 694609 Contact Us For Availability

1

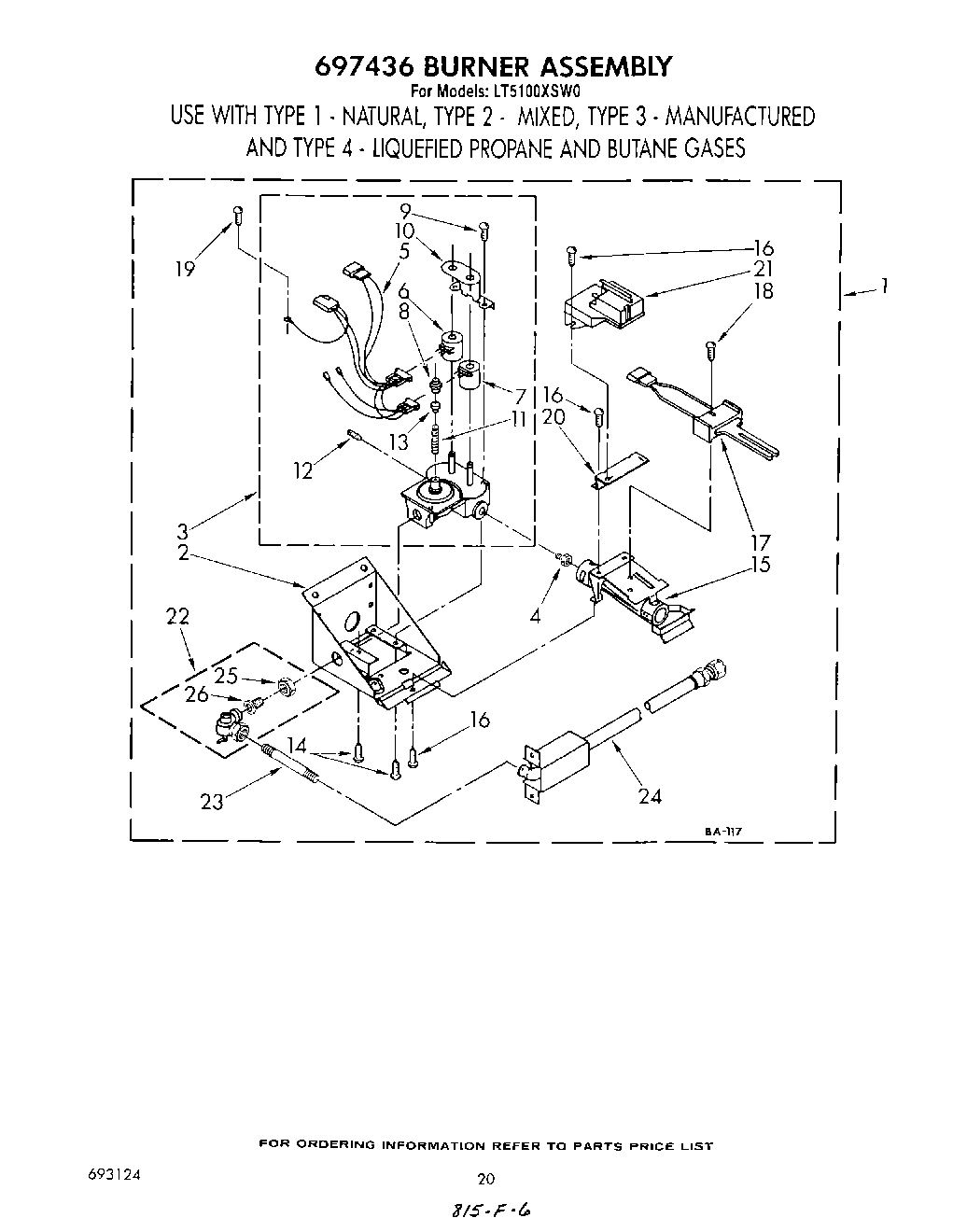

Burner Assembly 60 Hz. WPL 697436 Contact Us For Availability

2

W11174025 Whirlpool Support Assembly Backorder WPL W11174025 $37.39

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

Base, Burner WPL 697408 Contact Us For Availability

2

Handle, Lid (White) WPL 379884 Contact Us For Availability

2

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

2

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

2

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

2

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

3

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

3

696529 Whirlpool Air Duct Backorder WPL 696529 $48.24

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Platinum) WPL 3348020 Contact Us For Availability

3

Lid (Toast) WPL 3348021 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

4

285314 Whirlpool O/S1 Panel In Stock WPL 285314 $203.91

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $2.73

4

WP234822 Whirlpool Gas Orifice Backorder WPL WP234822 $12.76

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

4

WP347744 Whirlpool Gas Orifice Backorder WPL WP347744 $28.09

4

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

Panel, Front (Almond) WPL 692620 Contact Us For Availability

4

Panel, Front (Toast) WPL 692621 Contact Us For Availability

4

Panel, Front (Platinum) WPL 692622 Contact Us For Availability

4

Panel, Front (Golden Harvest) WPL 692623 Contact Us For Availability

4

Shield, Rear WPL 3390408 Contact Us For Availability

5

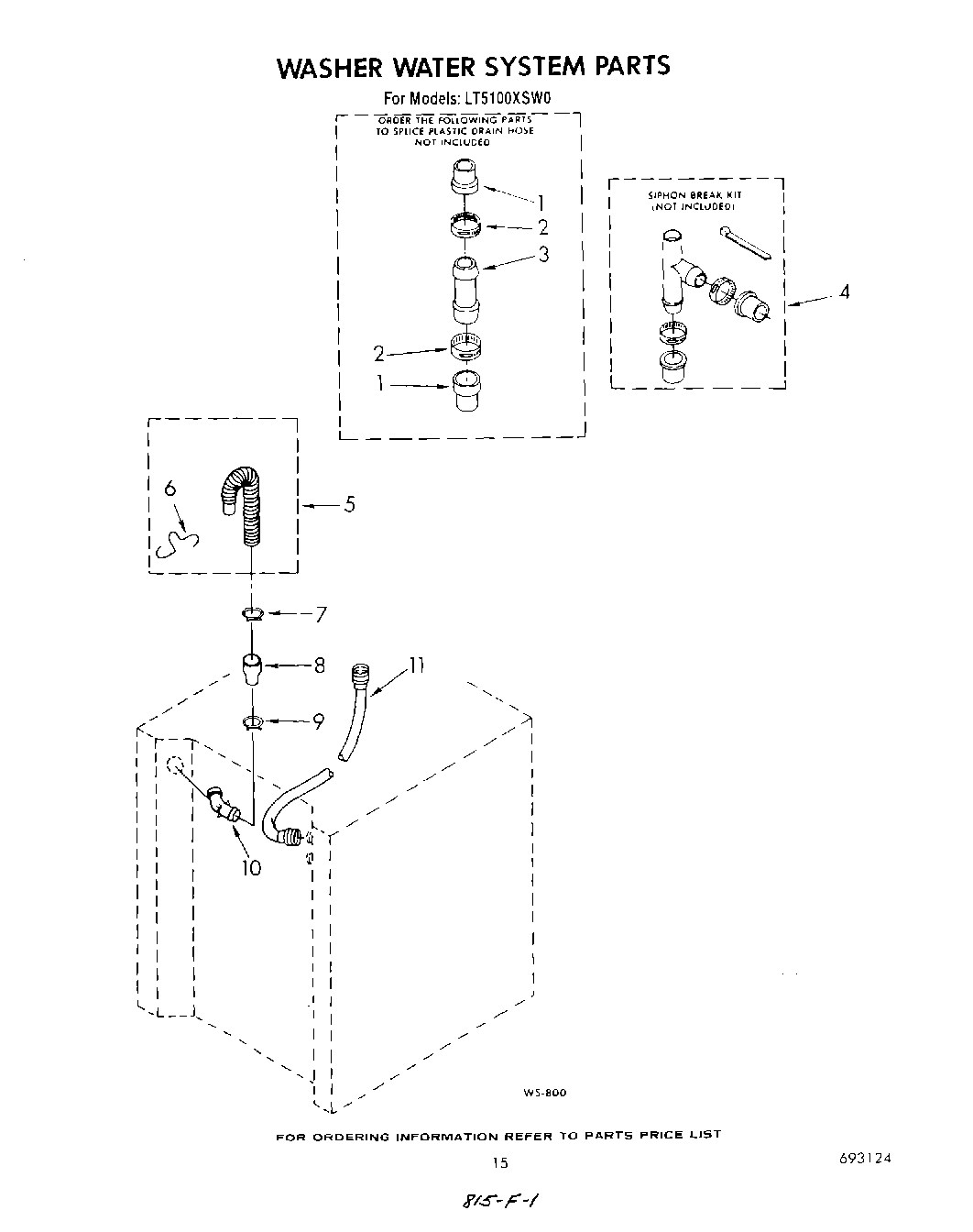

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11174024 Whirlpool Support Backorder WPL W11174024 $94.84

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

5

WP3401849 Whirlpool Wire Harness Backorder WPL WP3401849 $50.93

5

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Suspension Assembly (3) WPL 63721 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

6

280077 Whirlpool Door Backorder WPL 280077 $122.39

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

6

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $134.12

6

Panel, Rear WPL 692626 Contact Us For Availability

6

Retainer, Drain Hose WPL 357247 Contact Us For Availability

6

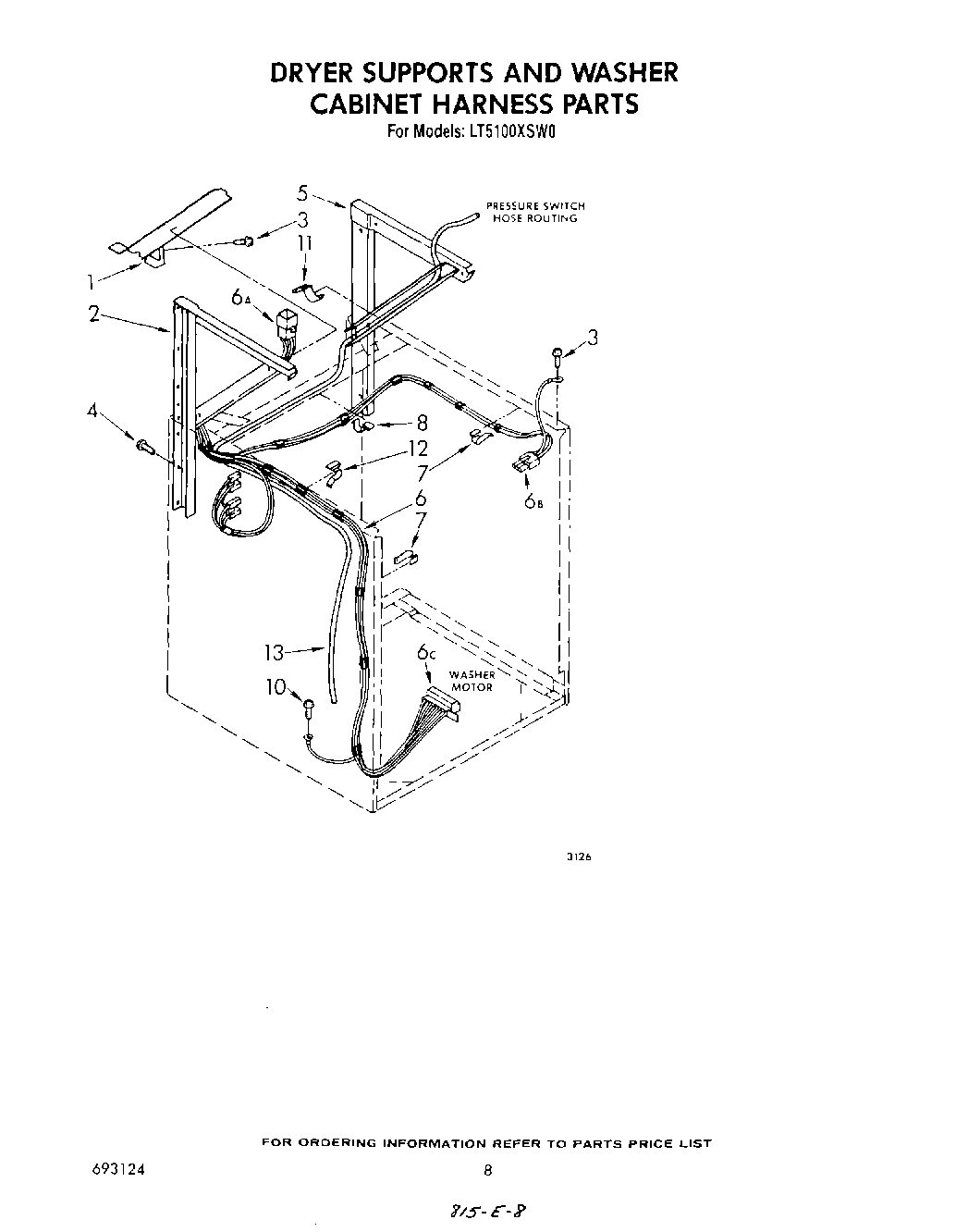

Harness, Upper (Automatic) (Includes Illus. 6 WPL 3388677 Contact Us For Availability

6

Plug, Terminal (12-Way) (Connects With Automa WPL 696074 Contact Us For Availability

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $16.56

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

7

Door, Front (Almond) WPL 689314 Contact Us For Availability

7

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

7

Door, Front (Toast) WPL 695214 Contact Us For Availability

7

Door, Front (Platinum) WPL 695215 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

8

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

8

Thermostat, Heater Box (Alt.) WPL 341196 Contact Us For Availability

8

Cover, Terminal Block WPL 307972 Contact Us For Availability

8

Clip, Pressure Switch Hose And Wiring Harness WPL 696636 Contact Us For Availability

8

Cabinet (White) WPL 696013 Contact Us For Availability

8

Cabinet (Almond) WPL 696014 Contact Us For Availability

8

Cabinet (Golden Harvest) WPL 696015 Contact Us For Availability

8

Cabinet (Toast) WPL 696016 Contact Us For Availability

8

Cabinet (Platinum) WPL 696017 Contact Us For Availability

9

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

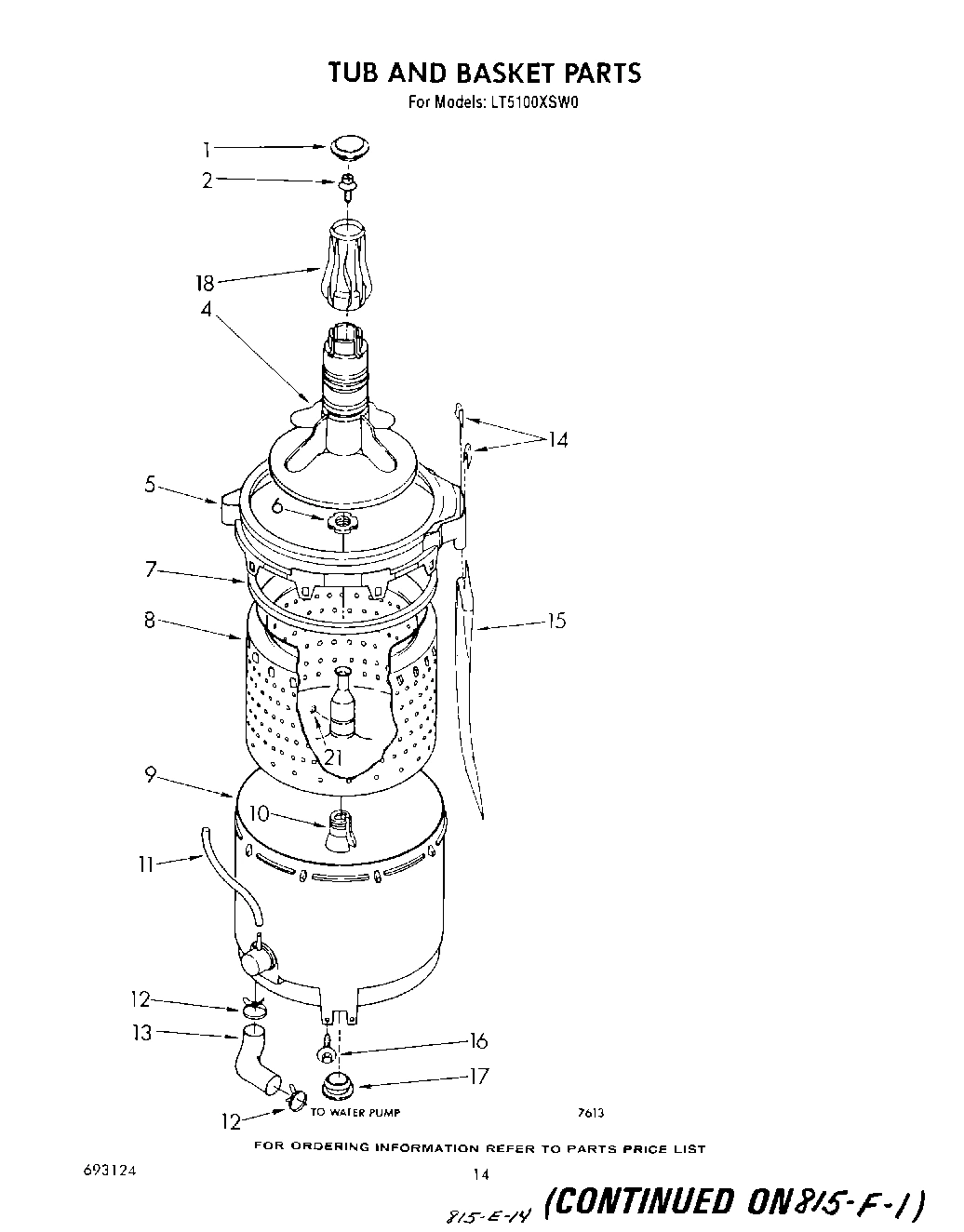

Tub WPL 63782 Contact Us For Availability

279220 Whirlpool Clip In Stock WPL 279220 $11.93

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WP3402293 Whirlpool Panel Assembly Backorder WPL WP3402293 $158.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP696710 Whirlpool Hose In Stock WPL WP696710 $25.46

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Switch, Water Level WPL 64093 Contact Us For Availability

Panel, Side (L.H.) (Almond) WPL 692614 Contact Us For Availability

Panel, Side (L.H.) (Toast) WPL 692615 Contact Us For Availability

Panel, Side (L.H.) (Platinum) WPL 692616 Contact Us For Availability

Panel, Side (L.H.) (Golden Harvest) WPL 692617 Contact Us For Availability

Plug, Button (2) WPL 54690 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

692790 Whirlpool Plug Backorder WPL 692790 $28.09

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

Plug, Side Panel (2) (Almond) WPL 692791 Contact Us For Availability

Plug, Side Panel (2) (Toast) WPL 692792 Contact Us For Availability

Plug, Side Panel (2) (Platinum) WPL 692793 Contact Us For Availability

Plug, Side Panel (2) (Golden Harvest) WPL 692794 Contact Us For Availability

Spring, Lid (L.H.) (Includes Illus 10) WPL 384460 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Wire, Motor Ground WPL 687261 Contact Us For Availability

Top (Almond) WPL 384694 Contact Us For Availability

Top (Golden Harvest) WPL 384697 Contact Us For Availability

Top (Toast) WPL 384698 Contact Us For Availability

Top (Platinum) WPL 384699 Contact Us For Availability

CLIP WPL 693141 Contact Us For Availability

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.84

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

Elbow, Upper WPL 695524 Contact Us For Availability

Clamp, Hose WPL 272855 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

8578392 Whirlpool Burner Backorder WPL 8578392 $55.71

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

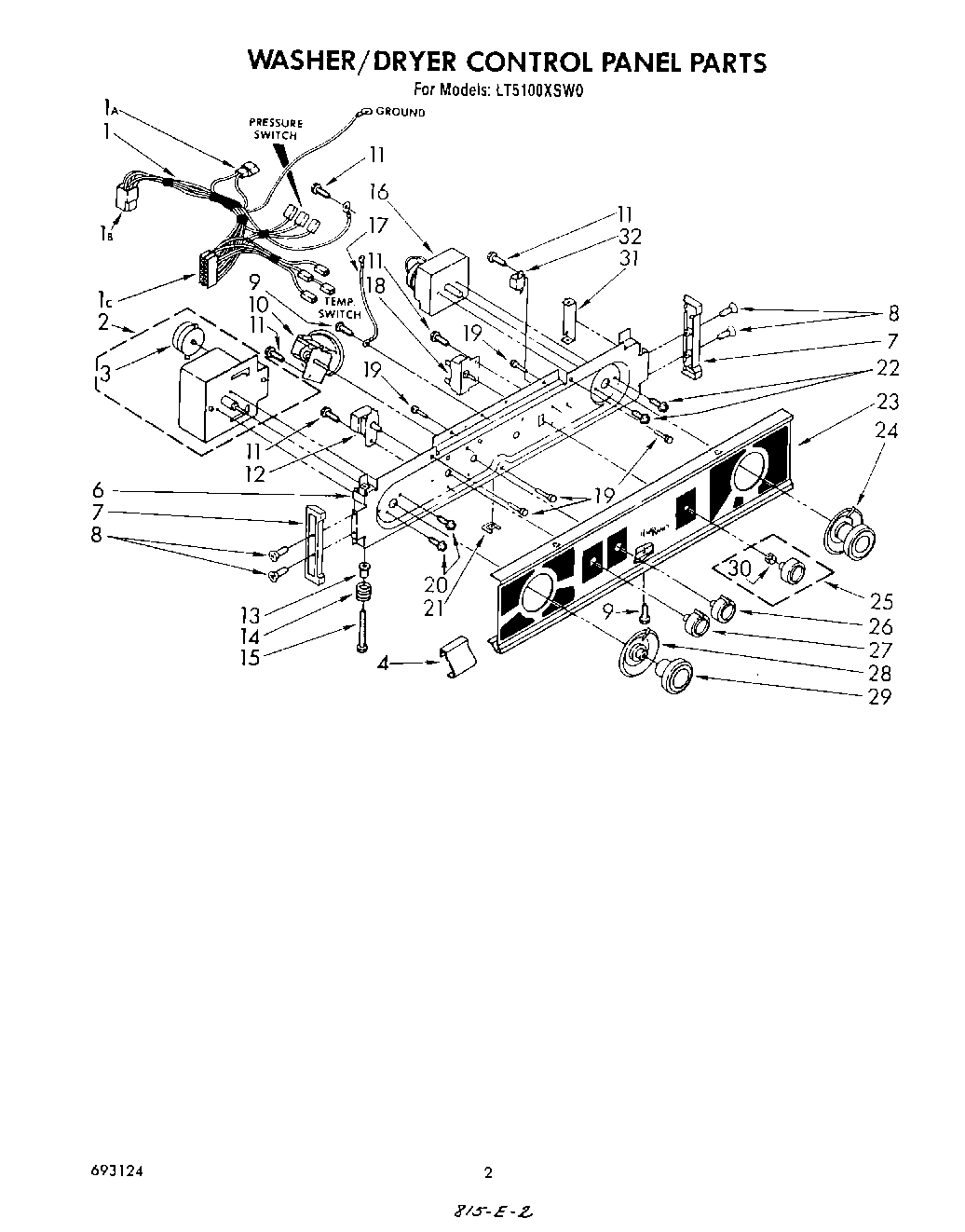

WP3388255 Whirlpool Timer In Stock WPL WP3388255 $179.40

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Support Protector WPL 692846 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3399603 Whirlpool Elbow Backorder WPL 3399603 $44.62

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Fastener, Push (2) WPL 693739 Contact Us For Availability

279710 Whirlpool Nut In Stock WPL 279710 $27.52

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

THRMST-FIX WPL 696818 Contact Us For Availability

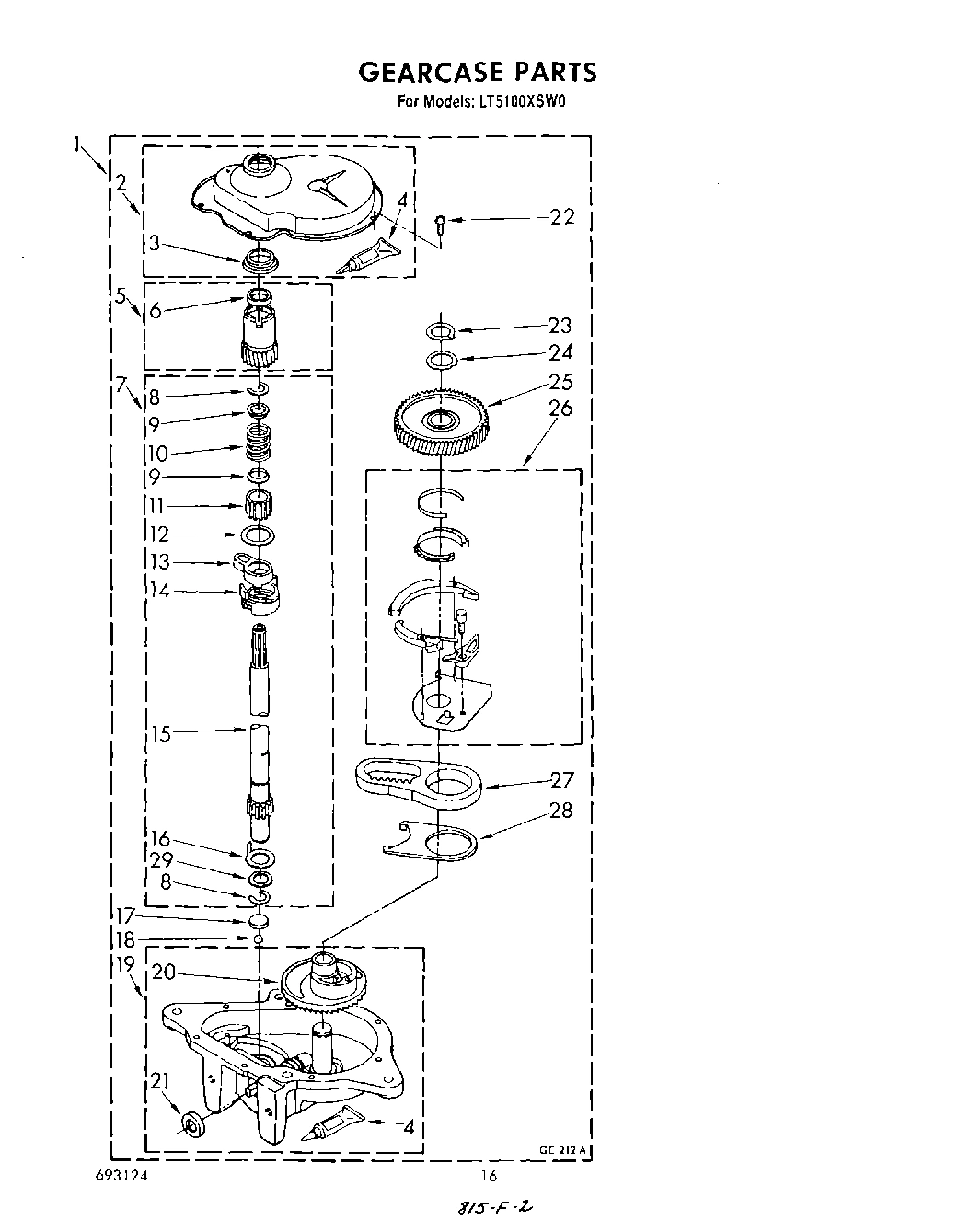

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $27.45

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

Gear, Main Drive WPL 62528 Contact Us For Availability

Bracket, Sensor WPL 697409 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

694037 Whirlpool Clip Backorder WPL 694037 $30.25

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Barrier, Harness WPL 693303 Contact Us For Availability

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384461 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

Valve, Shutoff WPL 697441 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $27.74

W10110397 Whirlpool Pipe Backorder WPL W10110397 $28.15

WP358652 Whirlpool Link In Stock WPL WP358652 $30.25

WP692771 Whirlpool Nut Backorder WPL WP692771 $2.51

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Ring, Retaining WPL 95082 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $30.89

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

BAFFLE-DRM WPL 685207 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

Base, Dryer WPL 697410 Contact Us For Availability

Supply Line (Gas) WPL 3391118 Contact Us For Availability

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Nut, Compression WPL 233076 Contact Us For Availability

Receptacle, Terminal (3-Way) (Connects With H WPL 62888 Contact Us For Availability

Harness, Lid Switch WPL 697381 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

WP692926 Whirlpool Cover Appliance Backorder WPL WP692926 $30.25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

692933 Whirlpool Panel Backorder WPL 692933 $105.81

Panel, Front (White) WPL 692628 Contact Us For Availability

Panel, Transition (Almond) WPL 692934 Contact Us For Availability

Panel, Transition (Toast) WPL 692935 Contact Us For Availability

Panel, Transition (Platinum) WPL 692936 Contact Us For Availability

Panel, Transition (Golden Harvest) WPL 692937 Contact Us For Availability

Screw WPL 359243 Contact Us For Availability

Panel, Front (Almond) WPL 692629 Contact Us For Availability

Panel, Front (Toast) WPL 692630 Contact Us For Availability

Panel, Front (Platinum) WPL 692631 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 692632 Contact Us For Availability

28

WP692641 Whirlpool Dryer Top Assembly Backorder WPL WP692641 $114.70

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

Panel, Side (R.H.) (White) WPL 692607 Contact Us For Availability

Panel, Side (R.H.) (Almond) WPL 692608 Contact Us For Availability

Panel, Side (R.H.) (Toast) WPL 692609 Contact Us For Availability

Panel, Side (R.H.) (Plat WPL 692610 Contact Us For Availability

WPL 692611 WPL 692611 Contact Us For Availability

30

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

WP692781 Whirlpool Closure Assembly Backorder WPL WP692781 $72.31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

WPL 692782 WPL 692782 Contact Us For Availability

WPL 692783 WPL 692783 Contact Us For Availability

WPL 692784 WPL 692784 Contact Us For Availability

WPL 692785 WPL 692785 Contact Us For Availability

Pad, Extruder (2) WPL 694398 Contact Us For Availability

32

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

32

WPL 354975 WPL 354975 Contact Us For Availability

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

36

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

36

Receptacle, Multi-Terminal (Connects With The WPL 692998 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

41

3390046 Whirlpool Protector Backorder WPL 3390046 $5.38

42

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

42

WPL 3388580 WPL 3388580 Contact Us For Availability

44

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

45

WPL 61894 WPL 61894 Contact Us For Availability

45

WPL 697438 WPL 697438 Contact Us For Availability

52

345335 Whirlpool Cover In Stock WPL 345335 $59.75
