Model Whirlpool LSS7233AW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

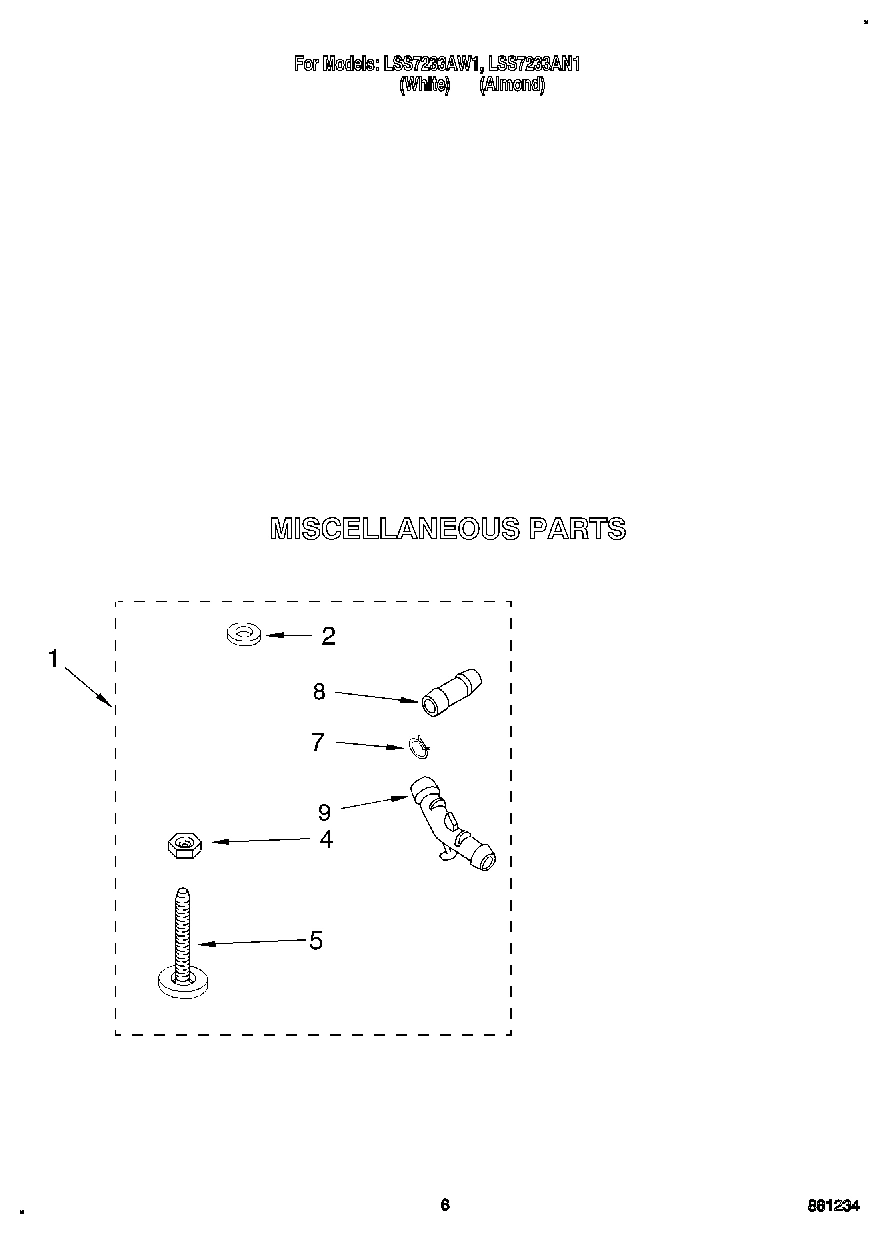

Miscellaneous Parts Bag WPL 3359469 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $90.19

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $77.59

4

Pin WPL 90222 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

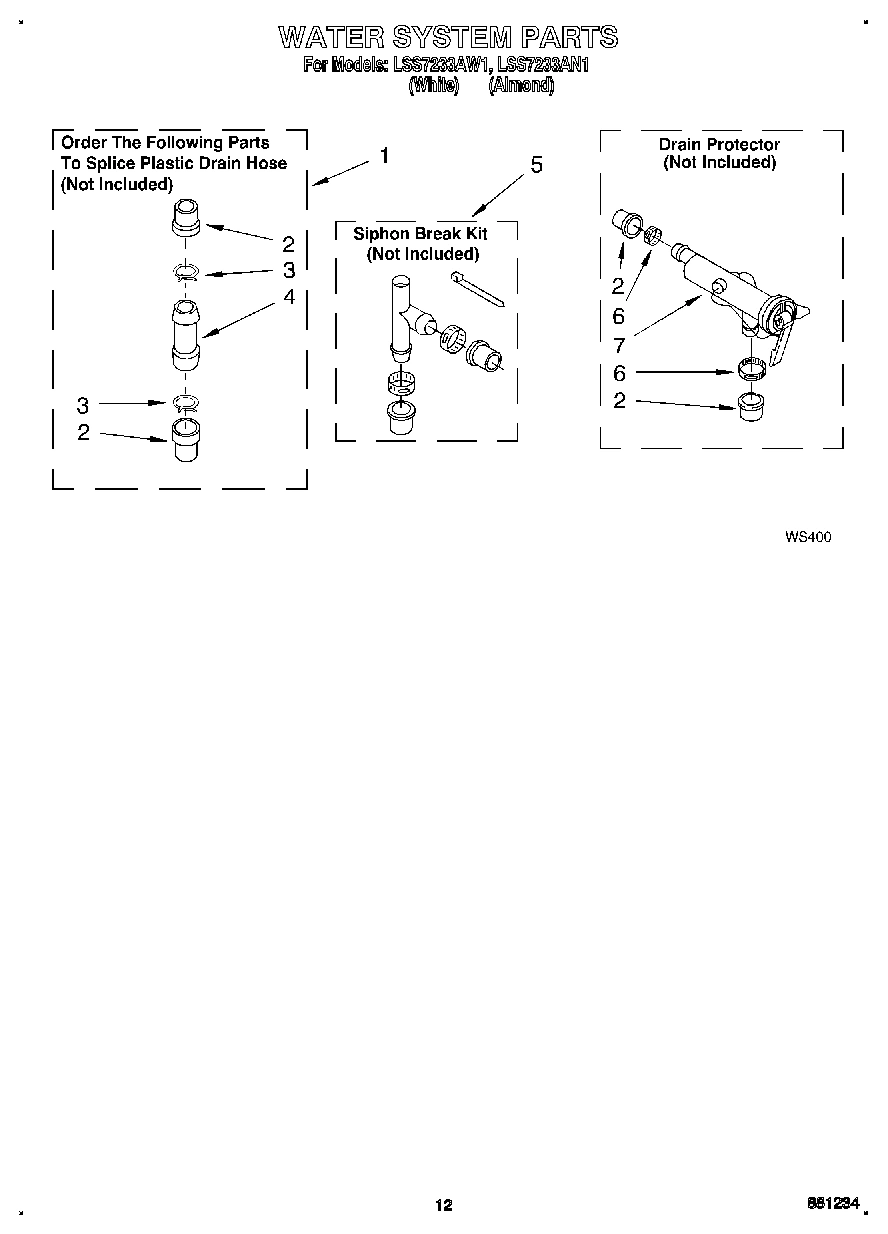

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Valve, 2-Way (Diaphragm No.358317) WPL 359985 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Connector WPL 95440 Contact Us For Availability

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3946473 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Clip, Retainer WPL 96262 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356467 Whirlpool Washer Water Level Switch Backorder WPL WP3356467 $92.18

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Cord, Power WPL 3360514 Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary In Stock WPL 3361596 $180.24

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Cap, End (L.H.) (For White Model) WPL 3358531 Contact Us For Availability

Cap, End (L.H.) (For Almond Model) WPL 3358532 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

Hose, Bleach WPL 3358198 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

Connector, Drain Hose WPL 3351456 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

28

Hose, Pump To Drain Connector WPL 3351457 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Solenoid, Suds Valve WPL 3351455 Contact Us For Availability

30

Rivet WPL 359089 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

31

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

32

Pin WPL 90228 Contact Us For Availability

35

Switch, Water Temperature WPL 661538 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

39

Panel, Console (For White Model) WPL 3359252 Contact Us For Availability

39

Panel, Console (For Almond Model) WPL 3359253 Contact Us For Availability

41

Hose, Drain WPL 388798 Contact Us For Availability

43

Strainer WPL 352833 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $31.57

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $34.97

46

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $28.79

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

48

Strap WPL 358343 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

Cap , End (R.H.) (For White Model) WPL 3358516 Contact Us For Availability

51

Cap, End (R.H.) (For Almond Model) WPL 3358517 Contact Us For Availability

53

Protector, Valve WPL 3351447 Contact Us For Availability

54

Switch, Suds Level WPL 3352288 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WPL 3352299 WPL 3352299 Contact Us For Availability

57

WPL 3351453 WPL 3351453 Contact Us For Availability

58

WPL 3351452 WPL 3351452 Contact Us For Availability

59

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

60

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

64

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

66

WPL 3348424 WPL 3348424 Contact Us For Availability

67

WPL 3359868 WPL 3359868 Contact Us For Availability
