Model Whirlpool LSR7233DQ0 AUTOMATIC WASHER – Common Parts & Diagrams

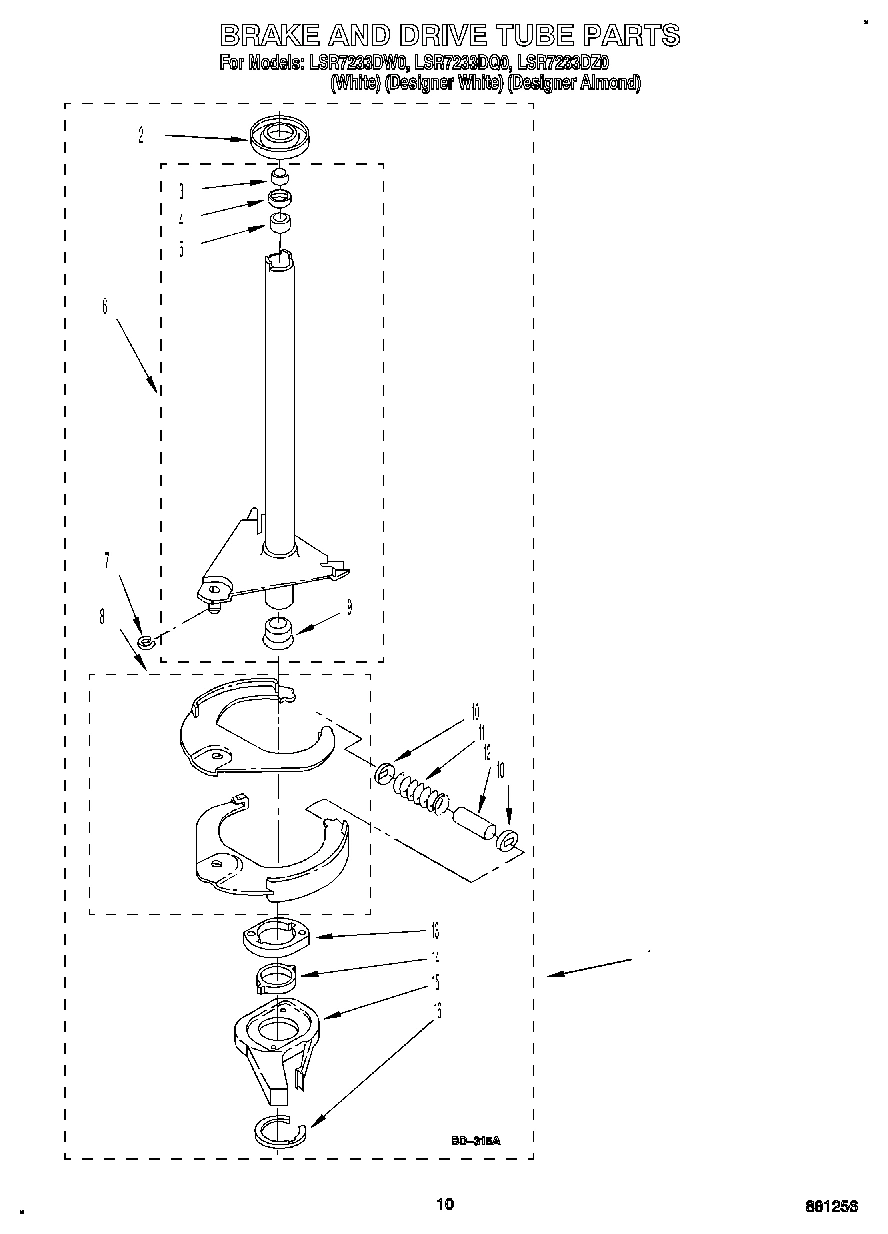

08 - BRAKE AND DRIVE TUBE

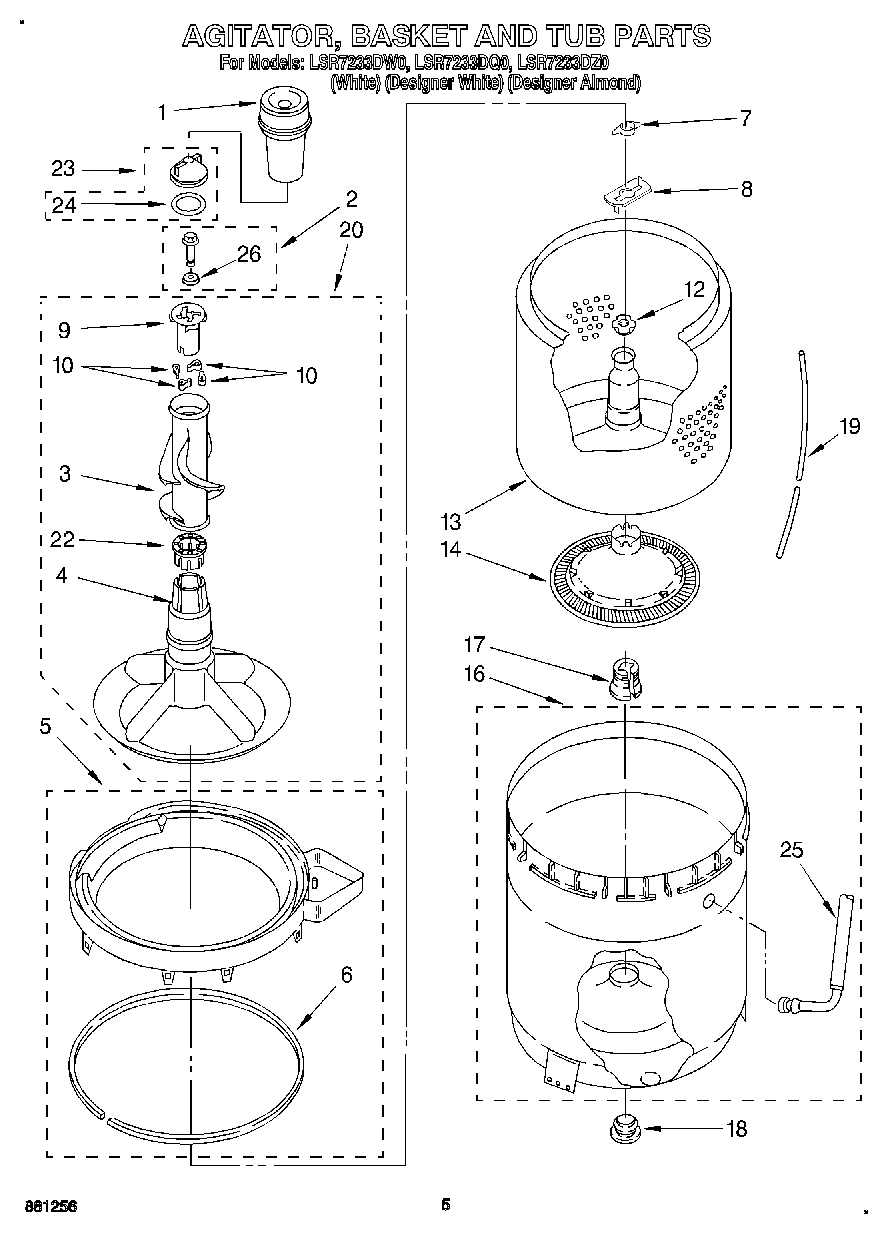

04 - AGITATOR, BASKET AND TUB

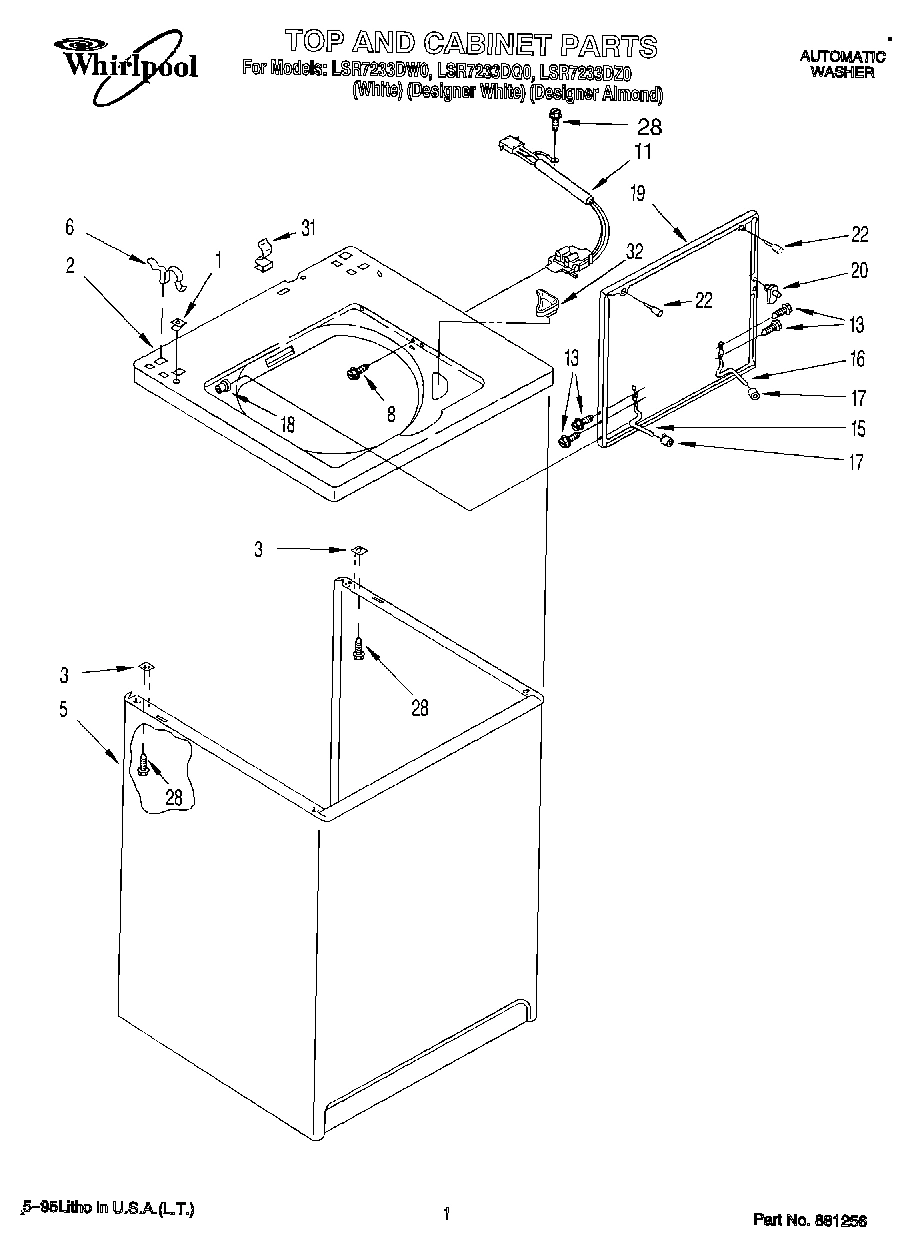

01 - TOP AND CABINET, LIT/OPTIONAL

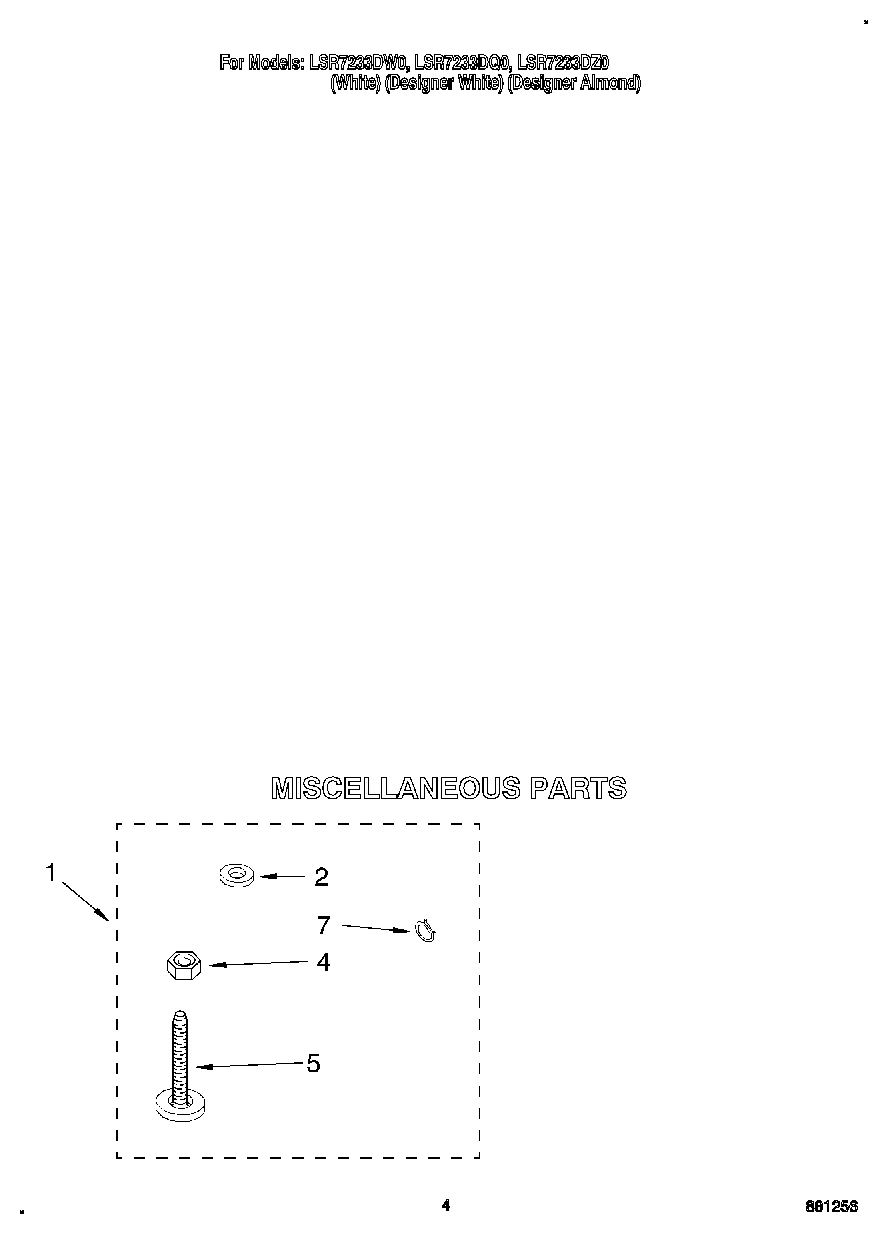

03 - MISCELLANEOUS

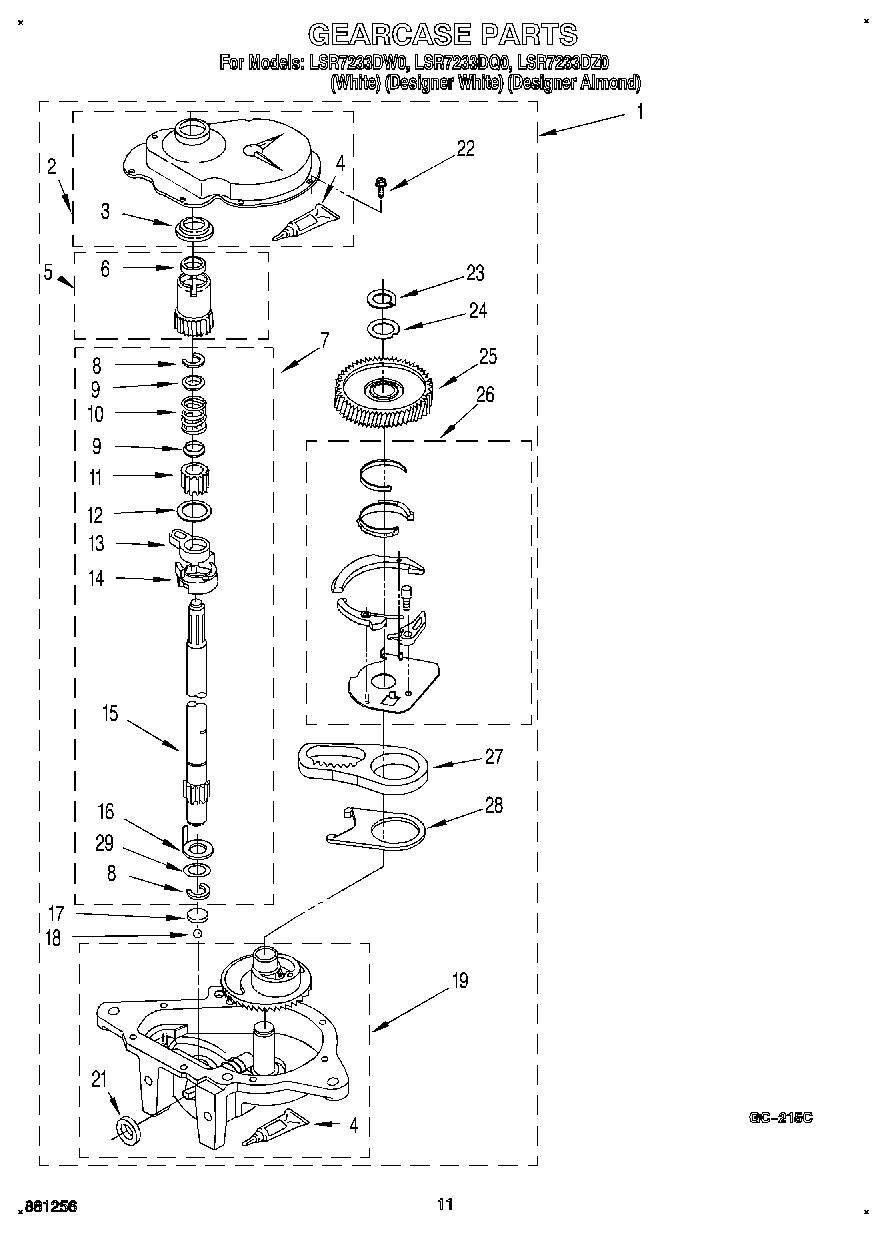

09 - GEARCASE

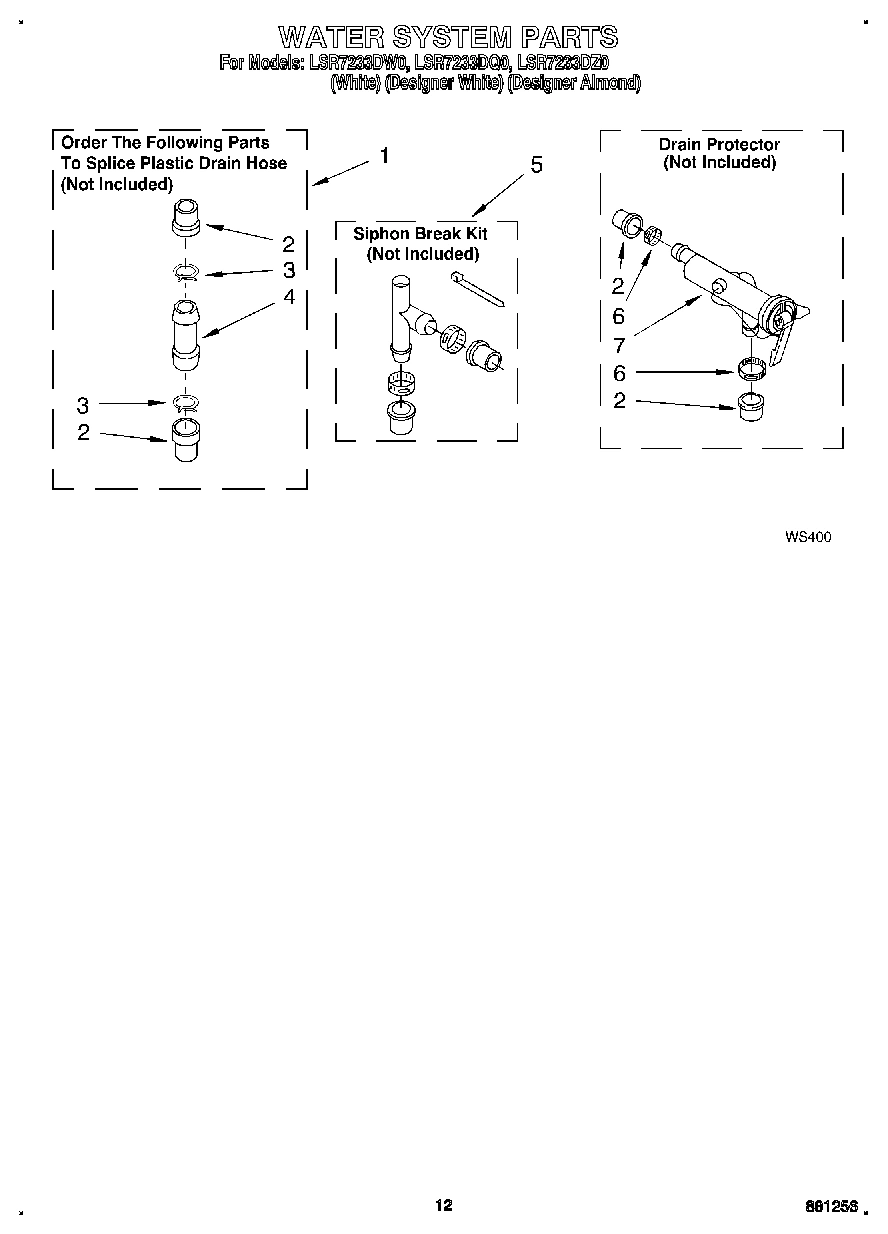

10 - WATER SYSTEM

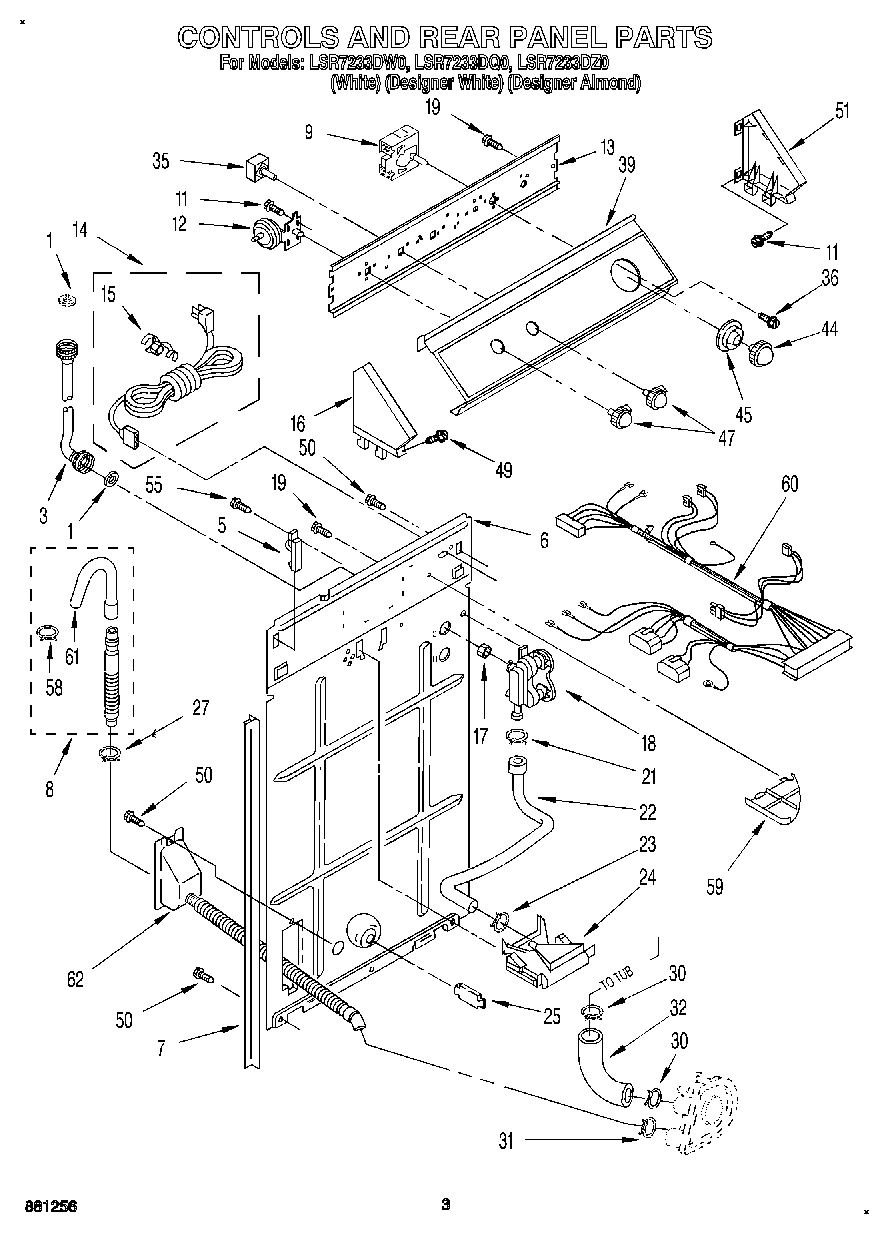

02 - CONTROLS AND REAR PANEL

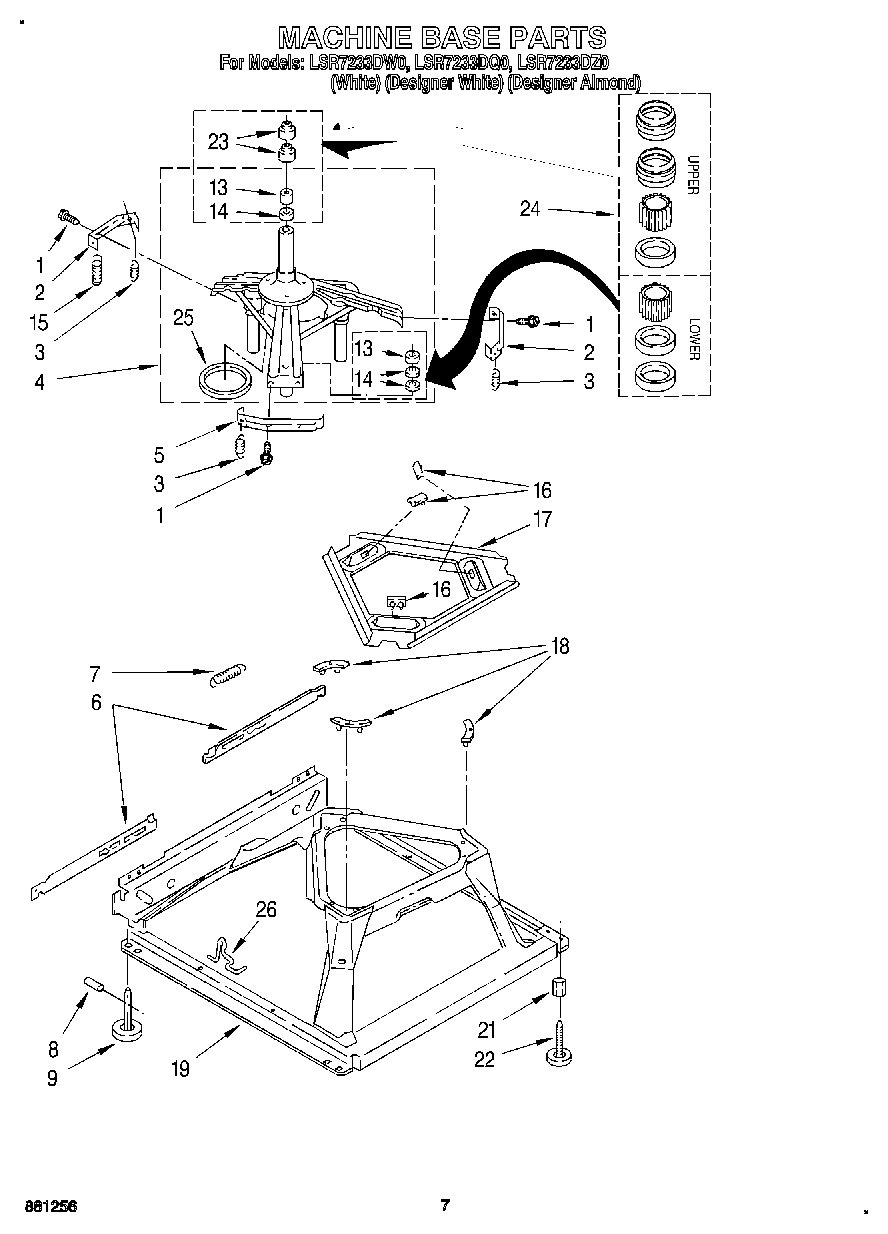

05 - MACHINE BASE

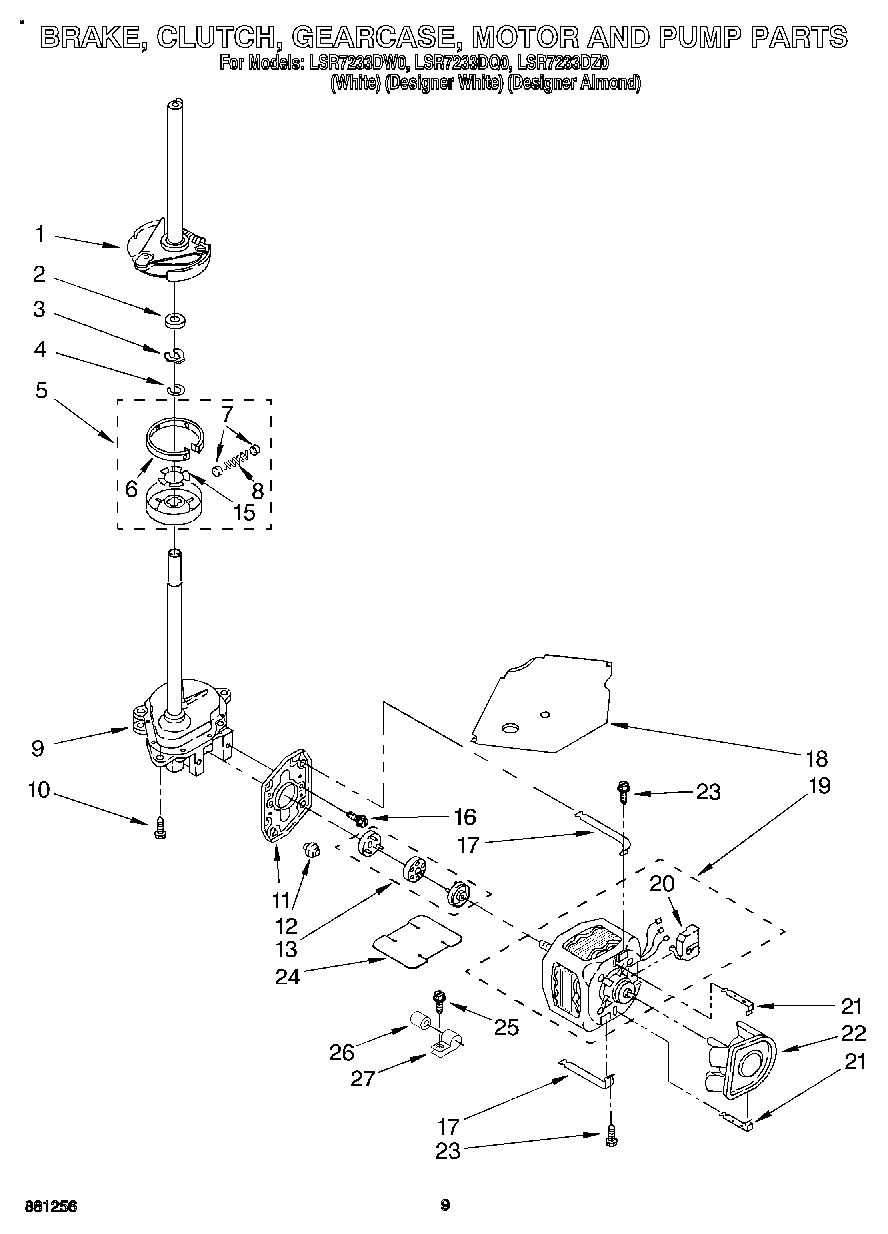

07 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

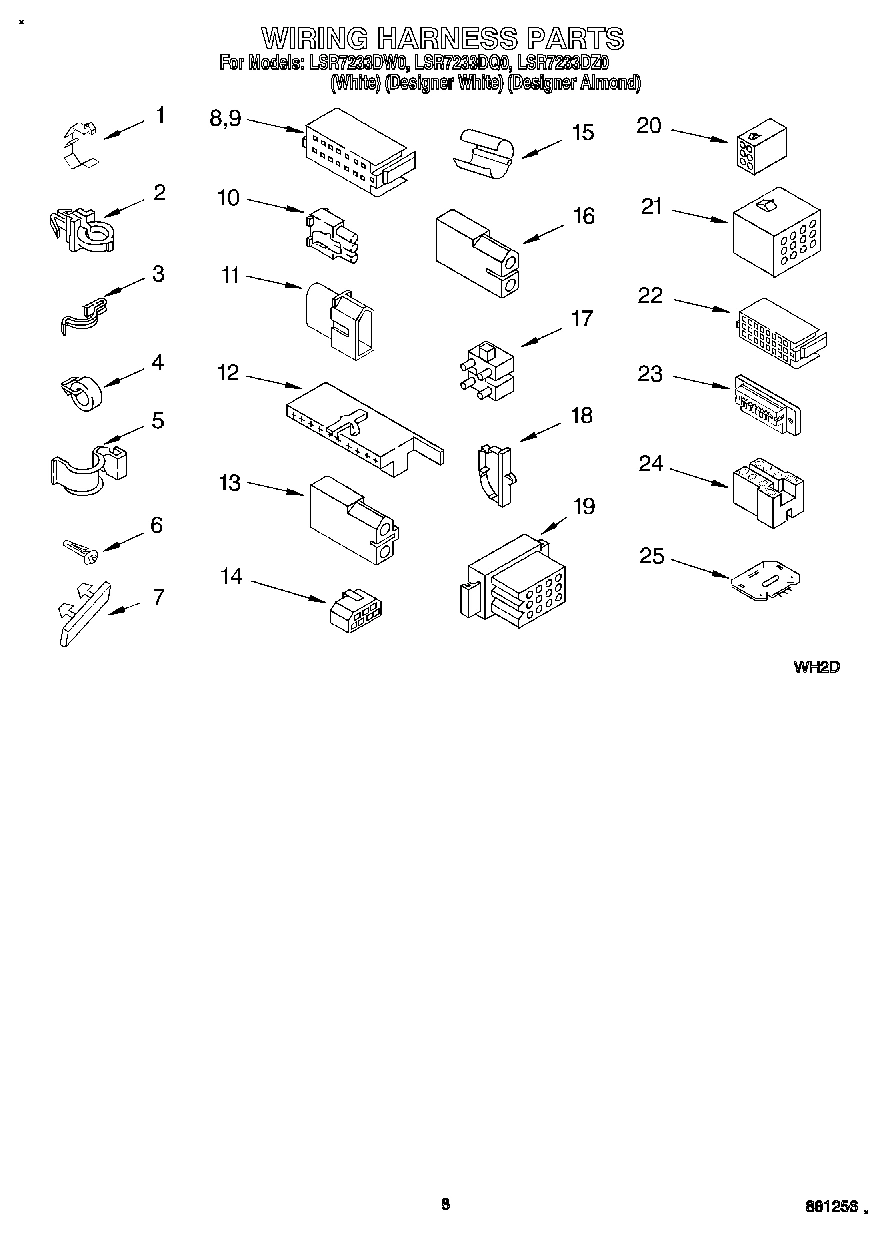

06 - WIRING HARNESS
Common parts from model Whirlpool LSR7233DQ0 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Dispenser, Assy. WPL 63580 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Sleeve Kit, (Contains 2 Sleeves) WPL 285321 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For White Models) WPL 63424 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
9
Timer, Control (60 Hz.) (Motor Not A Service WPL 3948171 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Cord, Power WPL 3360514 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Cap, End (L.H.) (White/White) WPL 3358528 Contact Us For Availability
16
Cap, End (L.H.) (Almond/Chrome) WPL 3358529 Contact Us For Availability
16
Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
20
Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
24
Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
35
(Alt.) WPL 3347117 Contact Us For Availability
35
(Alt.) WPL 3348352 Contact Us For Availability
39
Panel, Console (For White Model) WPL 3948228 Contact Us For Availability
39
Panel, Console (For Designer White Model) WPL 3948229 Contact Us For Availability
39
Panel, Console (For Almond Model) WPL 3948230 Contact Us For Availability
45
Dial, Timer (For Design WPL 3946261 Contact Us For Availability
51
WPL 3358513 WPL 3358513 Contact Us For Availability
51
WPL 3358514 WPL 3358514 Contact Us For Availability
51
WPL 3358516 WPL 3358516 Contact Us For Availability
59
WPL 3348424 WPL 3348424 Contact Us For Availability
60
WPL 3948205 WPL 3948205 Contact Us For Availability
× ![]()
