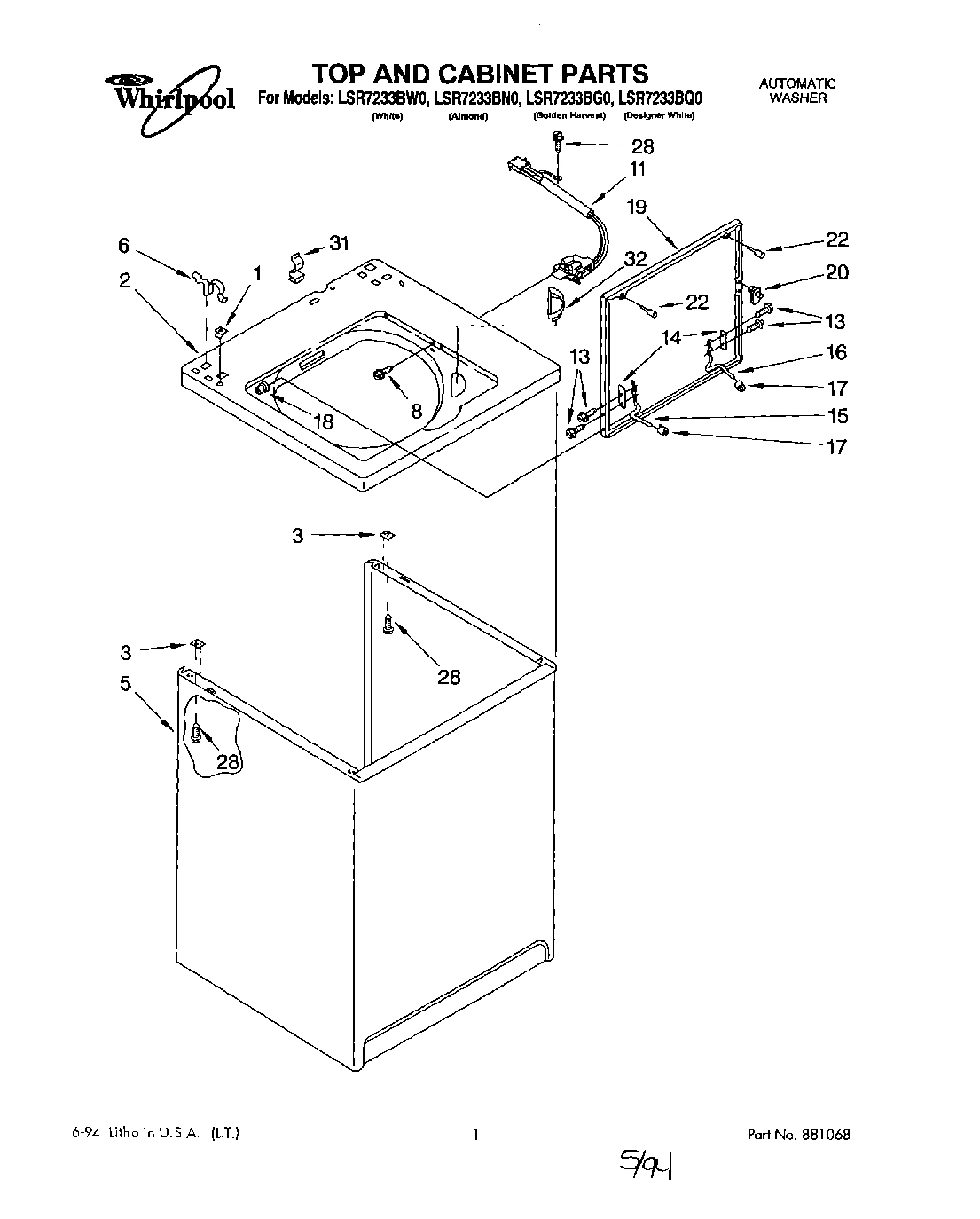

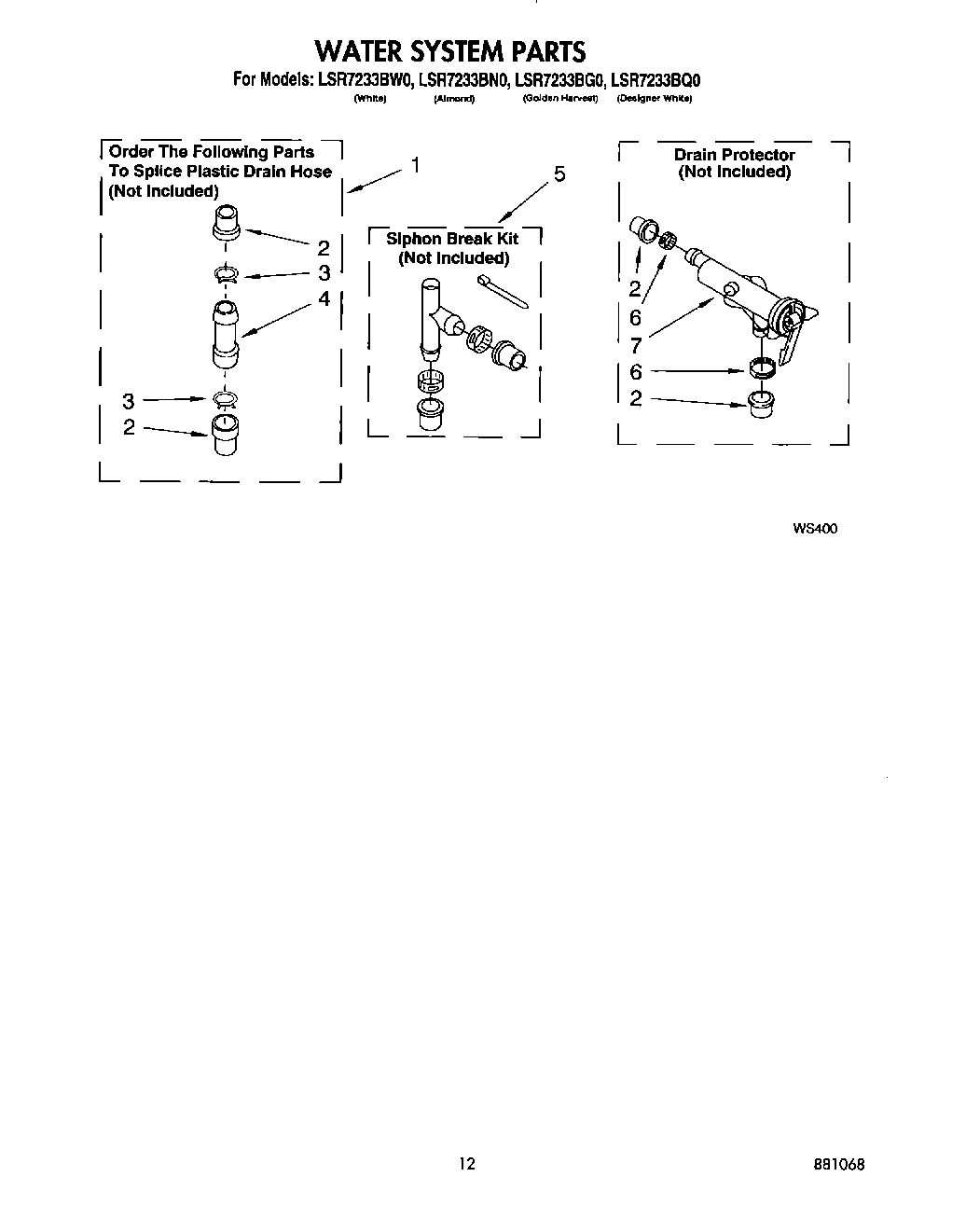

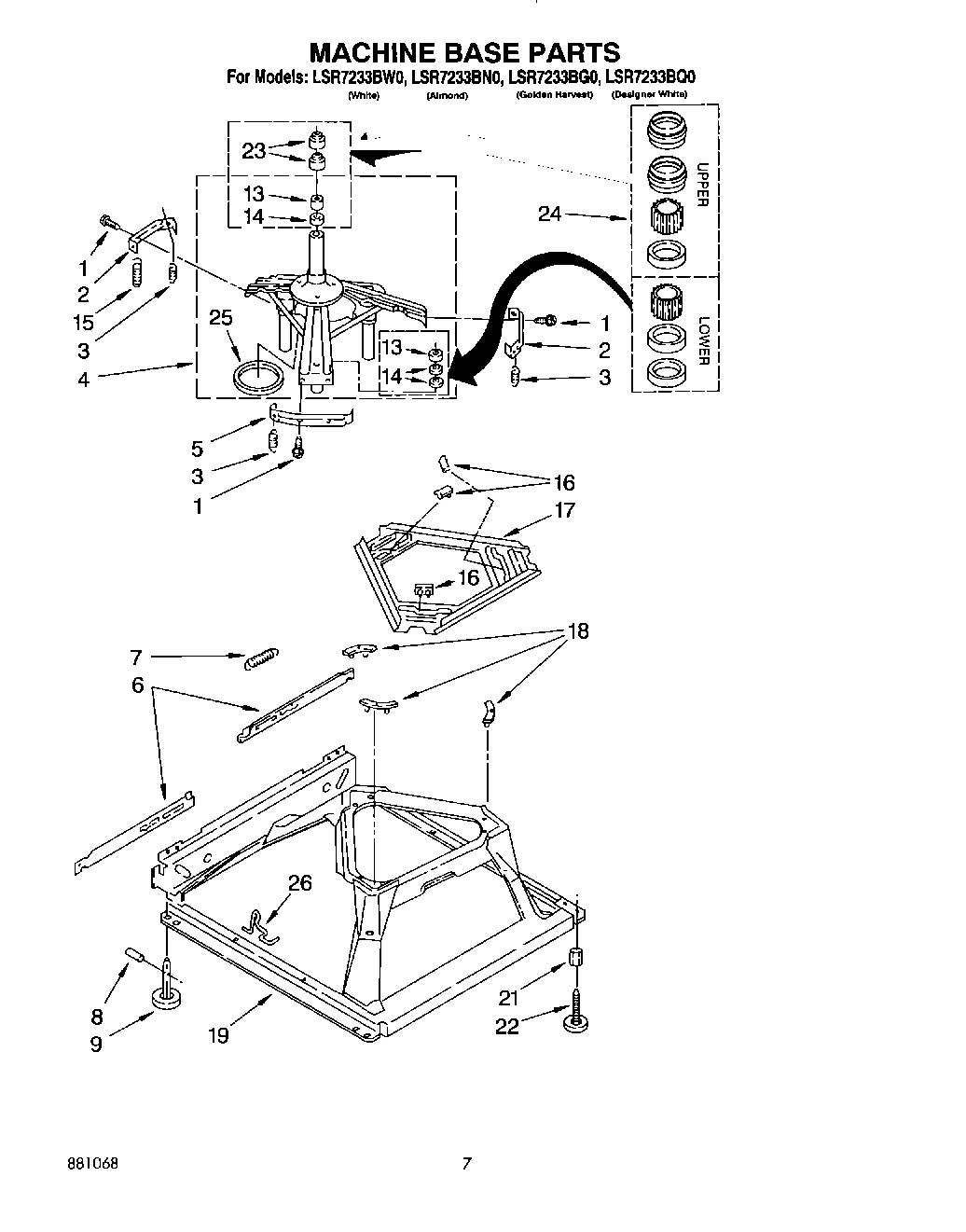

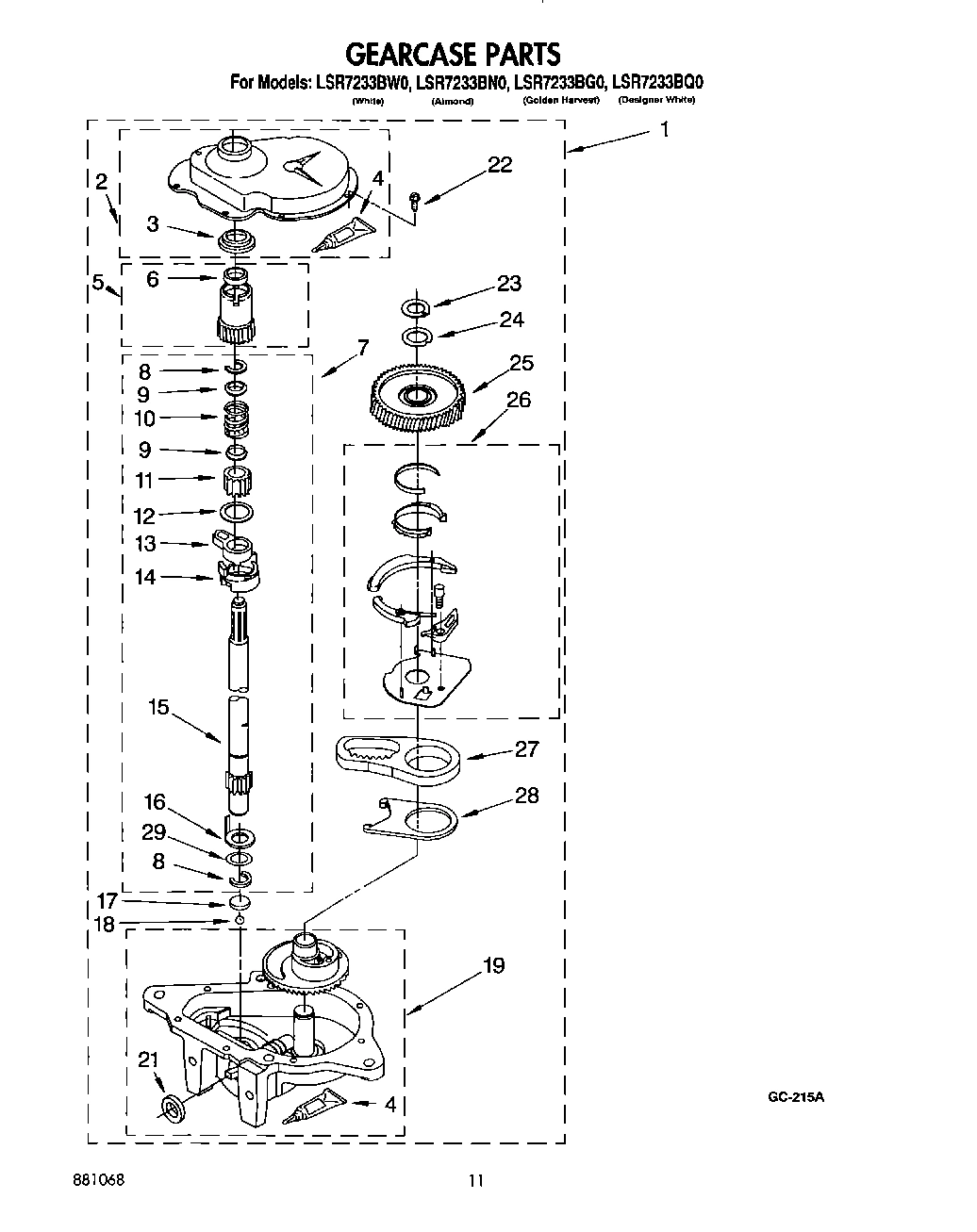

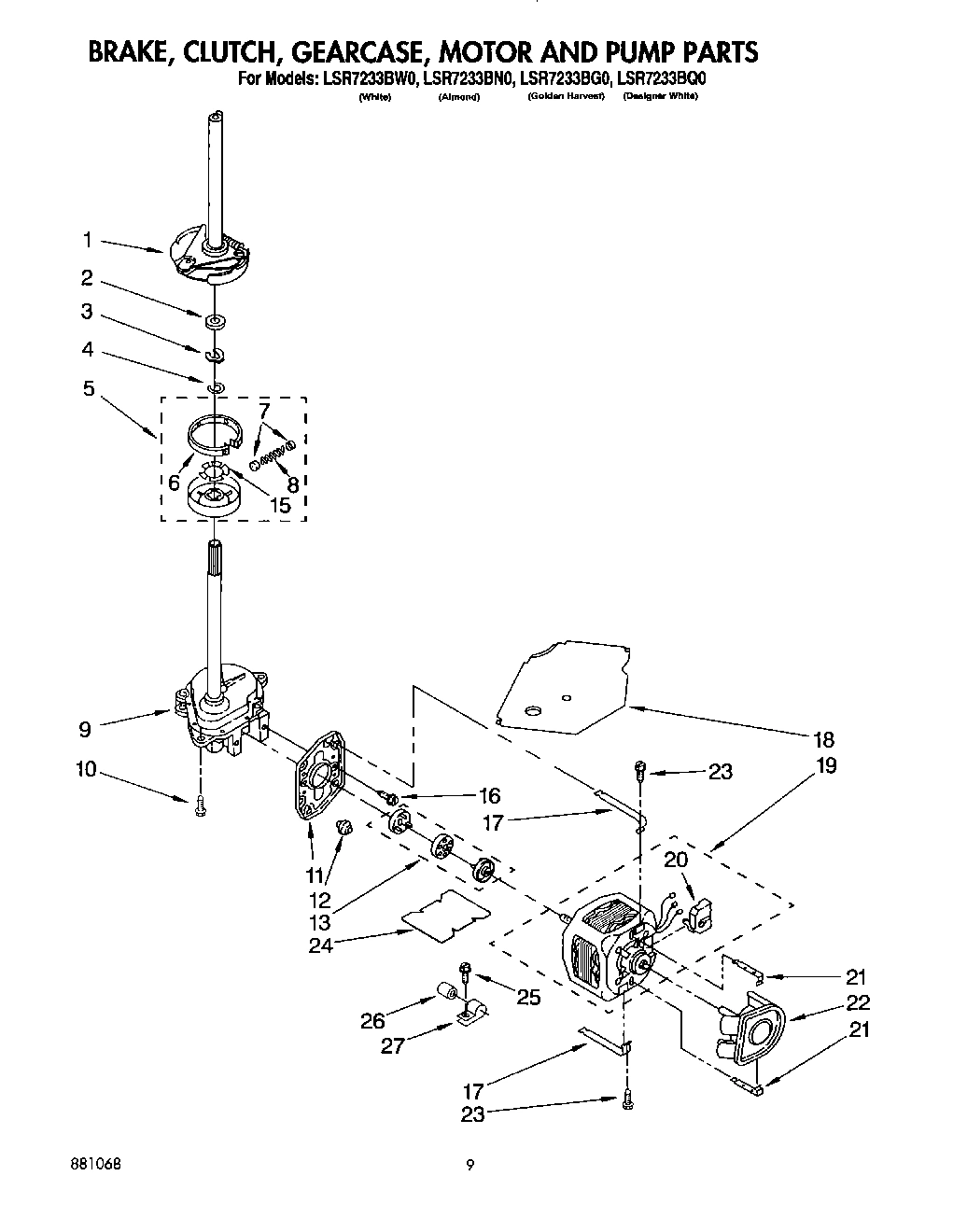

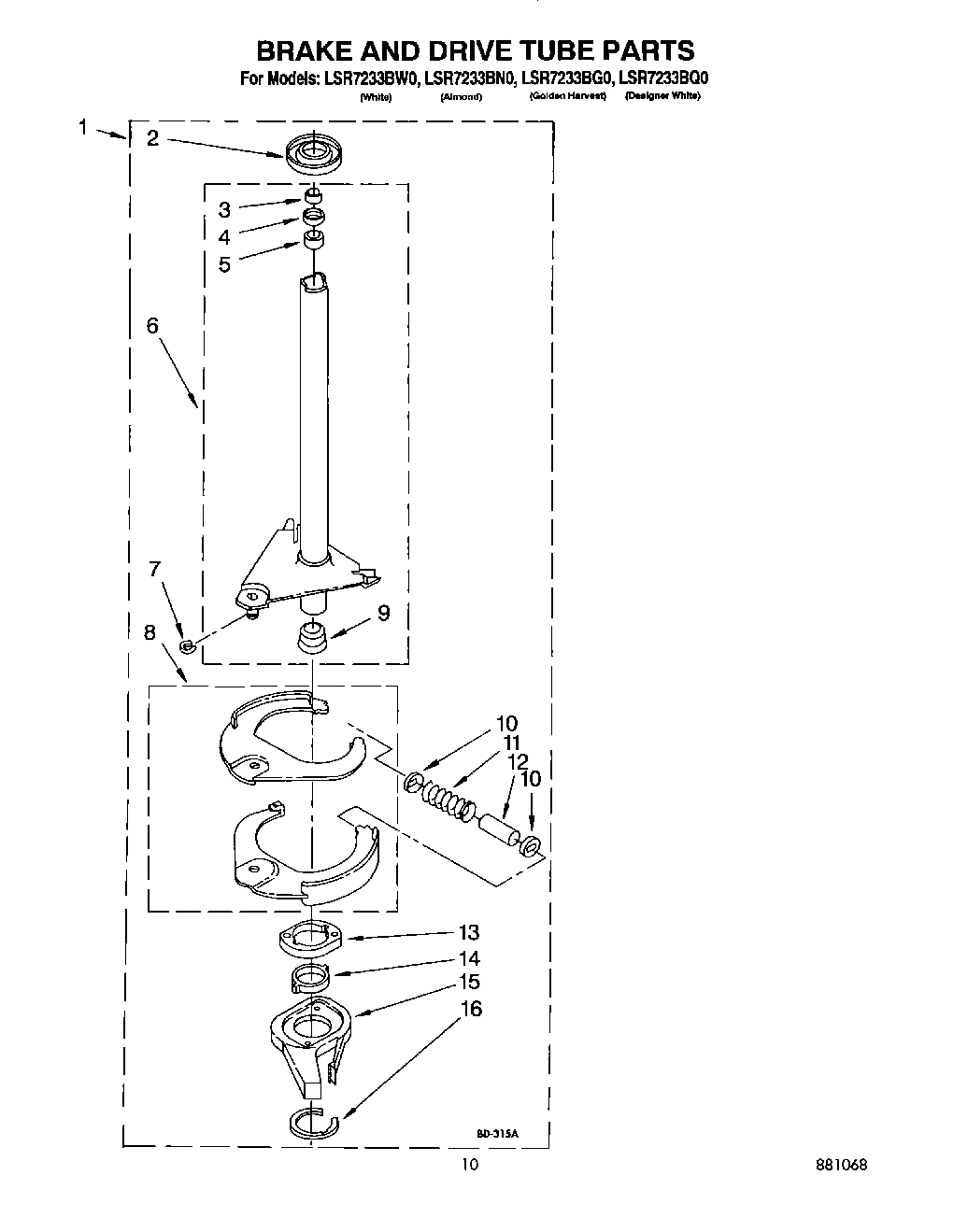

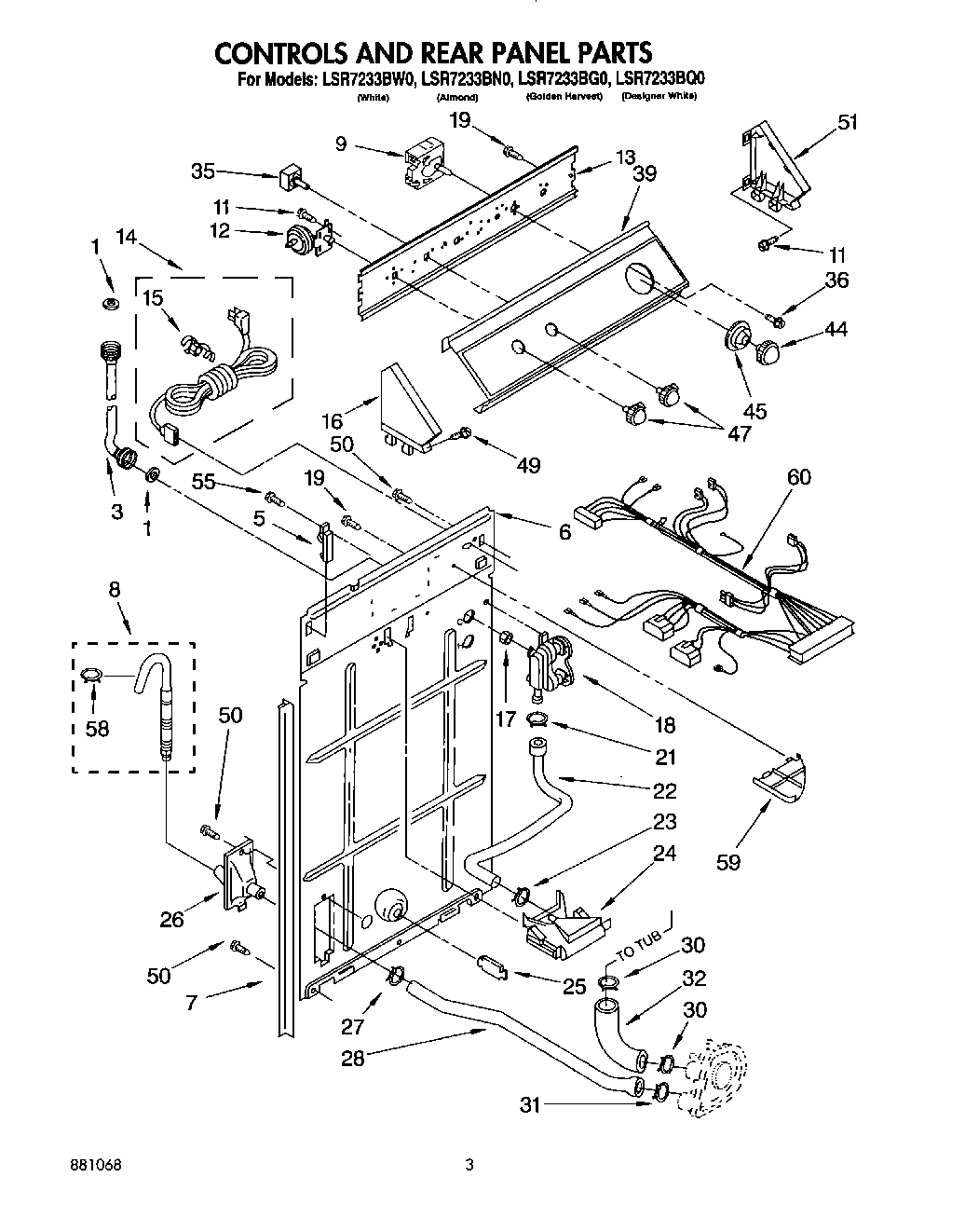

Model Whirlpool LSR7233BN0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285938 Whirlpool Washer Timer In Stock WPL 285938 $117.80

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

11

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356467 Whirlpool Washer Water Level Switch In Stock WPL WP3356467 $87.79

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3360514 Contact Us For Availability

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability

Cap, End (L.H.) (Almond/Chrome) WPL 3358532 Contact Us For Availability

Cap, End (L.H.) (Black/Chrome) WPL 3358533 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Connector (2-Way) (Suds Valve) (Use Term. 946 WPL 717252 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Clip, Harness WPL 3352944 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

Ring, Retaining WPL 95082 Contact Us For Availability

23

Connector, ETC (Use Term. 340795) WPL 3349494 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

35

(Alt.) WPL 3347117 Contact Us For Availability

35

(Alt.) WPL 3348352 Contact Us For Availability

35

Switch, Water Temperature WPL 661538 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Panel, Console (For White Model) WPL 3361507 Contact Us For Availability

Panel, Console (For Almond Model) WPL 3361508 Contact Us For Availability

Panel, Console (For Golden Harvest Model) WPL 3361509 Contact Us For Availability

Panel, Console (For Designer White Model) WPL 3361510 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $33.31

45

WPL 3358447 WPL 3358447 Contact Us For Availability

47

Backorder WPL 3358431 $32.90

47

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

51

WPL 3358516 WPL 3358516 Contact Us For Availability

51

WPL 3358517 WPL 3358517 Contact Us For Availability

51

WPL 3358518 WPL 3358518 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3359831 WPL 3359831 Contact Us For Availability
