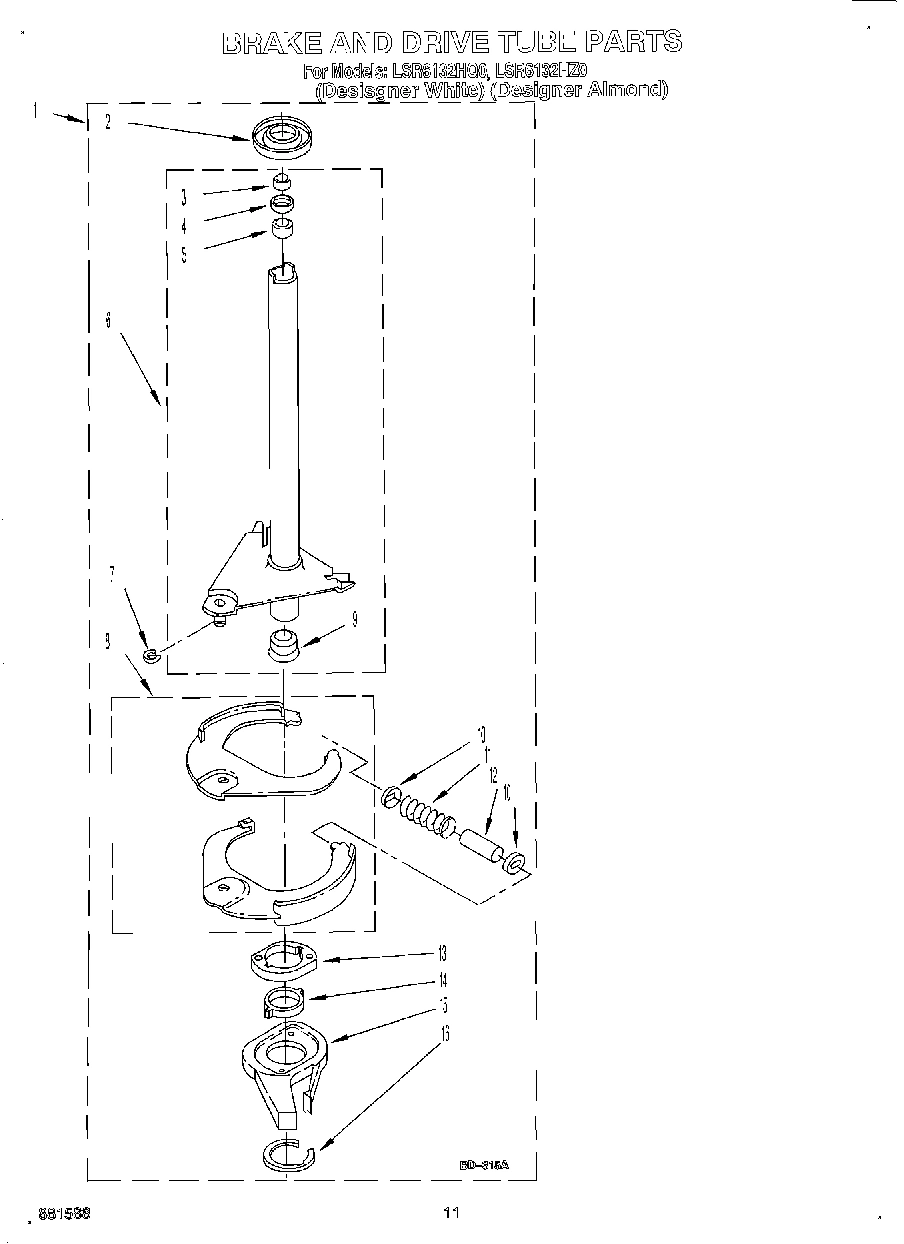

07 - BRAKE AND DRIVE TUBE

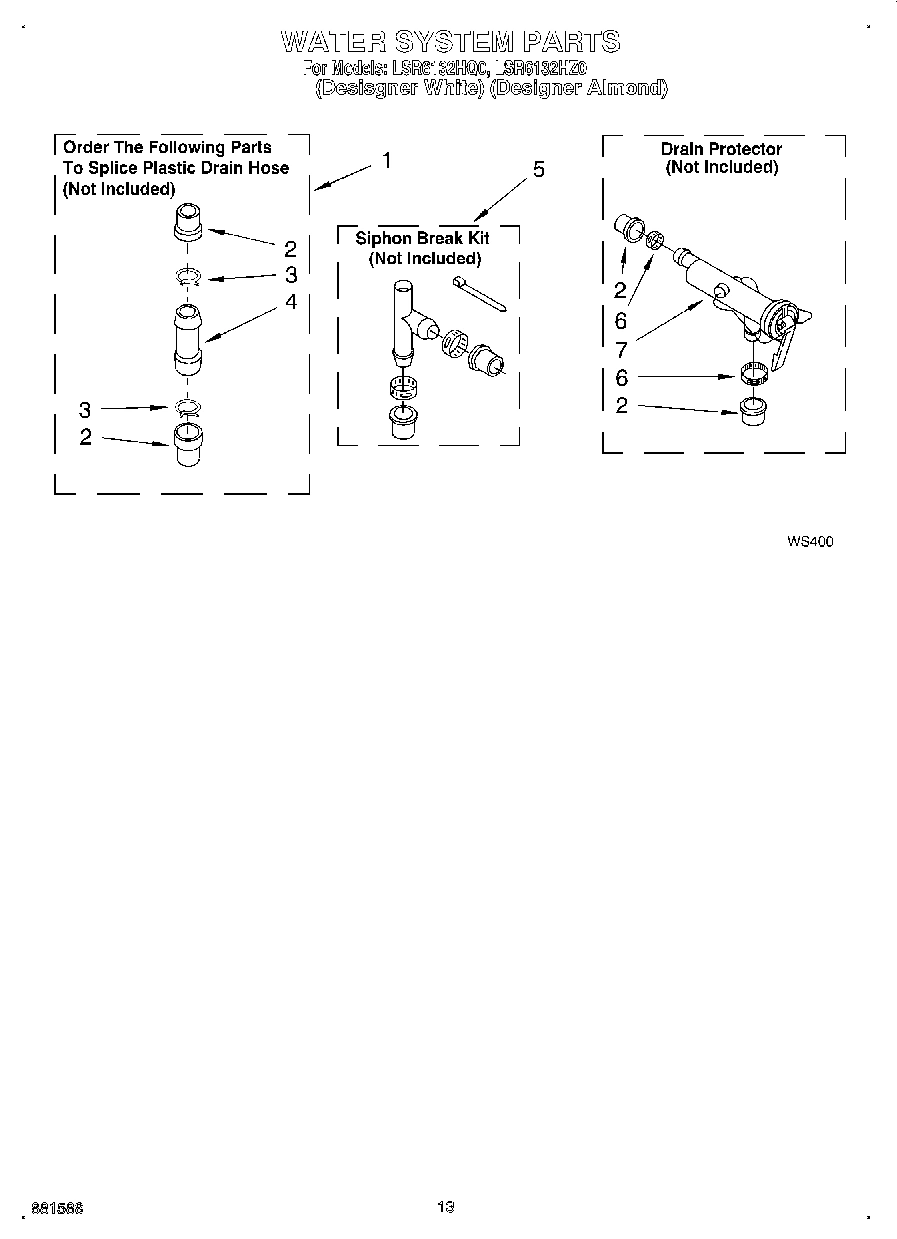

09 - WATER SYSTEM

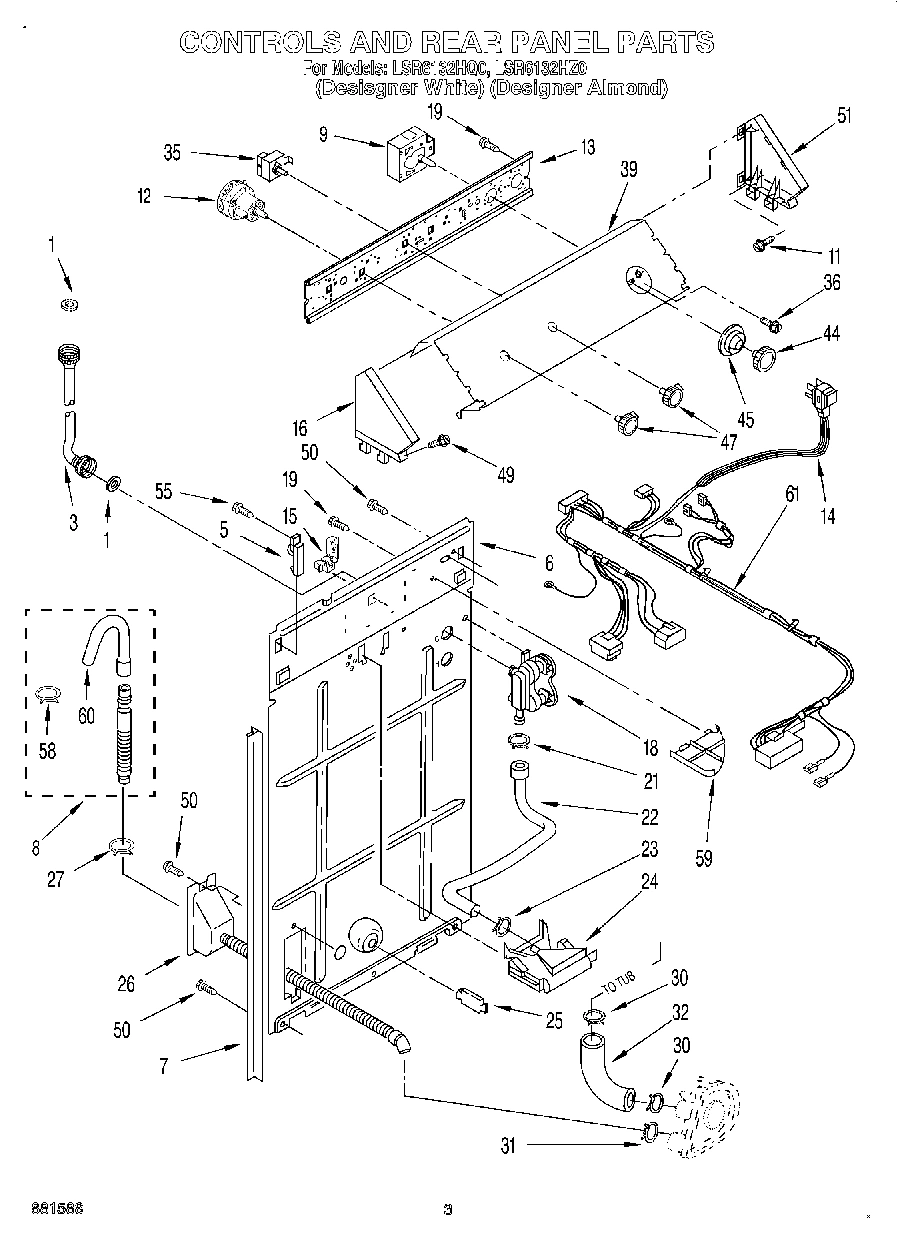

02 - CONTROLS AND REAR PANEL

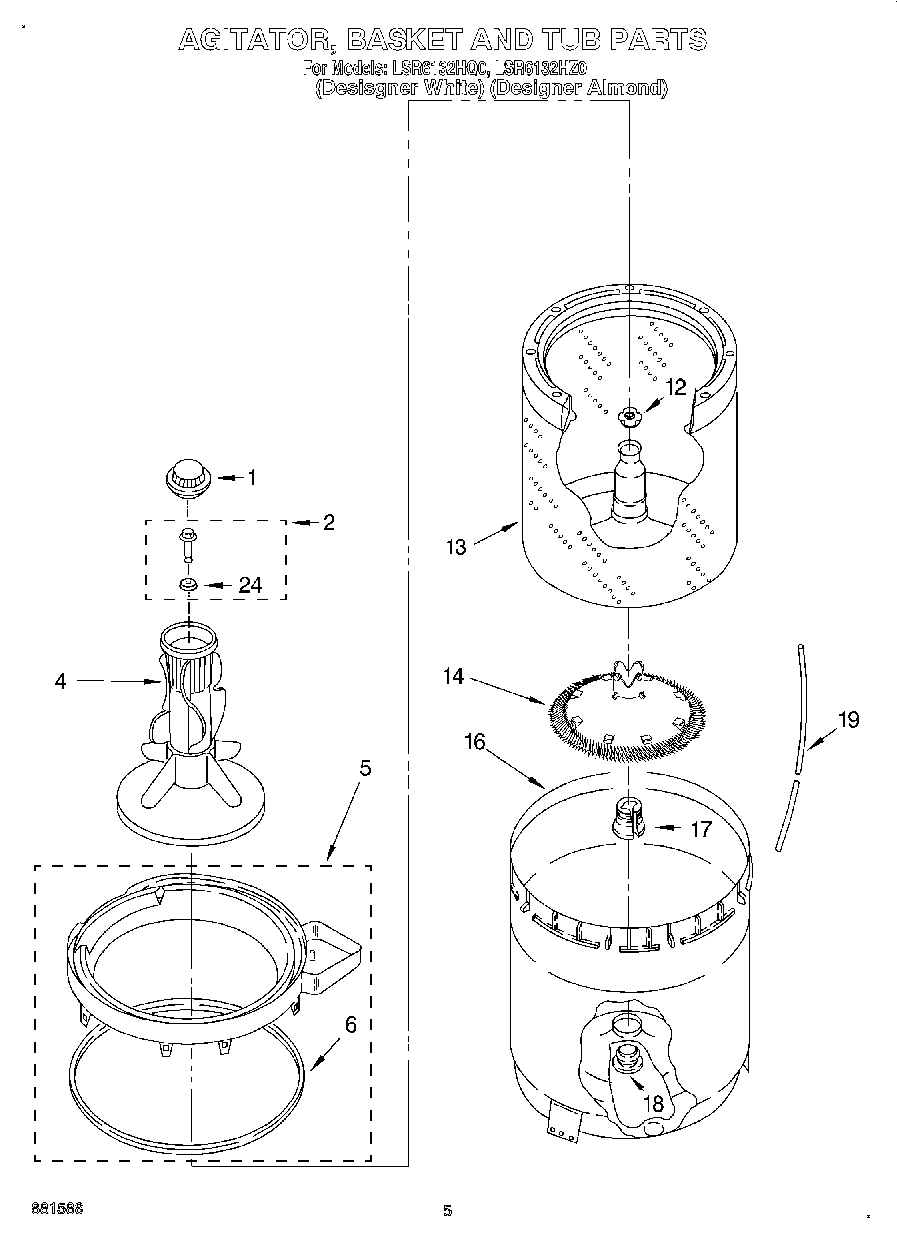

03 - AGITATOR, BASKET AND TUB

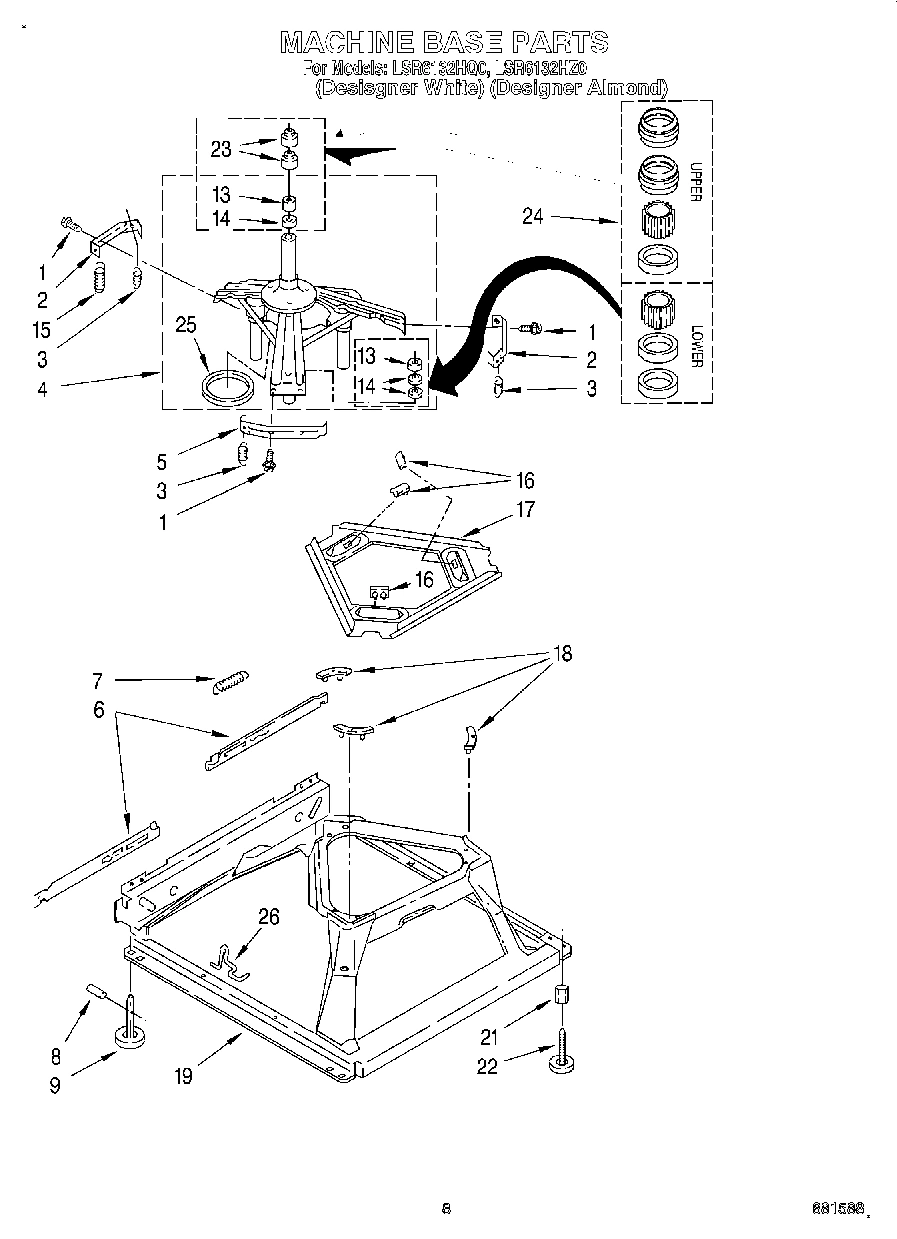

05 - MACHINE BASE

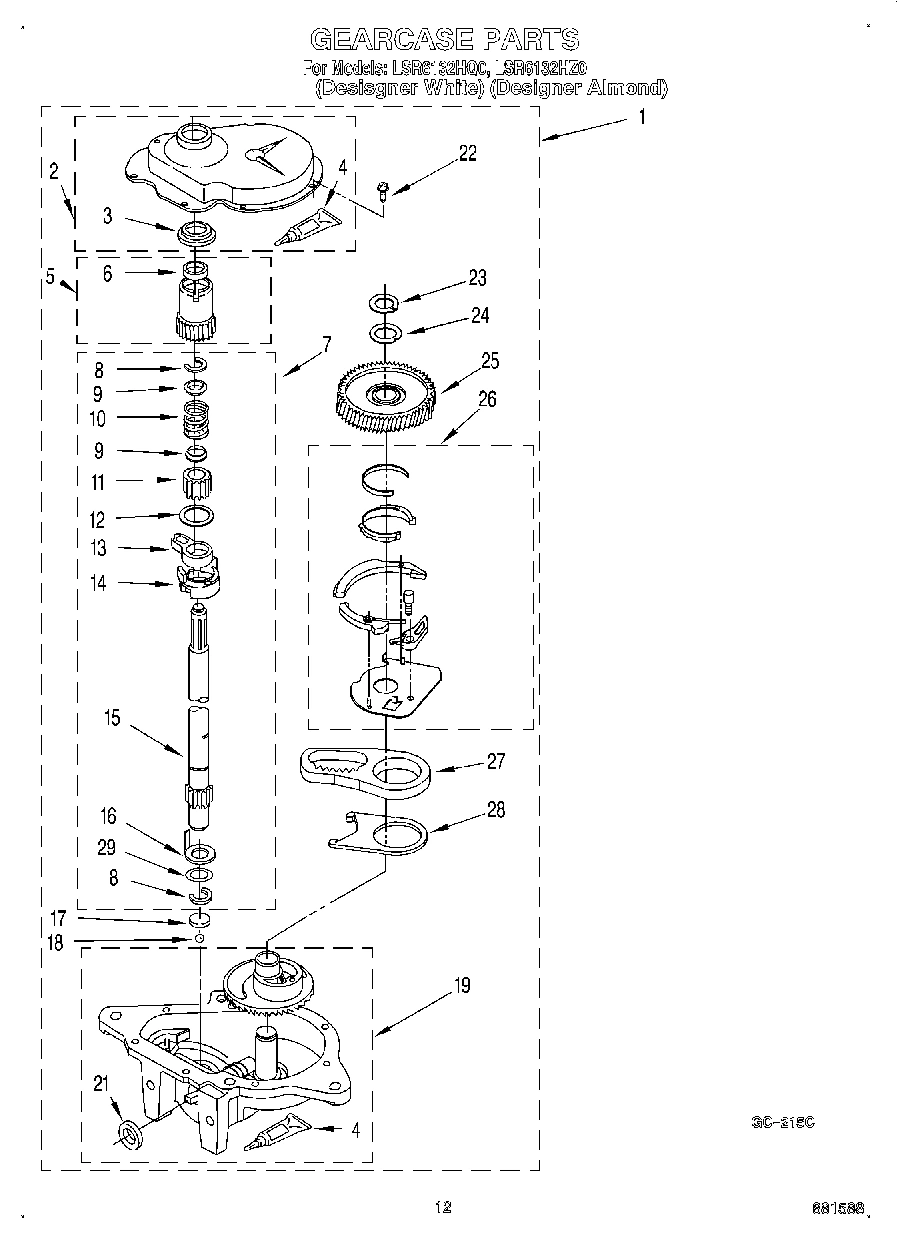

08 - GEARCASE

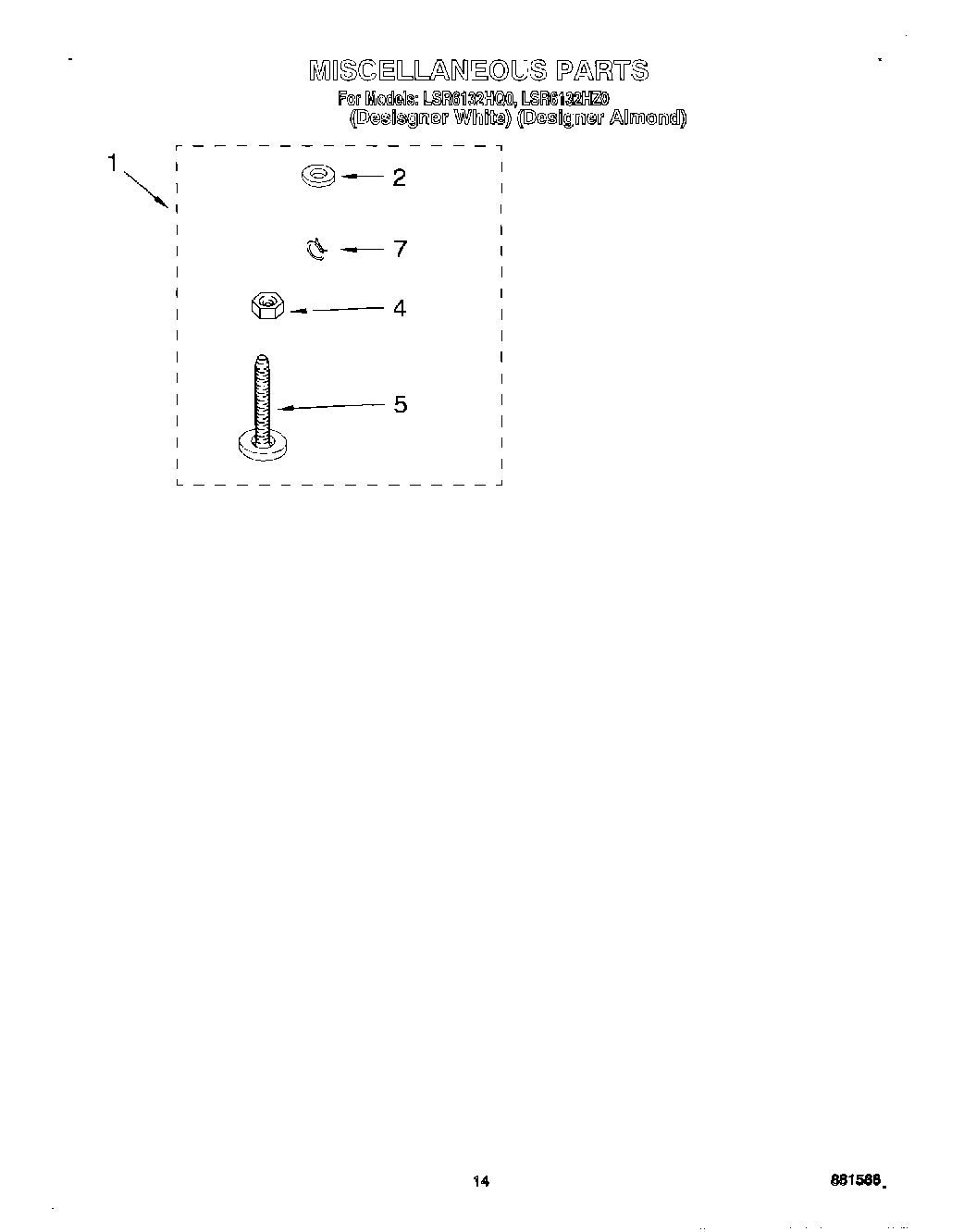

10 - MISCELLANEOUS, LIT/OPTIONAL
06 - WIRING HARNESS
Common parts from model Whirlpool LSR6132HZ0 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Fabric Dispenser WPL 63580 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
Shipping Kit WPL 3348675 Contact Us For Availability
Drain Protector WPL 367031 Contact Us For Availability
Stand-Pipe Kit WPL 89121 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Label, Wiring Diagram WPL LIT3948851 Contact Us For Availability
Guide, Use and Care WPL LIT3950317 Contact Us For Availability
Guide, Energy WPL LIT3952491 Contact Us For Availability
Sheet, Installation Instructions WPL LIT3952817 Contact Us For Availability
Manual, (Washer) Do-It-Yourself WPL LIT4313896 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 3976252 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For White Model) WPL 63424 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
9
Timer, Control (60 Hz.) (Motor Not A Service WPL 3948850 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Tub WPL 63849 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
28
Block, Connector (Cold Valve) (Use Term. 6932 WPL 3354925 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
× ![]()
