  • Whirlpool LSQ9200LT1

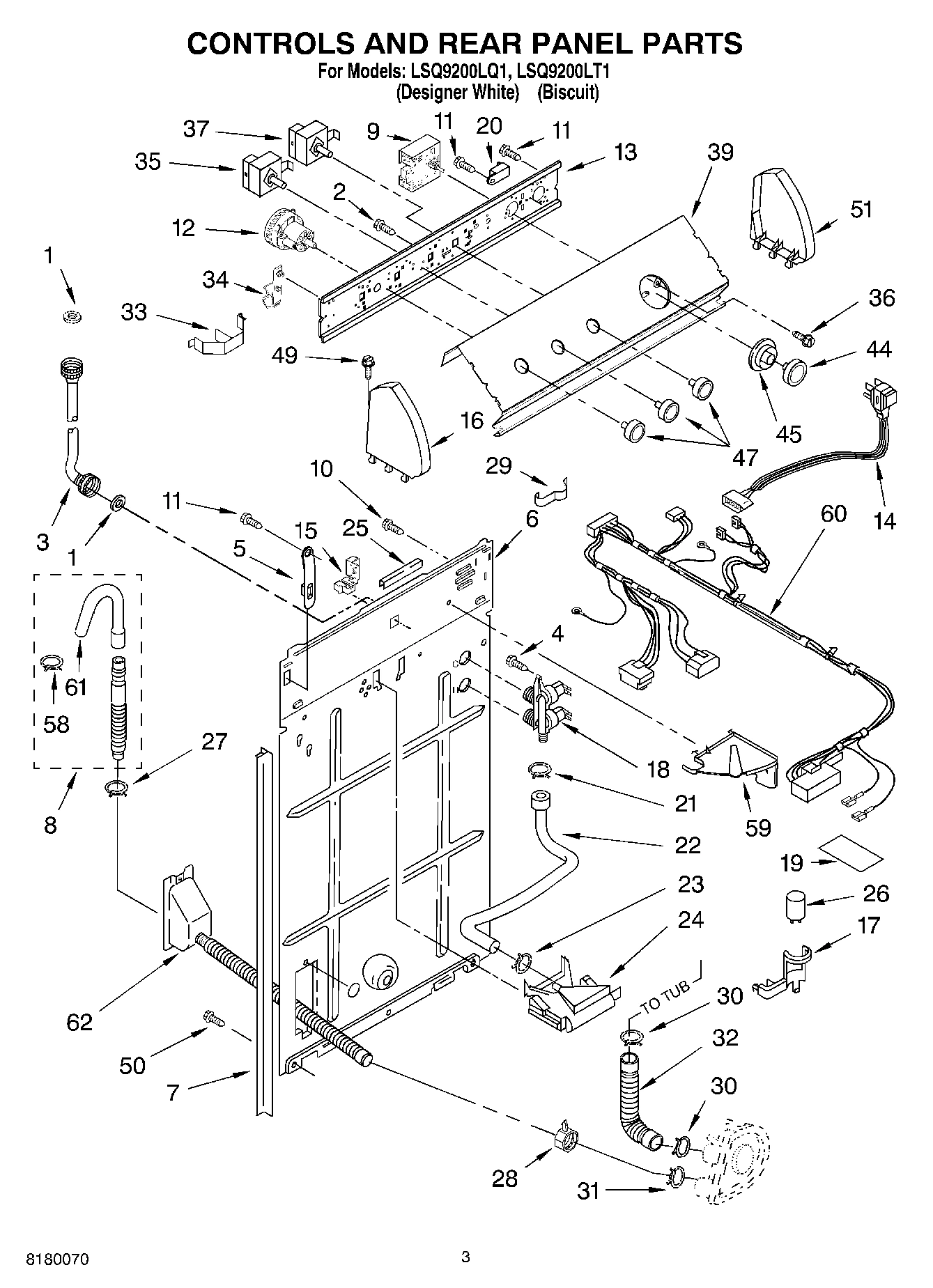

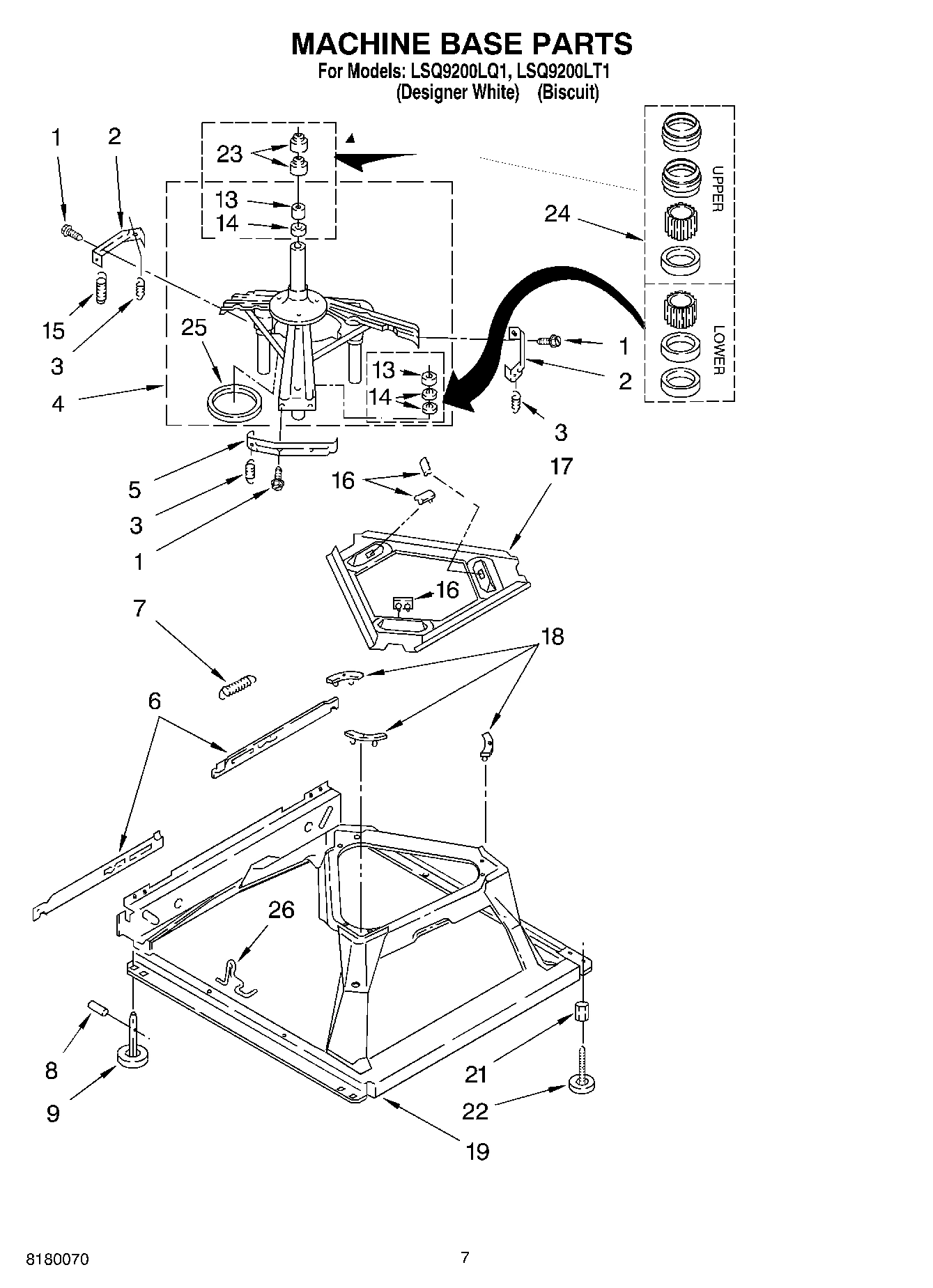

Model Whirlpool LSQ9200LT1 AUTOMATIC WASHER – Common Parts & Diagrams

WPL ARI157828A
WPL ARI157828A WPL ARI157828A Contact Us For Availability
View on Model
1
Clip, Harness
Clip, Harness WPL 3349557 Contact Us For Availability
View on Model
1
Following May Be Purchased DO-IT-YOURSELF REP
Following May Be Purchased DO-IT-YOURSELF REP WPL ARI157827A Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability
View on Model
1
Literature Parts (Feature Sheet)
Literature Parts (Feature Sheet) WPL LIT3955904 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability
View on Model
1
Literature Parts (Energy Guide)
Literature Parts (Energy Guide) WPL LIT3956340 Contact Us For Availability
View on Model
1
Literature Parts (Manual, (Washer) Do-It-Your
Literature Parts (Manual, (Washer) Do-It-Your WPL LIT4313896 Contact Us For Availability
View on Model
1
Literature Parts (Wiring Diagram)
Literature Parts (Wiring Diagram) WPL LIT8541273 Contact Us For Availability
View on Model
2
Clip, Harness
Clip, Harness WPL 388498 Contact Us For Availability
View on Model
2
Top (White)
Top (White) WPL 8271378 Contact Us For Availability
View on Model
2
Top (Biscuit)
Top (Biscuit) WPL 8271380 Contact Us For Availability
View on Model
5
Bracket, Spring Outer (L.F.)
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
View on Model
5
Spacer, Drive Tube
Spacer, Drive Tube WPL 356937 Contact Us For Availability
View on Model
5
Cabinet (Biscuit)
Cabinet (Biscuit) WPL 3954357 Contact Us For Availability
View on Model
6
Link, Leveling Mechanism (2)
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
View on Model
6
Clip, Harness
Clip, Harness WPL 3390496 Contact Us For Availability
View on Model
7
Cabinet - Sound Damper
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
View on Model
8
Timer, Block Disconnect
Timer, Block Disconnect WPL 352090 Contact Us For Availability
View on Model
8
Ring, Retaining (2)
Ring, Retaining (2) WPL 90369 Contact Us For Availability
View on Model
10
Spring, Agitate
Spring, Agitate WPL 62676 Contact Us For Availability
View on Model
11
Spring, Brake
Spring, Brake WPL 387806 Contact Us For Availability
View on Model
13
Block, Disconnect (Motor 3 Speed) (Use Term.
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
View on Model
14
Block, Disconnect (Use Term. 352088)
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
View on Model
15
Clip, Anti-Rattle
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
View on Model
15
Protector
Protector WPL 63523 Contact Us For Availability
View on Model
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
View on Model
16
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI157829A Contact Us For Availability
View on Model
16
Connector (2-Way) (Use Term. 94614)
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
View on Model
16
Washer, Cam Thrust
Washer, Cam Thrust WPL 62618 Contact Us For Availability
View on Model
17
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
View on Model
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
View on Model
18
Clip, Harness
Clip, Harness WPL 3352944 Contact Us For Availability
View on Model
19
Block, Disconnect (12-Way) (Timer) (Use Term.
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
View on Model
19
Bottom and Pinion, Gearcase
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
View on Model
19
Lid (White)
Lid (White) WPL 3954489 Contact Us For Availability
View on Model
19
Lid (Biscuit)
Lid (Biscuit) WPL 3954491 Contact Us For Availability
View on Model
20
Switch, Main Drive Motor
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
View on Model
20
Receptacle, (6-Way) (Use Term. 94613)
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
View on Model
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
View on Model
22
Timer, Block Disconnect (Black) (Amp) (Use Te
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
View on Model
23
Connector, Etc
Connector, Etc WPL 3349494 Contact Us For Availability
View on Model
23
Ring, Retaining
Ring, Retaining WPL 3362552 Contact Us For Availability
View on Model
24
Connector, Relay (Use Term. 308569)
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
View on Model
24
Washer Kit, Thrust
Washer Kit, Thrust WPL 285735 Contact Us For Availability
View on Model
25
E.T.C. Control
E.T.C. Control WPL 3407125 Contact Us For Availability
View on Model
28
Clamp, Hose
Clamp, Hose WPL 3976395 No Longer Available
View on Model
29
Block, Conne
Block, Conne WPL 3354926 Contact Us For Availability
View on Model
30
WPL 3948615
WPL 3948615 WPL 3948615 Contact Us For Availability
View on Model
35
Switch, Water Temperature
Switch, Water Temperature WPL 661614 Contact Us For Availability
View on Model
59
WPL 8539874
WPL 8539874 WPL 8539874 Contact Us For Availability
View on Model
