Model Whirlpool LLR8245BW0 AUTOMATIC WASHER – Common Parts & Diagrams
02 - CONTROLS AND REAR PANEL

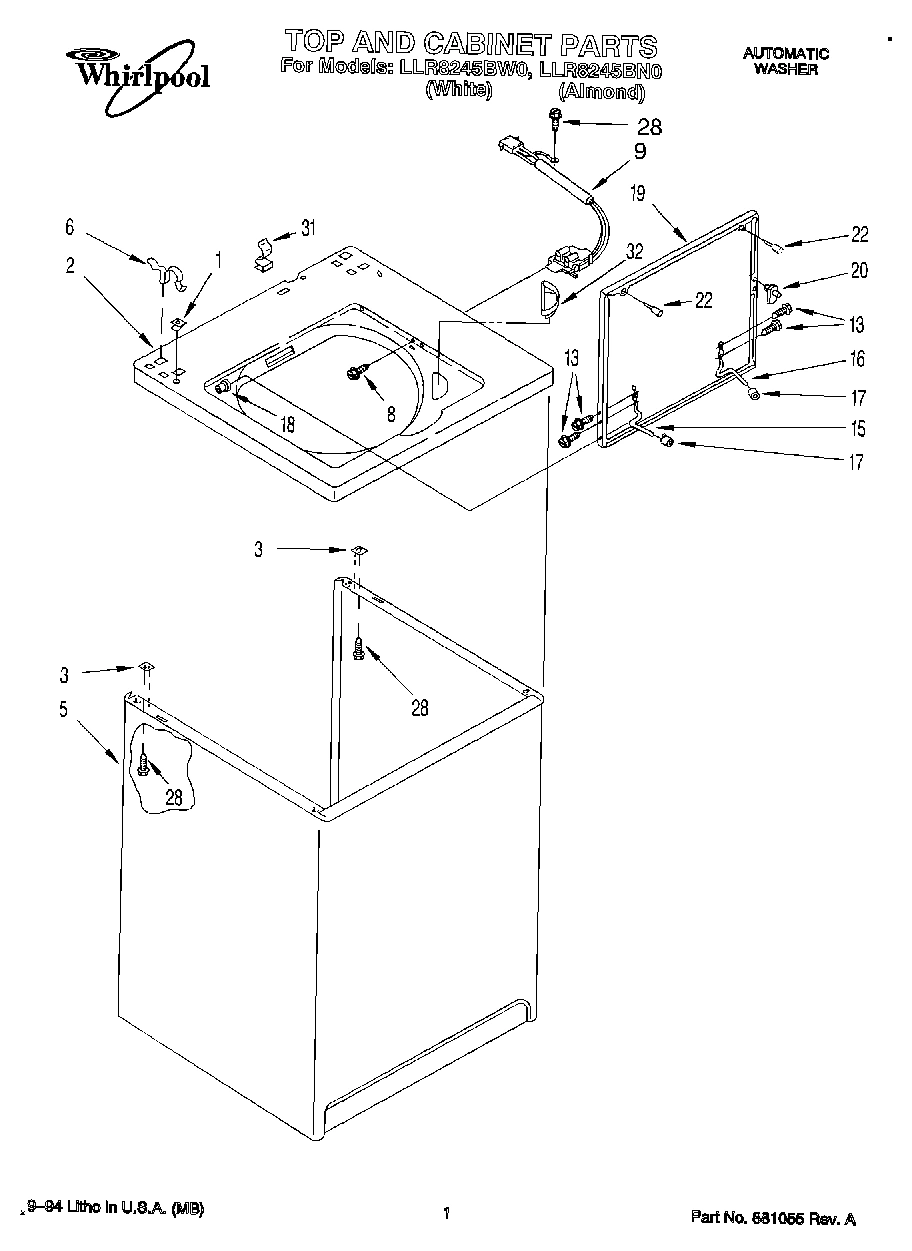

01 - TOP AND CABINET, LIT/OPTIONAL

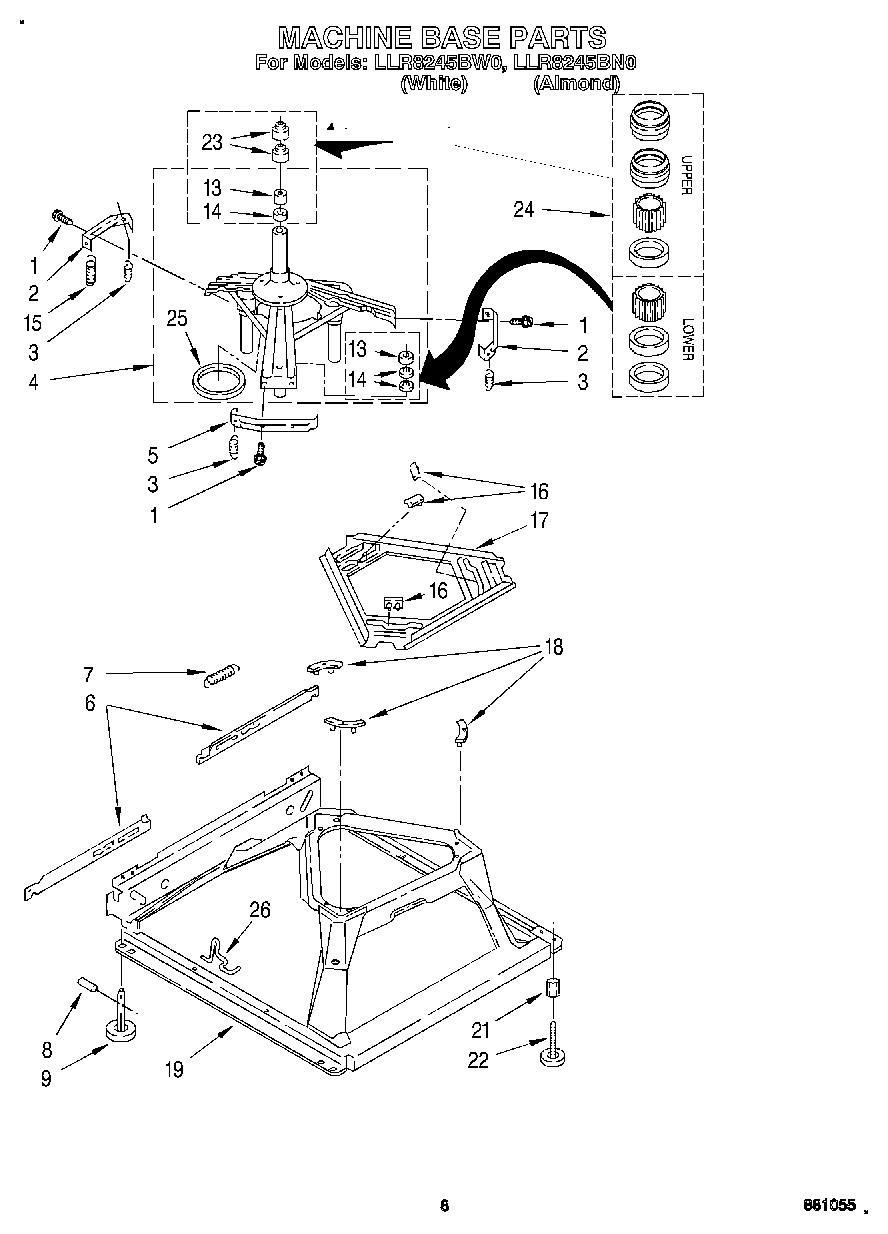

06 - MACHINE BASE

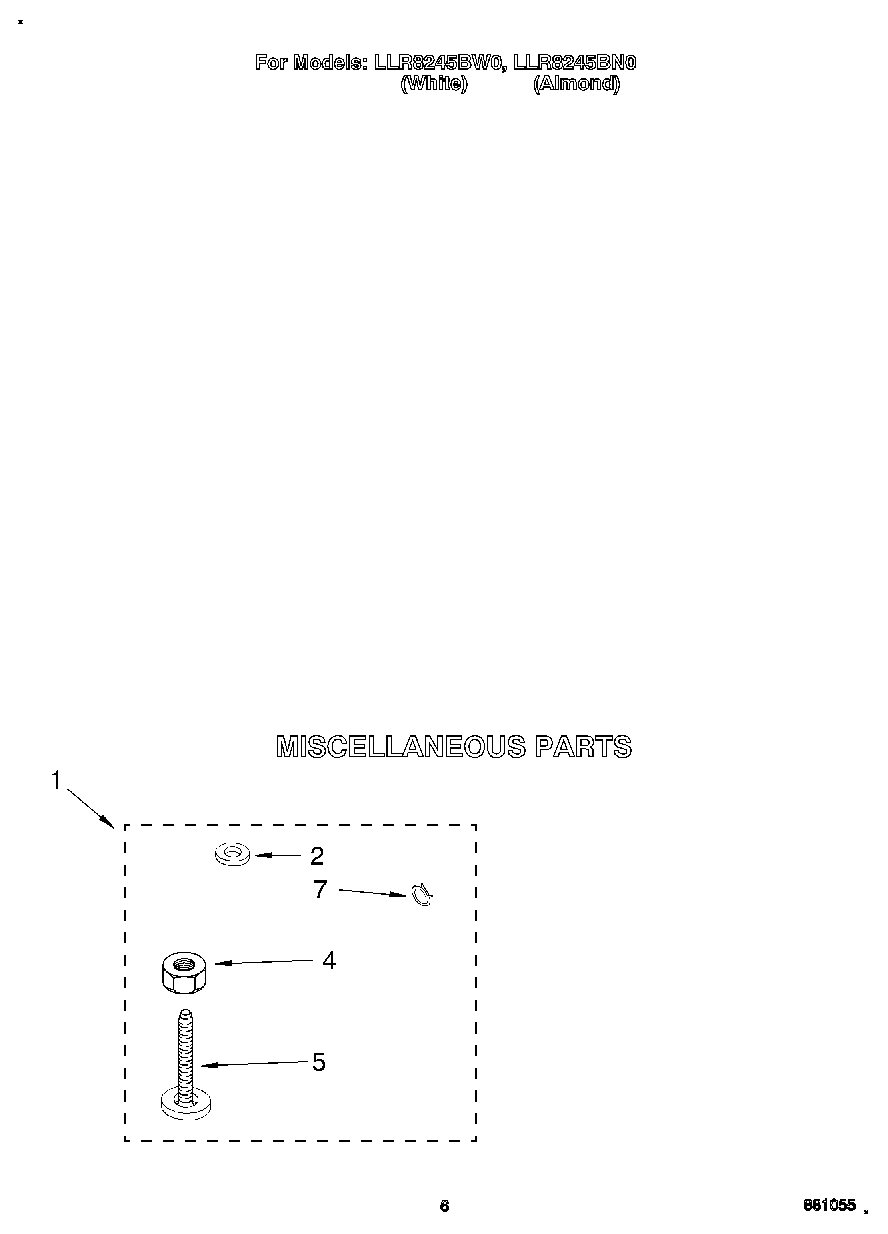

04 - MISCELLANEOUS

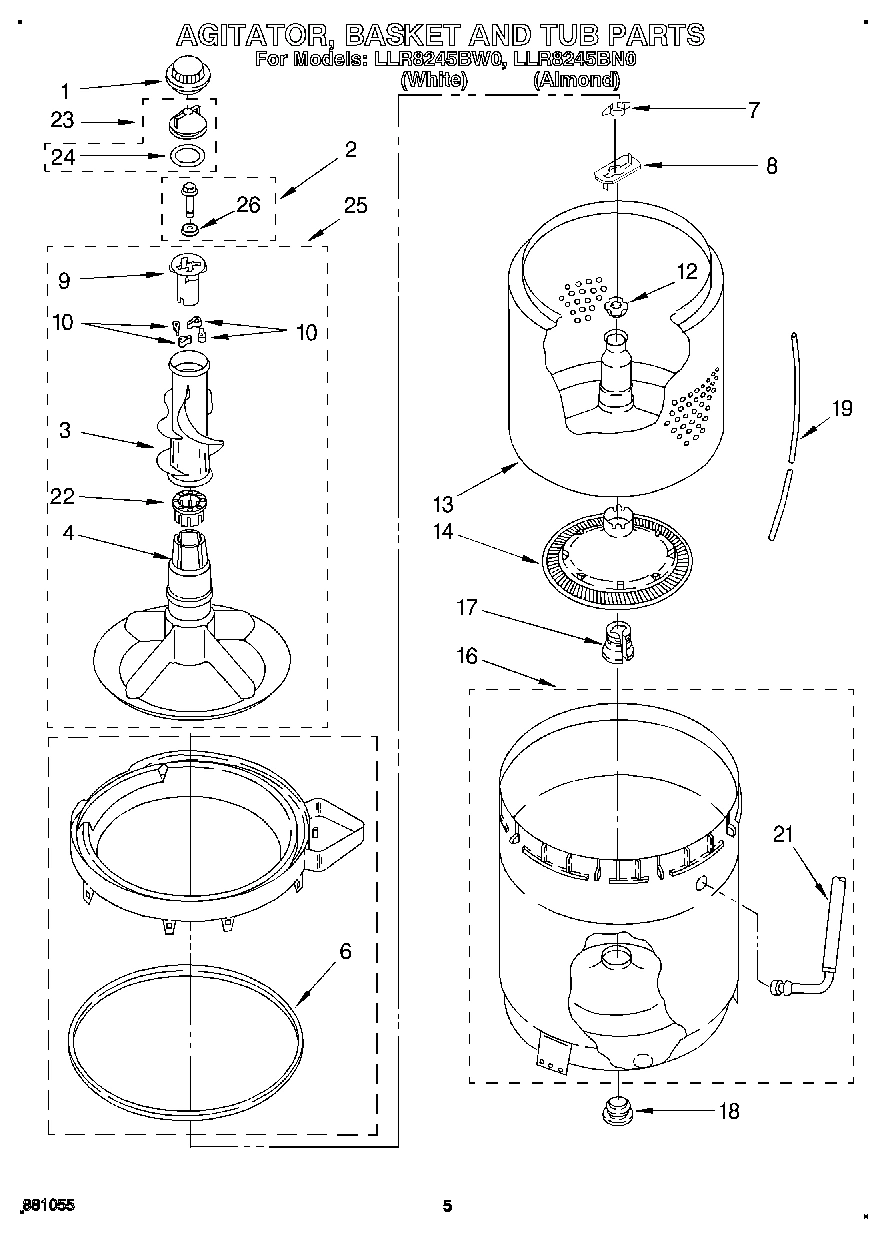

03 - AGITATOR, BASKET AND TUB

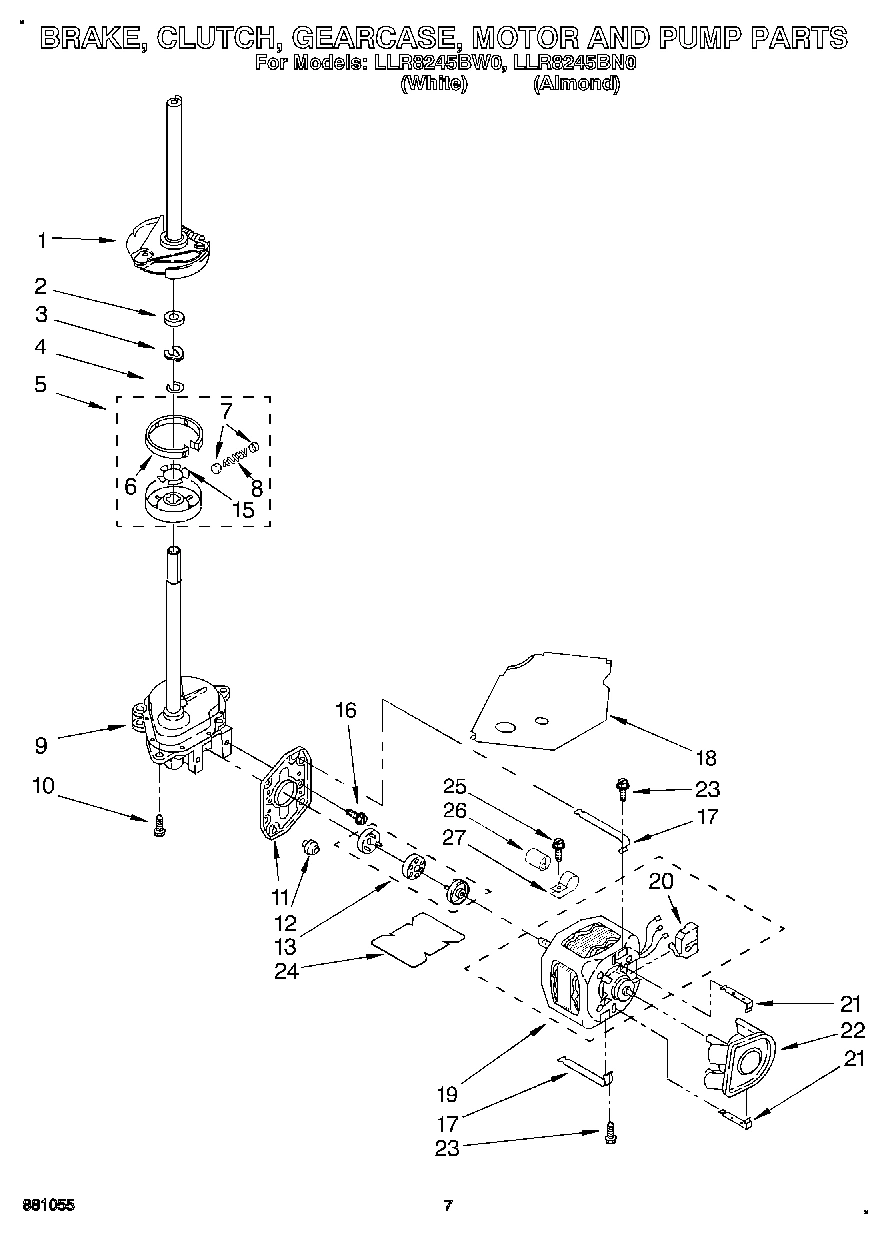

05 - BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

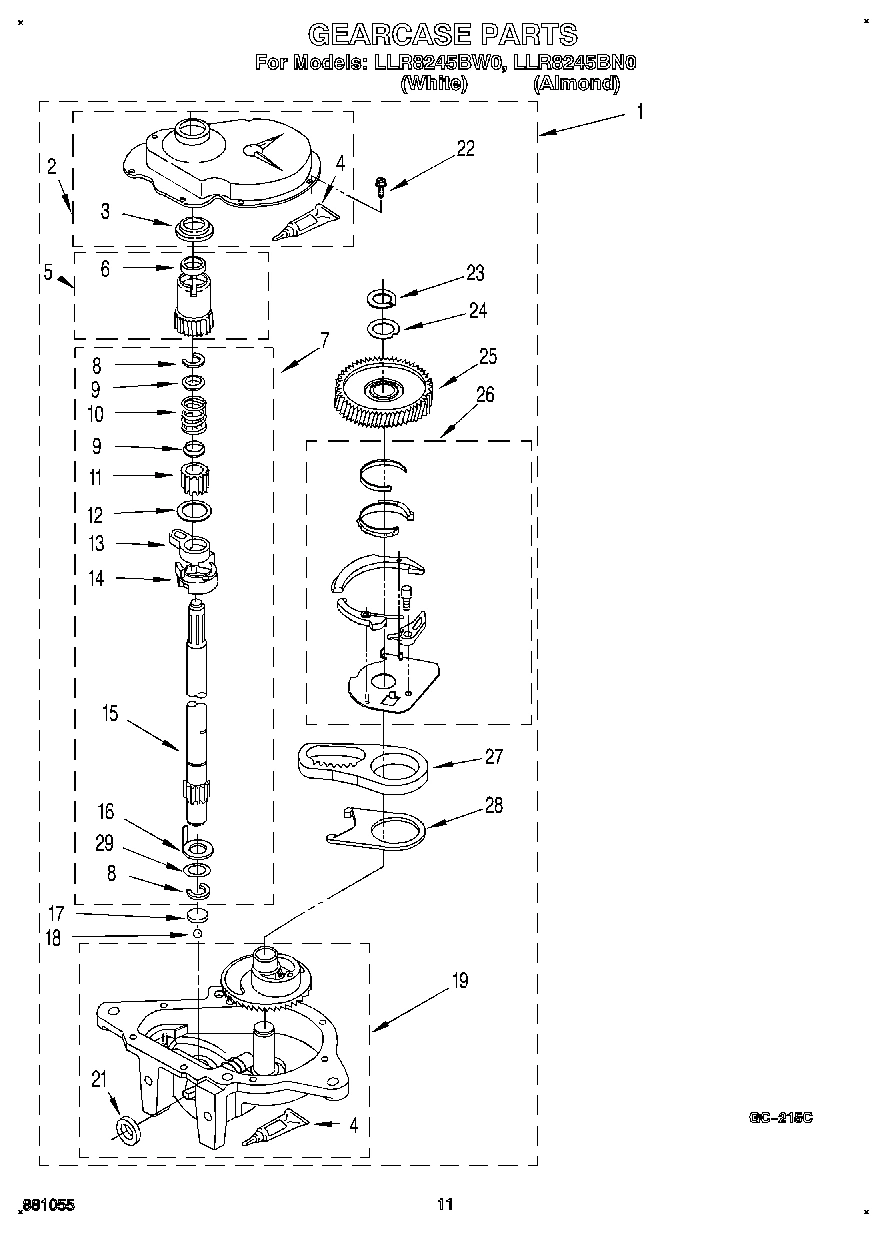

09 - GEARCASE

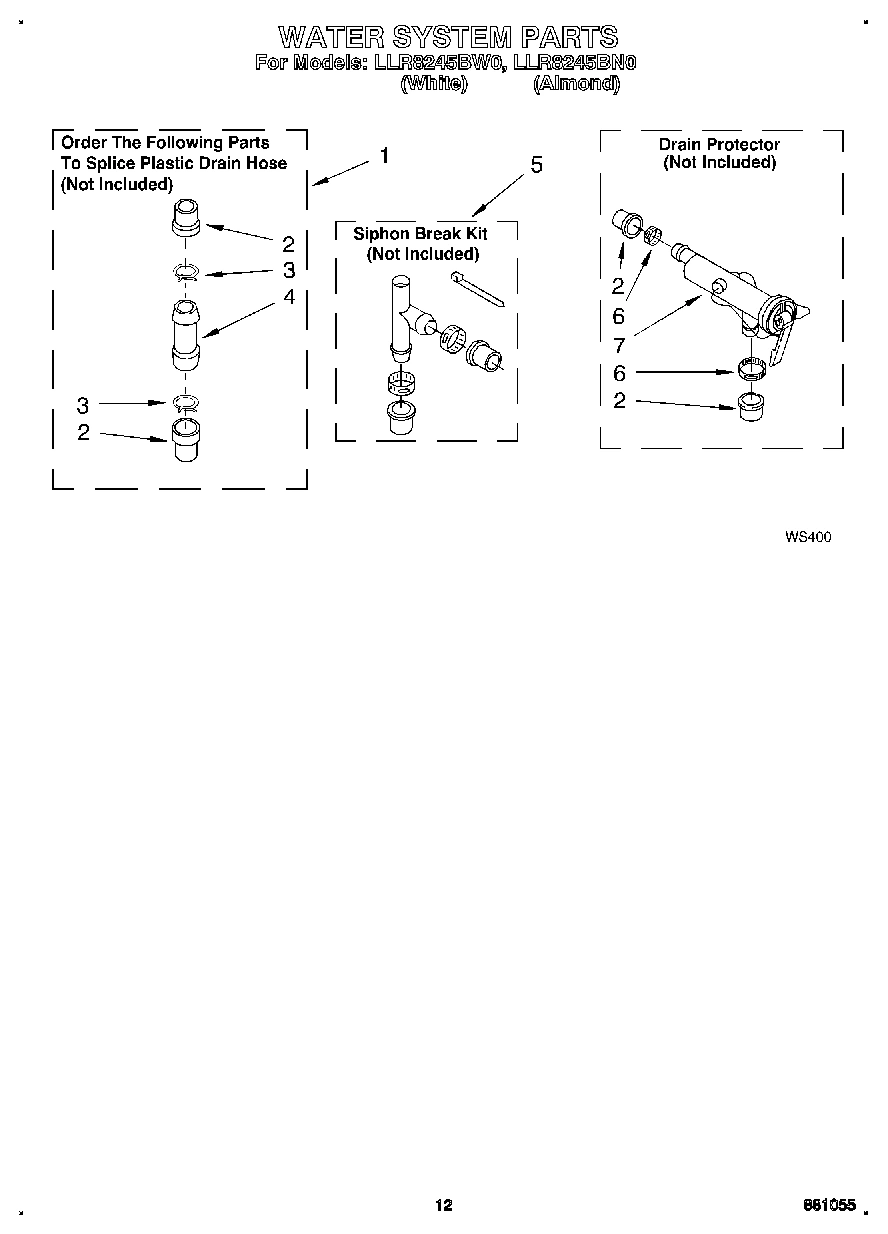

10 - WATER SYSTEM

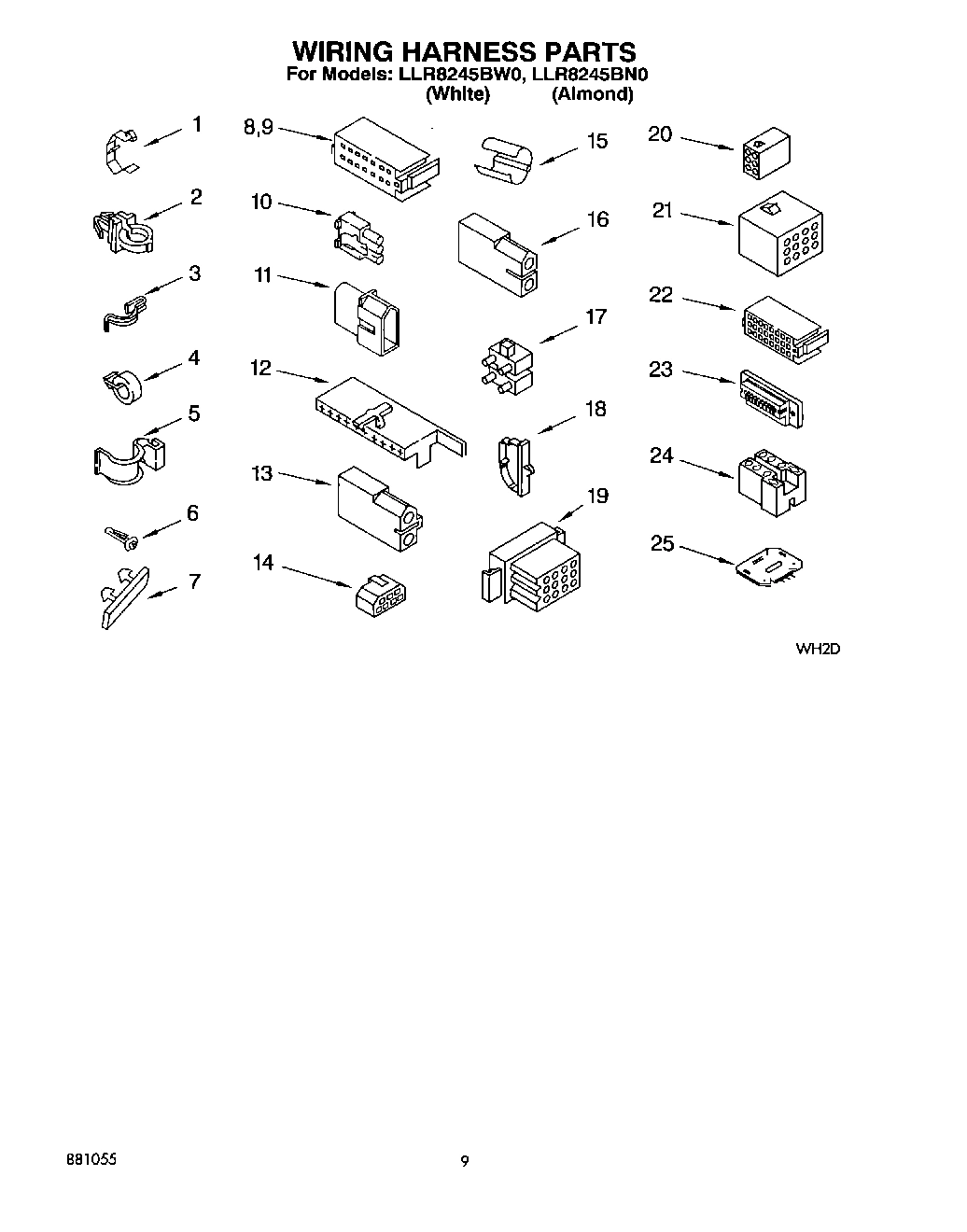

07 - WIRING HARNESS
08 - BRAKE AND DRIVE TUBE
Common parts from model Whirlpool LLR8245BW0 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Fabric Dispenser WPL 63580 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Sleeve Kit, (Contains 2 Sleeves) WPL 285321 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Siphon Break Kit (Not Included) WPL 285320 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Tub Ring & Gasket WPL 3360611 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For White Model) WPL 63424 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Basket & Balance Ring WPL 387713 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Tub WPL 63039 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Lid (For White Model) WPL 3361392 Contact Us For Availability
19
Lid (For Almond Model) WPL 3361393 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Hose, Bleach WPL 3358198 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
24
Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability
25
Agitator Assy WPL 3350829 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
× ![]()
